02-22-2012: 2.5 hrs

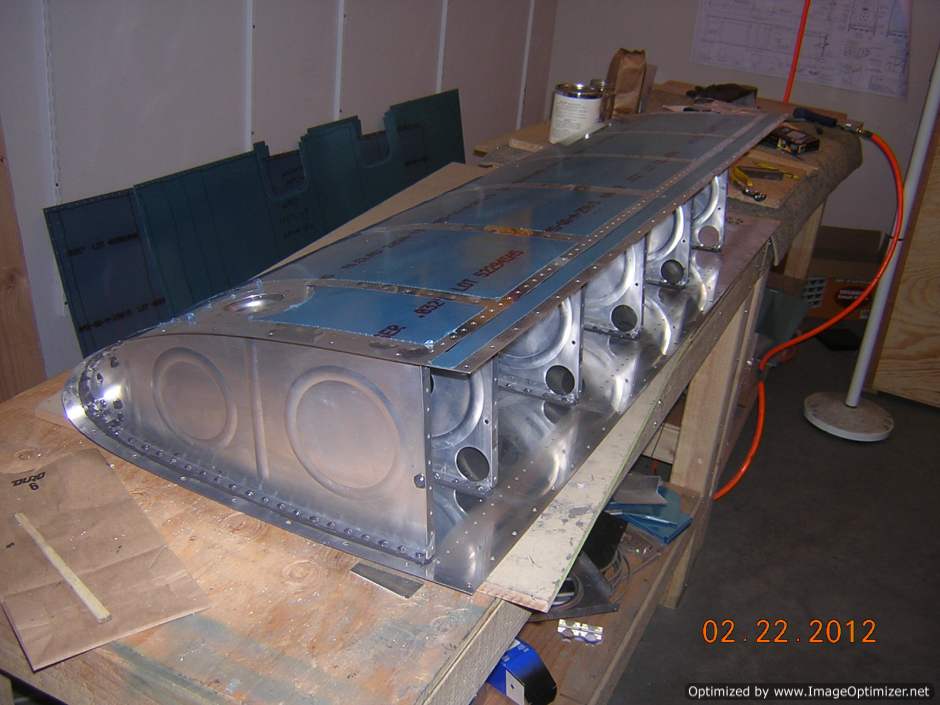

Outboard rib riveted and sealed

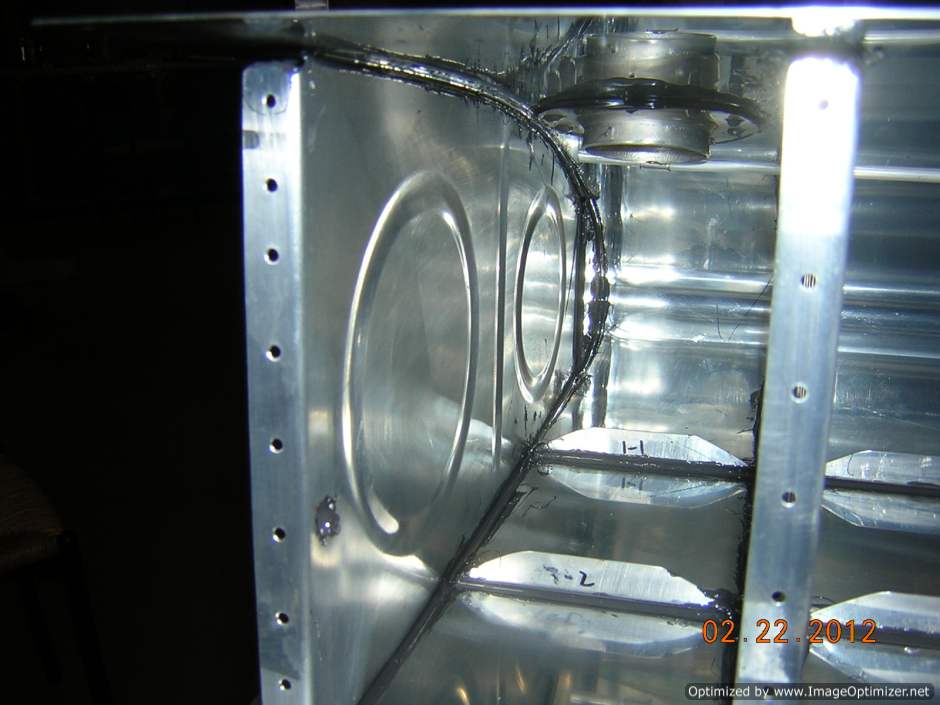

Vent line is fabricated

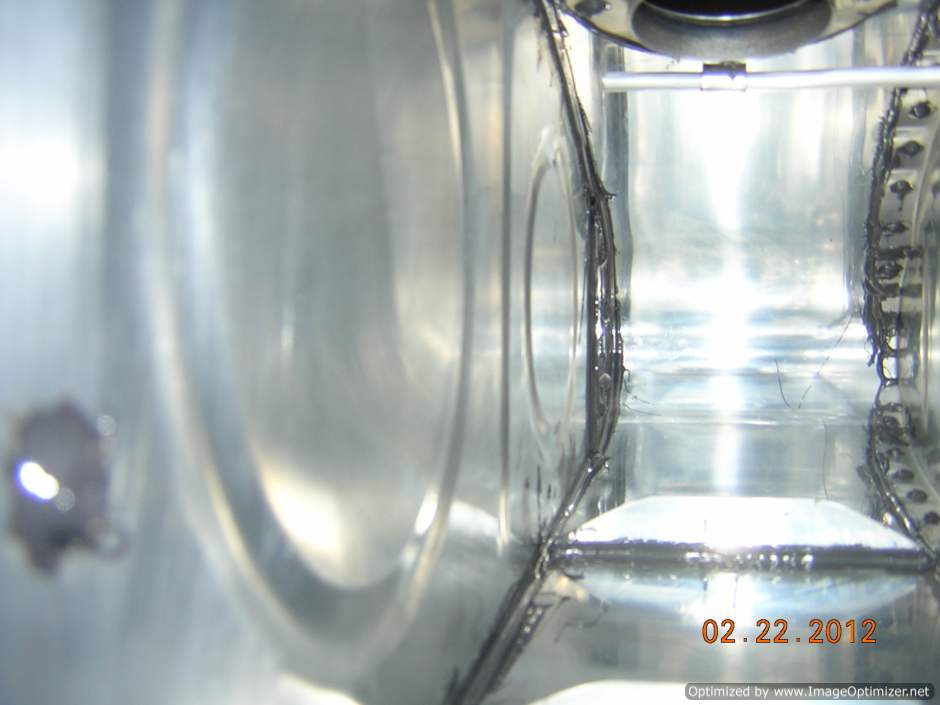

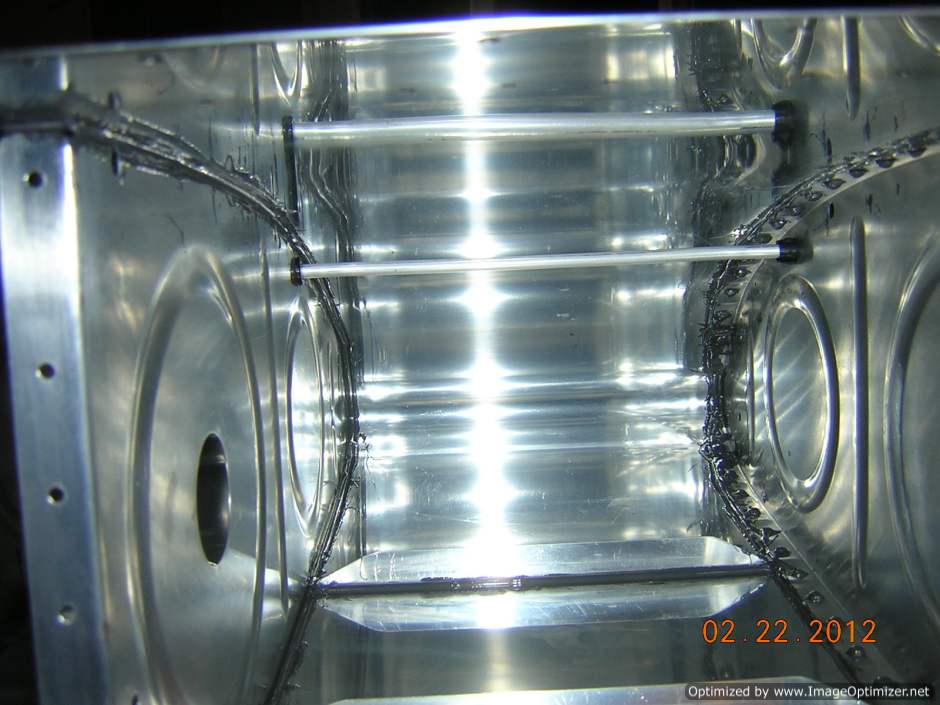

Vent line

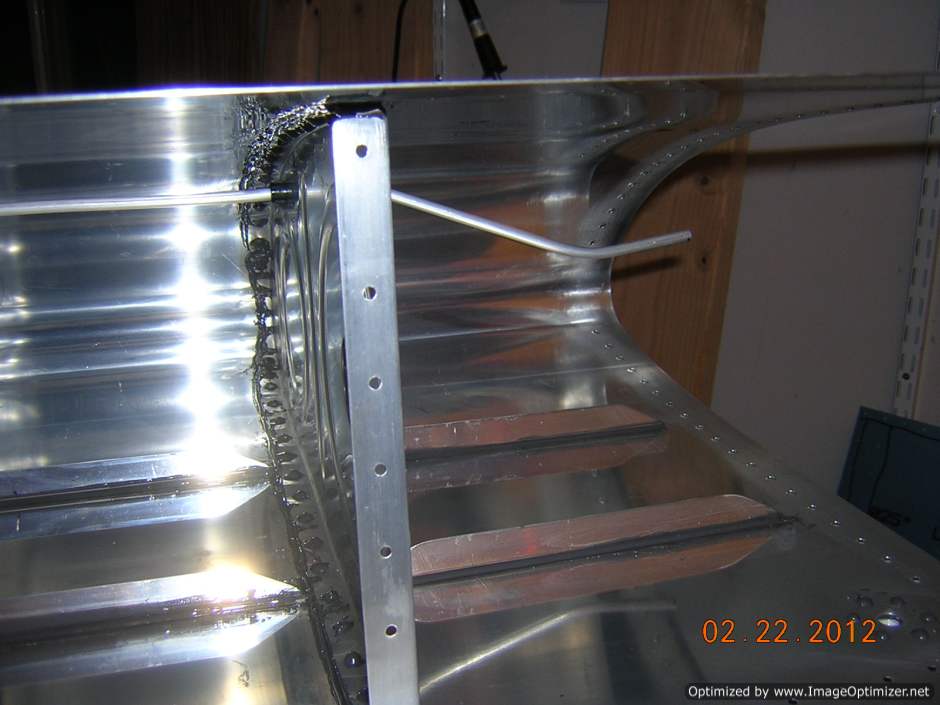

Vent line crossing the fuel cap support

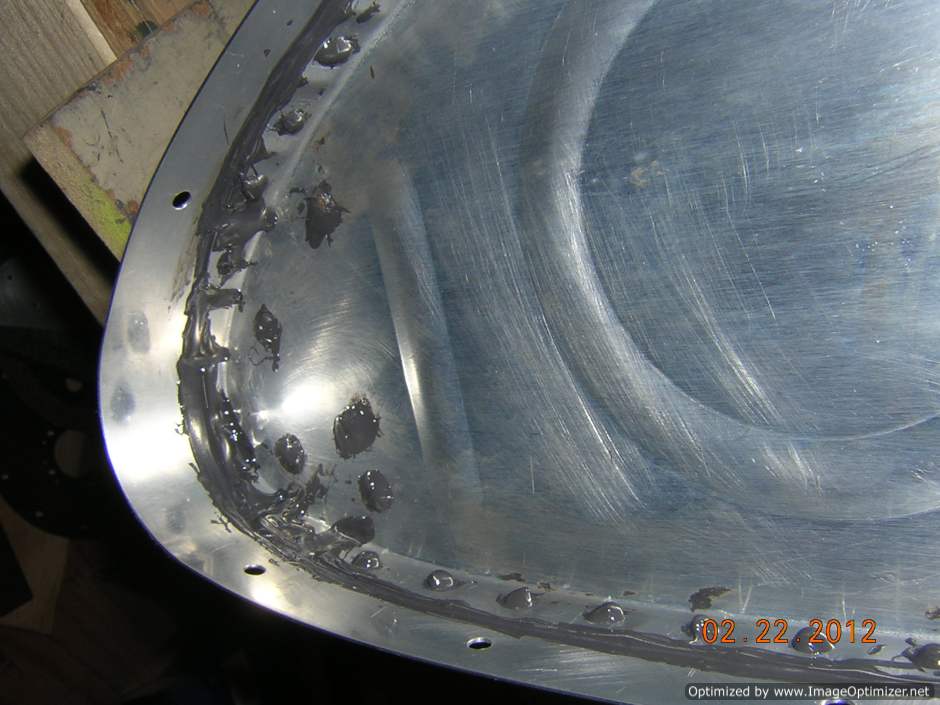

Outboard rib rivets are sealed with sealant

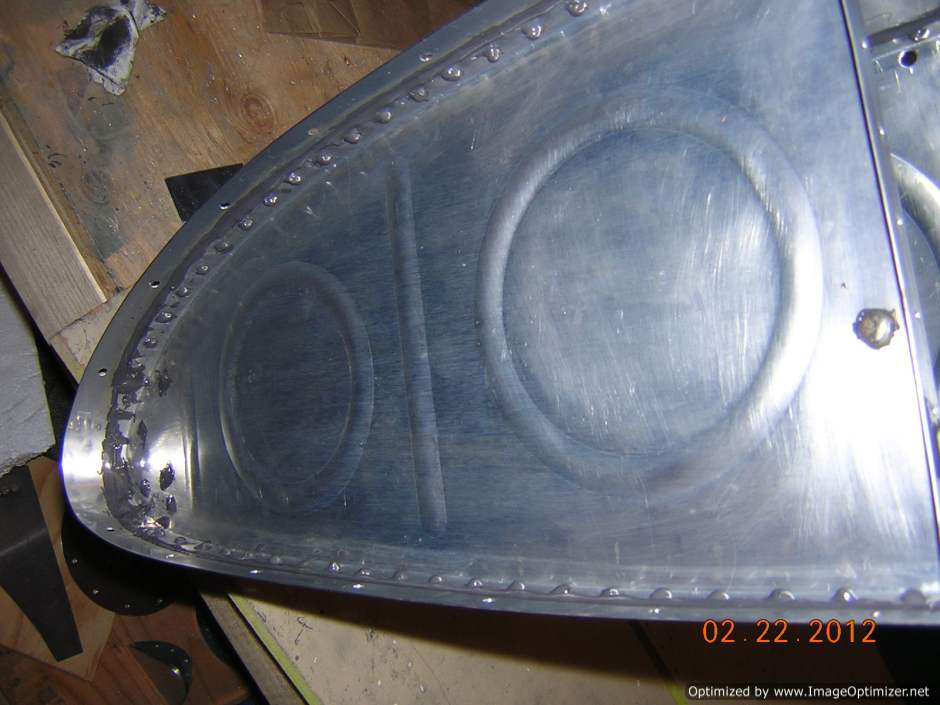

Leading edge of the outboard rib is sealed

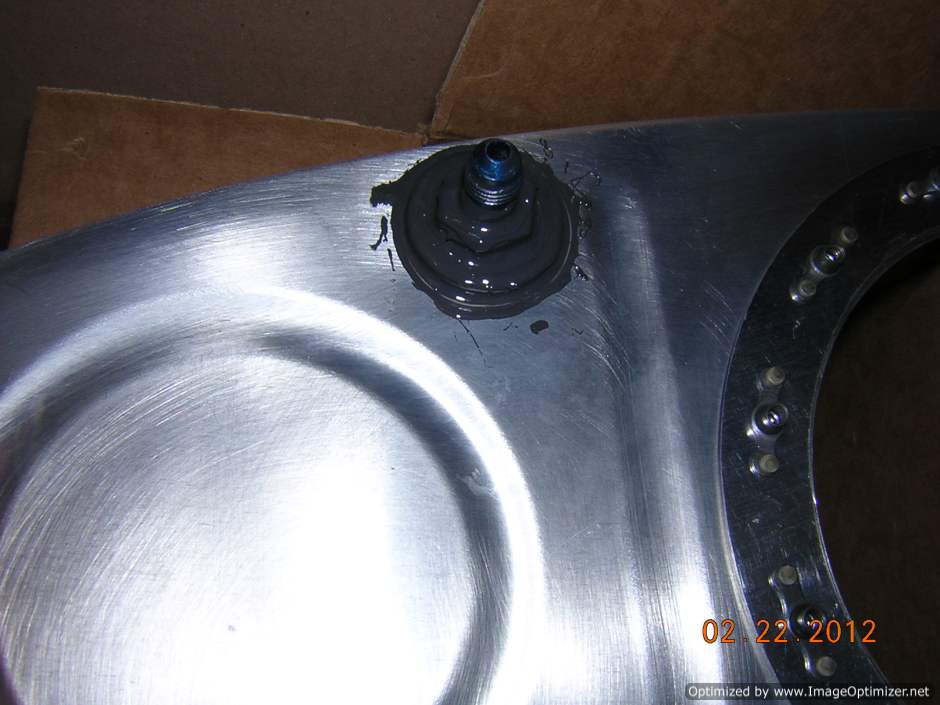

Vent line fitting is sealed on the inboard rib

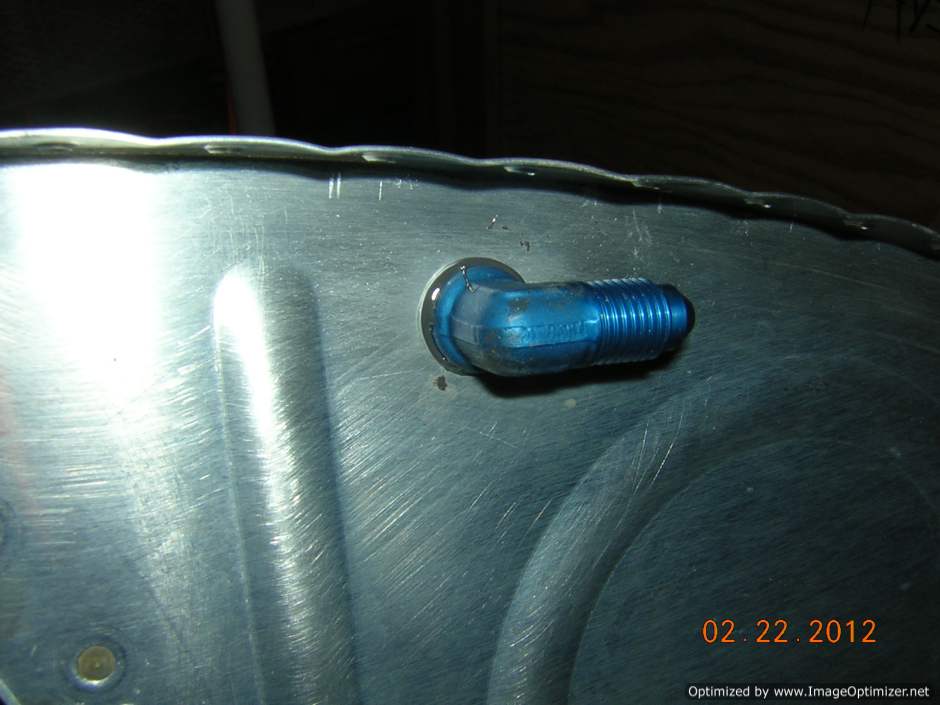

Vent line fitting on the inboard rib
Only inboard rib needs to be riveted. But I have to order the vent line fitting sleeve. After that, I need to install the sleeve on the vent line before riveting the inboard rib, otherwise, the sleeve will be difficult to install.
