05-01-2011: 6.5 hrs

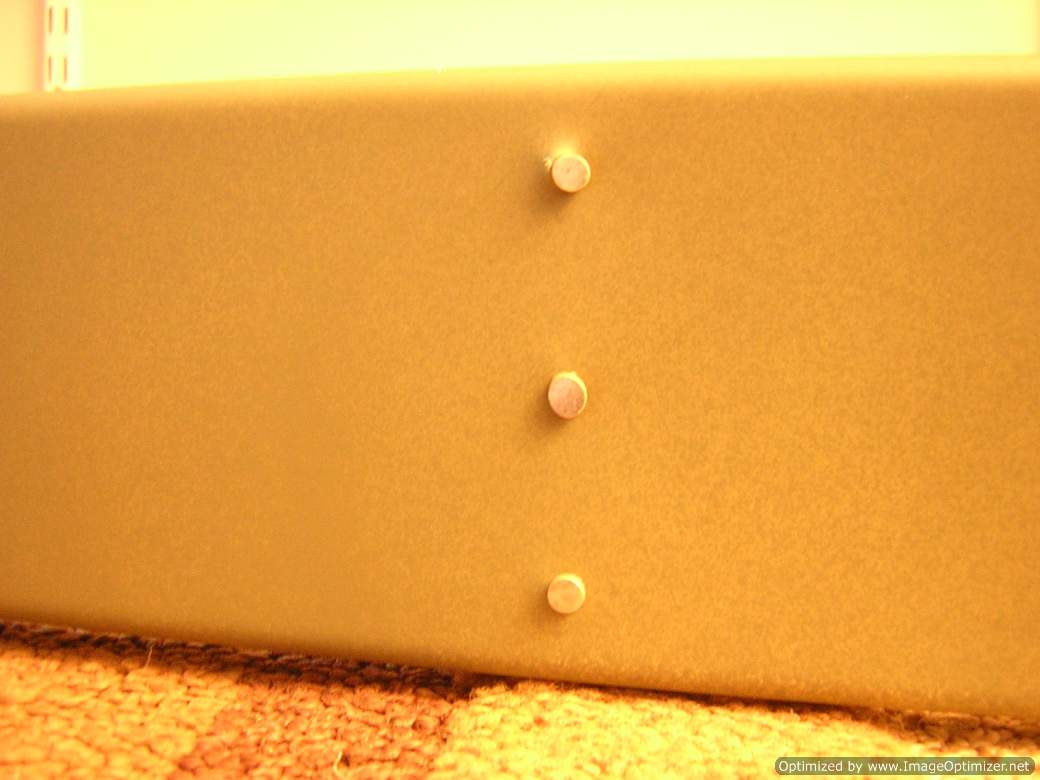

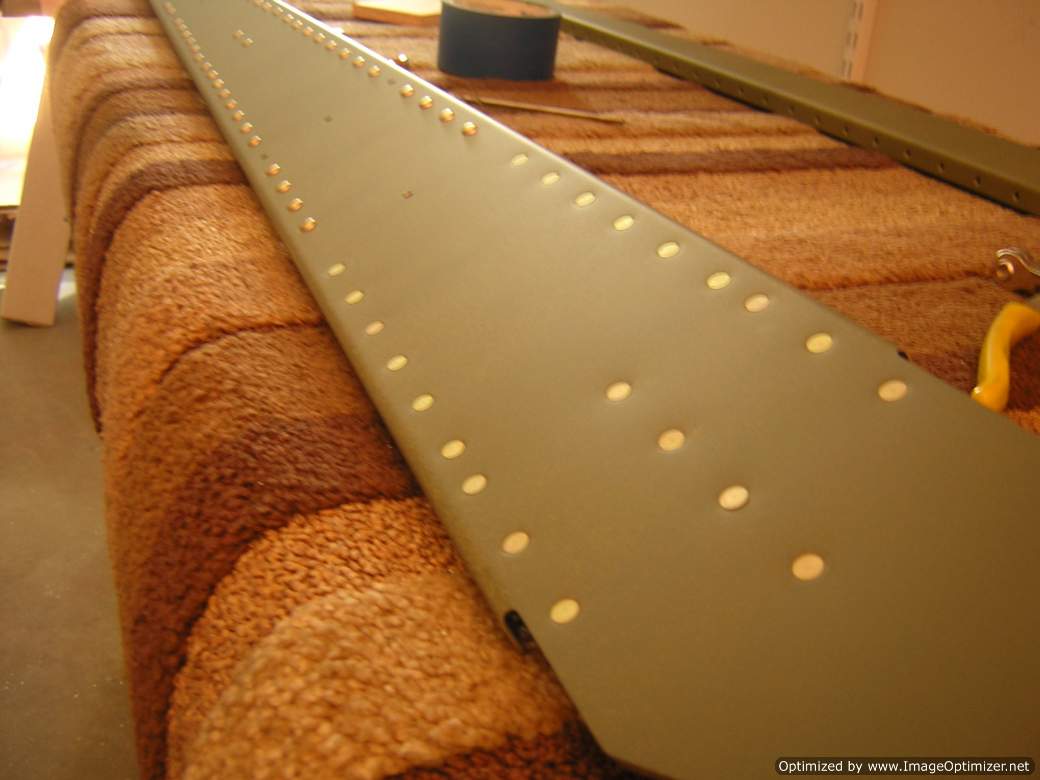

Rear spar of VS is riveted, bottom portion has flush rivets

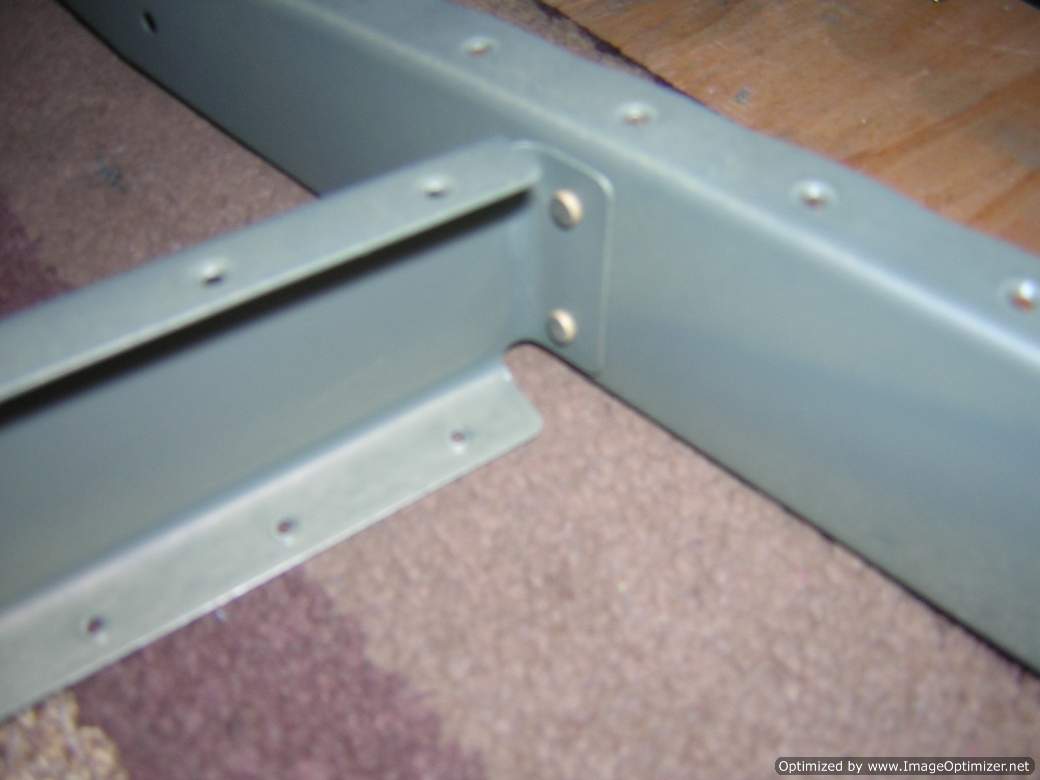

Rib to front spar of VS rivets

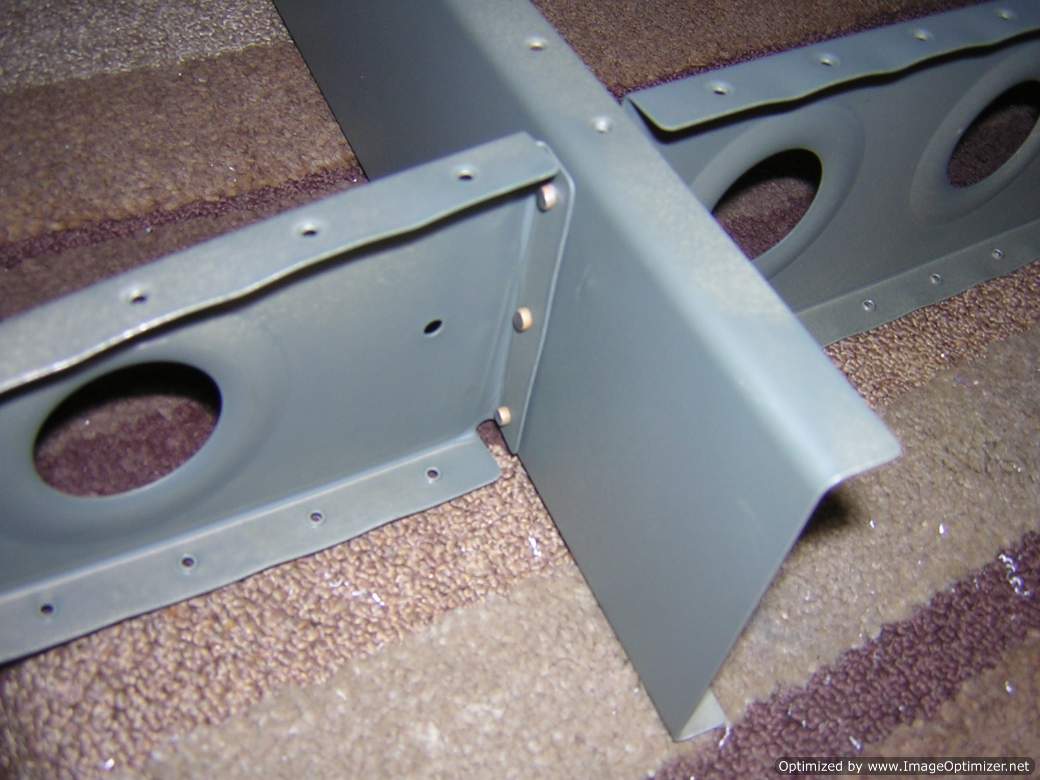

Top rib to front spar of VS


Bottom rib to front spar of VS

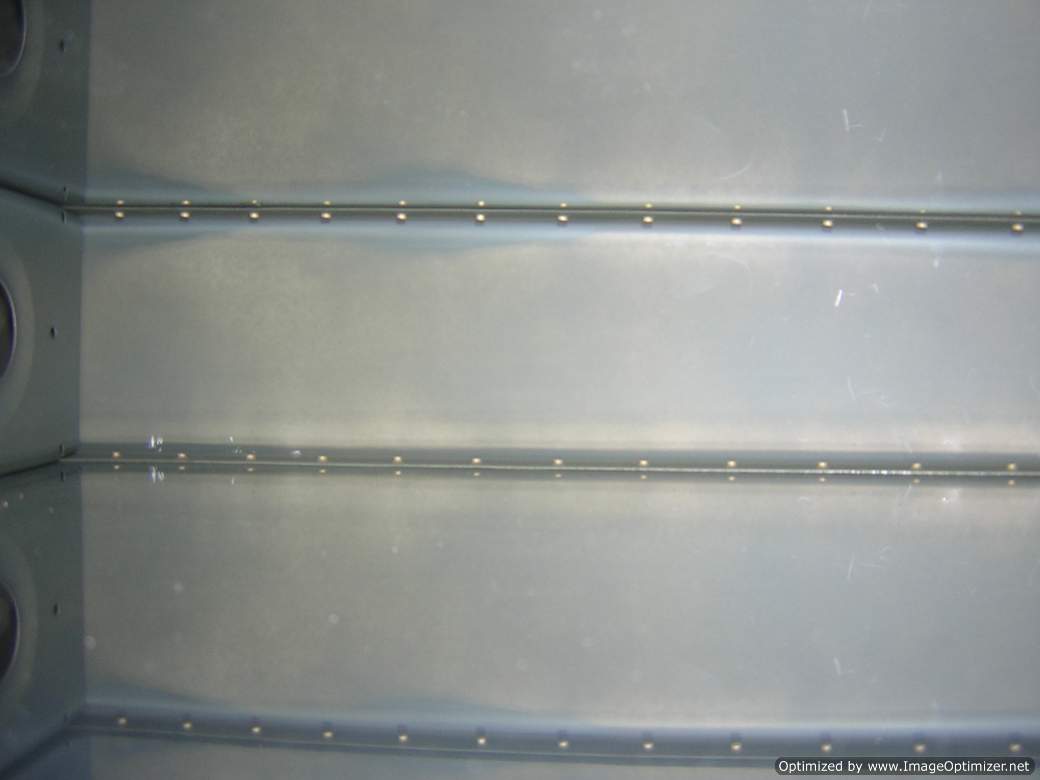

Skin to front spar of VS


Skin to bottom rib of VS

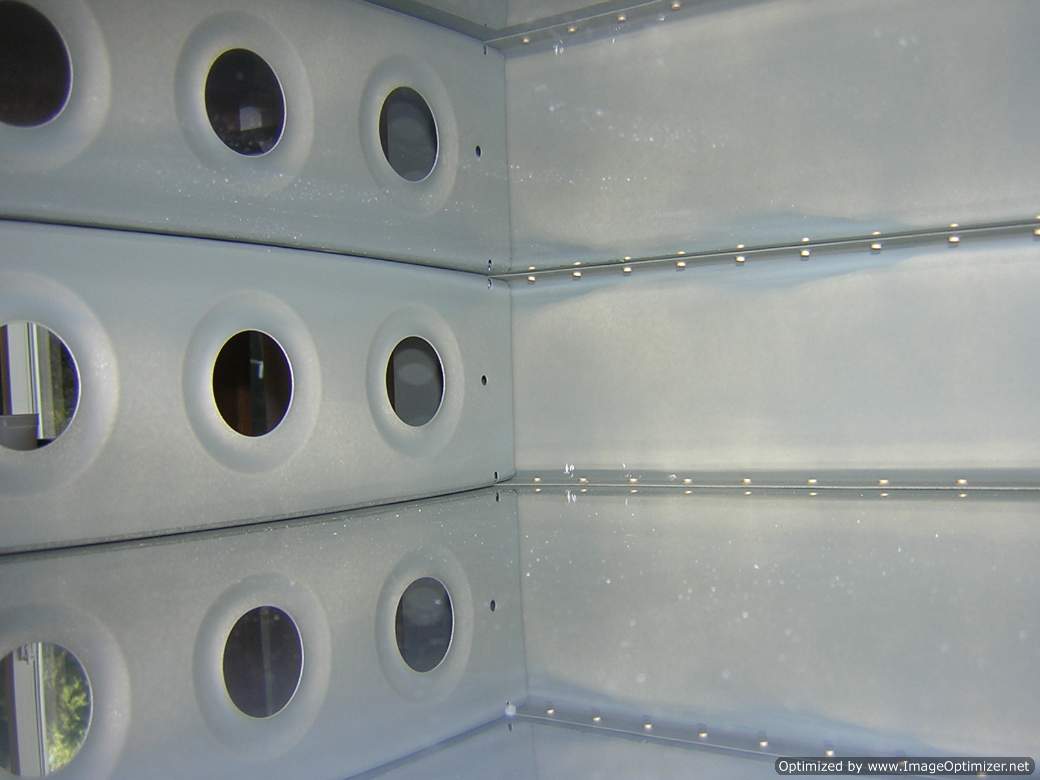

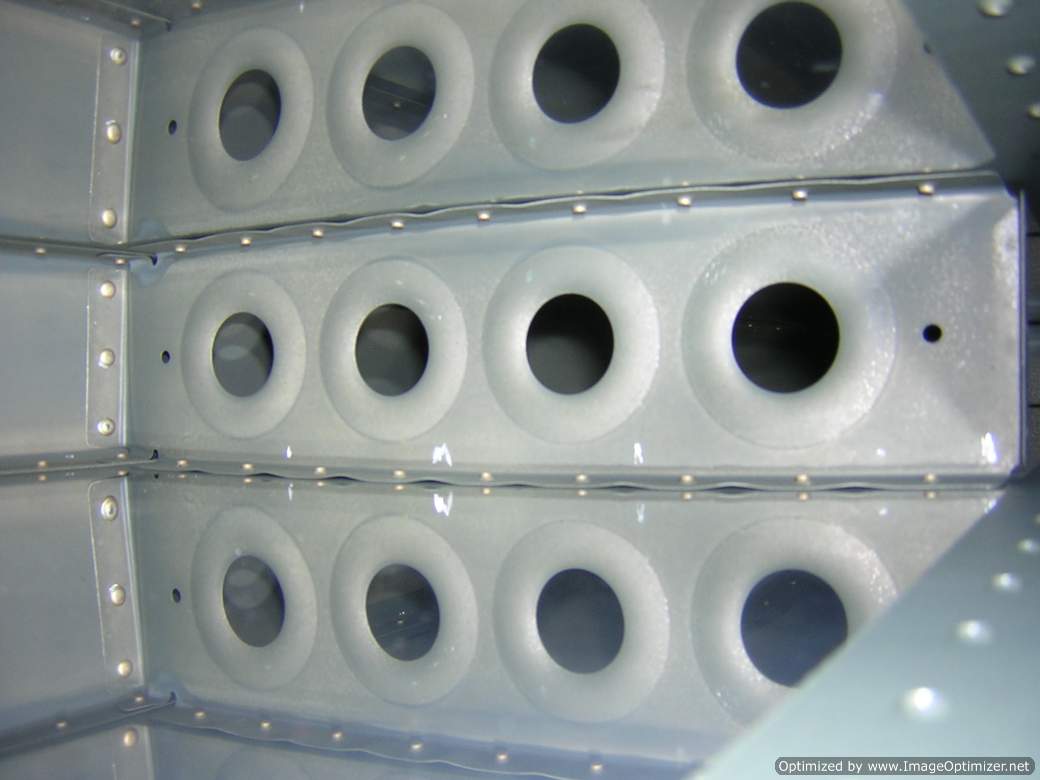

More skin to rib and front spar of VS rivets


Vertical stabilizer complete

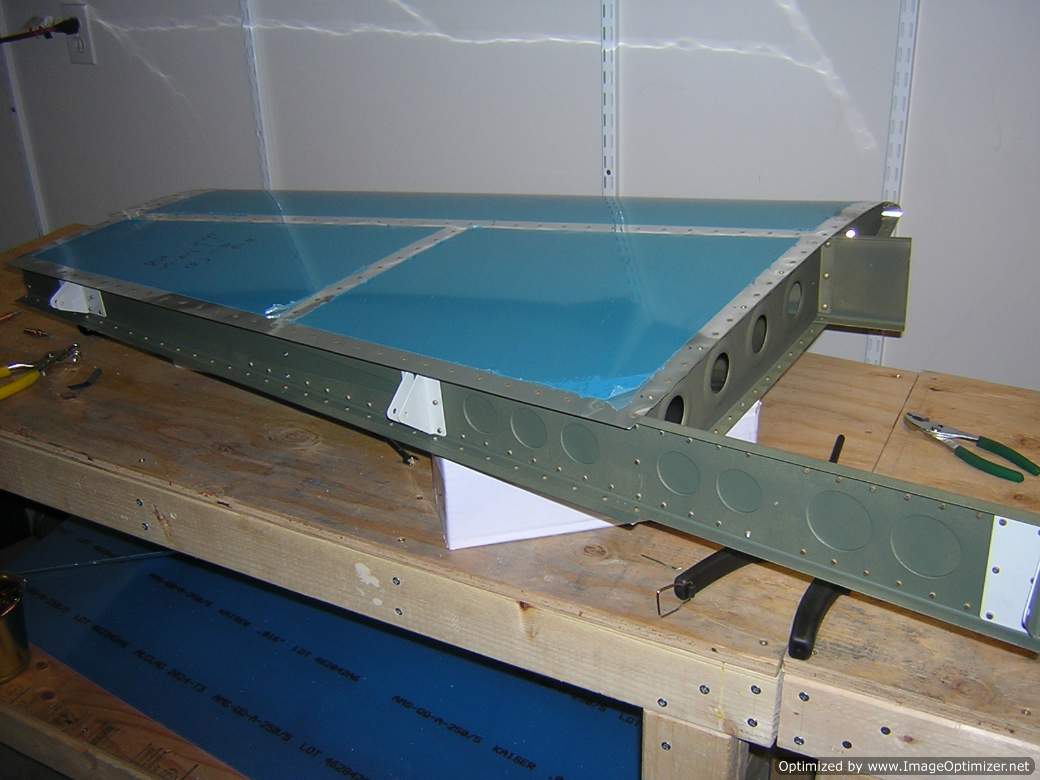

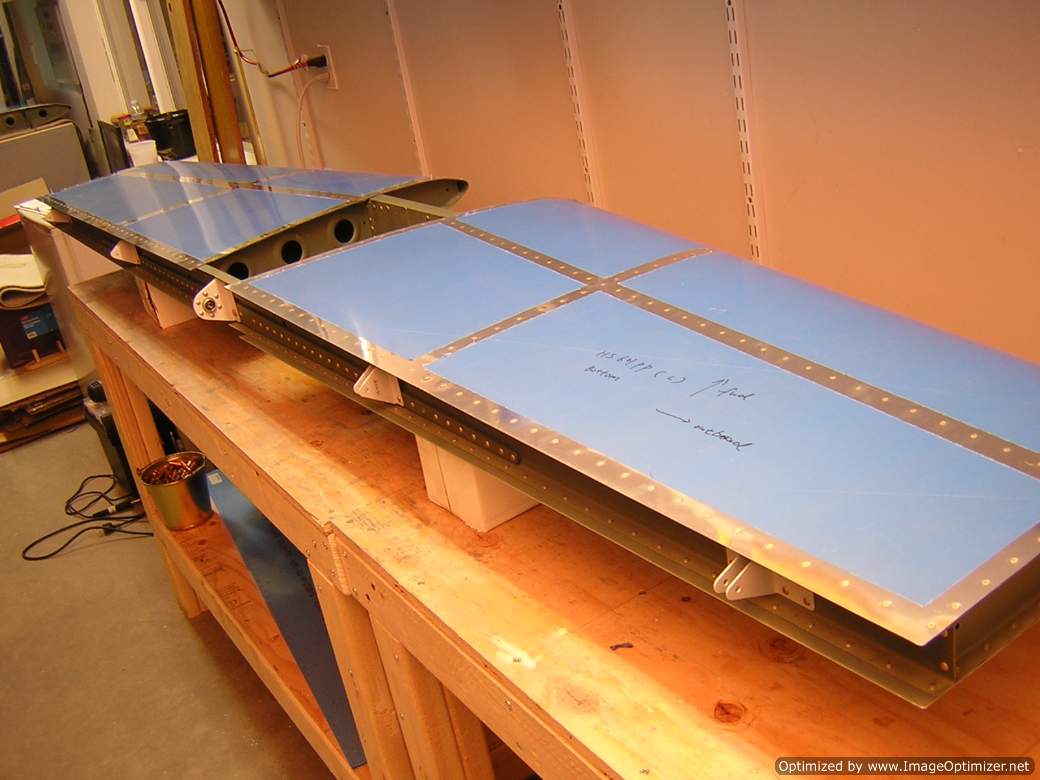

Rear spar of Horizontal stab and end ribs are riveted, HS is complete (minus the fiber glass tip, will be installed after elevators are done)
