05-07-2011: 4hrs

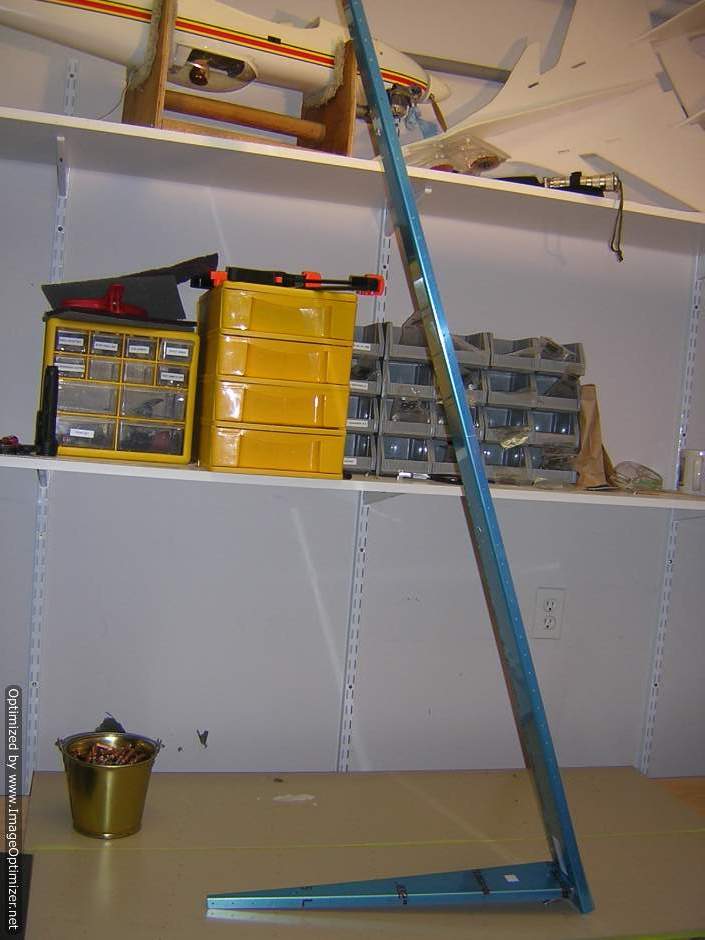

Left side rudder skin and stiffeners are deburred, dimpled, primed and riveted together. Started on working on rudder skeleton.
Showing typical rudder skin to stiffener rivet

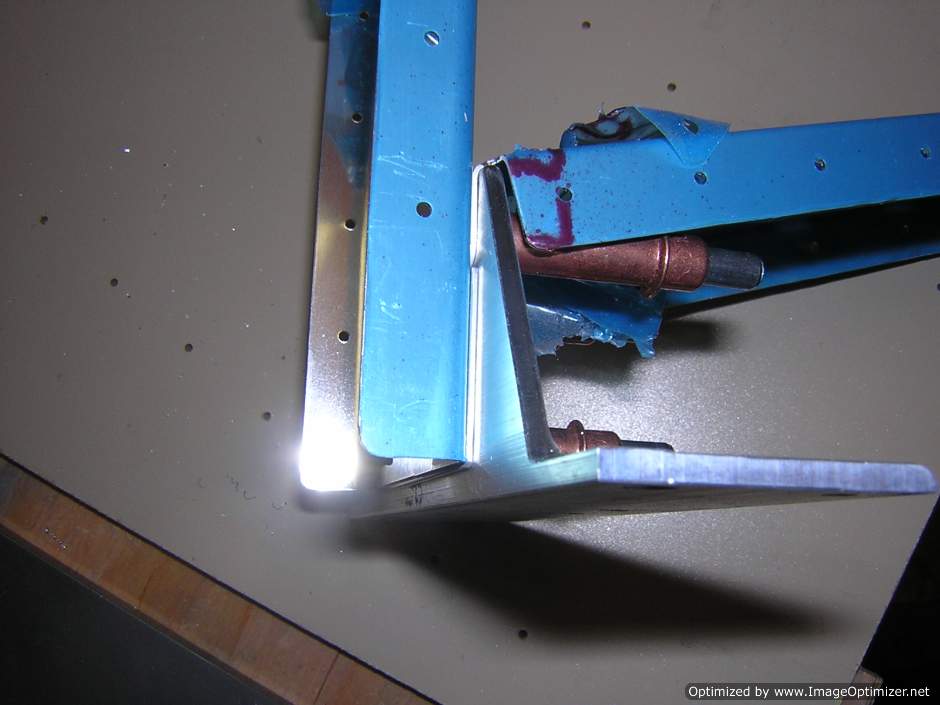

Bottom rib and rudder spar are clecoed

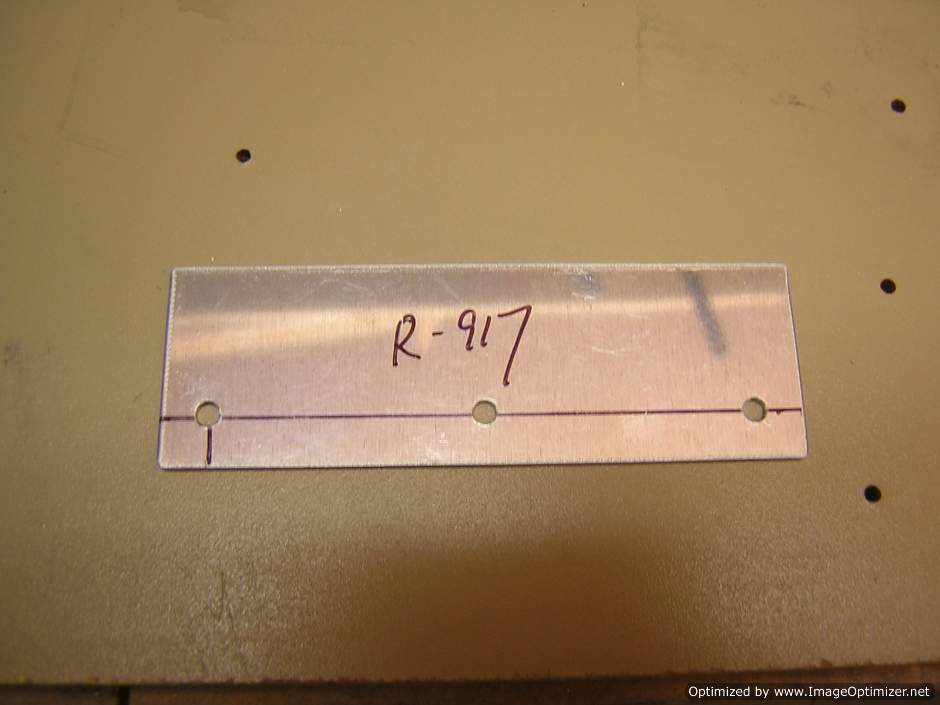

Shim R-917 is fabricated

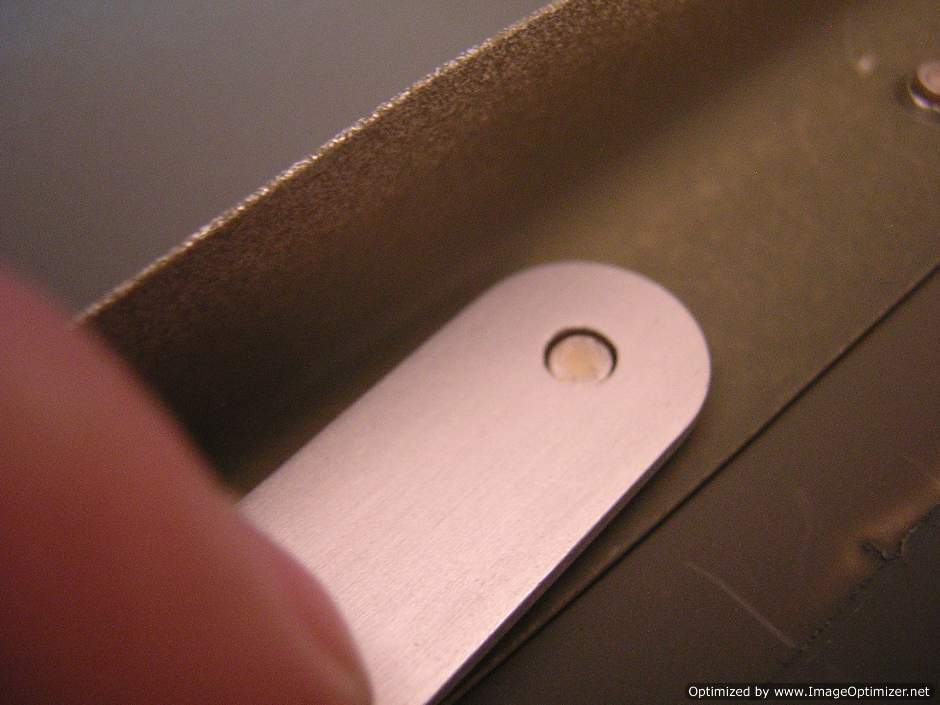

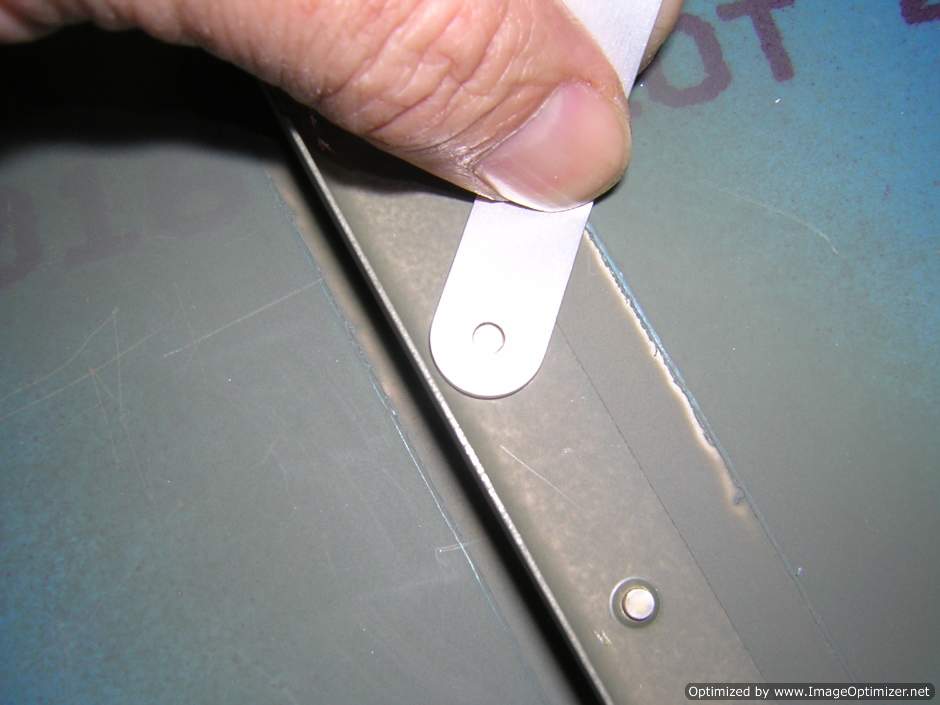

Shim is fitted in place between the rudder horn and rudder spar
