05-21-2011: 4 hrs
-Made a wooden breaker, bought 2x8x10 and cut to two 4-footer, with 4 door hinges-Final bend the right elevator skin
-Preped right tip rib and counter balance rib, final drilled them to spar
-Drilled holes on counter balance weight, need to determine how much to trim after the whole elevator is done
- Final drilled rudder skin to skeleton

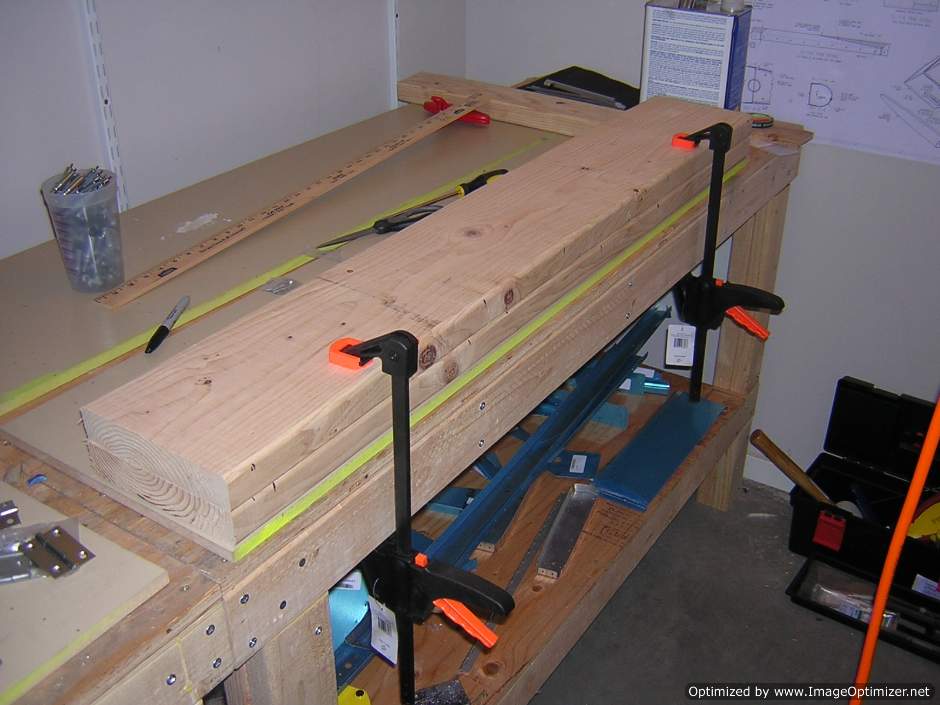

Starting building a sheet metal breaker

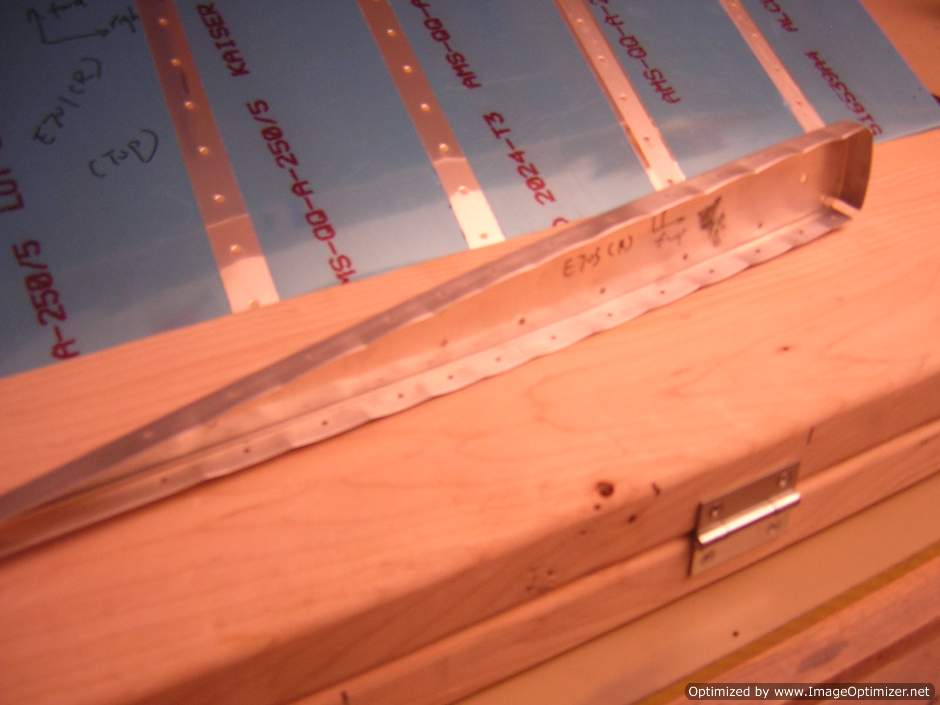

A fluted right elevator tip rib sitting on top of the wooden breaker

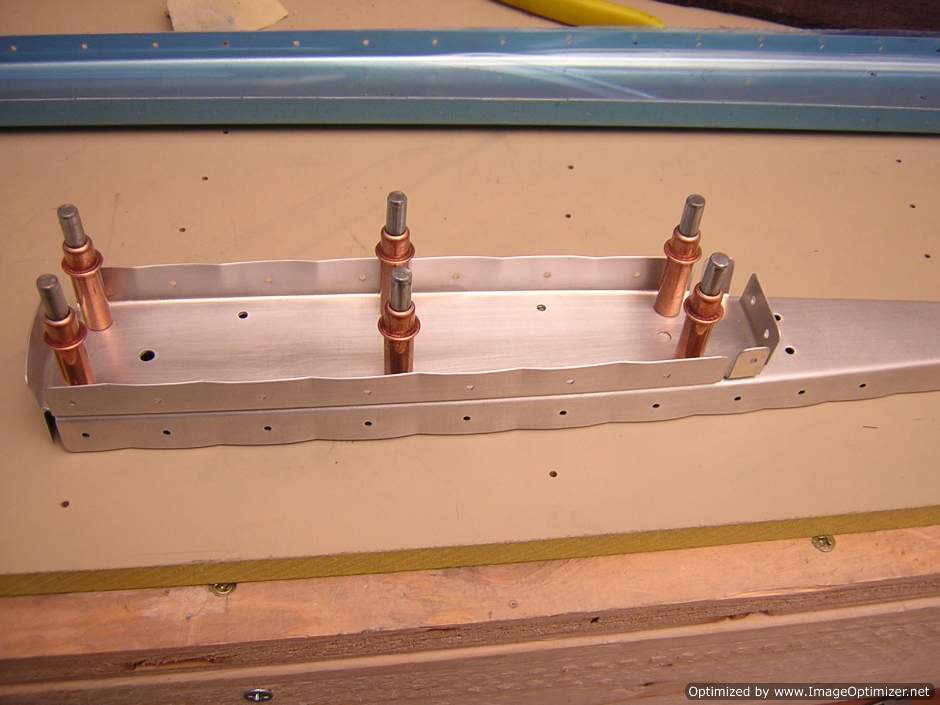

Tip rib and counter balance rib are clecoed and final drilled

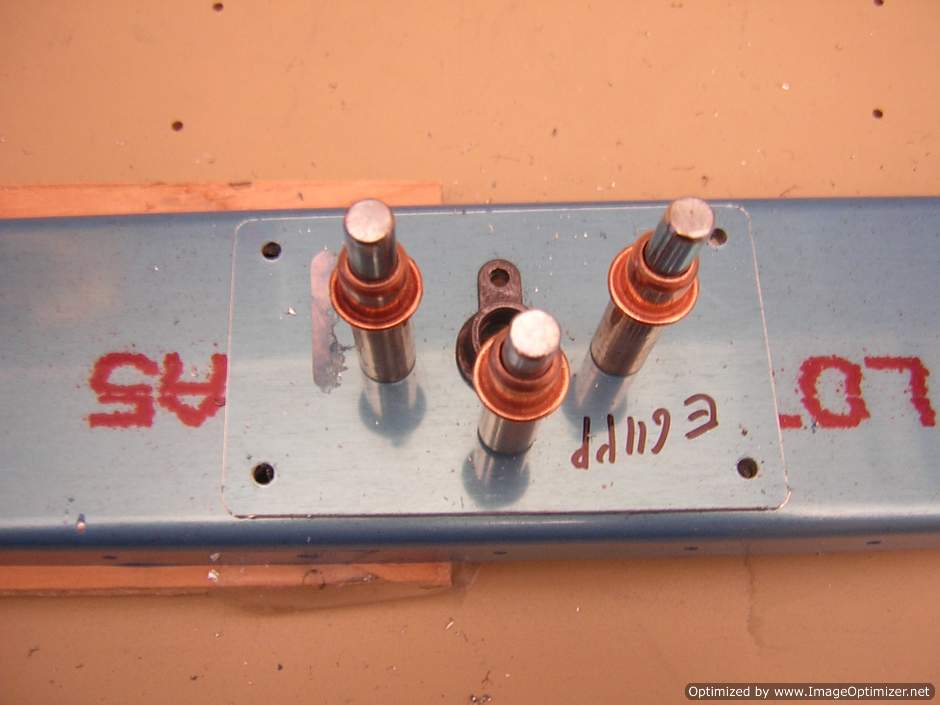

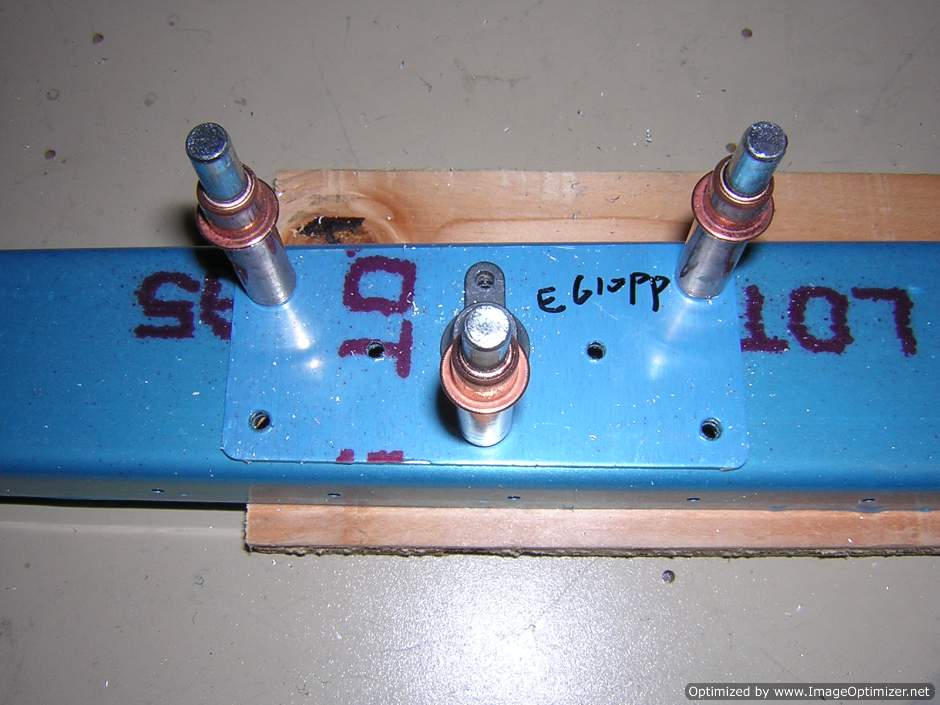

Refinorcement plate is clecoed to right elevator spar and final drilled
Refinorcement plate is clecoed to right elevator spar and final drilled

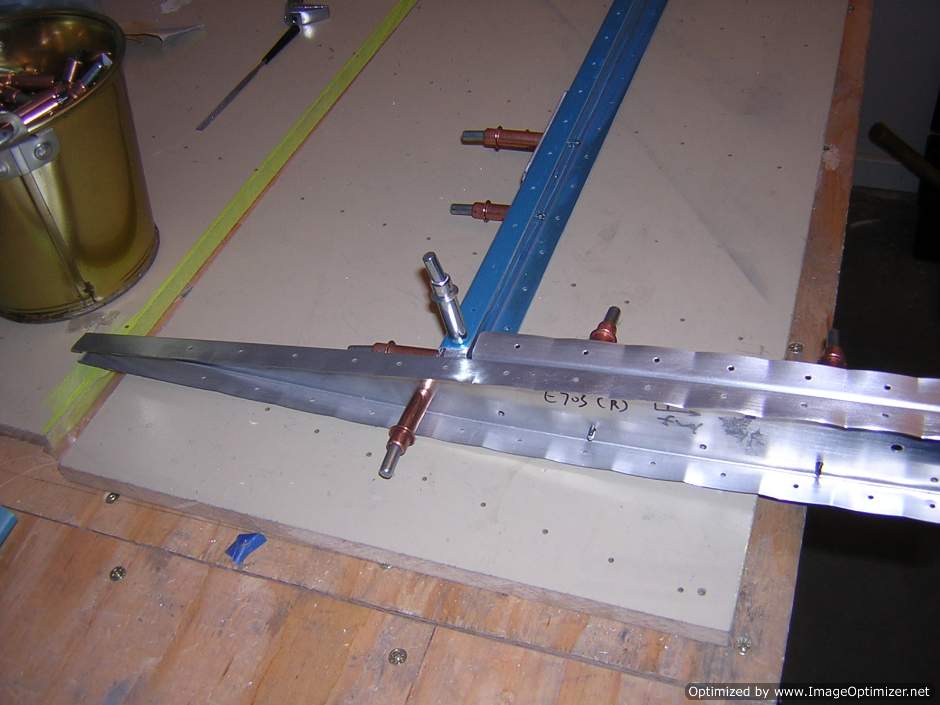

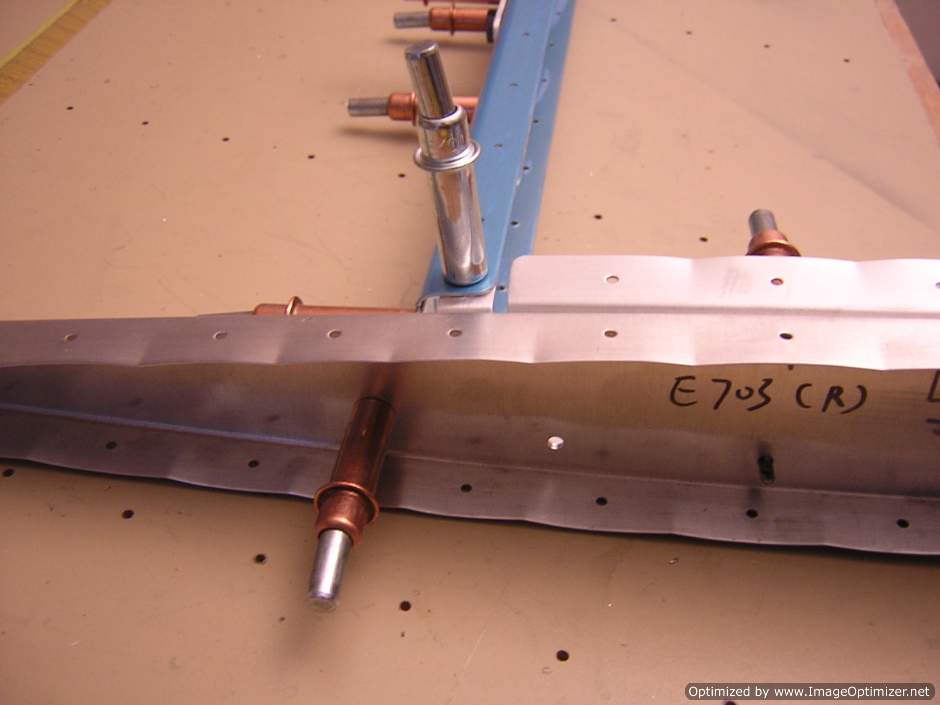

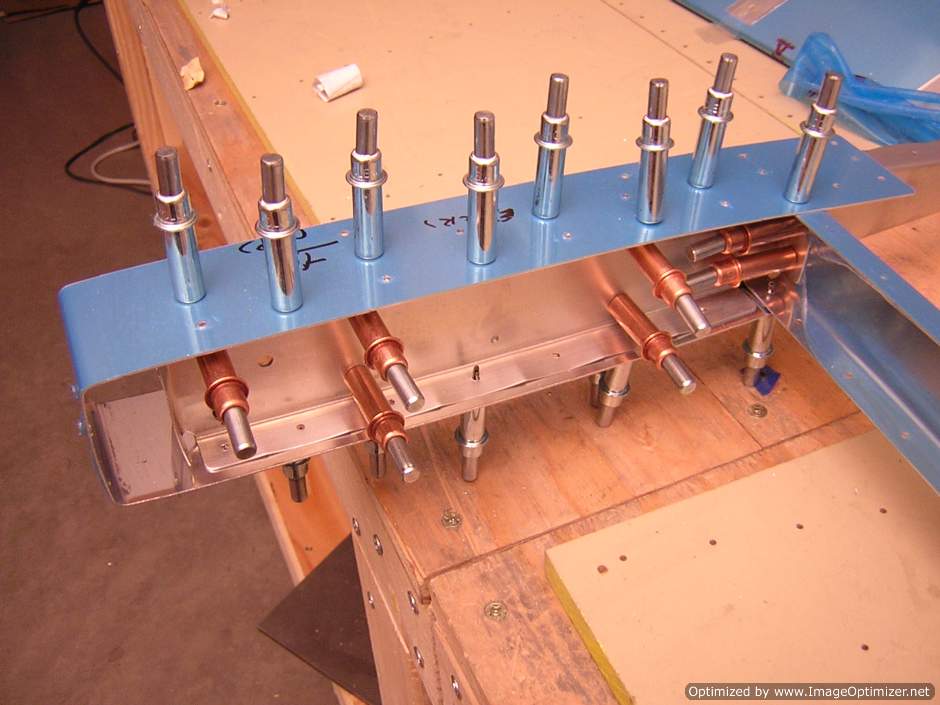

Tip rib and counter balance rib are clecoed to spar
Tip rib and counter balance rib are clecoed to spar

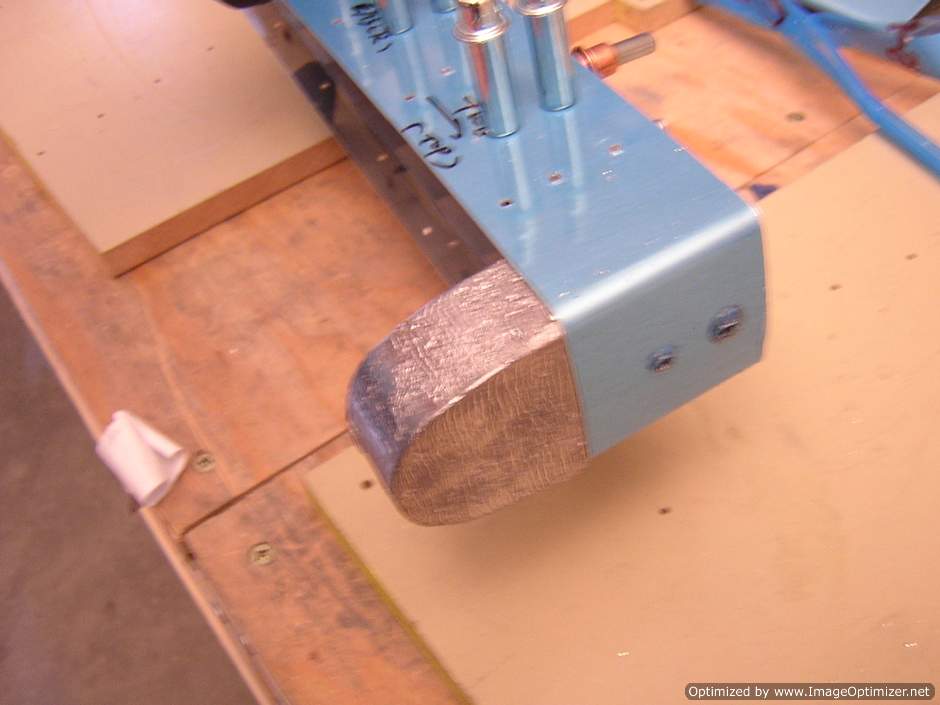

Counter balance skin and weight are fitted in

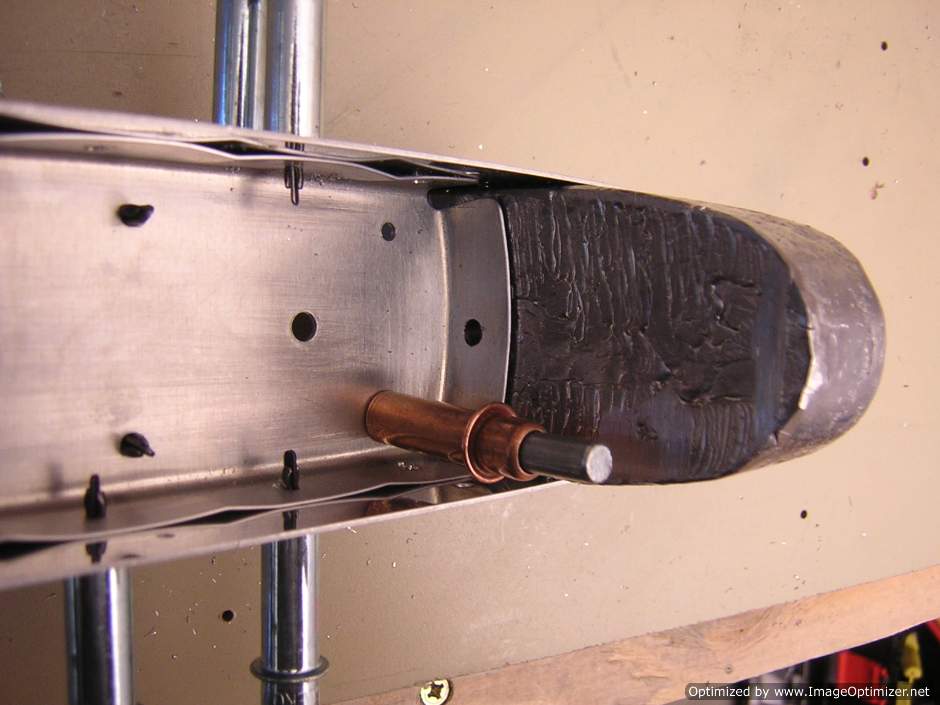

Counter balance weight is drilled to the front flange of the tip rib and C.B rib

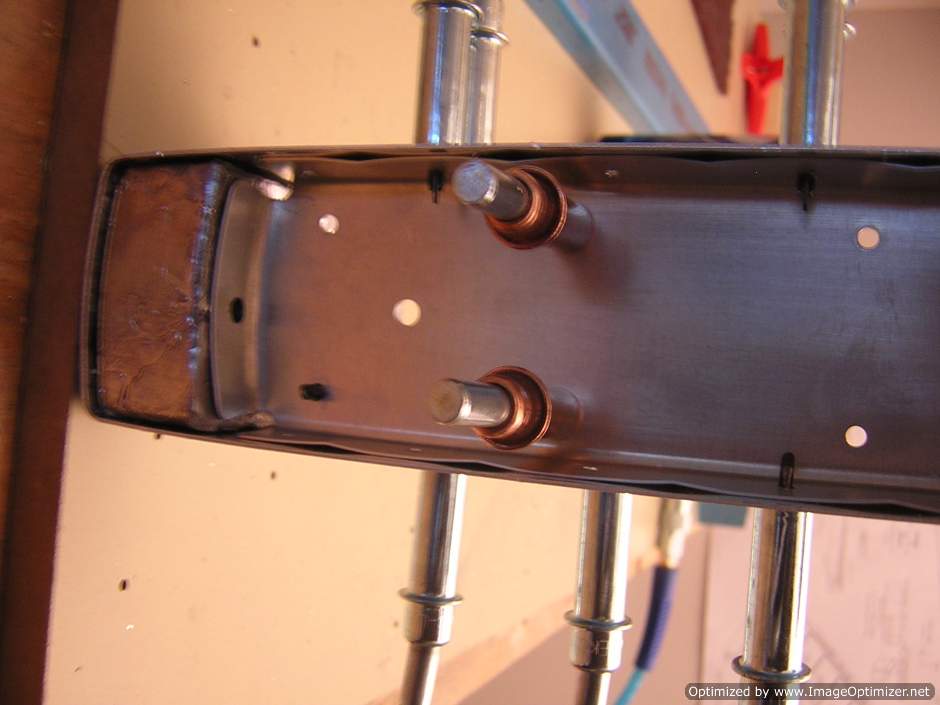

Counter balance weight removed after drilling

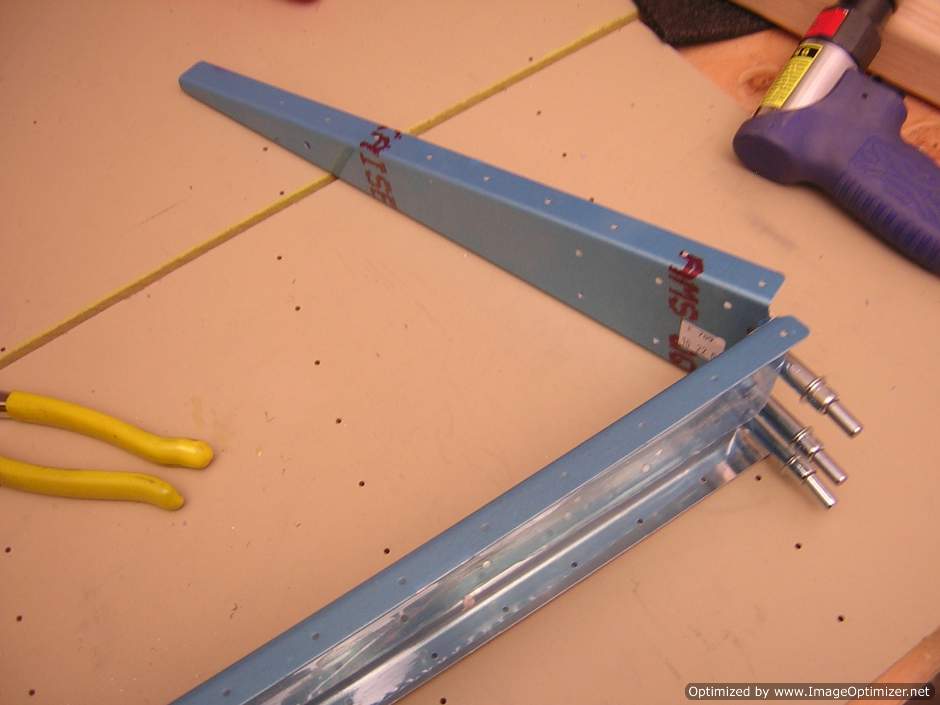

Right elevator root rib is clecoed on

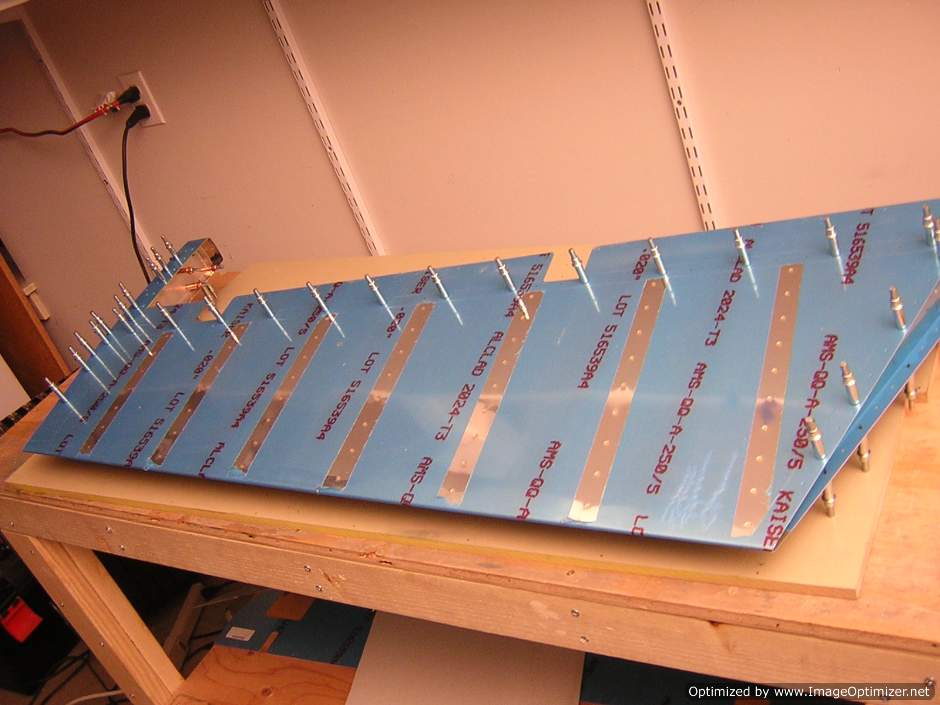

Right elevator skin is clecoed on

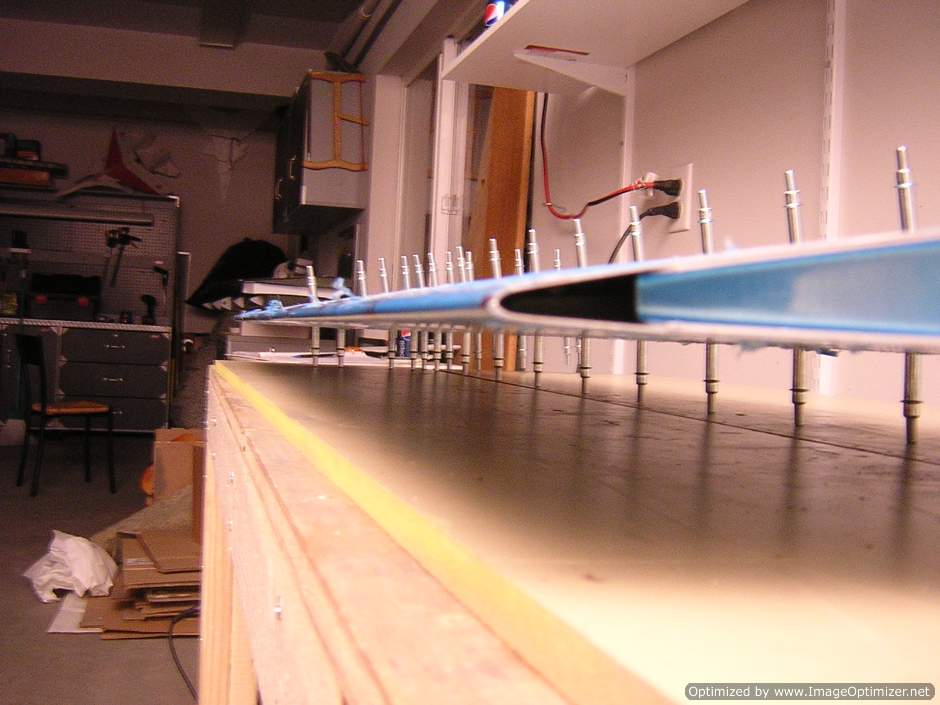

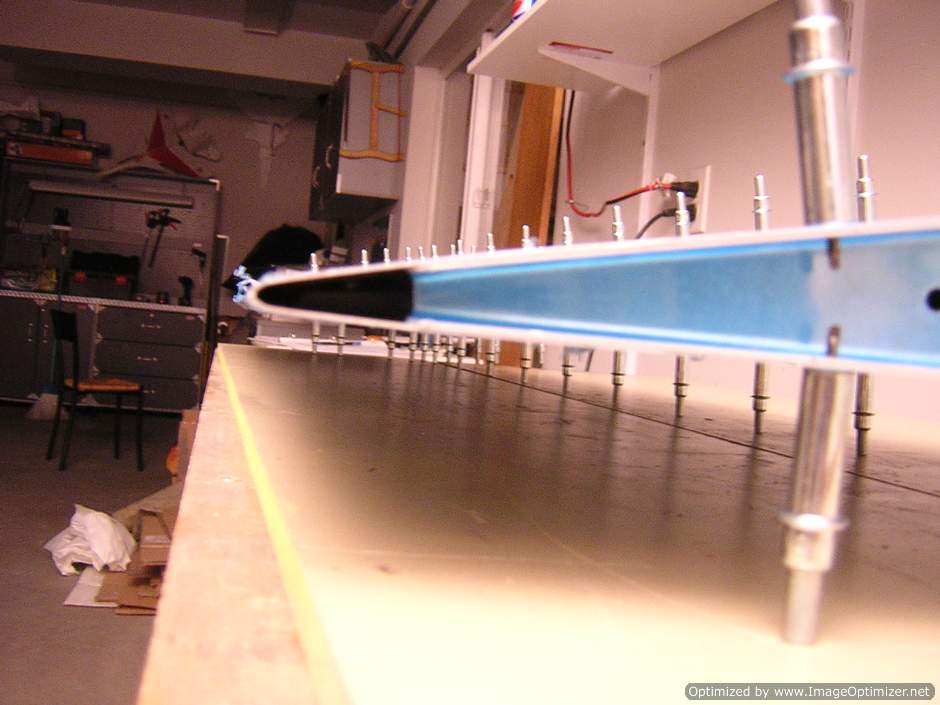

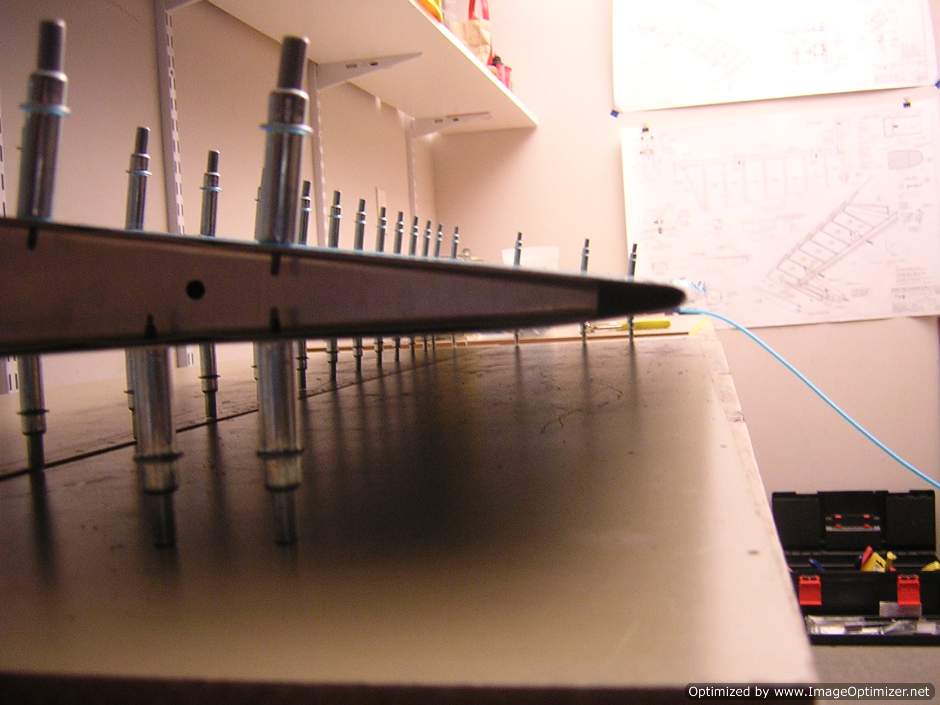

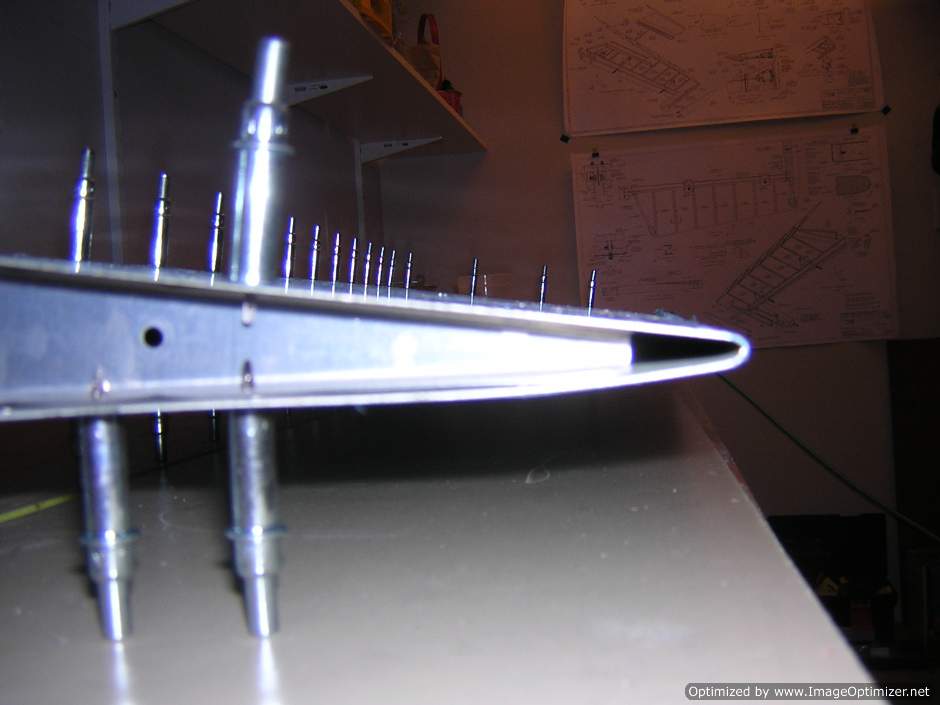

Folded trailing edge of right elevator
Folded trailing edge of right elevator
Folded trailing edge of right elevator
Folded trailing edge of right elevator

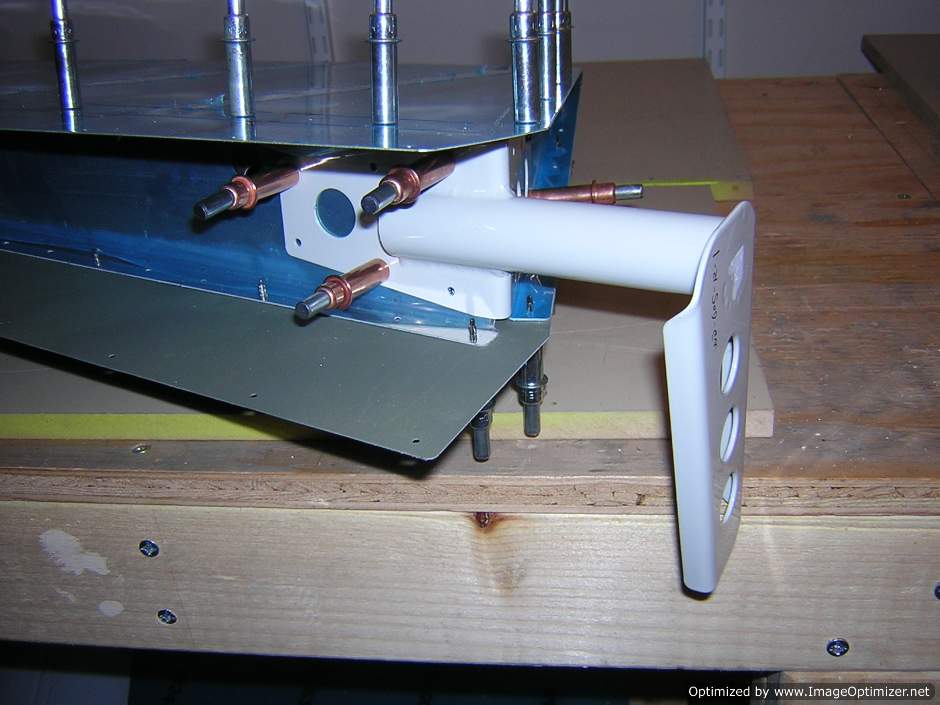

Right elevator horn is clecoed on

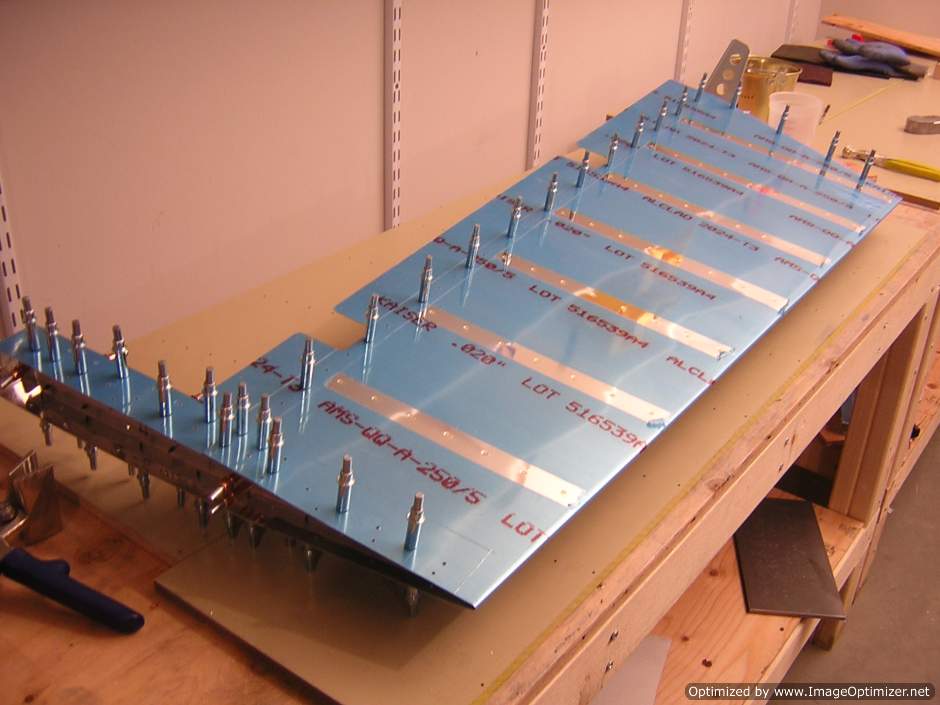

Everything for right elevator is final drilled, need to disassemble and dimple, prime for final riveting
