05-25-2011: 2.5 hrs
The last two holes of the tip rib are riveted using chisel as buckling bar, looks ok

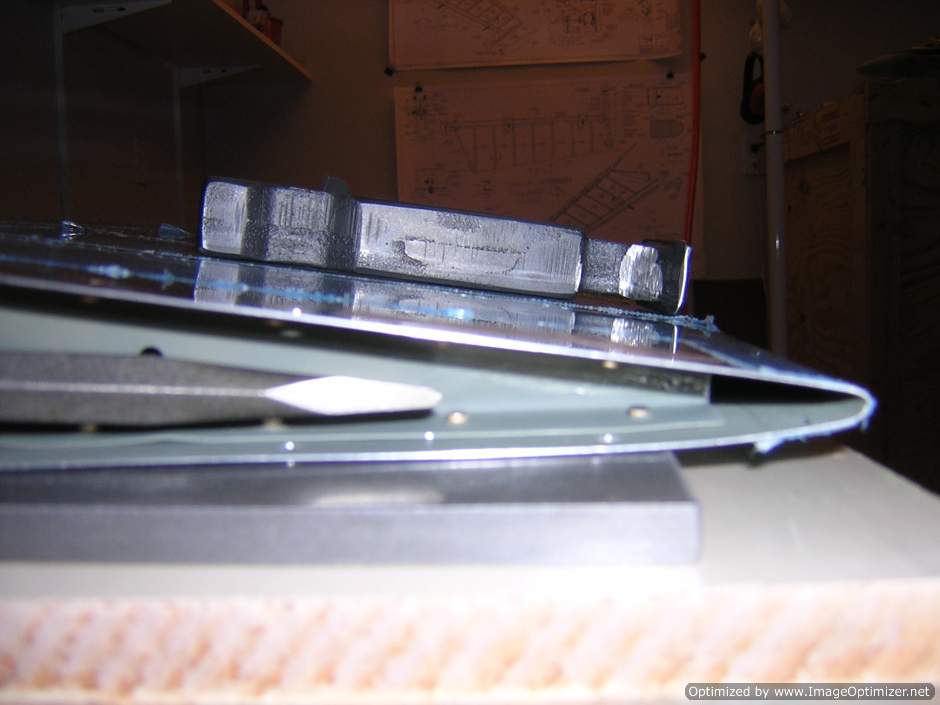

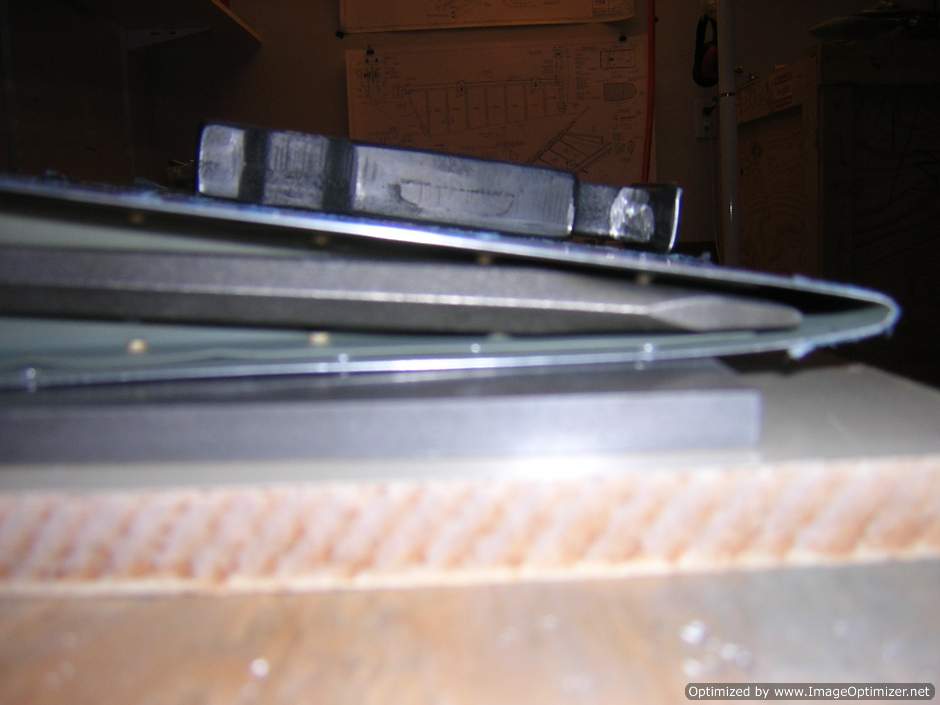

Chisel in bucking position

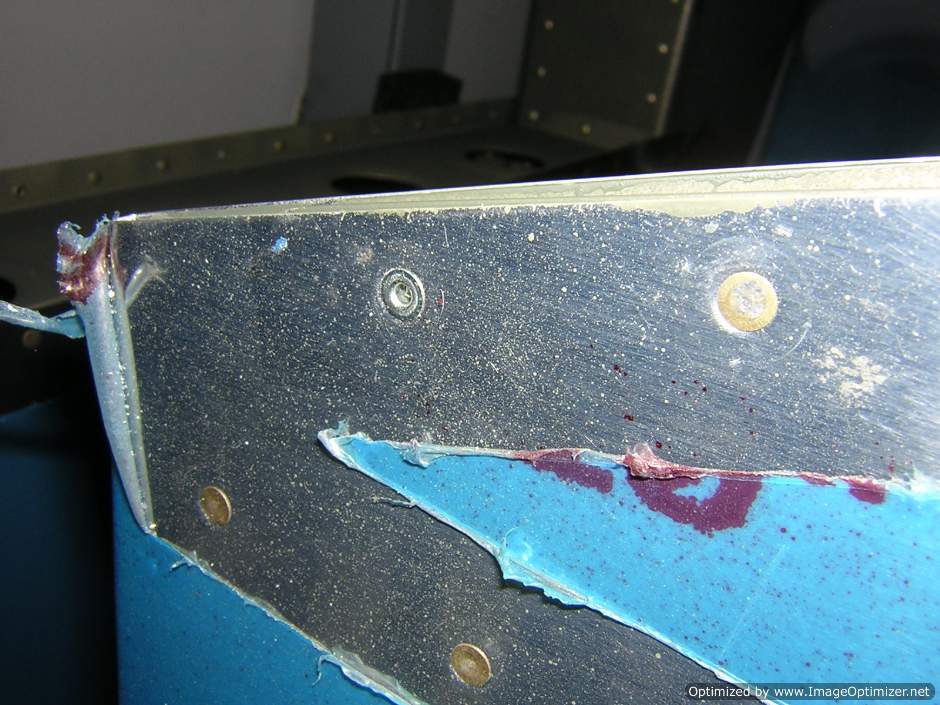

The last hole on the root rib is so hard to rivet using chisel, I went ahead using a MS319BS pop rivet

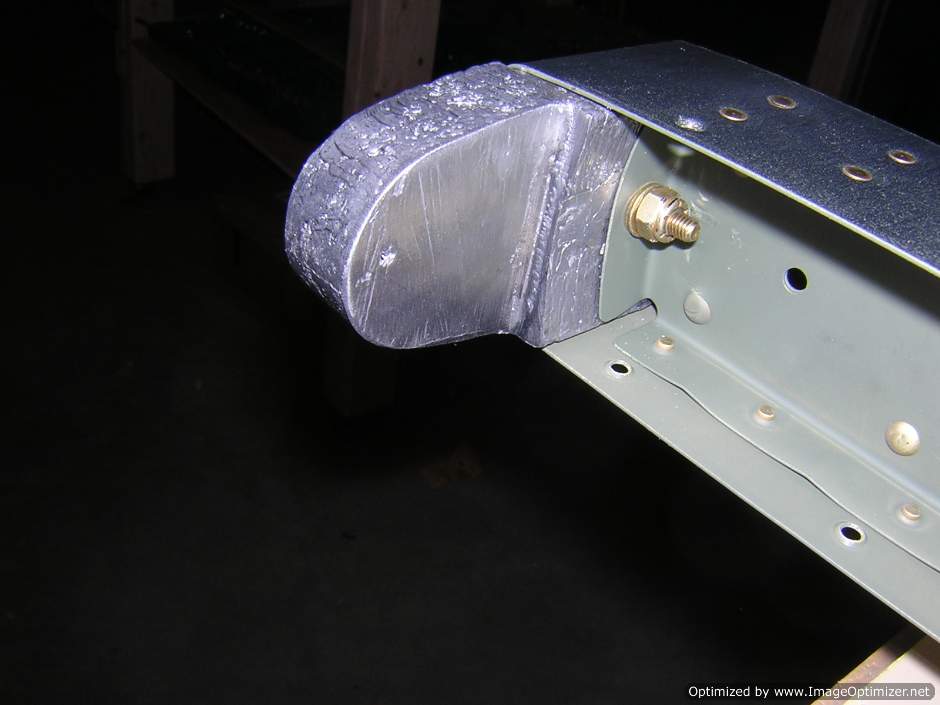

Counter balance weight is secured using self-locking nut
Started working on stiffeners of left rudder

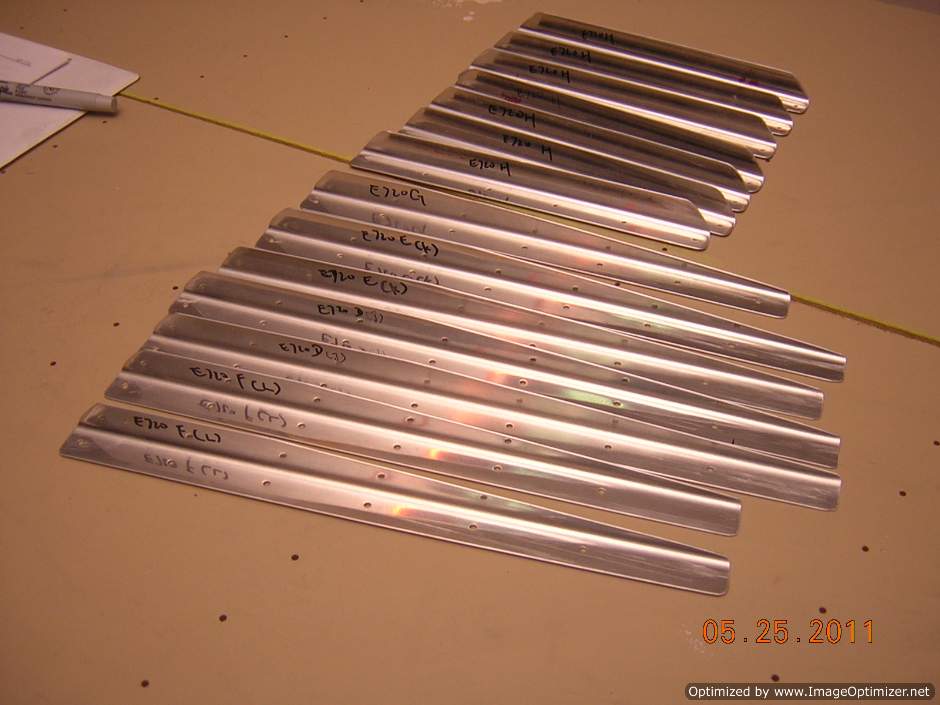

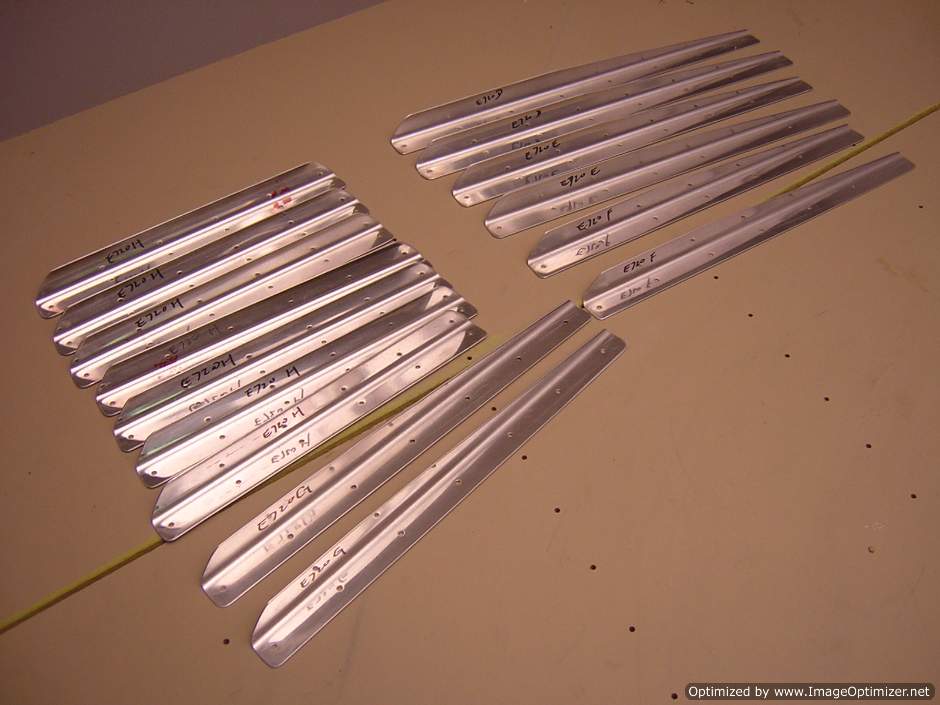

Stiffeners E-720 K, J, L are trimmed from E-720 E,D,F

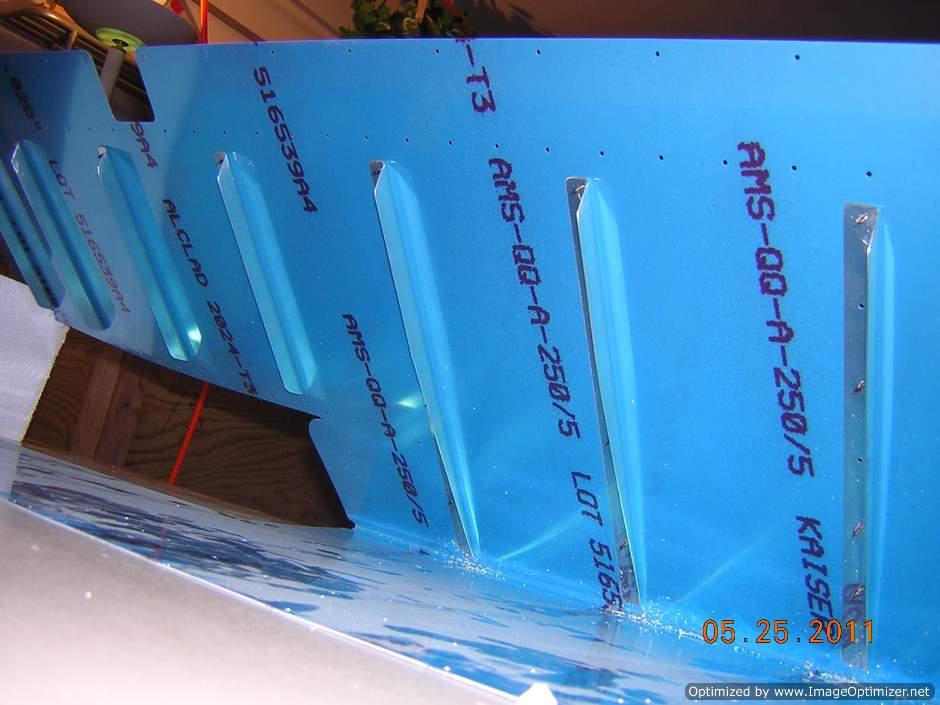

Stiffeners are clecoed to the left rudder skin for final drill

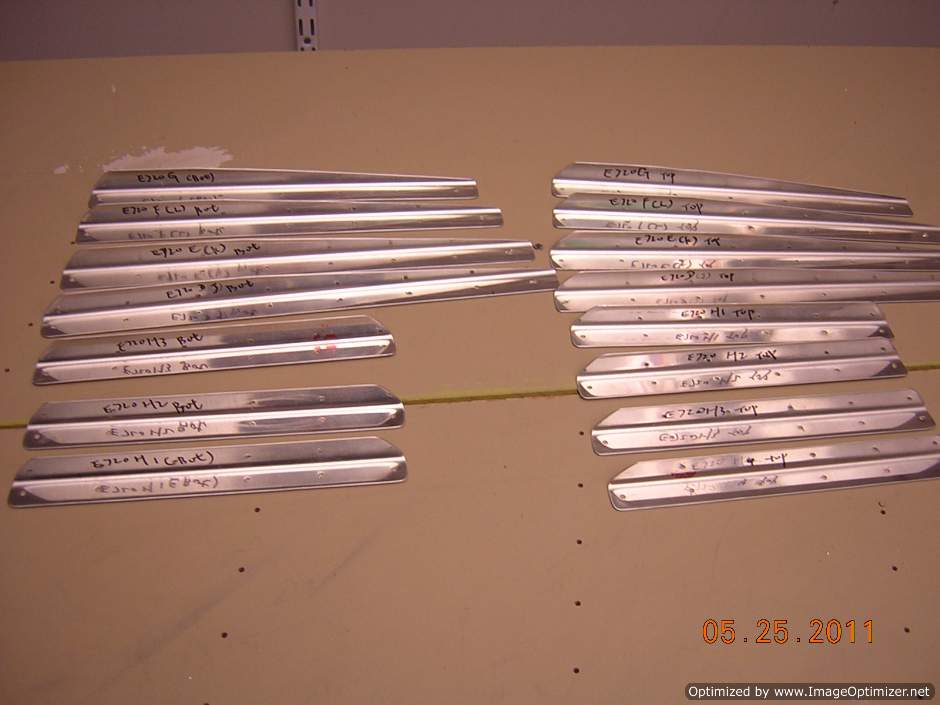

Left rudder stiffeners are match/final drilled and marked for top and bottom surfaces
