05-28-2011: 2 hrs
Dimpled and primed the trim tab reinforcement plate. The rivet holes on the nutplate are also dimpled. Stiffeners and the trim tab reinforcement plate are riveted to the skin. Skin is then bent to final angle using the home made breaker.
Left elevator skin is primed along the rivet lines on the interior side

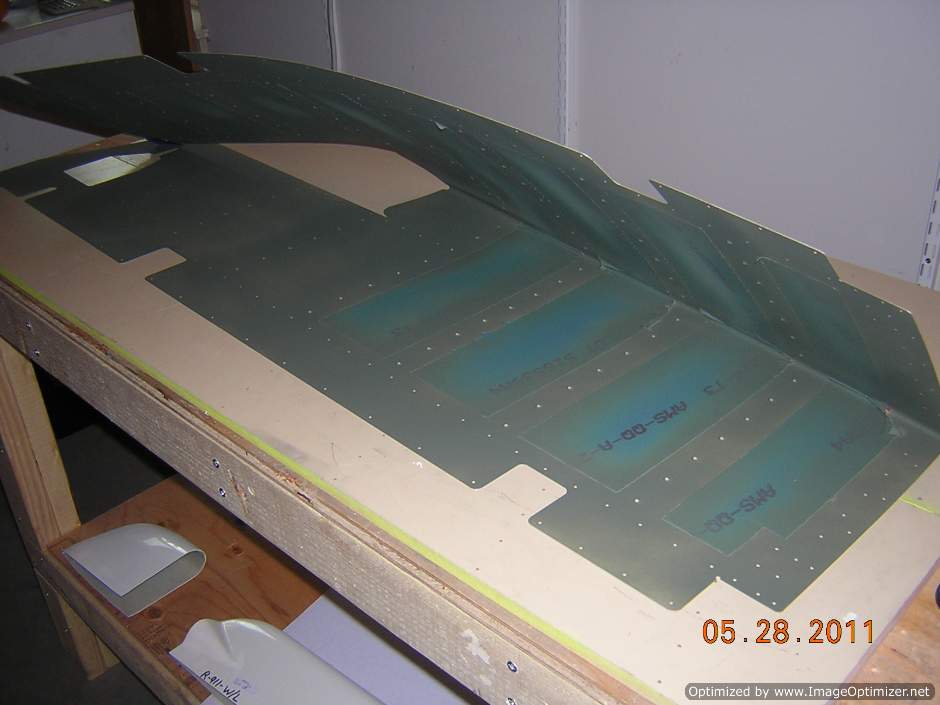

Trim access reinforcement plate is drilled to left elevator skin

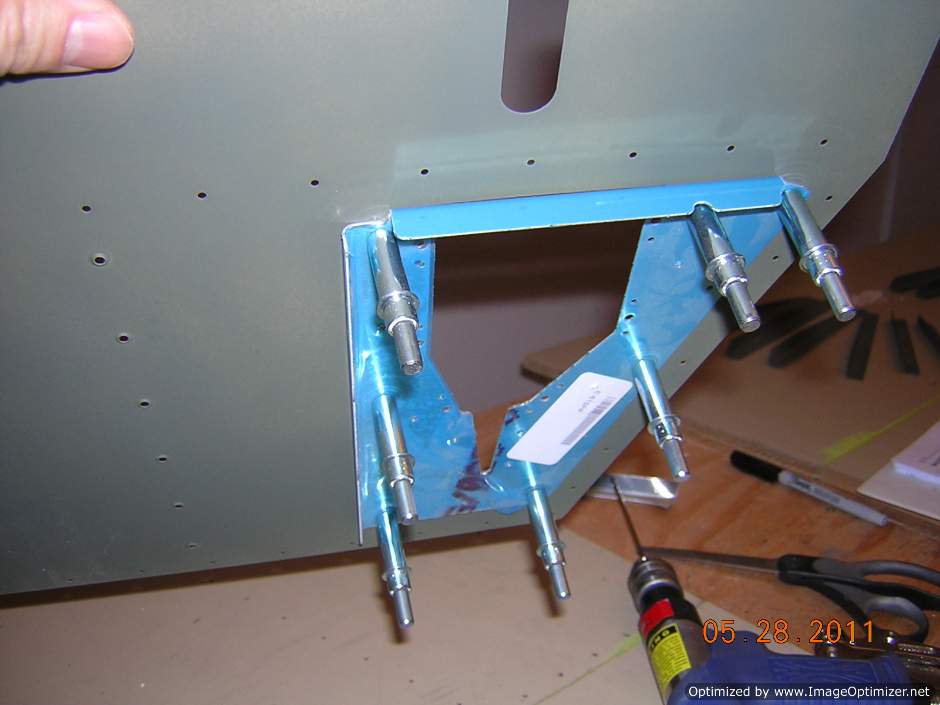

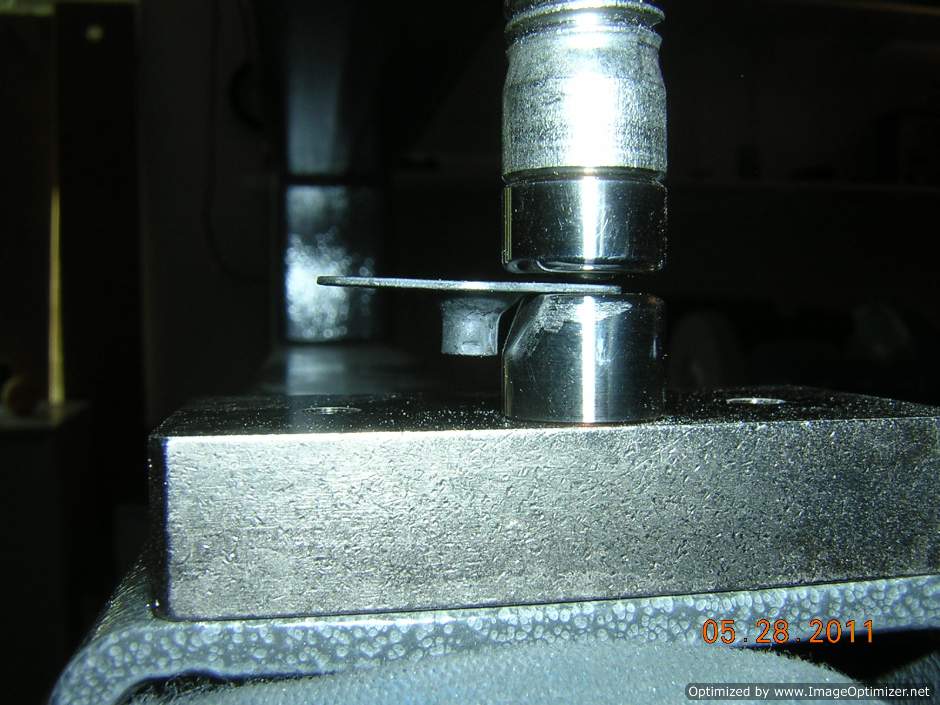

Female dimple set is ground off to dimple the K1100-06 nutplate

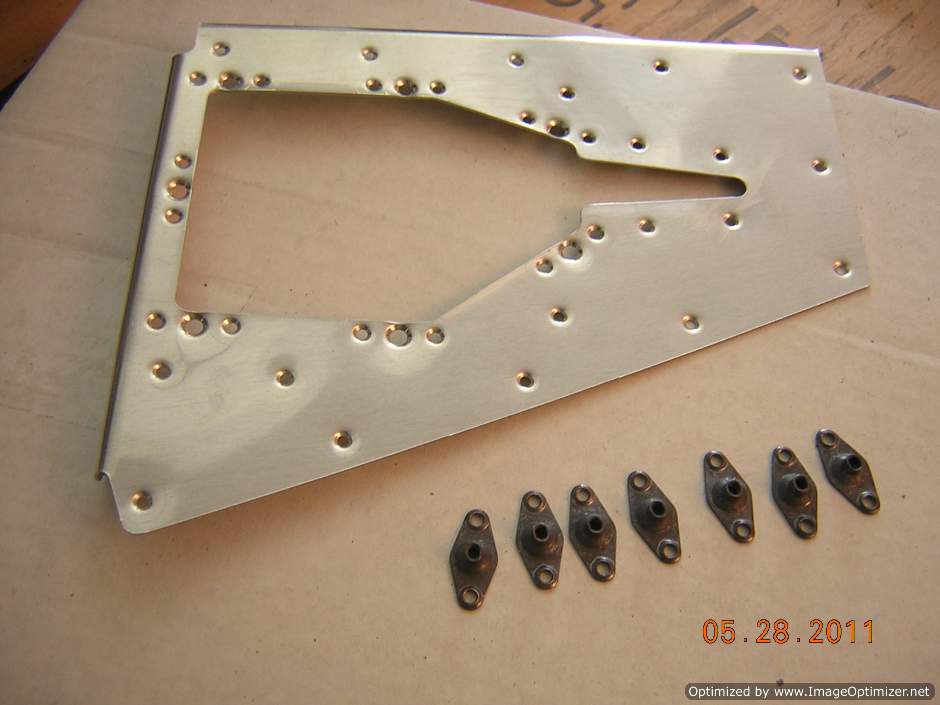

Trim access reinforcement plate and nutplate are dimpled
Trim access reinforcement plate and nutplate are dimpled

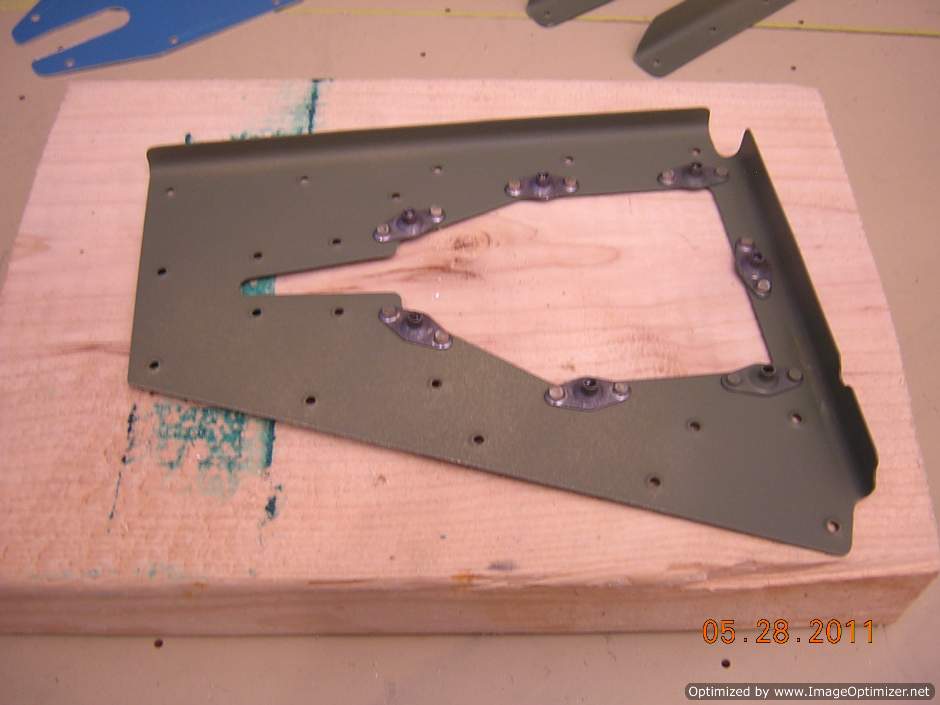

Trim access reinforcement is primed and nutplates are riveted

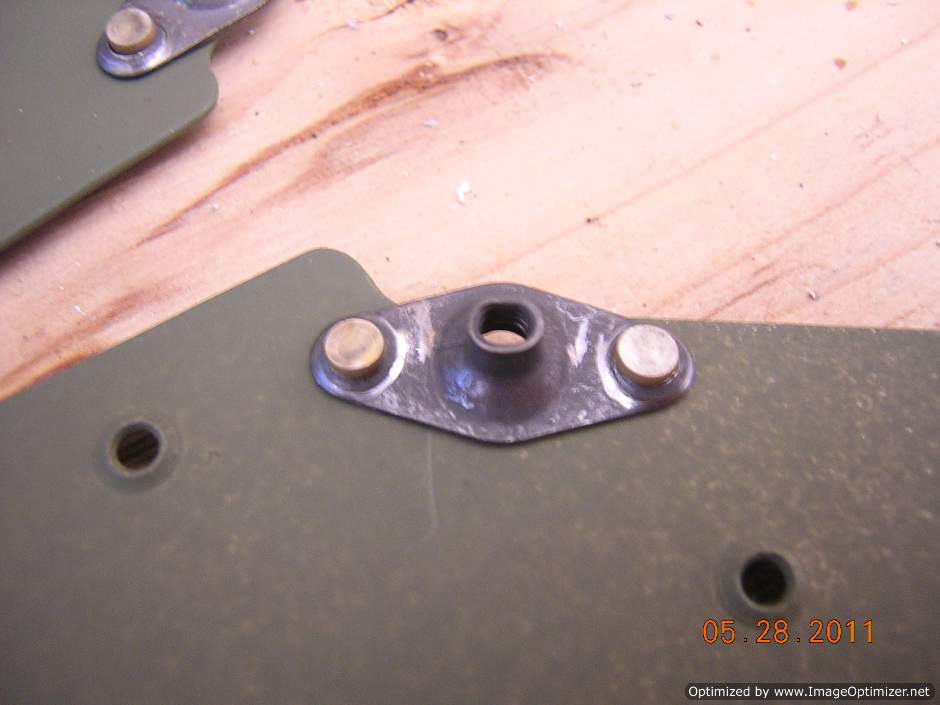

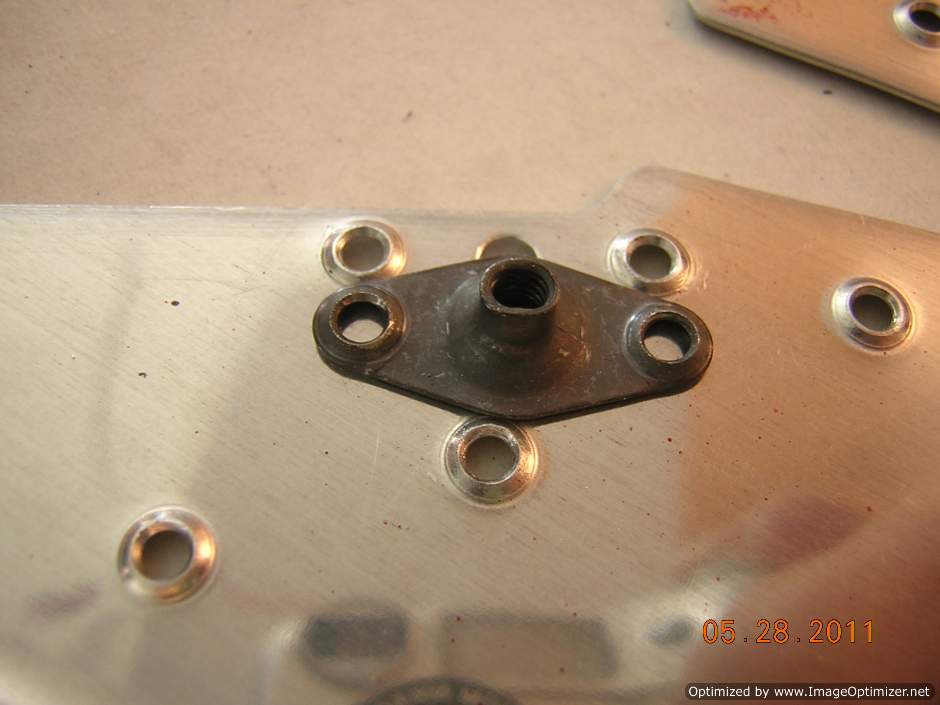

Nutplate rivetes close-up view

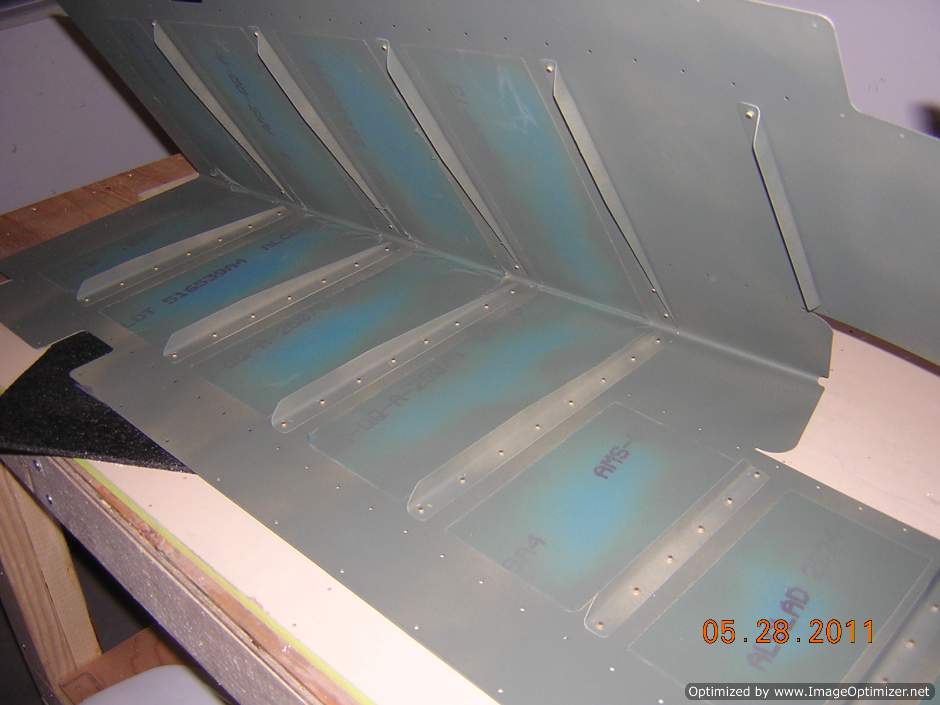

Left elevator stiffeners are riveted to skin

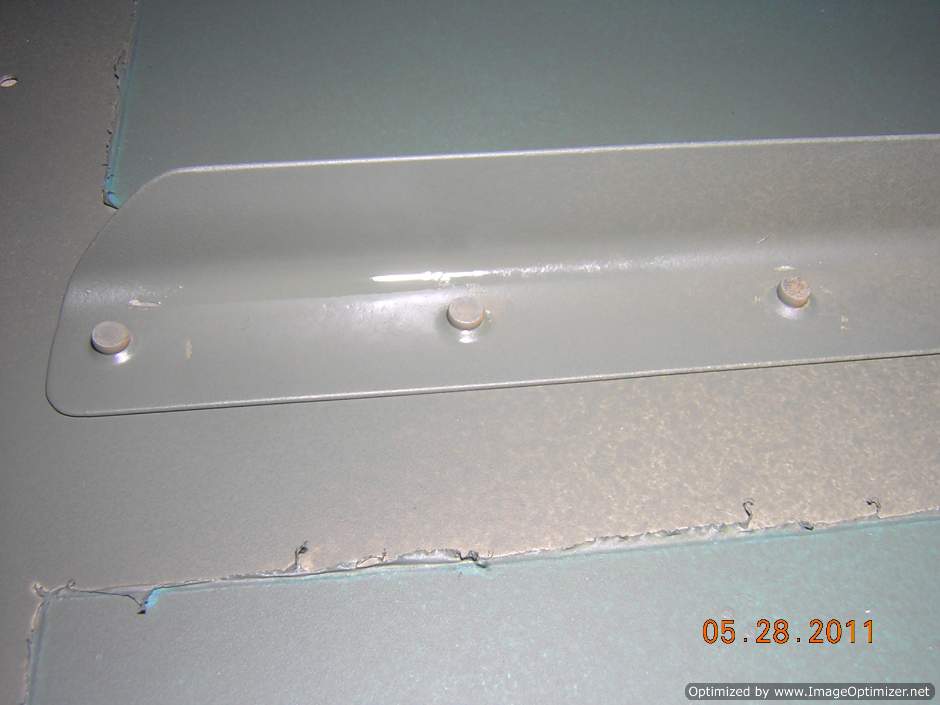

Typical stiffener to skin rivets

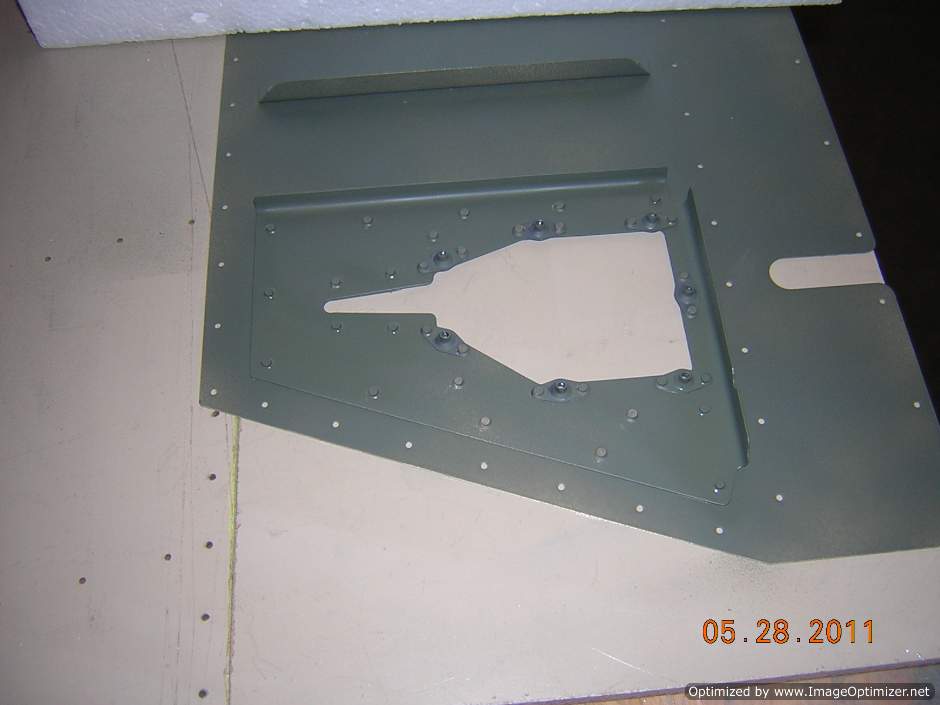

Trim access reinforcement plate is riveted t skin

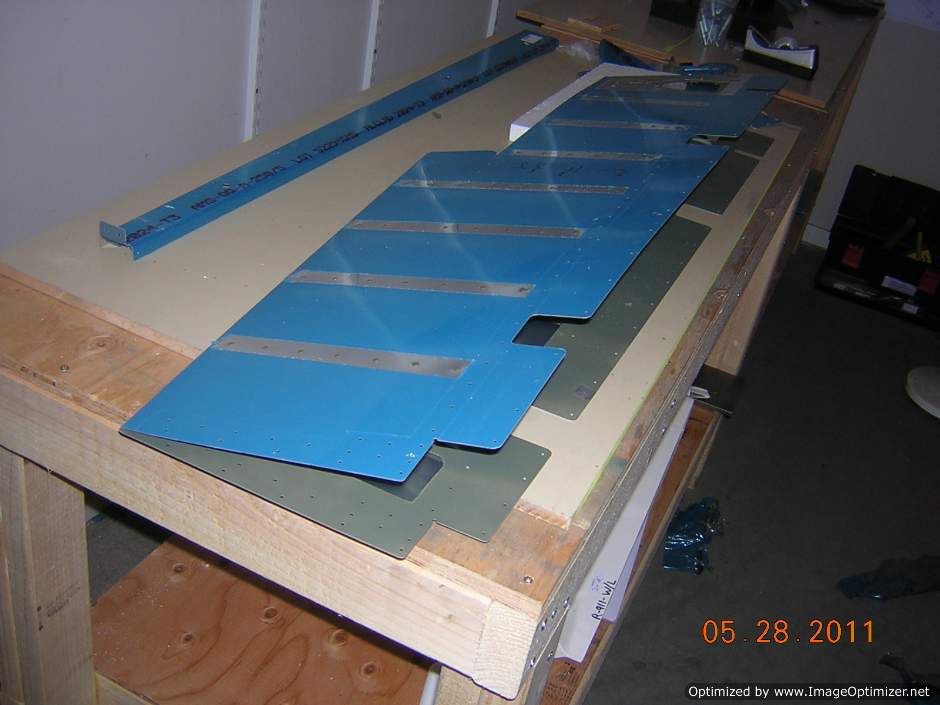

Left elevator skin is ready for final bending on the trailing edge

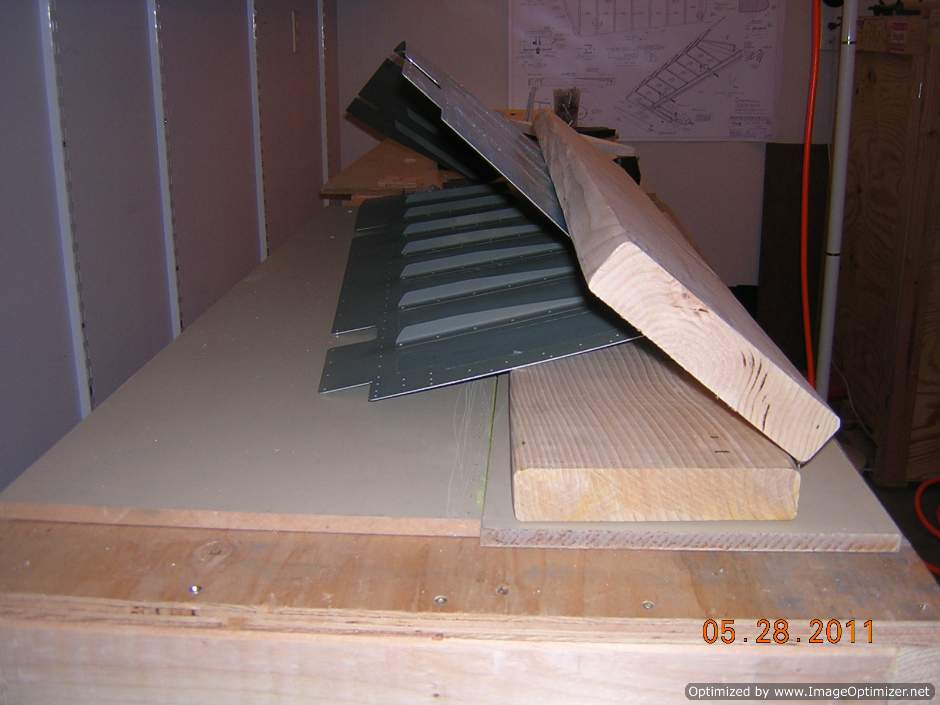

Left elevator skin is bent

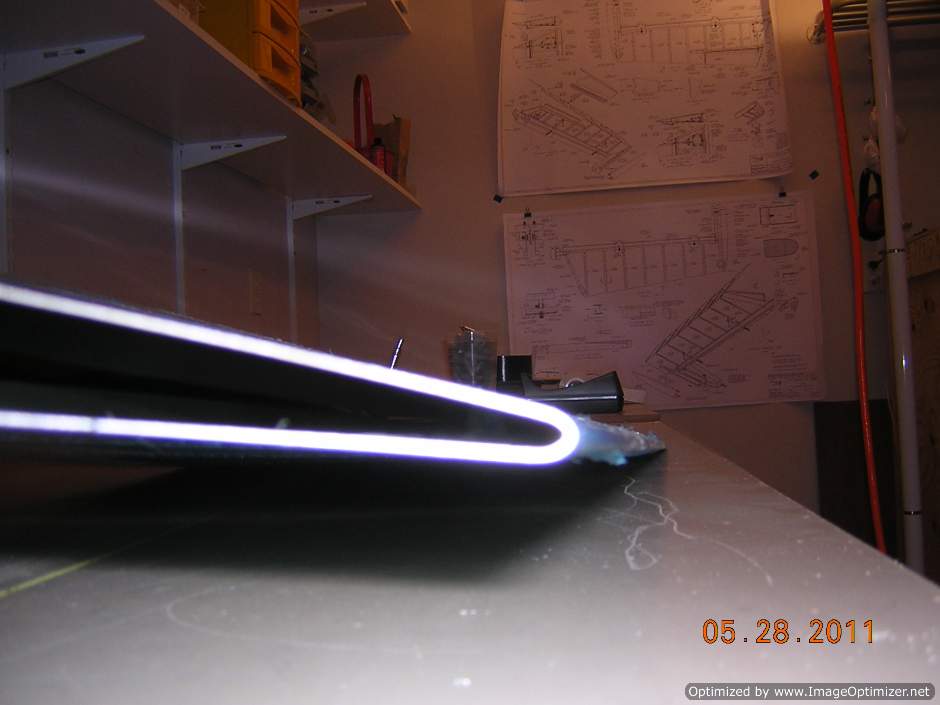

Left elevator trailing edge looks pretty straight after bending

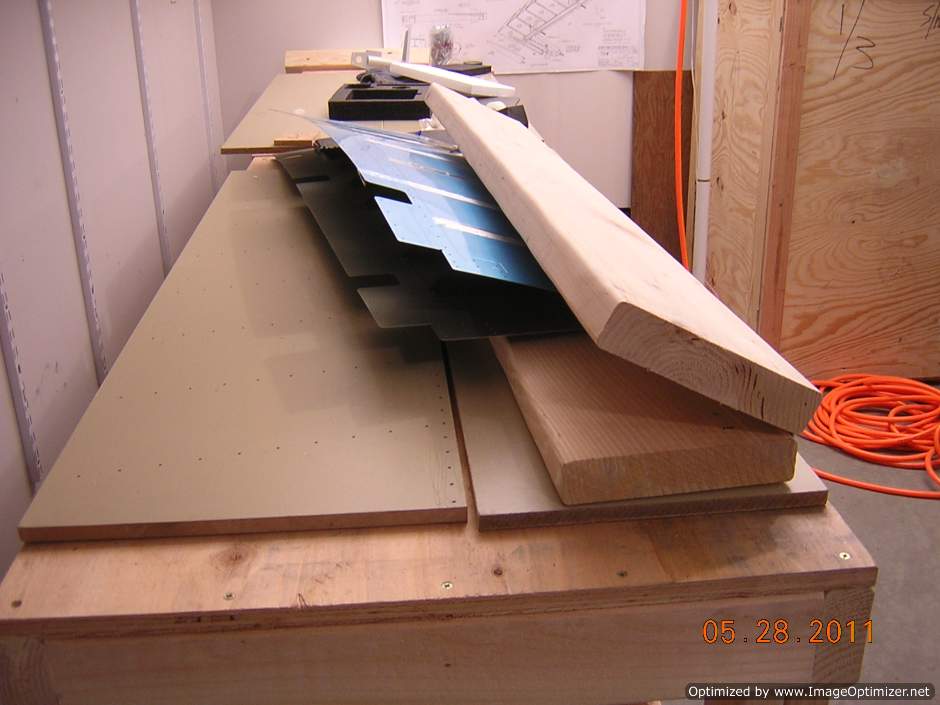

Plastic cover on the interior side is removed, skin is ready to be clecoed on to skeleton
