05-31-2011: 1.5 hrs

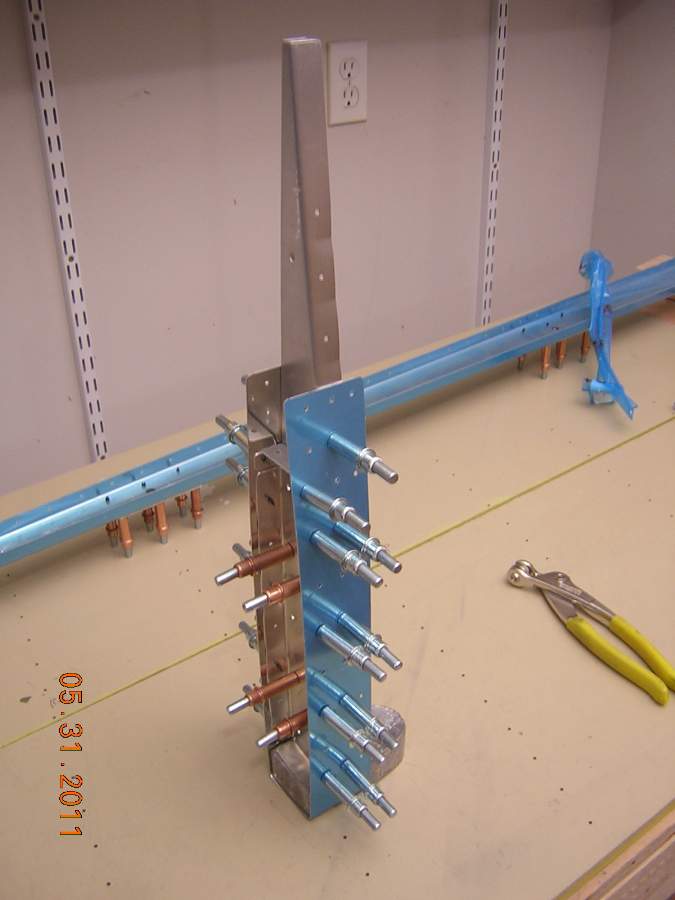

Started clecoing counterbalance skin to tip rib and C.B rib of left elevator


C.B skin and ribs are clecoed

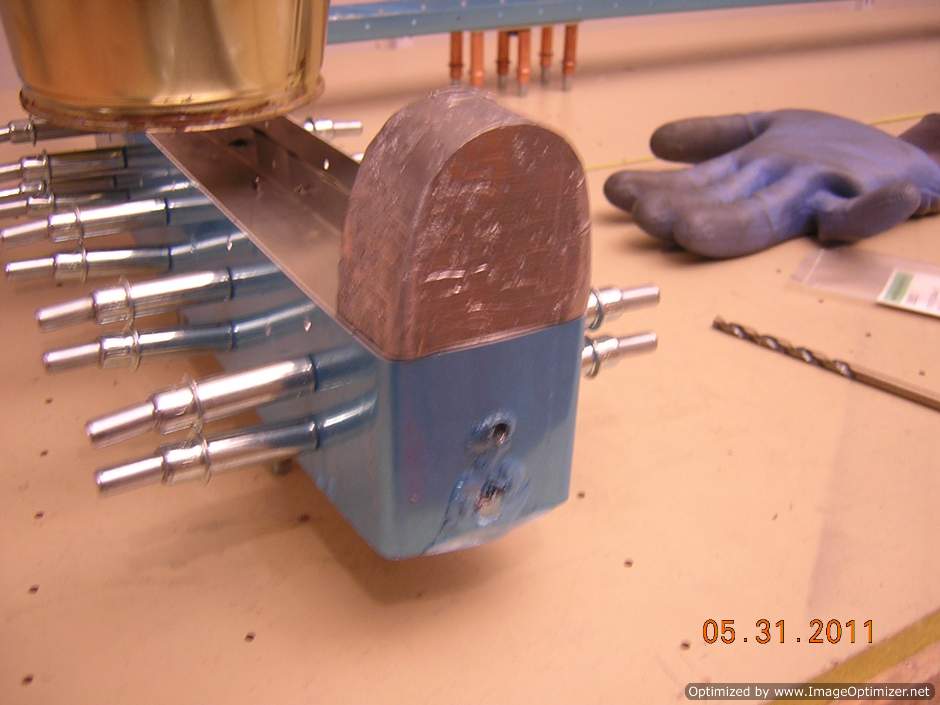

Counterbalance weight is drilled to #12 size, WD-40 is used as lubricant

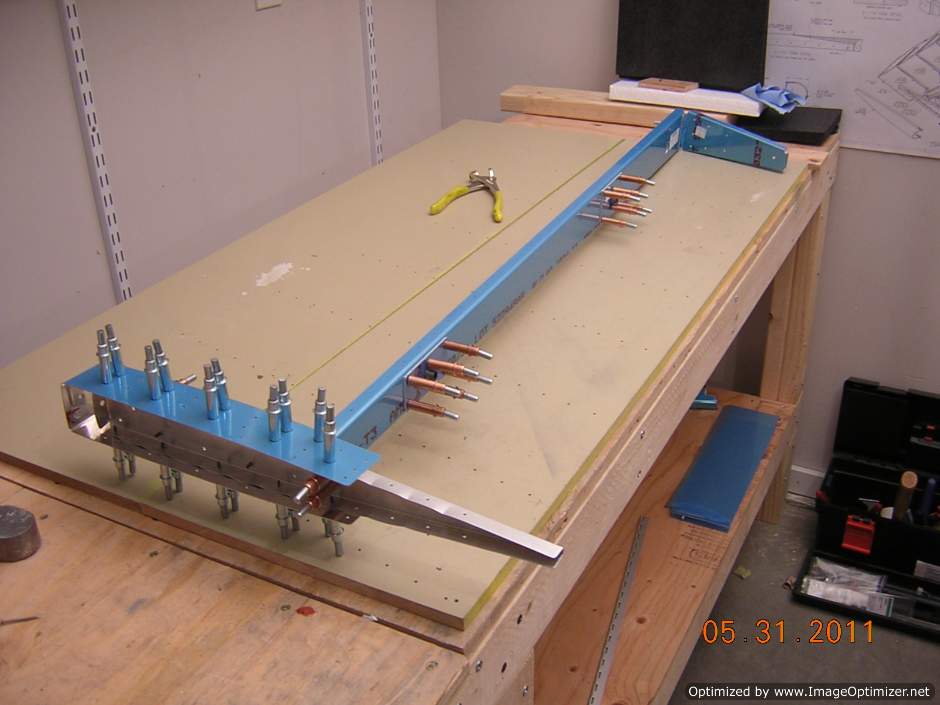

Skeleton of left elevator is clecoed

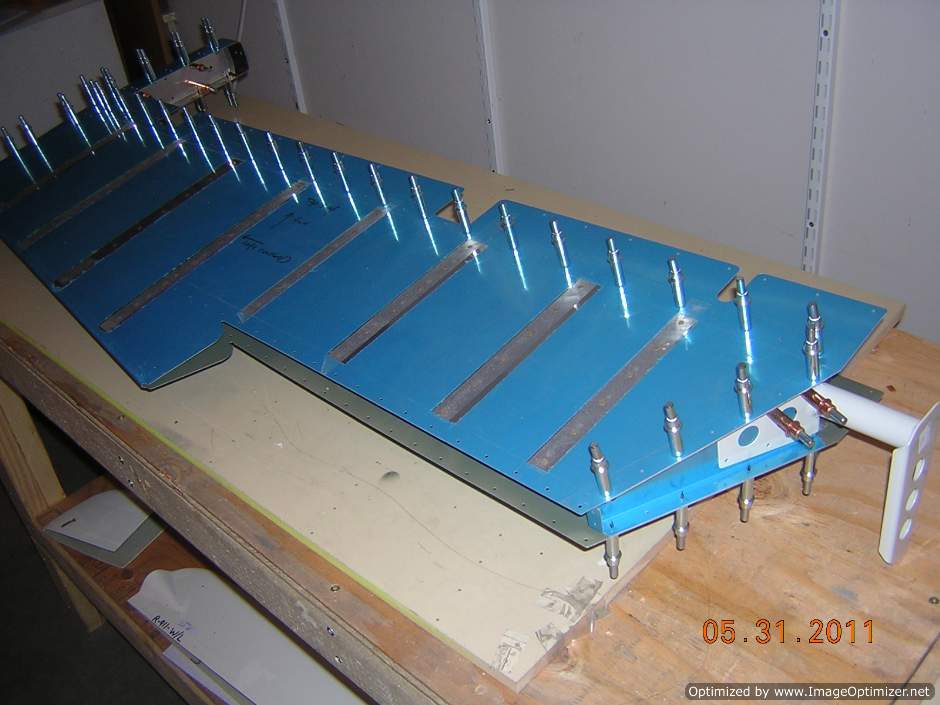

Left elevator skin is clecoed to skeleton, left elevator horn is also attached

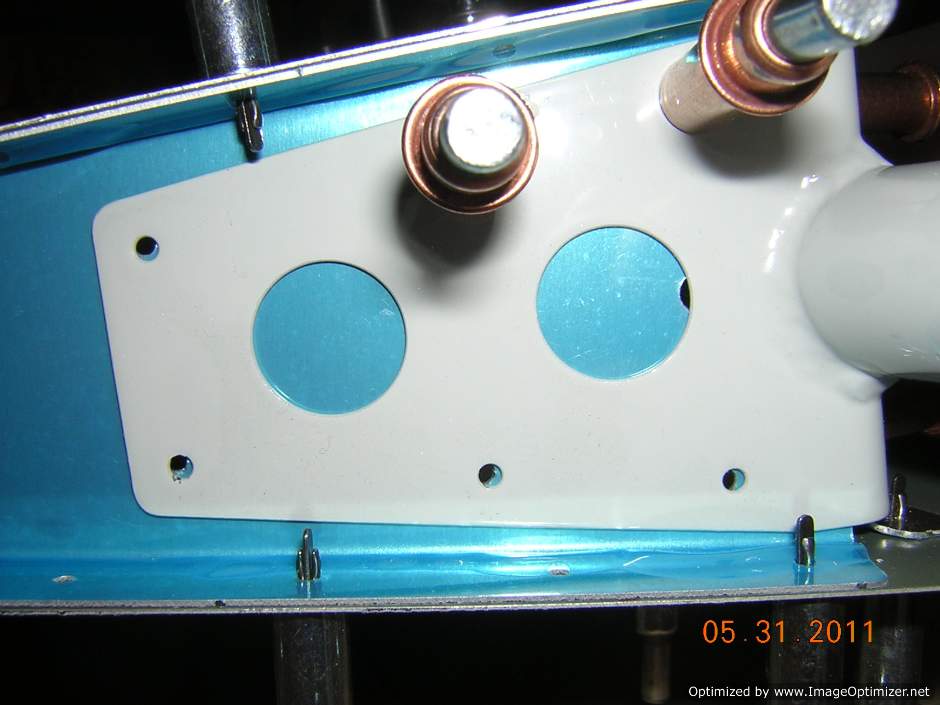

The holes on root rib and elevator horn don't quite match, need to do some search to figure out how to get it right
