08-03-2011:

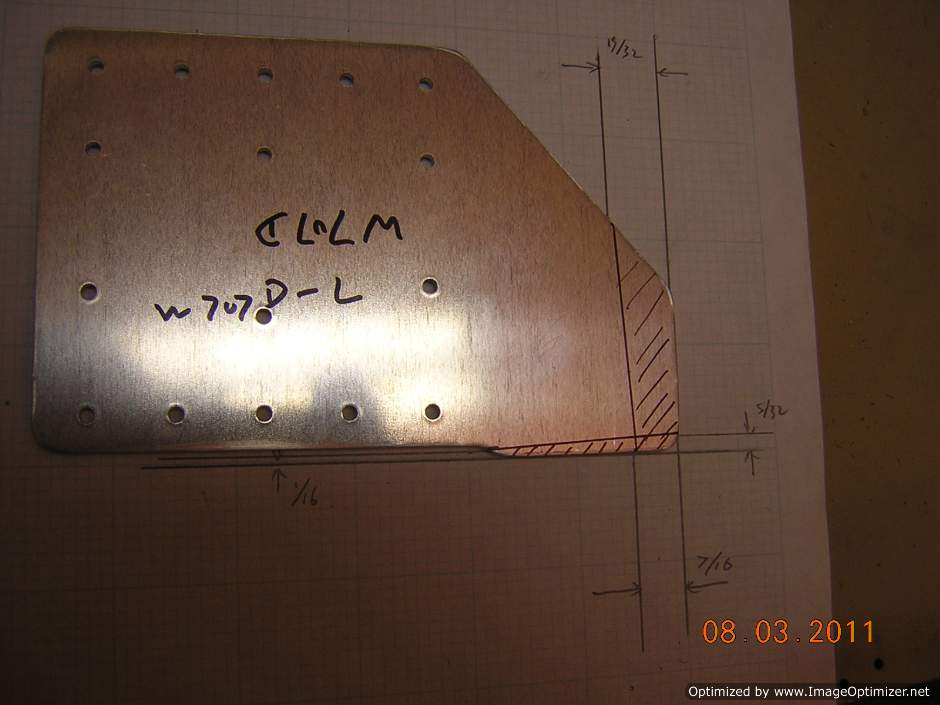

Left rear spar doubler plate W707D is marked for trimming per DWG38

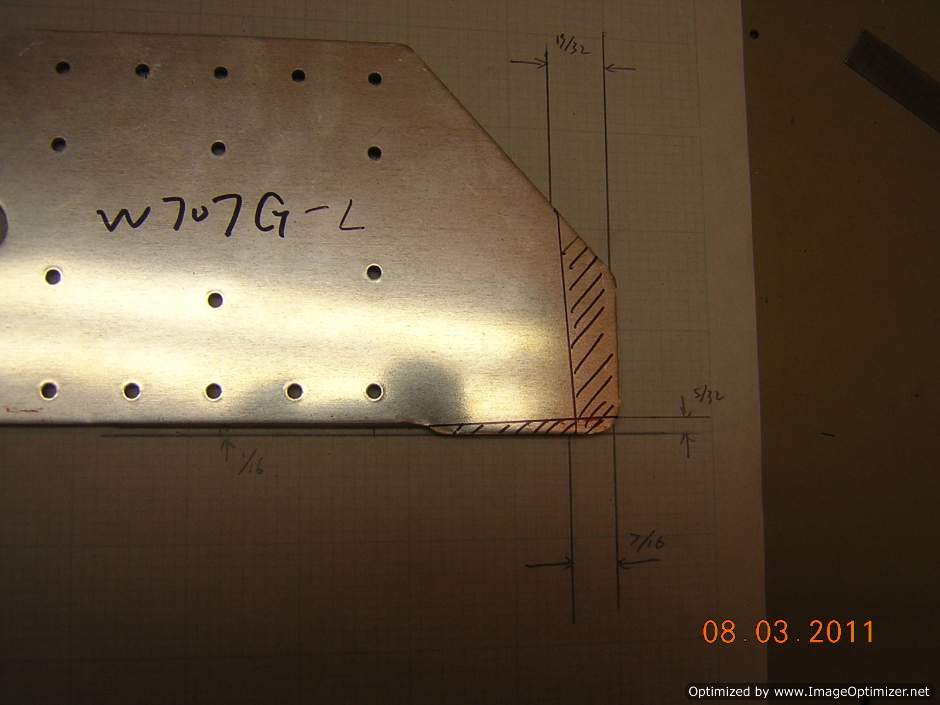

Left rear spar reinforcement fork W707G is marked for trimming per DWG38

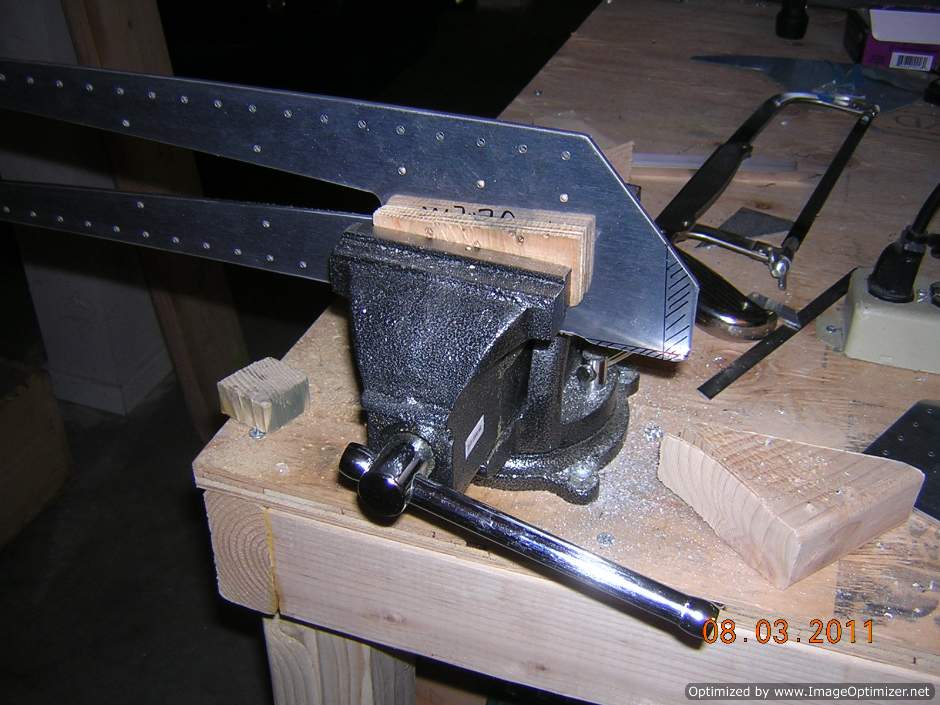

Rear spar reinforcement fork to be trimmed using hack saw

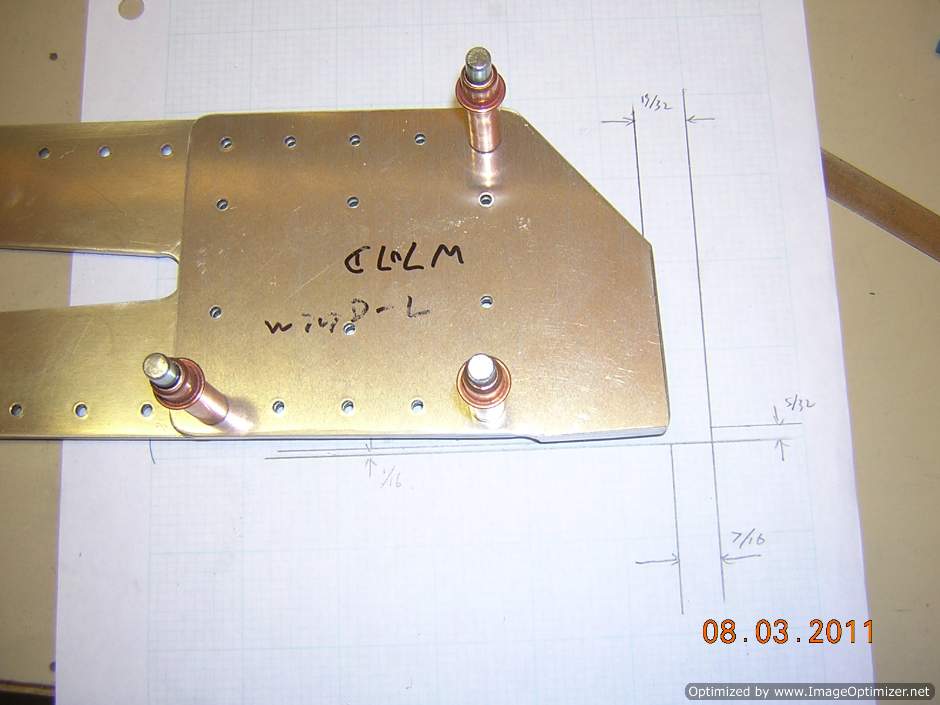

Trimmed W707D and W707G

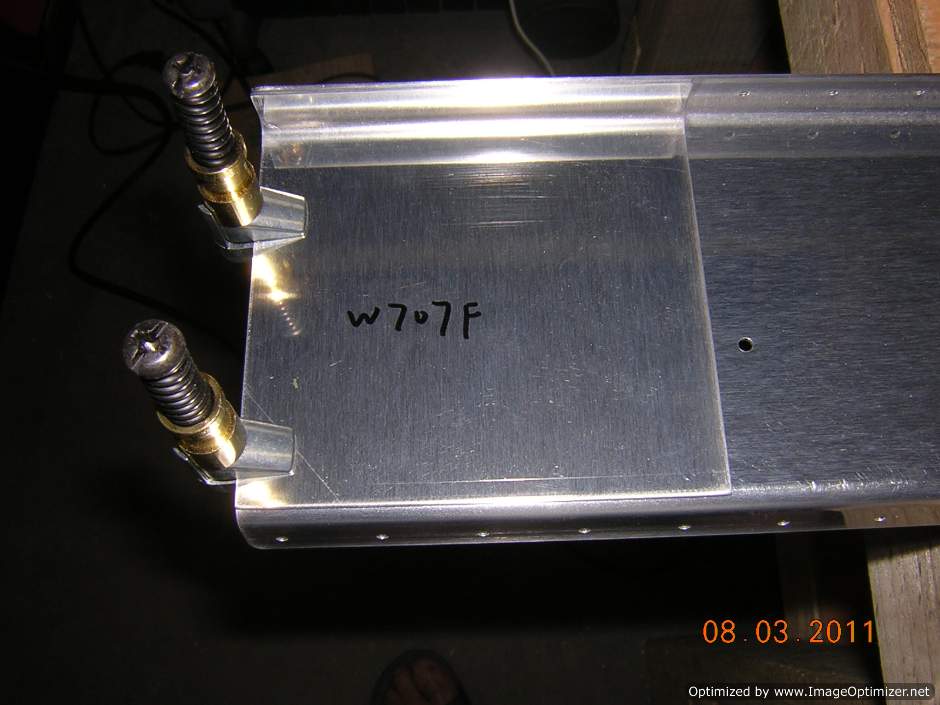

Doubler plate W707F on the left side is clamped for match drilling

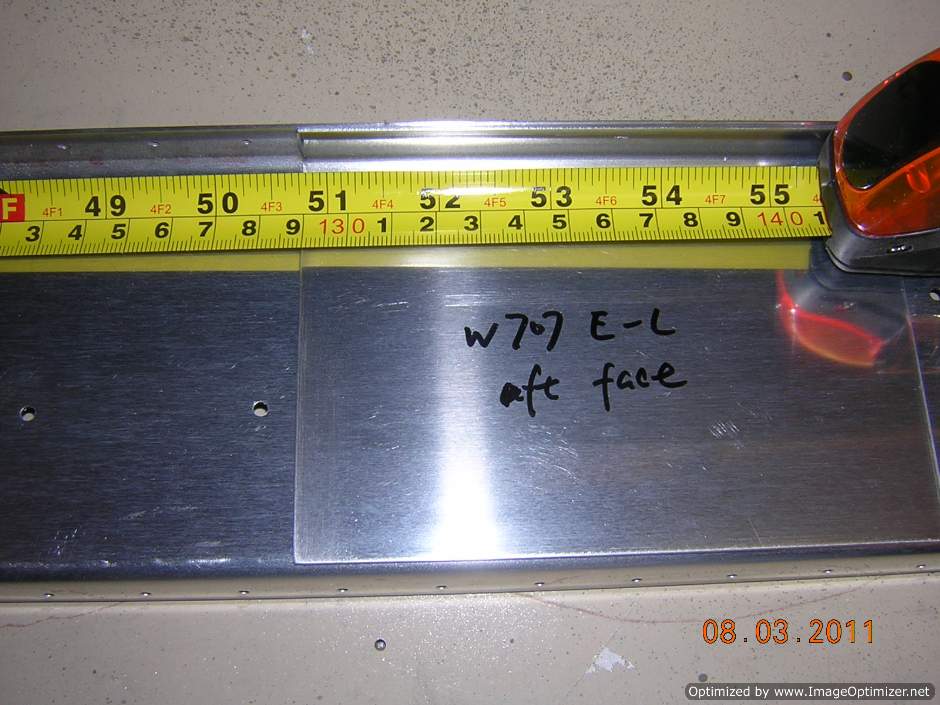

Doubler plate W707E on the left side is positioned per dimension in drawing

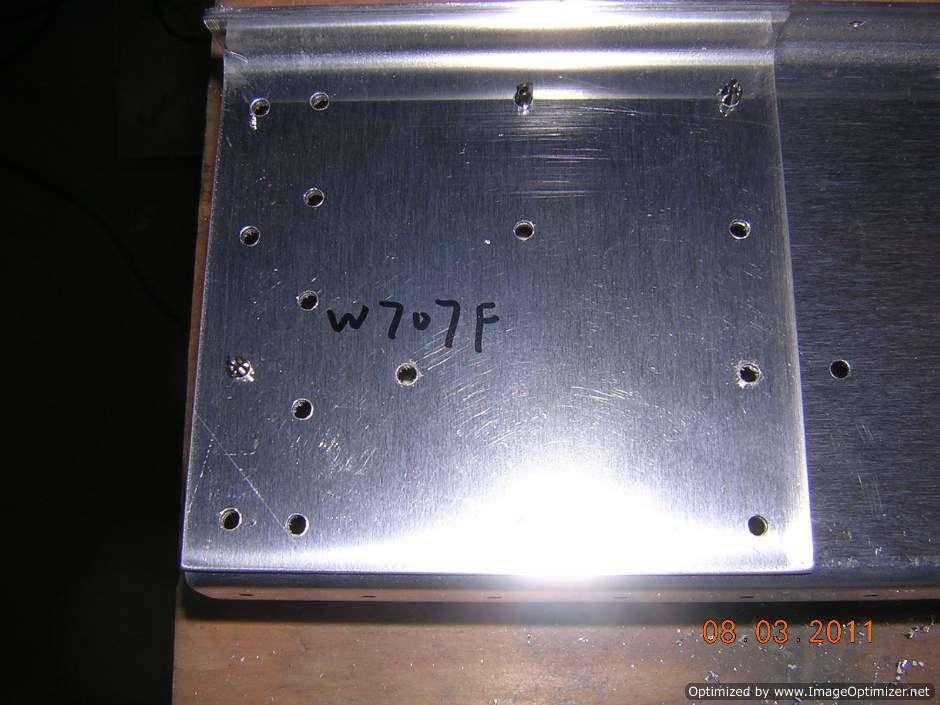

W707F left is match drilled, need to deburr the holes

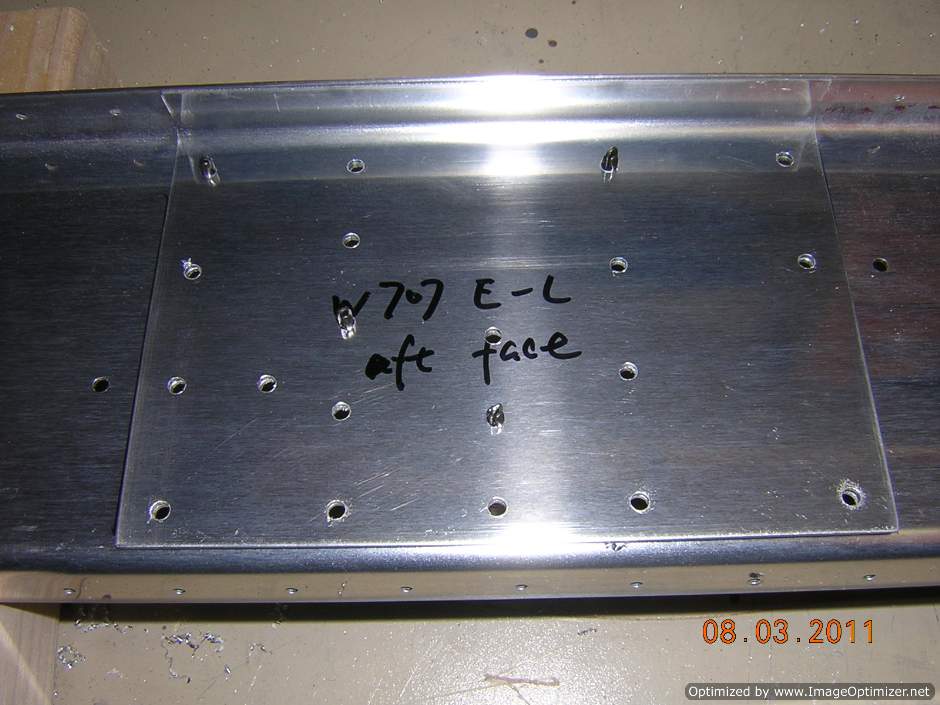

W707E left is match drilled to #30

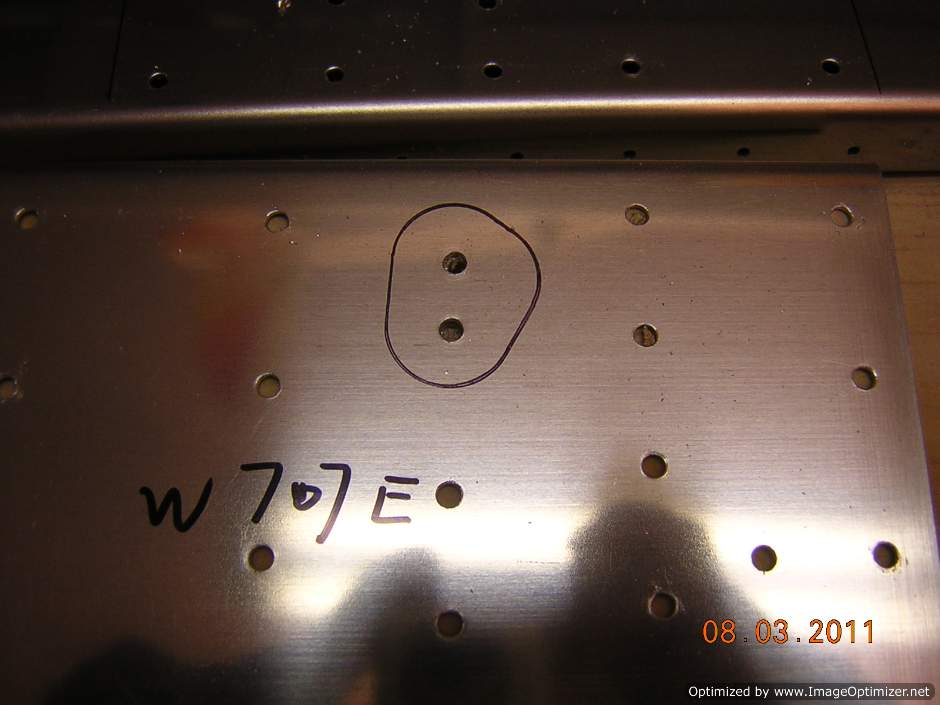

Opening on W707E for aileron rod is marked, two pilot holes are drilled
Step drill bit is used to enlarge the opening

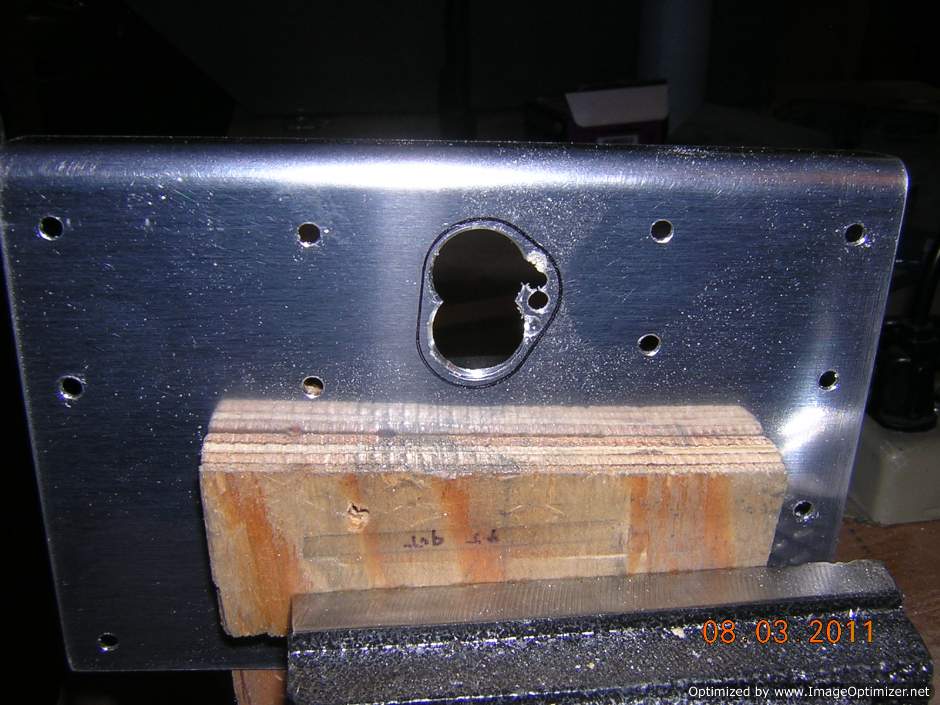

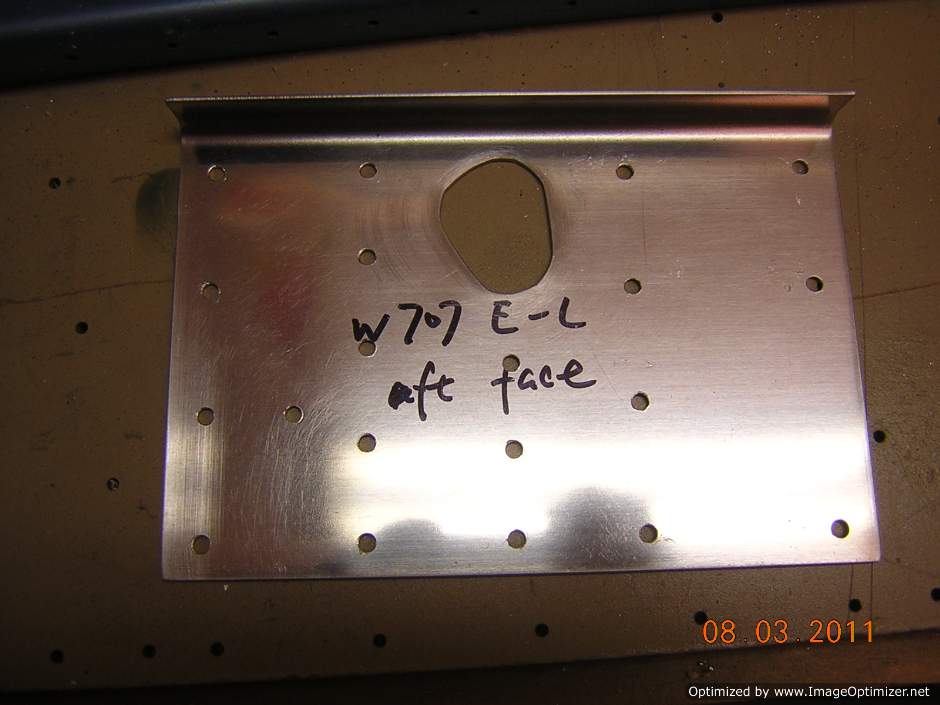

Opening for aileron rod is trimmed, need final polish

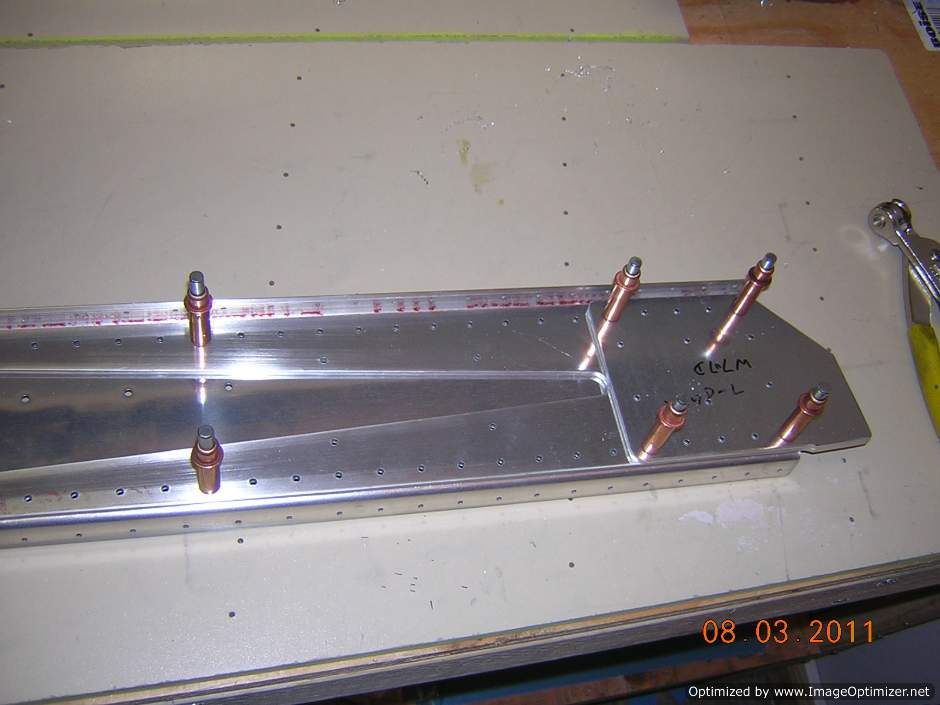

Reinforcement doubler plate and fork are match drilled
