09-08-2011:

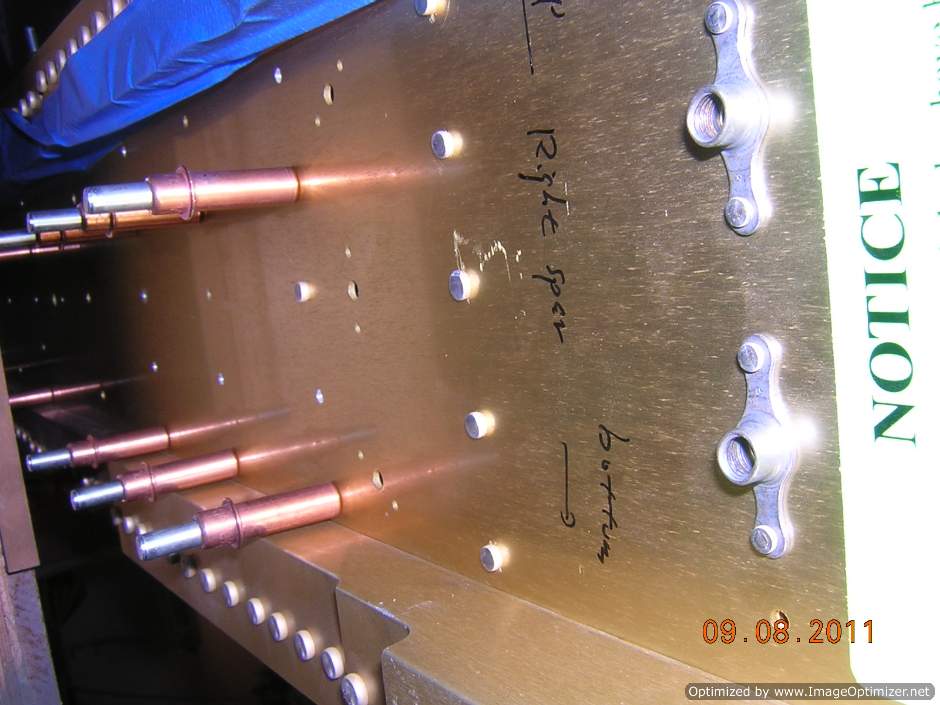

It is easier to rivet the first 4 inboard ribs this way using off-set riveting set

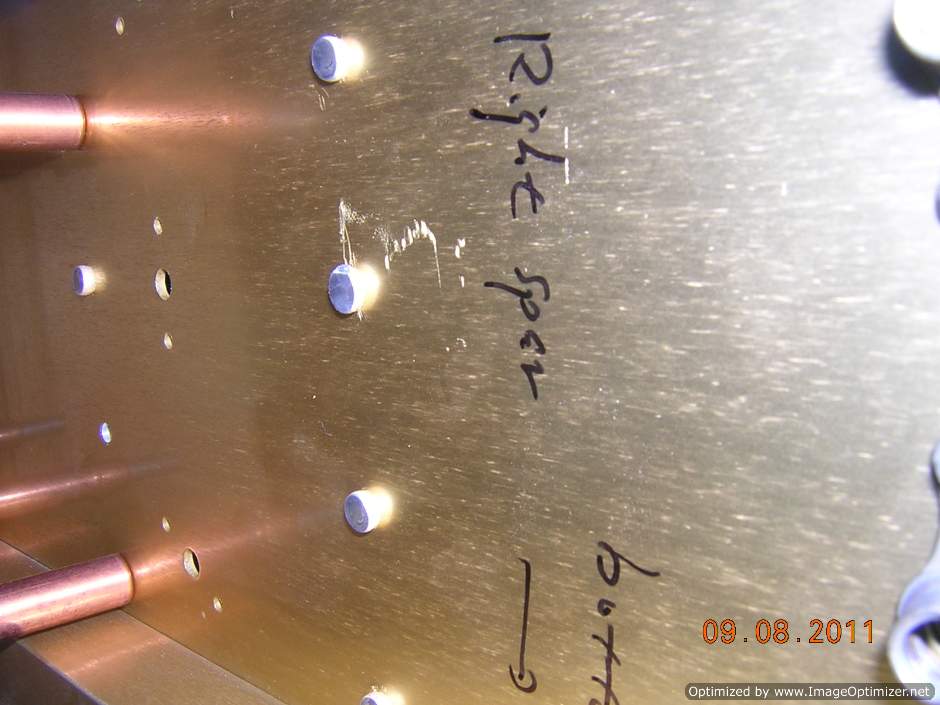

Manufactured head is on the rib flange side

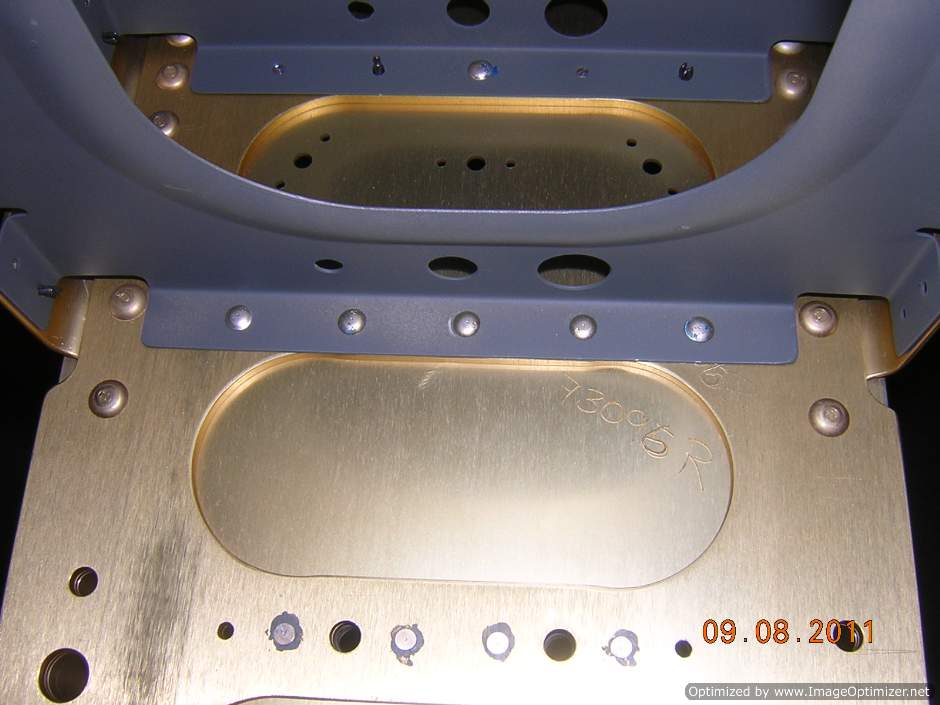

Shop heads of the rib to front spar rivets, looks ok

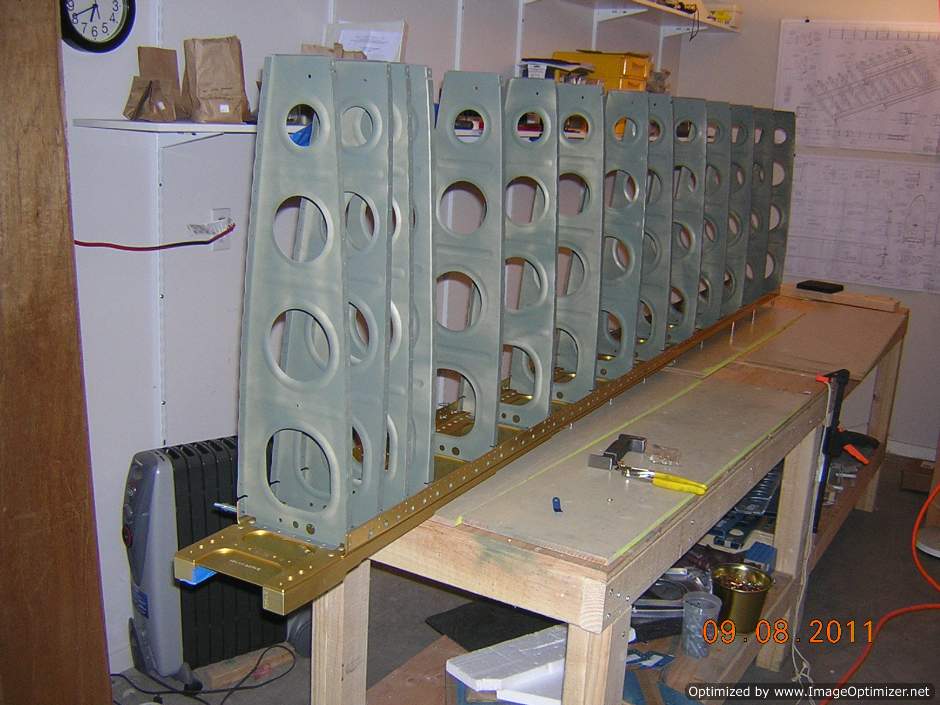

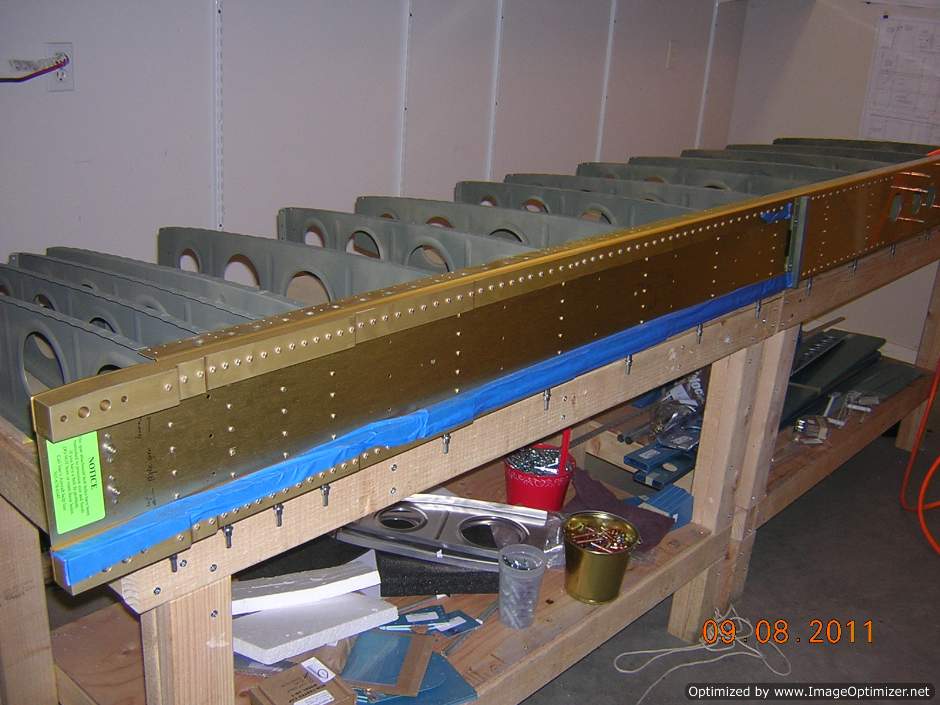

11 right wing main ribs are riveted to front spar, 3 to go, will do it tomorrow
