09-17-2012: 3 hrs

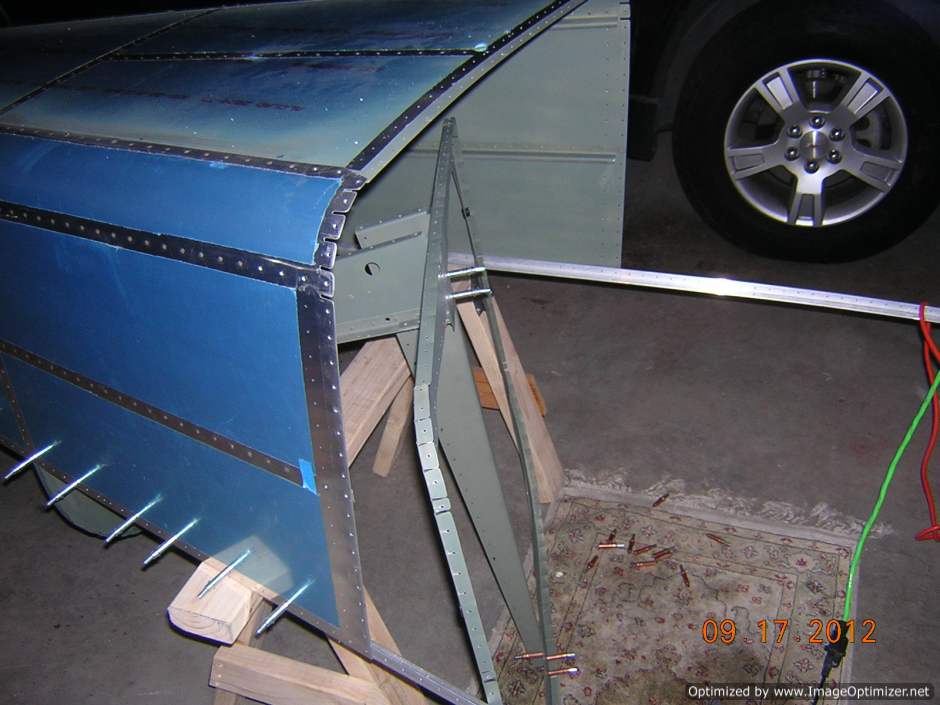

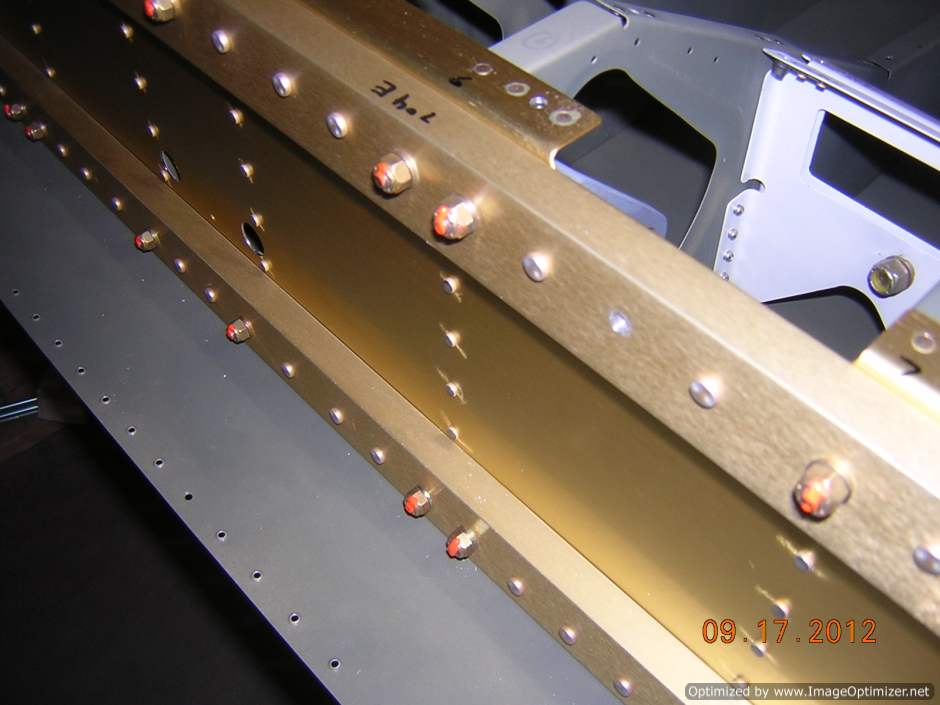

Deburred and dimpled the double rows to center fuselage and fwd side skins
Reclecoed the fwd part of F704 bulkhead back to center fuselage

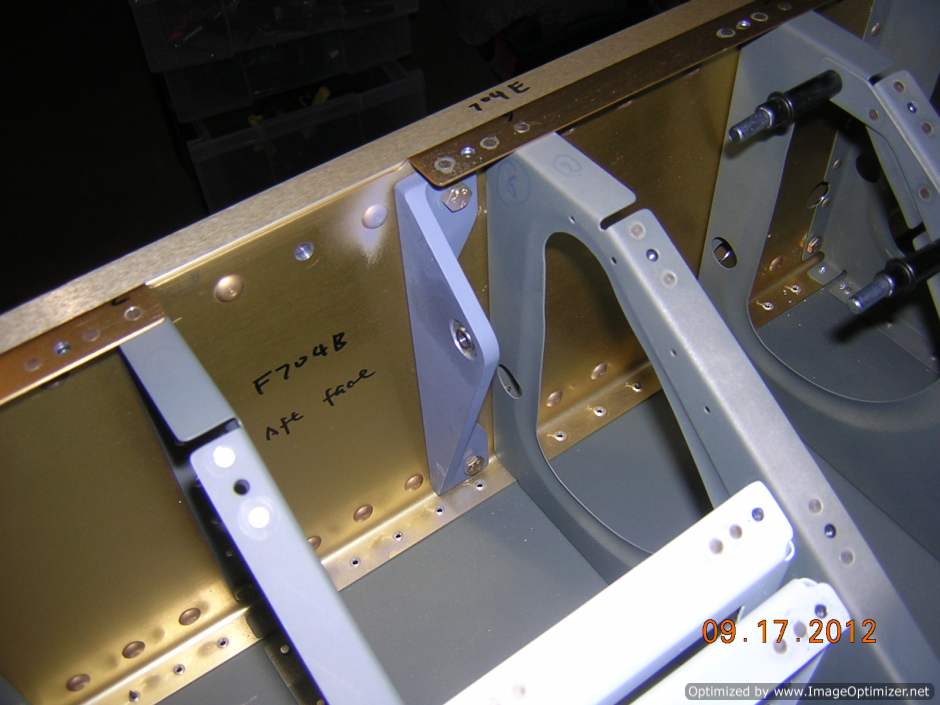

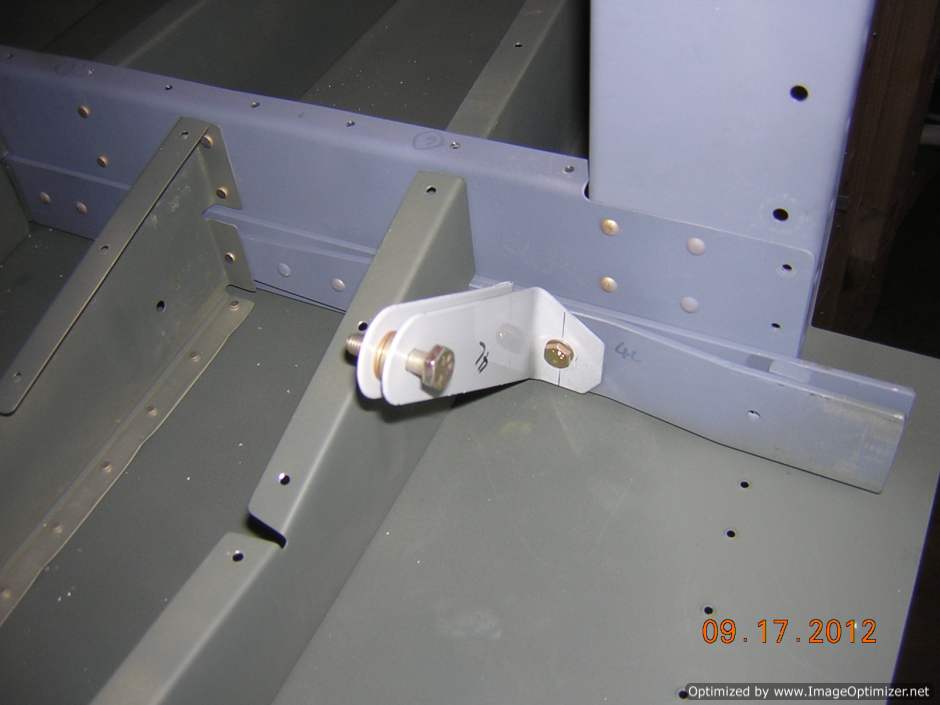

Bolted the control column brackets back to F704 aft bulkhead, torqued to 25 in-lbs and sealed
Nuts are sealed

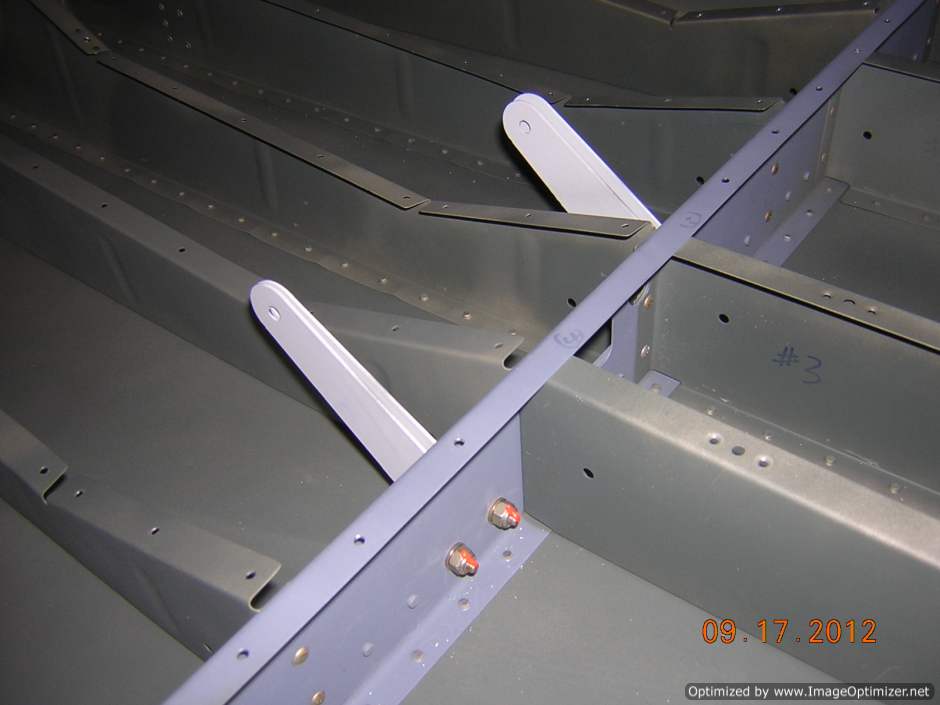

Bolted the seat belt anchors to F705 bulkhead, torqued to 25 in-lbs, and sealed them
Deburred and dimpled F706 bulkhead. The holes on top portion of the bulkhead are not final drilled yet, so nothing is done them.
Reclecoed the fwd part of F704 bulkhead back to center fuselage
Bolted the control column brackets back to F704 aft bulkhead, torqued to 25 in-lbs and sealed
Nuts are sealed
Bolted the seat belt anchors to F705 bulkhead, torqued to 25 in-lbs, and sealed them
Deburred and dimpled F706 bulkhead. The holes on top portion of the bulkhead are not final drilled yet, so nothing is done them.
