10-14-2012: 4 hrs

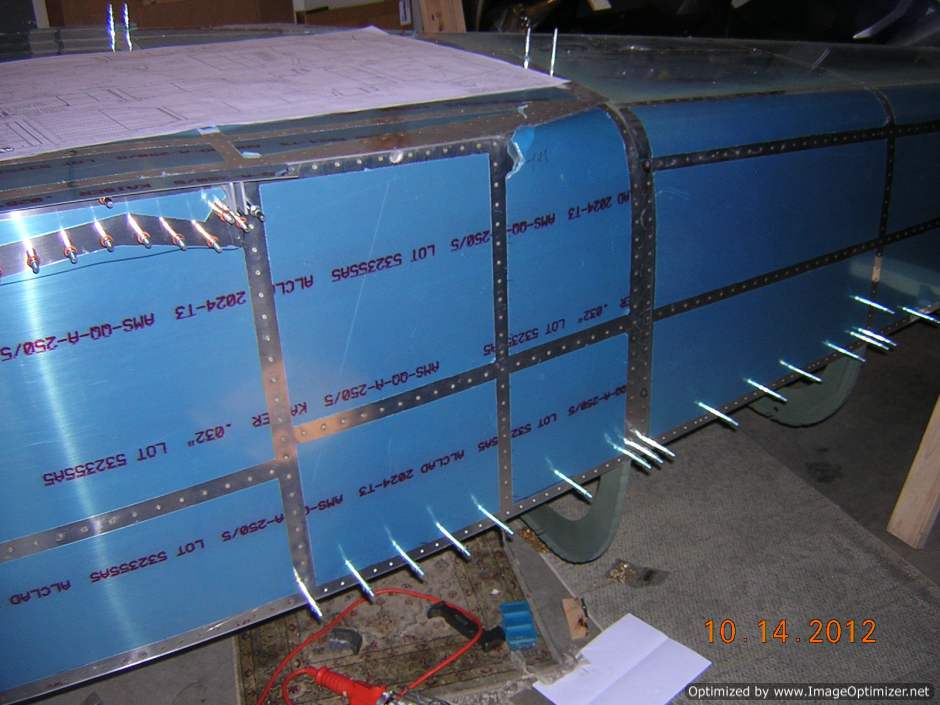

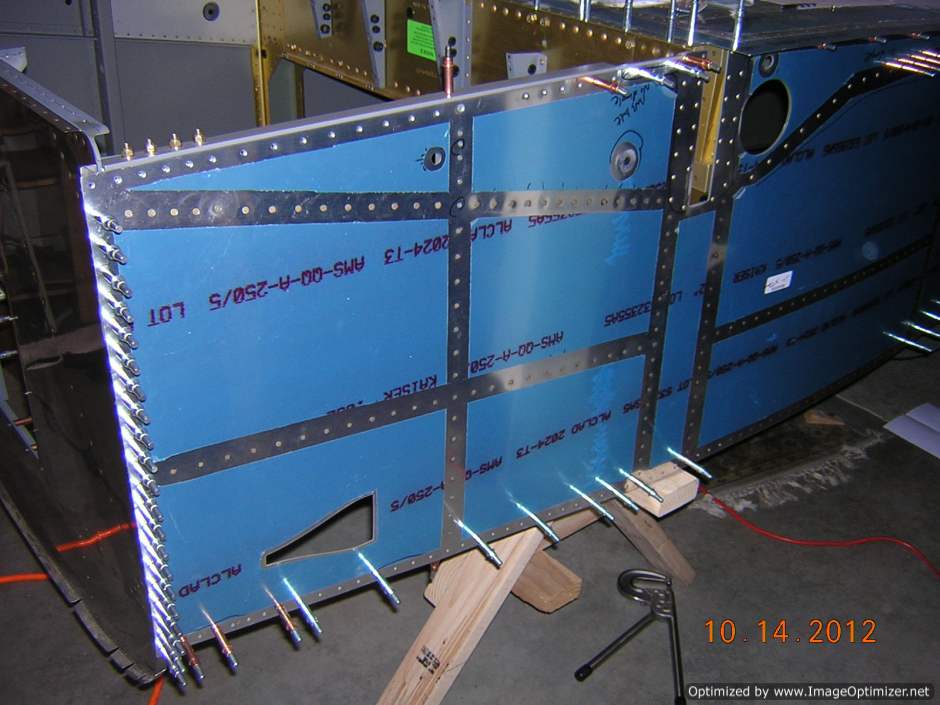

Fwd of F704 bulkhead riveting is pretty much done, right side shown

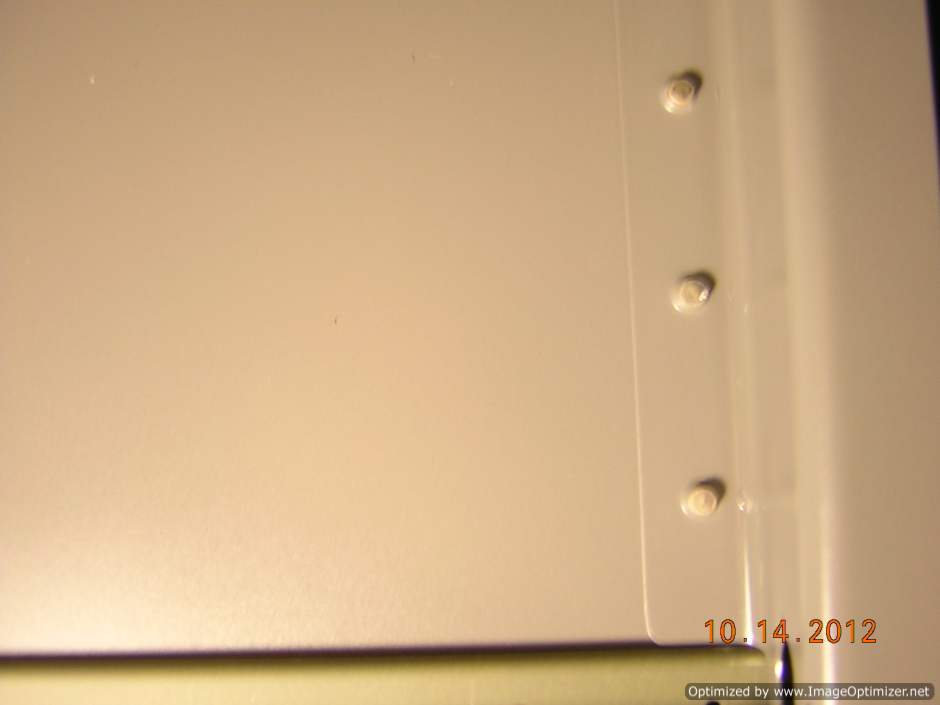

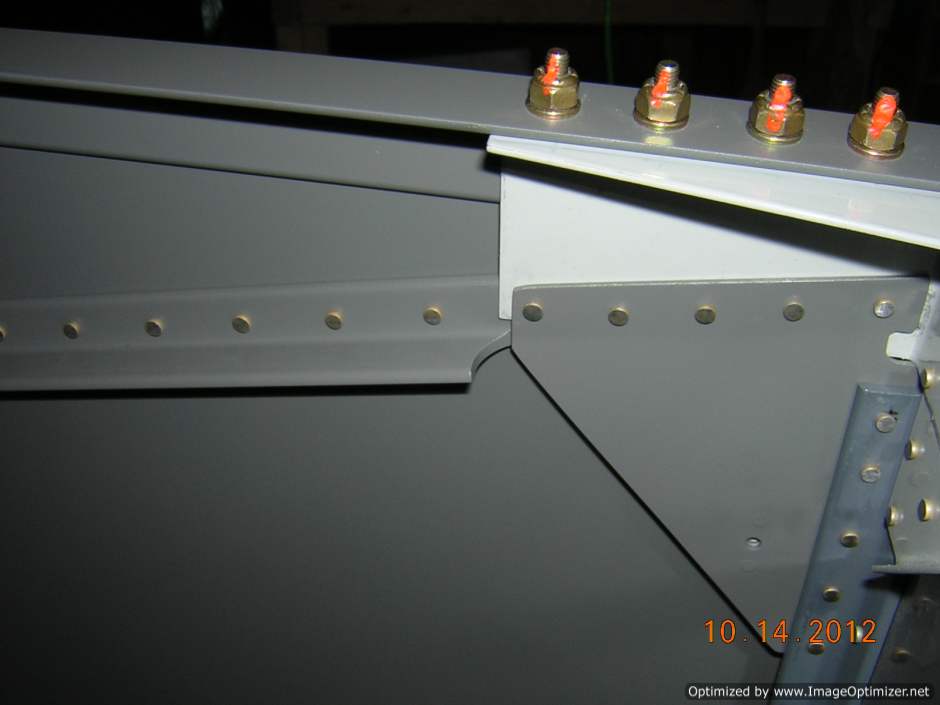

Fuel tank attachment area is riveted by three flush head rivet. Drawing calls for -6 rivet, but I really need to use -9. I could not find -9 rivets in my inventory, so I used -8. The shop head using -8 rivet is pretty small, but it should be ok. The three rivets really just hold the attaching angle to the side skin, is not the primary load path for load from fuel tank, which is taken by the bolts and screws.

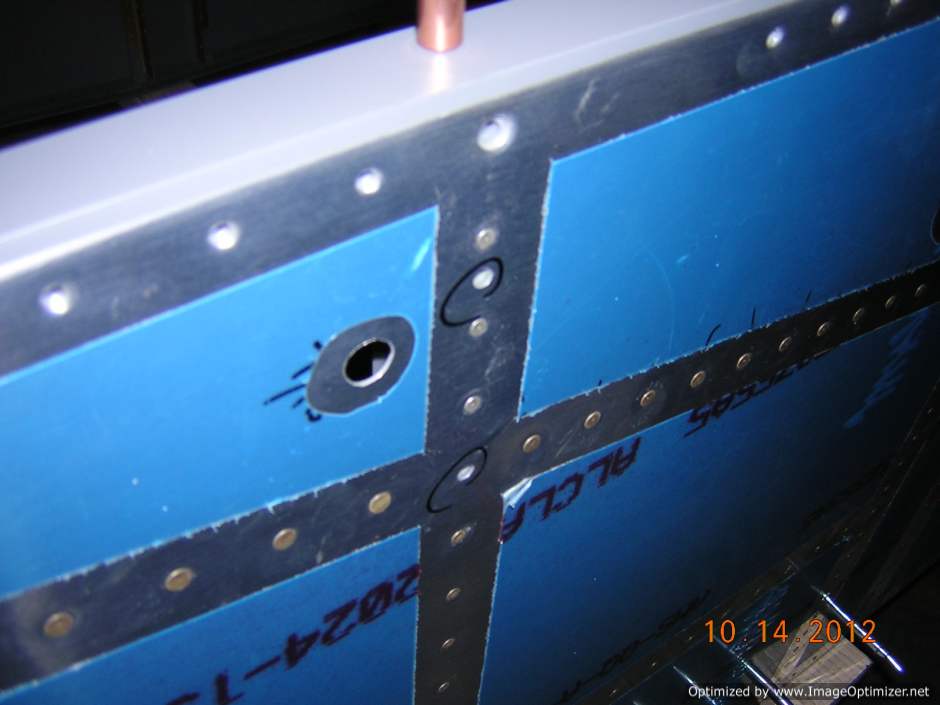

Shop heads of the -8 rivets look small to me, but should be fine
Aux longeron and engine mount bracket are riveted

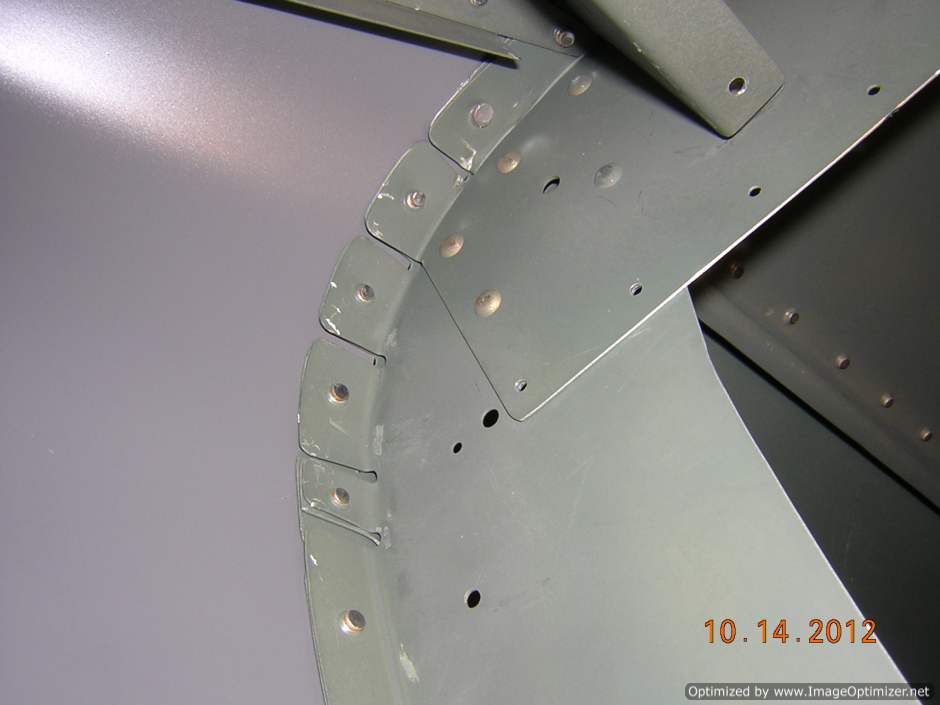

Right hand side conical area and lap joint are riveted

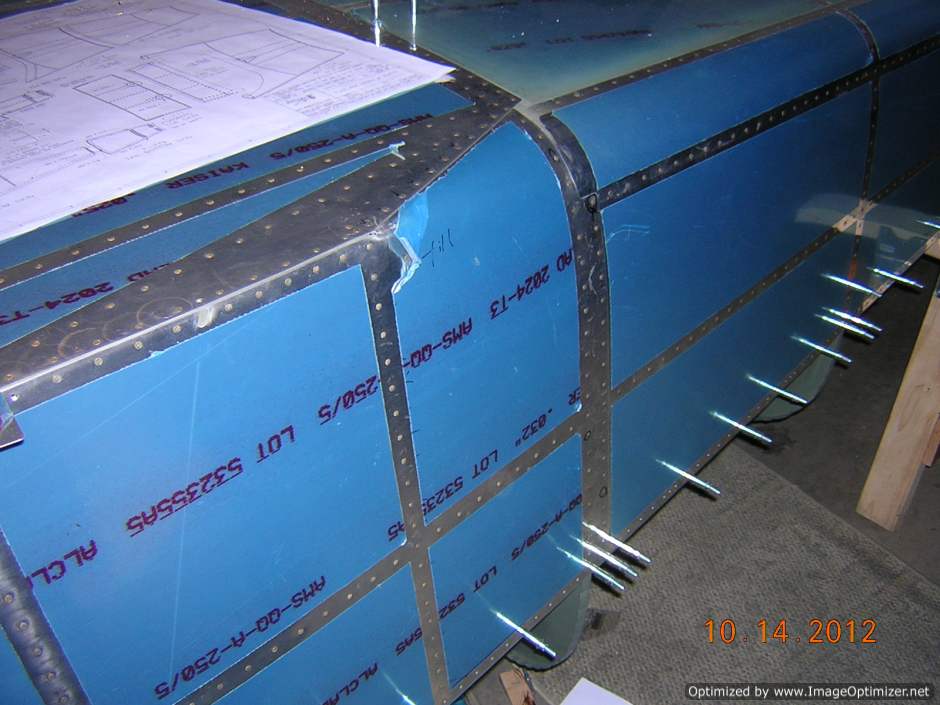

Almost ready to flip over, I still need to rivet the seat rib to side skin.

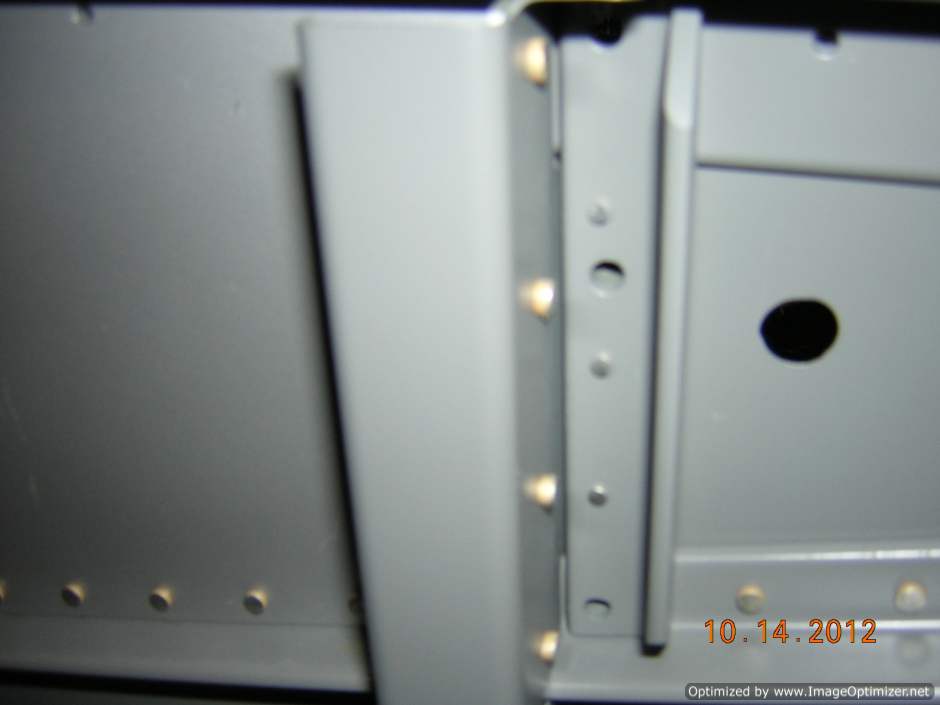

F902 bulkhead is riveted to lower longeron

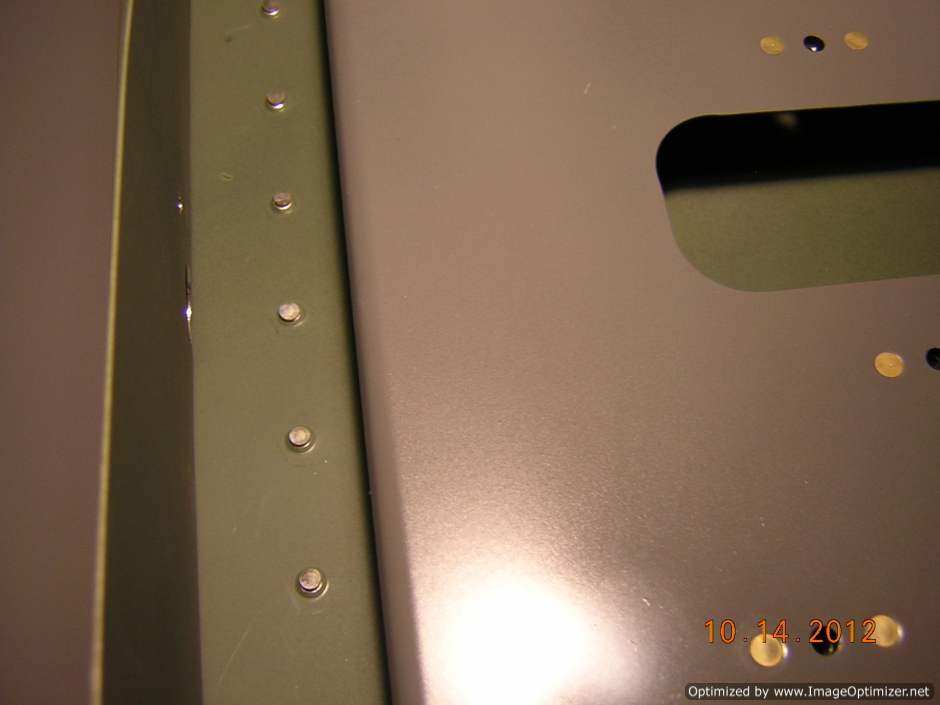

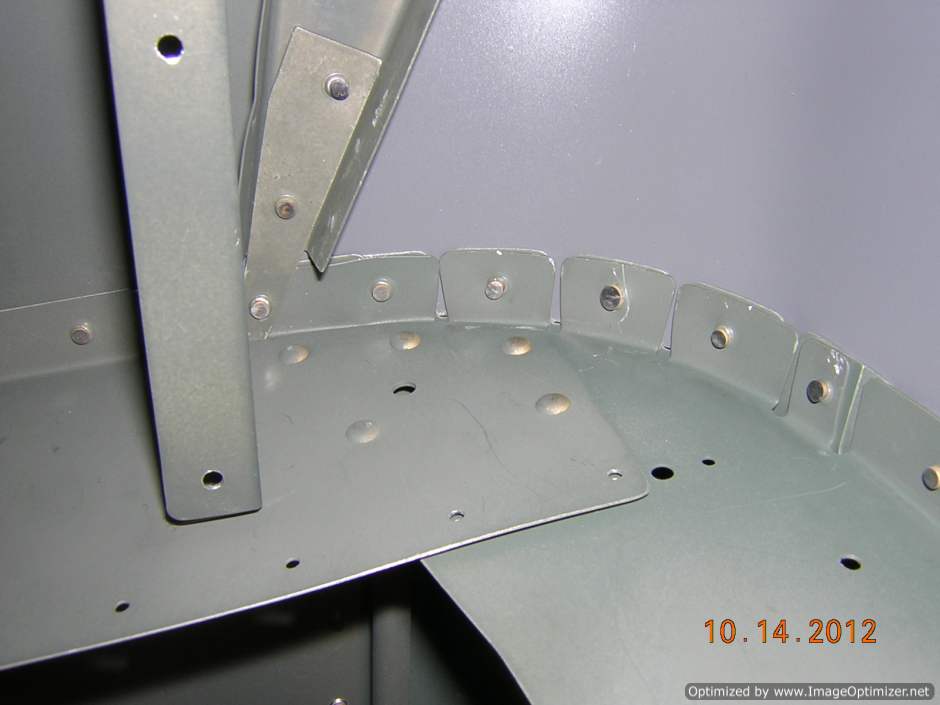

Shop heads around conical bend area on left hand side. Not perfect, but ok. I had to use one whoops rivet on each side

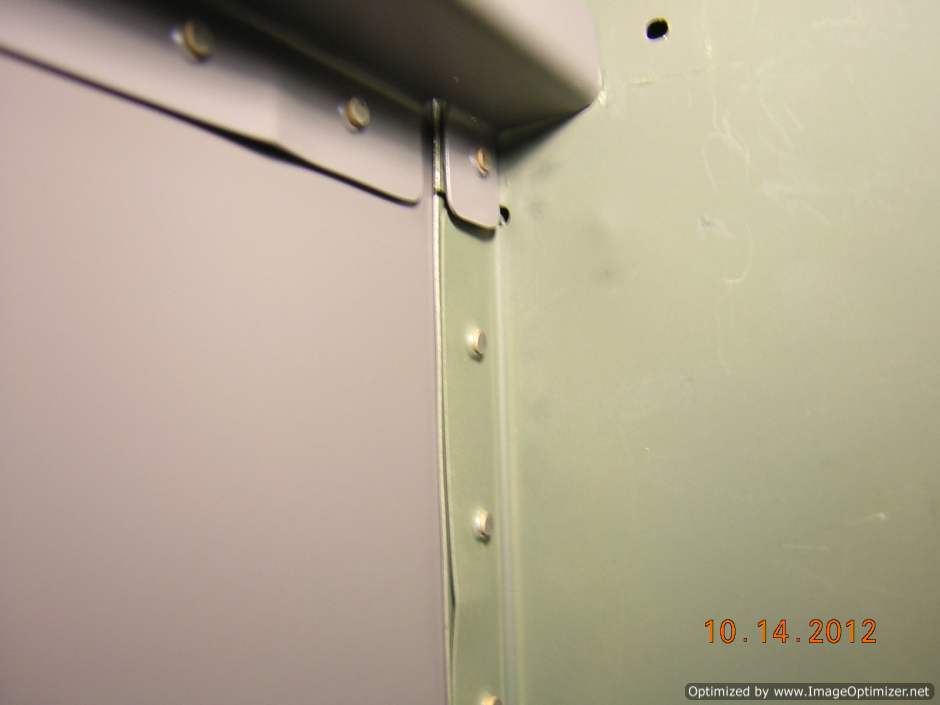

Shop heads on lap joint
Another view of shop heads of lap joint

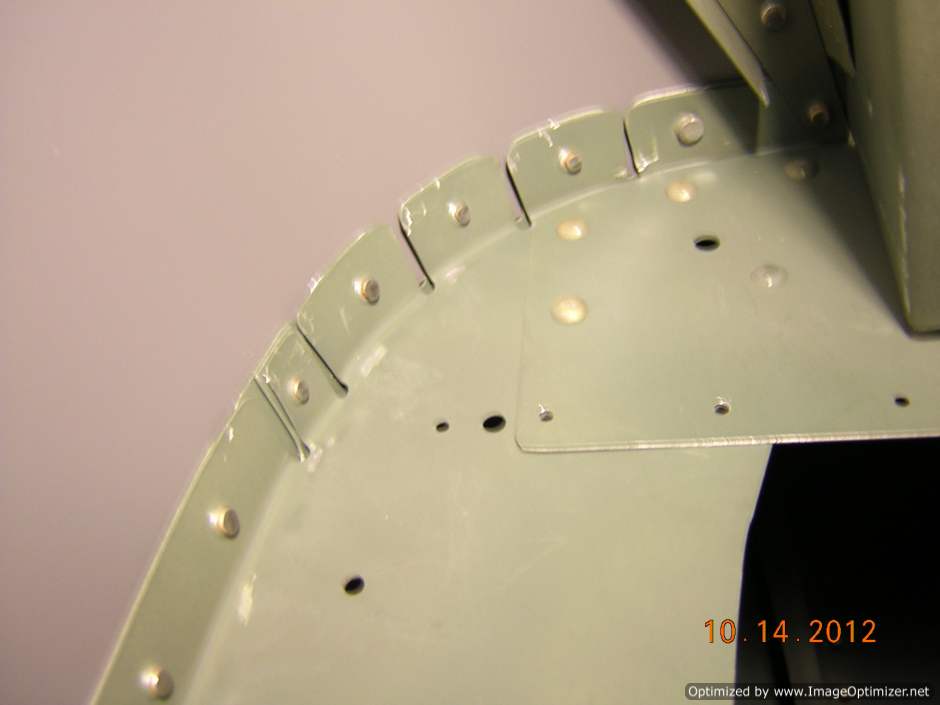

Shop heads of conical bend rivets on right hand side

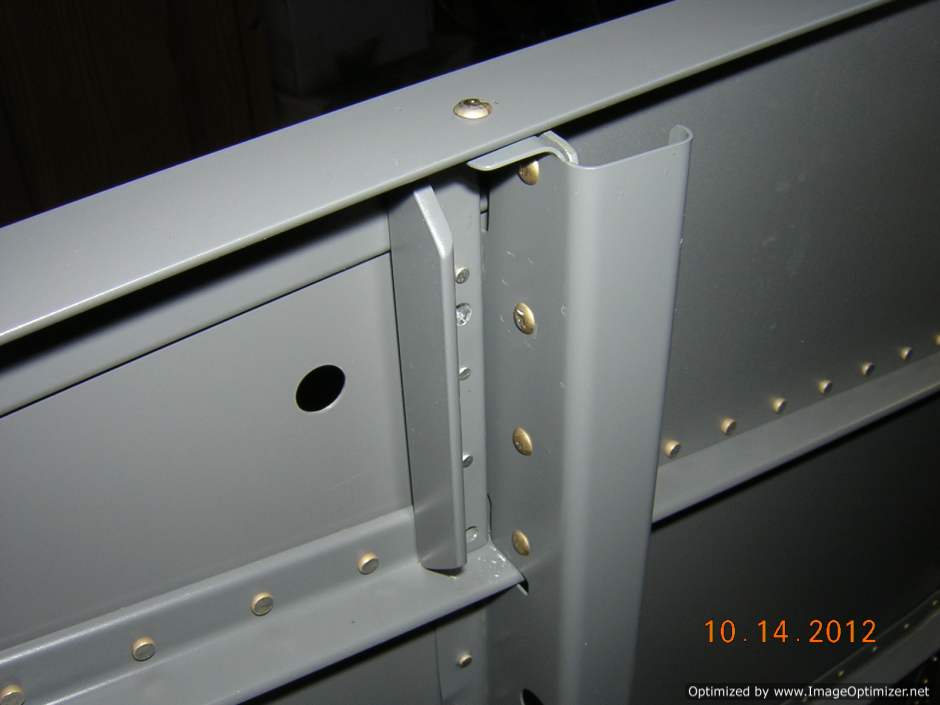

Shop heads of cargo vertical frame to side skin rivets
