02-09-2012: 2.5 hrs
- Drilled the bracket and reinforcement plate with inboard rib
- Drilled reinforcement plate with outboard rib
- Drilled cover plate to the inboard rib
- Drilled the nutplate rivet holes for the reinforcement ring and cover plate

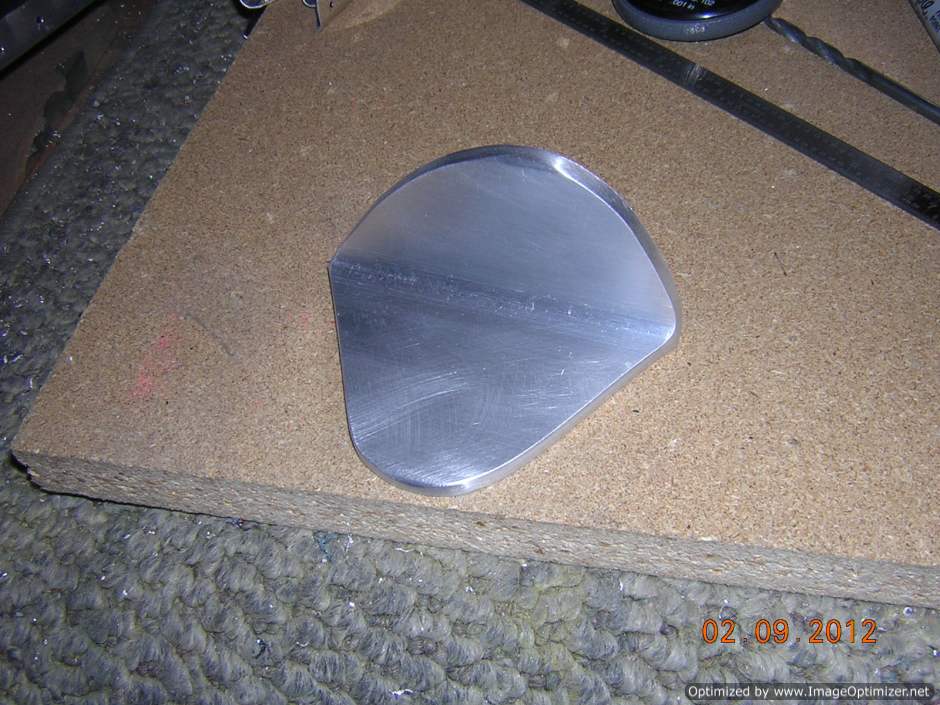

Tank to fuselage attachment bracket fabricated

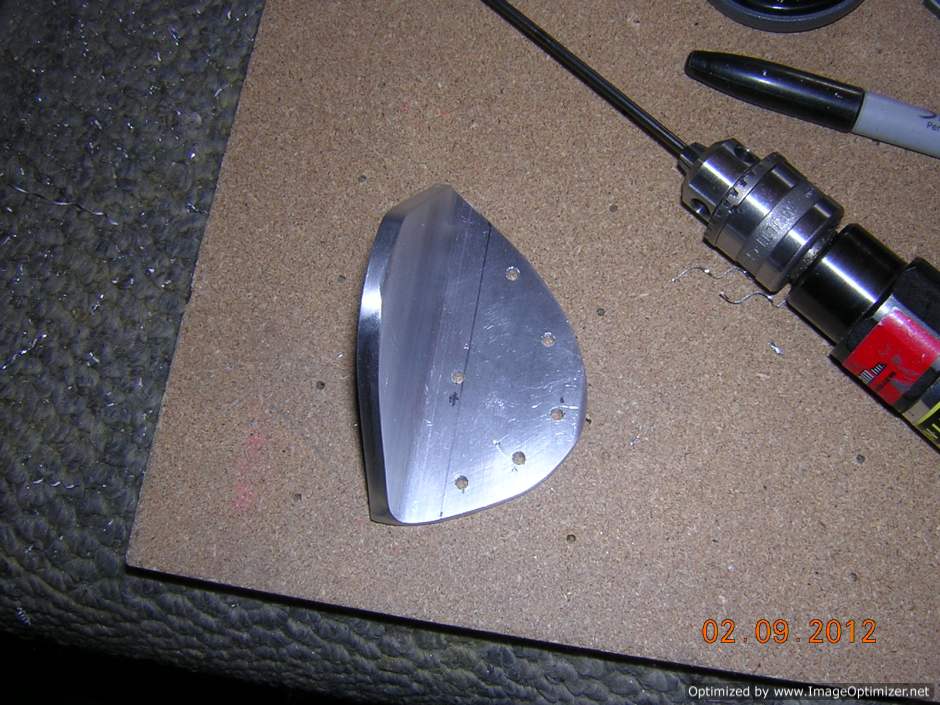

Tank to fuselage bracket drilled

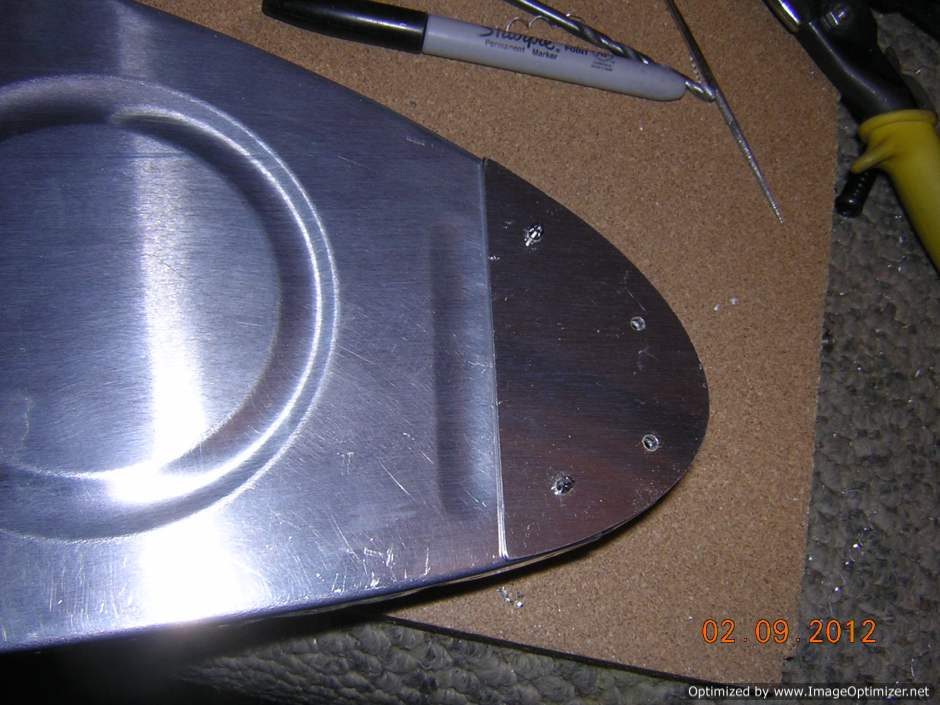

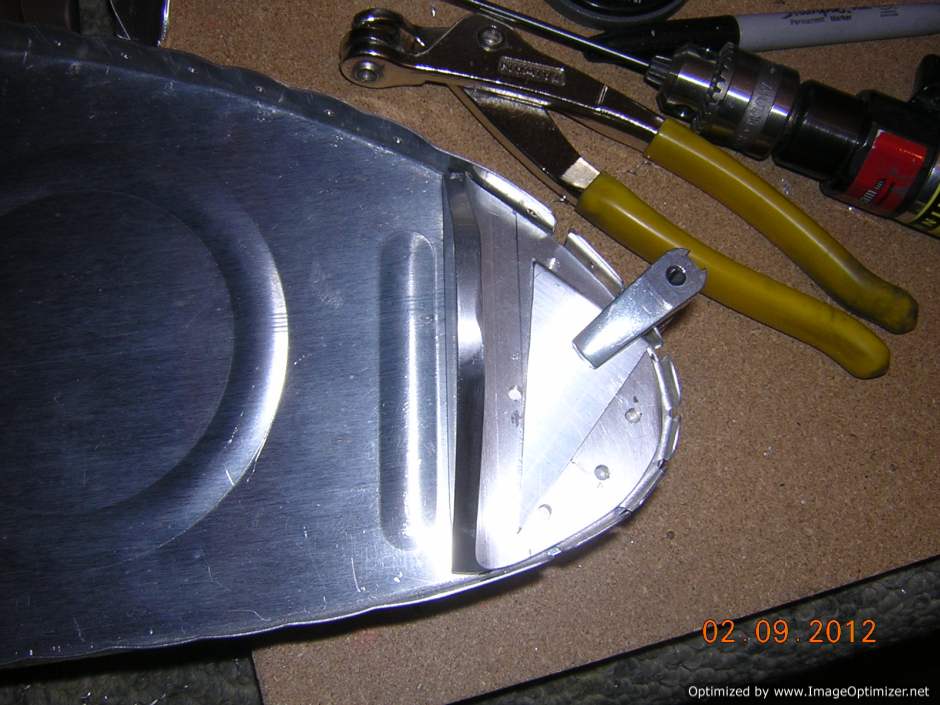

Inboard rib is matched drilled with fuselage attaching bracket
Inboard rib is matched drilled with fuselage attaching bracket

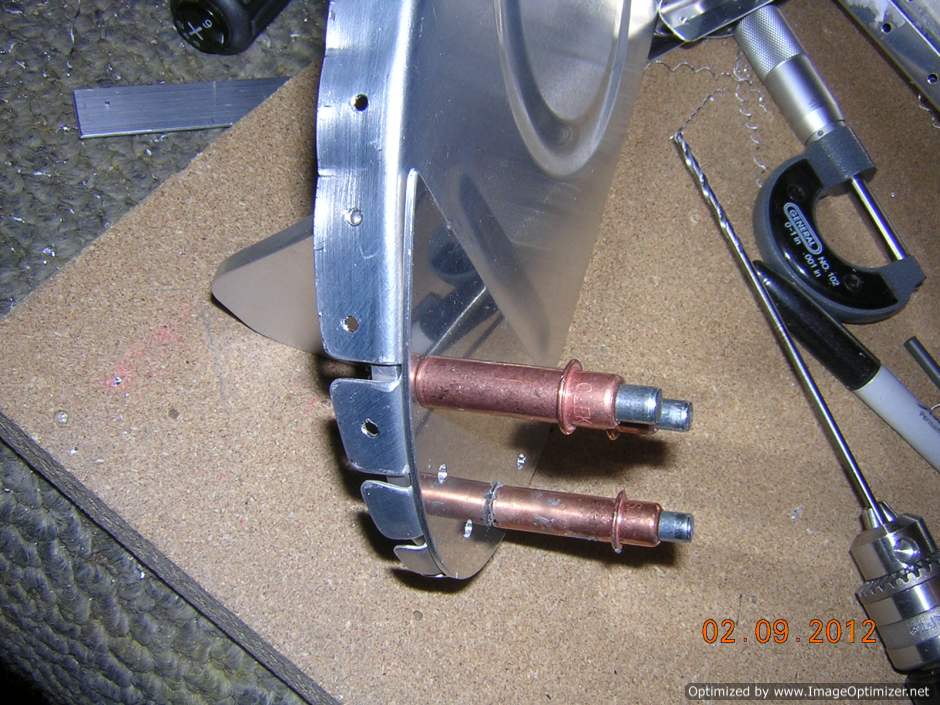

Outboard rib is drilled with the reinforcement plate

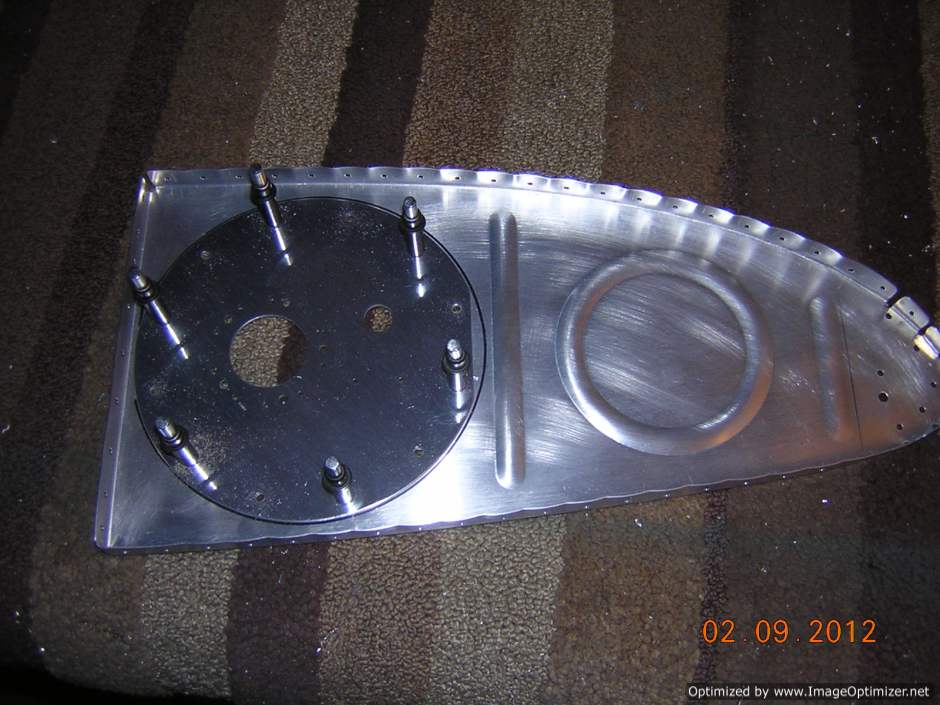

Access plate and inboard rib are match drilled

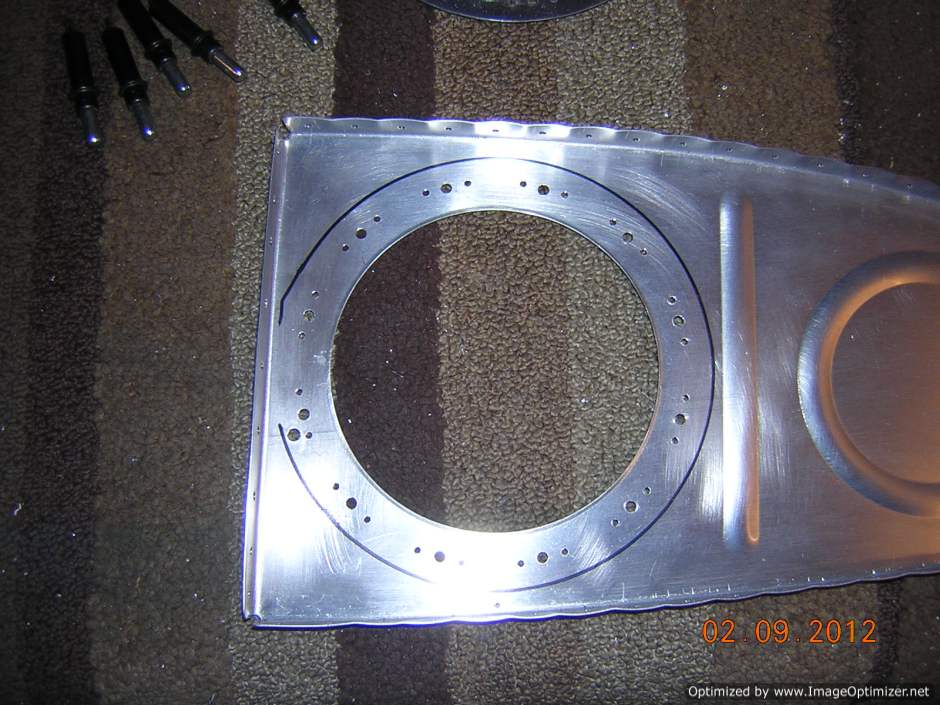

Nutplate rivet holes on the inboard rib are drilled
