02-05-2012: 4.5 hrs

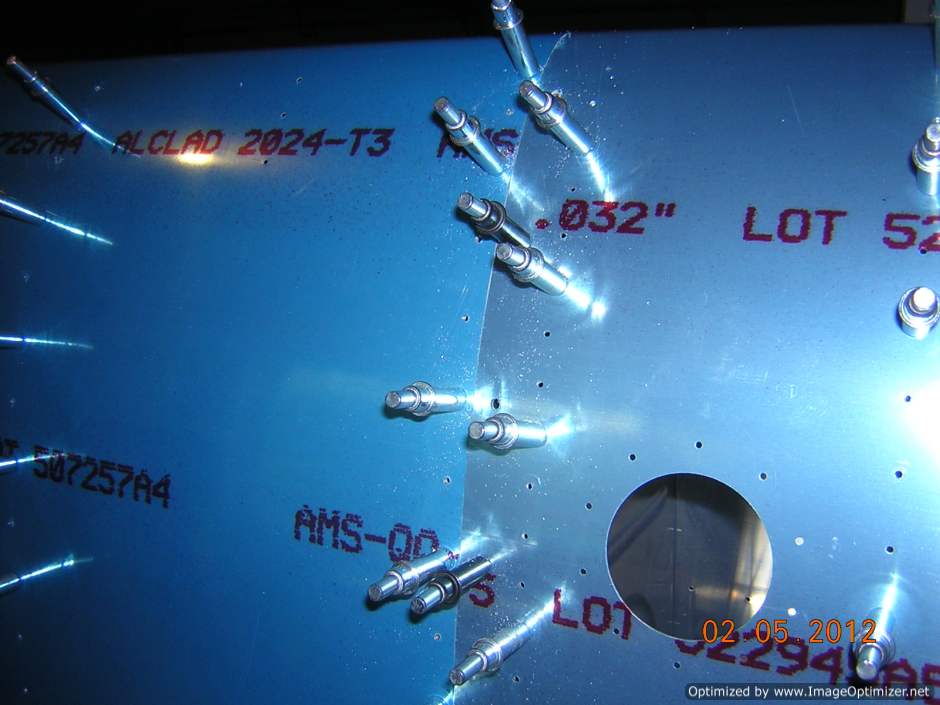

Joint plate is match drilled to #19

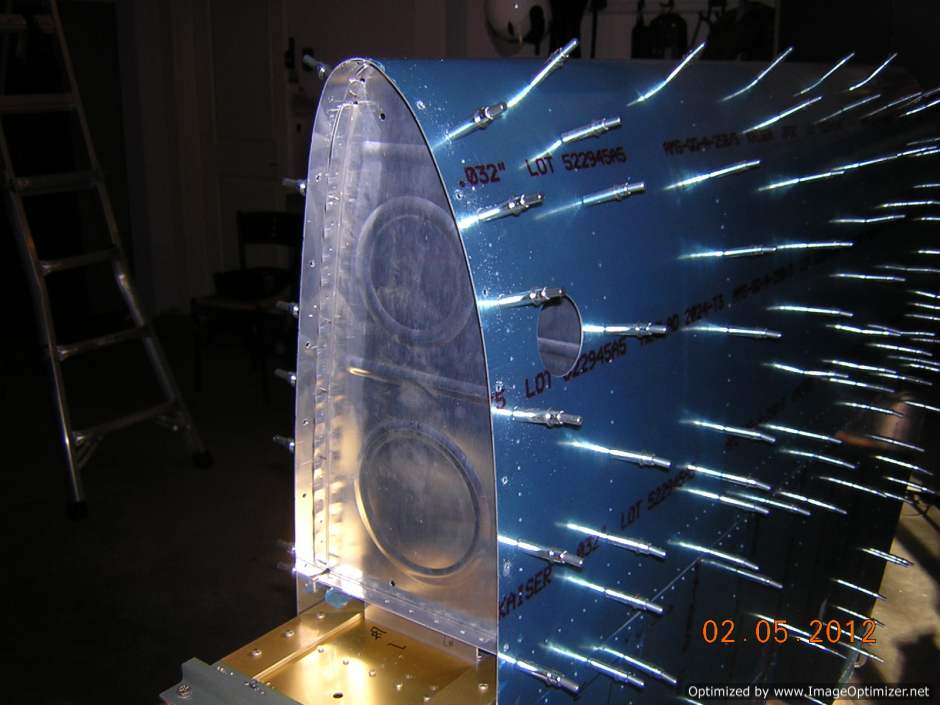

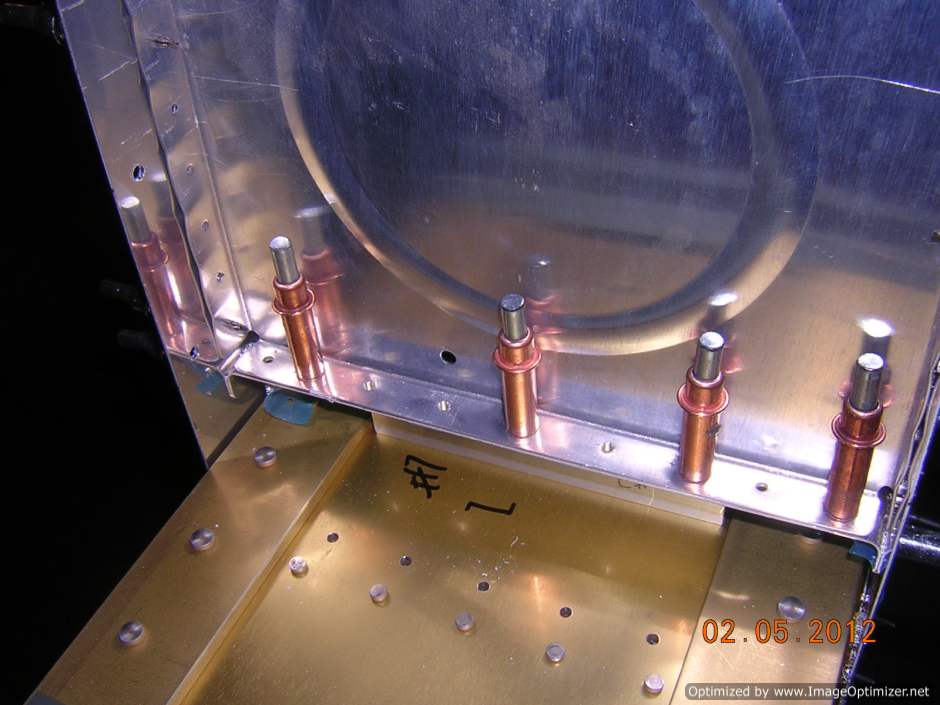

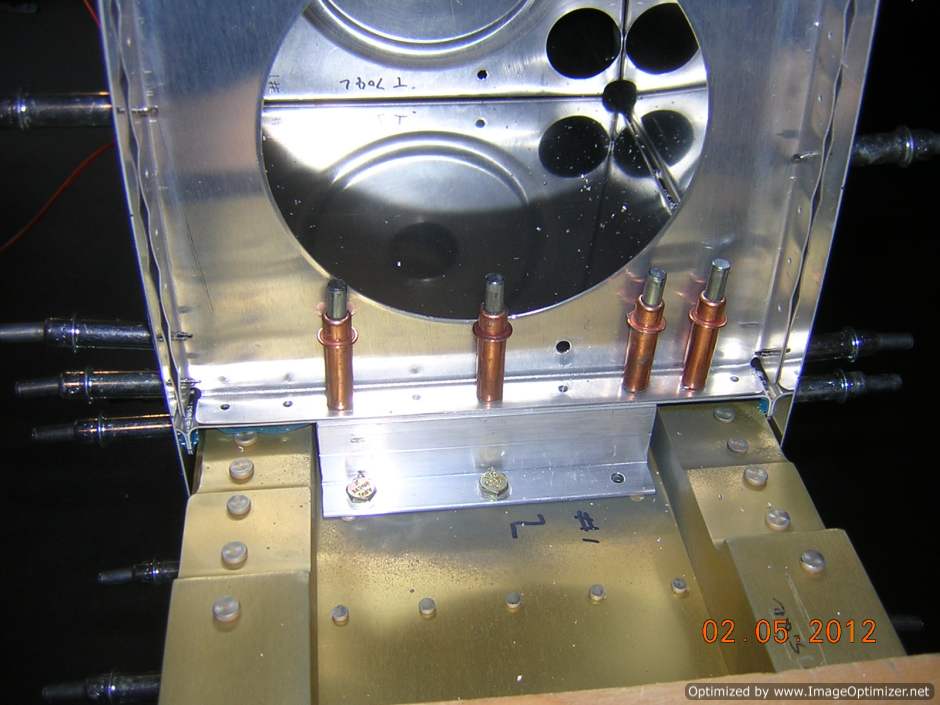

The position of the fuel tank looks good, the inboard Z bracket is match drilled to tank rib flange and baffle

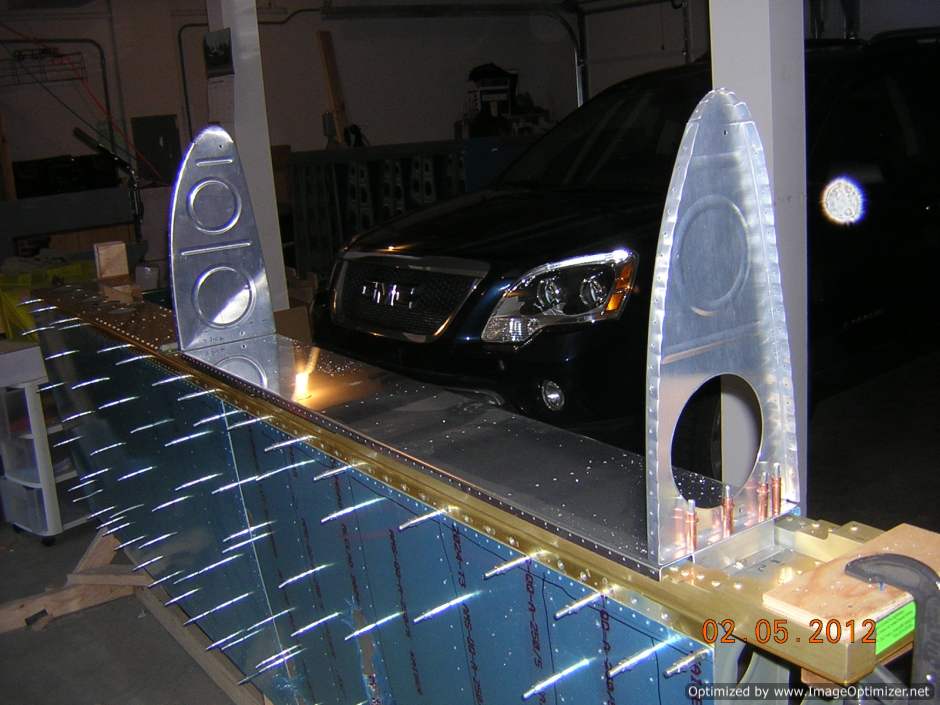

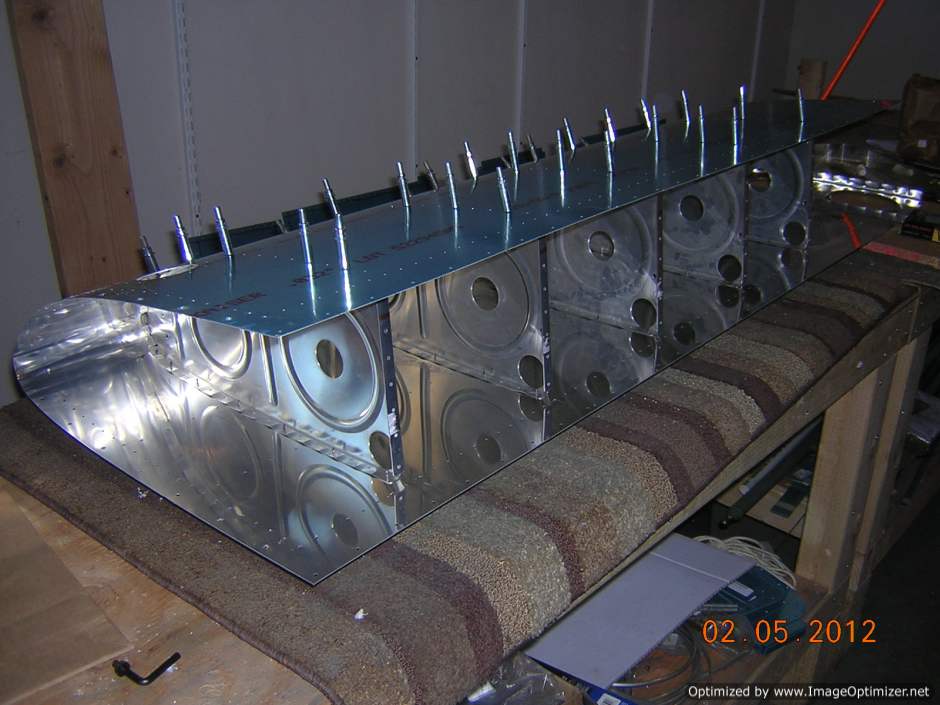

Leading edge is removed, the outboard Z bracket will be match drilled

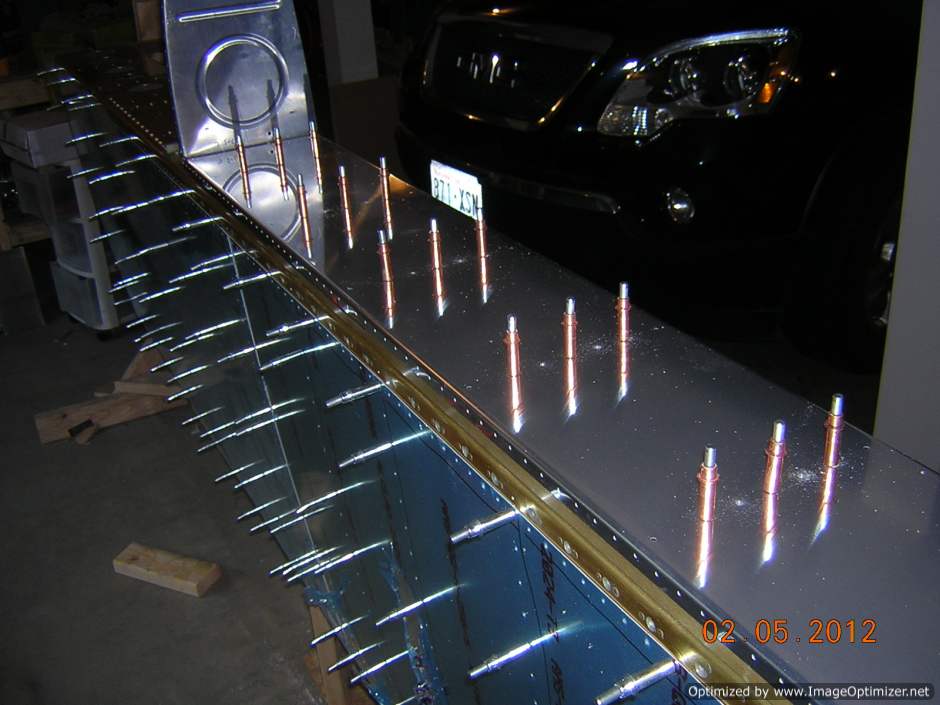

Outboard Z bracket is match drilled
The tank skin and interior ribs are removed from the wing so the rest of the Z brackets can be match drilled
The baffle will be used as guide to match drill the Z brackets
All Z brackets are match drilled

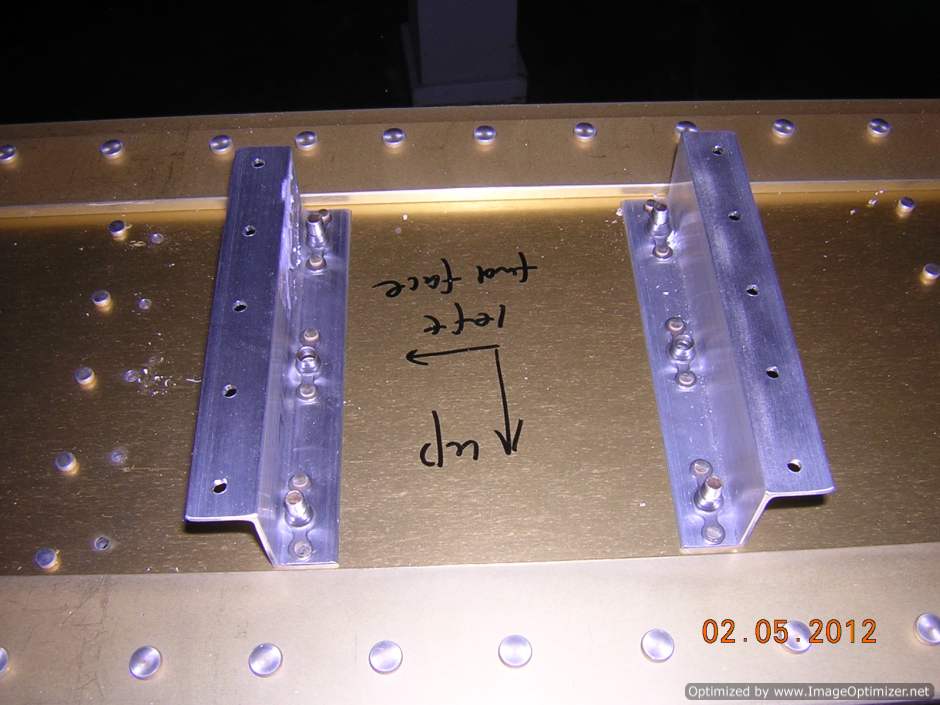

The edge margin on the Z bracket looks good

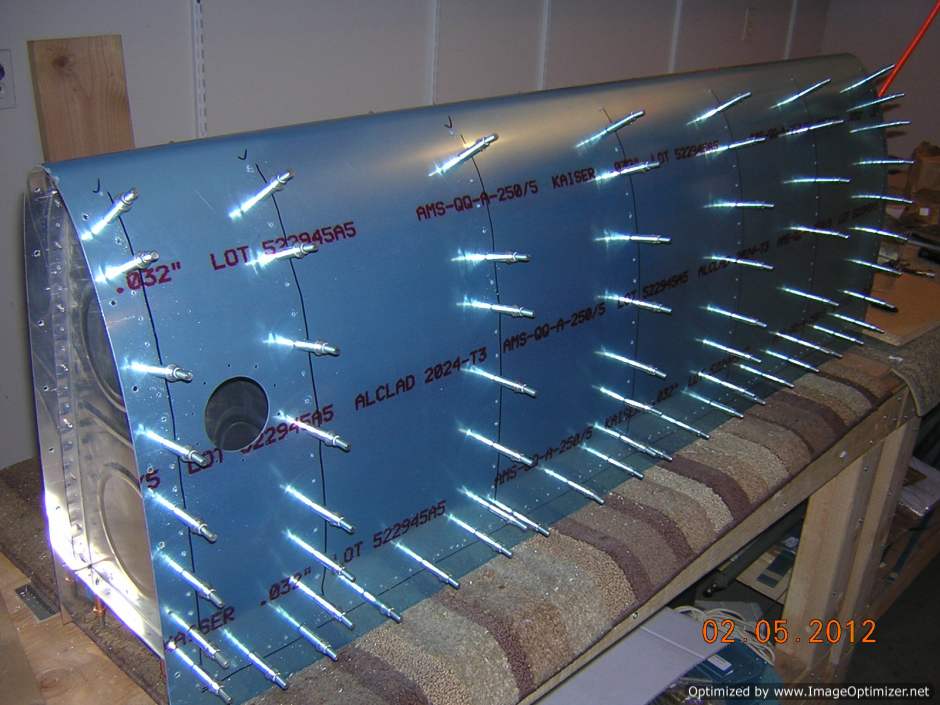

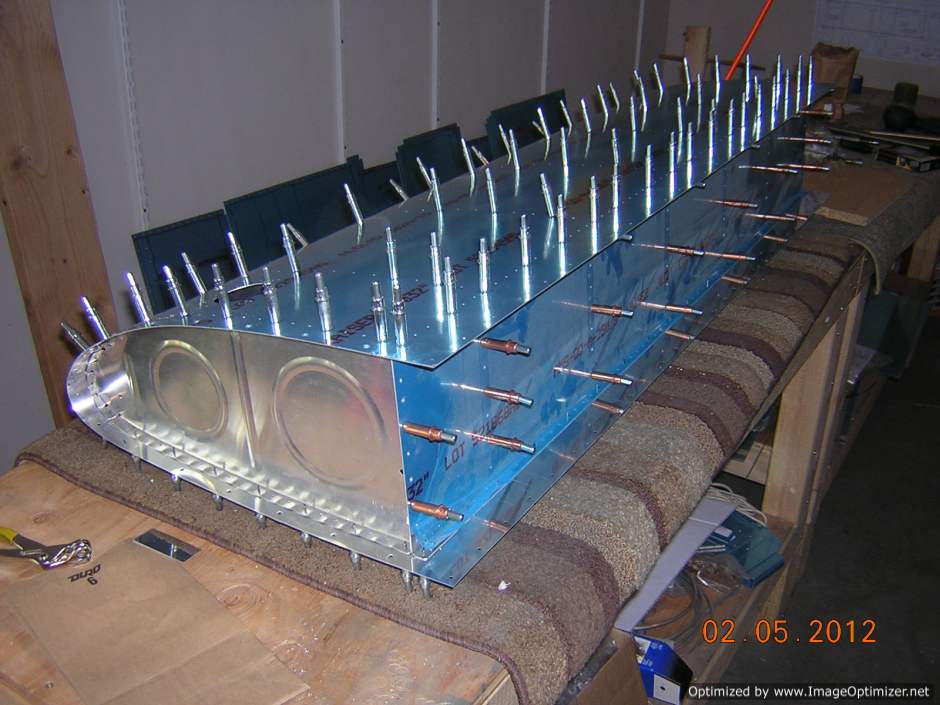

Fuel tank is re-clecoed together for final drill
Fuel tank is final drilled

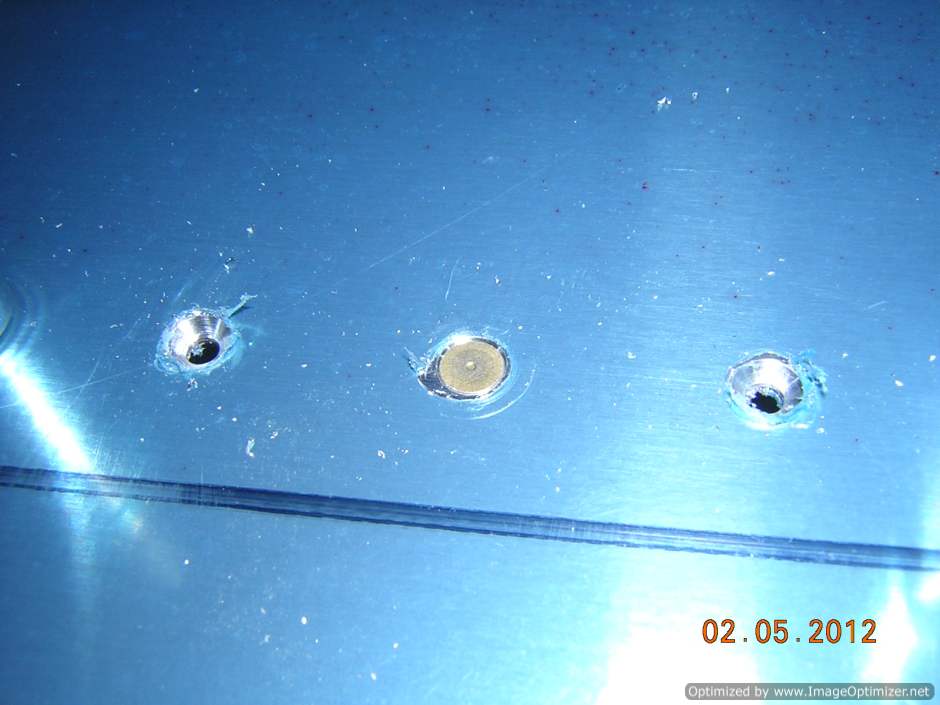

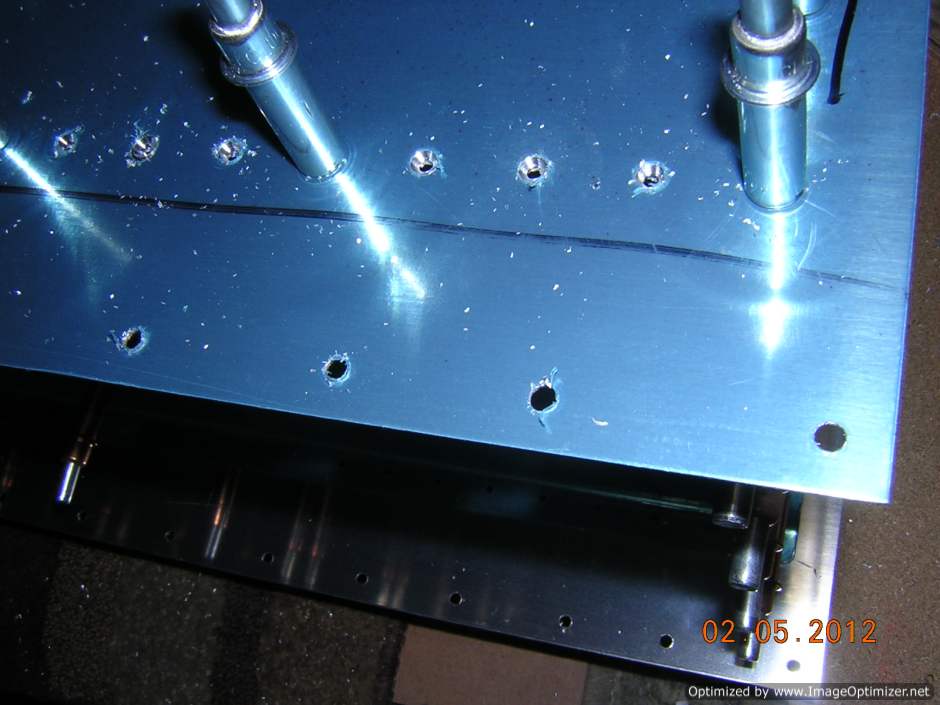

The skin to baffle rivet holes are countersunk. The countersunk is slightly deeper than normal to accomodate pro-seal
The screw holes are enlarged to #19

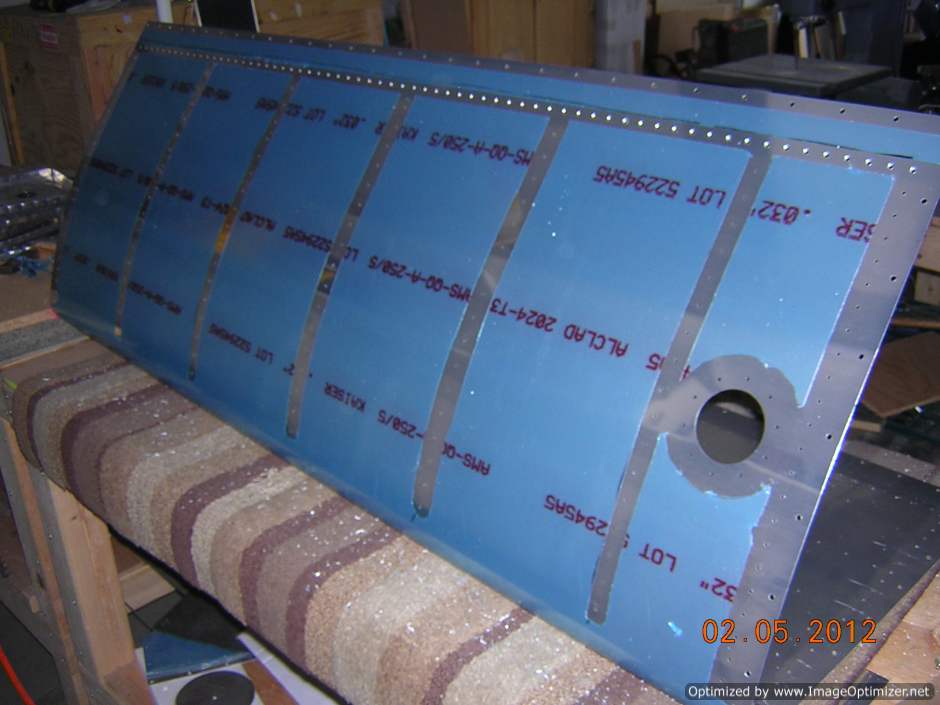

The tank skin is de-vynaled along the rivet lines
The baffle will be used as guide to match drill the Z brackets
All Z brackets are match drilled
The edge margin on the Z bracket looks good
Fuel tank is re-clecoed together for final drill
Fuel tank is final drilled
The skin to baffle rivet holes are countersunk. The countersunk is slightly deeper than normal to accomodate pro-seal
The screw holes are enlarged to #19
The tank skin is de-vynaled along the rivet lines
