02-04-2012: 3 hrs

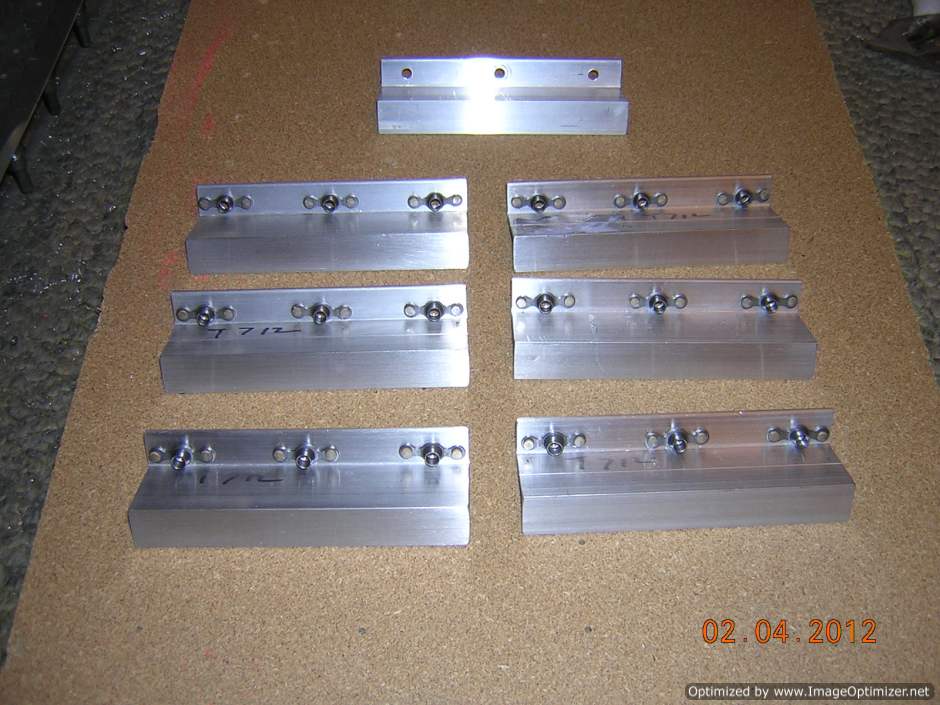

K1000-3 nutplates arrived today, got them installed on the Z brackets except the most inboard one

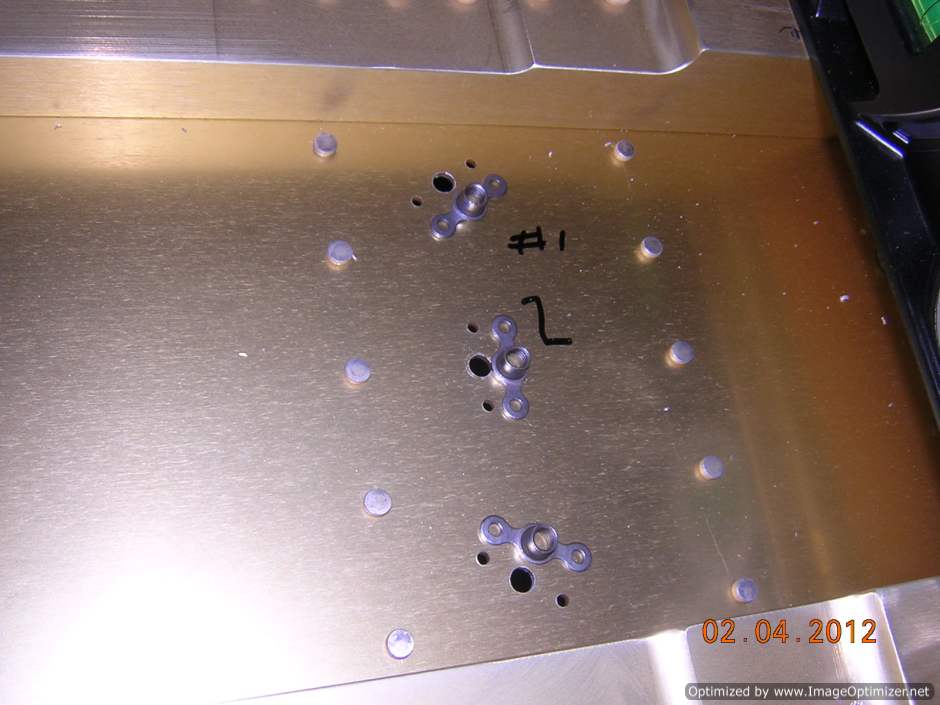

Three K1000-3 nutplates will be installed on the spar web

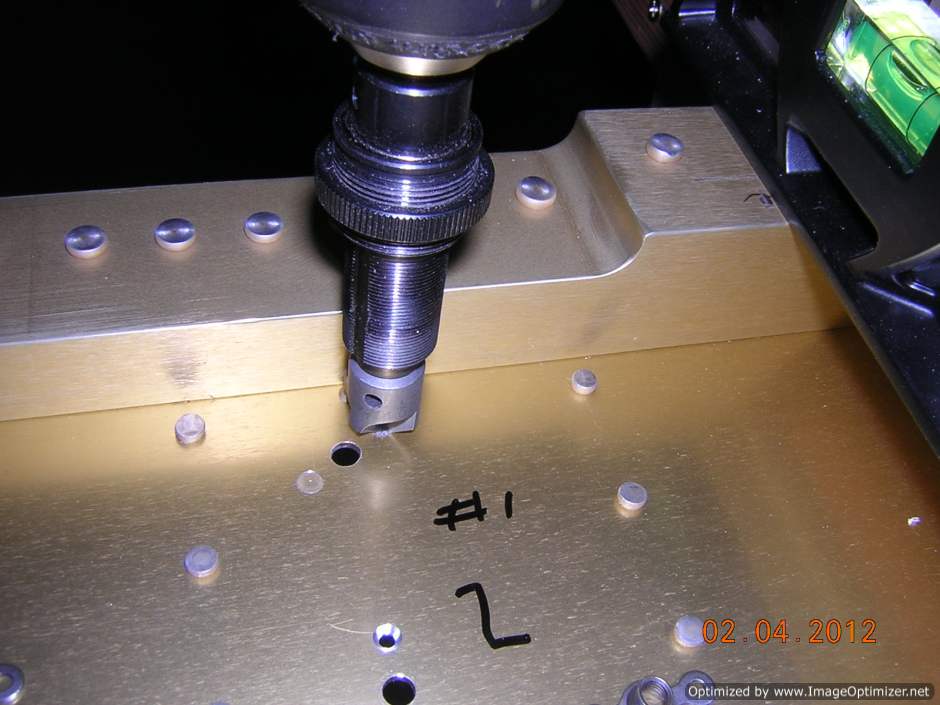

I had to take the countersink stopper out for clearance when countersinking the two holes adjacent to the spar cab, I need to go very slowly here to avoid over countersinking

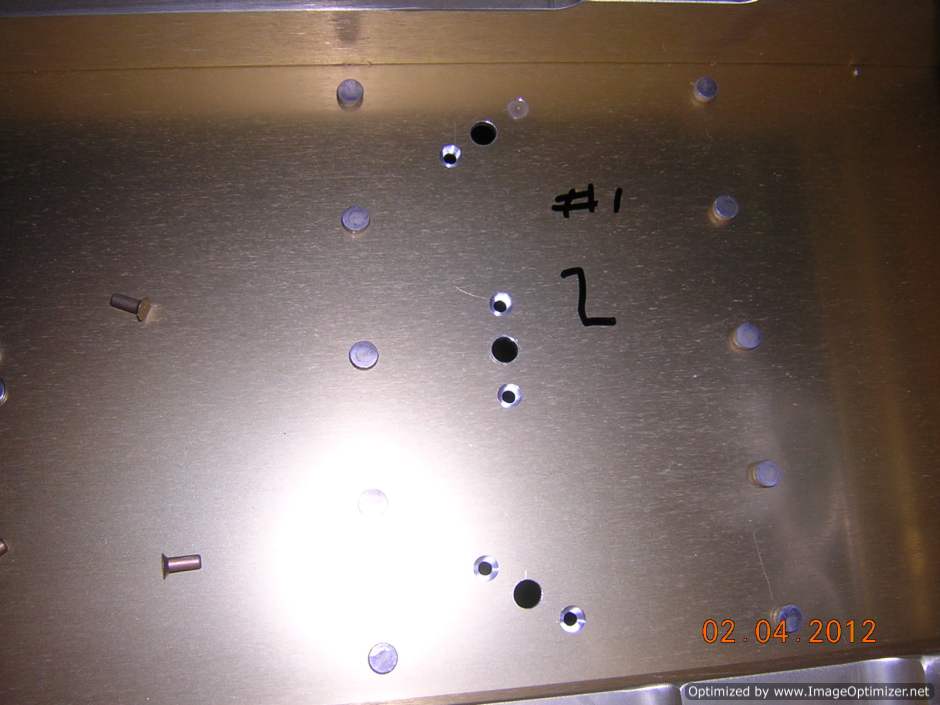

Rivet holes for the nutplate on the spar web are countersunk

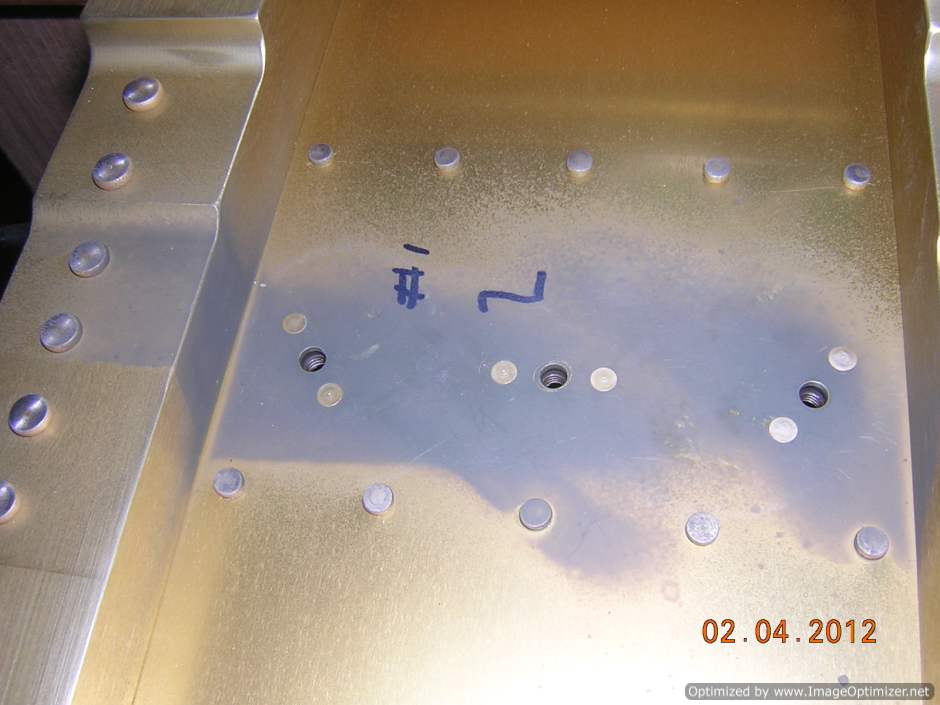

The countersunk holes are primed, and nutplates are installed

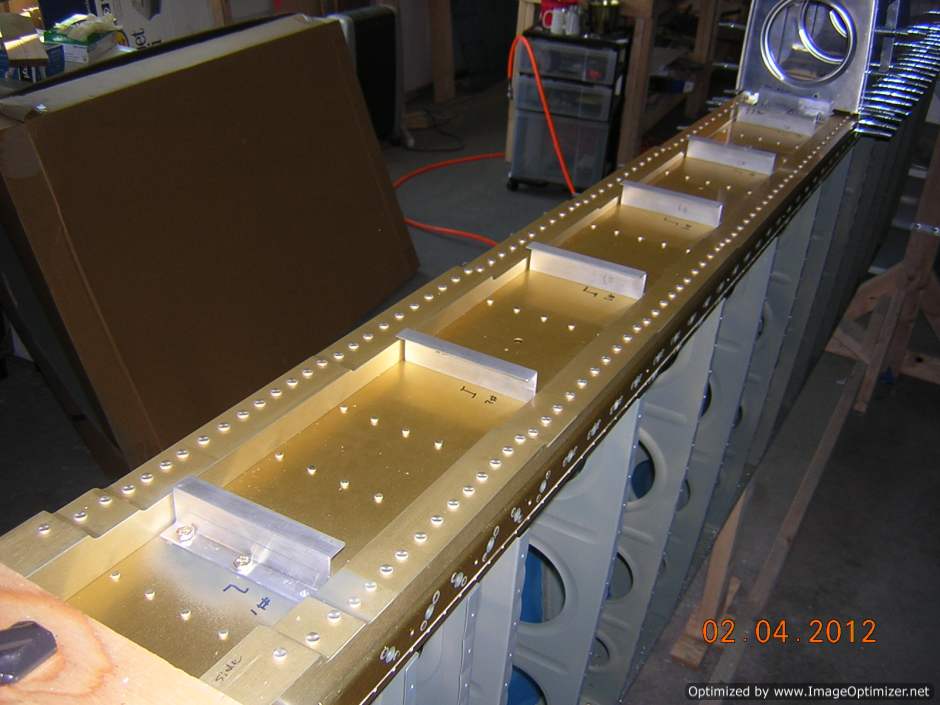

Z brackets are bolted to the spar using two bolts for each bracket

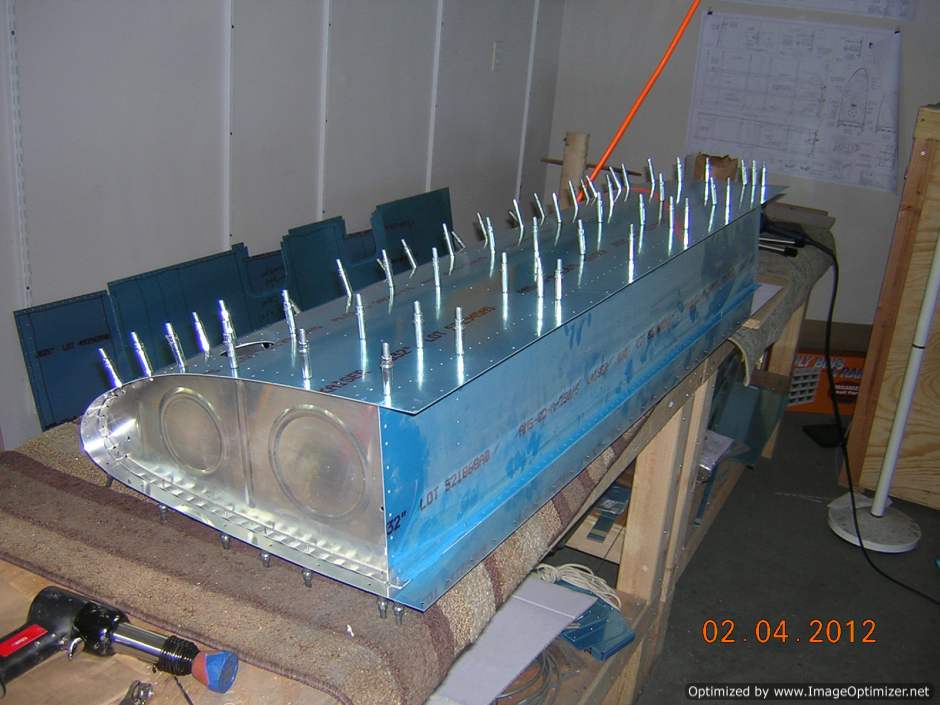

Baffle is clecoed to fuel tank assembly

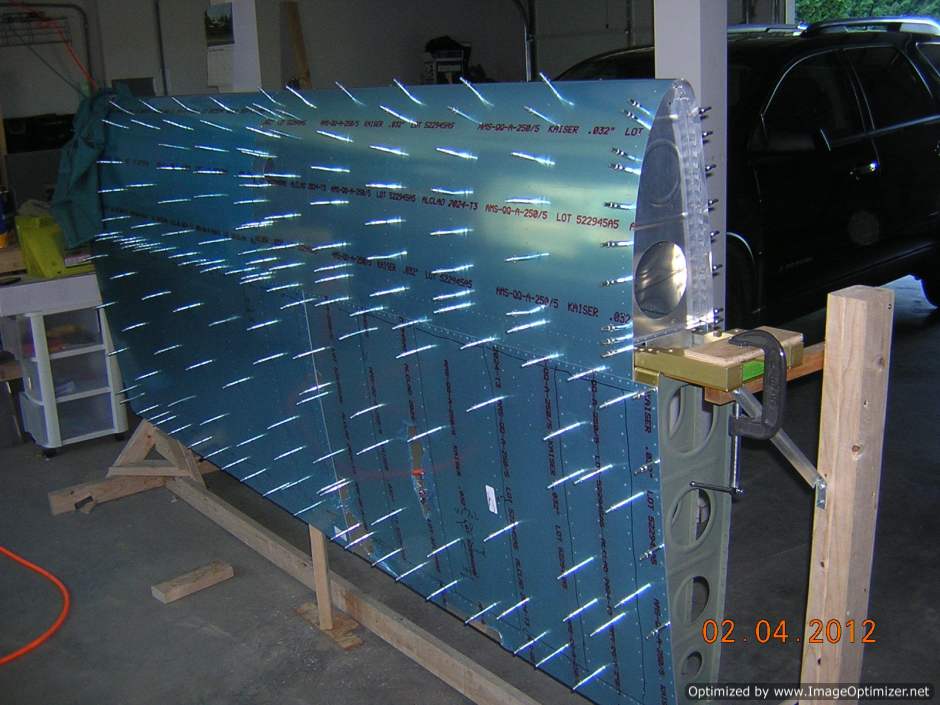

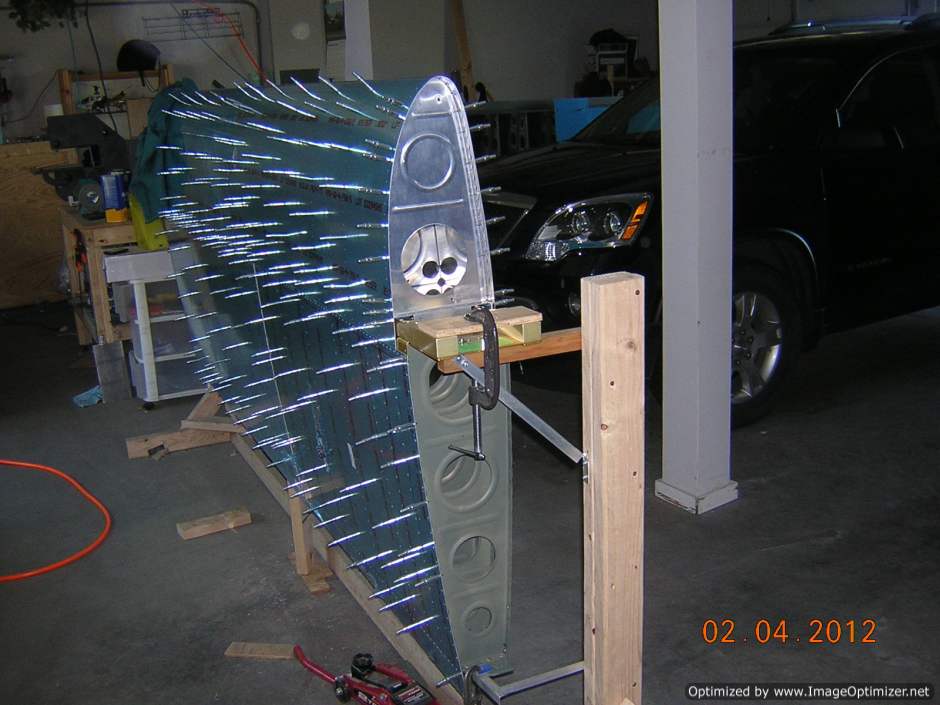

Fuel tank assembly is fitted to the spar
Fuel tank assembly is fitted to the spar

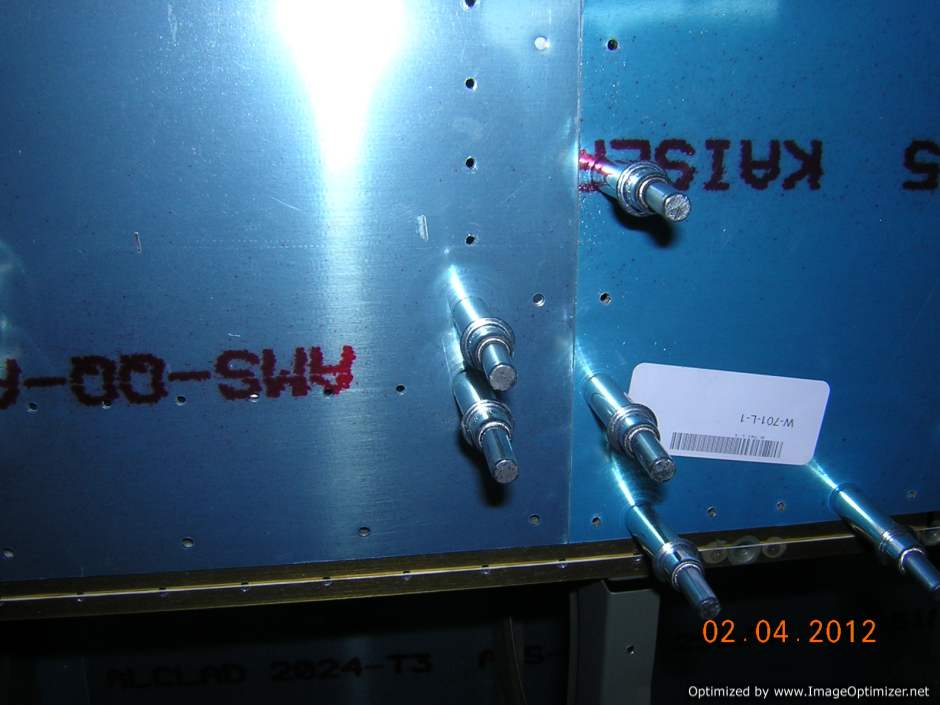

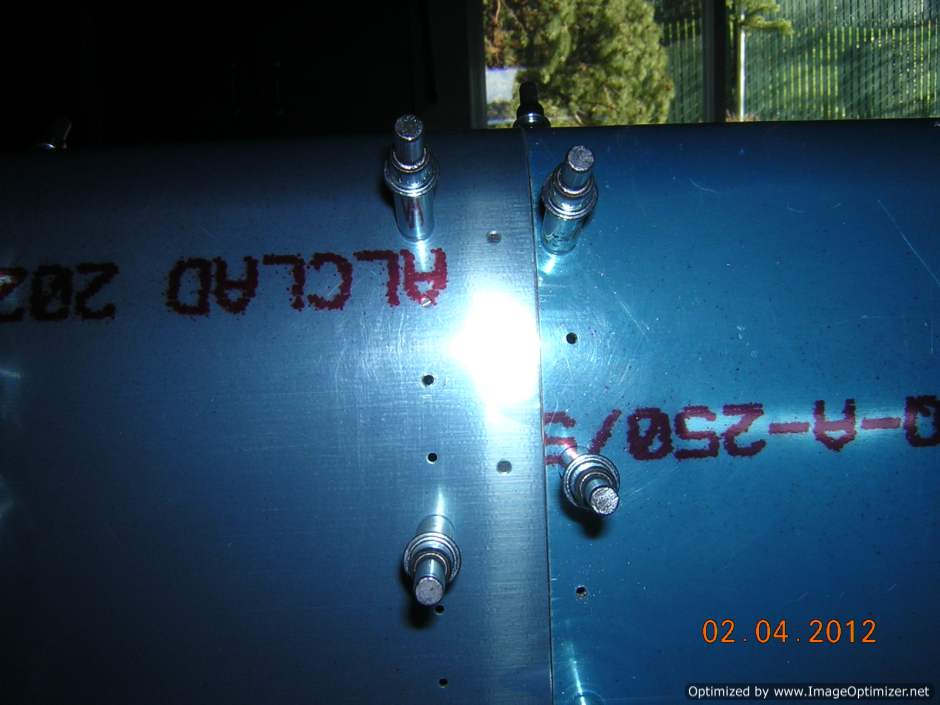

The gap between leading and tank skins is checked, it looks good
The gap between leading and tank skins is checked, it looks good
Z brackets are bolted to the spar using two bolts for each bracket
Baffle is clecoed to fuel tank assembly
Fuel tank assembly is fitted to the spar
Fuel tank assembly is fitted to the spar
The gap between leading and tank skins is checked, it looks good
The gap between leading and tank skins is checked, it looks good
