03-18-2012: 1.5 hrs

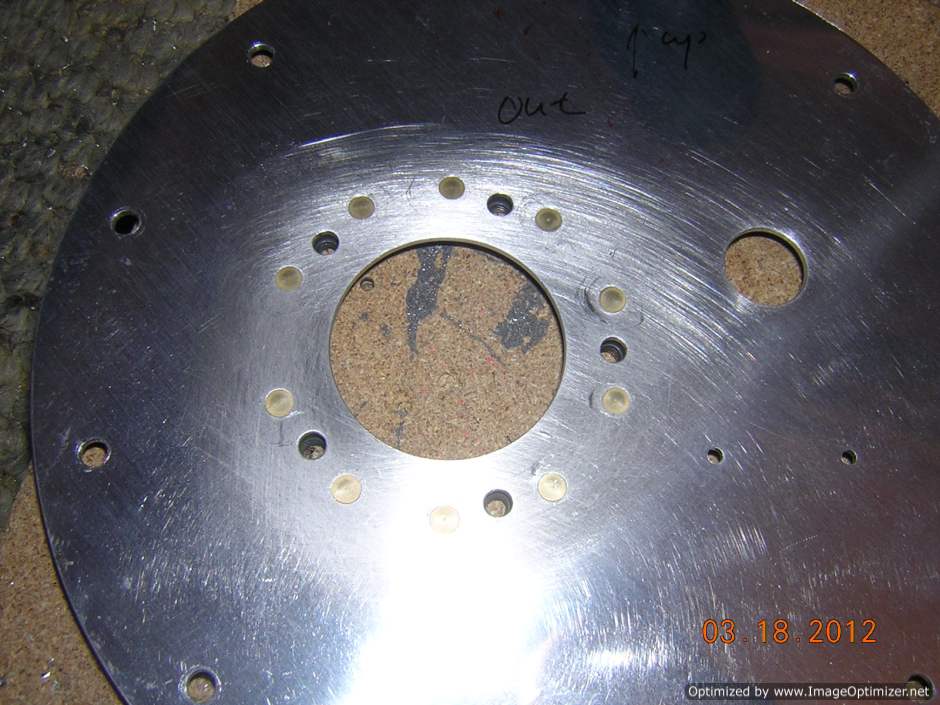

Nutplates for fuel sender unit are installed

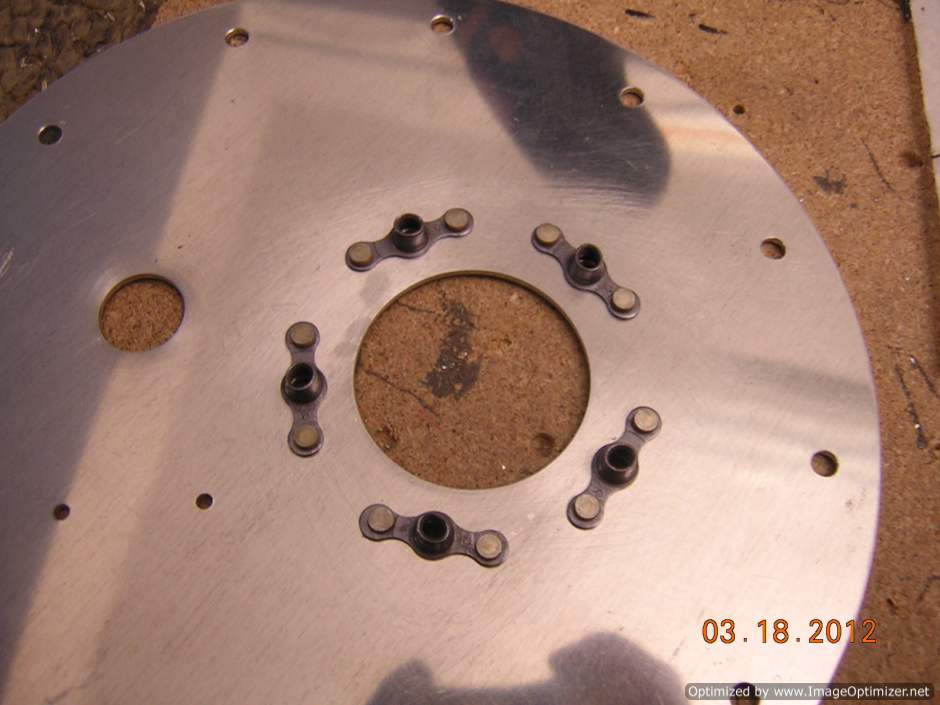

Nutplates for fuel sender unit

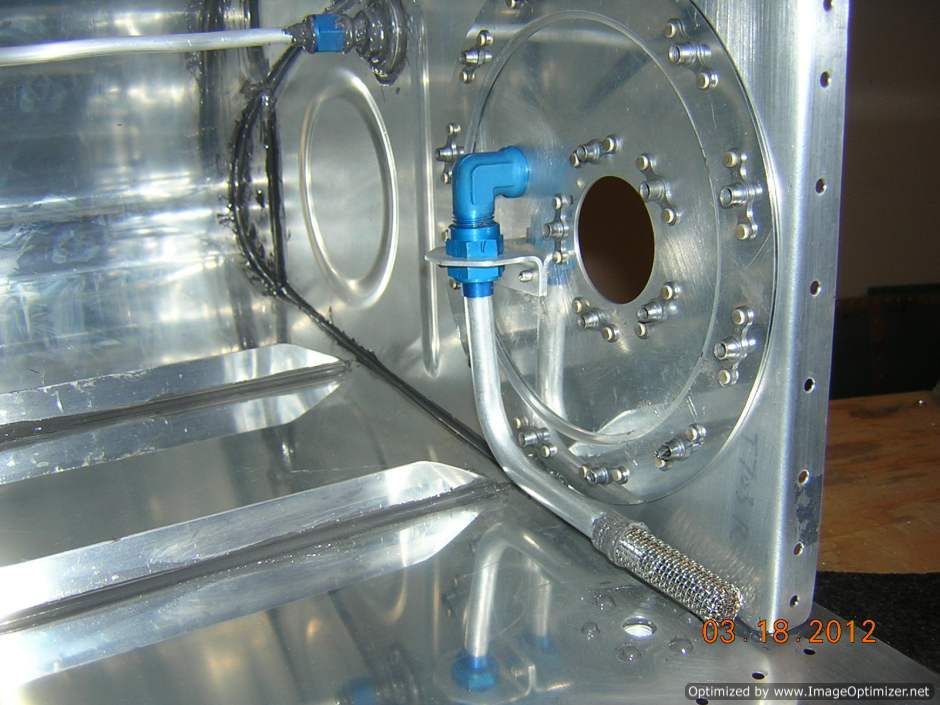

Fuel pick up line and anti-rotation bracket are clecoed to the inboard rib through access plate. The position of the fuel pick up line looks right

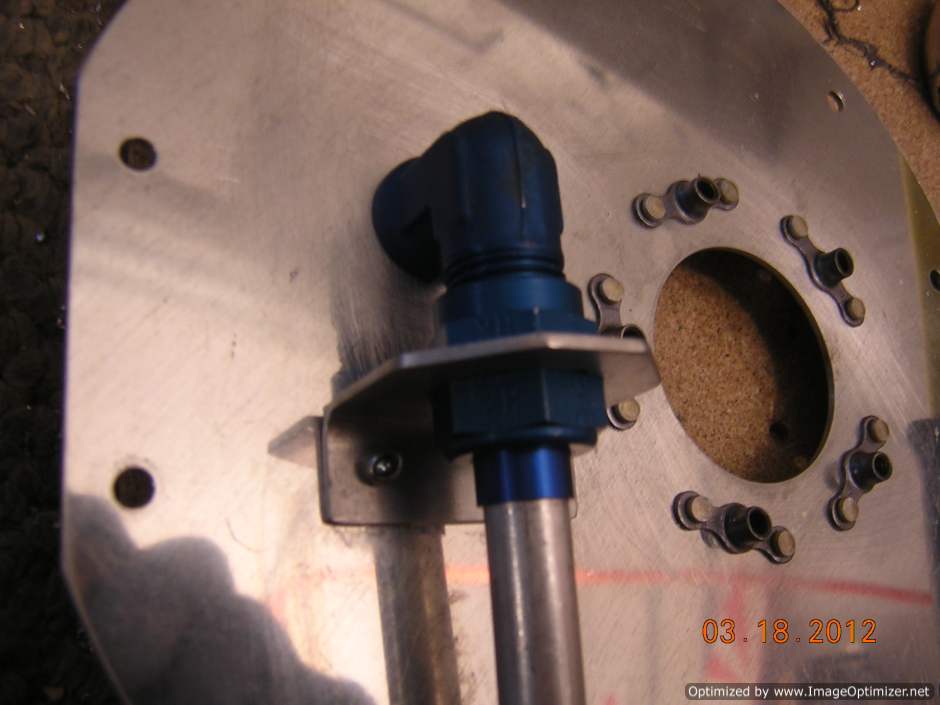

Anti-rotation bracket is riveted using pop MS-319 pop rivets

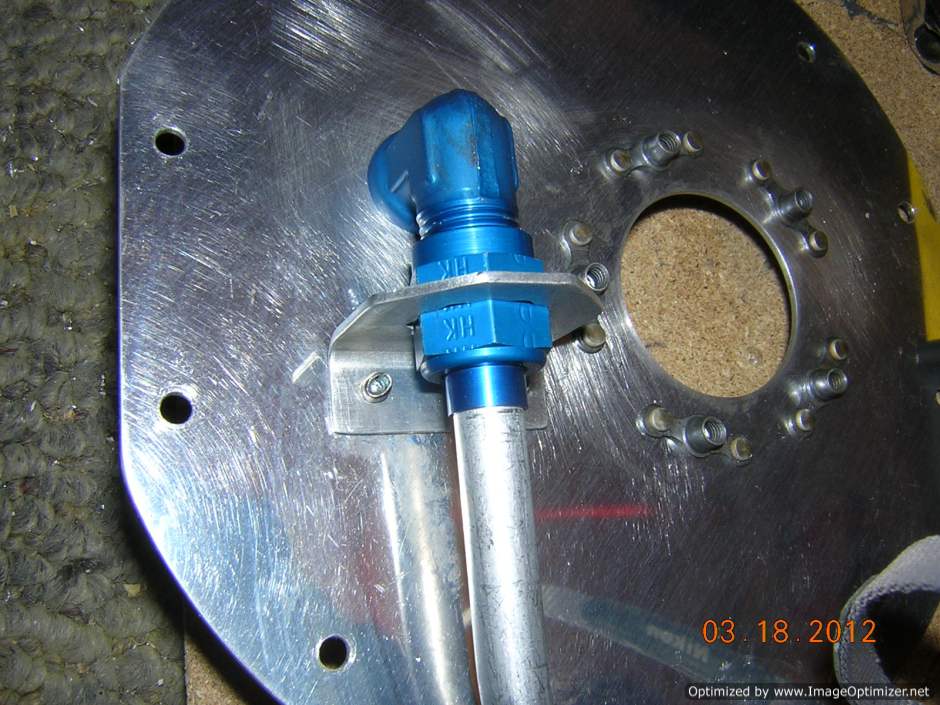

Anti-rotation bracekt

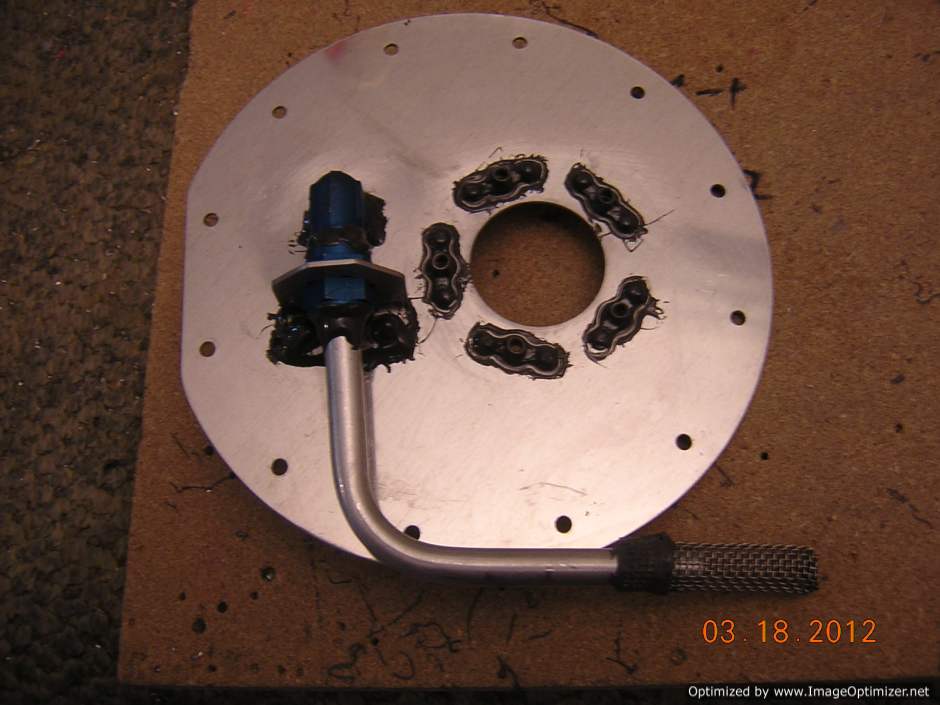

Anti-rotation bracket, fuel pickup line fitting, and nutplates for fuel level sender are sealed using sealant

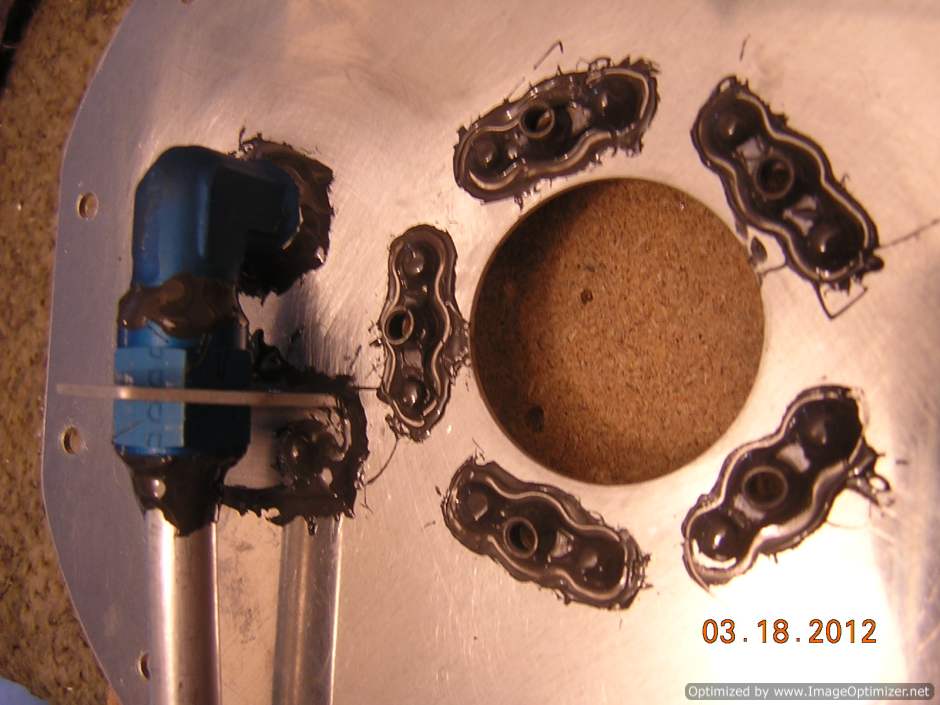

Close-up view of the sealed nutplates

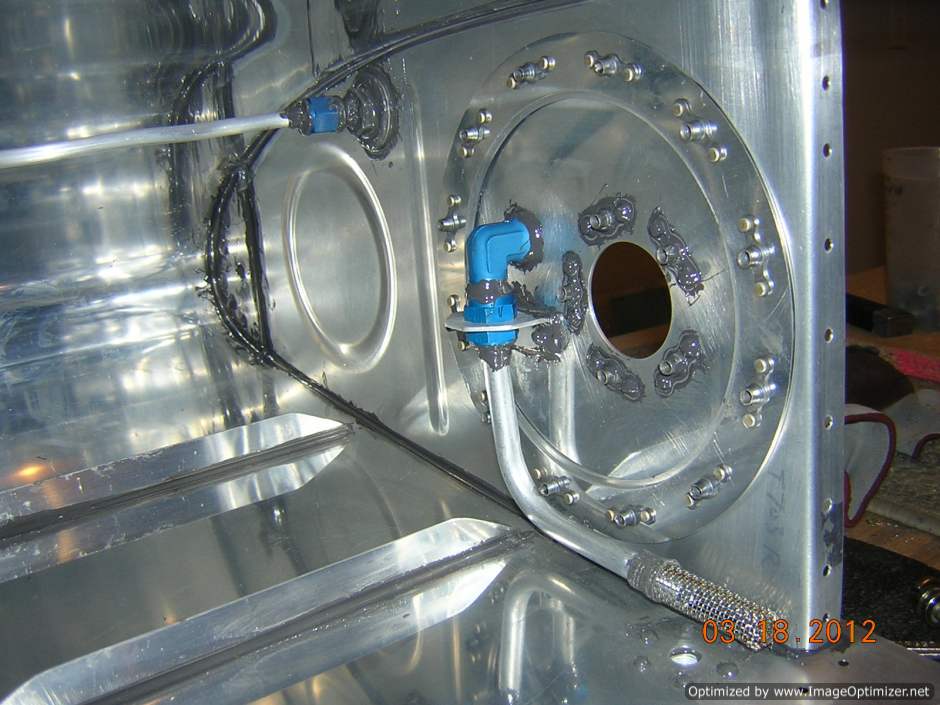

Riveted and sealed fuel pickup line
