03-21-2013: 1 hr
My order of AA6-125x1x1-1/4 angle arrived today. I made rudder stop per Van's drawing a few days ago, but they are too short that the rudder range exceeds the limit Vans specified. I had to order additonal material to make another set.
Making the stops second time doesn't take much time. Everything fits right on this time.
Making the stops second time doesn't take much time. Everything fits right on this time.

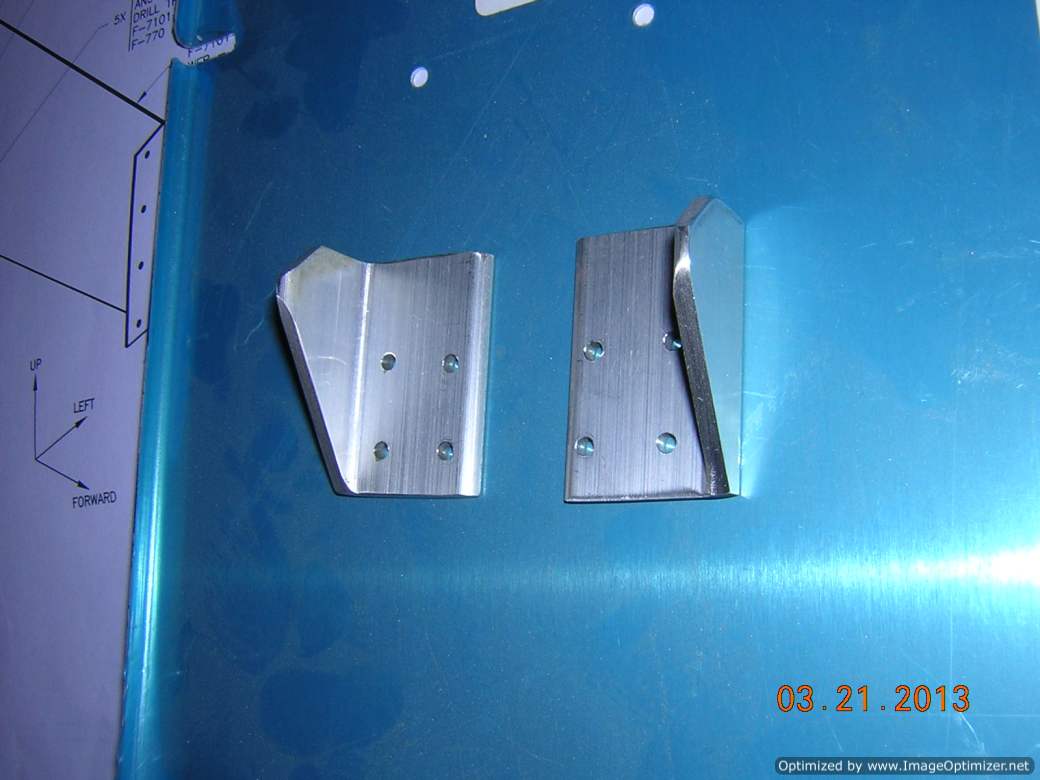

Rudder stops are re-made

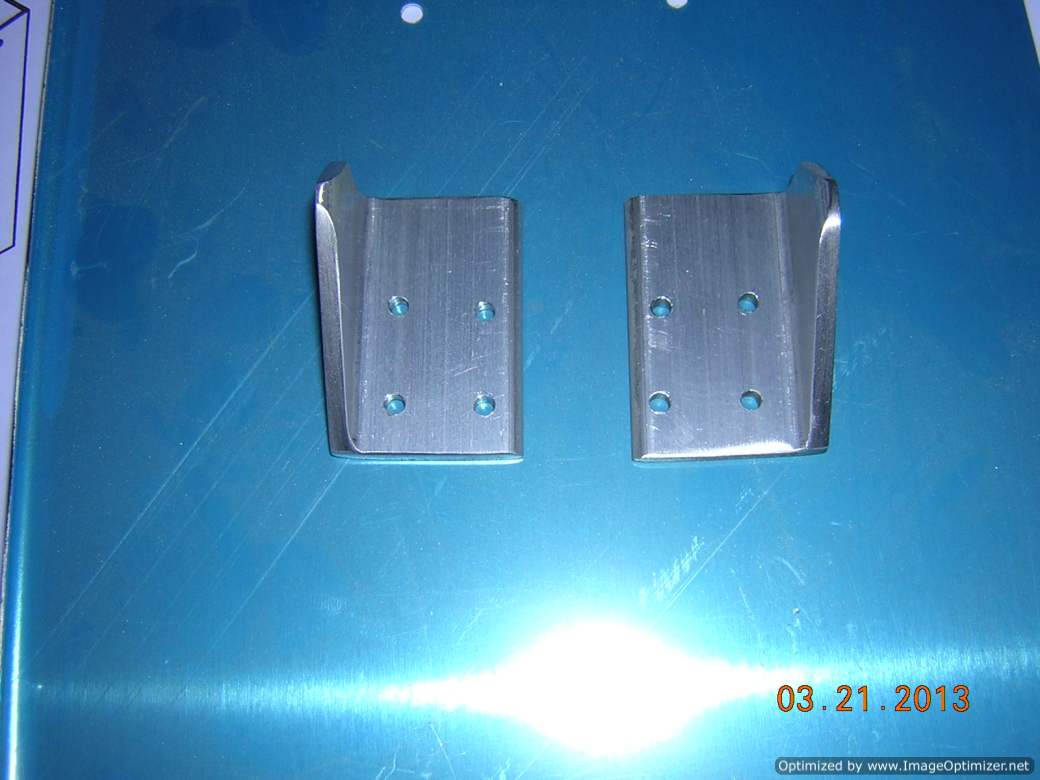

Another shot of the rudder stops

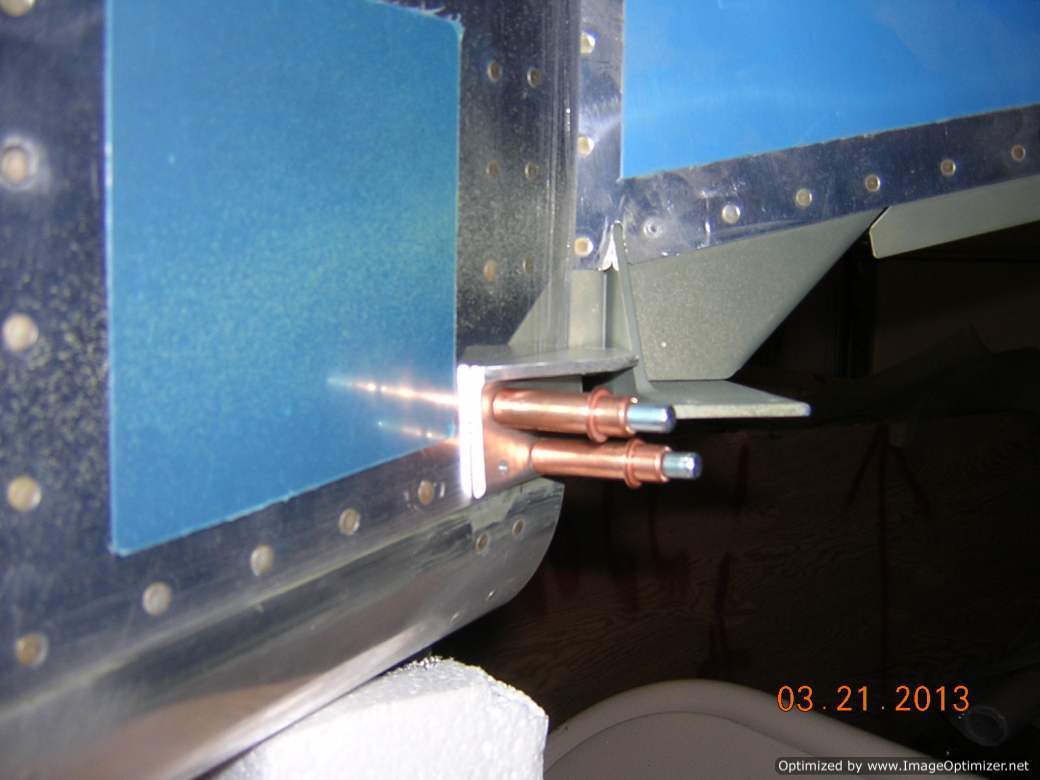

The rudder stop puts the rudder at right travel limit

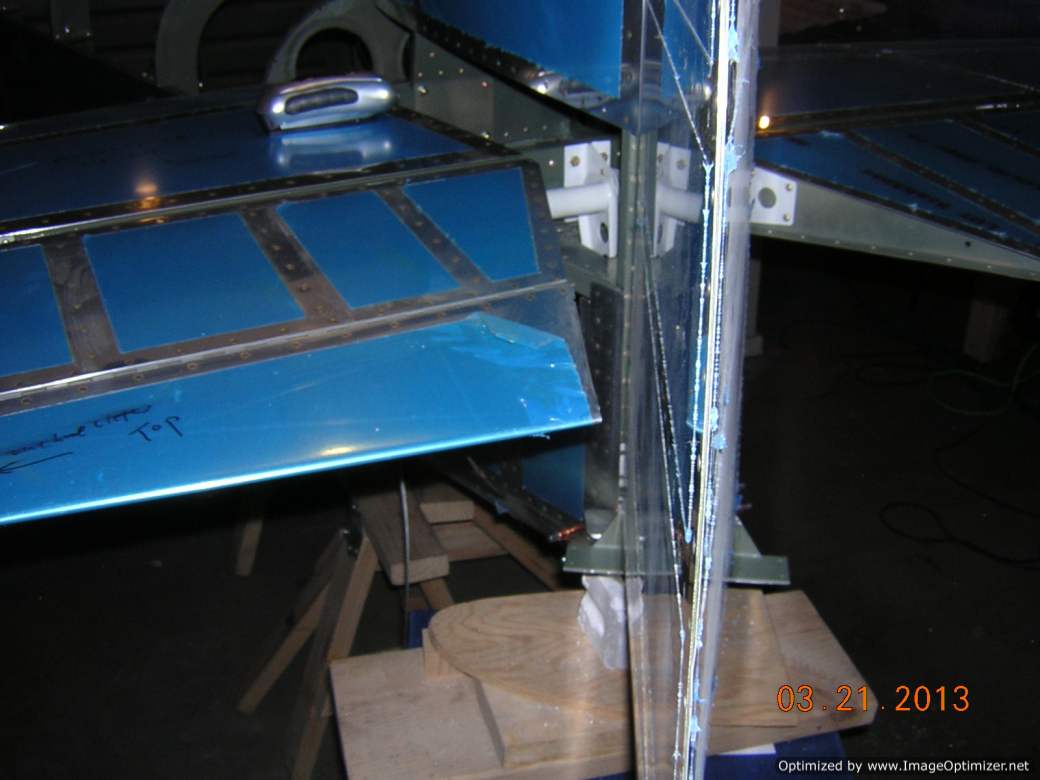

The gap between the elevator corner and rudder is about 1-1/4" per plan

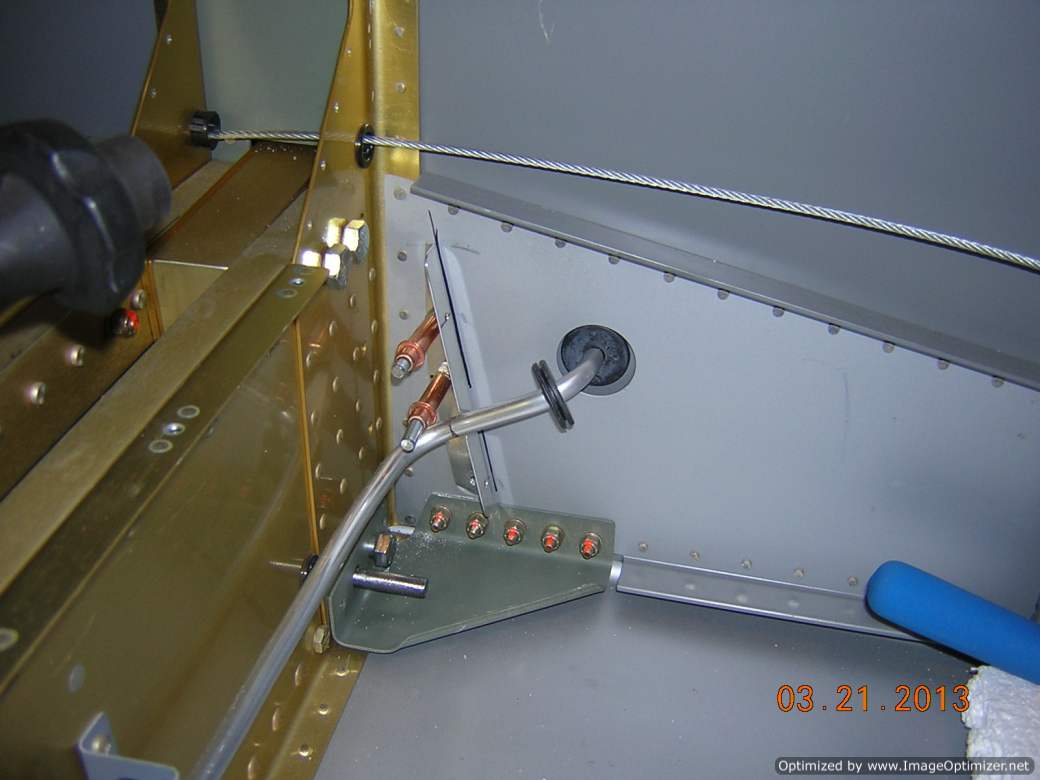

Fuel line cover support bracket on left side is drilled

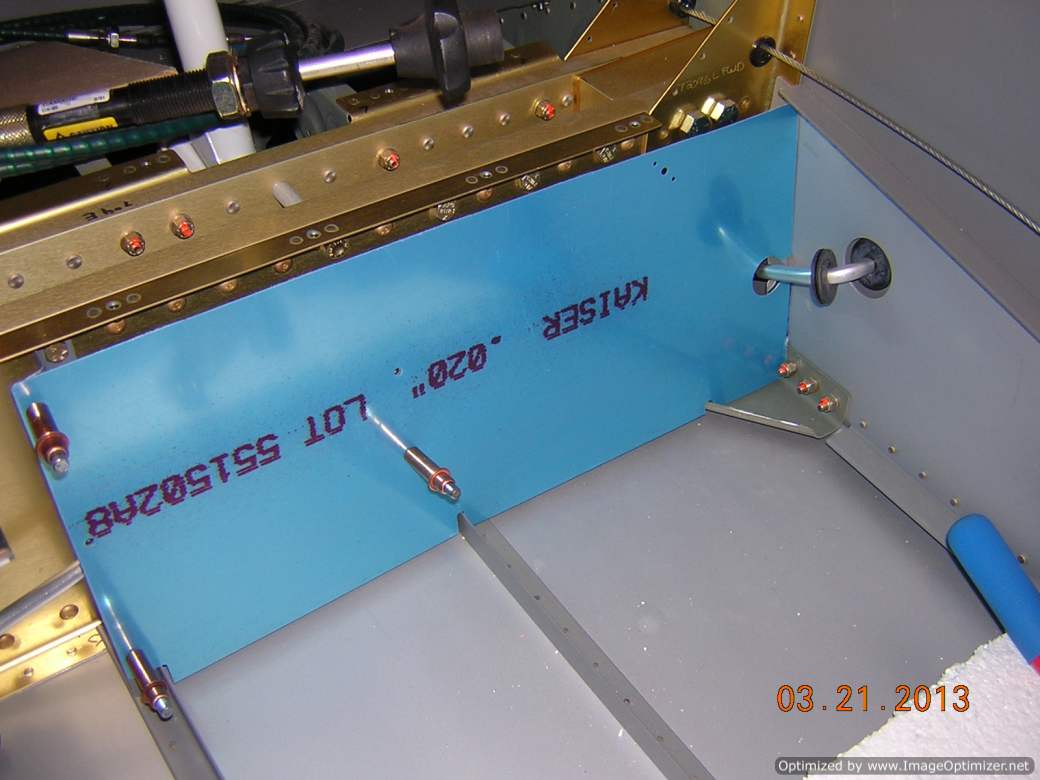

The fuel line cover fits well on the left side
