Shawn Li's RV-7Construction Log

03-25-2012: 2.5 hrs

It is time to prepare the left wing for top skin riveting. I realized I still need to dimple the rear spar and give it a slight touch with a machine countersinking. Also, I slightly ajusted the stall warner's angle to reduce the travel of the vane to activate the warner. The front spar is drilled to 3/8" to accept the bushing for the stall warner wiring. One last thing is to tap the tie down bracket and drill the leading edge tie down hole to 1/2"

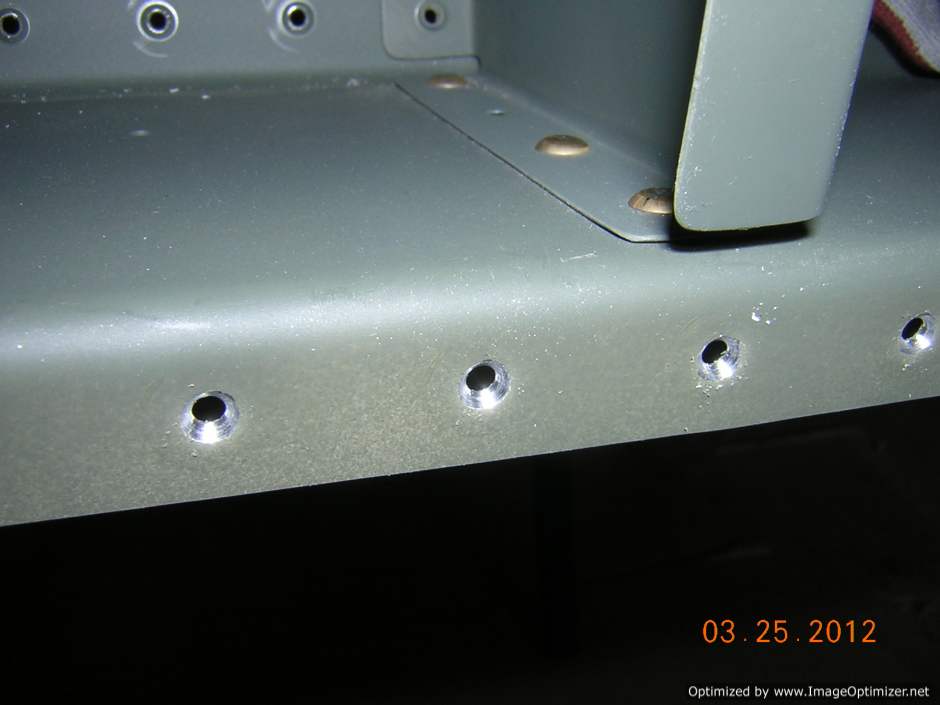

Dimpled rear spar is touched up with maching countersinking for better fit with skin

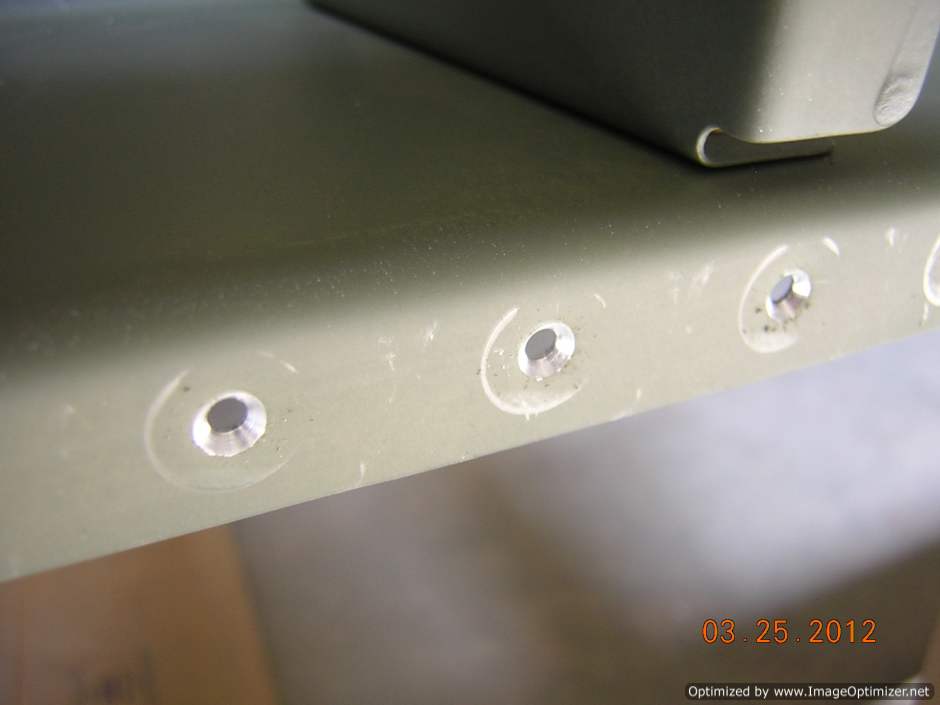

Dimpled rear spar is touched up with maching countersinking for better fit with skin

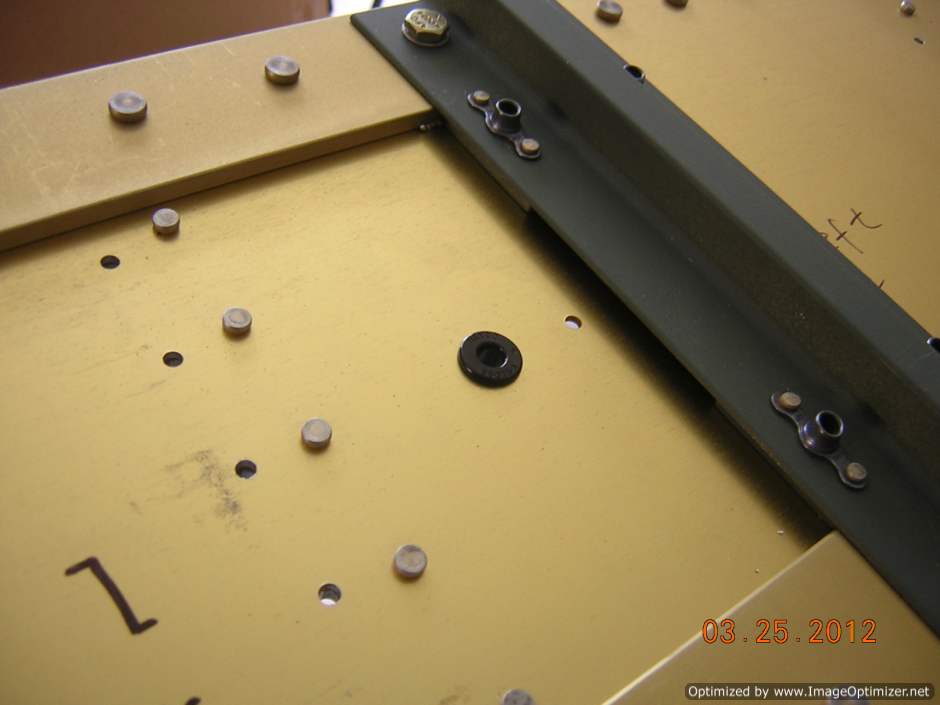

Tooling hole on the front spar web is drilled to 3/8" for bushing

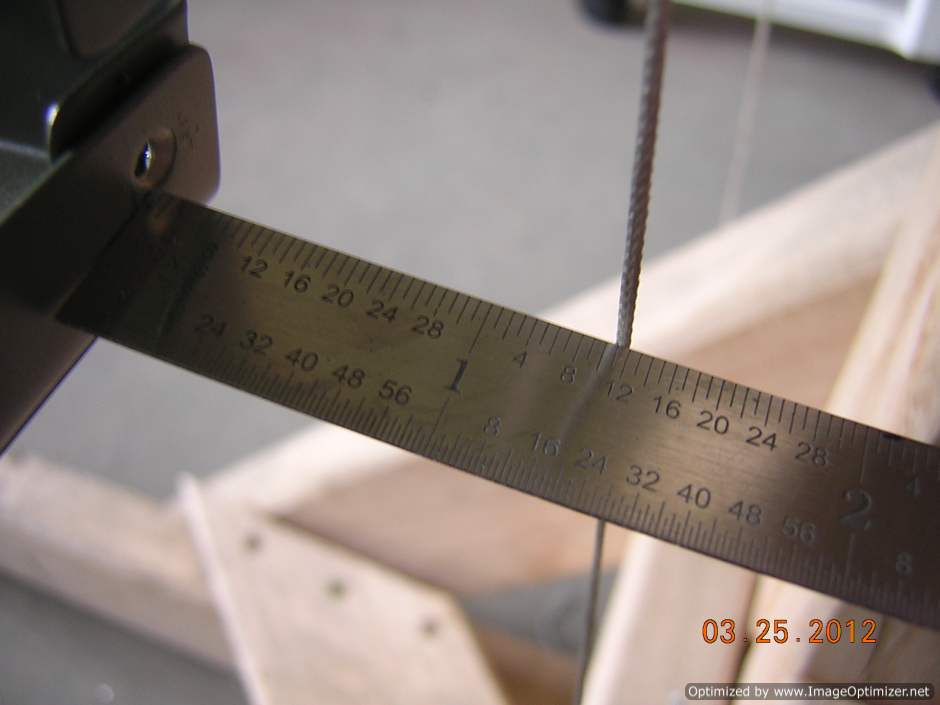

Checking wing twist before riveting the leading edge and top skin, outboard reading

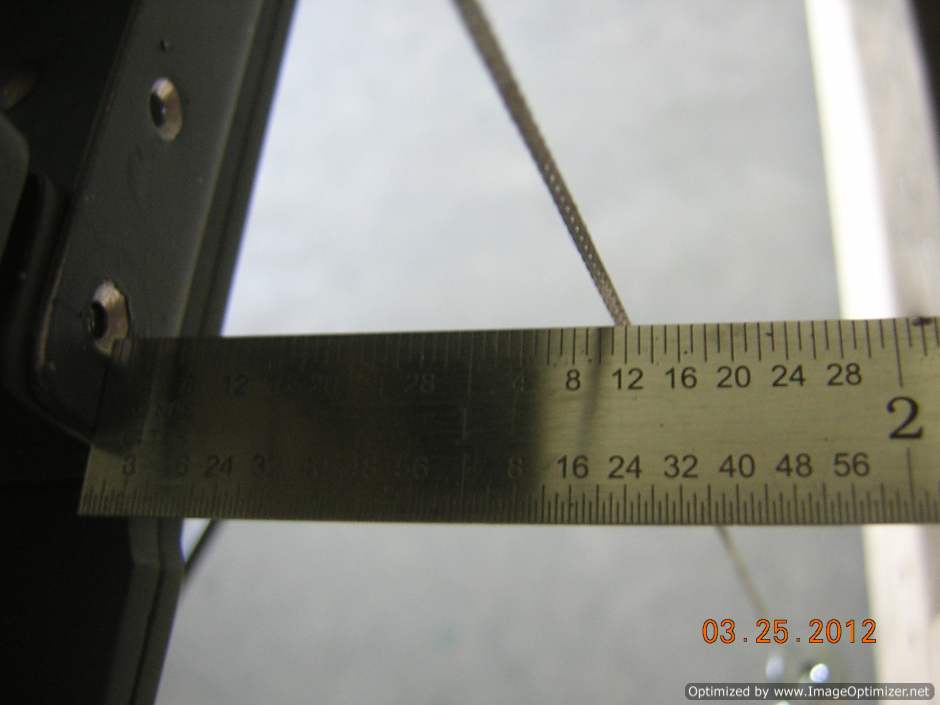

Inboard reading, within 1/32" difference with outboard reading
