04-01-2013: 1.5 hrs
After drilling and clecoing the panel support brackets F7103C to top skin, I final drilled the skin. Then I clamped the F7108 rib assy to firewall. When I remove the top skin, I still need to drill the holes between the rib and firewall.
I ordered and picked up avionics I got from Dynon. I will need more, but will order later

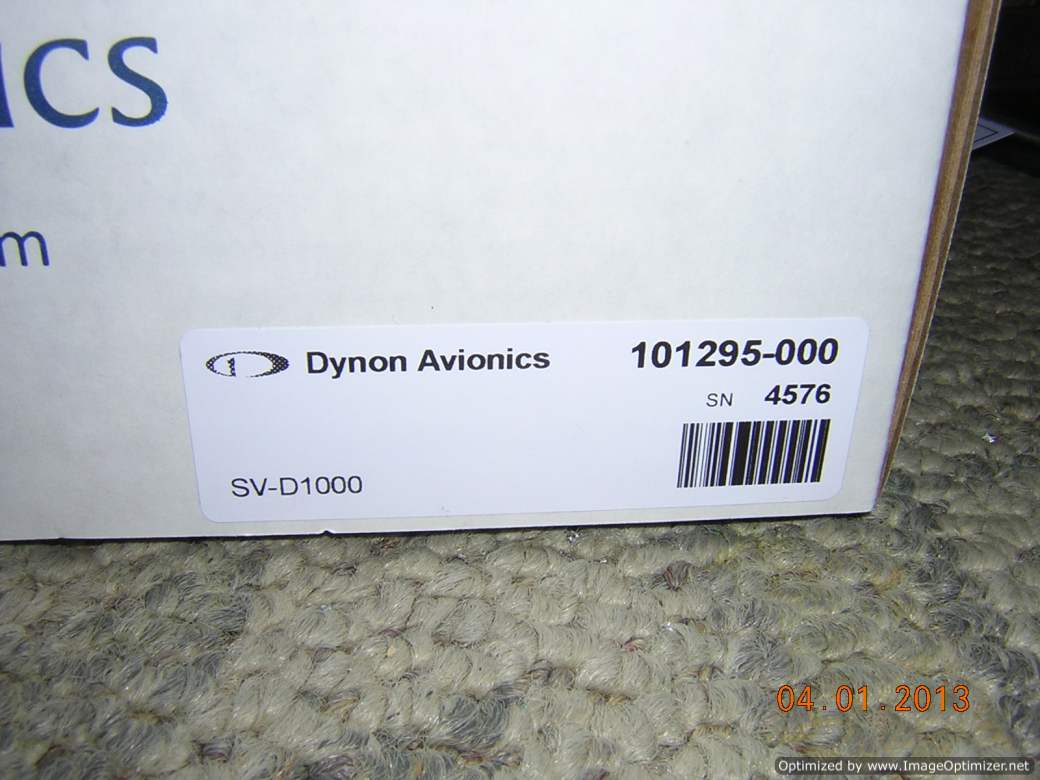

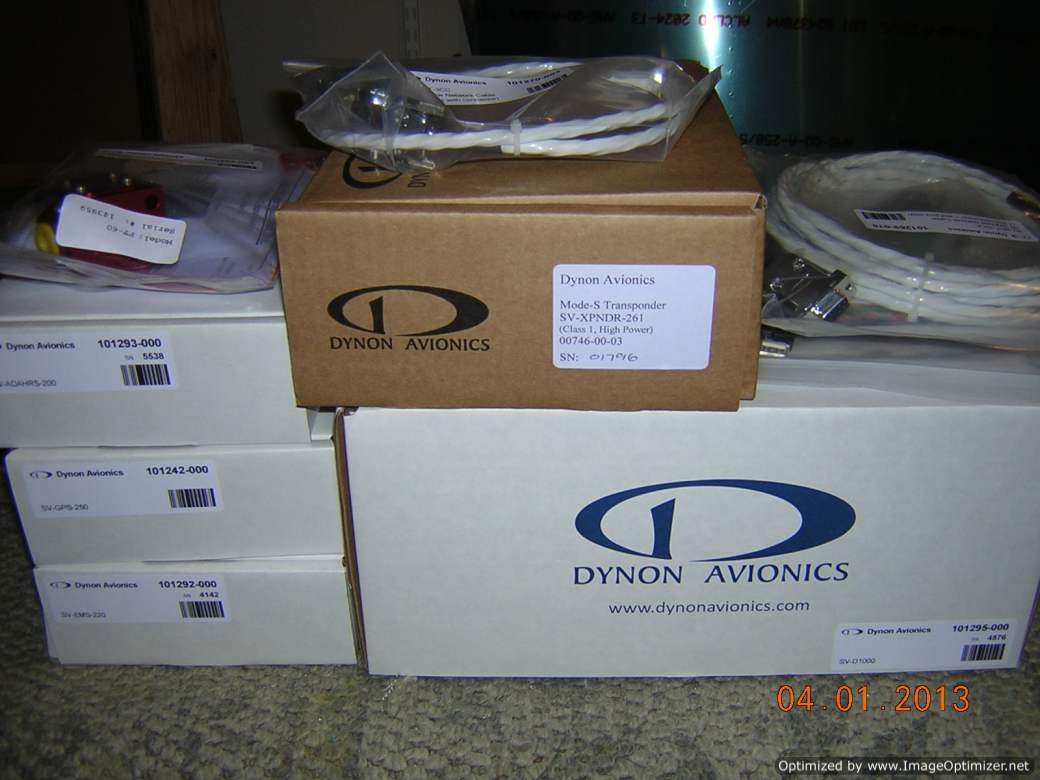

You can see what I ordered

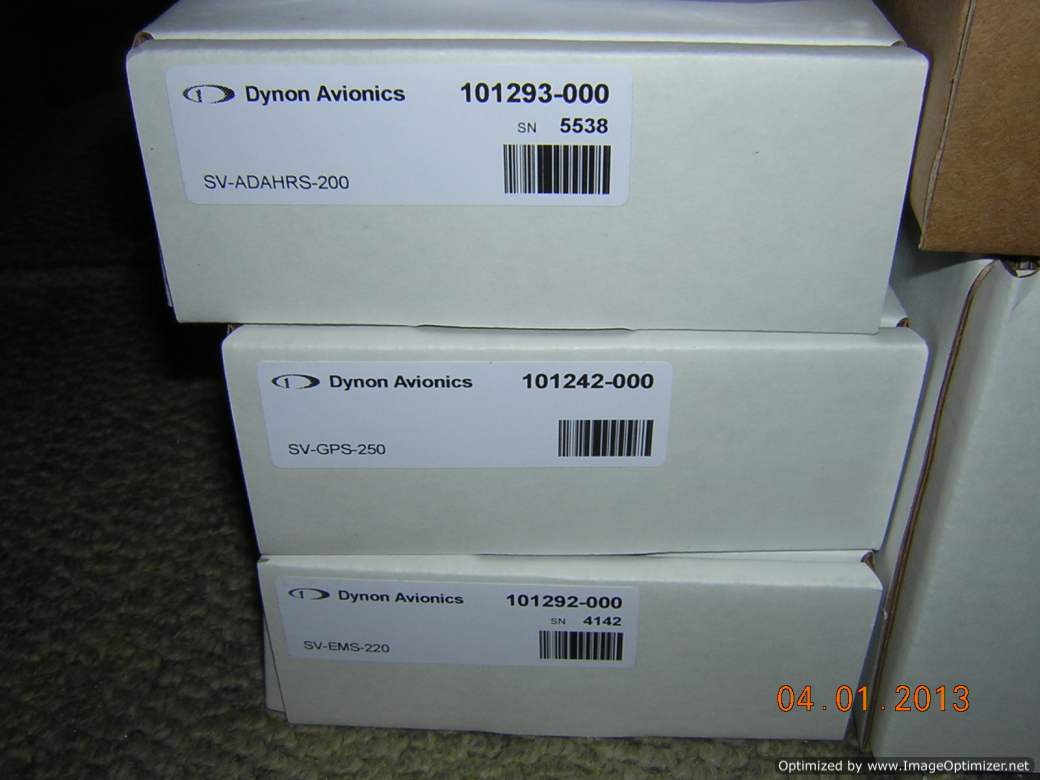

More ...

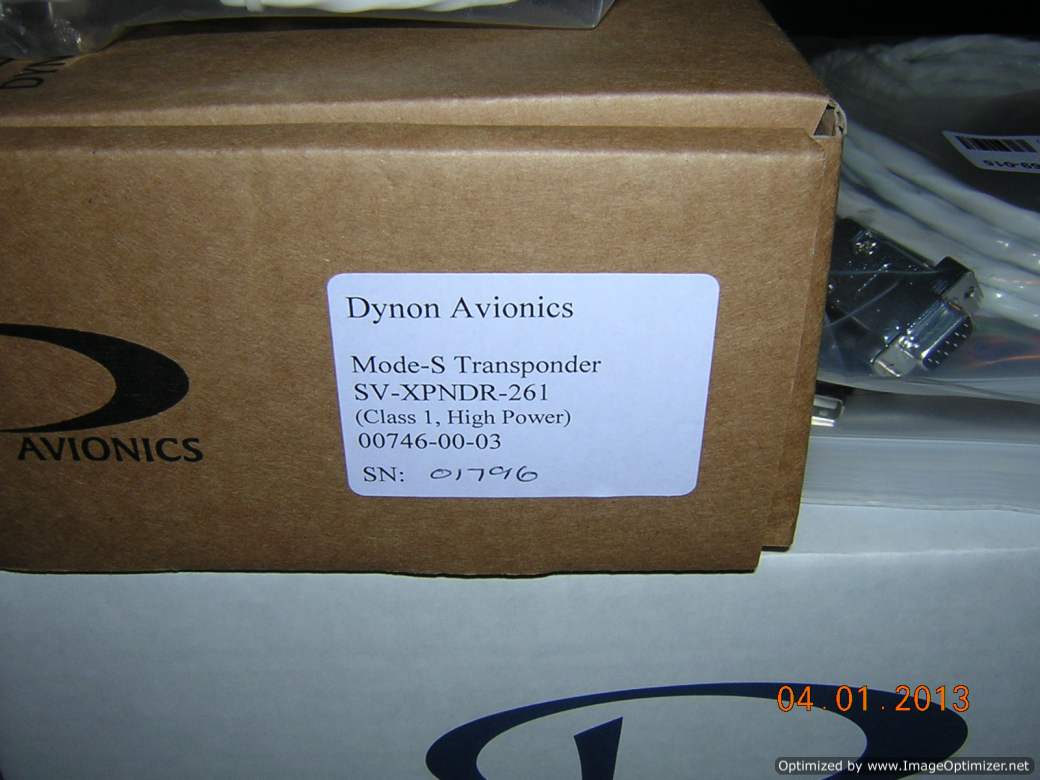

And more ...

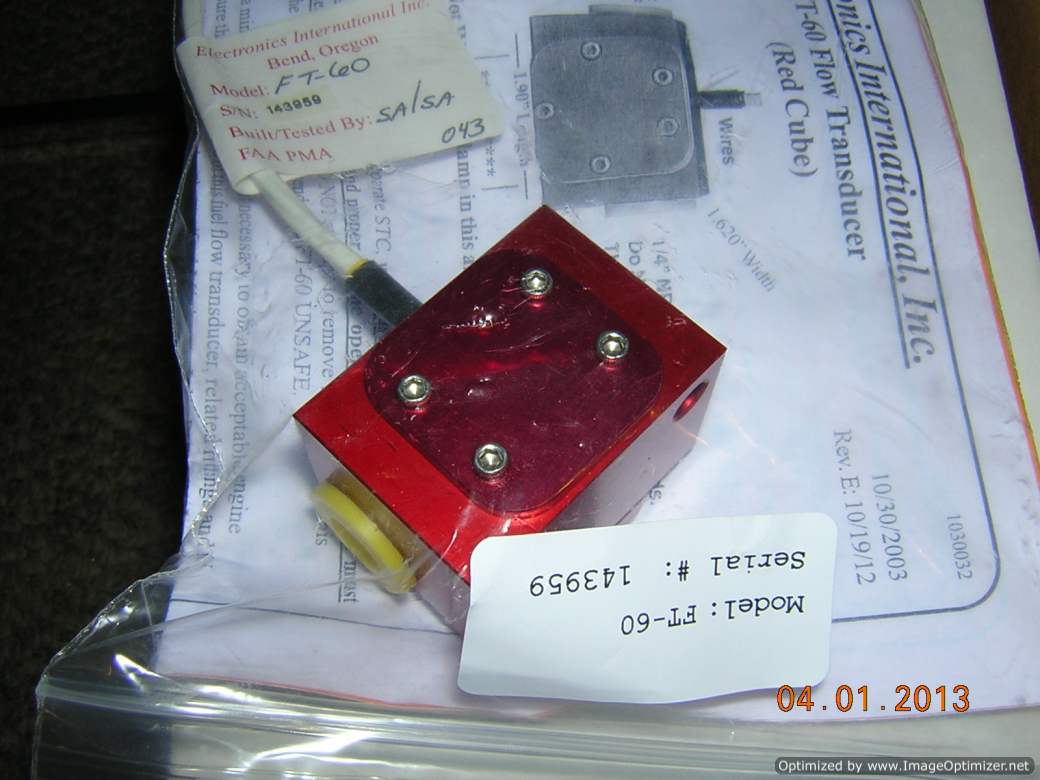

Fuel flow sensor "red cube"

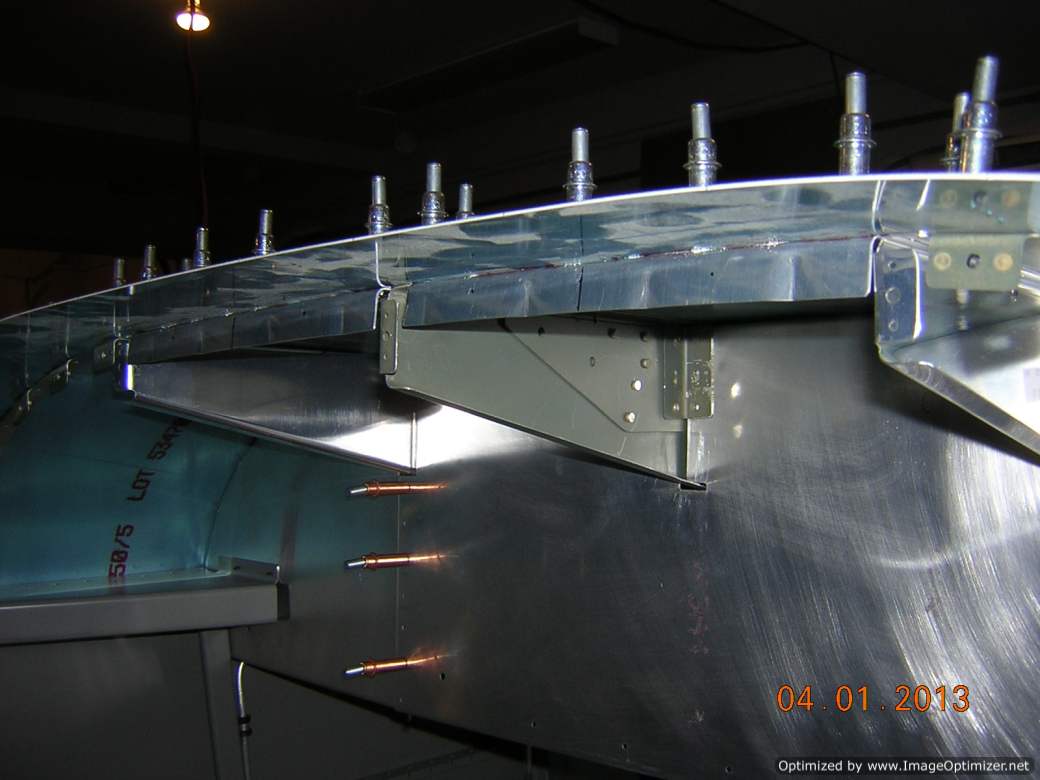

Instrument support angles are clecoed to top skin

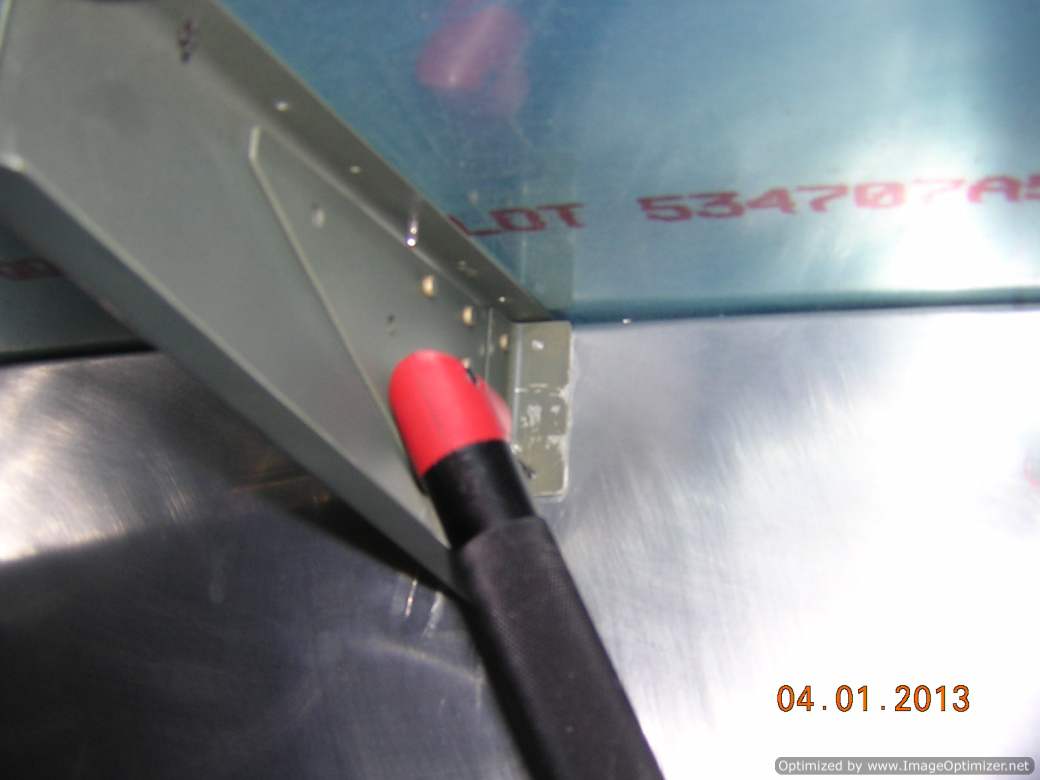

Drilled rib flange to center subpanel using angle drill

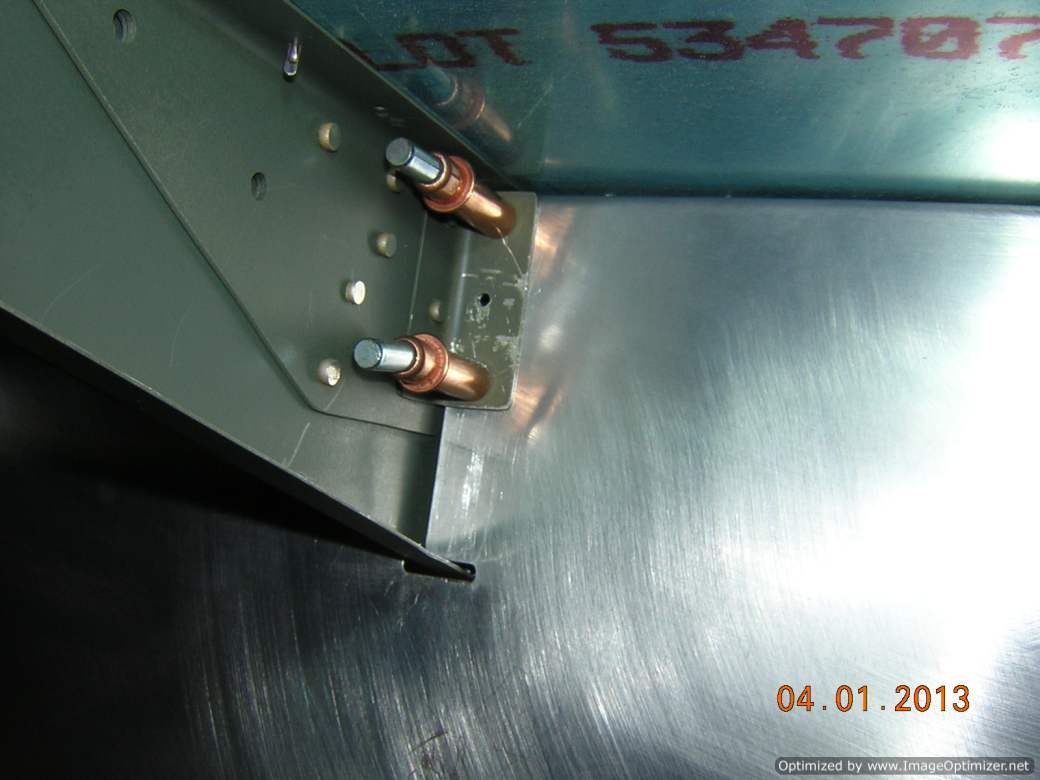

Drilled

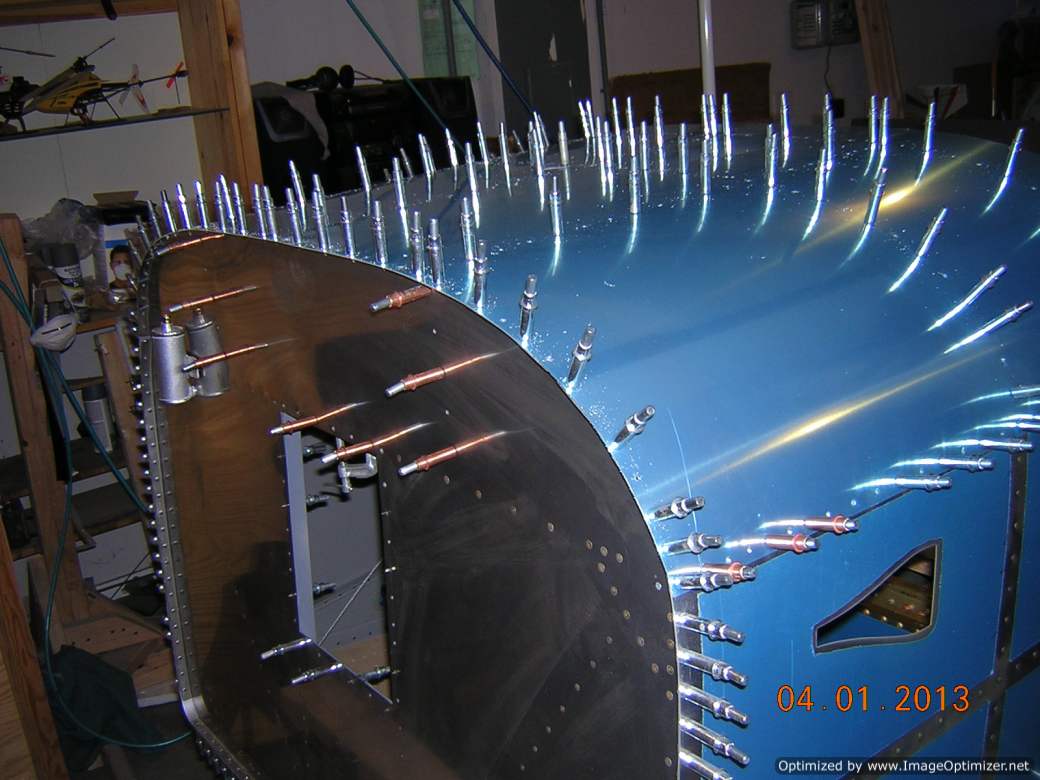

Top skin is drilled

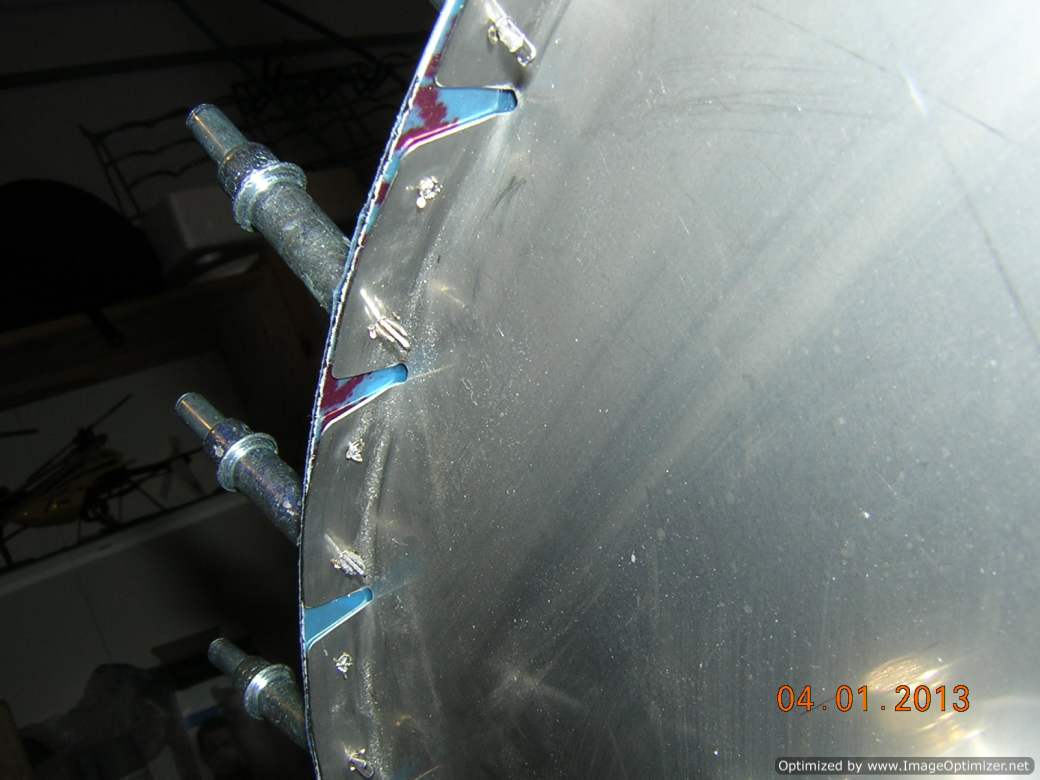

Top skin is also drilled with firewall flange
