04-03-2013: 3 hrs
I got all the superstructure primed today, then worked on the rudder pedal and brake a little. Put the right bolts to connect brake and rudder pedals. Castle nuts are called out by the drawing for this connection. Since free motion is needed for proper brake function, I just tightened the nut by finger, then secured it by cotter pin.

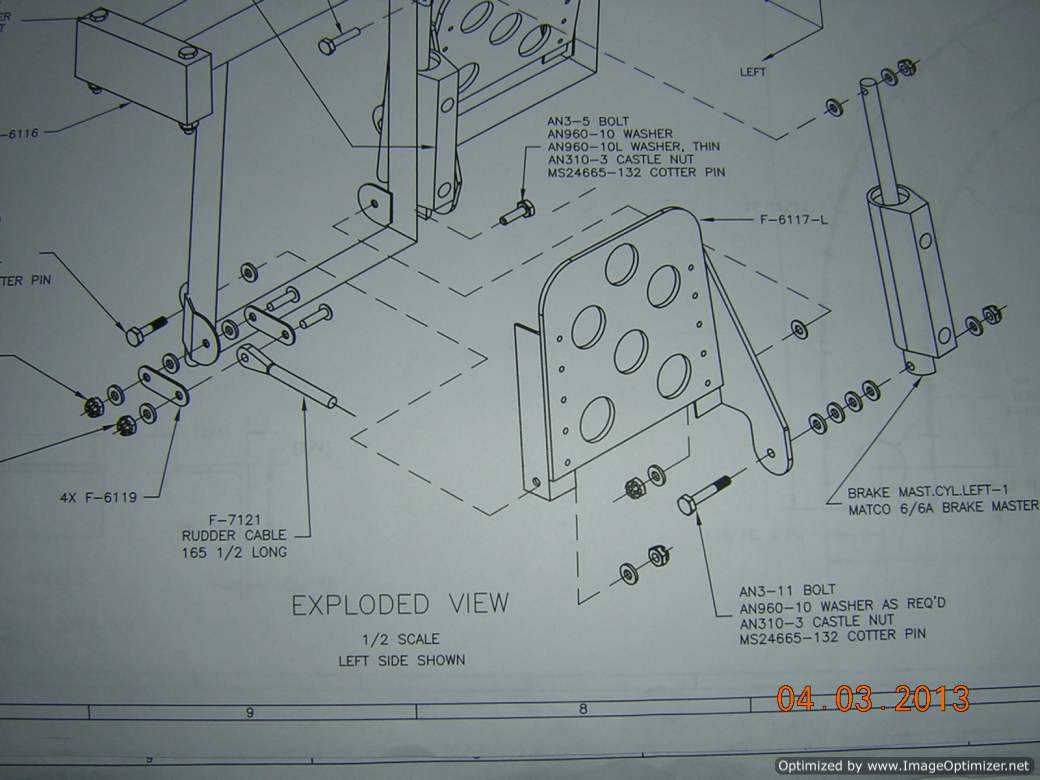

Here are the bolts, nuts callout

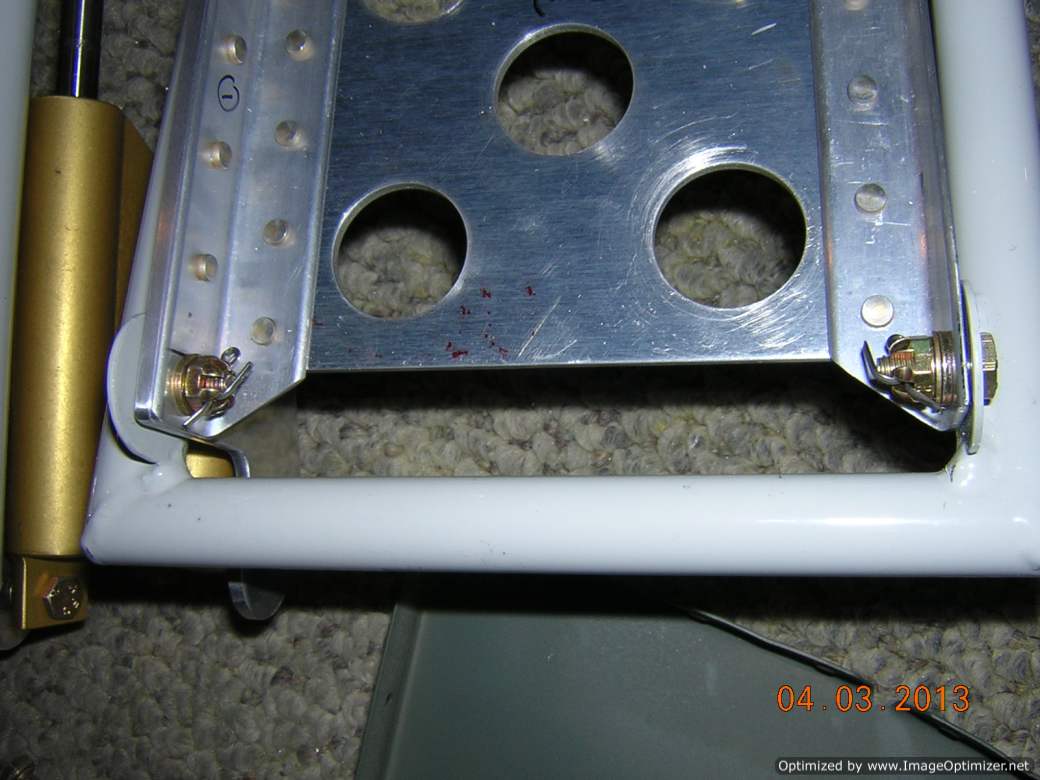

Cotter pins in

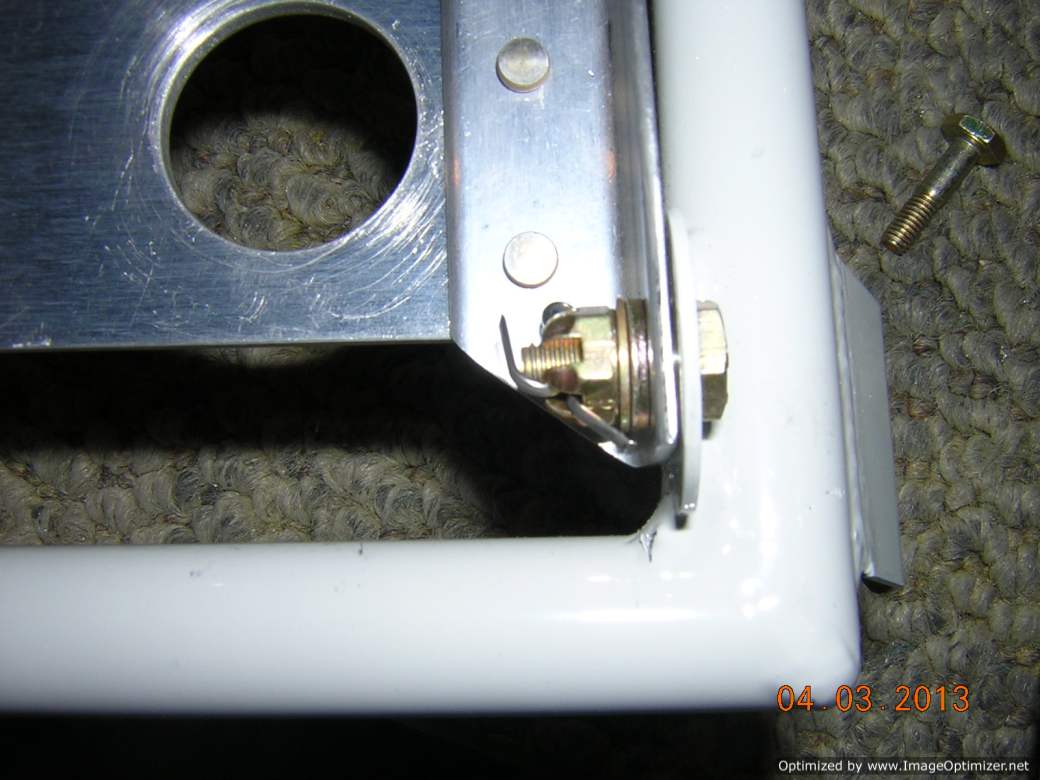

Close up view

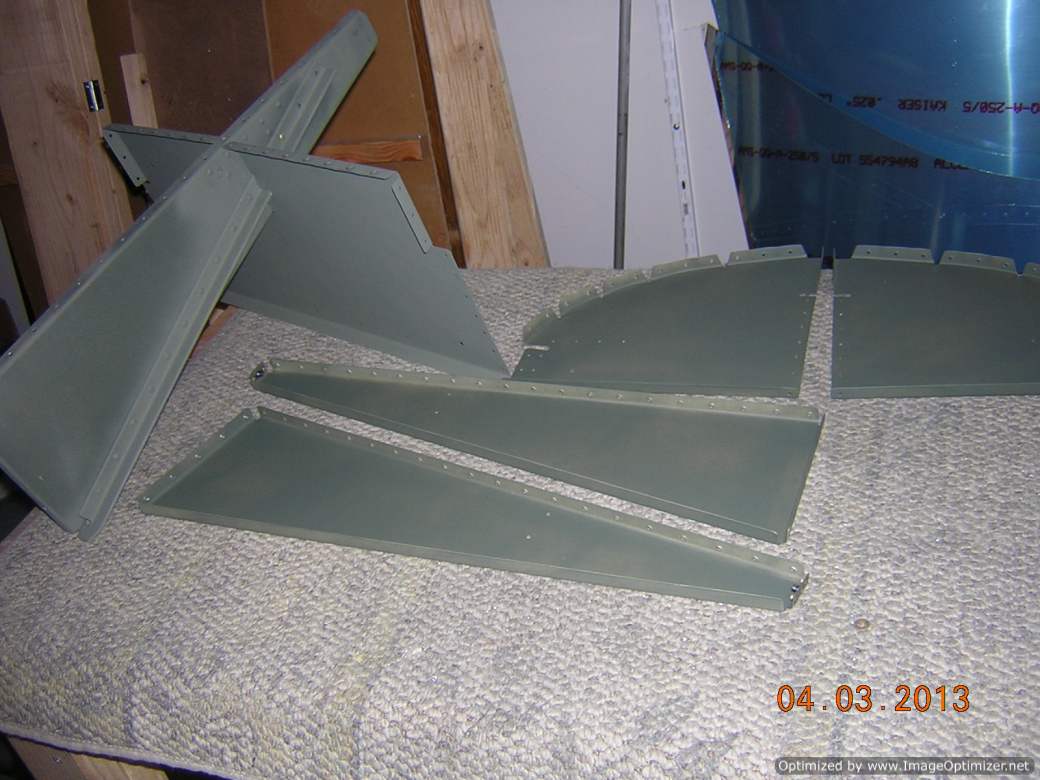

All superstructure parts are primed

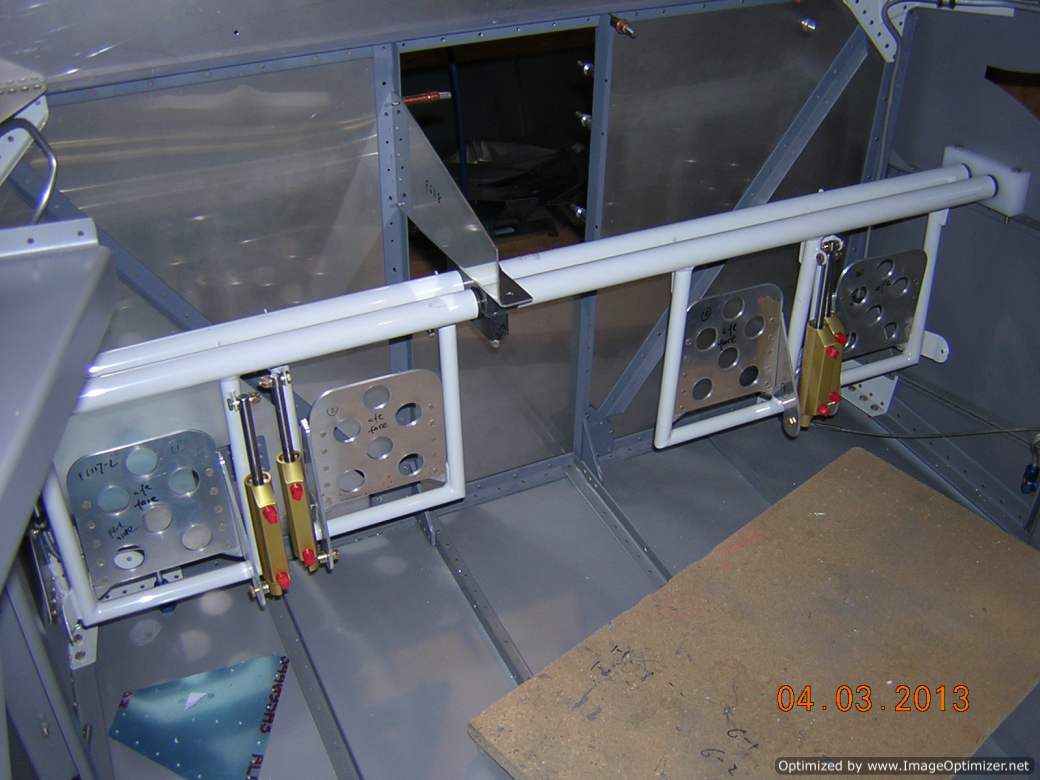

Rudder pedal center brace is installed

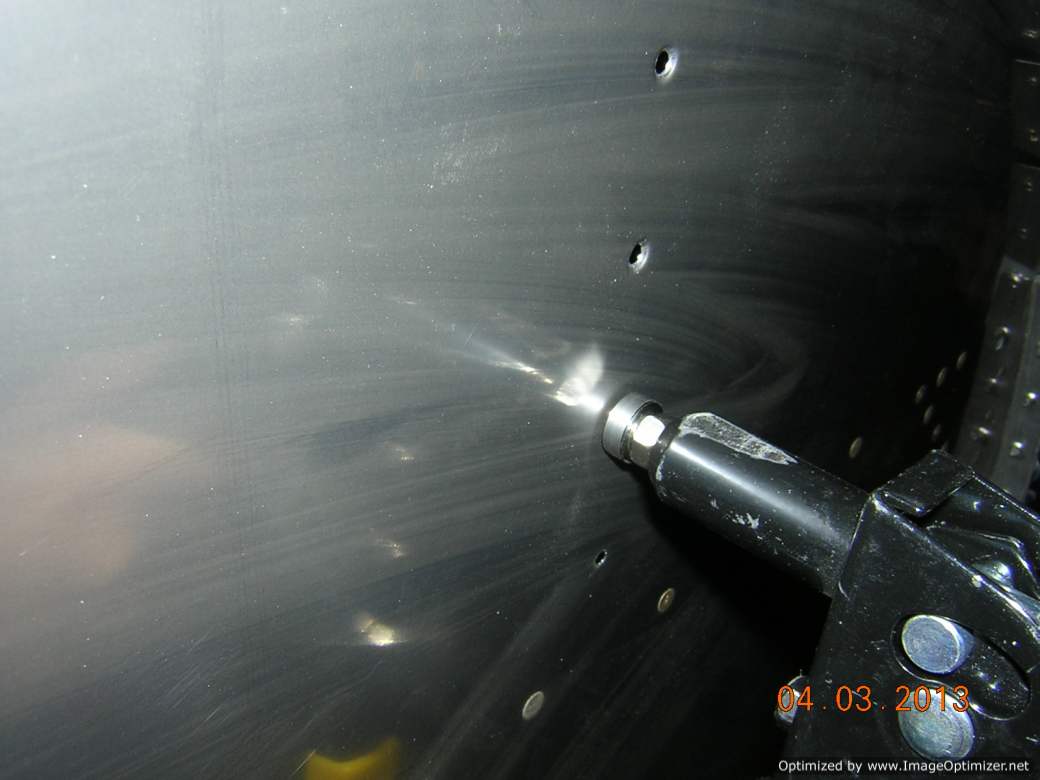

For a few holes on firewall, I had to dimple using pop dimpler

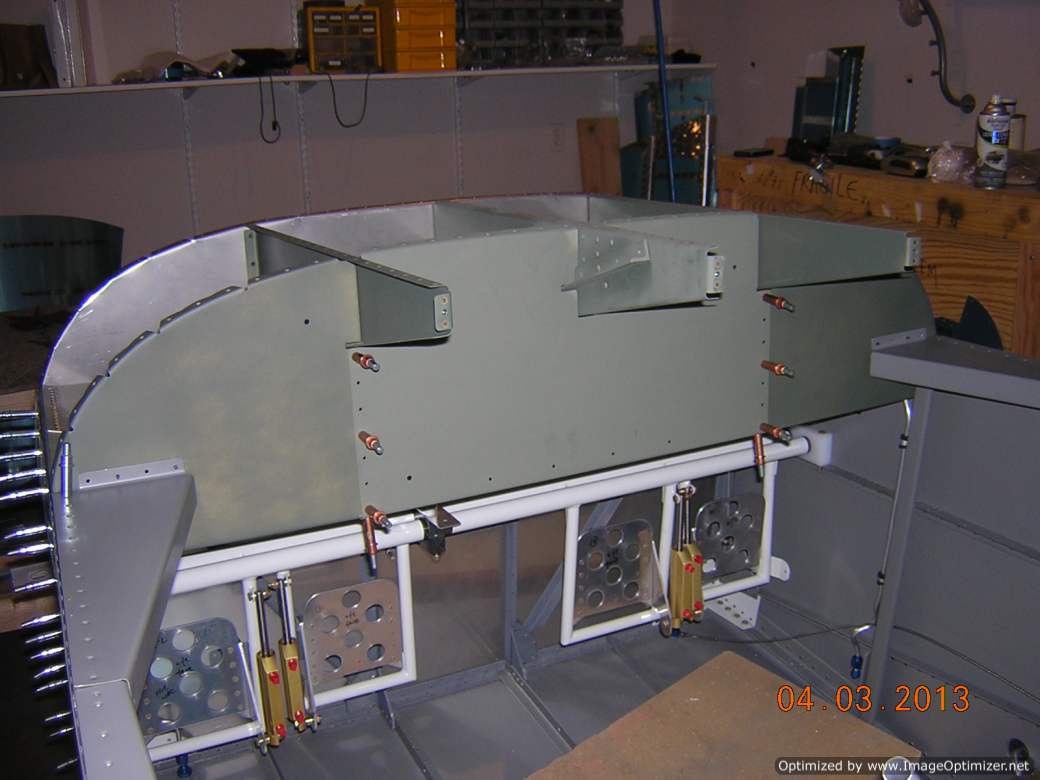

Primed parts are back together

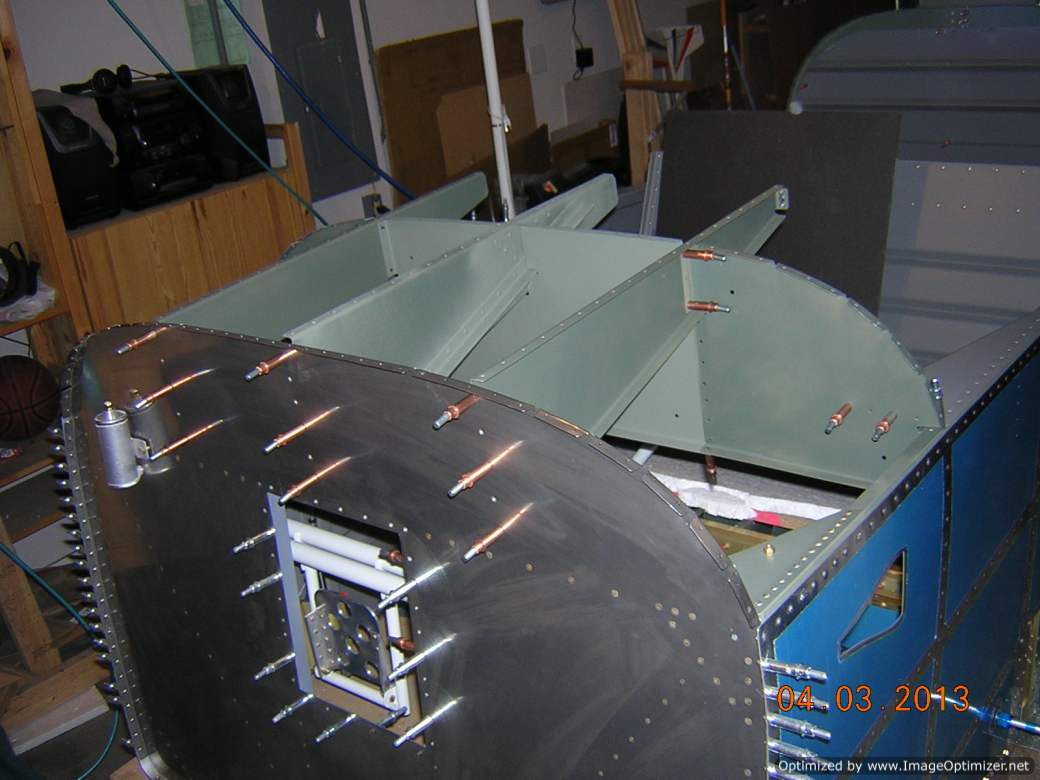

Another view
