04-24-2011: 9hrs
-Bolt H-411PP to spar, cheap torque wrench stripped one bolt, exchanged torque wrench and need to order extra bolts

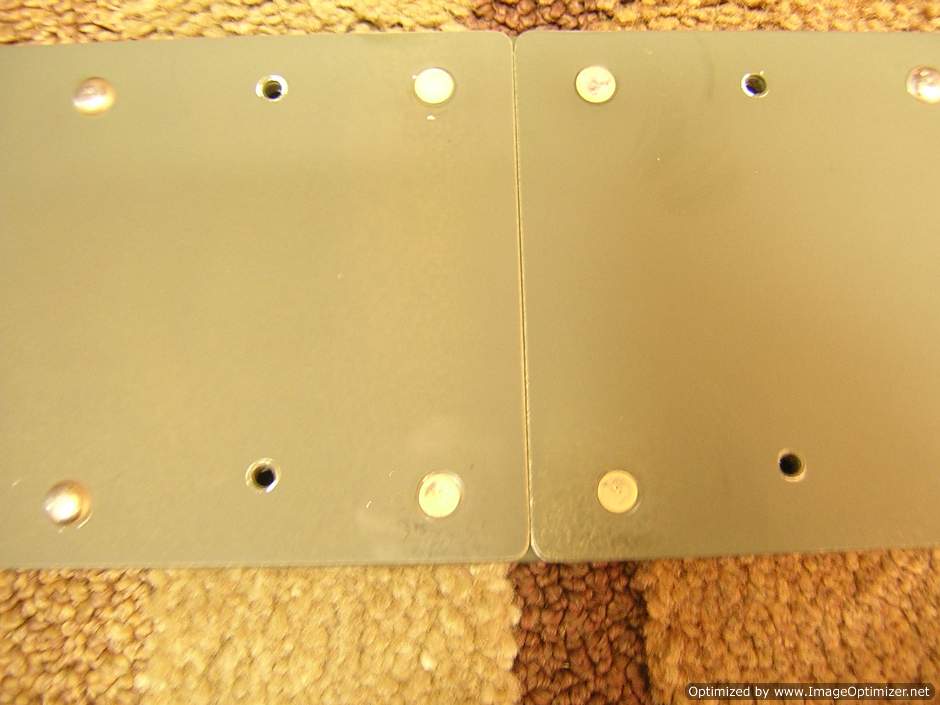

-rivet the skin to all inside ribs, leaving only the end ribs and rear spar to be rivetted, will leave this open until having a Tech Counselor take a look.Have some smileys on the front spar channels, sent pictures to Vans and they say it's not a problem. Also the one skin thickness gap between the HS707 front flange tab and skin HS601PP is also OK, no need to drill out the rivet which may cause more problems.
Email traffic is listed below. Answers are highlighted in green.
Thanks,

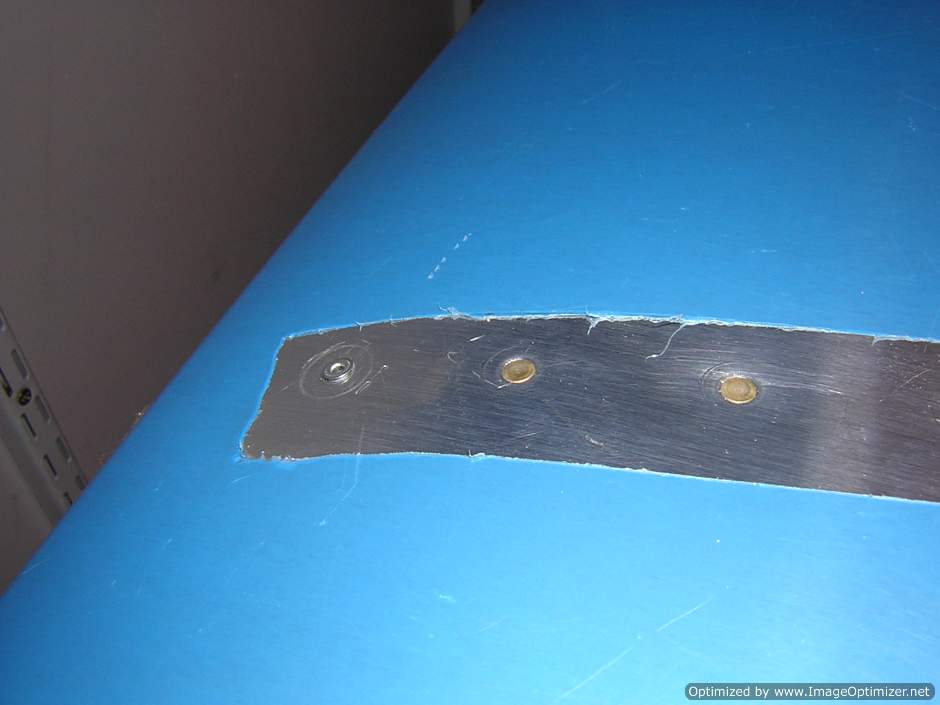

Gus! The area dented by the rivet gun doesn't feel rough (no feeling of
any burr or scratch) when running my finger over it, I guess I will
just keep the way it is, and will check it during annual (the first
annual will be at least 4 years away :-))
Shawn
Shawn
From: Gus Funnell <gusf@vansaircraft.com>
To: Shawn Li <shawnli2003@yahoo.com>
Sent: Wed, April 27, 2011 4:16:51 PM
Subject: Re: Fw: RV7 HS Construction Questions
> Gus,
>
> I am not sure if email will get to you. Here it is again about my
> questions. I am sorry if these
> questions are trivial to you, but since I am a new builder, I want
> to get expert's opinion for the
> mistakes I make. Thanks for your help.
>
> Shawn
>
> ----- Forwarded Message ----
> From: Shawn Li <shawnli2003@yahoo.com>
> To: Vans Support <support@vansaircraft.com>
> Sent: Mon, April 25, 2011 9:46:24 AM
> Subject: RV7 HS Construction Questions
>
> Started riveting the HS, and made some mistakes. I have attached a
> PPT file for illustration.

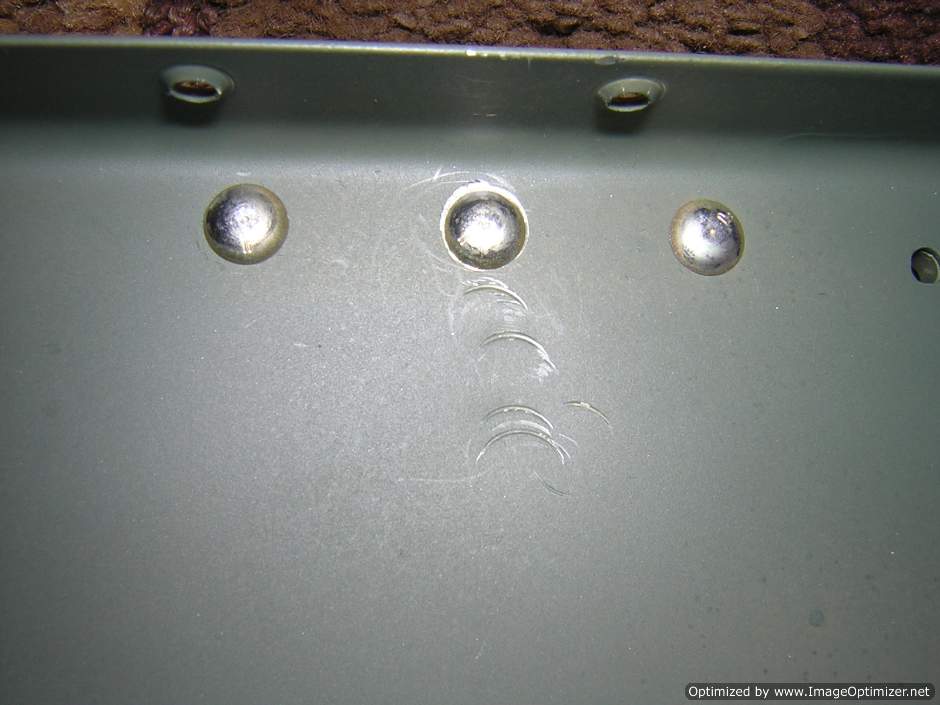

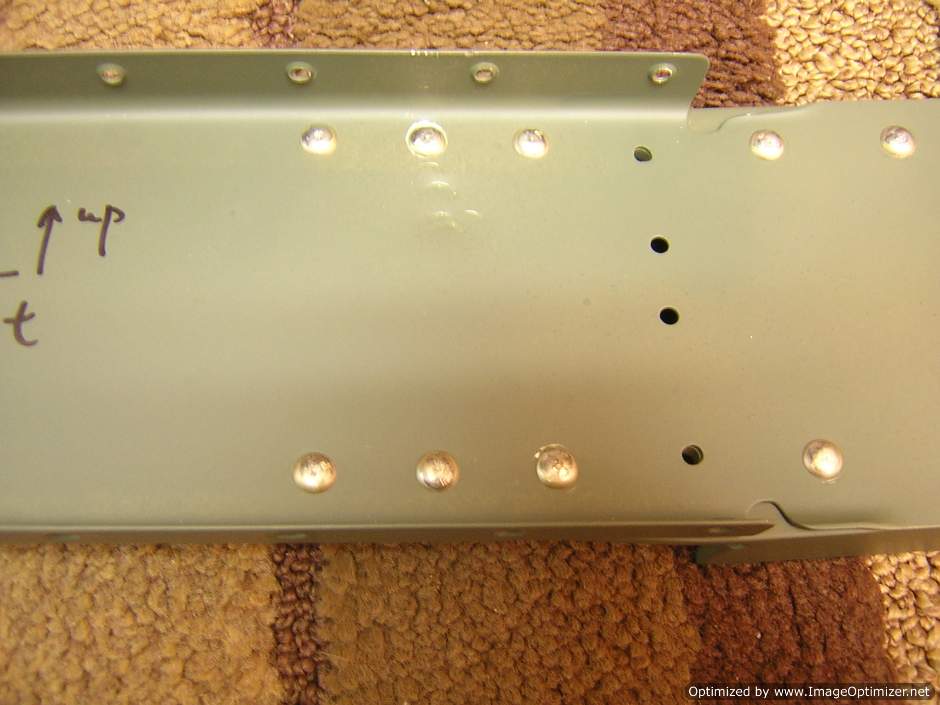

> 1) Are the smiley on the HS702 ok structural wise?
I don't think they'll be a problem. You could use some scotchbrite or emery
cloth to smooth any rough edges just to minimize the chance of cracks in the
future.
>

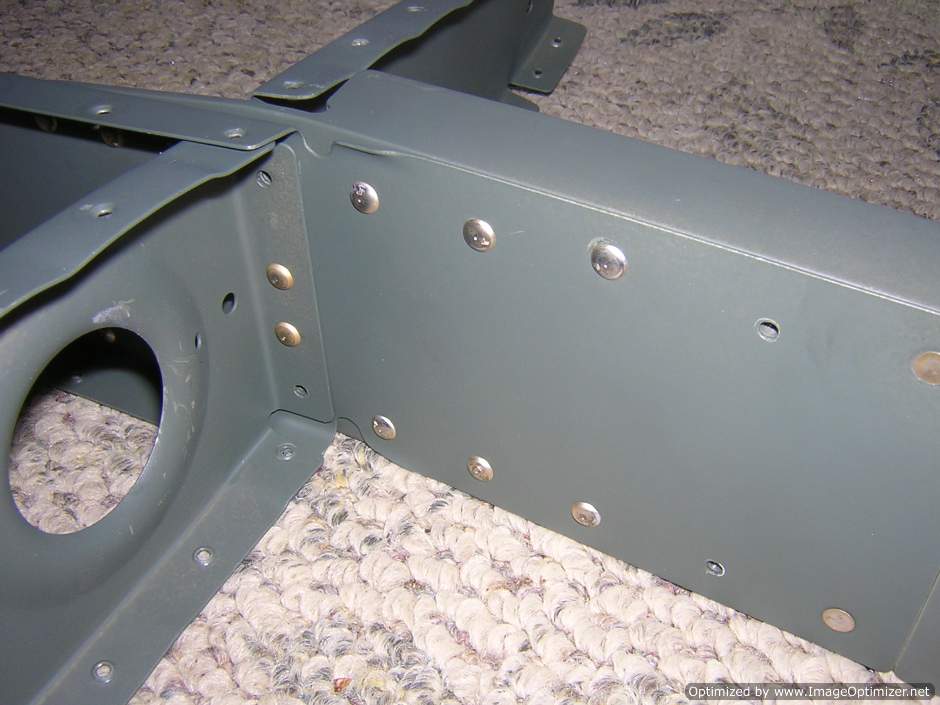

> 2) Is the gap between the HS707 and HS601PP OK? I just used one pop
> rivet on the bottom side,
> for some reason (maybe I didn't push hard enough while pulling the
> rivet), there is a separation. I
> heard that drilling out a pop rivet may cause more damage than
> leaving it alone. What is yours
> opinion?
>
It's true that drilling rivets out is to be avoided. It's pretty hard to get at that
location on the inside, so I think I would leave it alone. Punching the rivet out
will probably bend the flange further away from the skin.
Gus
