06-06-2013: 1.5 hrs

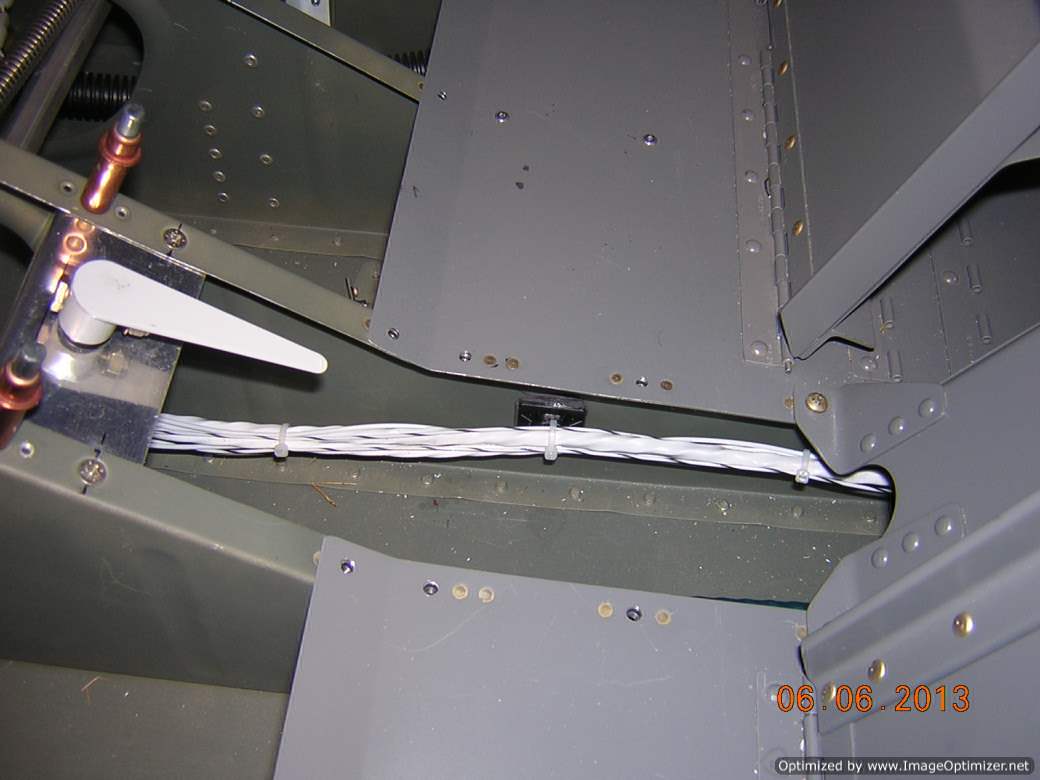

Since my next goal on airframe is to have the aft top skins riveted, I need to take care of the wiring in the aft fuselage first. I have trimmed all the wire to length, and bundled them well in the center and aft fuselage. I will do a final check before riveting the skins.

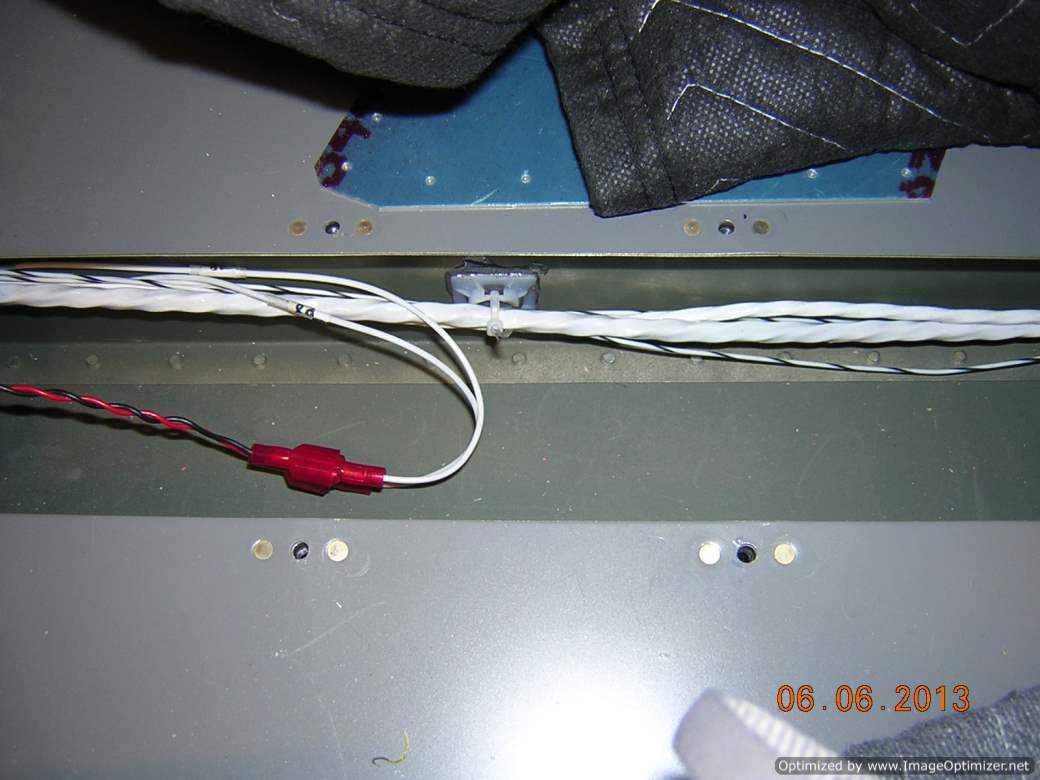

Wire for flap motor. You can also see I used Pro-seal to bond wire tie mount to seat rib

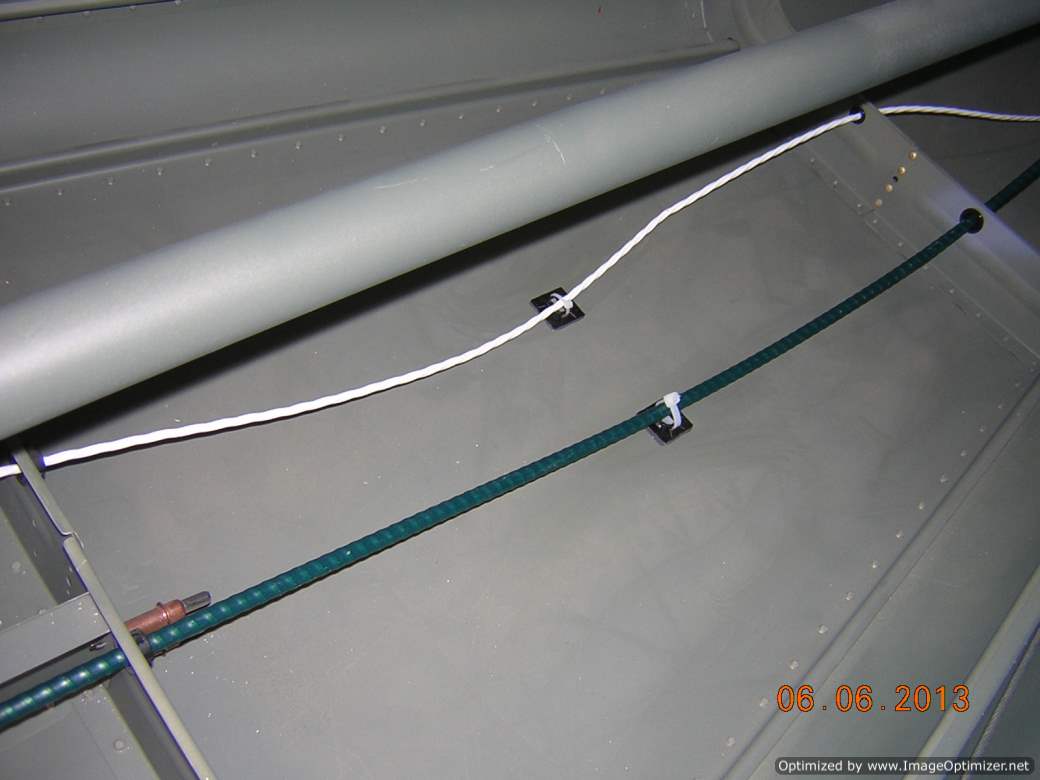

Wires for tail strobe light
