07-16-2013: 2 hrs

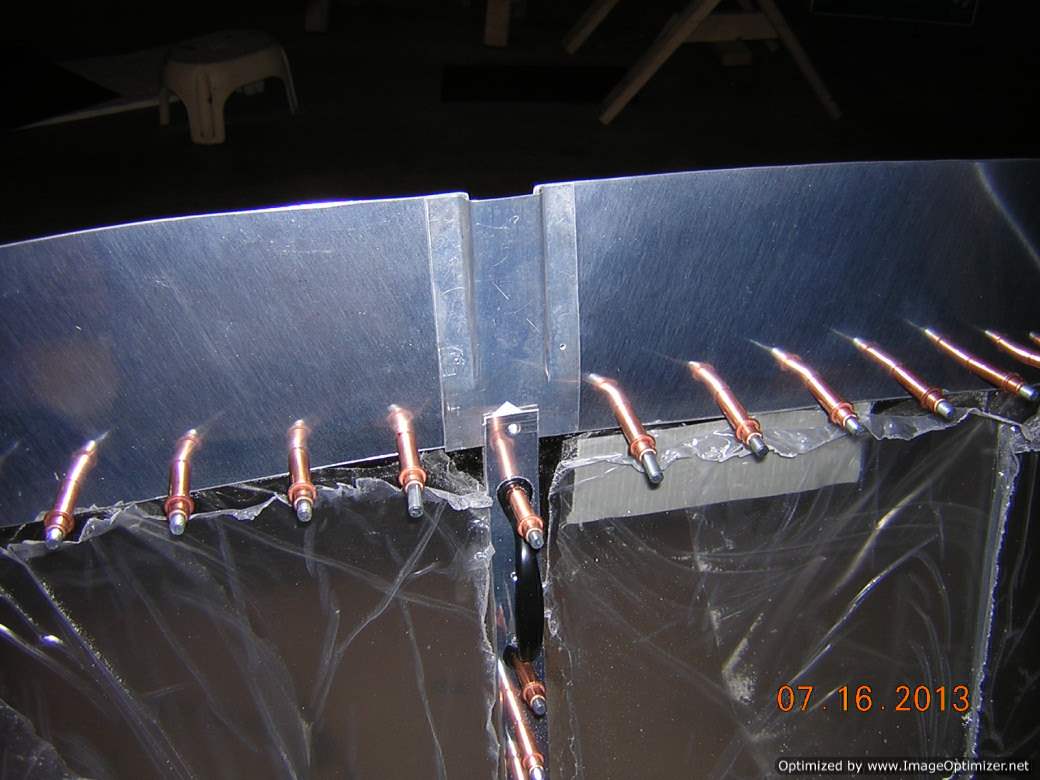

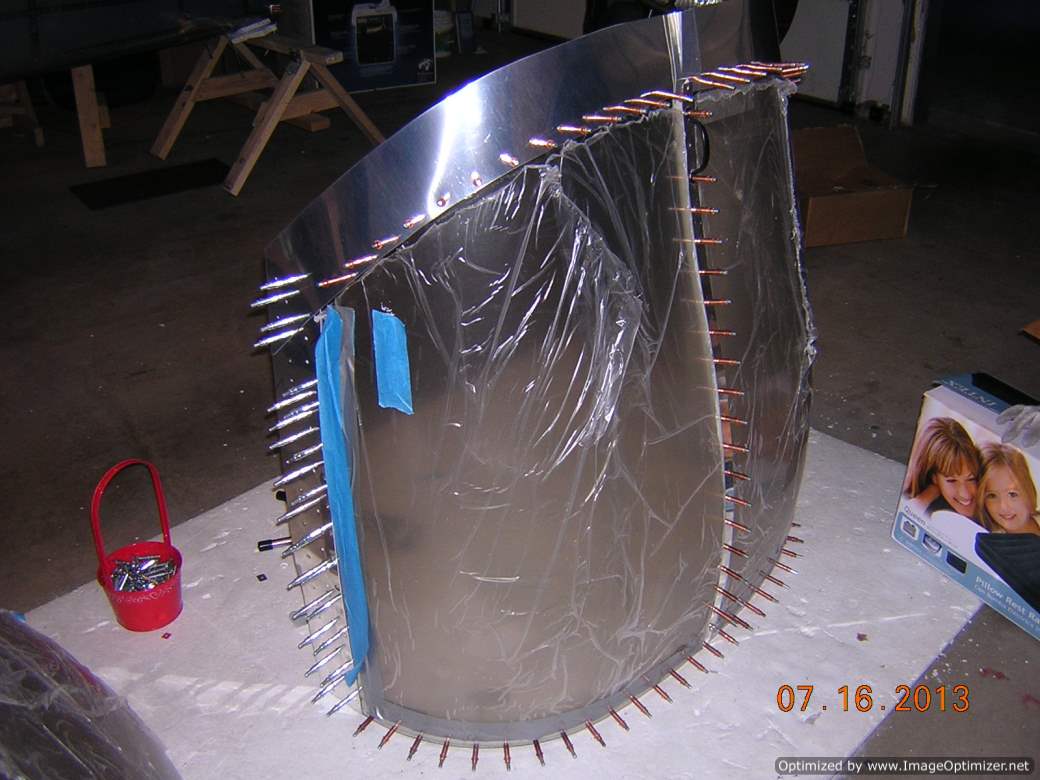

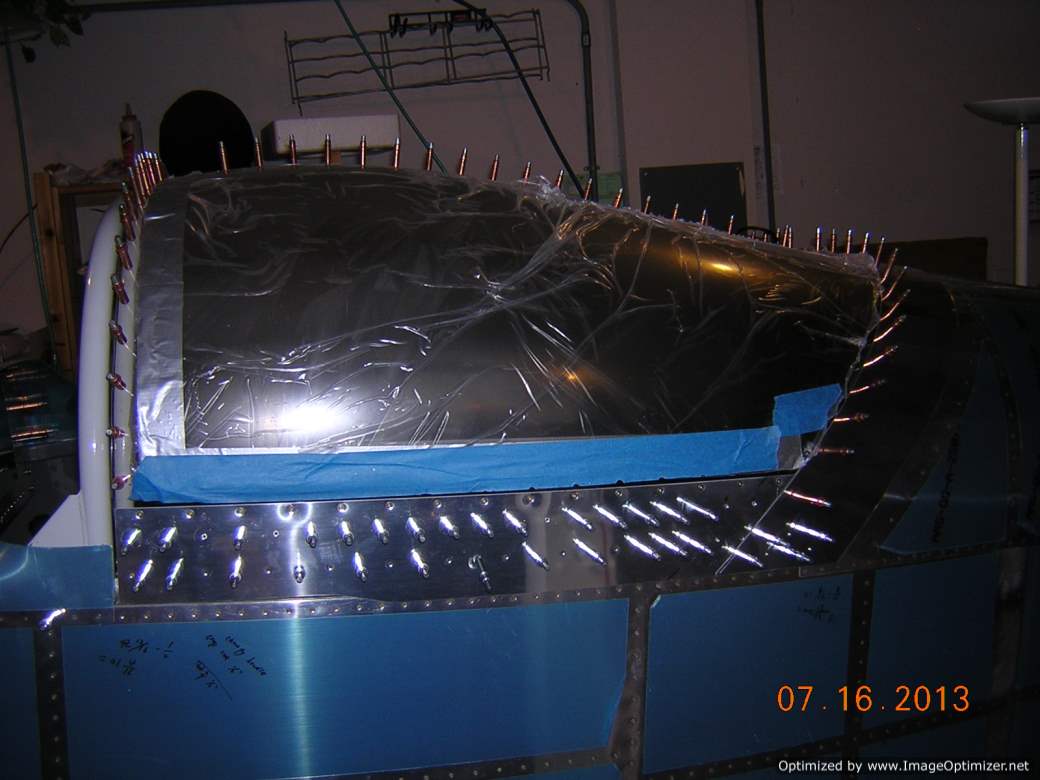

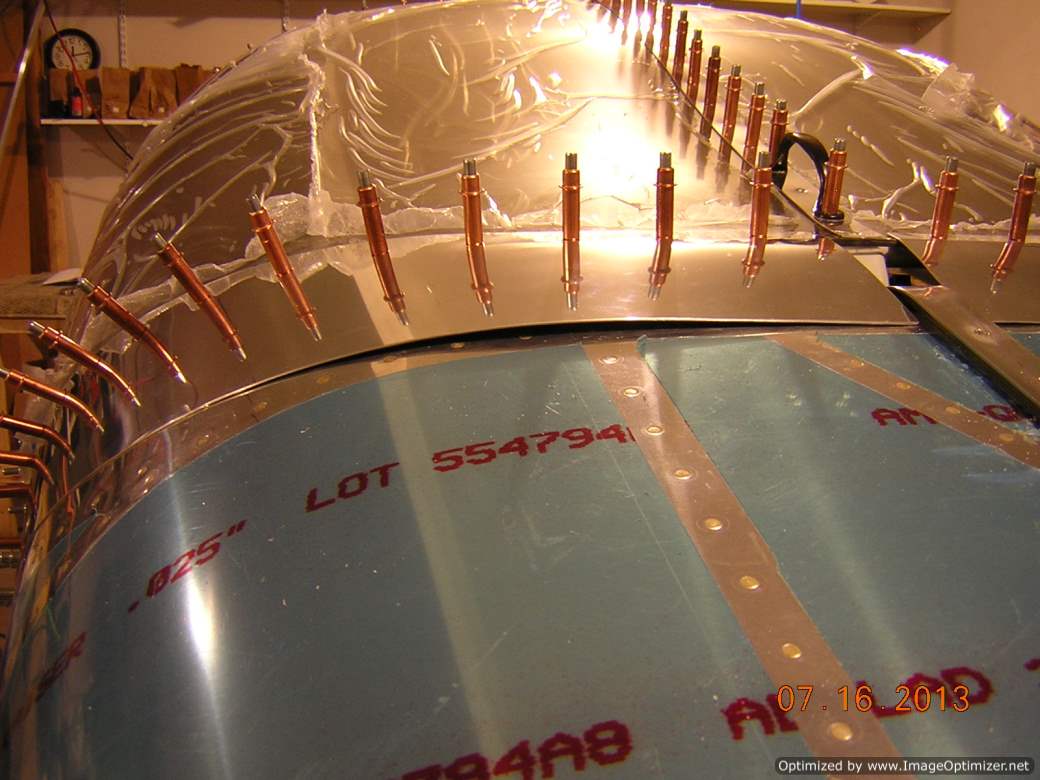

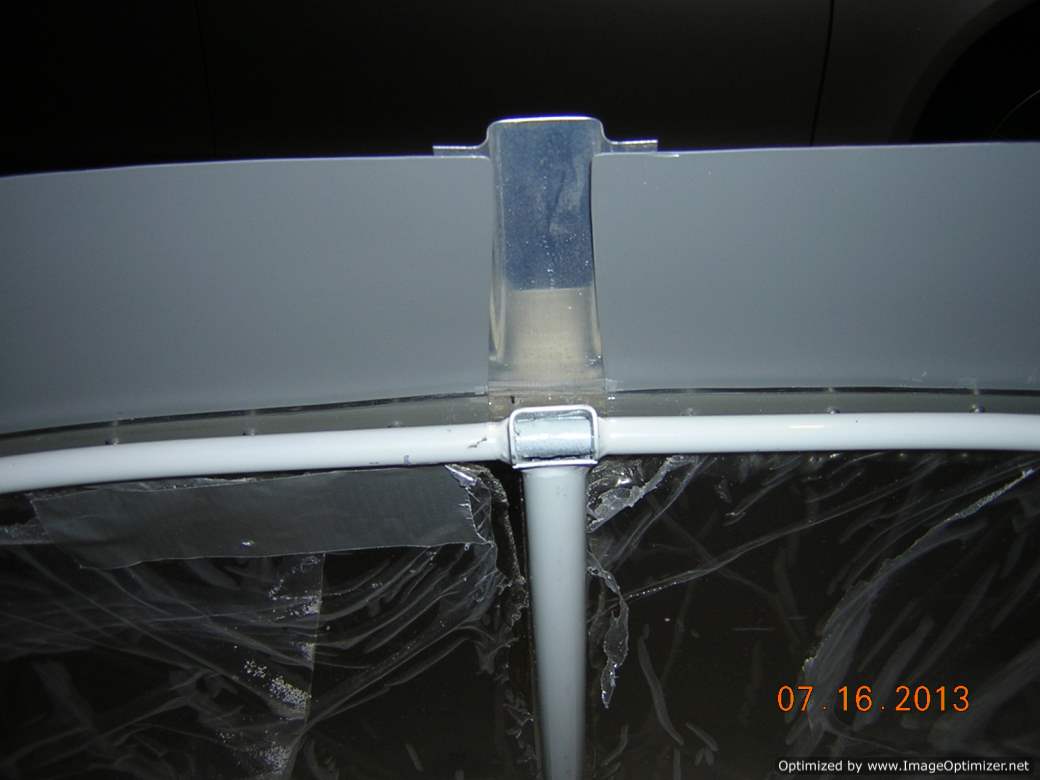

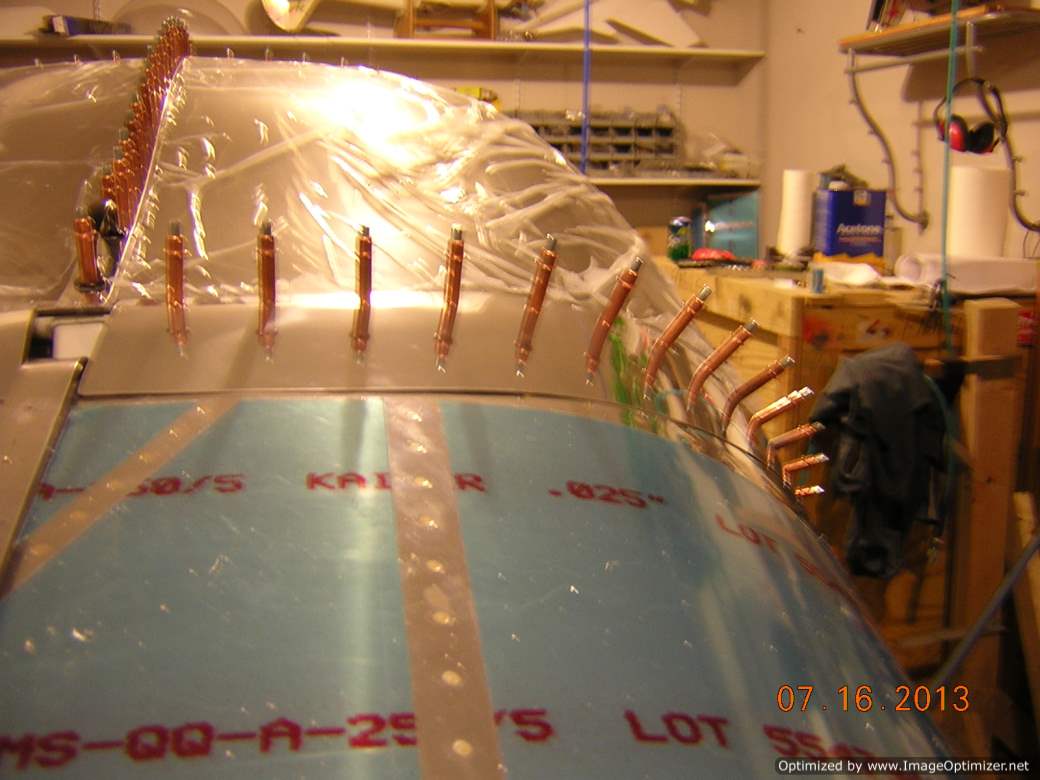

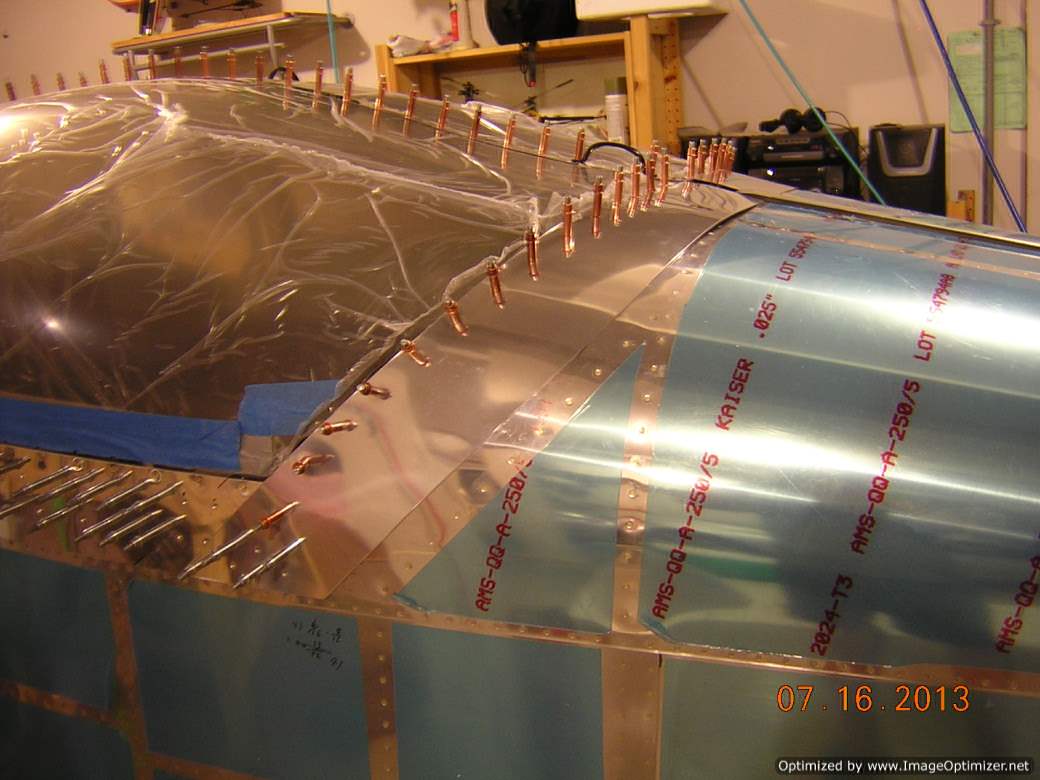

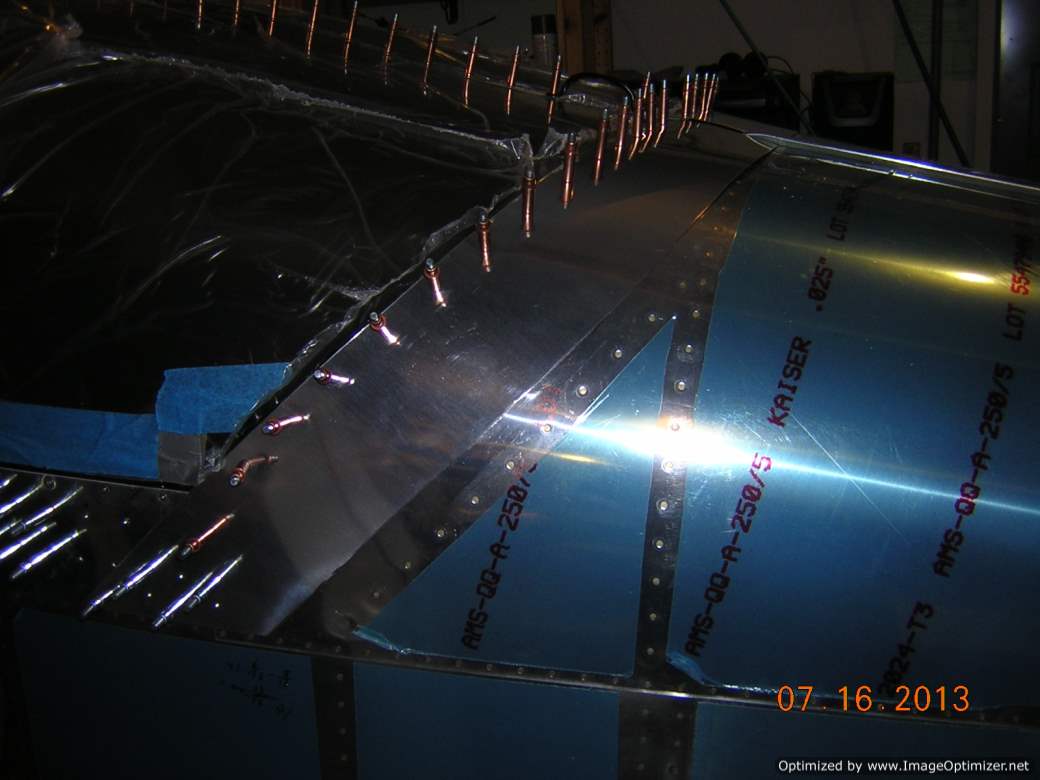

Took the canopy off fuselage, trimmed, dimpled rear skirts. I also painted the interior of rear skirt gray to match the cockpit color.  I also took the opportunity to cut the latch handle tube on the canopy frame (need to cut 1/2"). Then I put everything back on. The fit on the right side is pretty good, the left side still got some gap. I will have to massage the left rear skirt to get a better fit. I am not looking for a perfect fit, just something good enough that I can live with.
