07-24-2012: 3 hrs

There are still lots of small tasks to be done before joining the center and aft fuselage together. I trimmed the longerons to length, and trimmed the end per plan. Then I used the upper deck as a template to mark the slot area on the longerons. Also, I had to enlarge the slots on bulkheads so the longerons can slide in freely. After all these, I then slide the longerons onto aft fuselage. The fit is pretty good.

I then started drilling the F715 end seat rib. I only get the left side done before calling it a day.

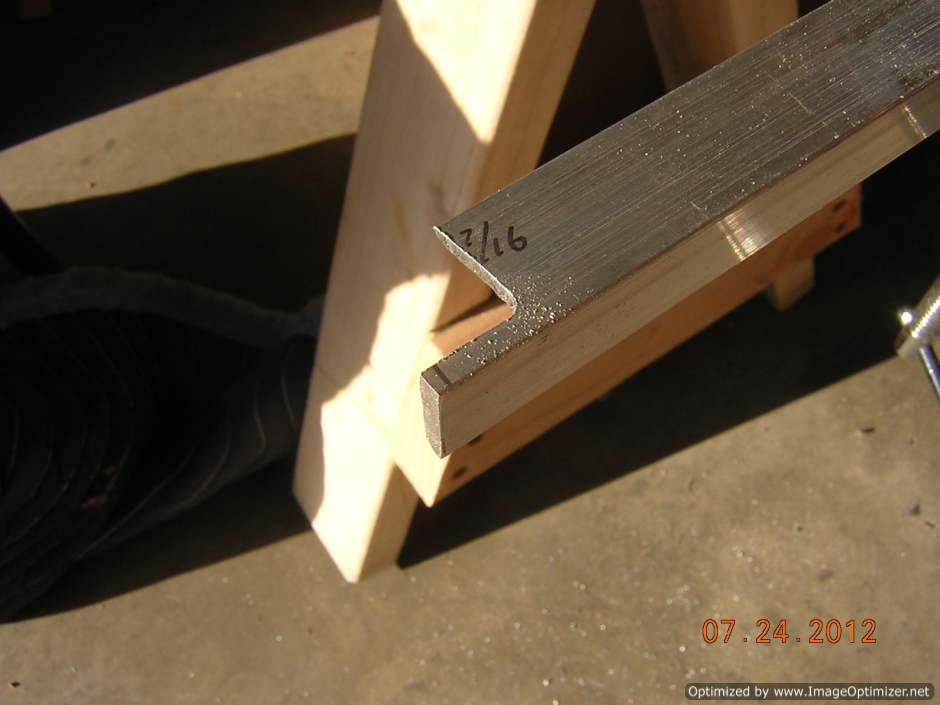

Longerons are trimmed

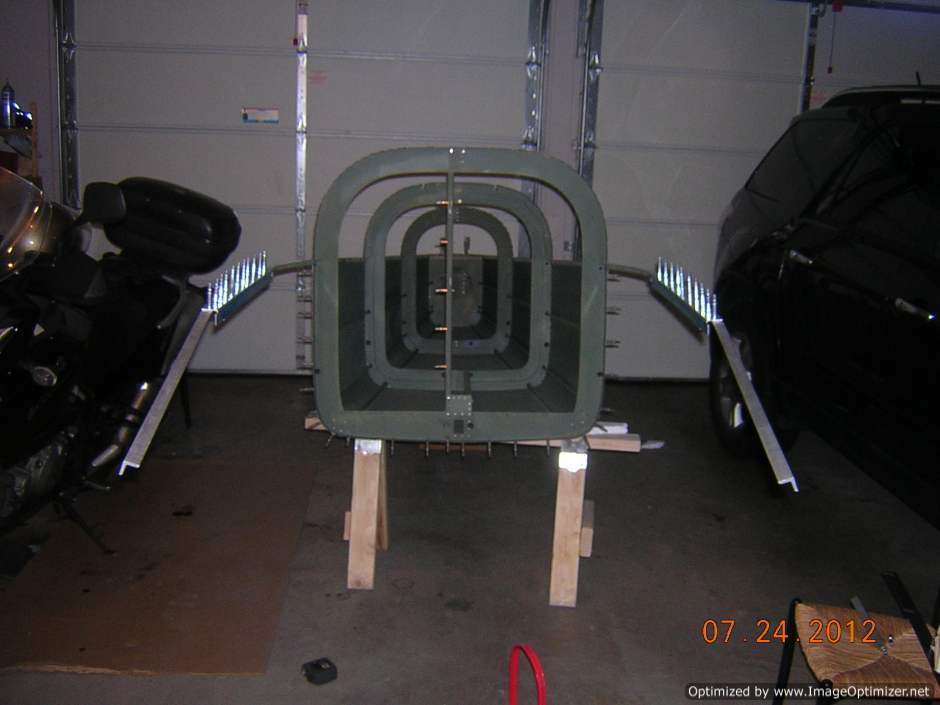

Rails are drilled to the longerons

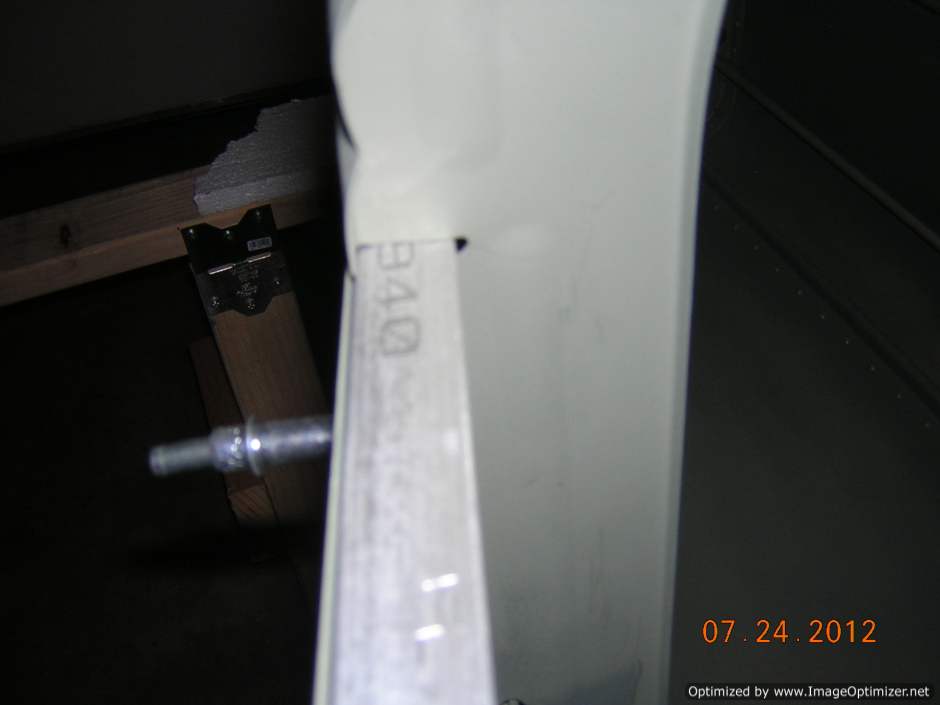

The bulkhead slot had to be enlarged to allow longeron slide freely

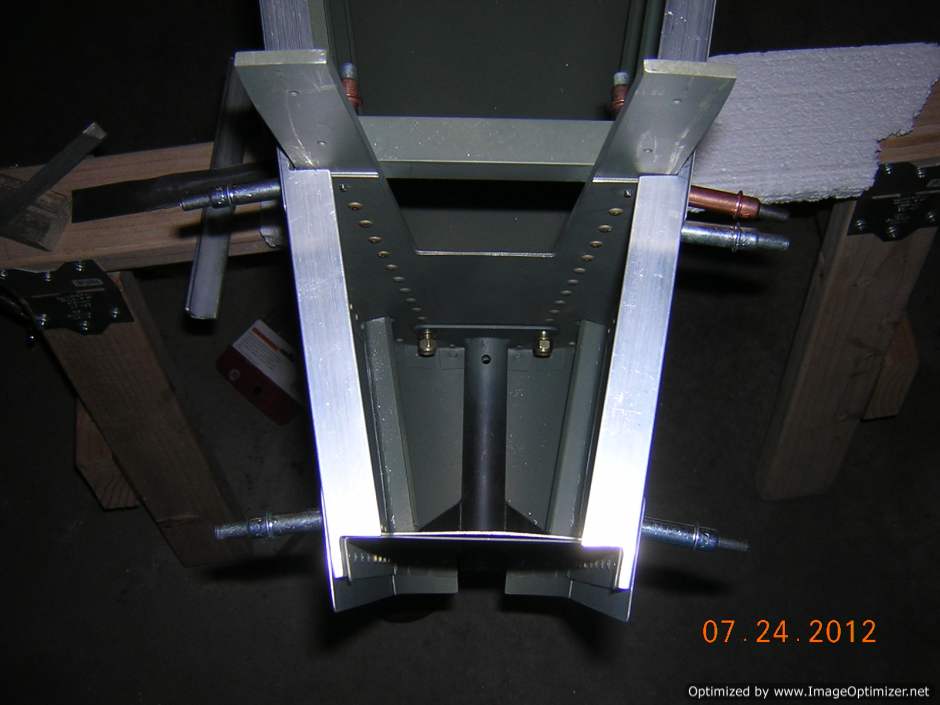

Slots are cut on longerons, fit the aft fuselage well

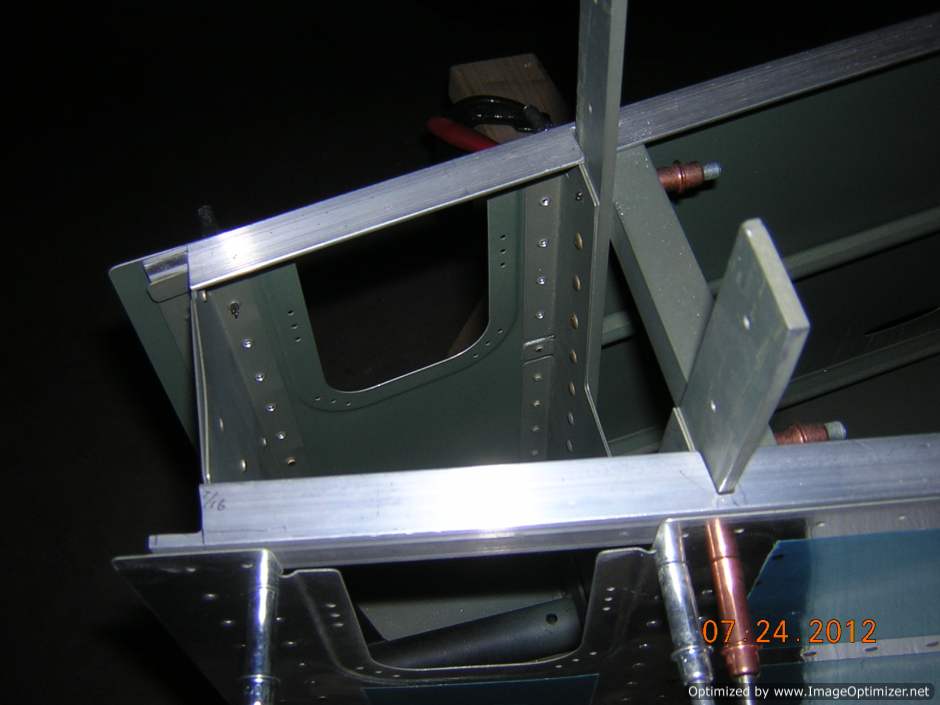

Another view of the longeron to aft fuselage fit

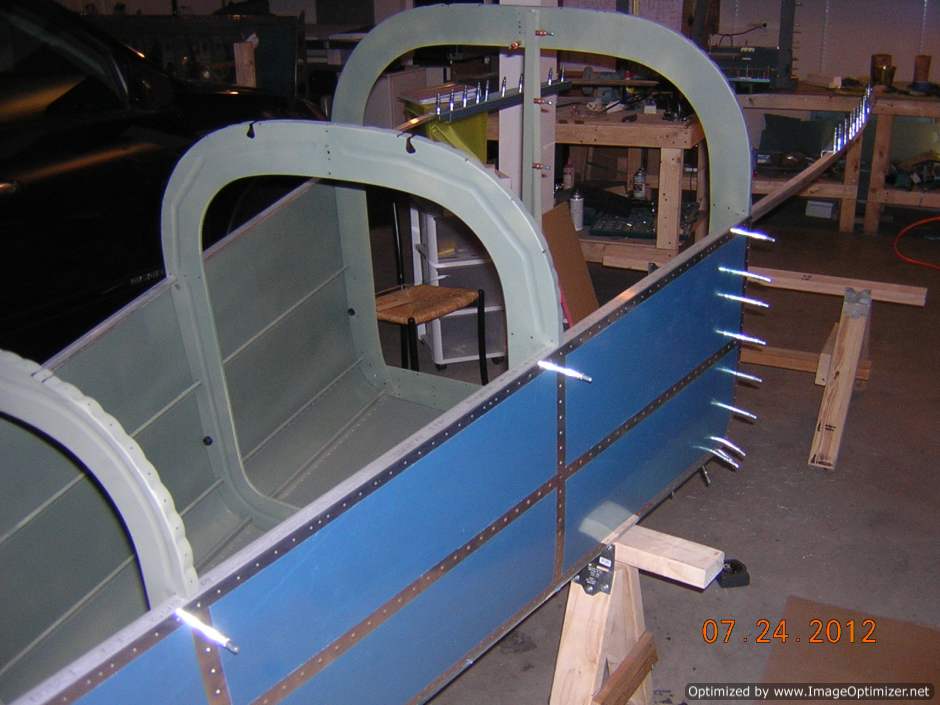

The longeron fit is good

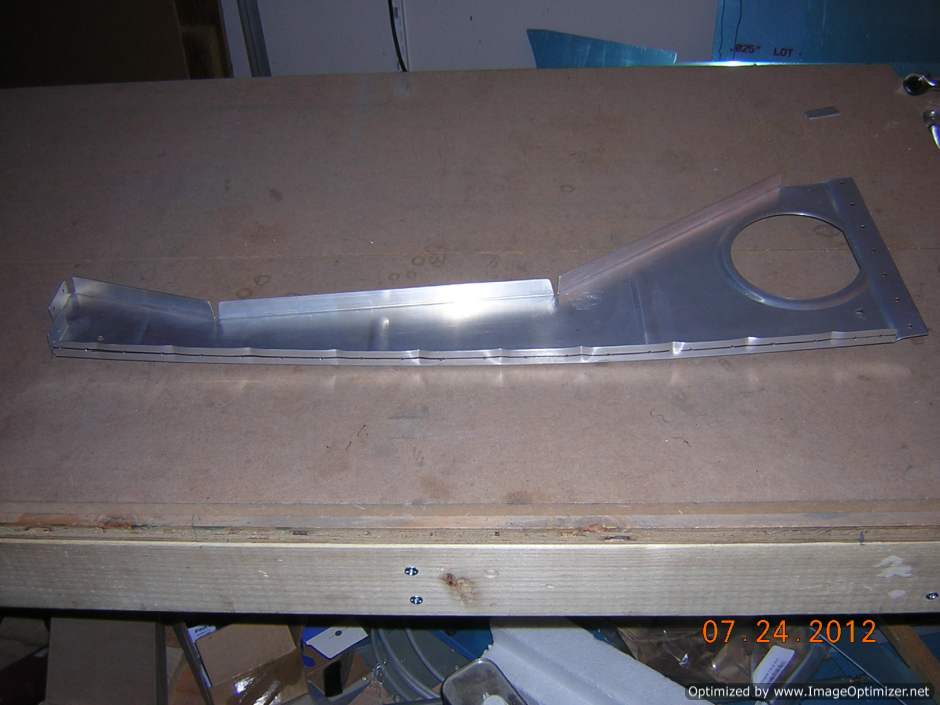

End seat ribs are drilled

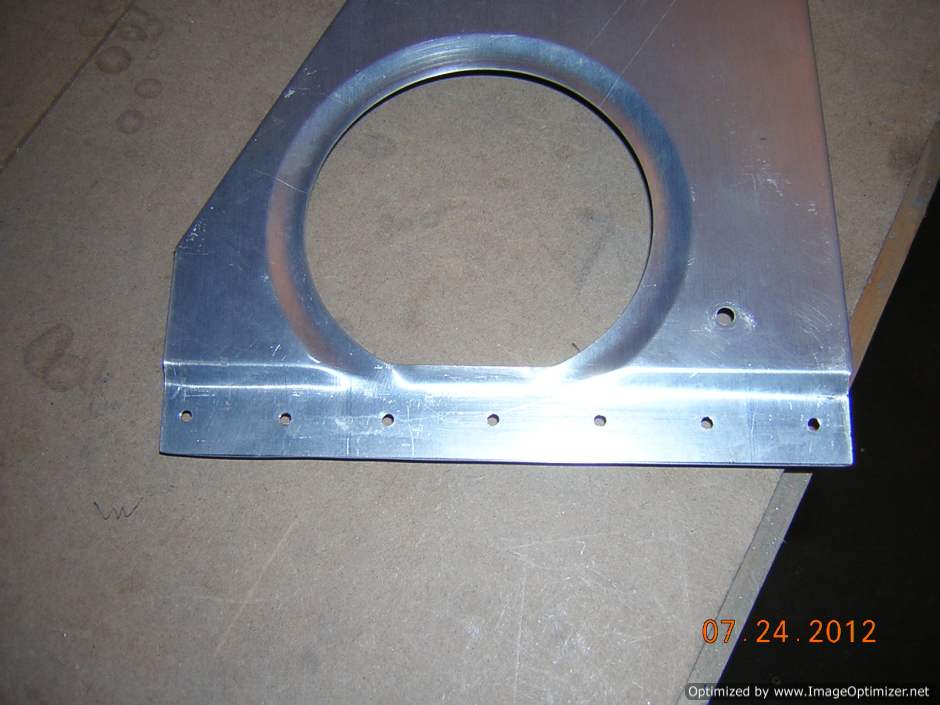

End seat ribs are fluted

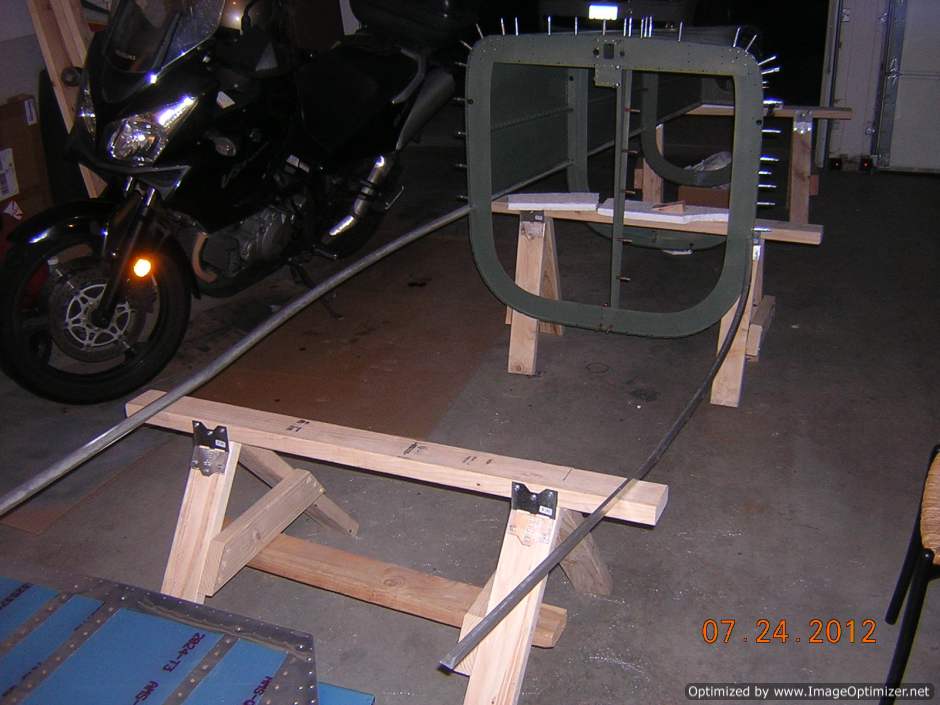

The aft fuselage is turned upside down
