10-04-2012: 2 hrs

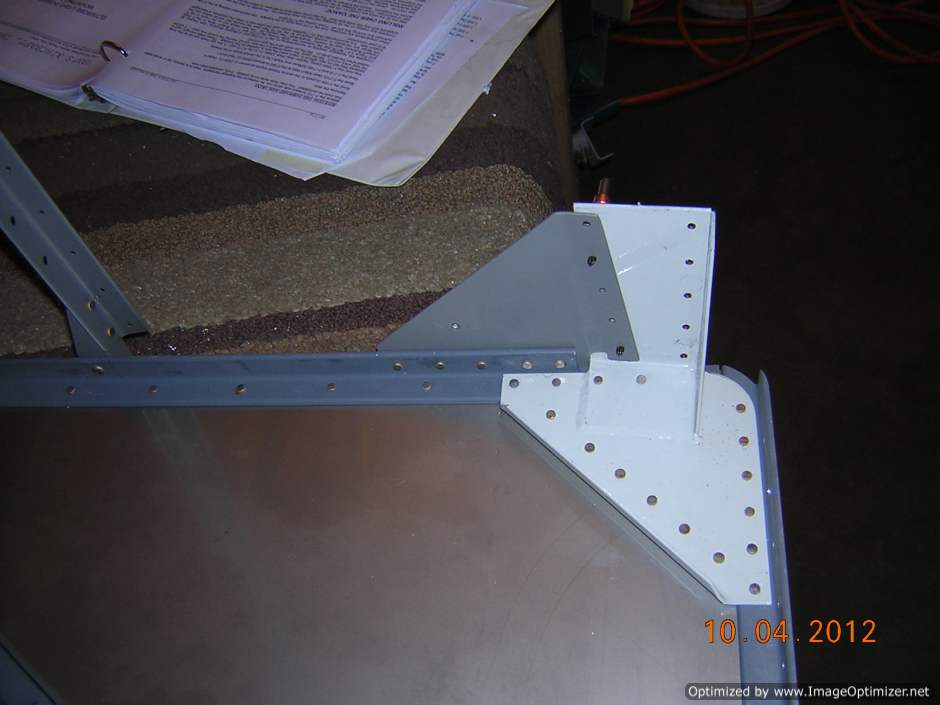

Lower gusset is riveted to firewall vertical stiffener

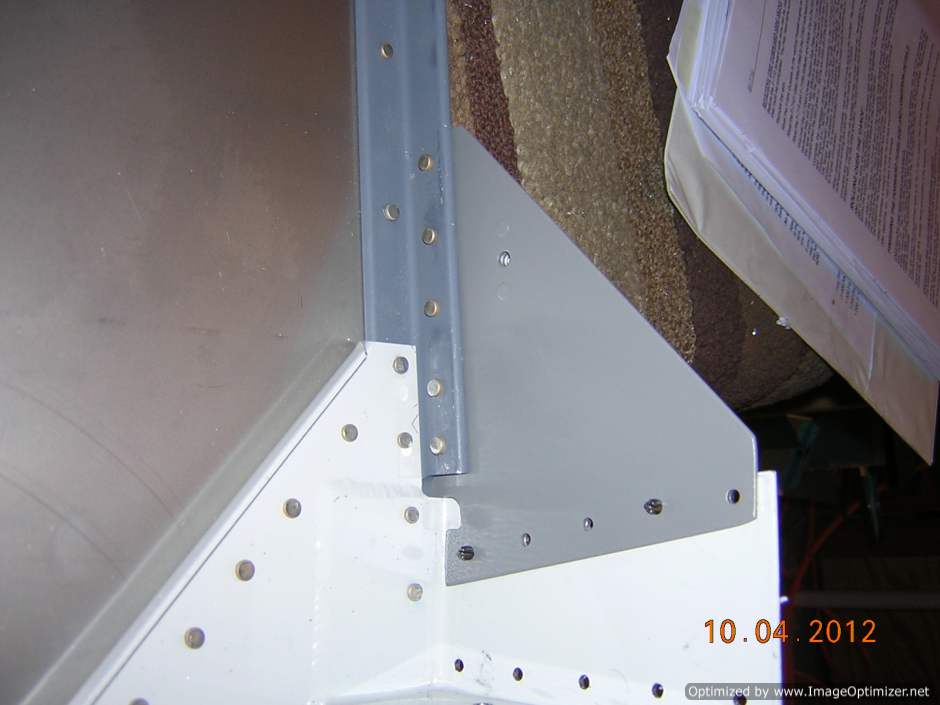

Another view of the gusset and firewall riveted together

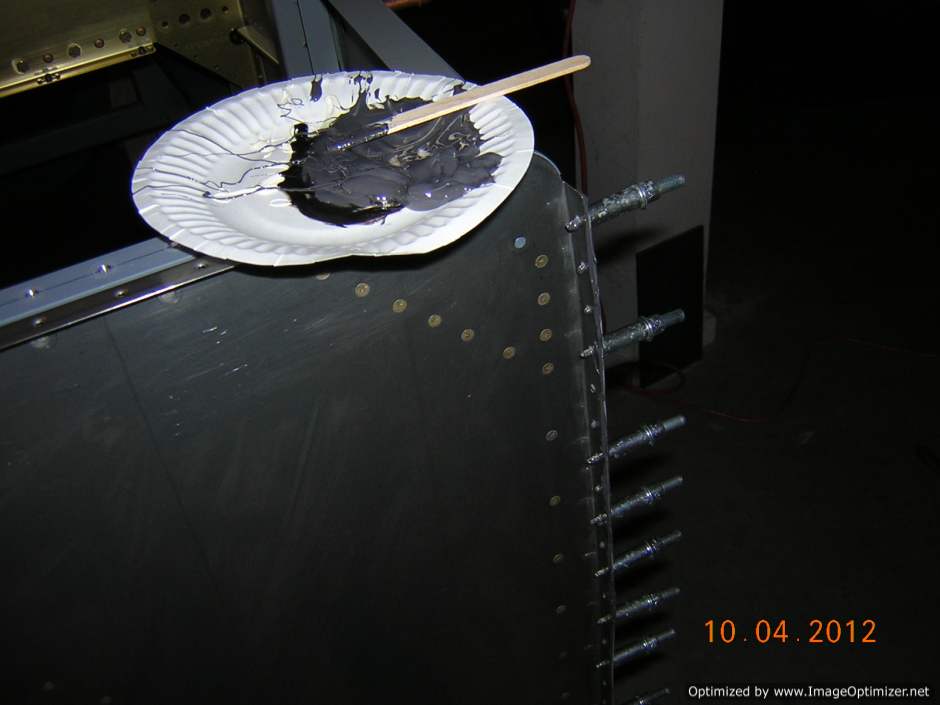

30 grams of pro seal is mixed. I plan to use pro seal between firewall flange and side and bottom skins. I will do the seaing for side skins only today, since I need to leave the bottom skin off for easy access when riveting fwd stiffeners to side skins. 30 grams is too much just for the side skins.

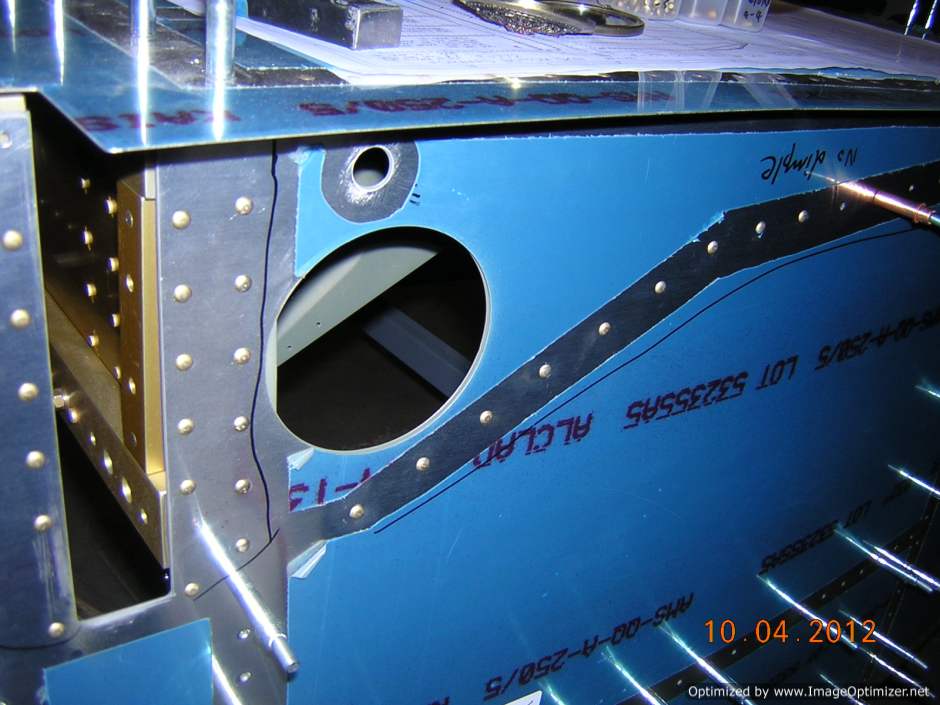

Next I riveted these rivets between right end seat rib and side skin

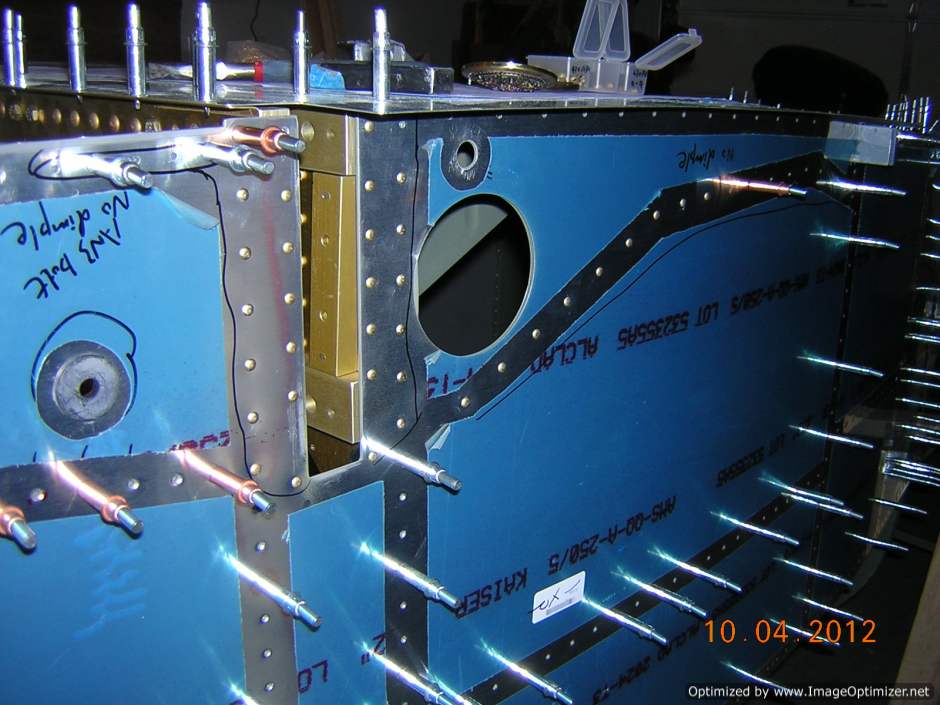

Another view

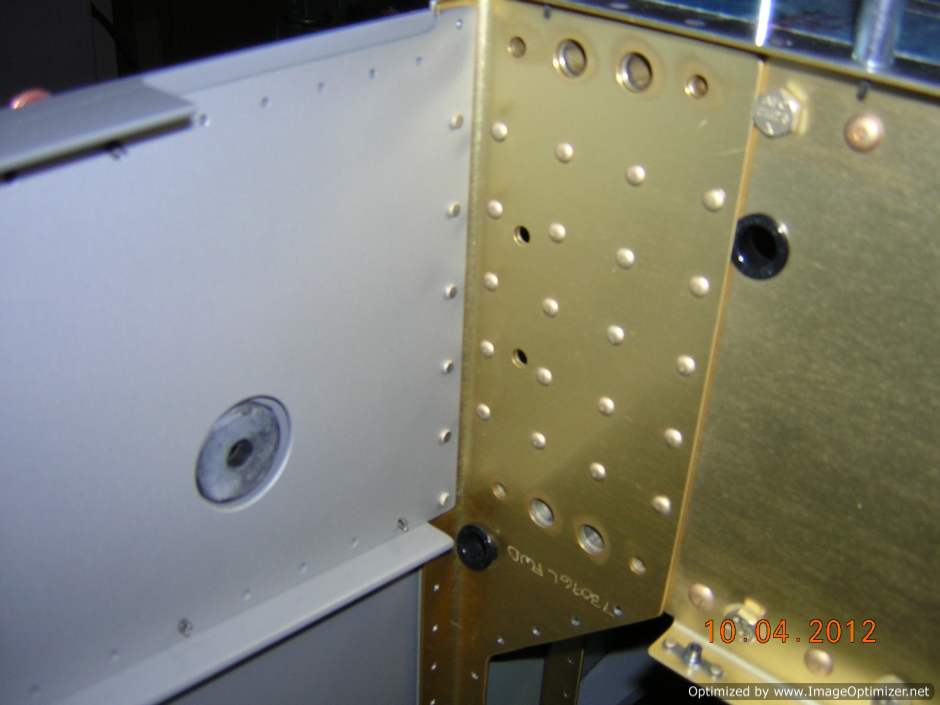

Aft edge of gear web is riveted
