10-12-2012: 3 hrs
F704 bulkhead and arm rest are riveted to side skin

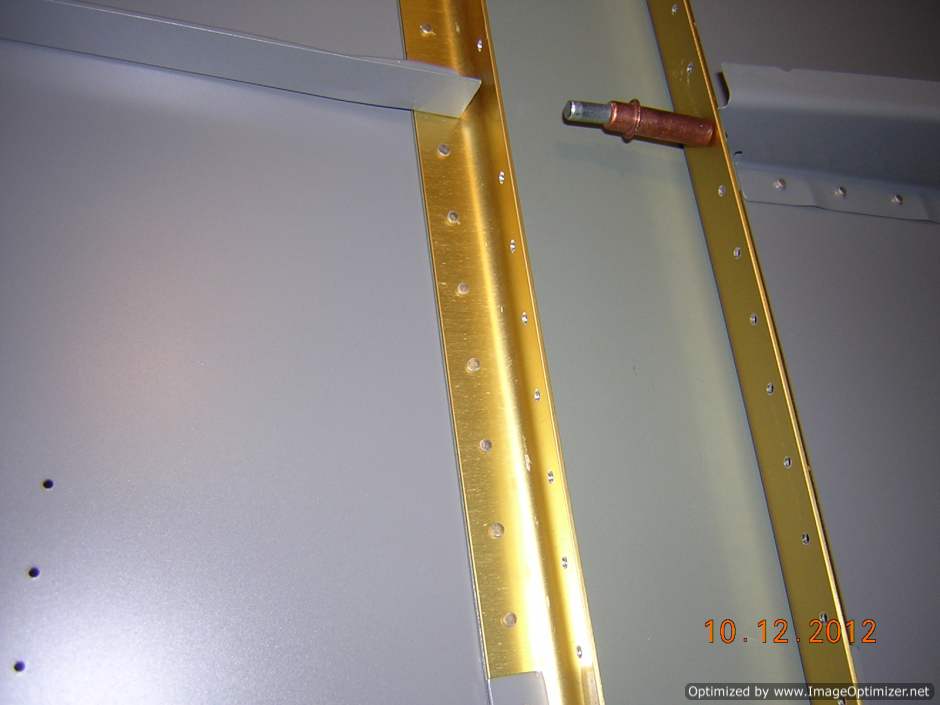

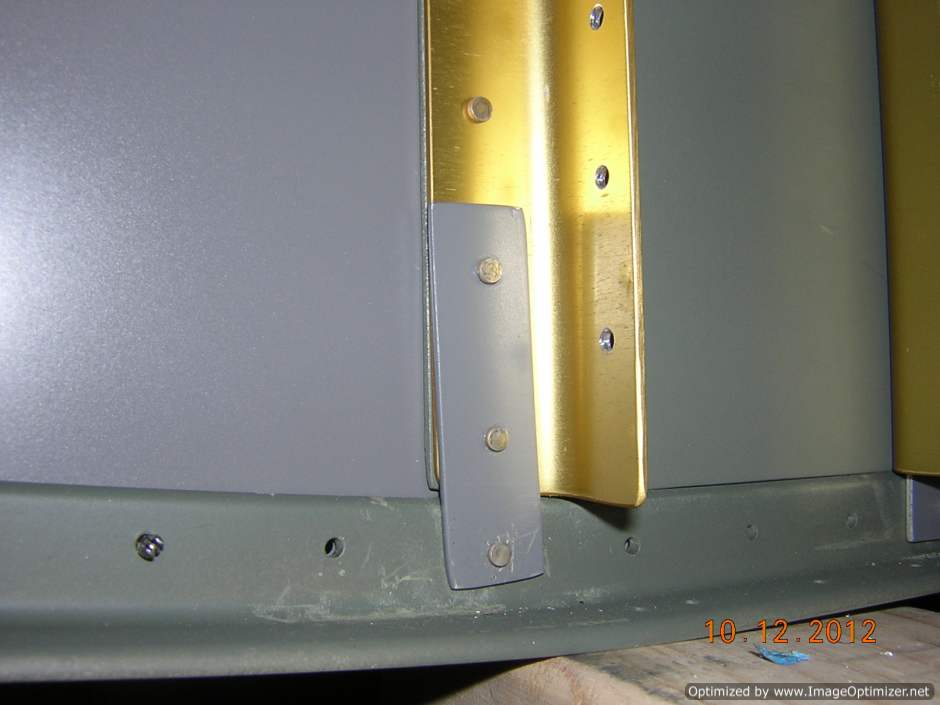

F704 bulkhead straps are riveted. The one to the longeron might need to be drilled out later for top skin. Only one strap is rived to longeron.

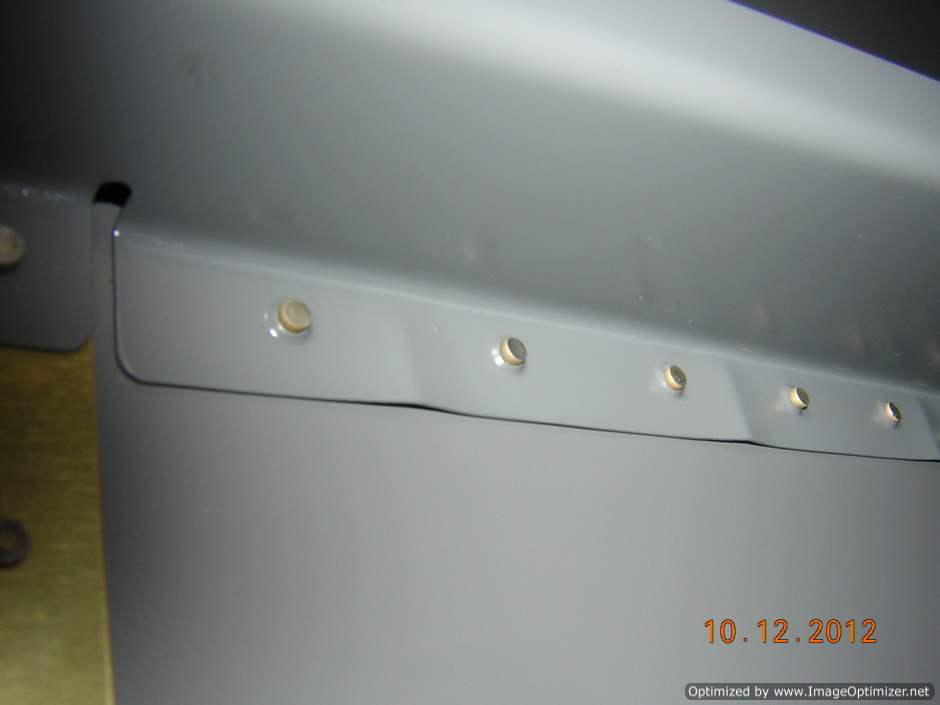

Shop heads of the F704 doubler rivets

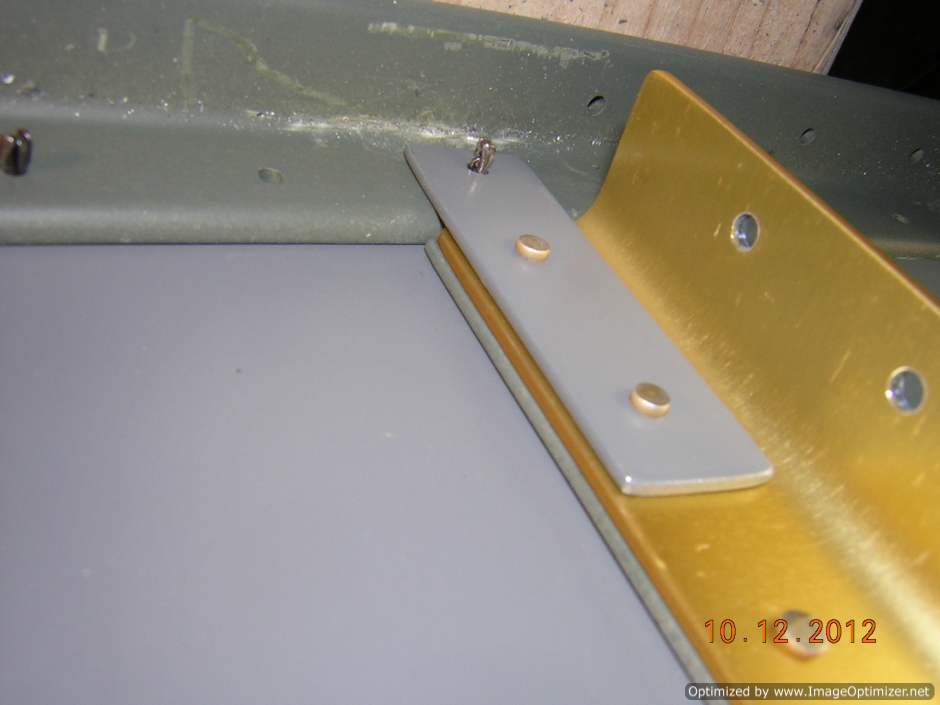

Shop heads of arm rest rivets

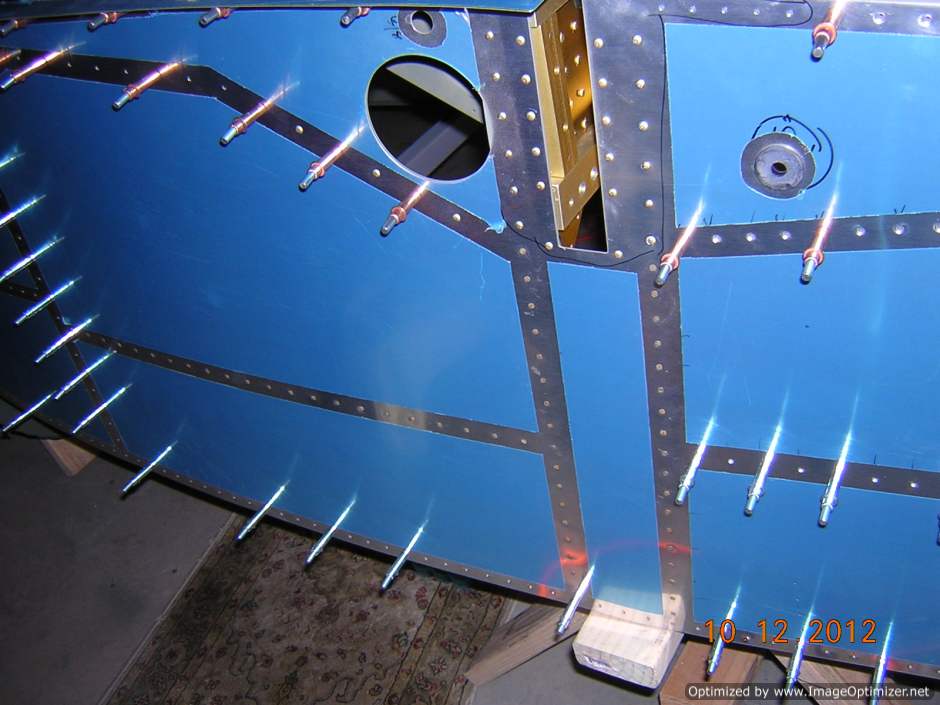

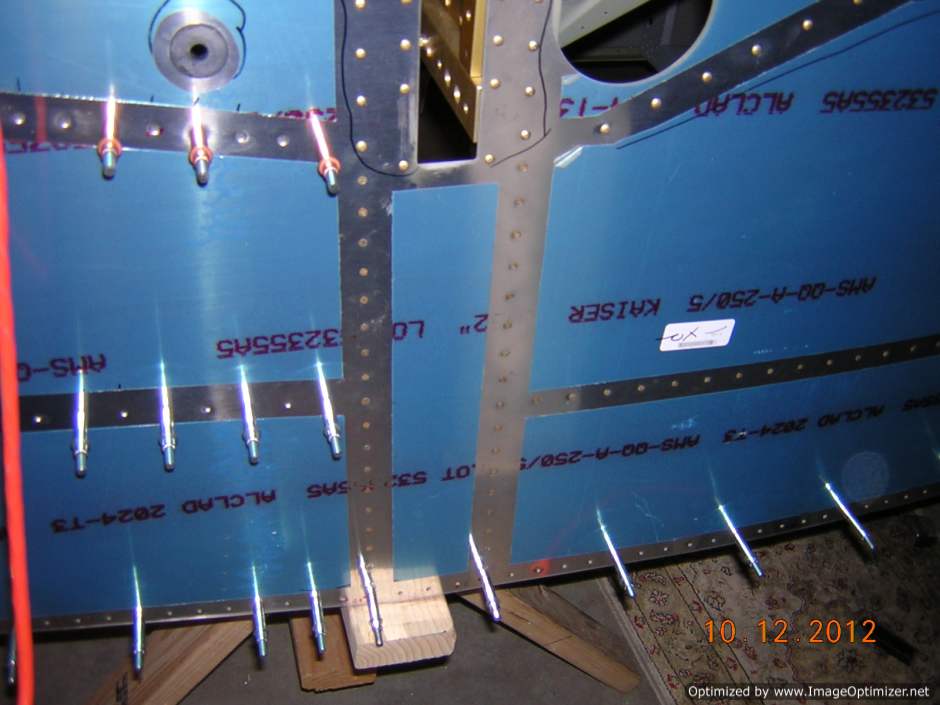

F704 to side skin rivets are done on the left side

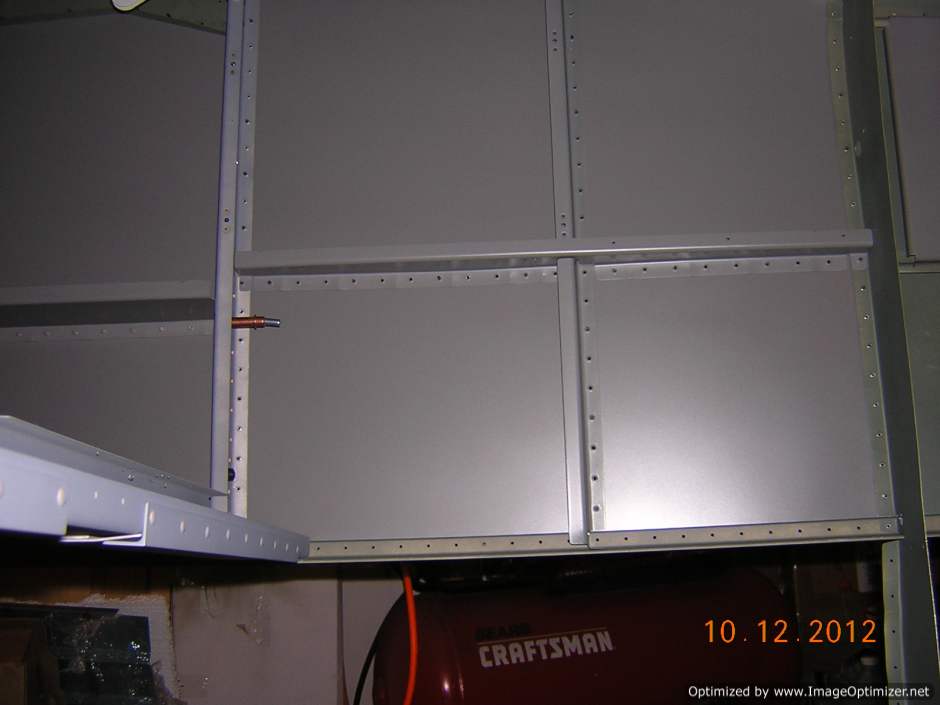

Baggage area frames are clecoed to side skins. I did do this until now.
