10-08-2014: Hobb 65 hrs, TACH 56 hrs
Since I removed the cowling to trim the baffle for the slight interference between fwd baffle and cowling, I took the opportunity to inspect the baffle around the oil cooler, where many people reported cracks at low time. I did find some crack, but not at the common place. It's at the reinforcement box as shown below. I just stop drilled the crack, and will monitor the crack to see if it will propagate. If it does propagate passing through the stop hole, I will need to find a permanent fix.

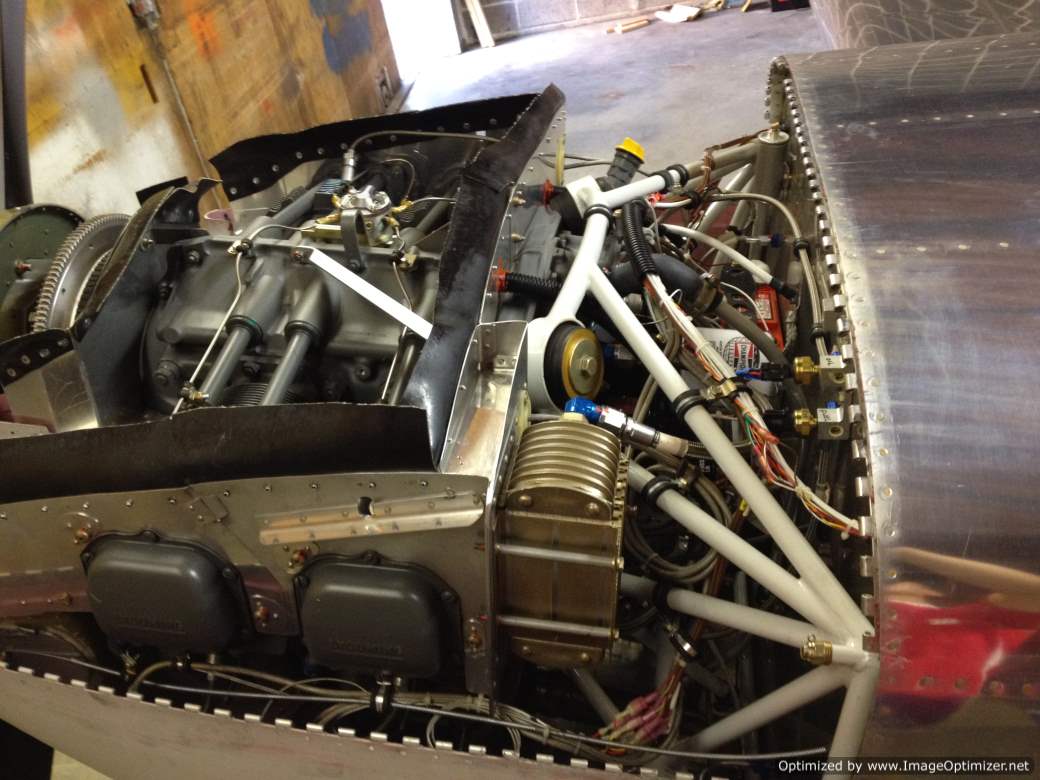

Top cowl is removed

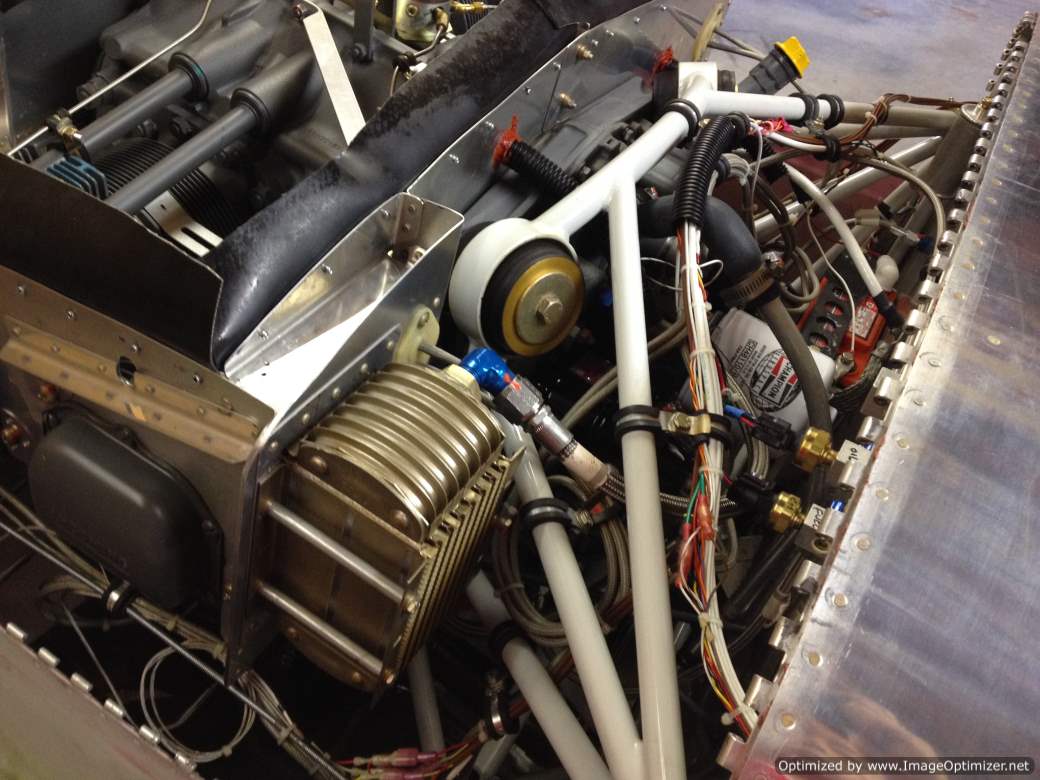

Over view of the oil cooler area

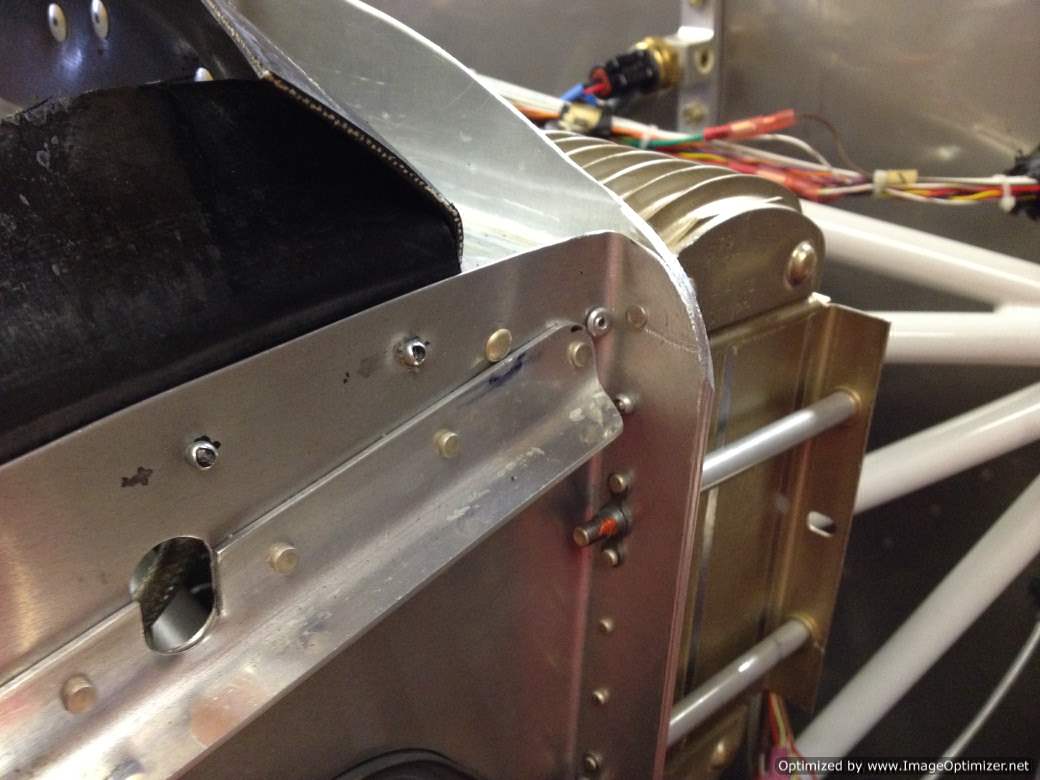

You can see the crack initiated from the bent corner
No crack at the location where most people reported cracks

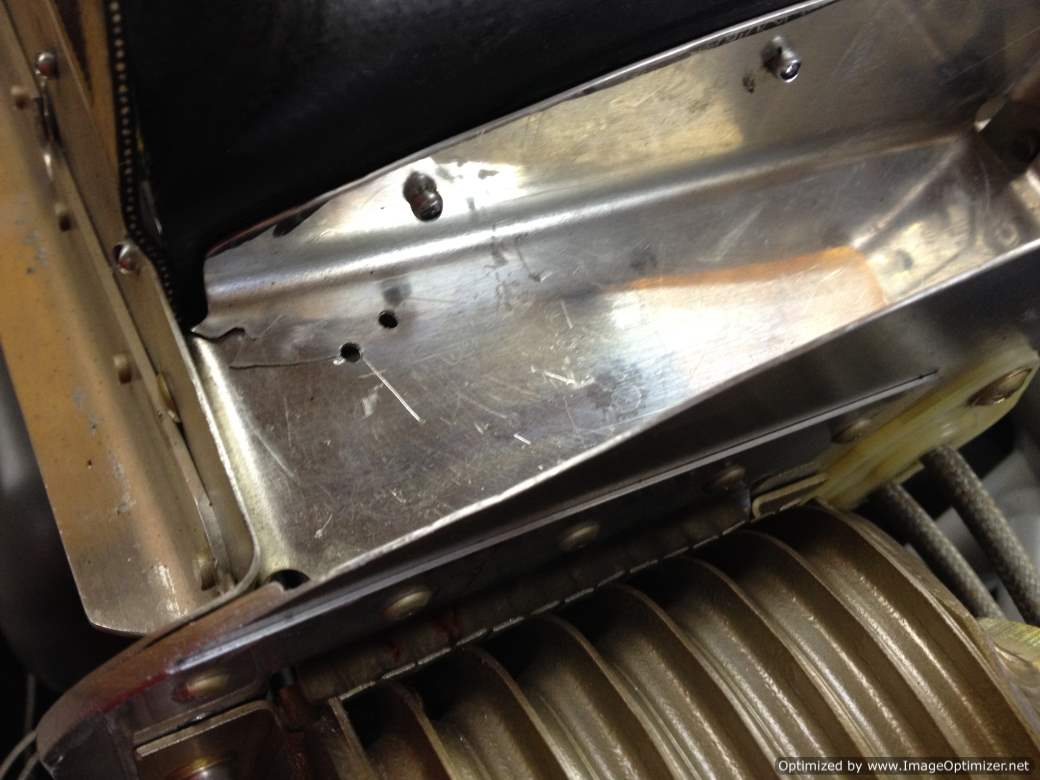

I stop drilled the crack, one at the end of the through crack, the other at the non-through crack

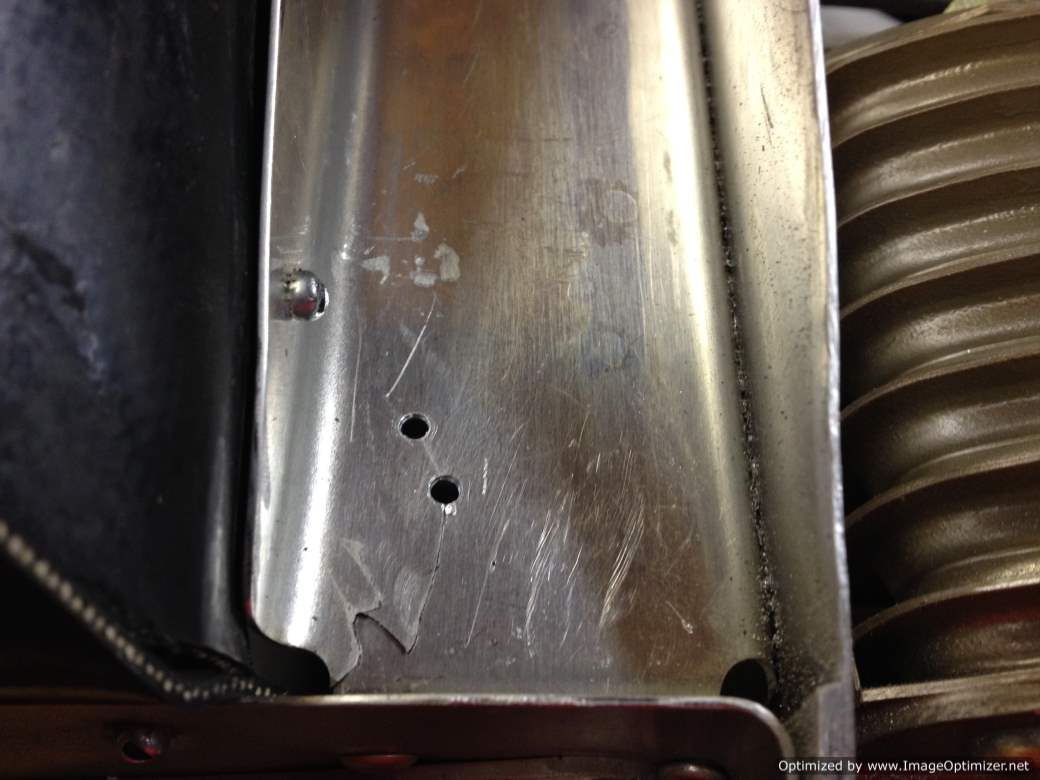

Another view of the stop drilled crack
