12-01-2012: 2 hrs
Clean and primed fwd cargo side wall. The two holes attached to aft side wall were not aligned with the nutplates on the aft side wall, I had to file to make oblong holes to match the nutplate. This is not desired, but should be ok for the no-structural side coverAlso, I cleaned the aft seat rib area to get ready riveting the aft seat pan. I had to enlongate the aft hole on the right outboard rib. I used JB-weld to fill the hole, and redrilled it.
Then I checked everything that I should take care before perminently riveting on the aft seat pan. They look ok.

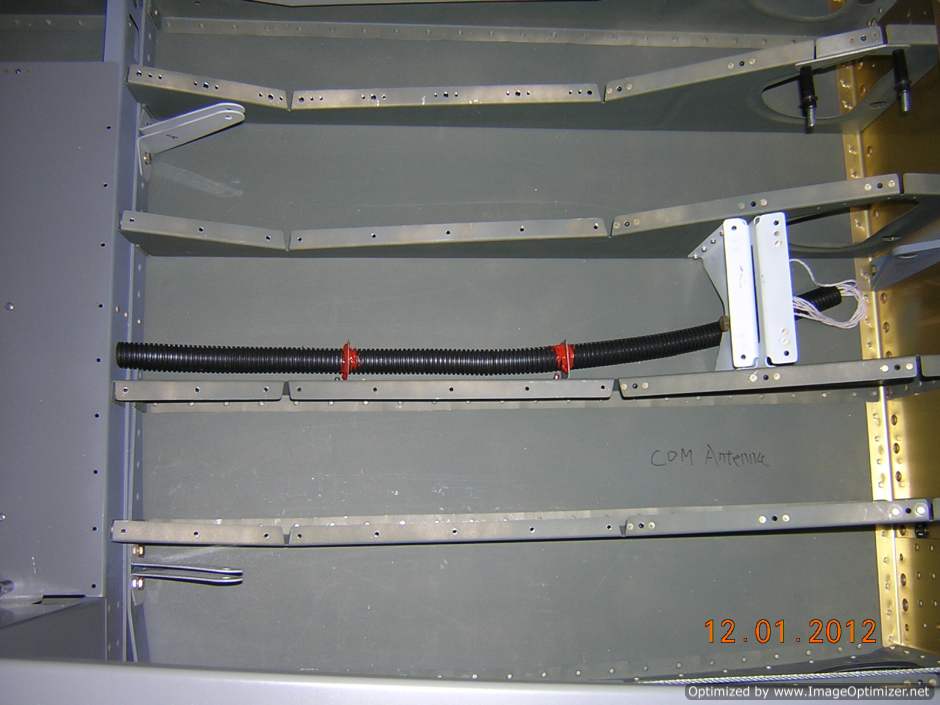

Final check before riveting the aft seat floors

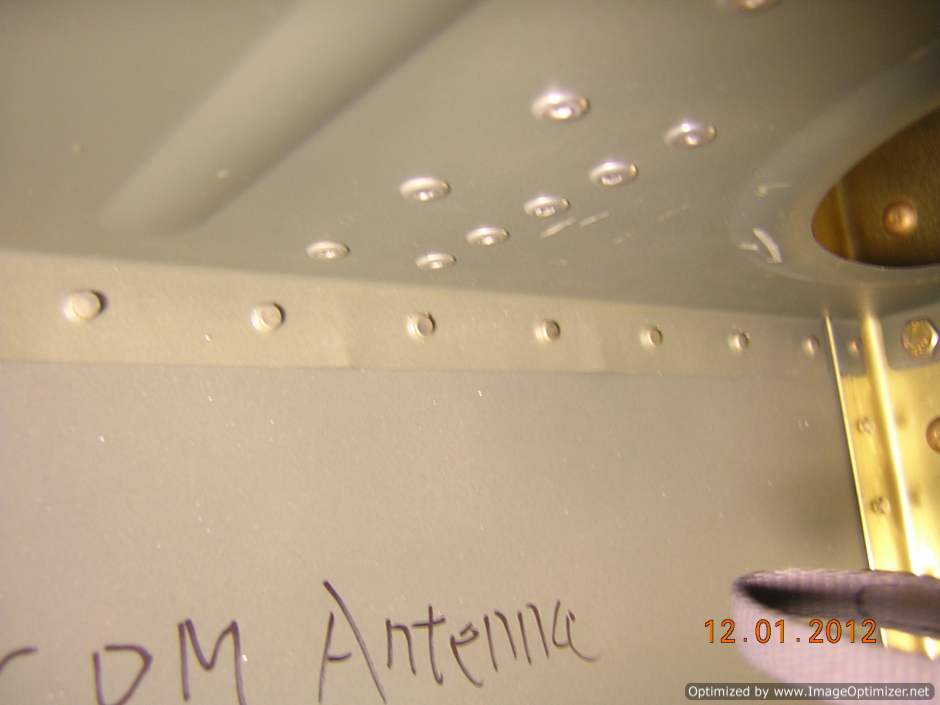

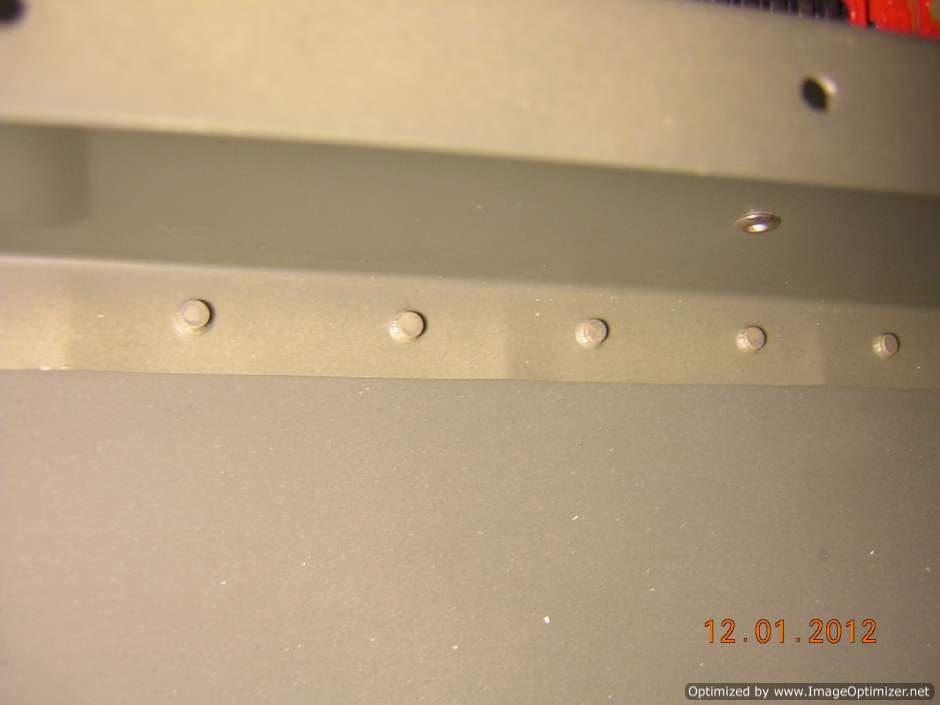

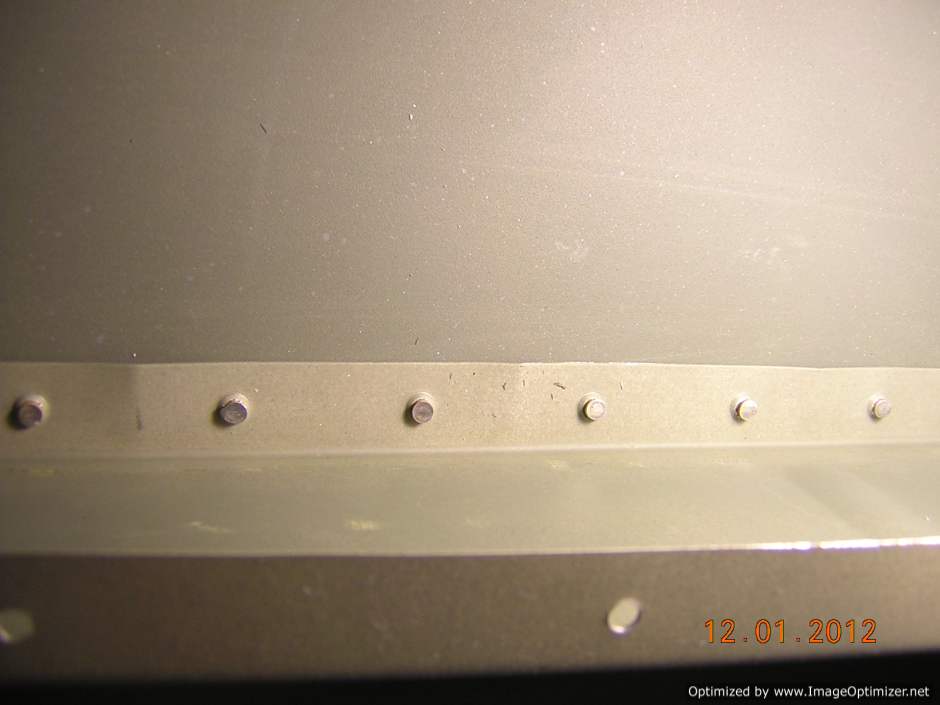

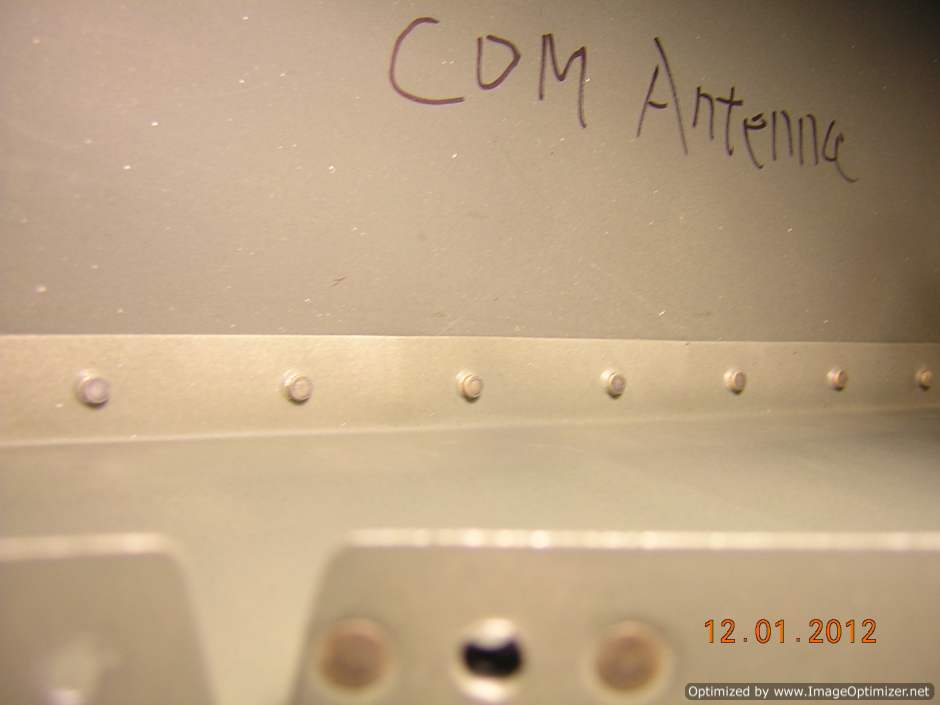

Typical shop heads of the seat rib to skin rivets

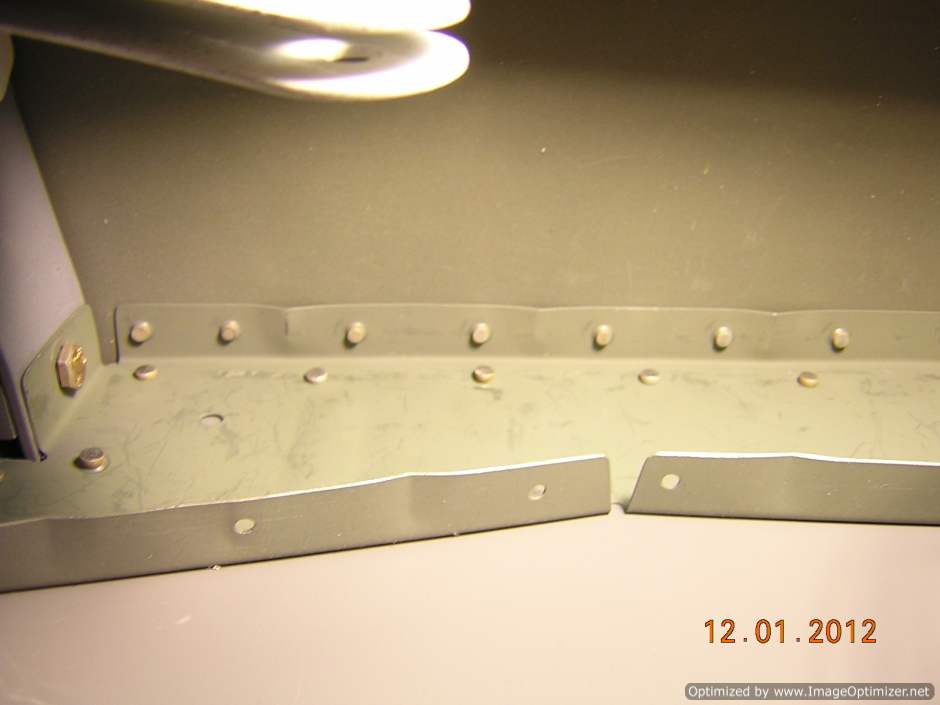

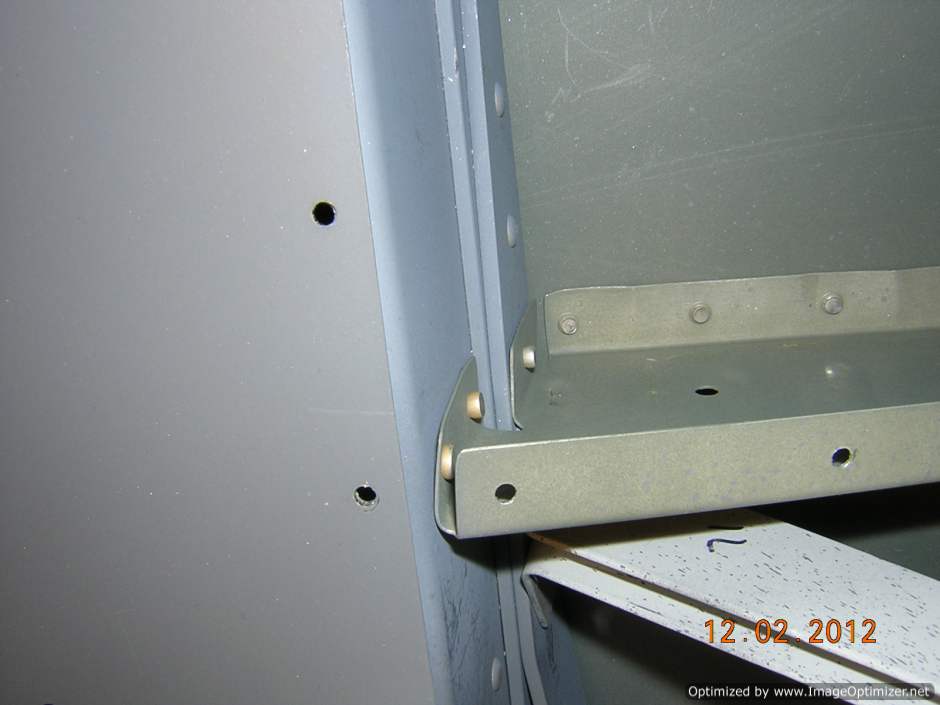

The flange is tilted, leaving a small gap, but should be ok

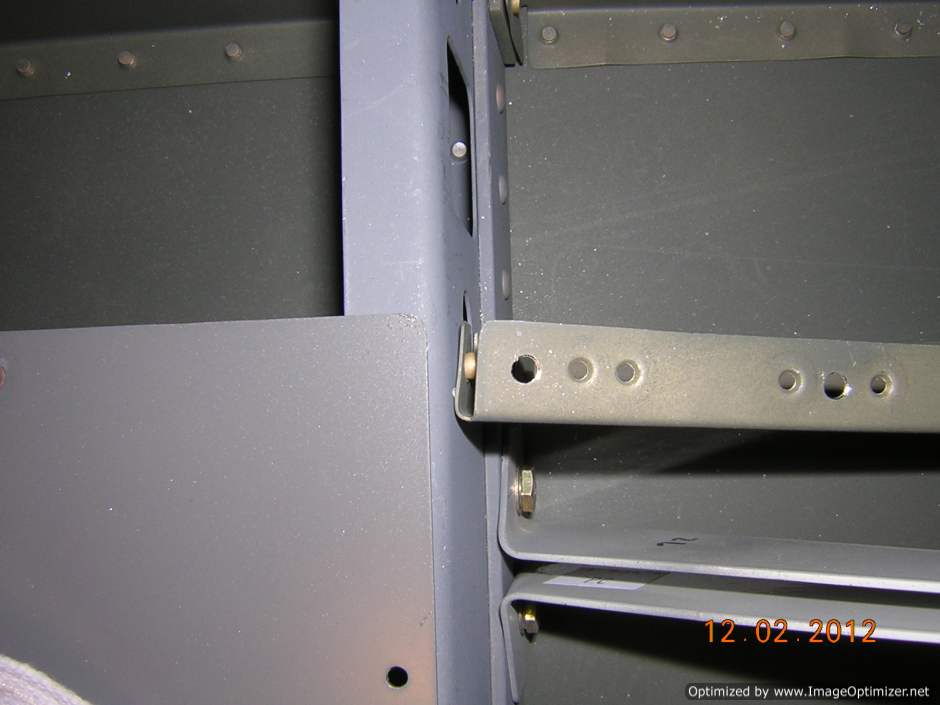

Another one with small gap. Totally two flanges are not perfect.
