12-03-2011:
Finished the access plate. I used pop rivet (LP4-3) instead of AN470AD4-4 called out in the drawing for the anti-rotation bracket for the fuel pick up line fitting. It was hard to set the solid rivet, and the load is low. I did have to put a lots of sealant to seal the pop rivets.

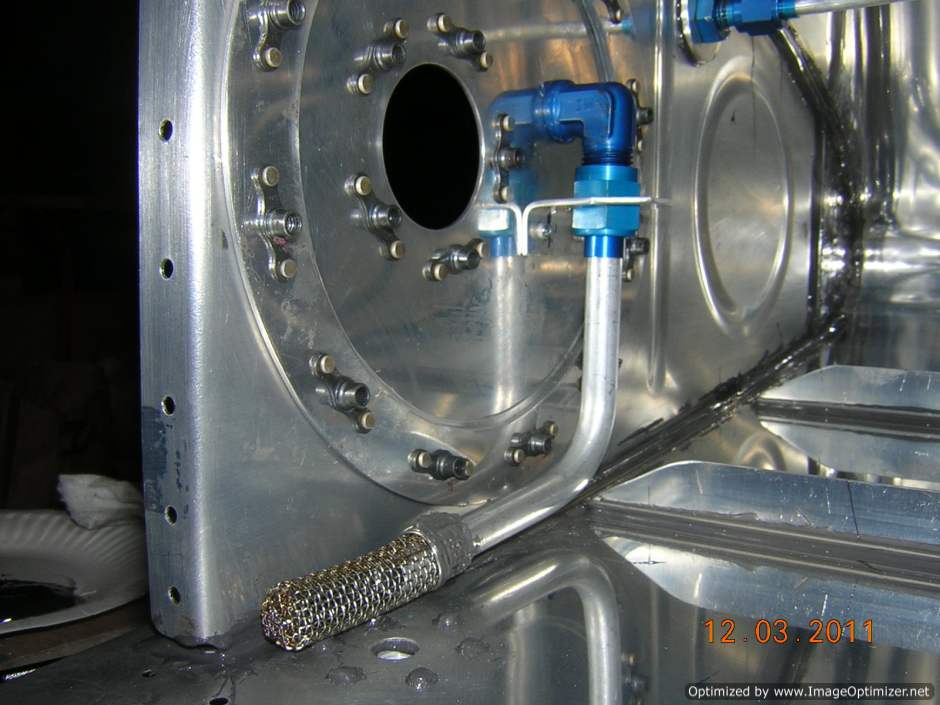

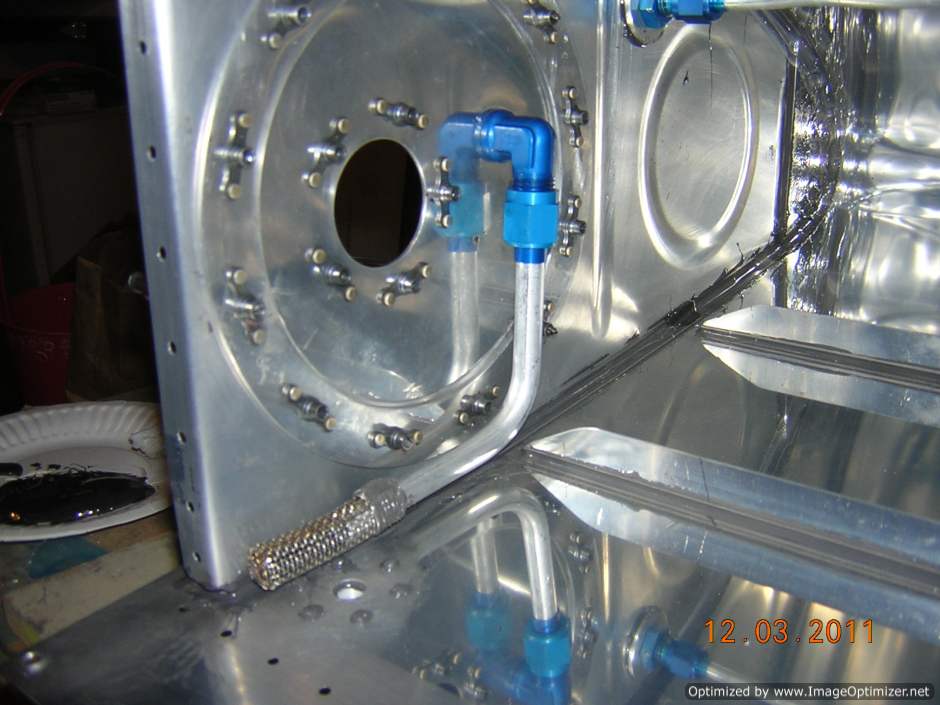

The fuel pick up tube from Van's sitting in the right place

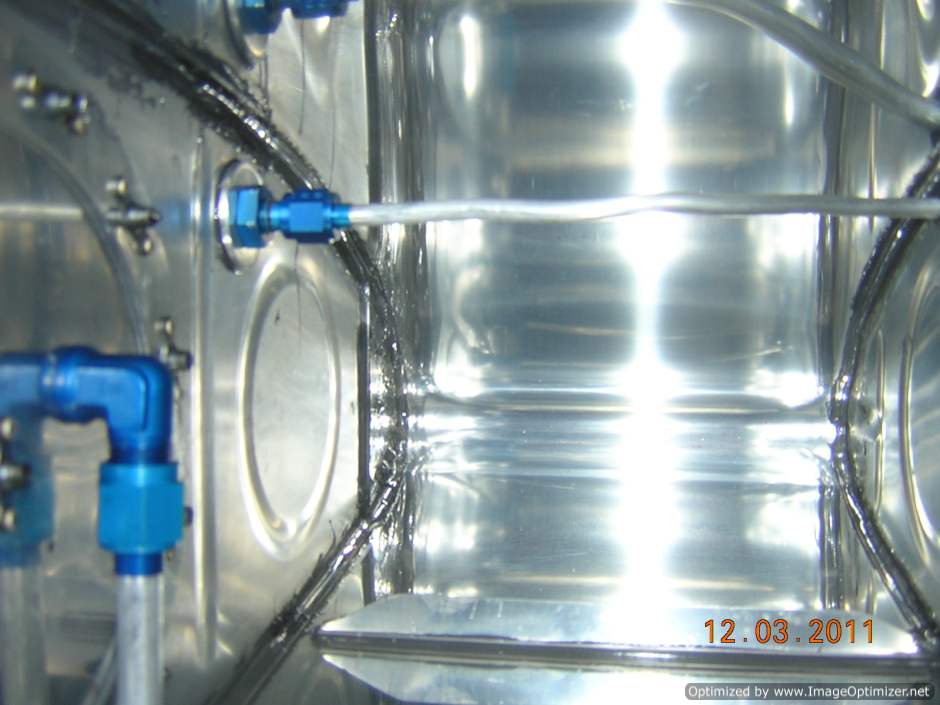

Vent line fitting looks fine
Anti-rotation bracket is riveted, but not sealed yet

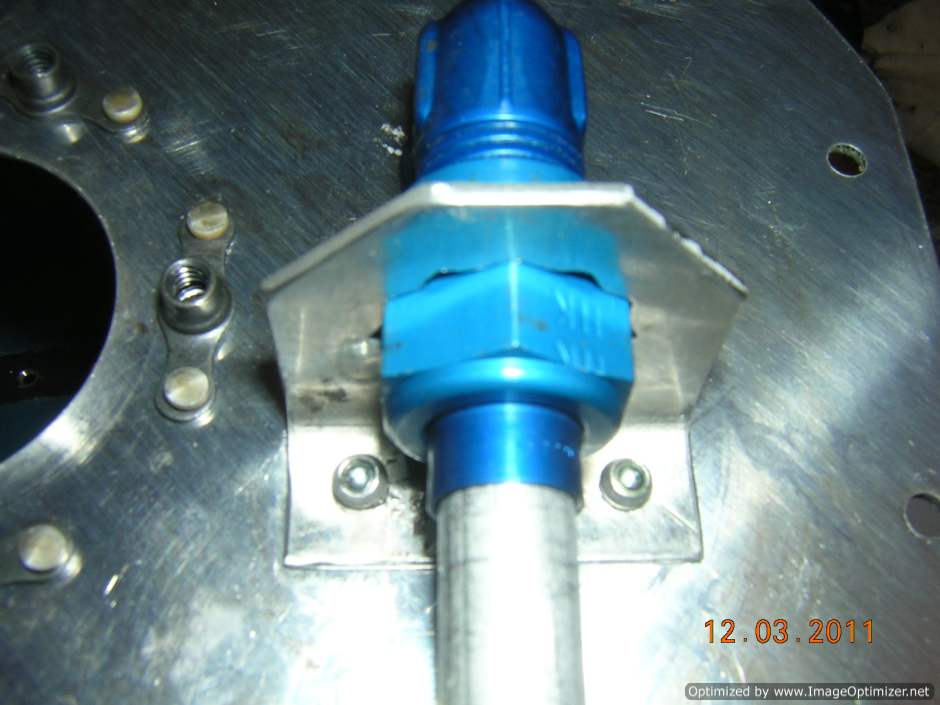

Close up view of the anti-rotation bracket, pop rivets used here

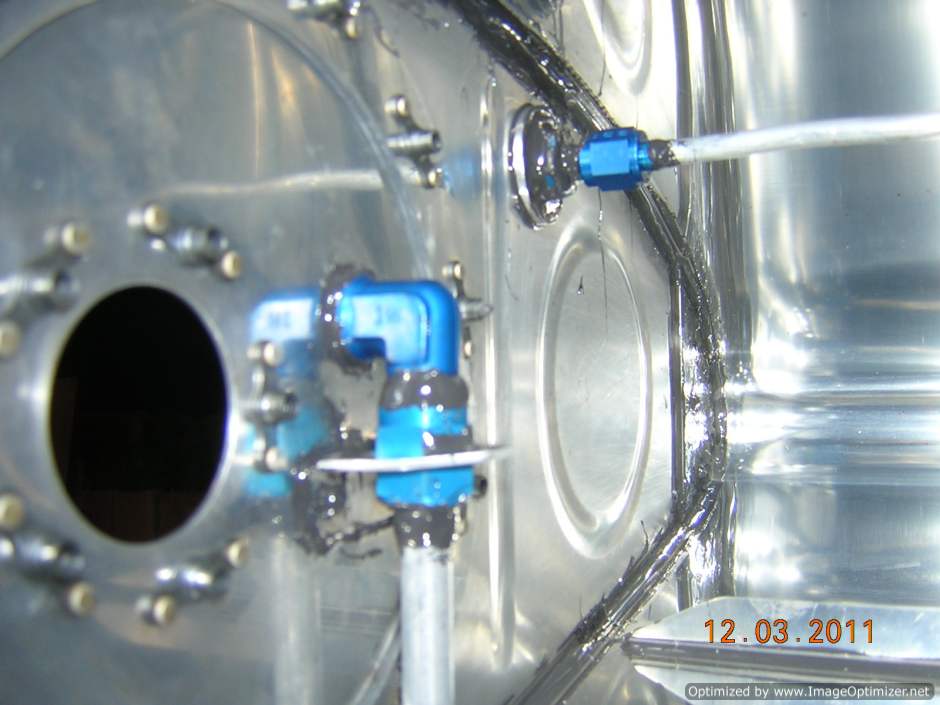

Fittings are tightened and sealed with sealant

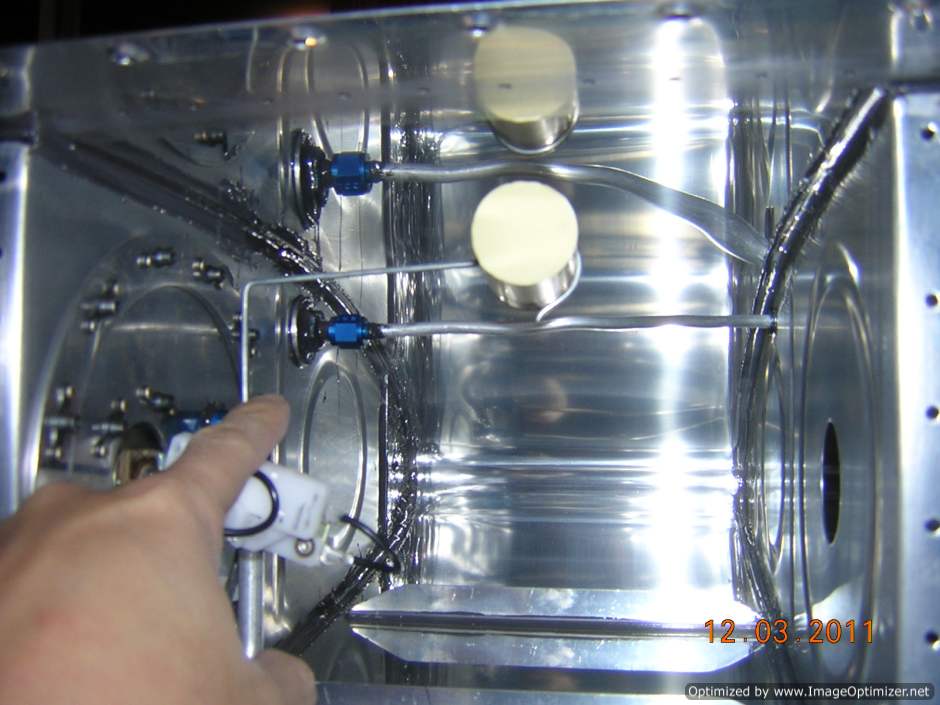

Fuel sender at low point, looks ok

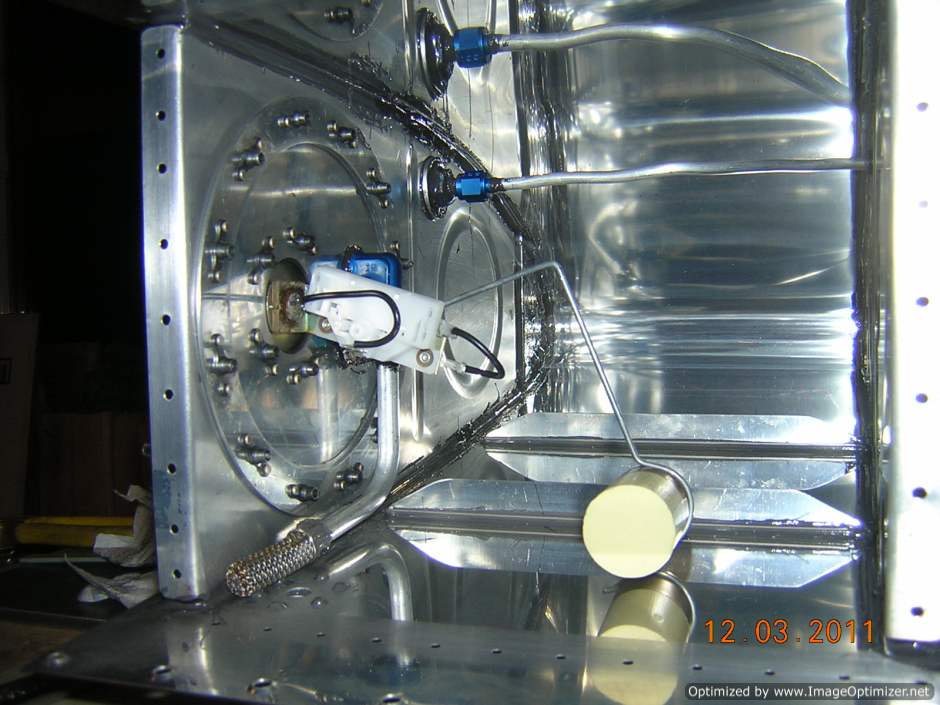

Fuel sender float at high point, look good
