01-05-2012: 3 hrs
Rewired right wing. Moved wires from snap bushing to conduit. I also used iron to open a hole near where the autopilot will be installed, and wired the 7 wires for autopilot servo out of the hole. Wires to the wing tip include 2 gage 14 wires for landing and taxing lights, shield 3 18gage conductor wire for AeroLED Pulsar NS90 strobe/nav lights, and 2 18gage spare wires. The 2 spare wire can be used a thread to pull more wires in the future if needed.
I plan to use the snap bushing for the VOR antenna cable (RG400). I see other builders wired the RG400 cable through the conduit, but I will use the snap bushing for two reasons:
- the conduit looks pretty crowed already
- potential RF interference from the strobe runs (this is a problem for Comm antenna, may not be so for VOR antenna, but it will be safe to put some distance between them anyway)

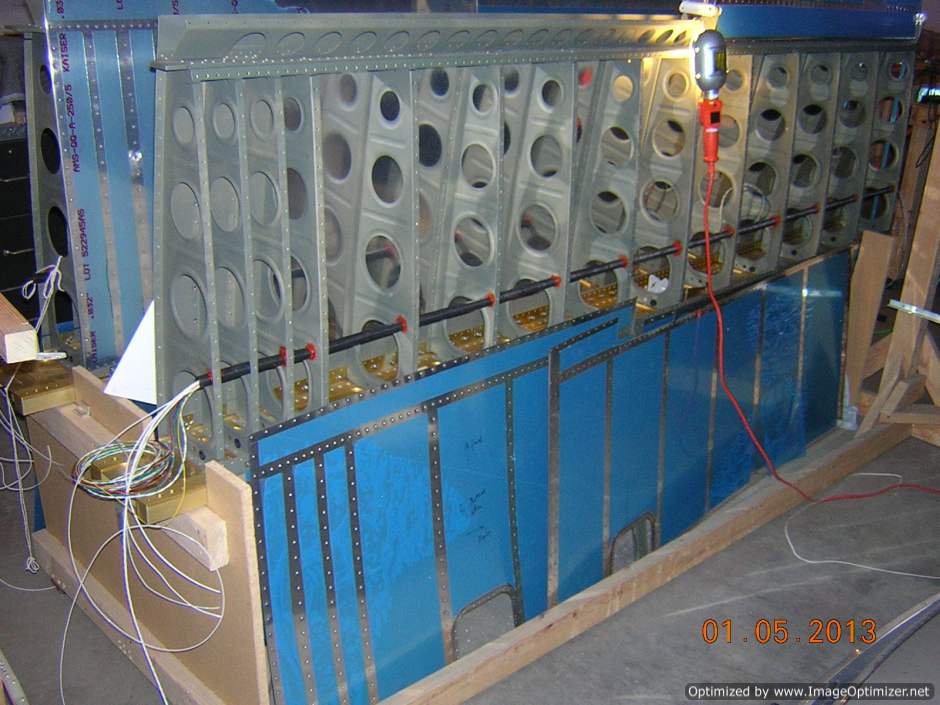

Wires are all in conduit now

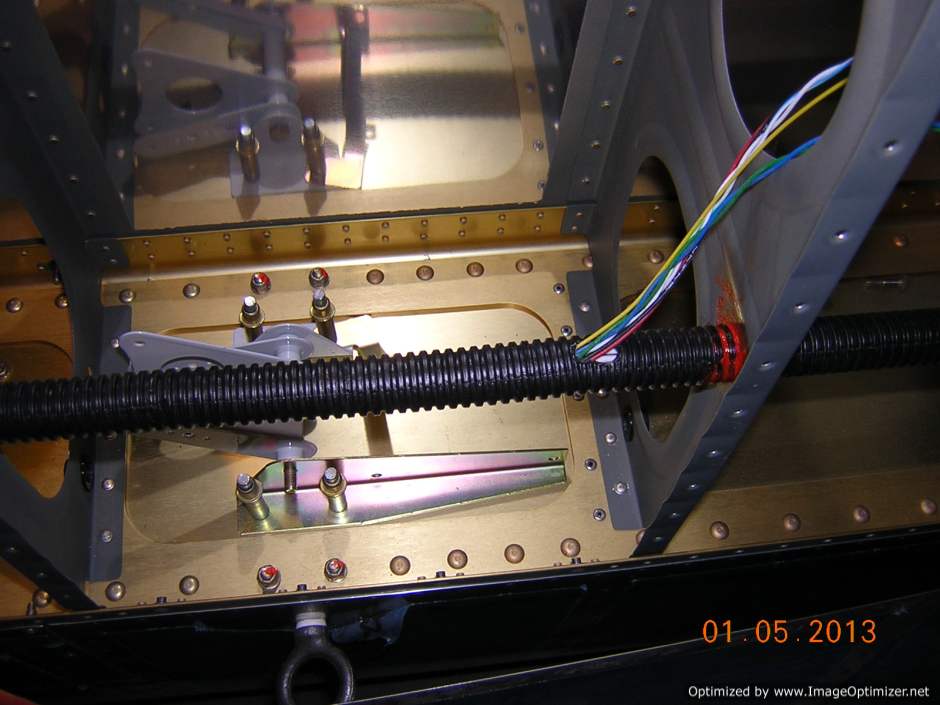

Openning near autopilot servo with 7 servo wires passing through

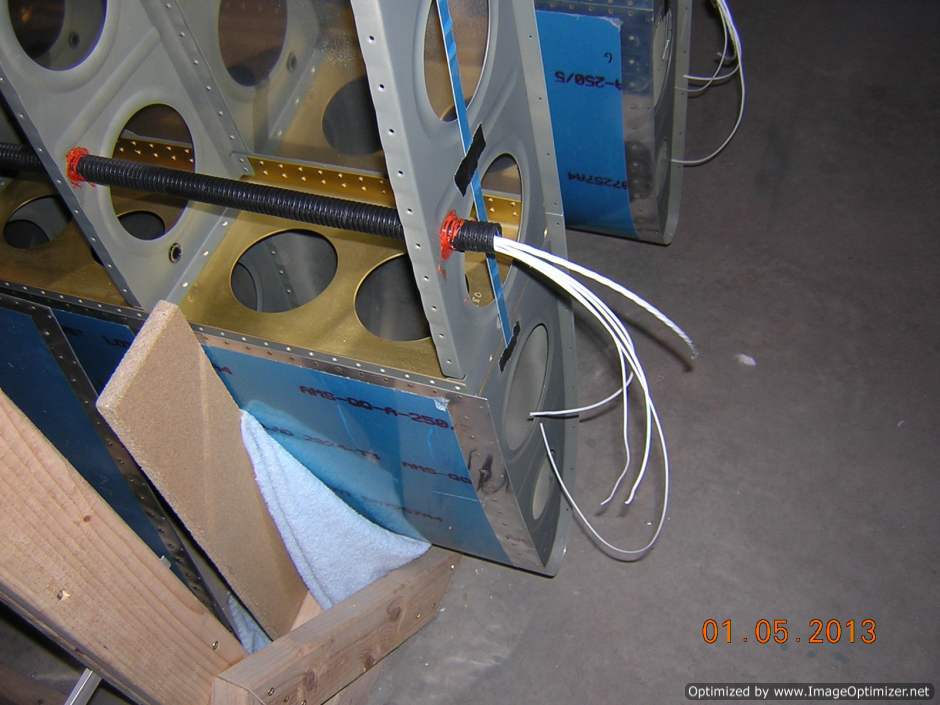

Wing tip end

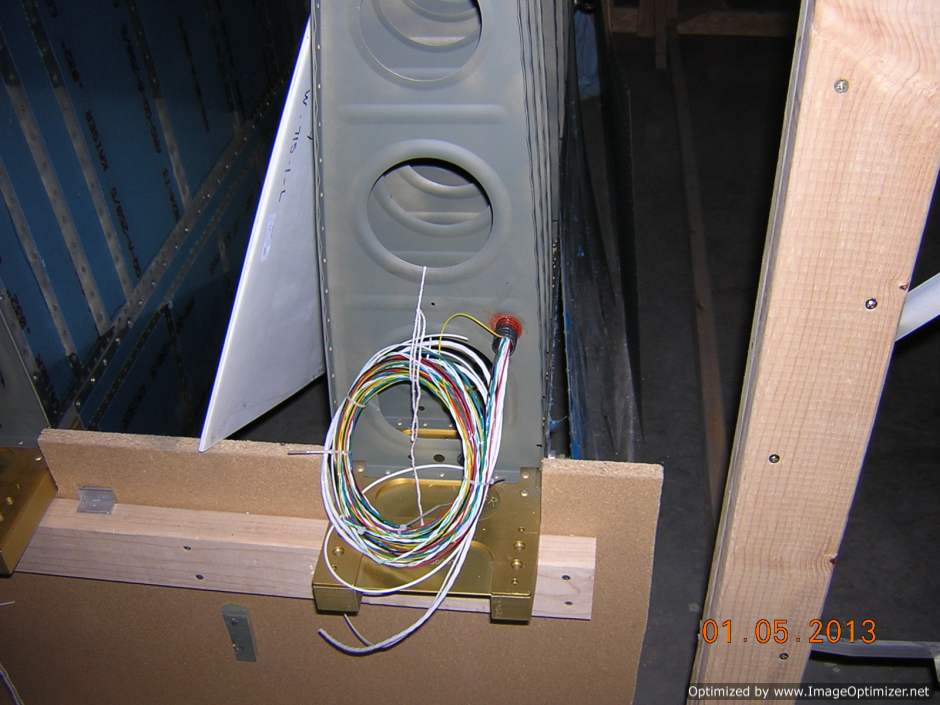

Wing root end
