01-08-2012:

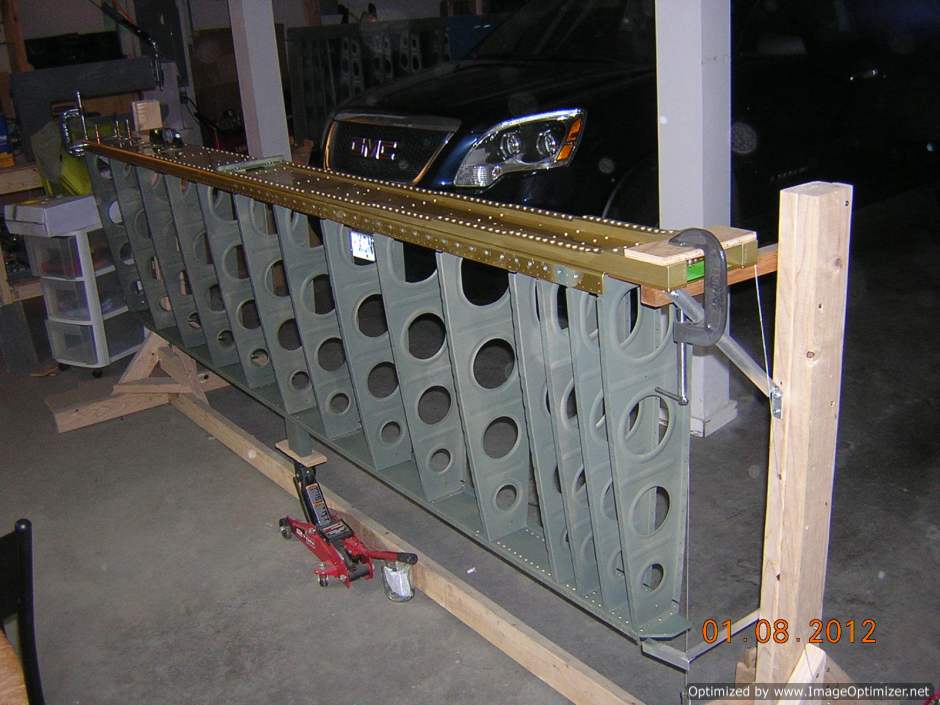

Right wing skeleton is clampled to wing stand

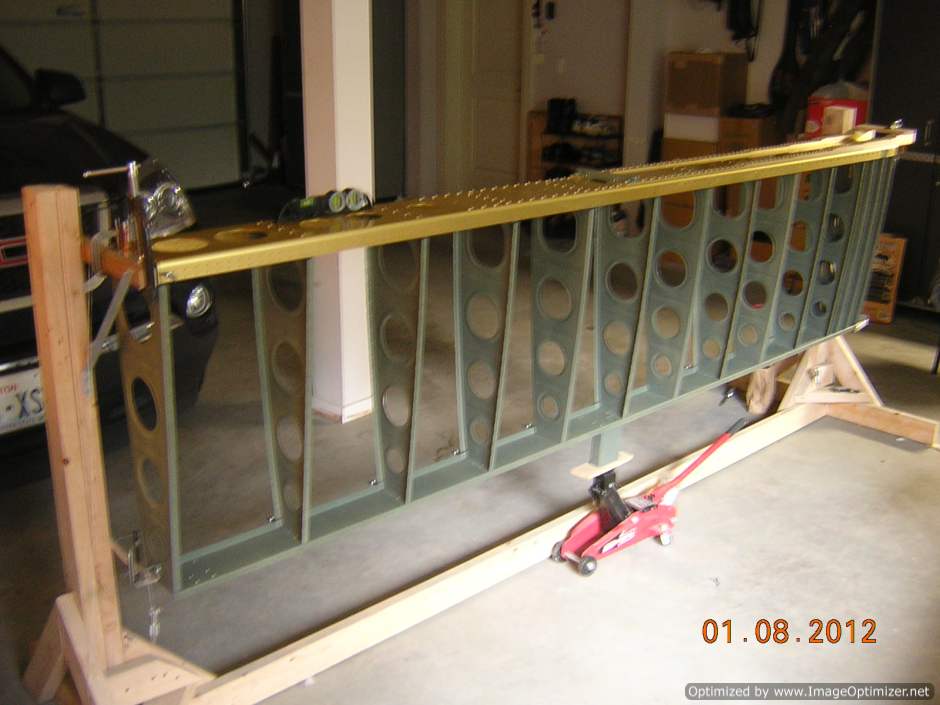

Left wing skeleton on wing stand

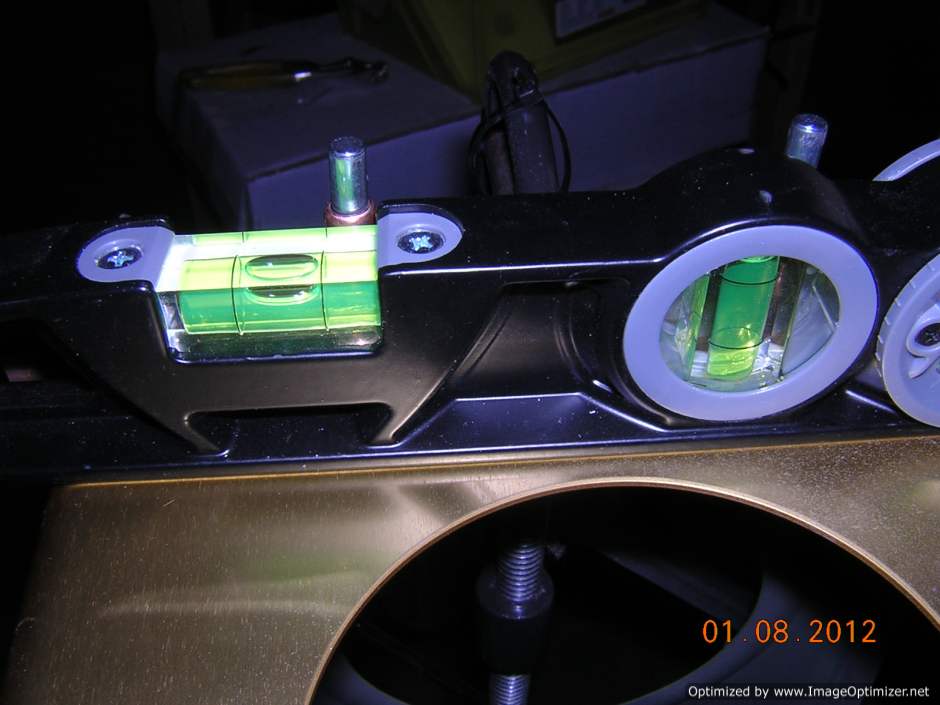

Wing tip of spar is checked for levelness

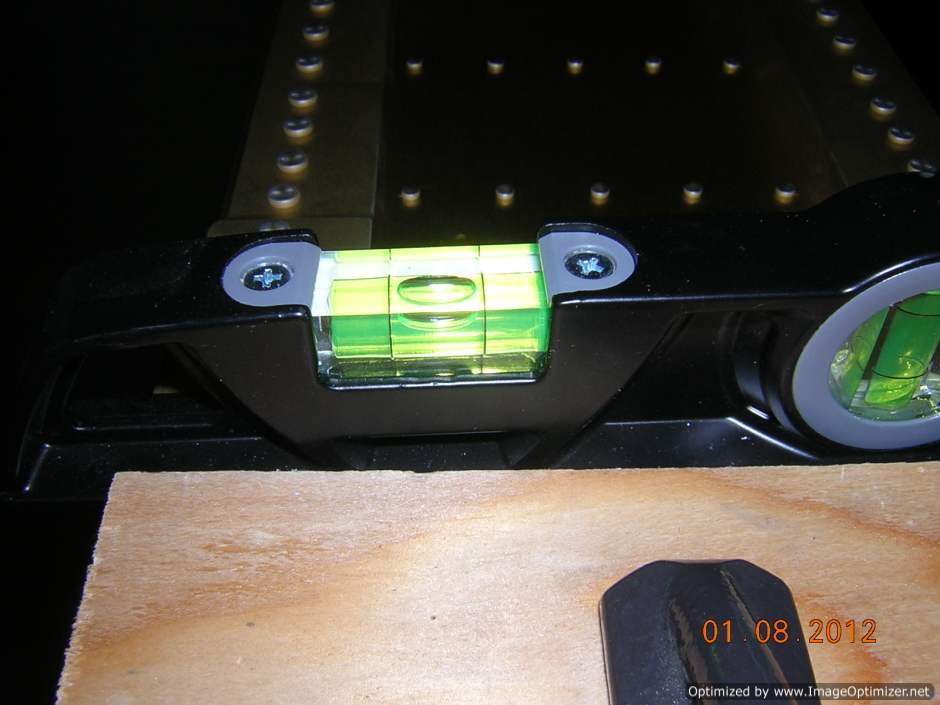

Wing root of spar is checked for levelness

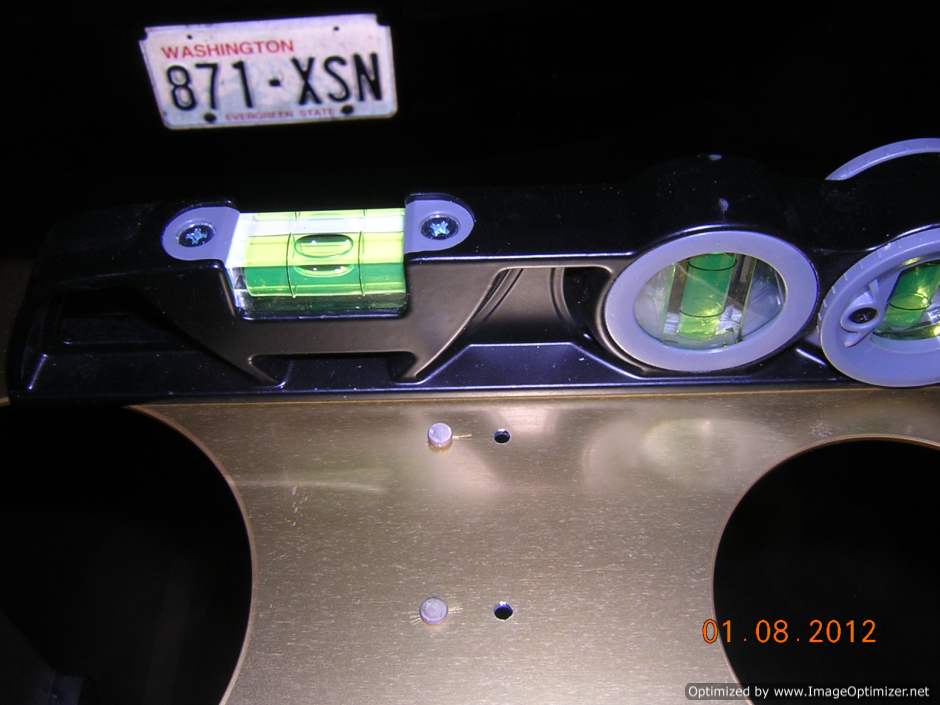

Levelness is checked in the mid span in spanwise direction

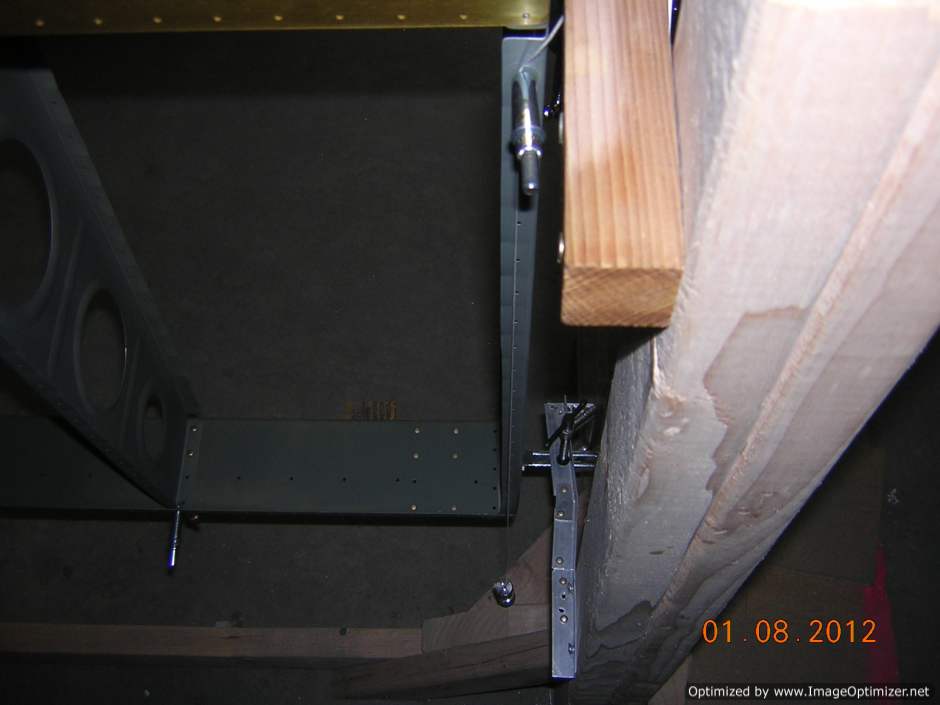

The outboard rib rivet hole line is checked for vertical alignment

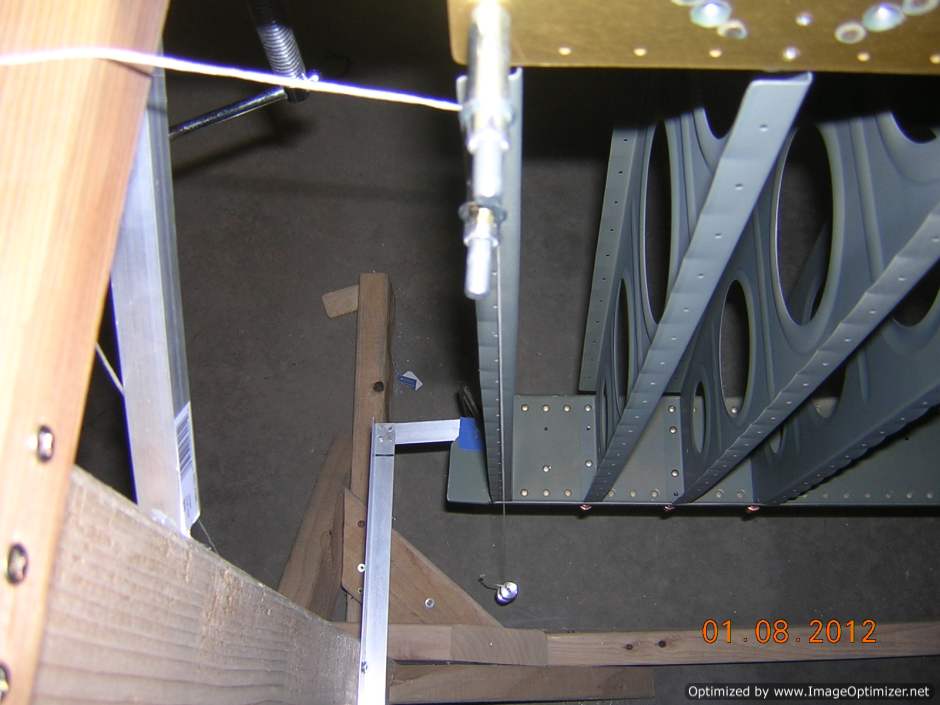

Inboard rib is checked for vertical alignment
Some rivet holes are left open for brace installation later

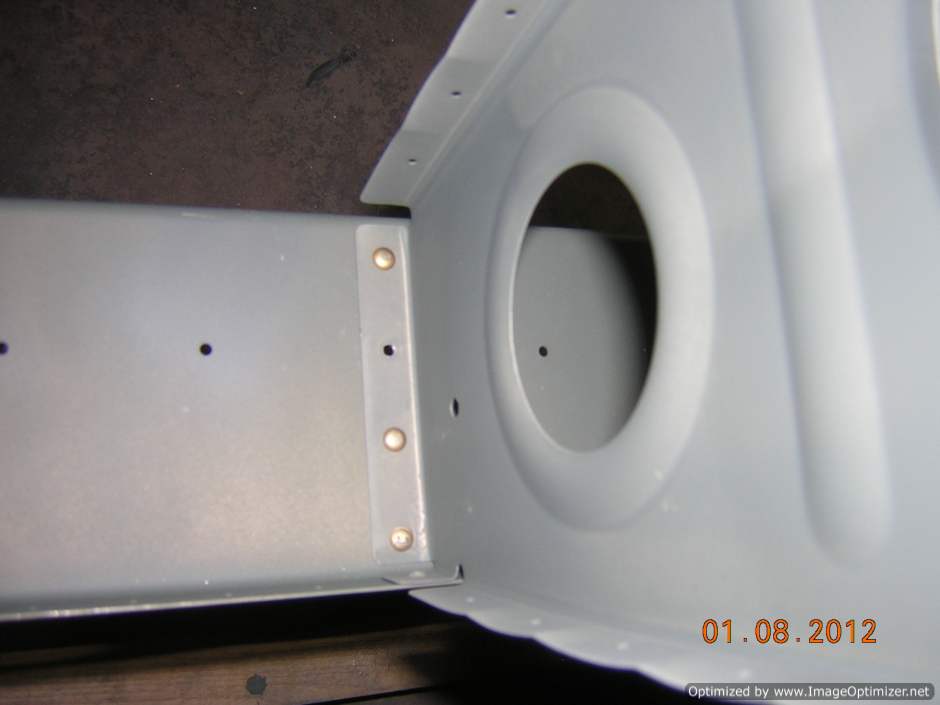

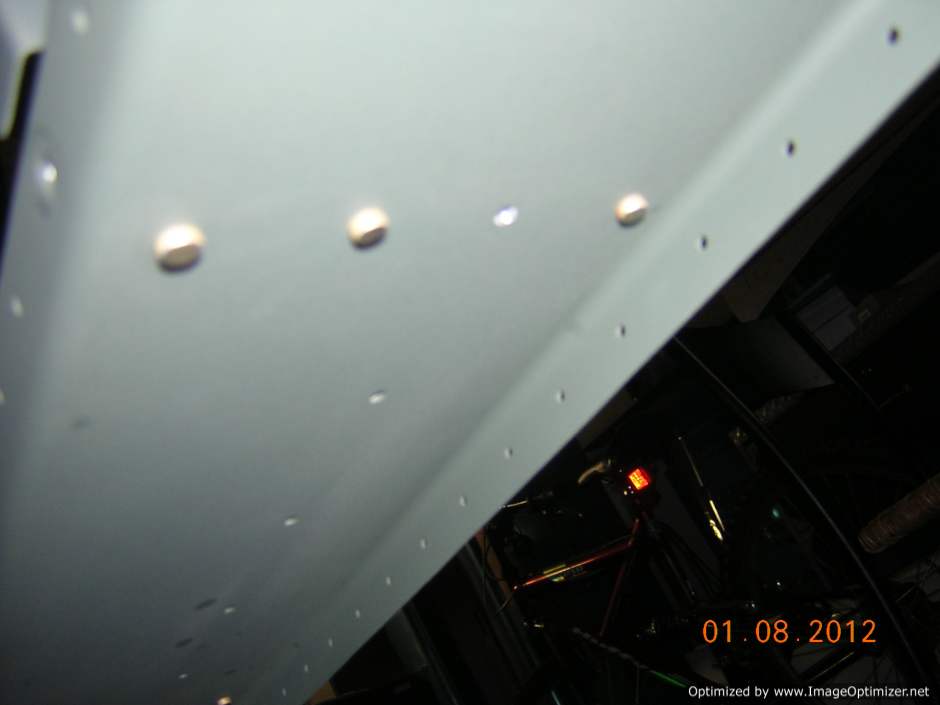

Shop heads of rear spar to rib rivets look good
