02-09-2013: 4 hrs
A productive day today. I mated the fuselage and wings by myself. I sprayed WD40 on the main spar and center section which make the mating quite eventless. The wing spar slid right into position. After spraying some WD40 on the hardware store bolts, the bolts were inserted with some gental tap using a rubber mallet. All went well.To m surprise, almost everything fit perfectly without much adjustment. I am amazed how acurate the pre-punched kit is.

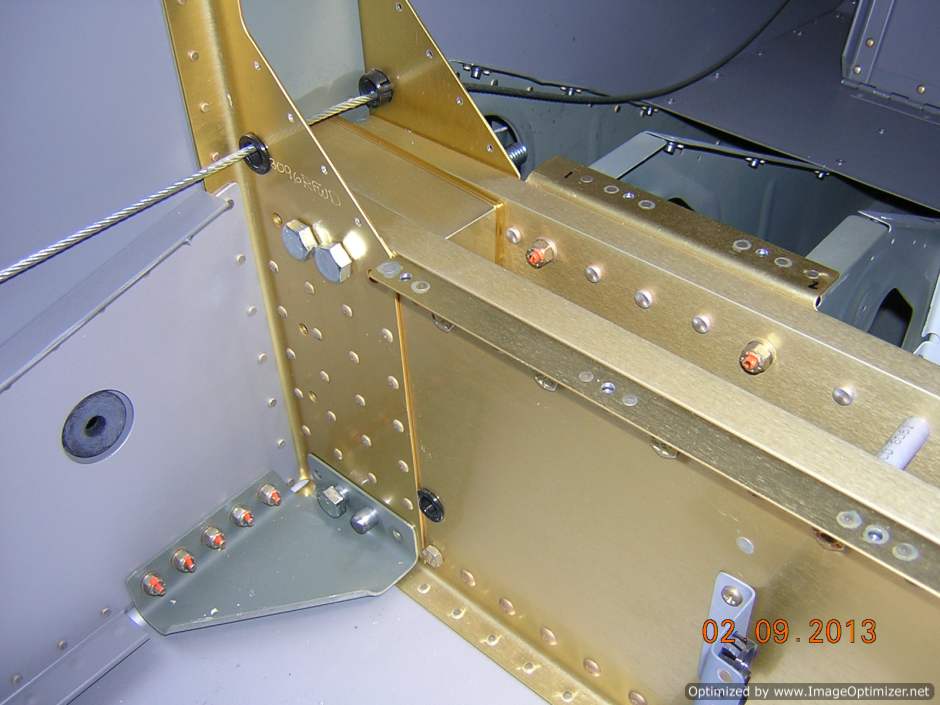

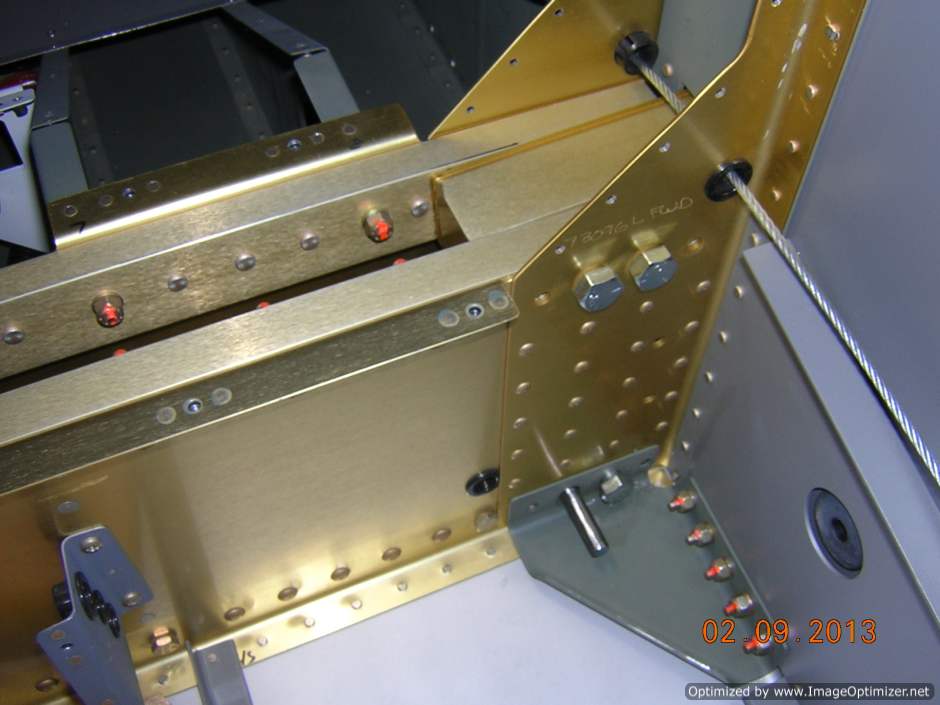

Four bolts are inserted to the right wing spar
Four bolts in left spar

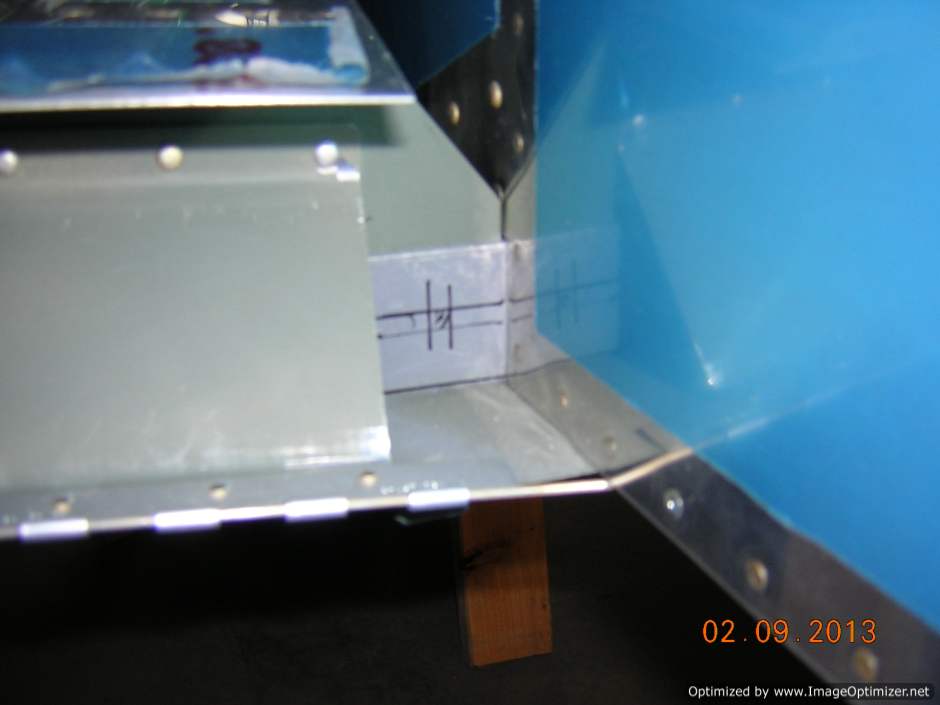

Right rear spar fits well

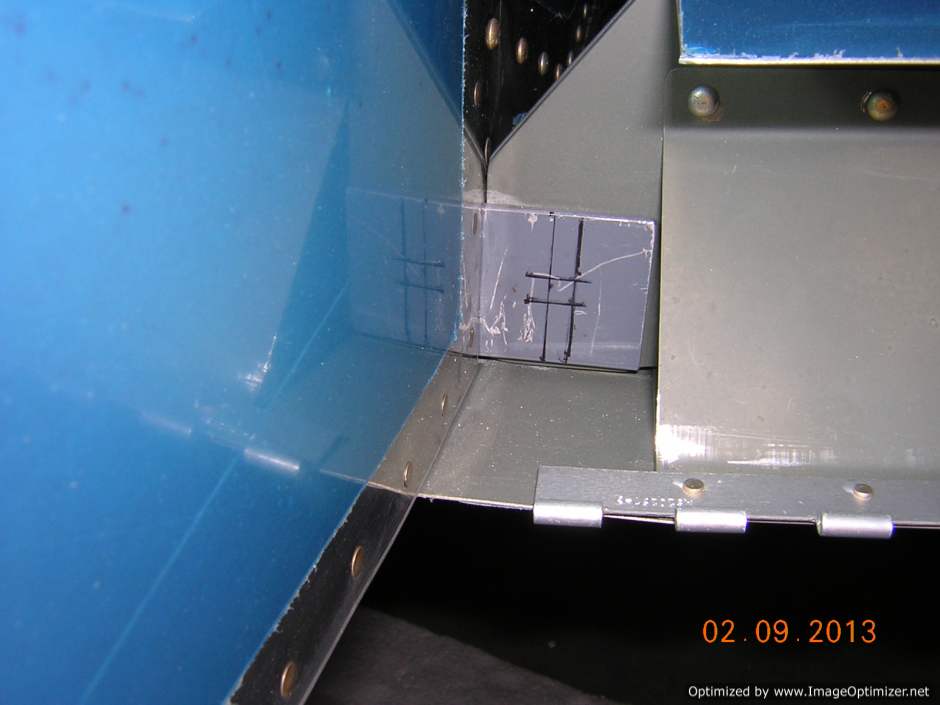

Left rear spar fitts perfectly

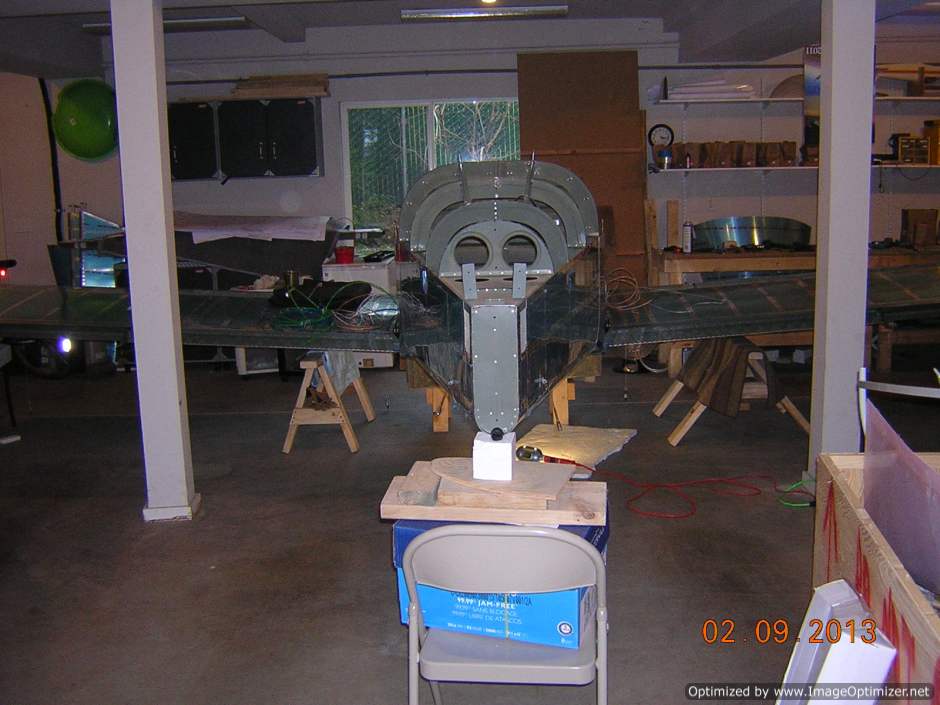

I will measure the distance between this location on the tail to wing tip

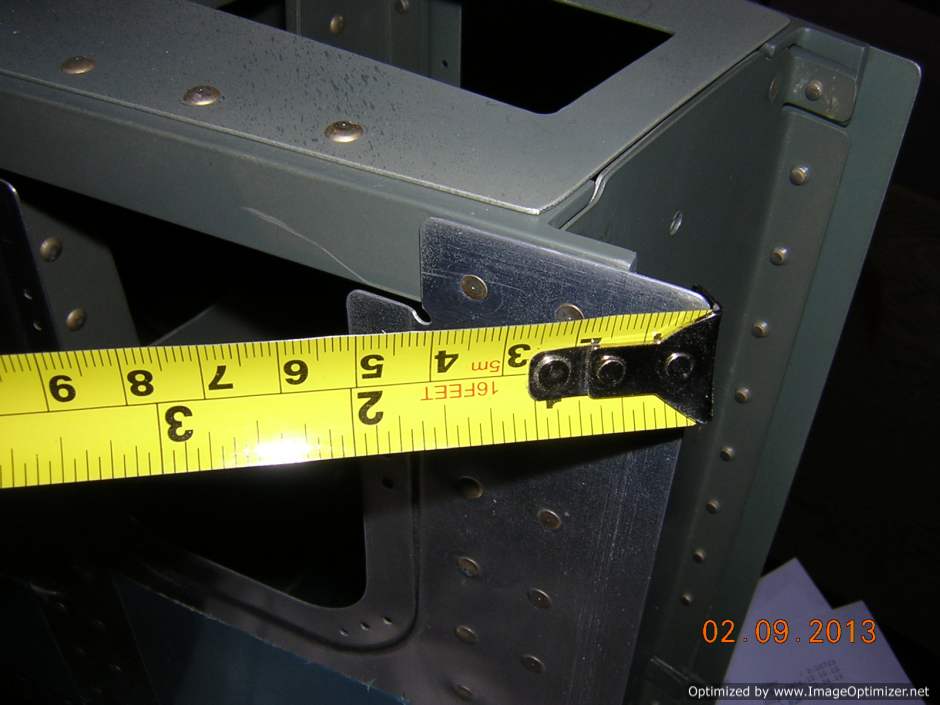

Distance measured as 172-3/4" to the aft tip of the wing
The left wing tip is measured as 172-3/4" as well, right on

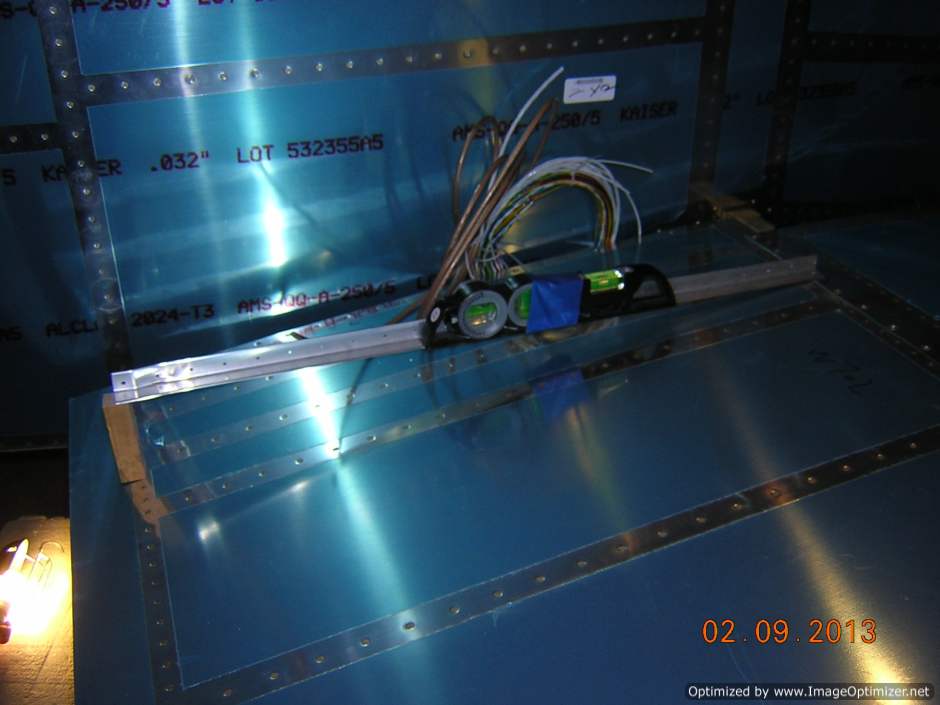

Fuselage is adjusted to be leve laterally, the level shown here is at left side

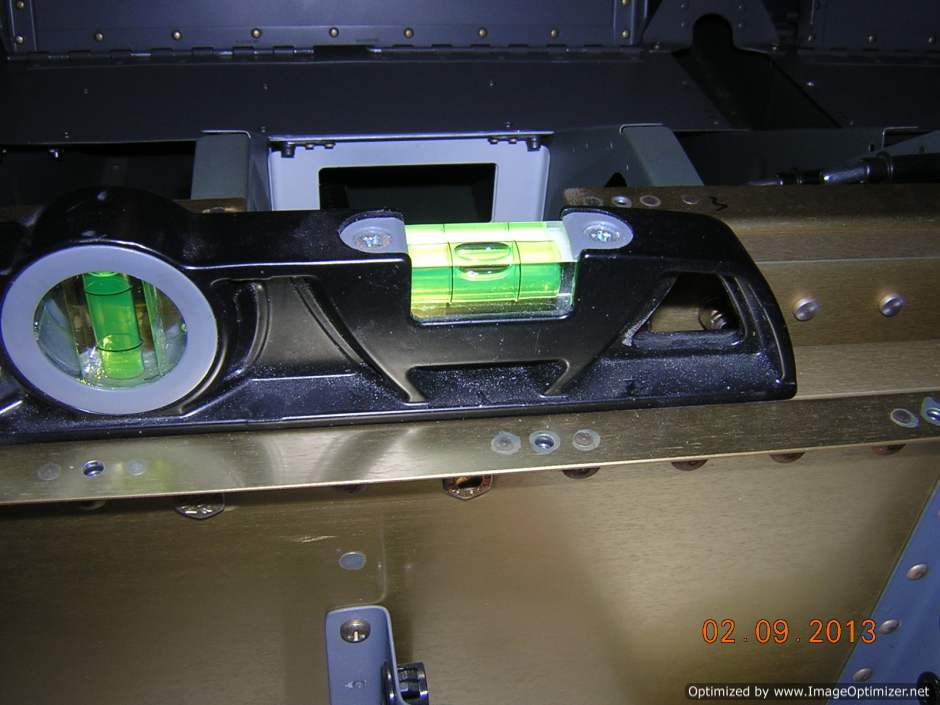

Level at right side, still showing fuselage is level laterally

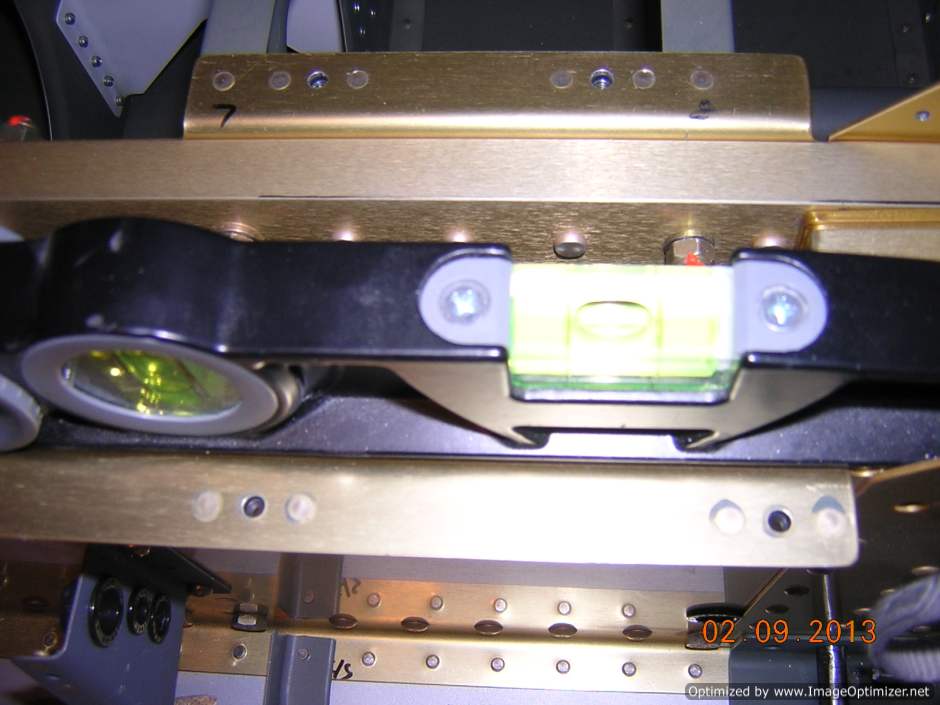

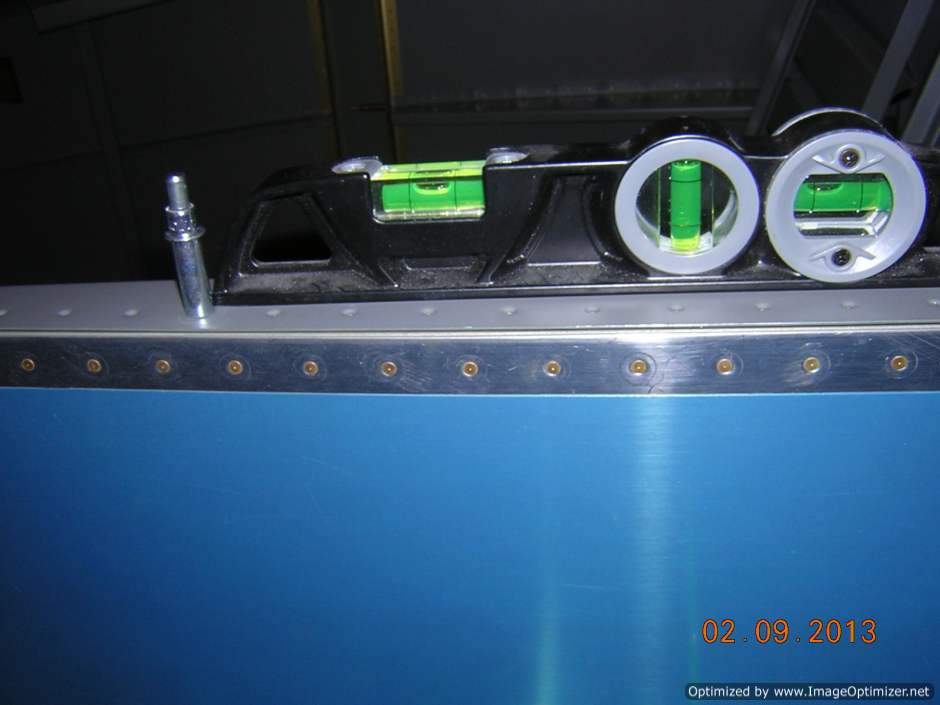

Fuselage is leveled in fore-aft direction

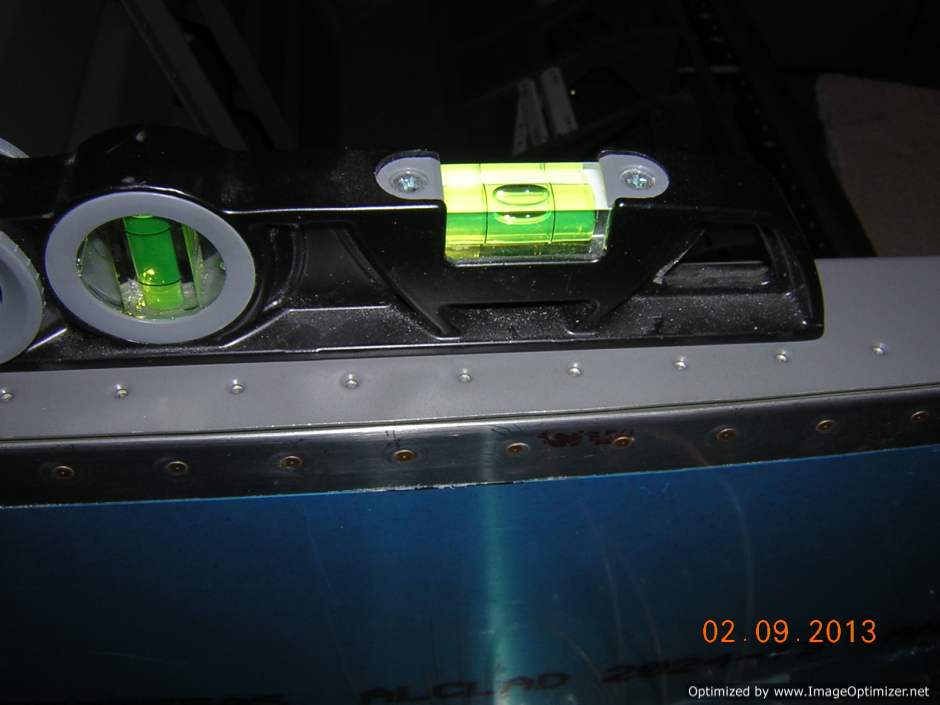

Close-up view of the buble

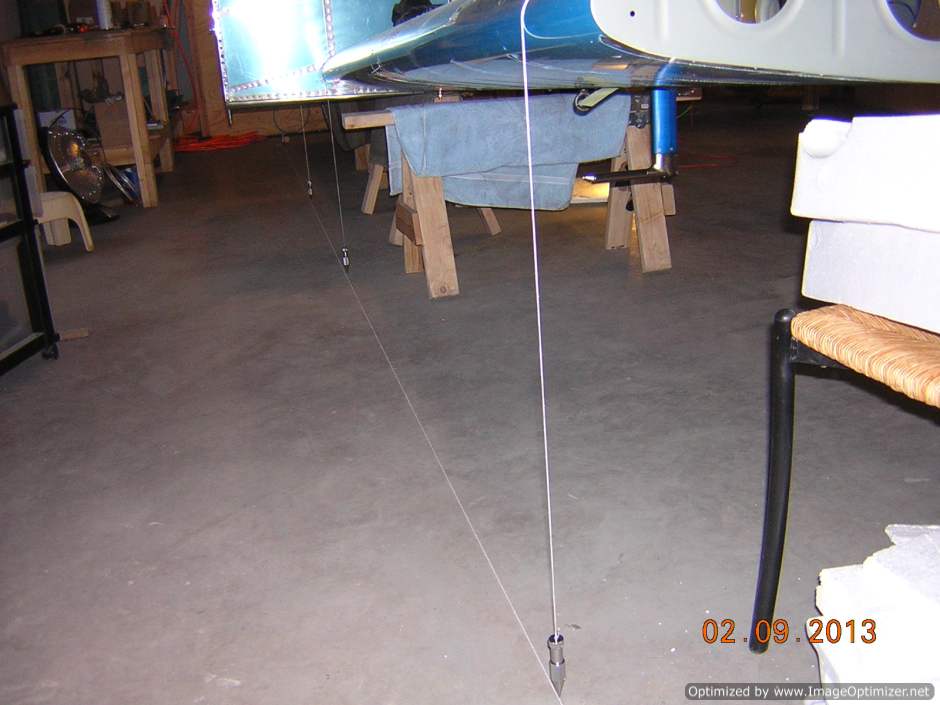

Four plumb bobs are hung from the leading edge, they line up pretty well

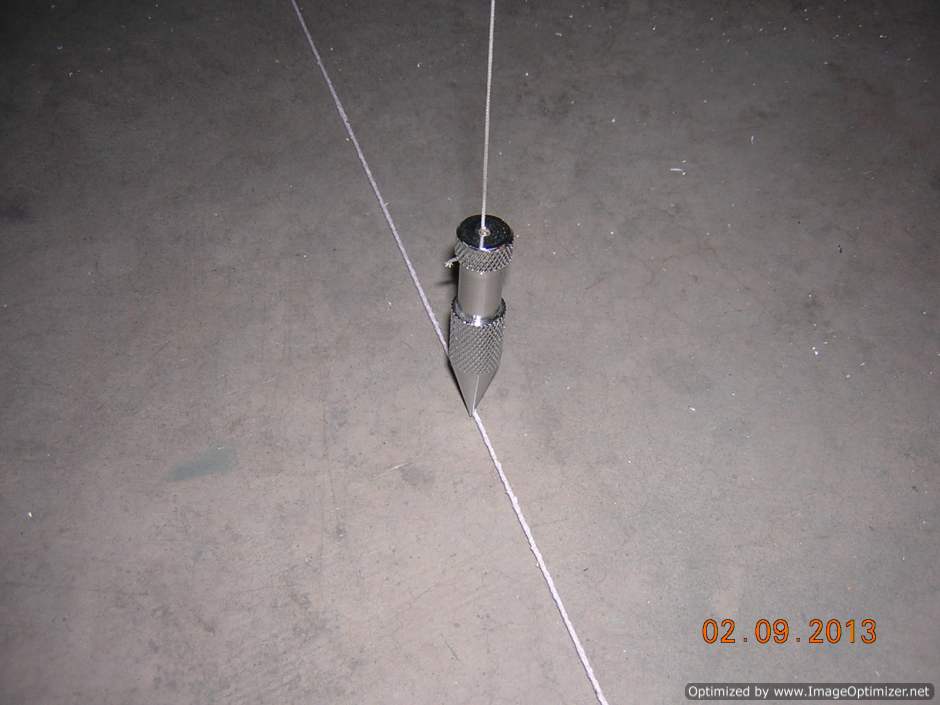

Left wing outboard plumb bob, right above the straight line stretched between wing tips
Inboard of left wing
Inboard of right wing
Outboard of right wing
Incident angle is set

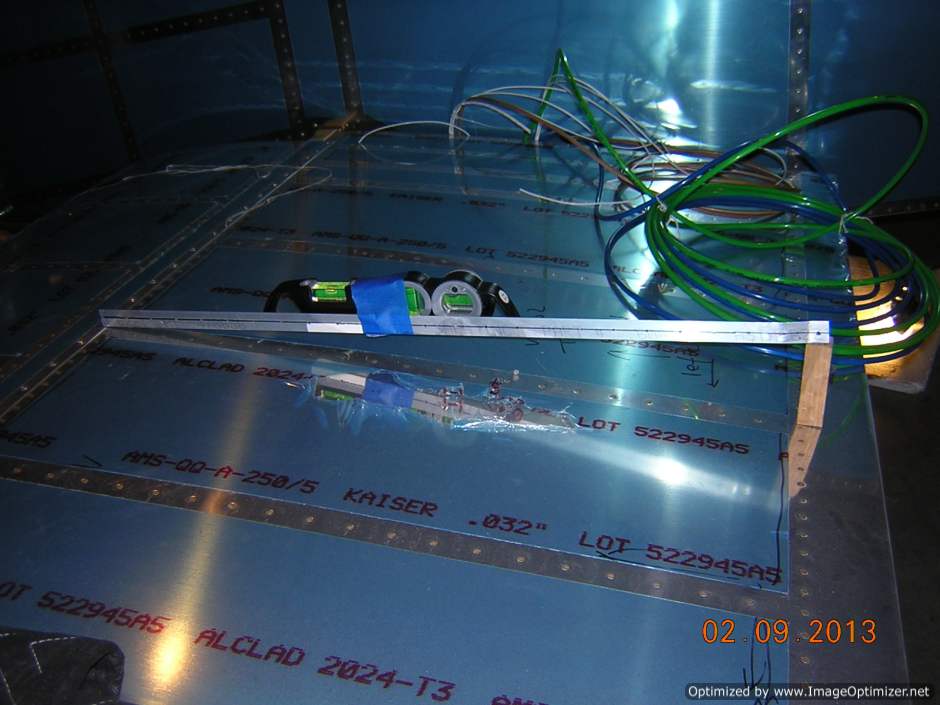

Bulble is right at the center with 3" spacer at rear spar

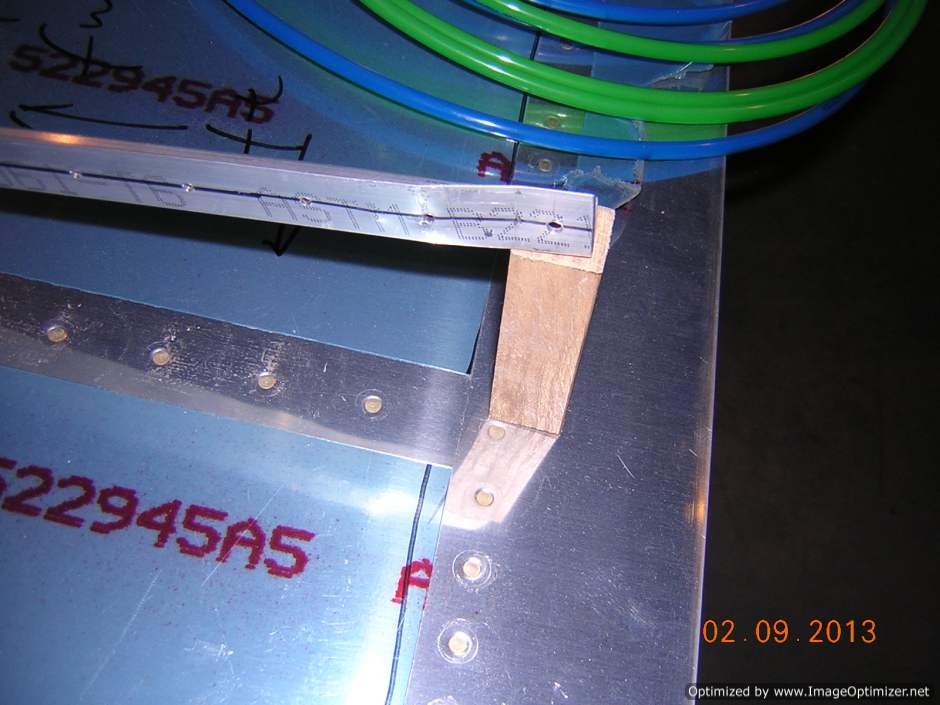

The 3" spacer is at rear spar

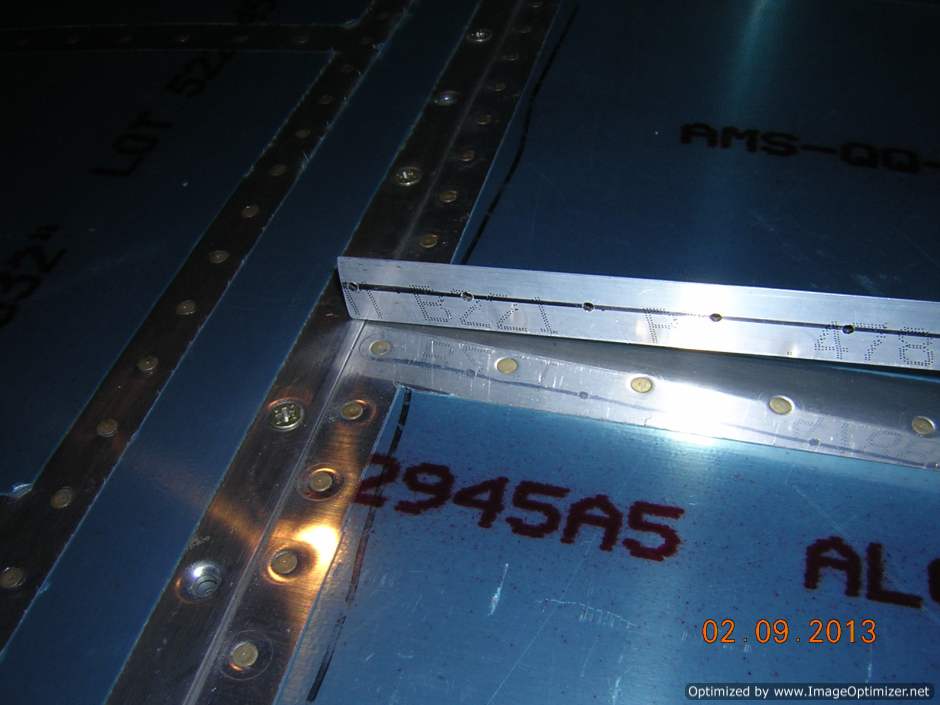

Fwd end of the level angle is aft fwd of butt joint of leading edge and top skins
Incident angle of right wing is set in similar manner, multiple locations are checked

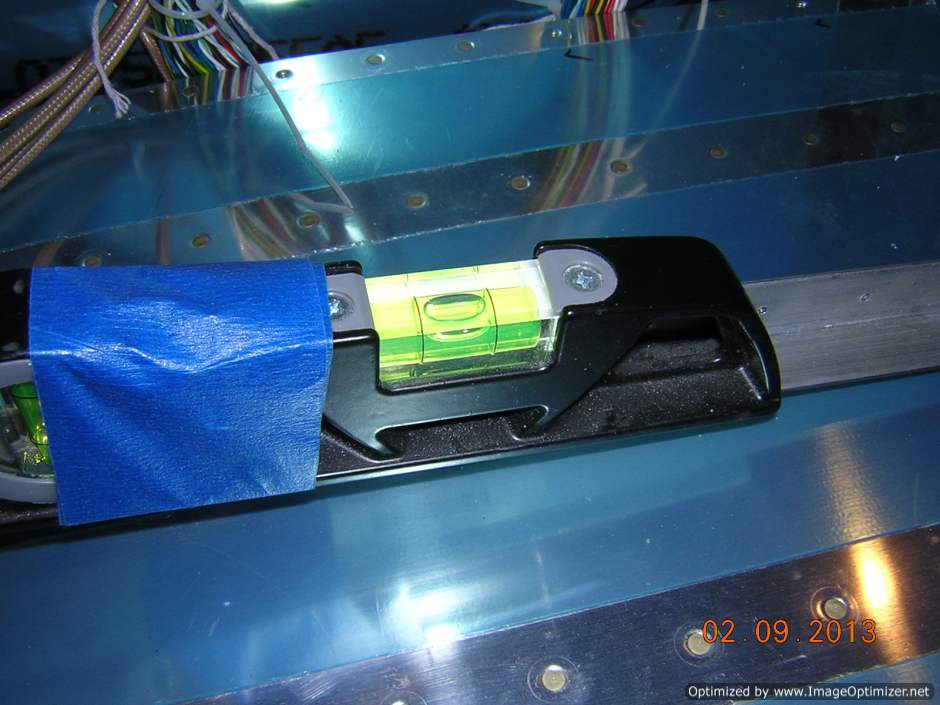

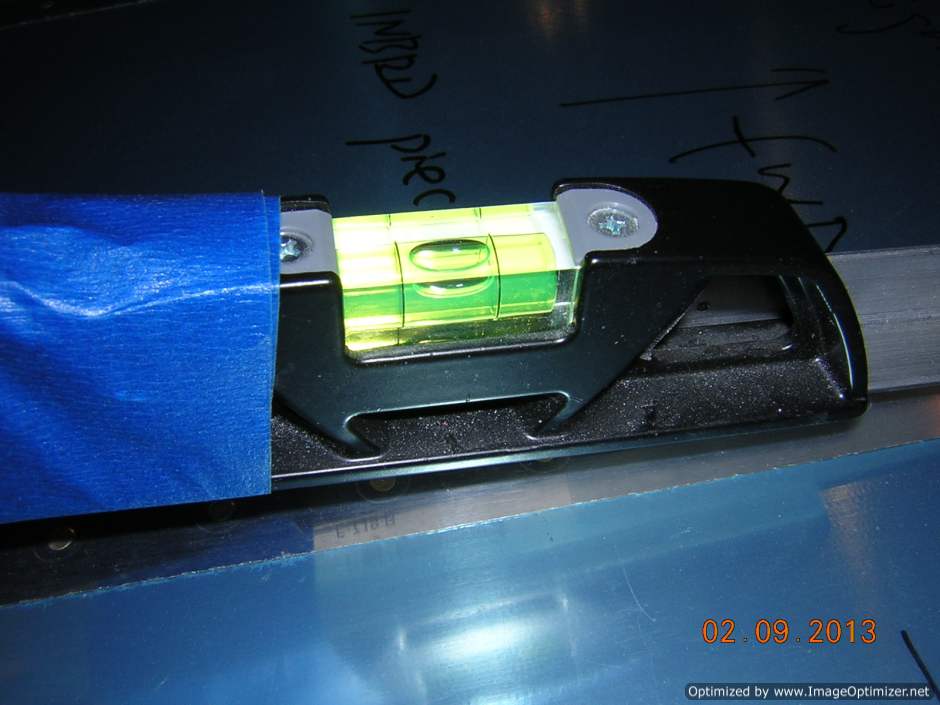

Bulble is right the center at inboard location

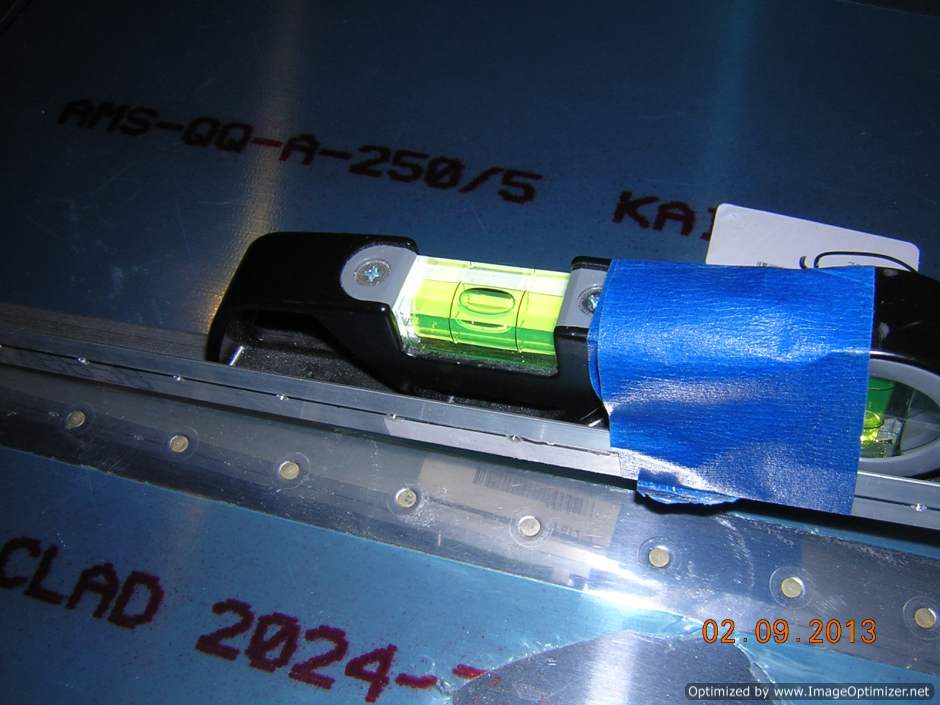

Measured at outboard location

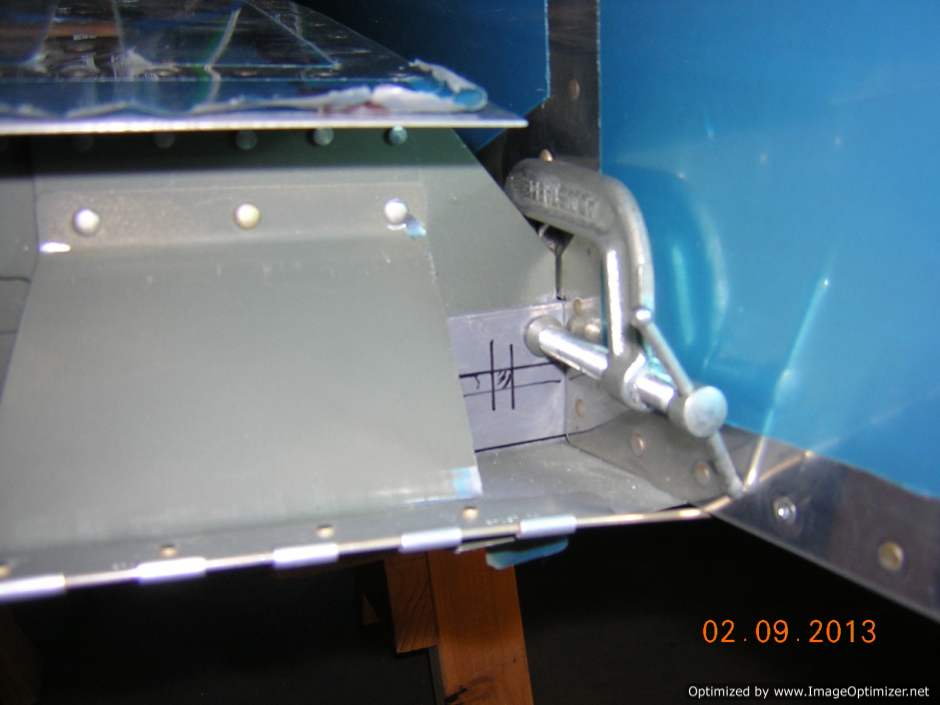

Left rear spar and wing root clamped

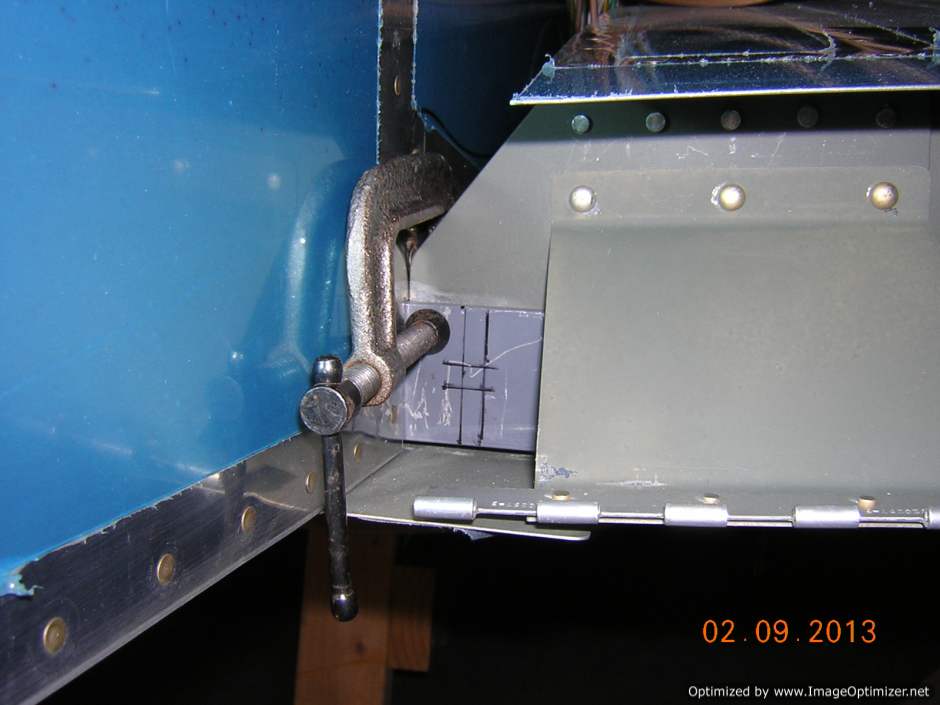

Right rear spar and wing root clamped
