04-13-2013: 6 hrs

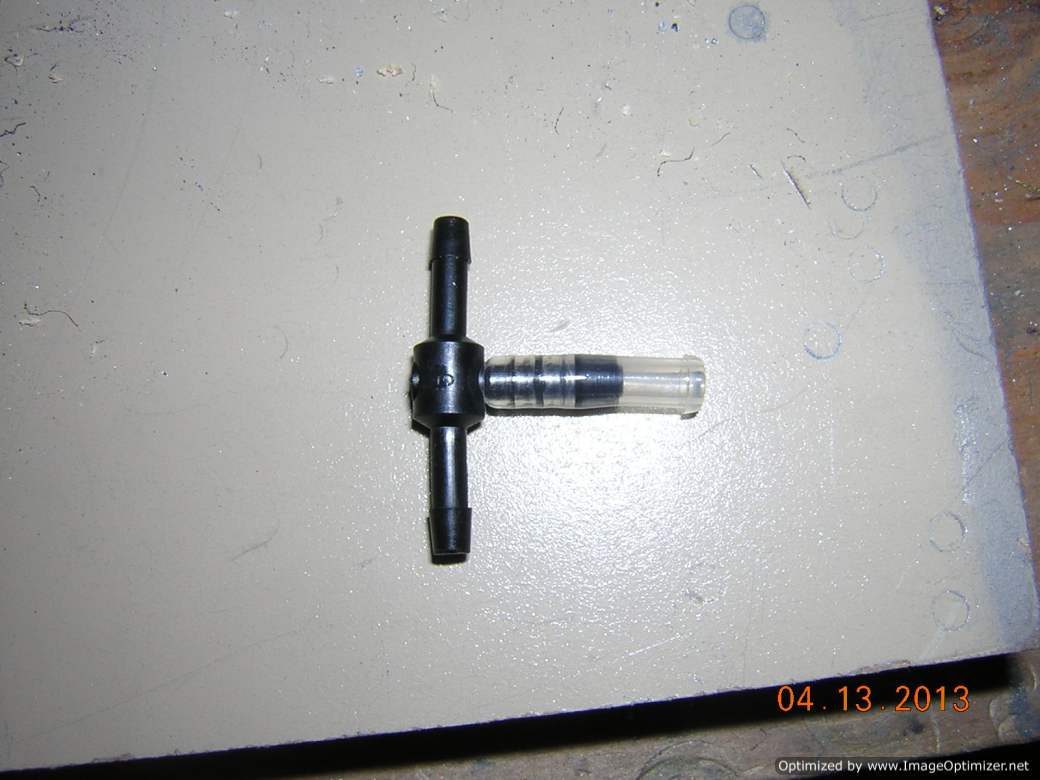

T connector for Vans static line

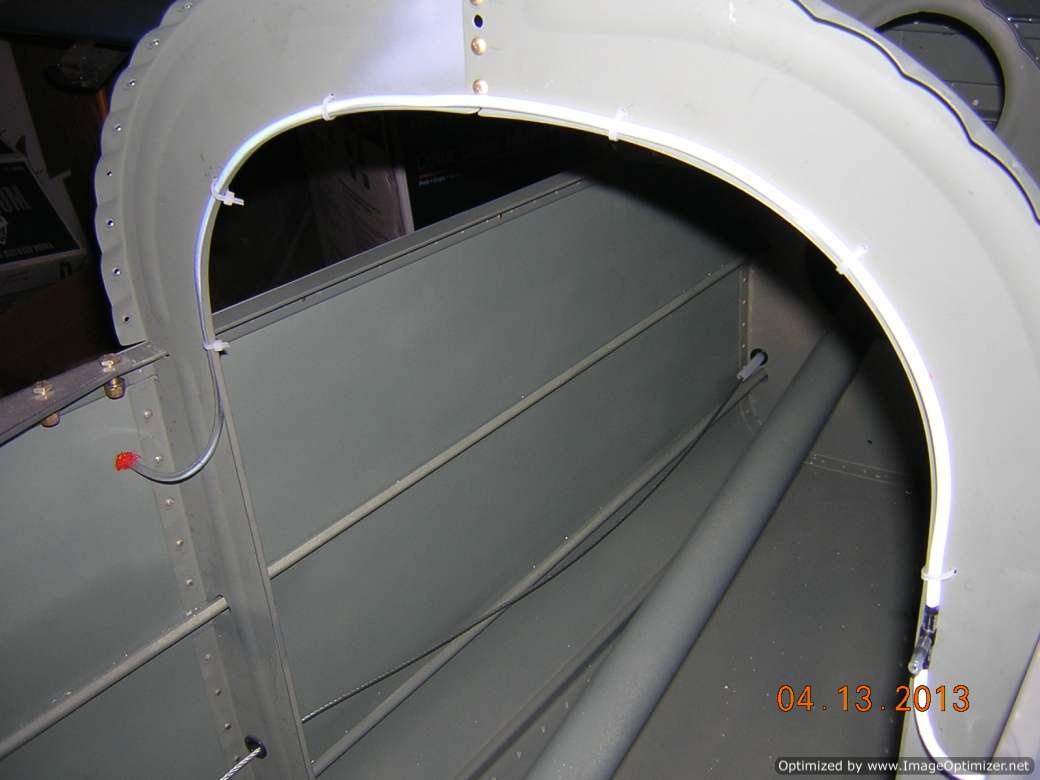

Static line are connected to static port on both sides, the joint is sealed with RTV

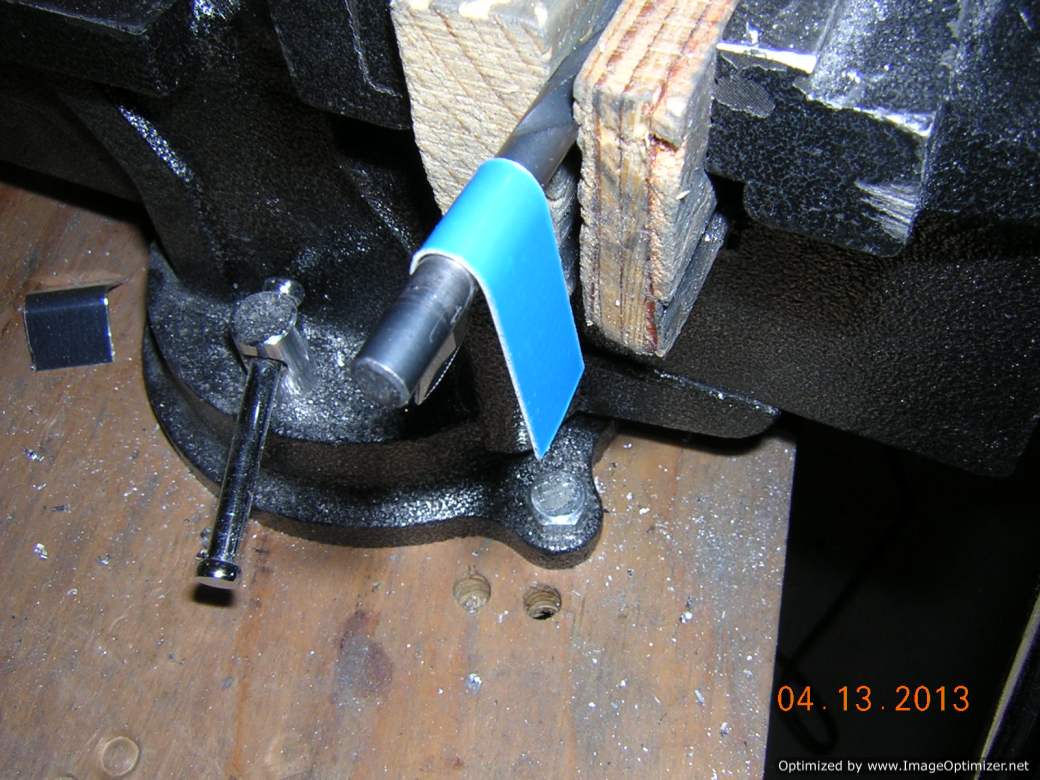

Making clamps for static line to fwd fuselage. I first bent the sheet metal around a 15/64" drill bit

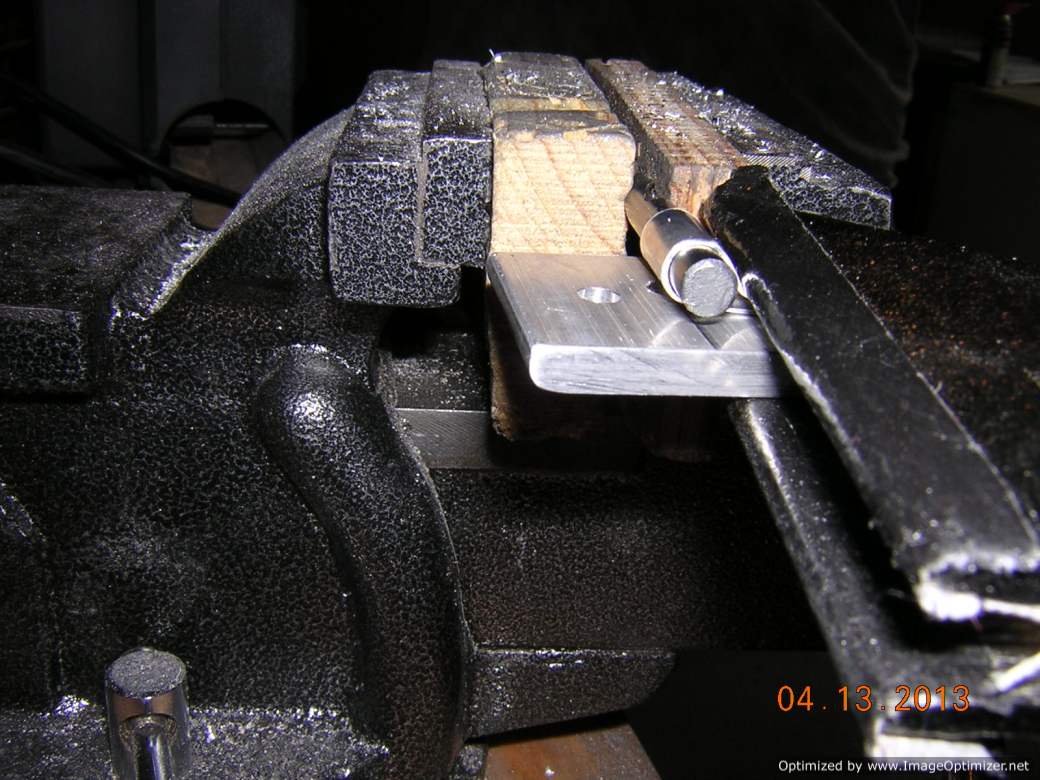

Then used the break and a piece of thick aluminum plate to make the shape like this

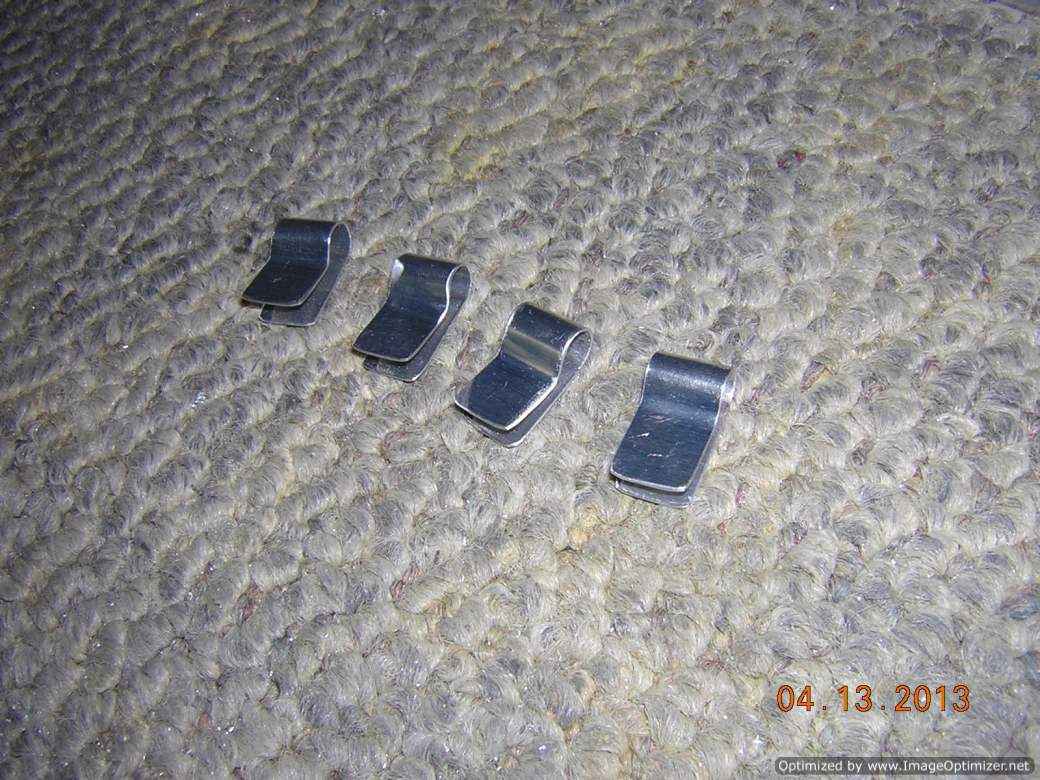

Here are the end products. I only made a few of them since I will be using Dynon SkyView system, the ADAHRS will be mounted behind the cargo bulkhead, I don't need to run the line all the way to instrucument panel

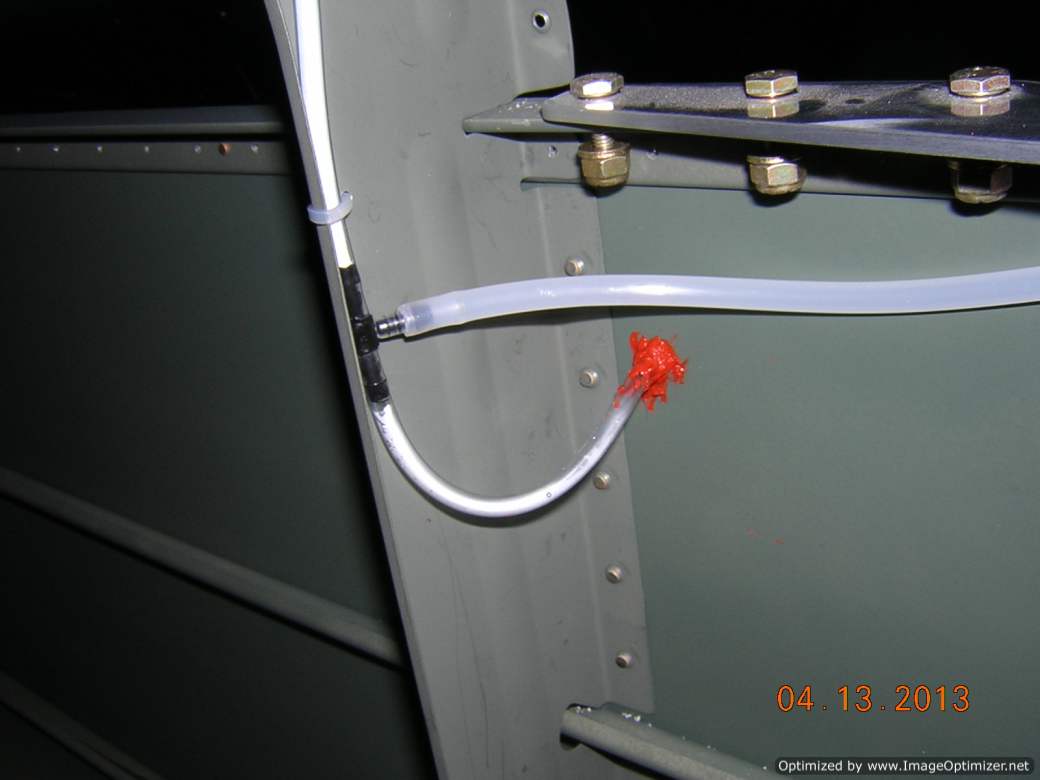

Close up view of the static port joint on the left side

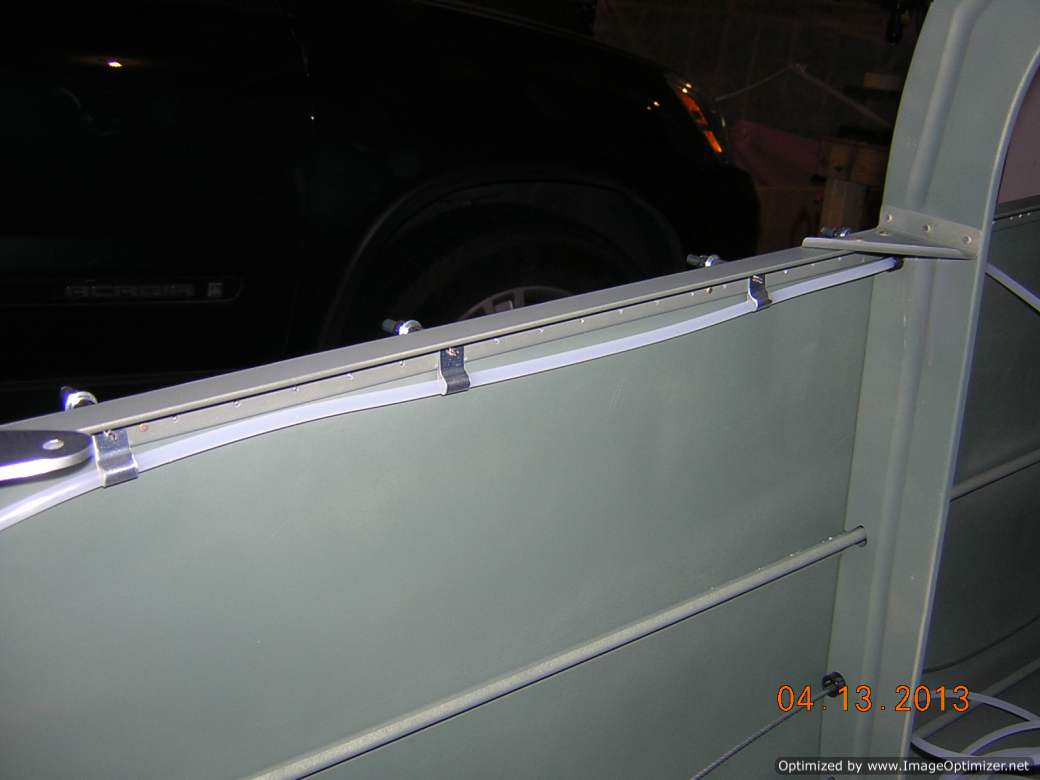

Here is how the static line is supported along longeron

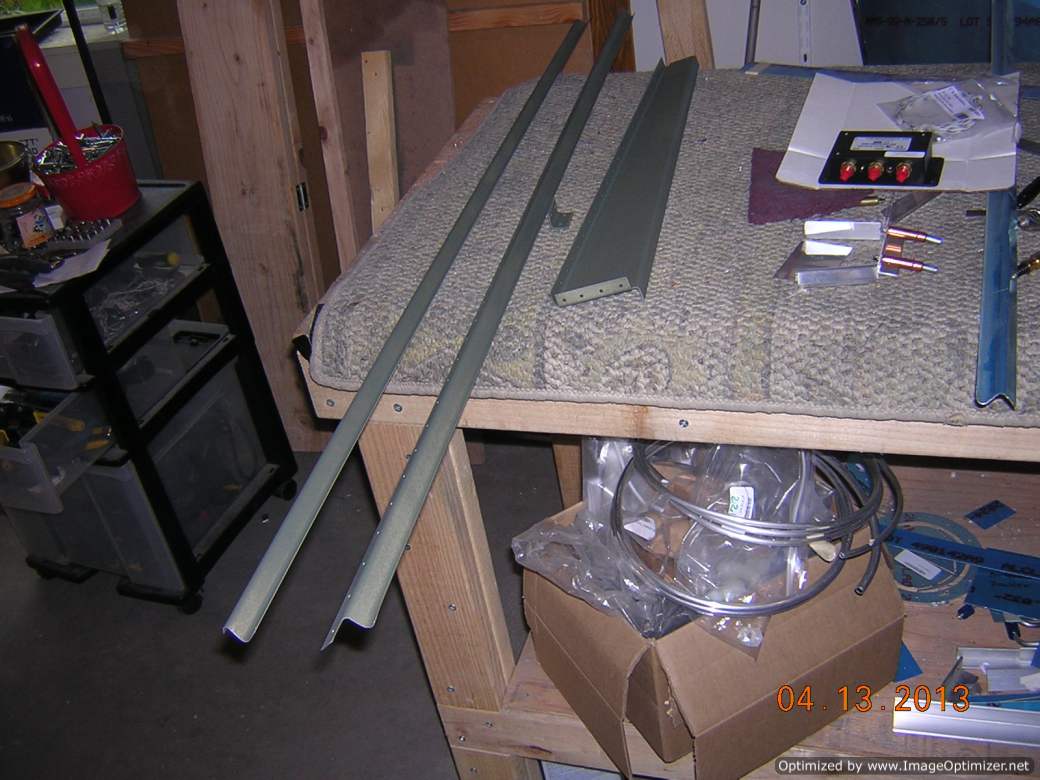

Top fuselage reinfrocement web and stringers are deburred and primed
Check the angle to make sure the ADAHRS mouting brackets will be parallel to the longeron

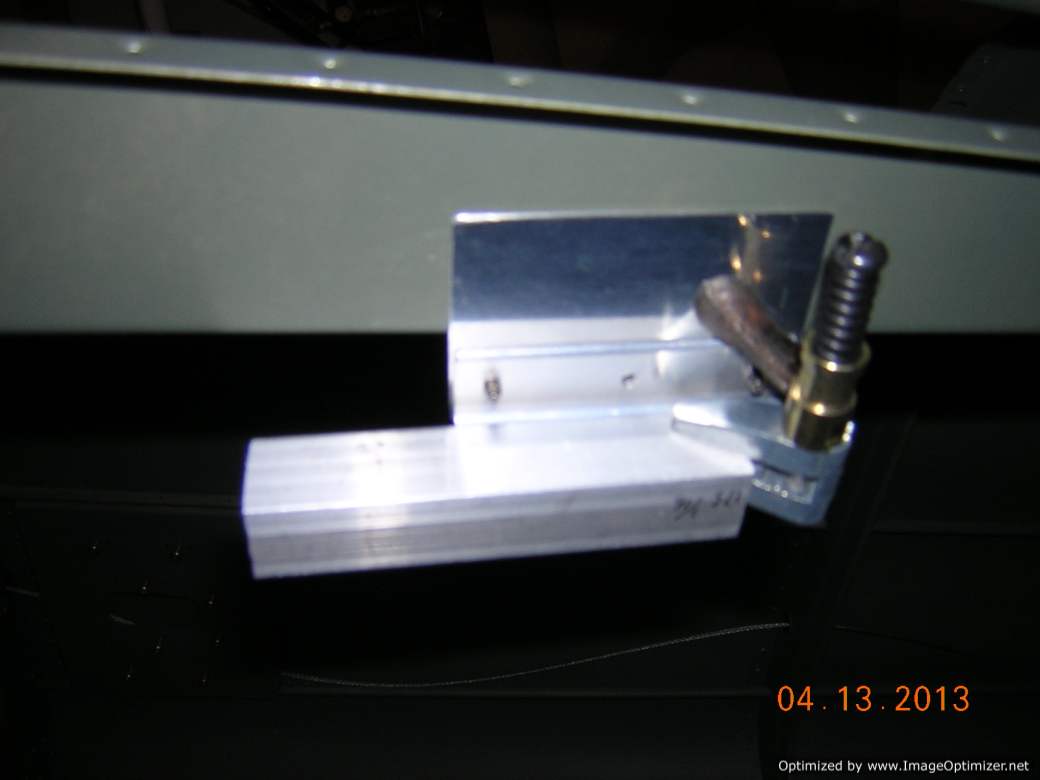

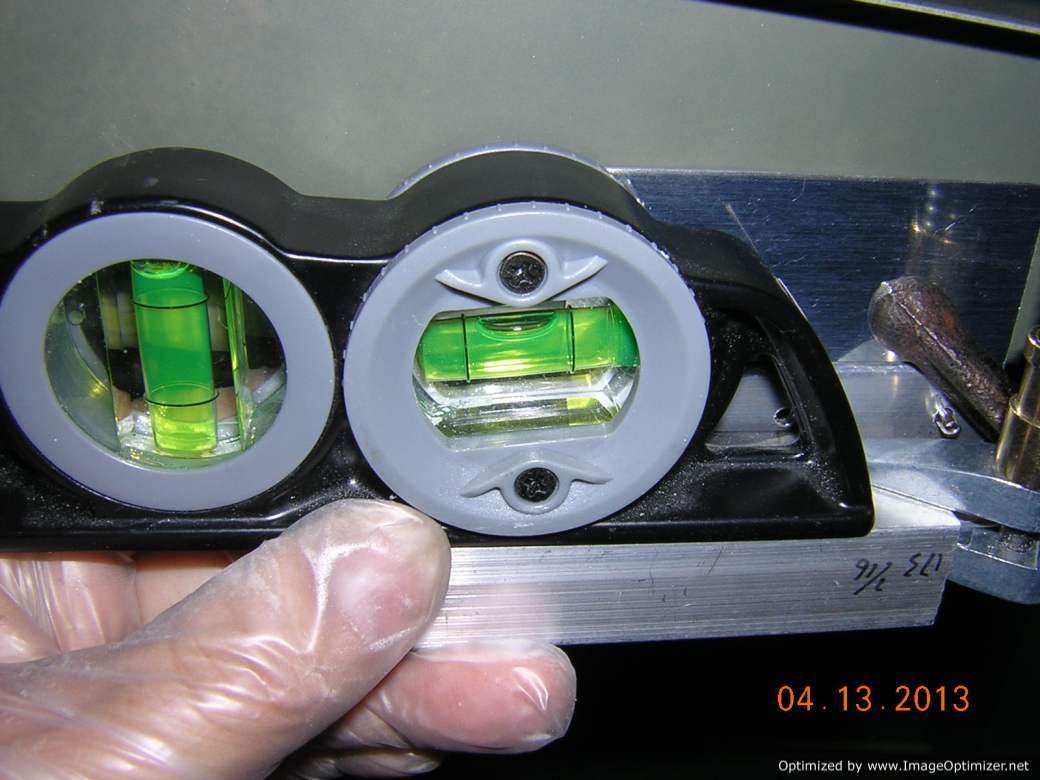

I clamped a straight angle to the mounting bracket so I can put the level on for measurement

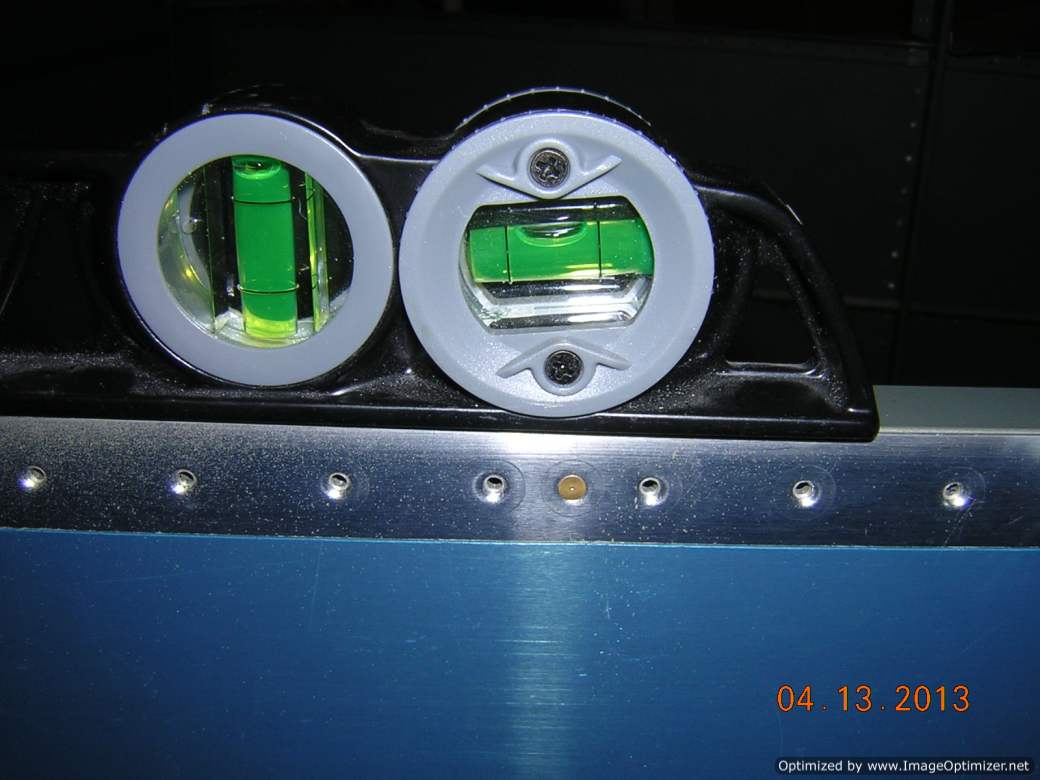

The mouting bracket is parallel to the longeron

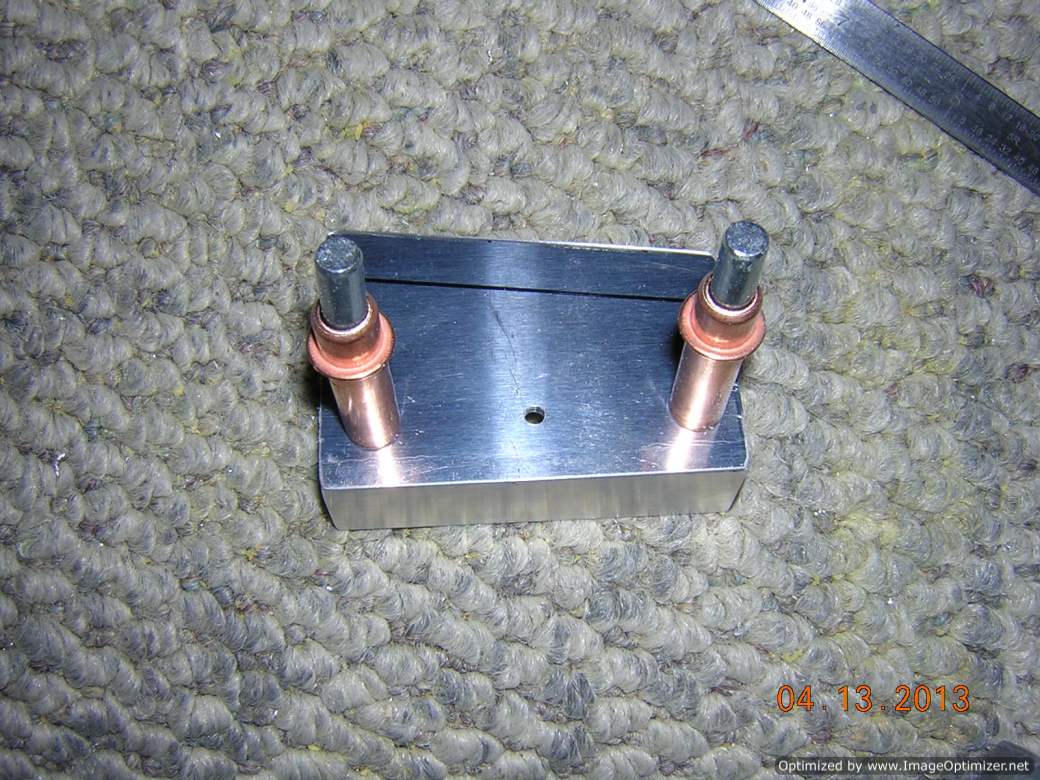

I used a 0.025" thick sheet and 0.063" thick angle, to mount the provision for ADAHRS. The black line show the angle offset to make the angle parallel to longeron

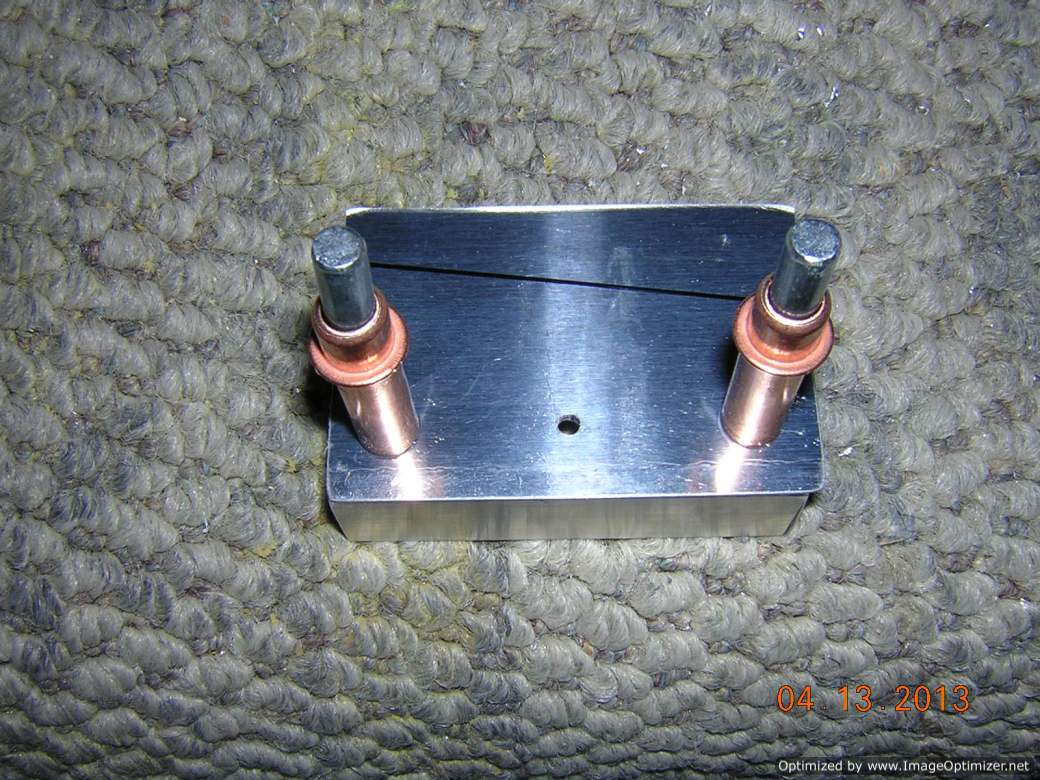

The sheet metal is trimmed

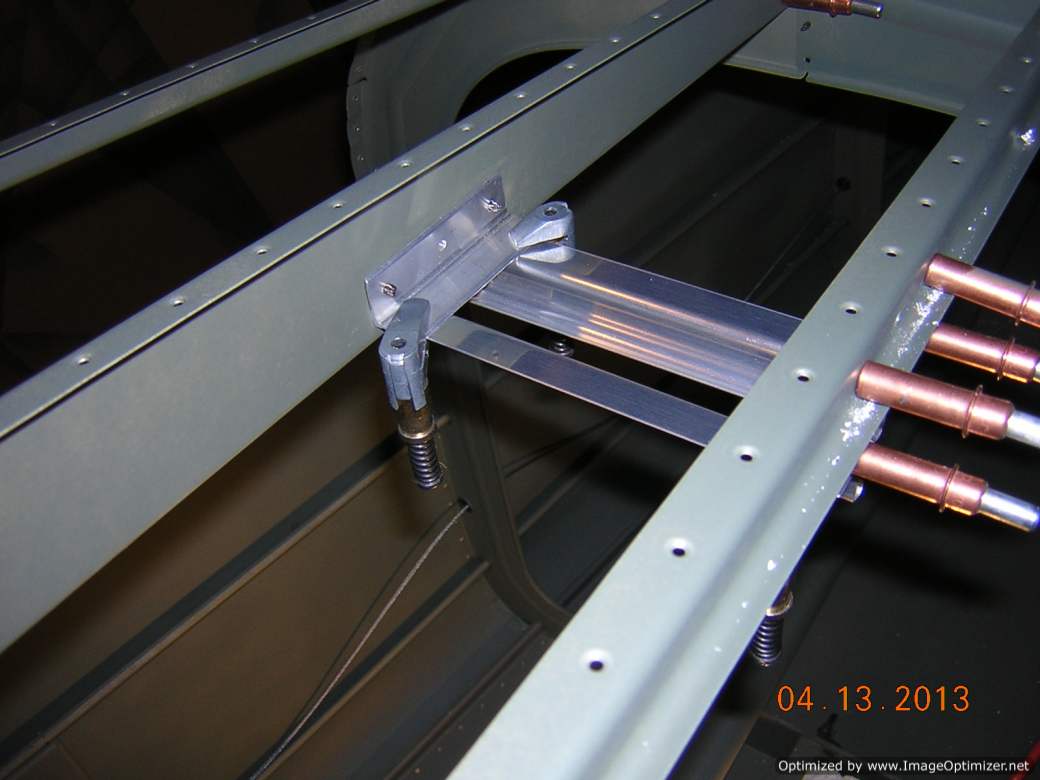

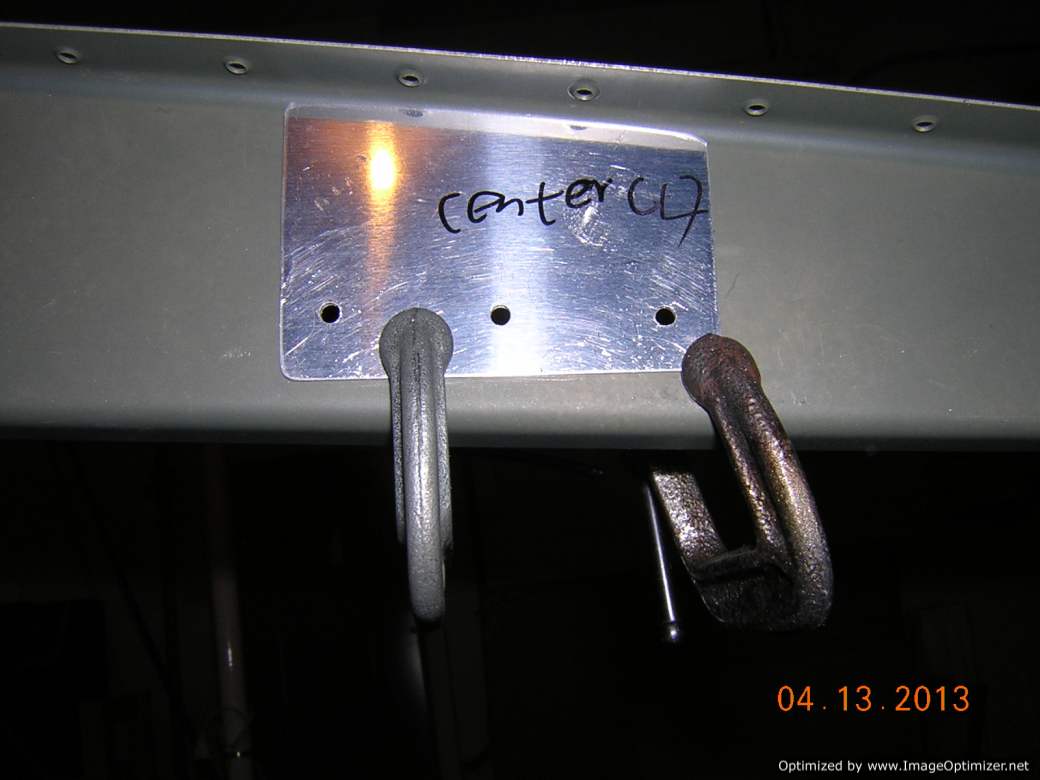

Clamped and drilled to the reinforcement web
I used some left over stringer to make the mouting bar like this

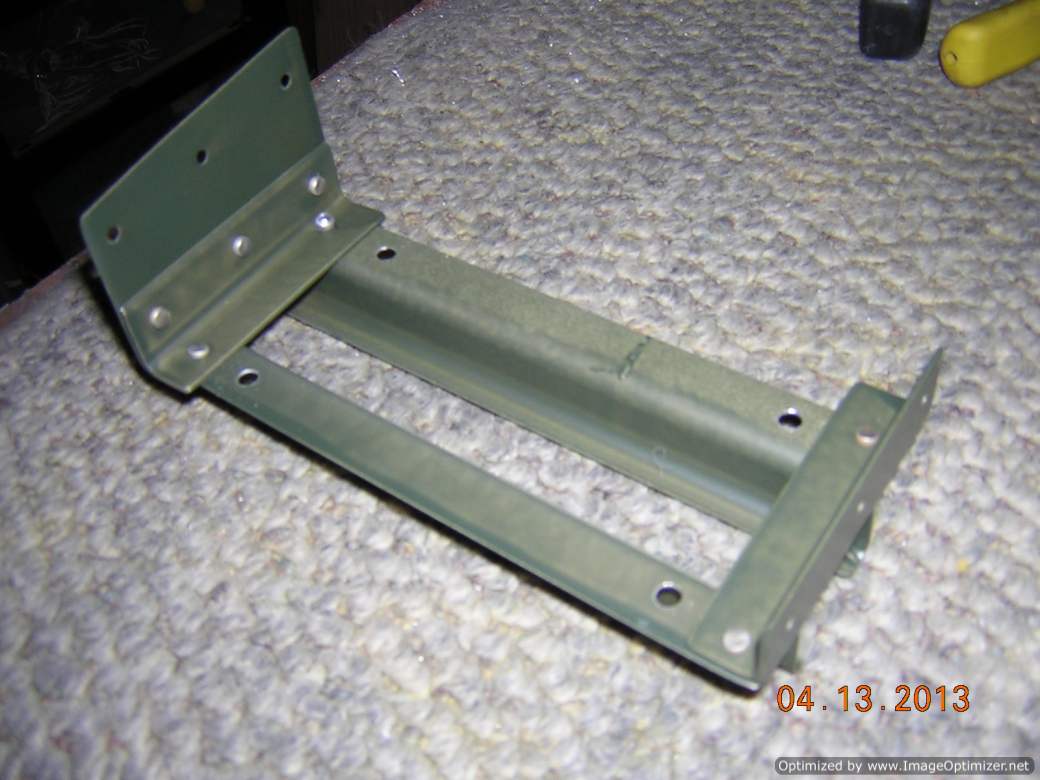

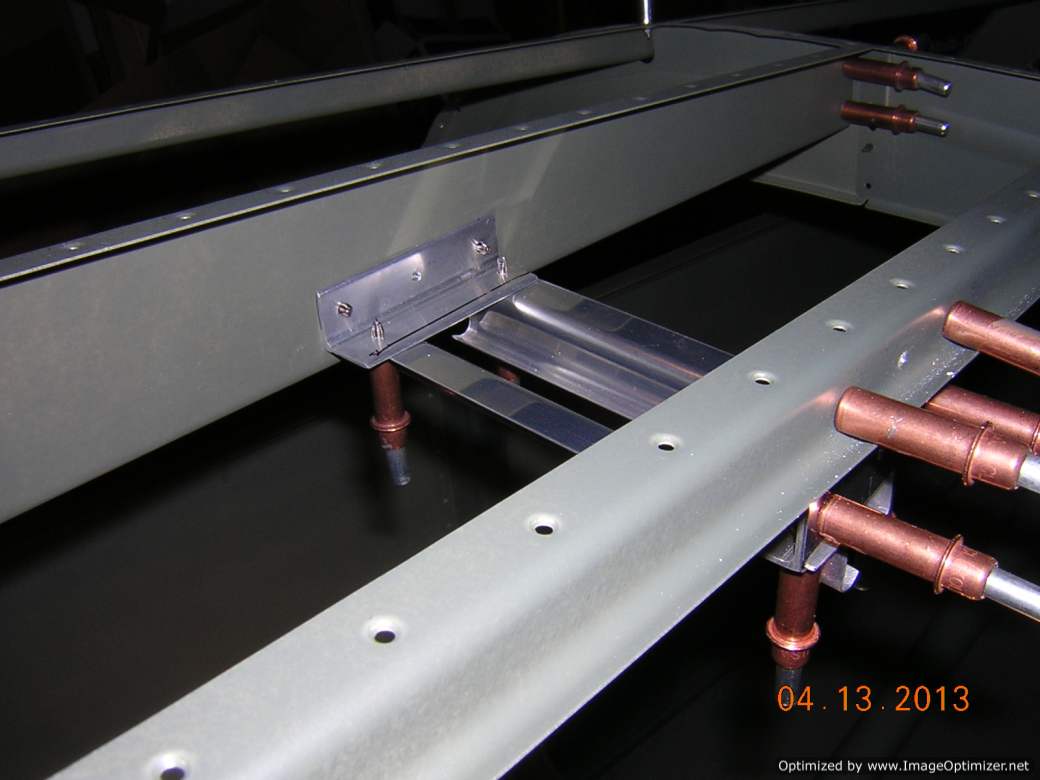

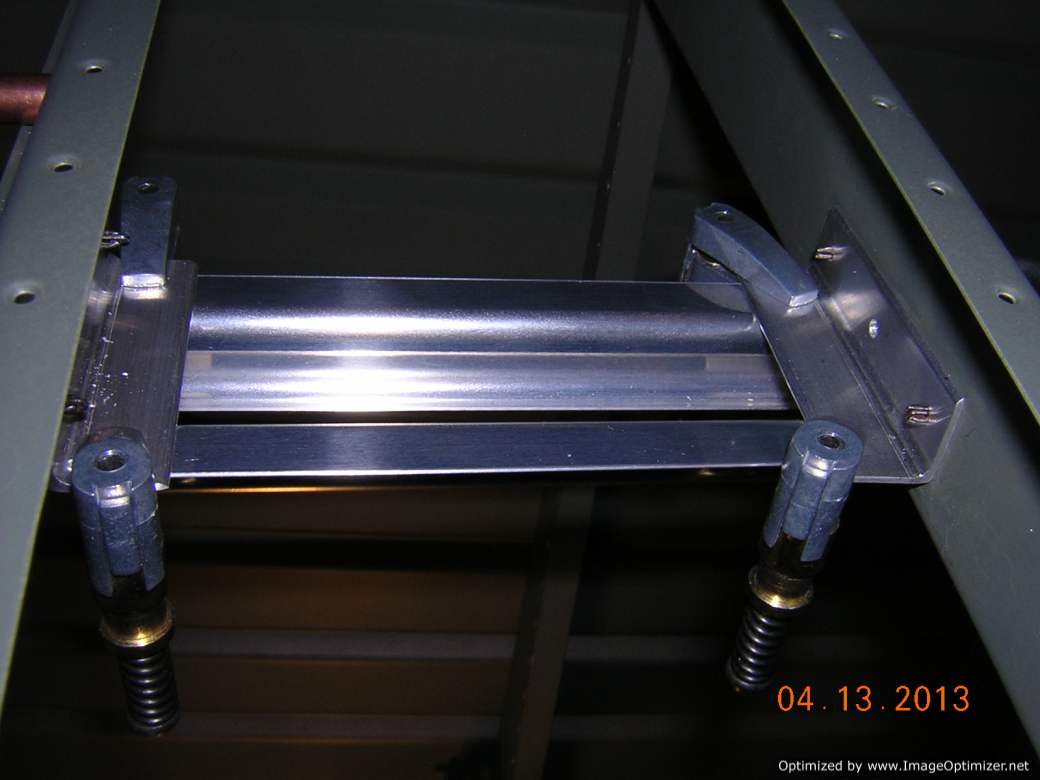

Here is how everything goes together

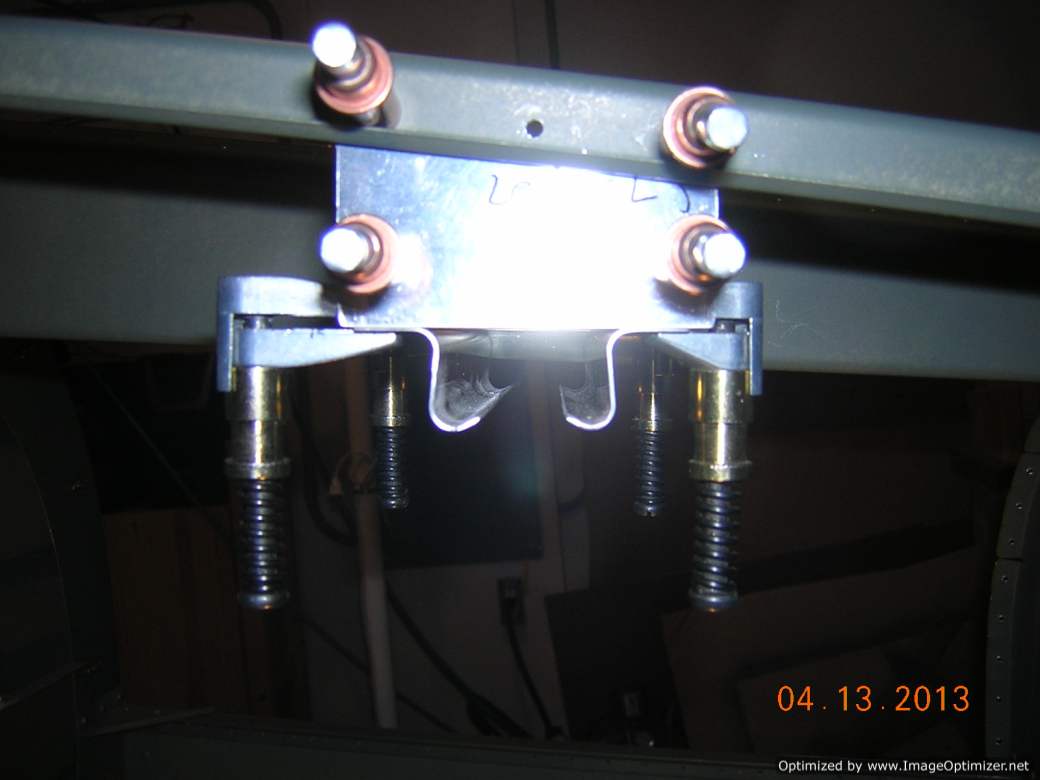

Viewed from different angle
Everything is drilled

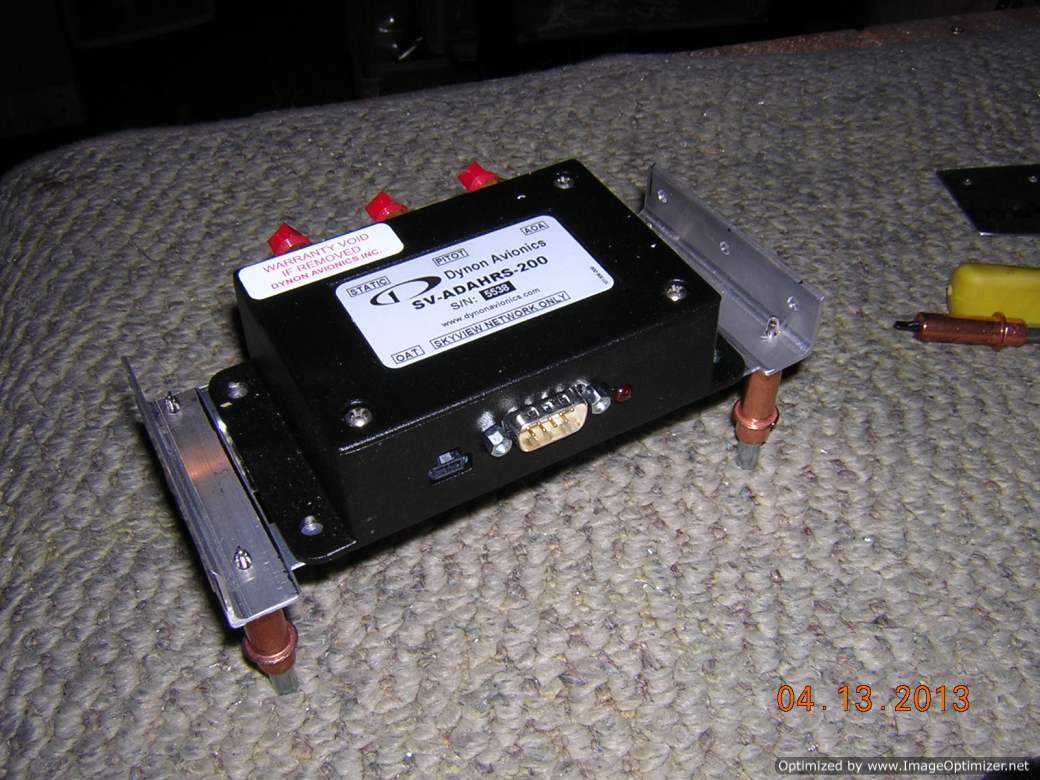

Support cross beam is drilled using the ADAHRS as template

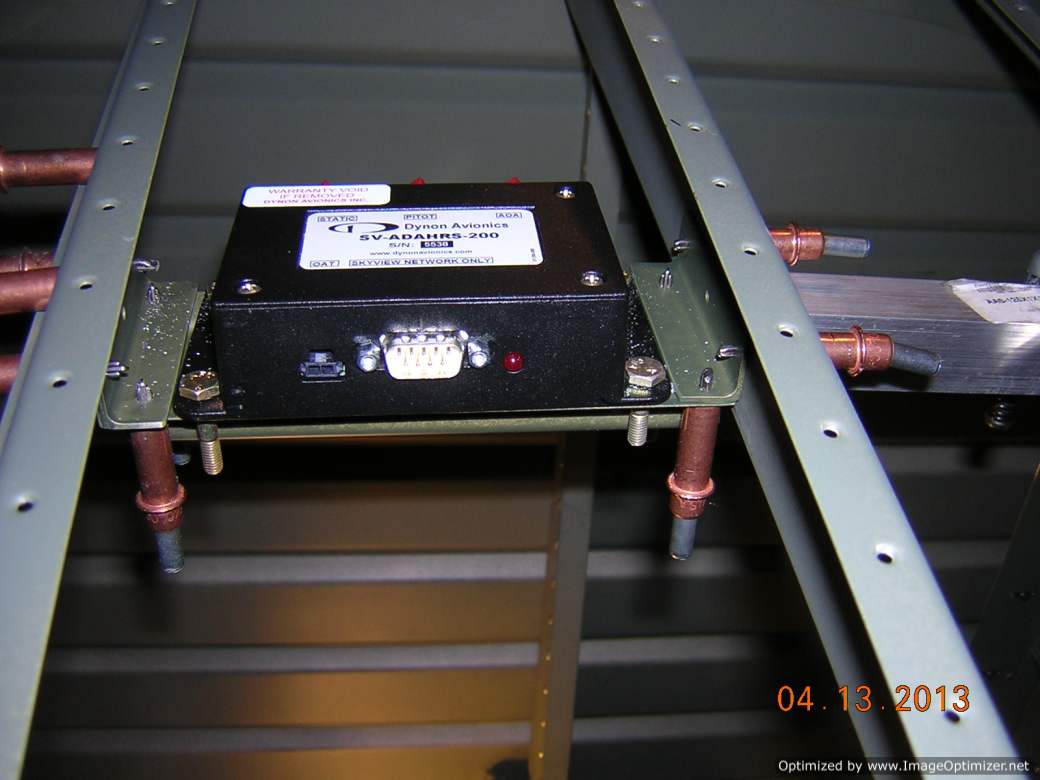

Here is how it looks with ADAHRS module on

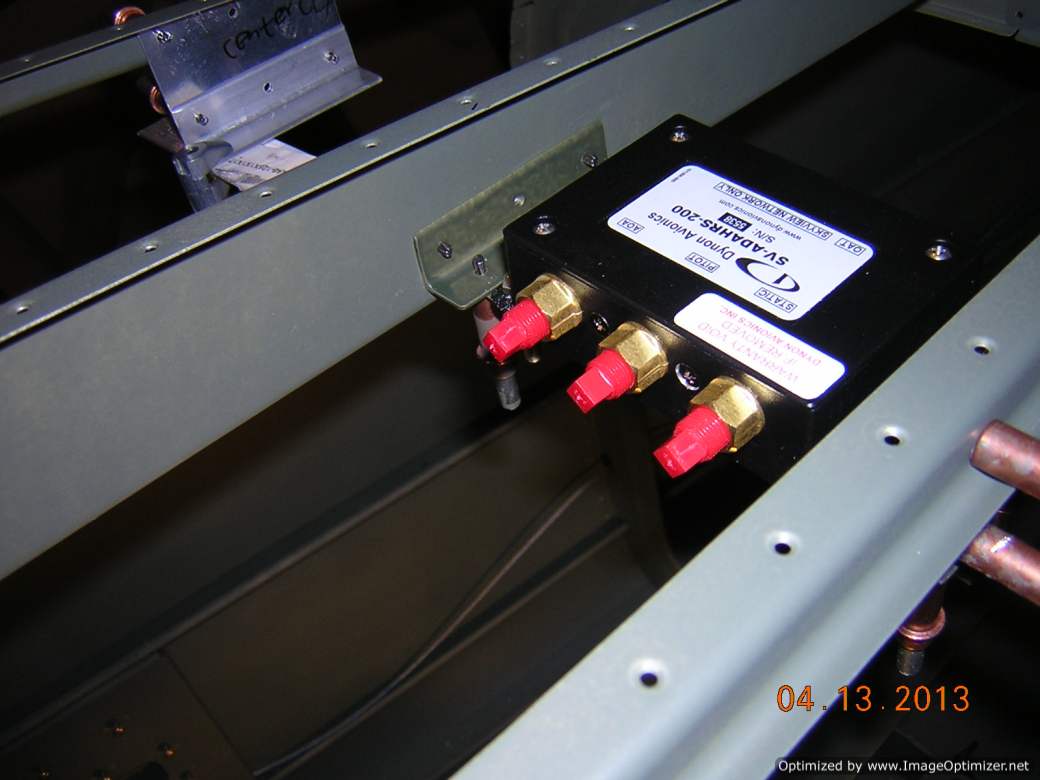

Another view

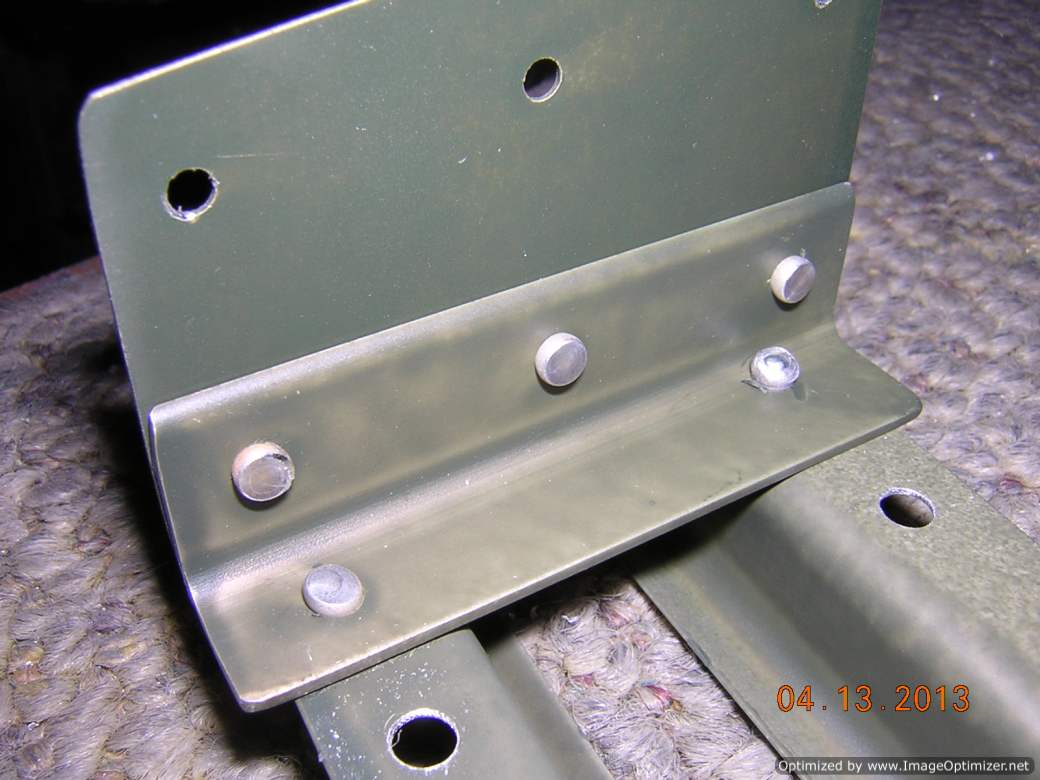

Mounting assembly is riveted
I had to use a pop rivet due to interferece of the shop head. The ADAHRS module is pretty light, no problem using pop rivet here.

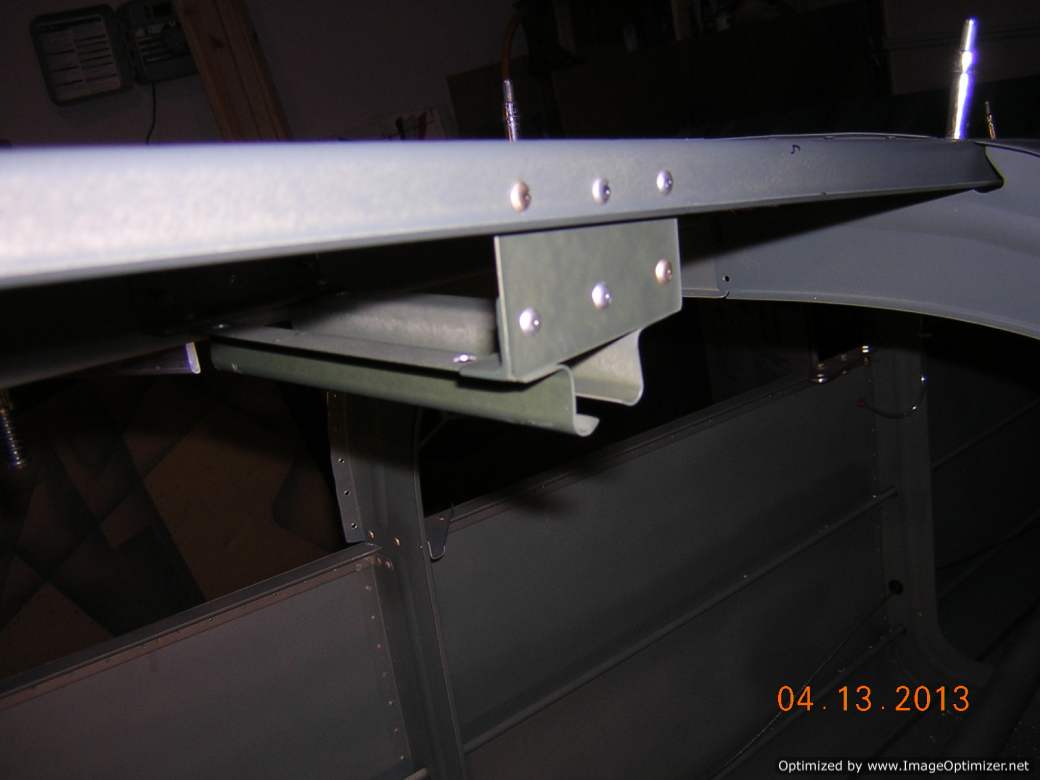

Mouting assembly is riveted to the left stringer. I will not rivet it to the center reinforcement web for now. I need to build another support for second ADAHRS module. I will not use two initially, but I like to have the provision ready so the upgrade to IFR will be easier
