04-15-2012: 4.5 hrs
I want to try different primer on the fuselage, and I prefer gray color. So I scuffed and cleaned all firewall stiffeners, gussets after deburring and machine countersunk them. I sprayed some Kylon gray primer on them. I waited 4 hours before starting riveting. The primer is not self-etching, and I didn't etching the aluminum before priming, the primer is easy to scrape off compared to the DupliColor self-etching primer. Since the firewall is not a primer critical area (many builders don't prime this area at all), I think it should be ok. I'd better find a better gray primer.
Anyway, after priming, I started riveting. I didn't use the back riveting method, just use the flat rivet set with my rivet gun. It is not that hard. The problem of using back riveting is I couldn't find a right plate or wood block to raise the back riveting plate to the right height because the firewall flange is bent toward forward. Got most rivets done, will finish them tomorrow.

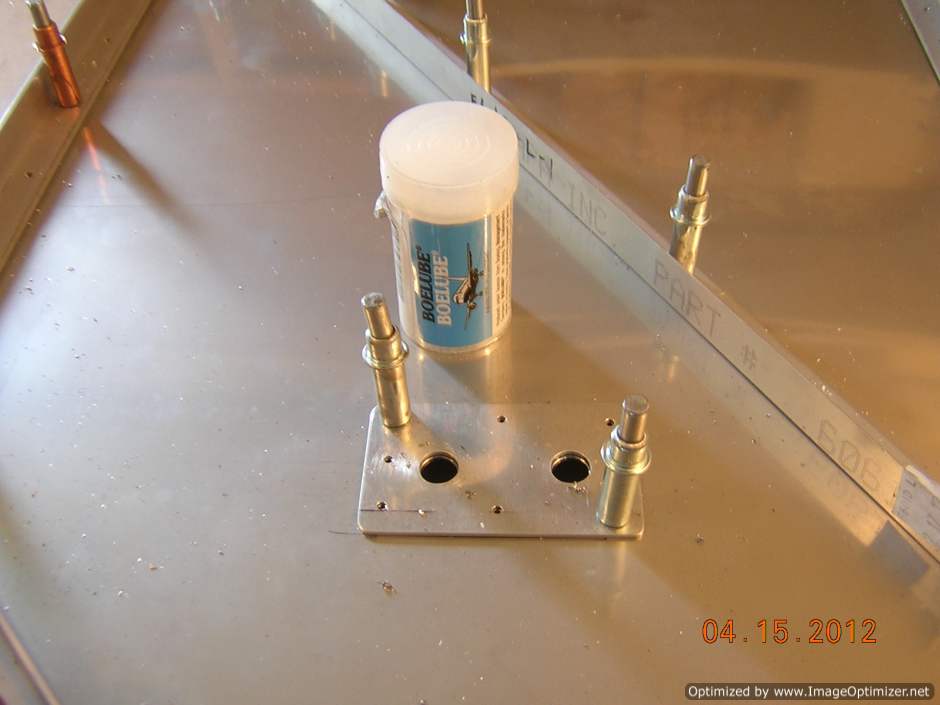

two 1/2" holes are drilled to fire wall for brake line fitting, BOELUB is used to drill steel firewall

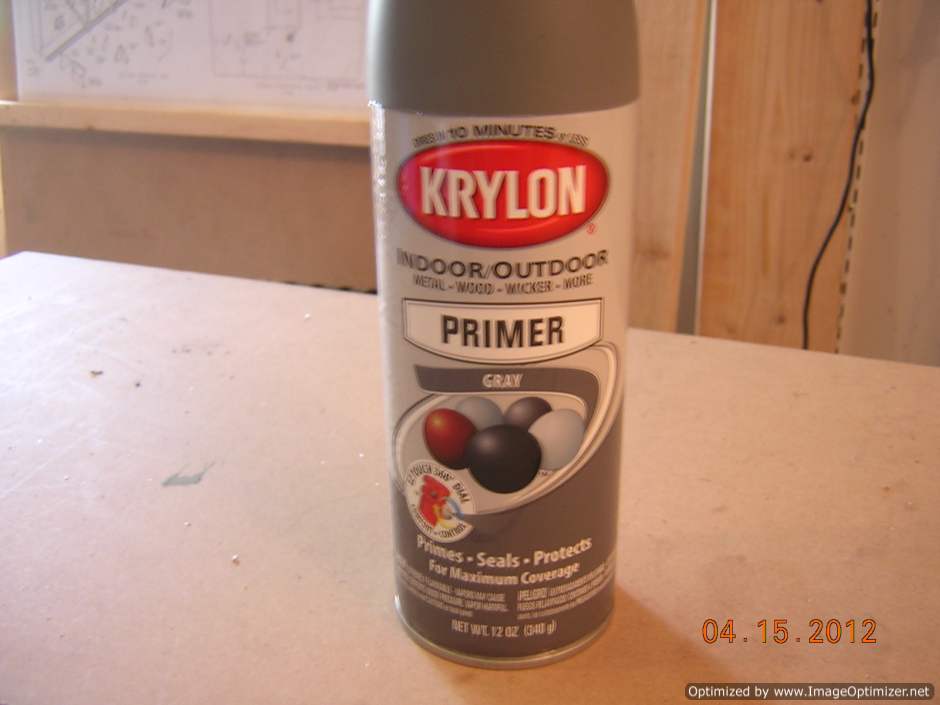

I would like to try this primer for fuselage, it turned out easier to scrap off than self-etching prime, but overall it is not too bad

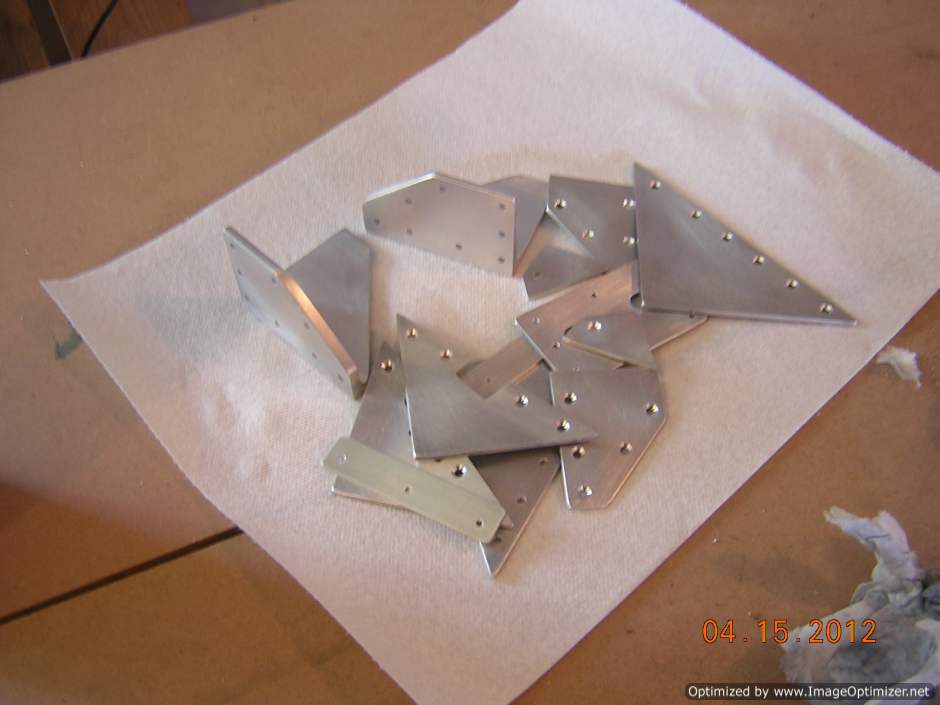

Firewall parts are cleaned using acetone

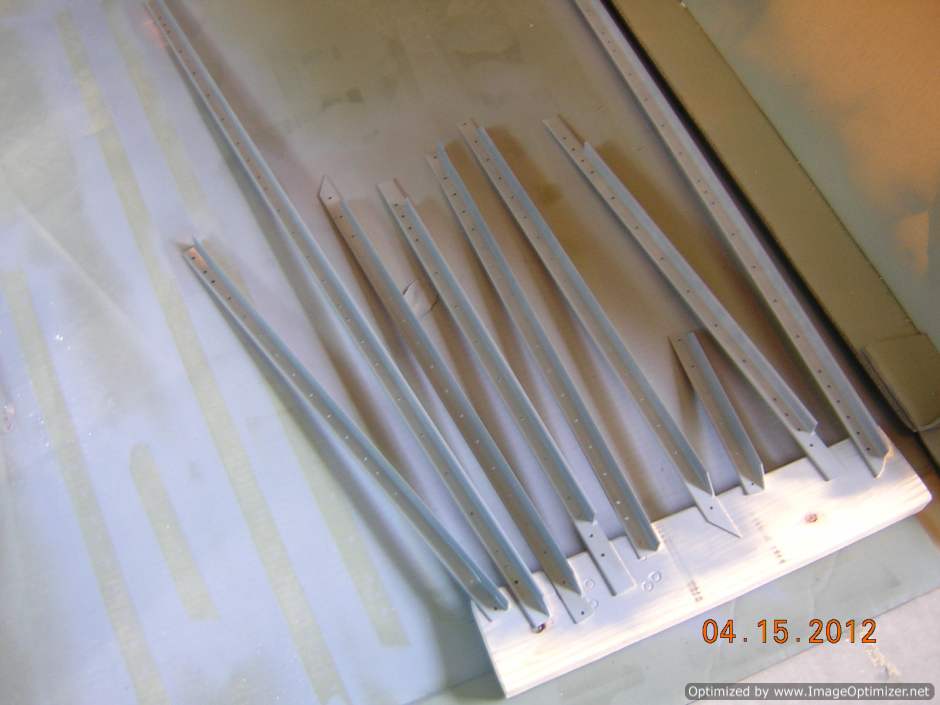

Primed

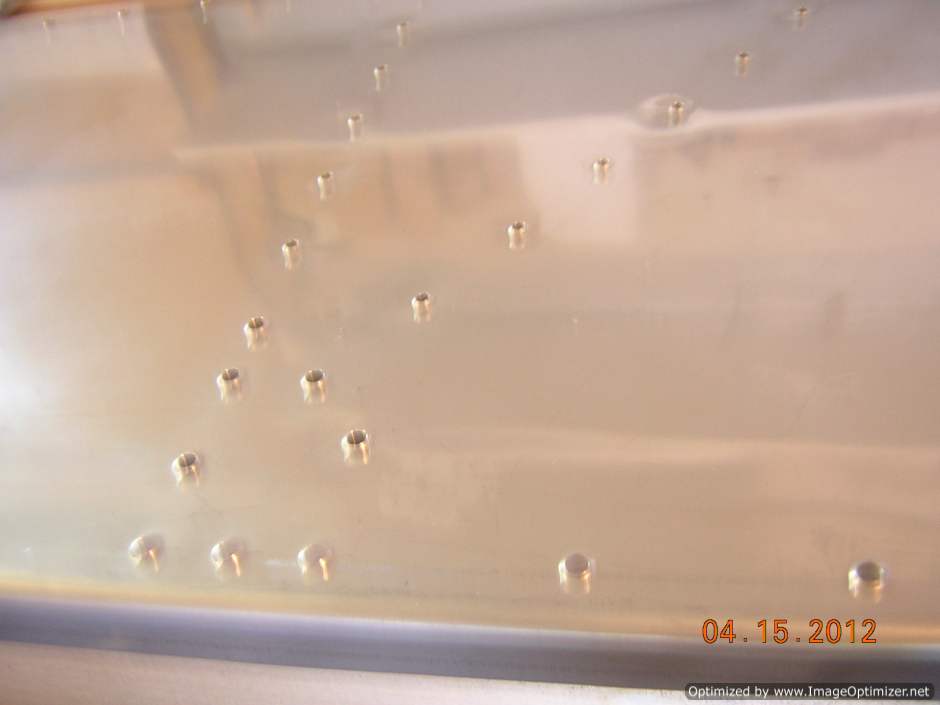

Firewall dimpled

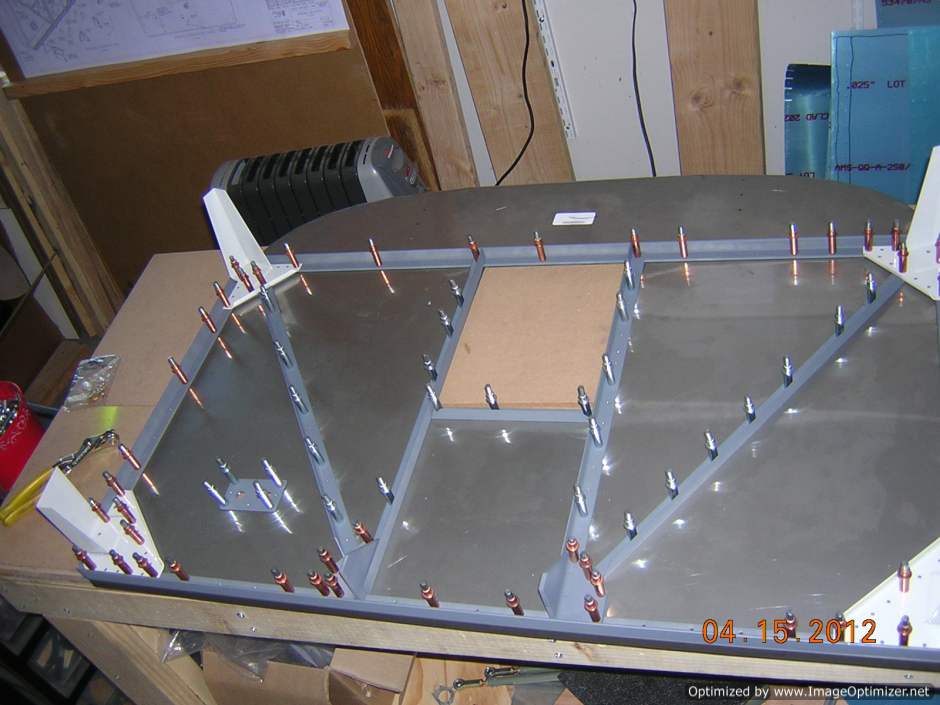

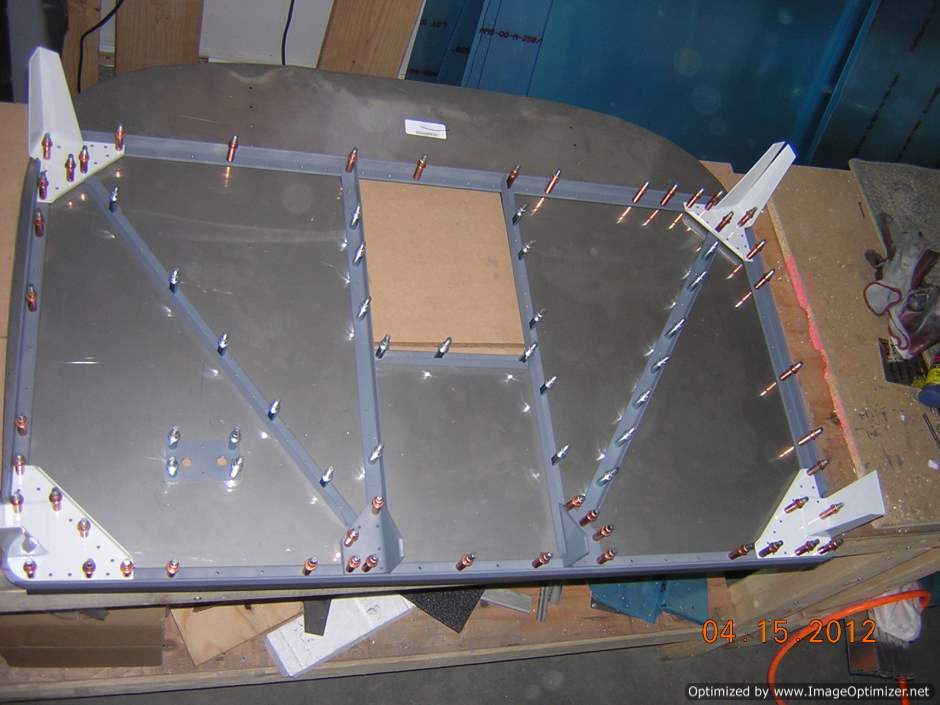

Primed parts are clecoed for riveting
As you can see, I used rivet gun to rivet firewall

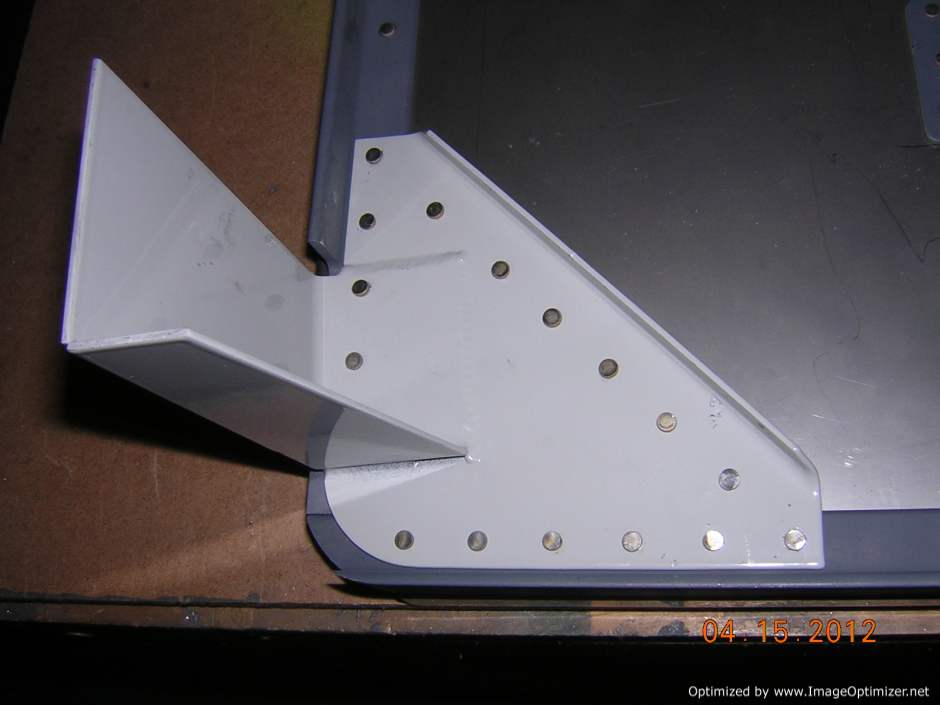

Rivet gun can give pretty good results here

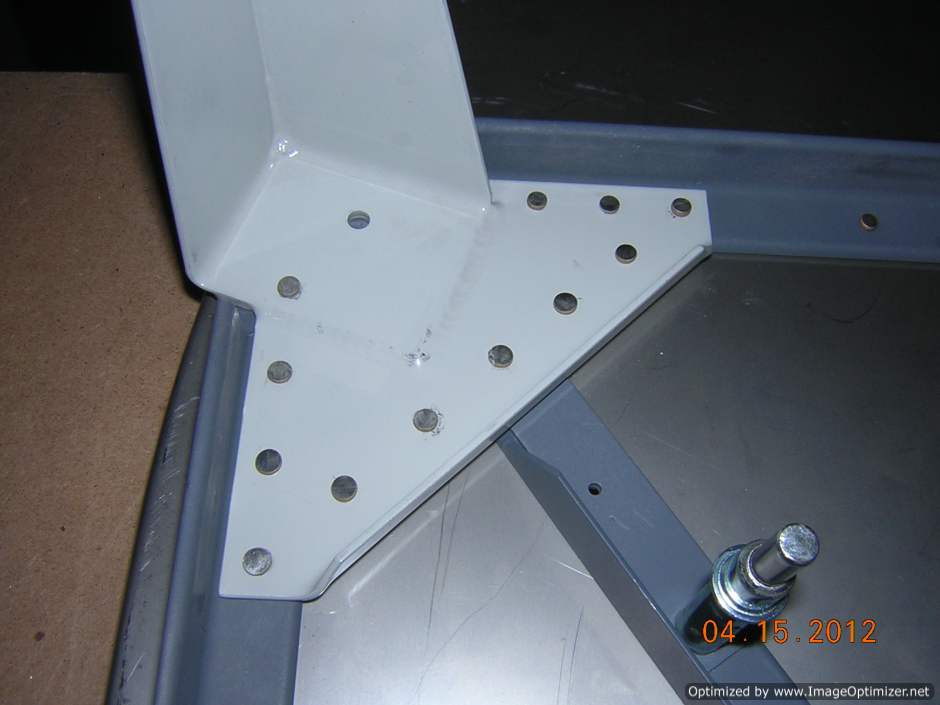

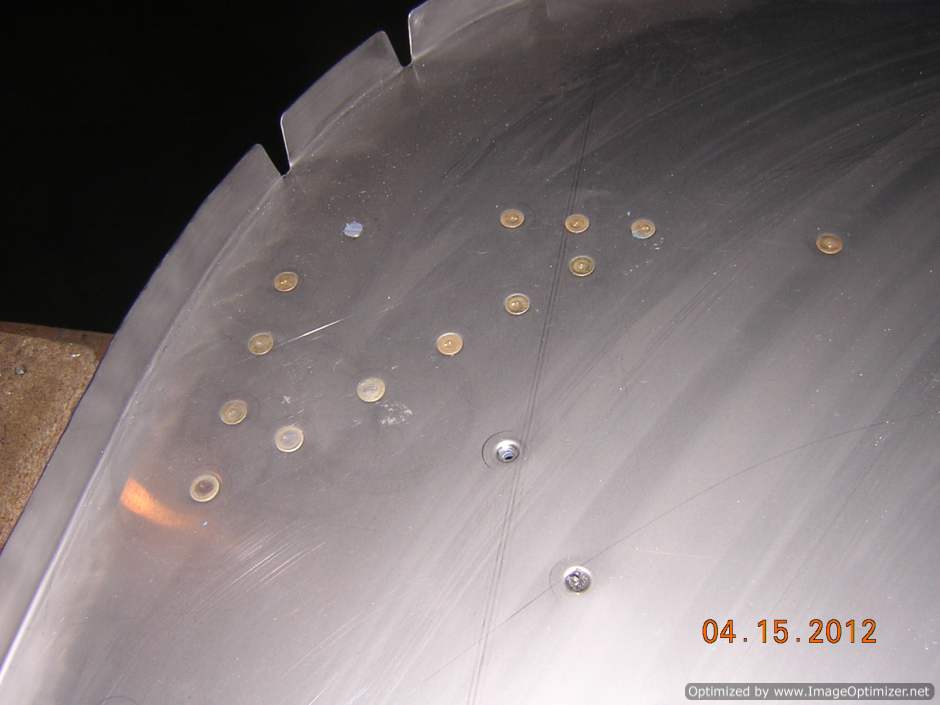

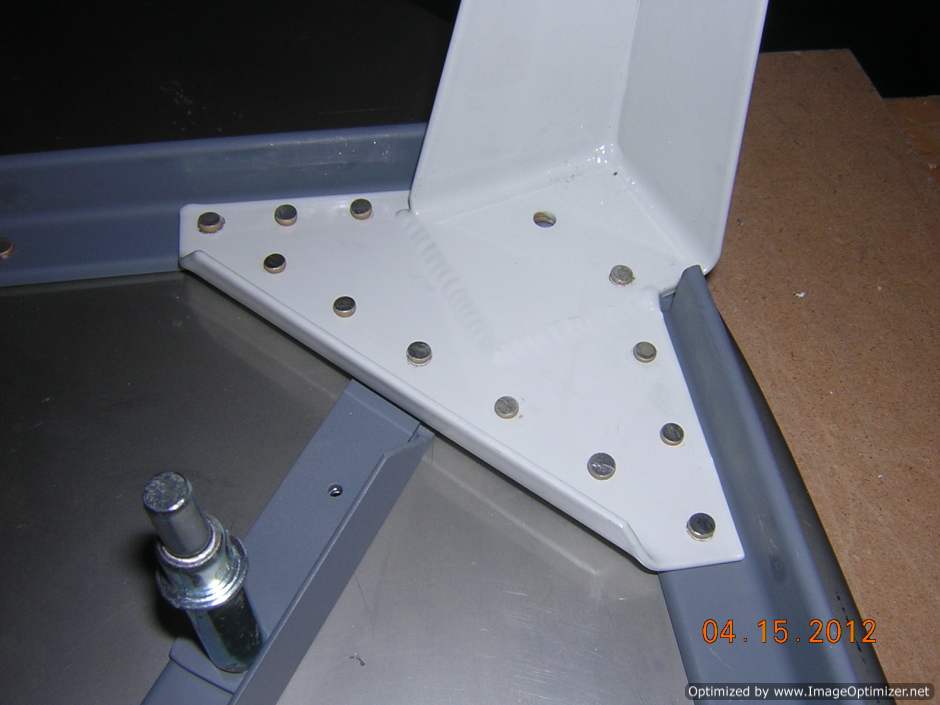

Shop heads of rievets

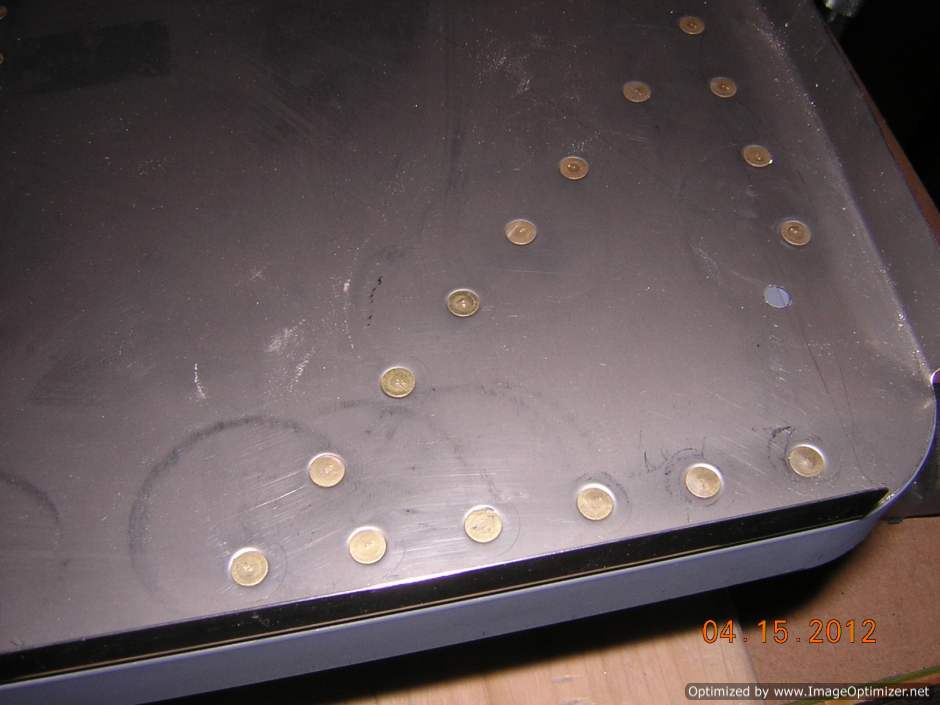

More shop heads picture
and more
