06-28-2013: 3 hrs
Worked on side skirts. Drilled side skirts to frame, and drilled canopy to skirts on the left side to #30. Results looked good to me. No crack so far. I was worried about cracking the canopy using regular #30 drill bit.

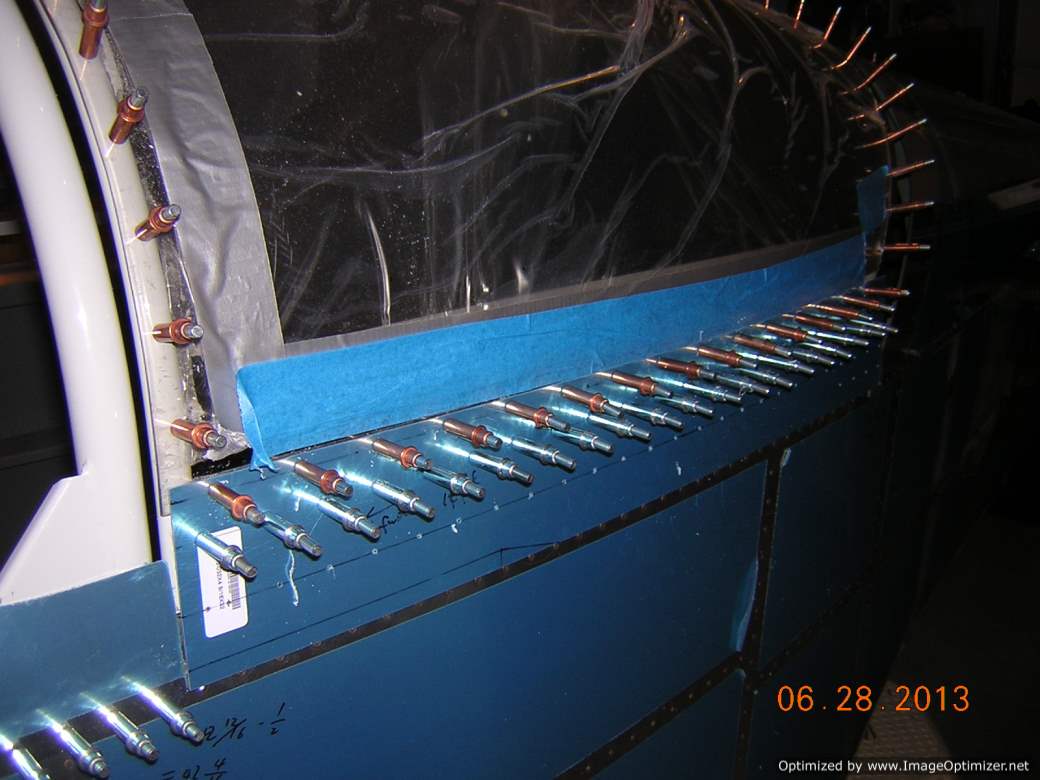

Left skirt is drilled to canopy frame

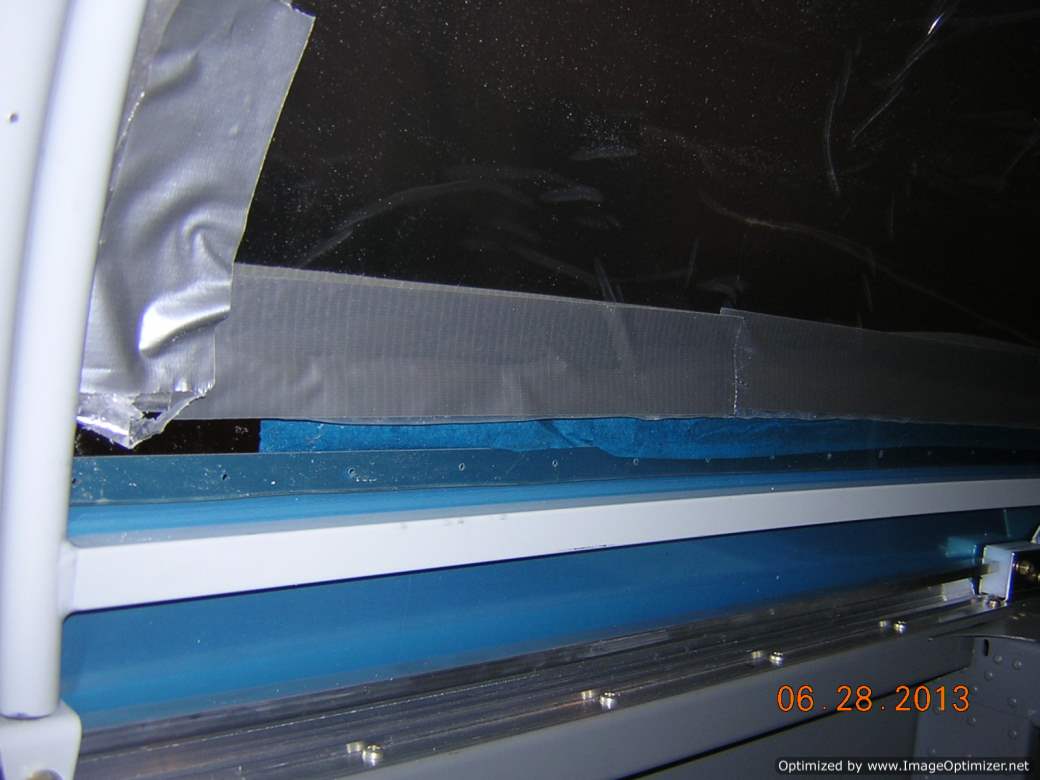

Side skirt is drilled to canopy, the edge margin on canopy goods good, and no cracks

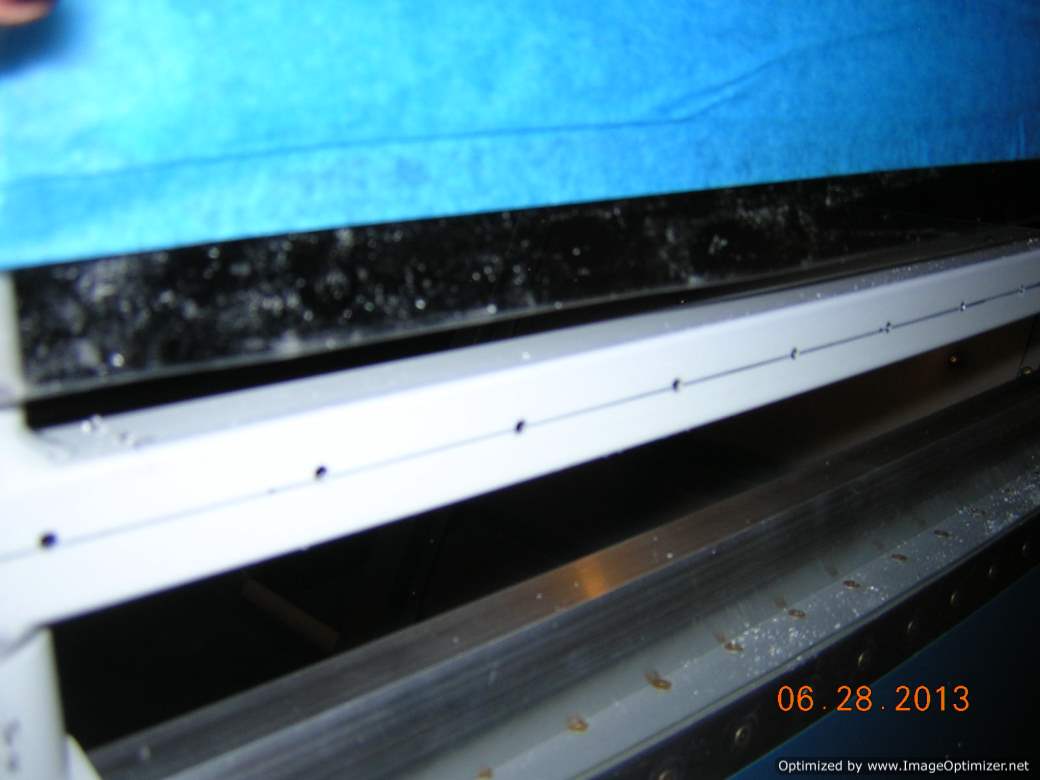

Close-up view of the holes on canopy

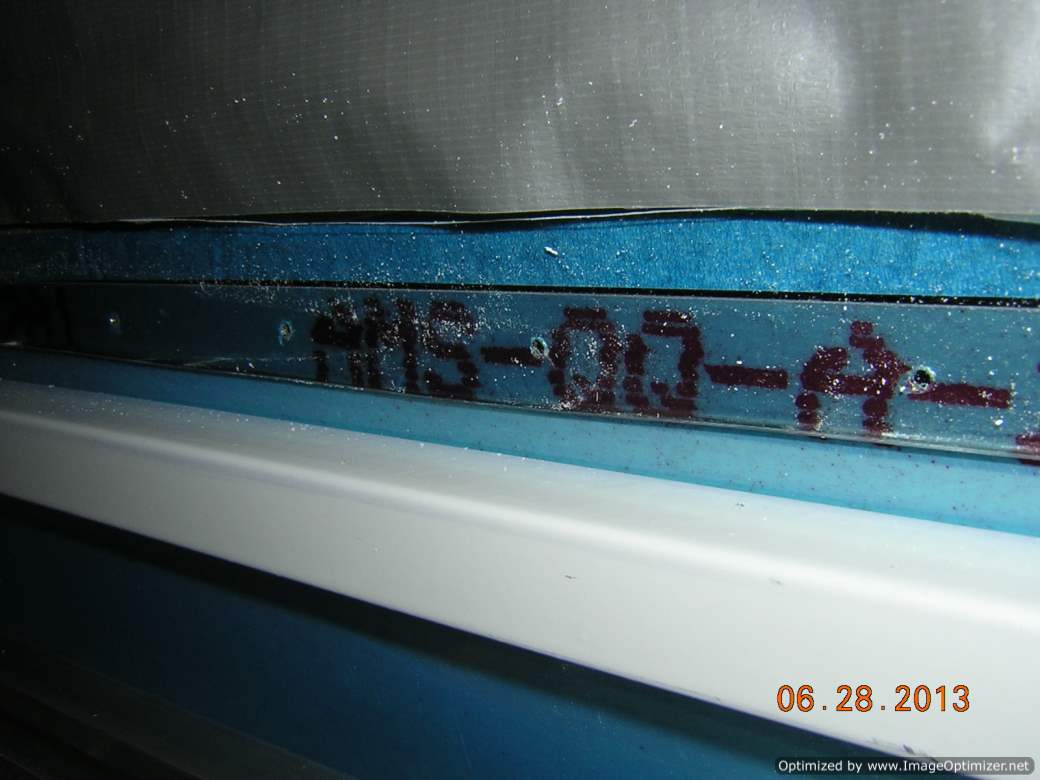

Side skirt brace is drilled to frame. The holes look good

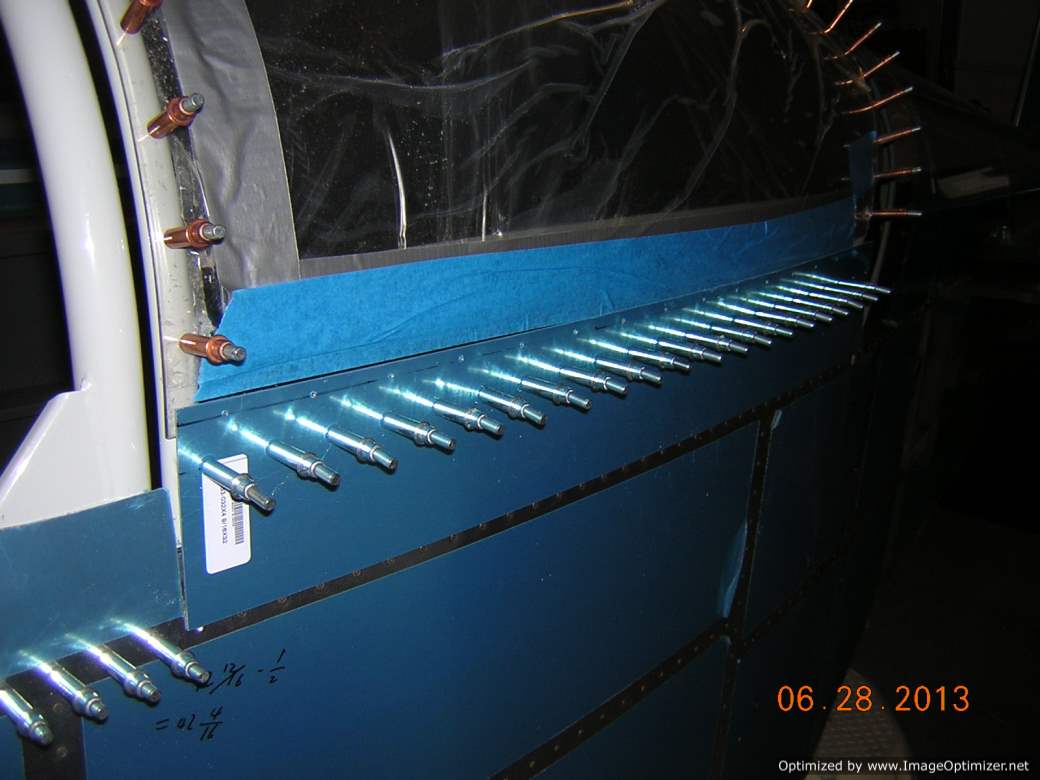

Everythng is clecoed together on left side
