Shawn Li's RV-7Construction Log

07-10-2012: 3 hrs

I dimpled bottom flanges of all seat and baggage ribs, as well as the F704B bottom flange. To dimple the F704B center bulkhead bottom flange, I had to remove the support bracket for control column. While the control column brackets were off, I realized that I need the bracket out of the way when setting the rivet underneath them, so I just put the brackets away. will install the brackets when I am done with riveting bottom skins.

Van's instructed to install the nutplates on the ribs at earlier time, I delayed that installation to now, after I primed all ribs.

I decided to use the Van's stock crotch strap, so the gap between the crotch strap brackets is 0.125". I then drilled all crotch strap brackets to ribs and seat floor panel. The fit is good.

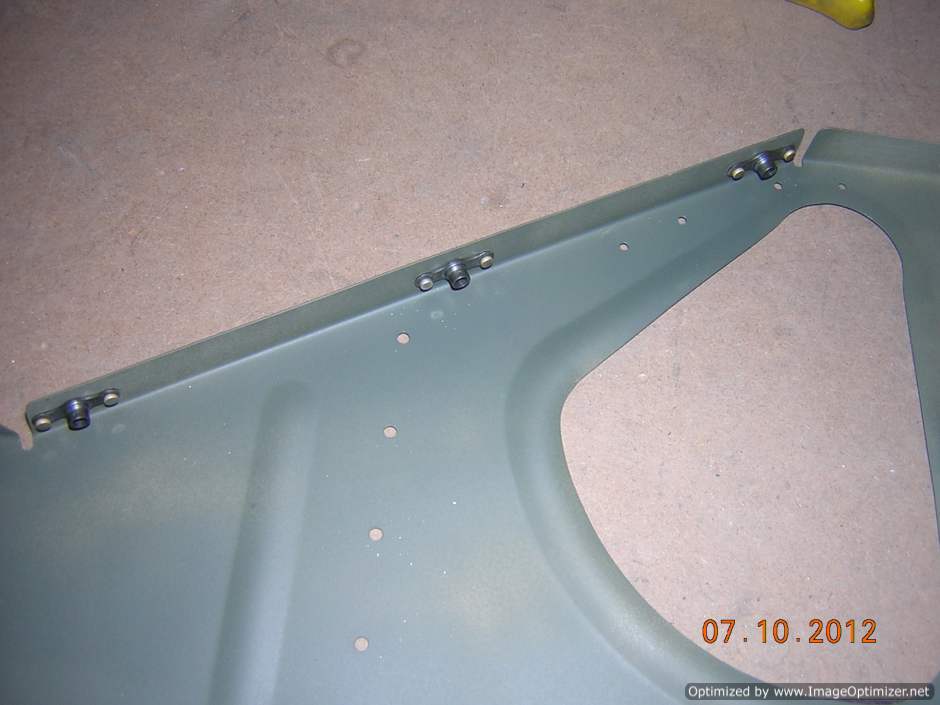

Nutplate installed on seat ribs

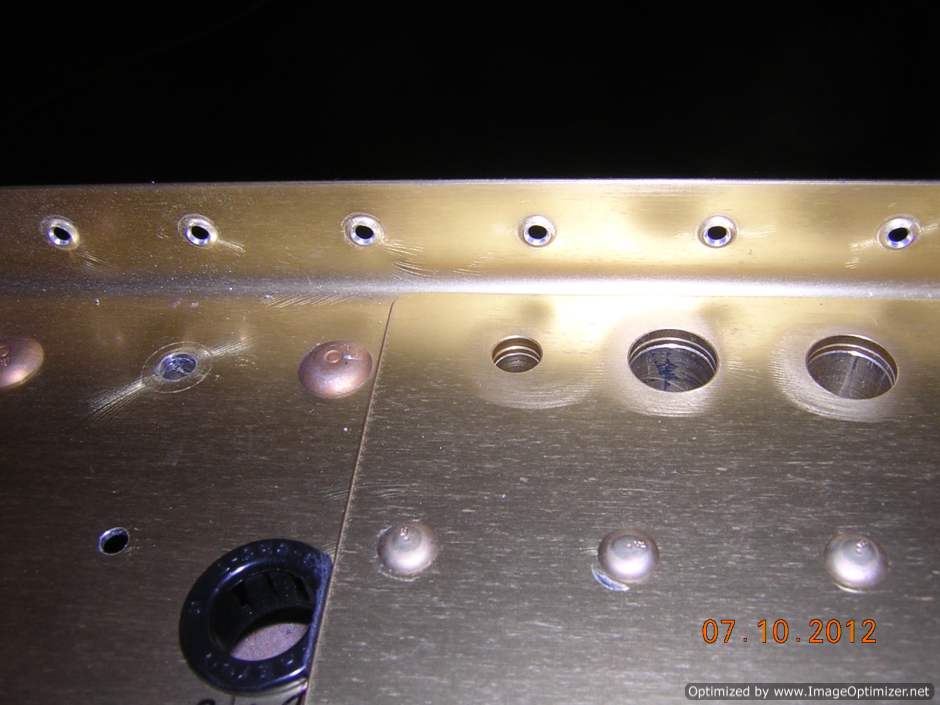

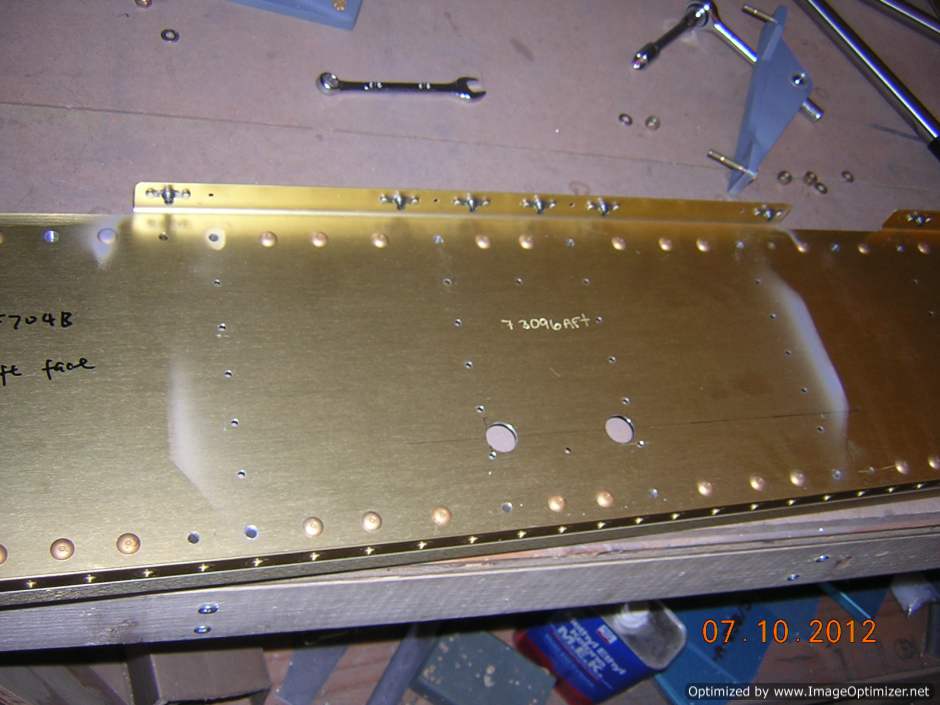

F704 bulkhead flanges are dimpled

The control colume had to be removed to dimple some of the holes

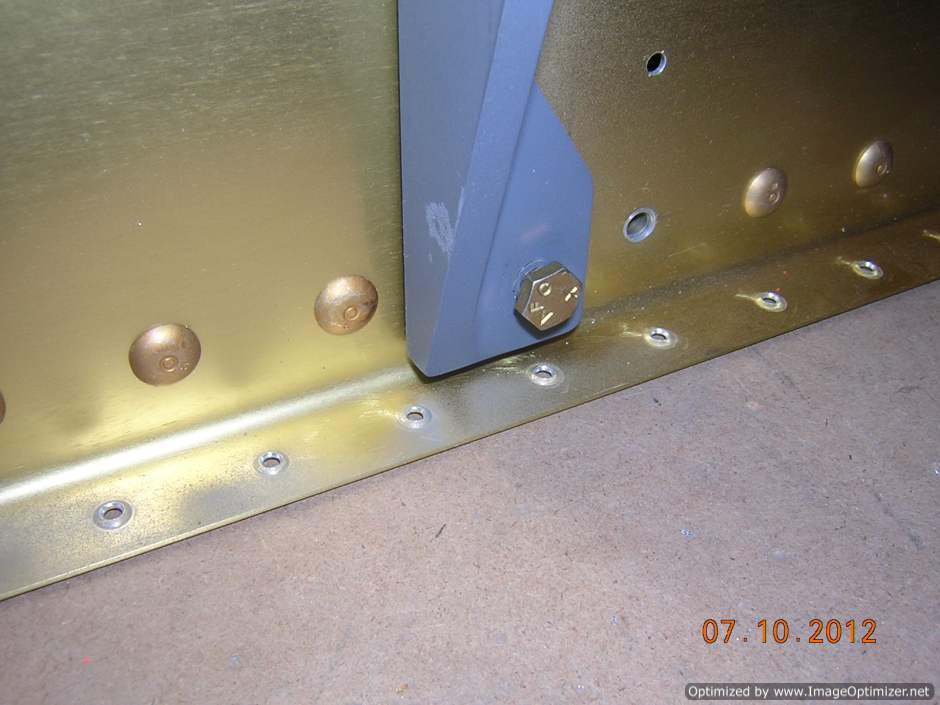

Control column support brackets are removed

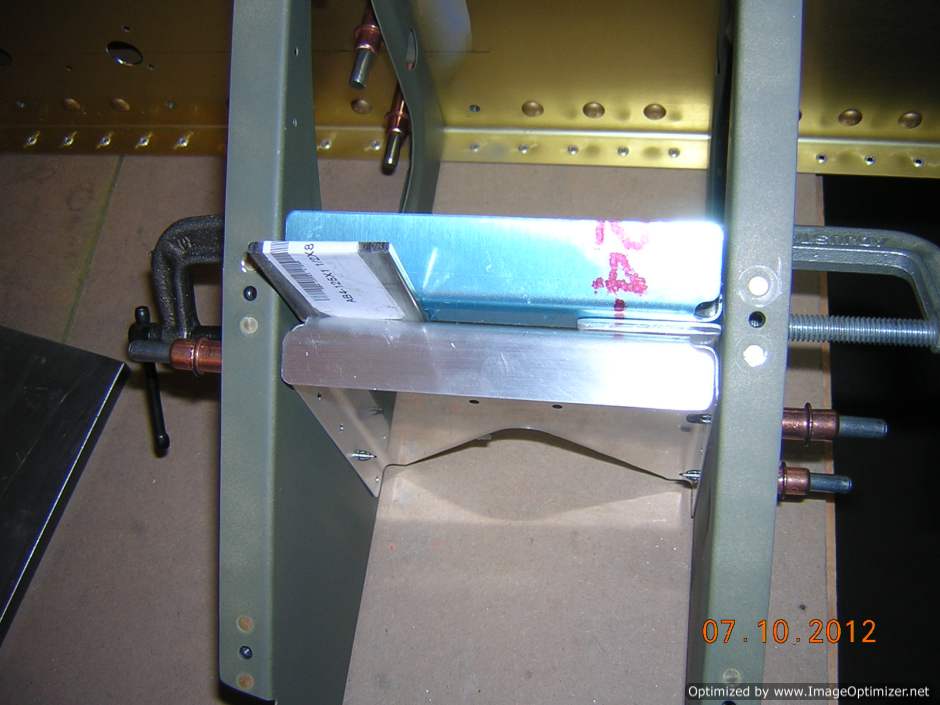

I used a 0.125" al plate as spacer to position the fwd crotch strap bracket

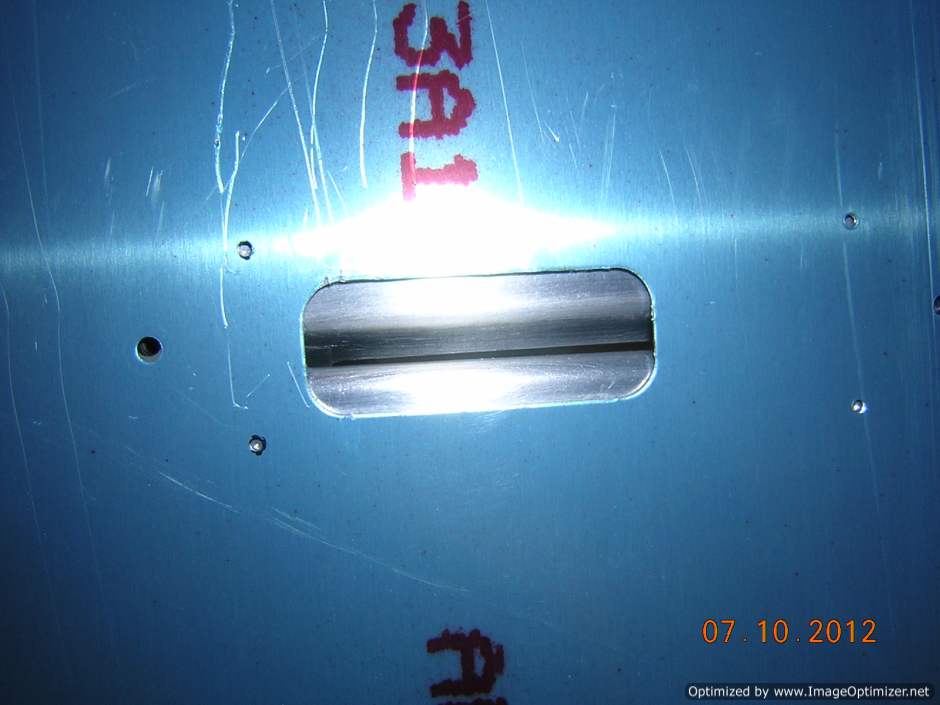

Seat floor is clecoed on, the position of the crotch strap brackets look right

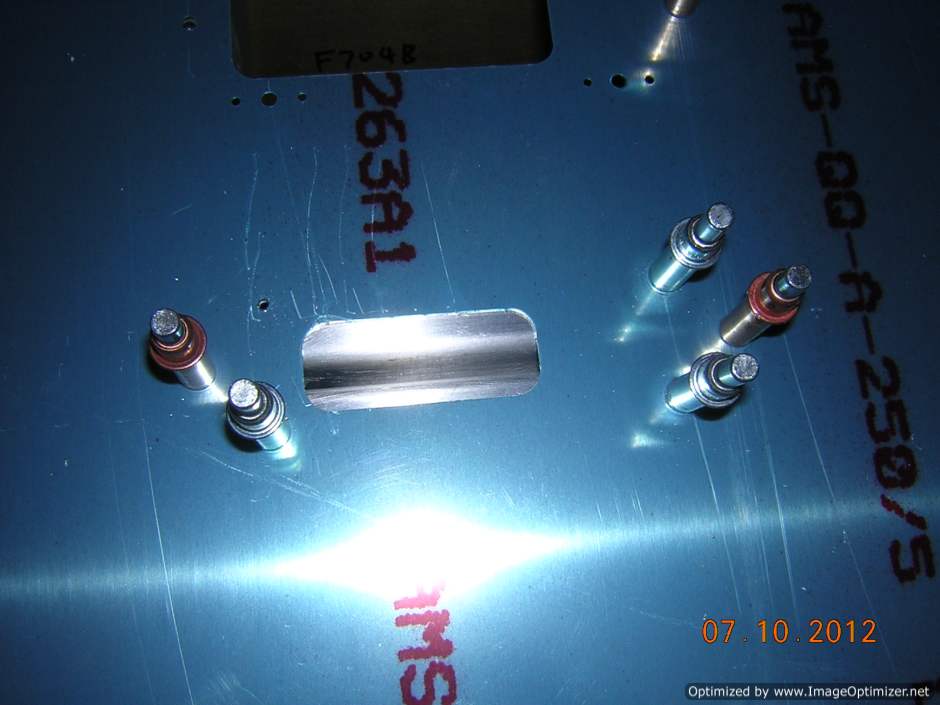

The brackets are drilled to seat floor
