07-12-2012: 2.5 hrs

I started cleanning, priming and painting the crotch strap brackets, then had the nutplates installed on the brackets. I decieded to use the pop rivets to rivet the brackets to the ribs, just because these rivets are supplied with the crotch bracket kit. I know many builders used solid rivets here when installing bracket at this stage of build, and I could use solid rivets, but I just go with Van's instruction, it should be just find. After that, I started riveting the seat brackets to the center bulkhead. Just finished two ribs.

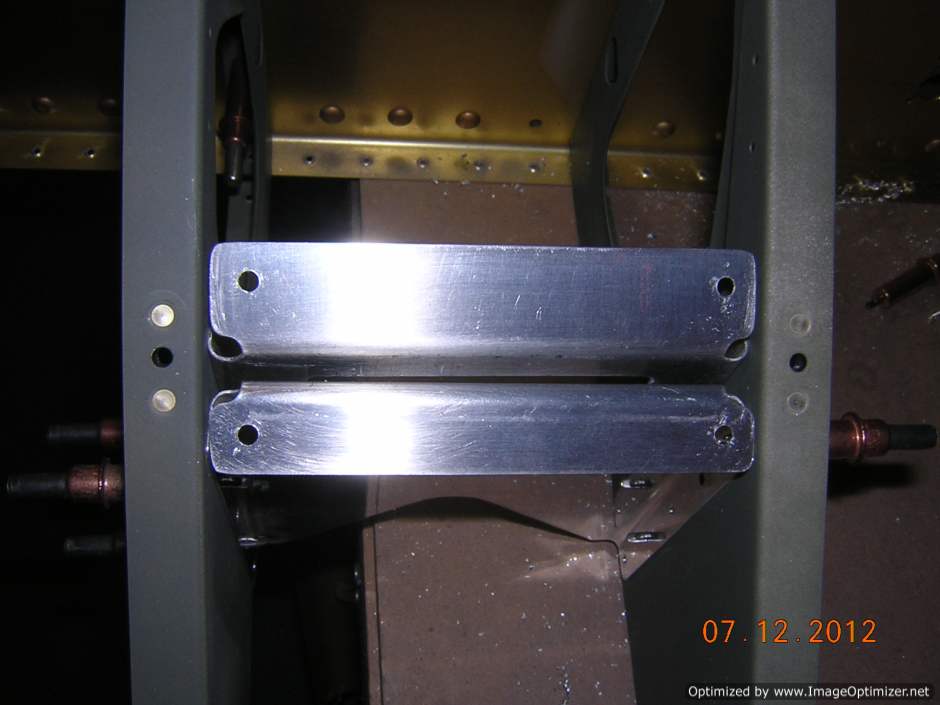

Edge margin of the holes look good

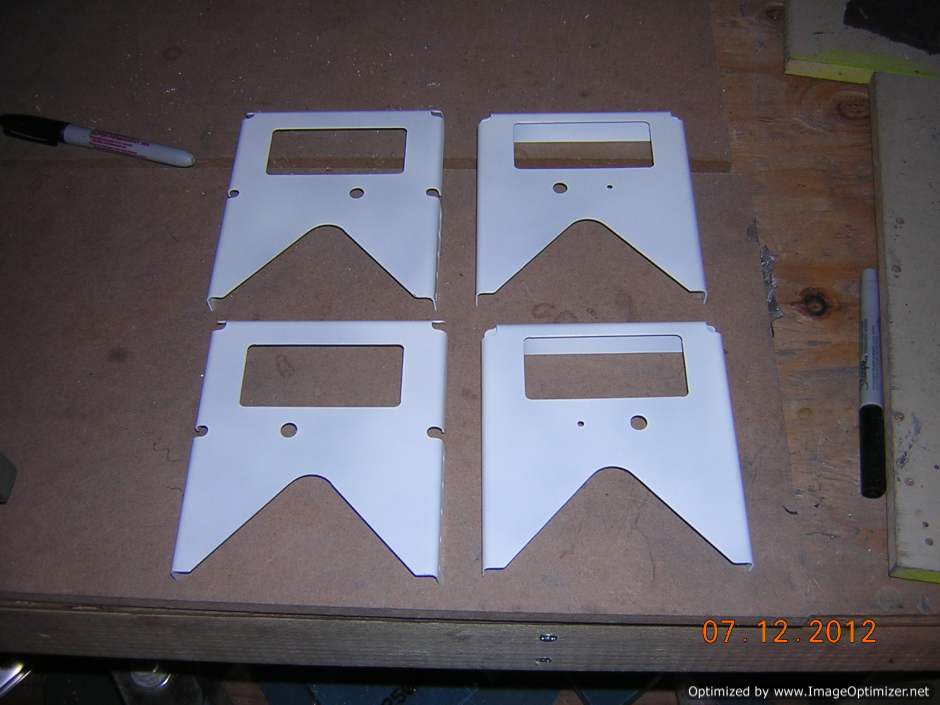

Crotch strap brackets are painted

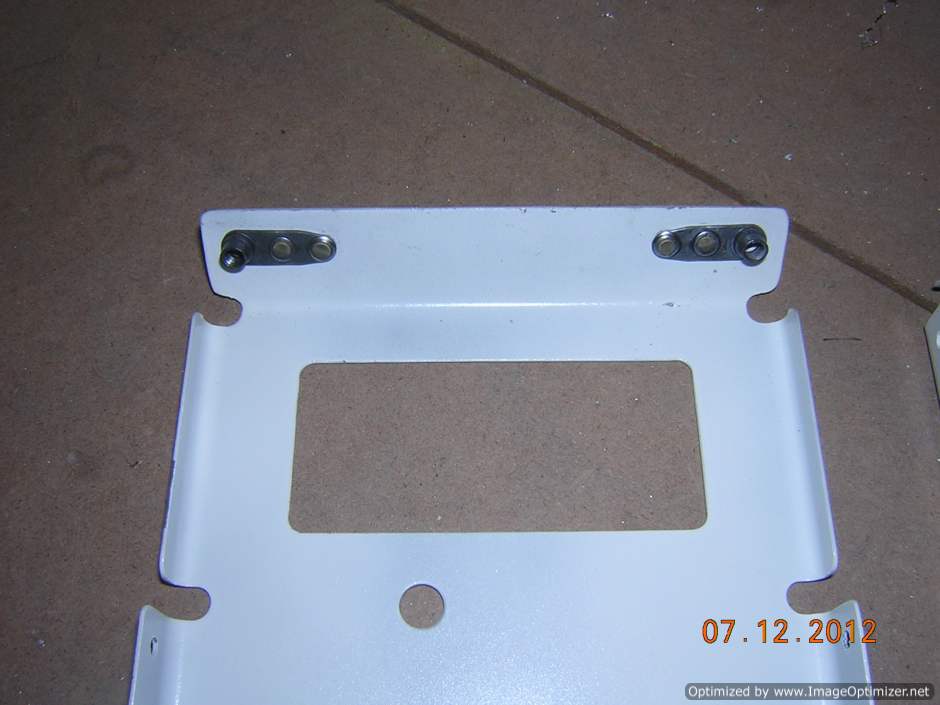

Nutplate is used to drill the rivet holes for the nutplate

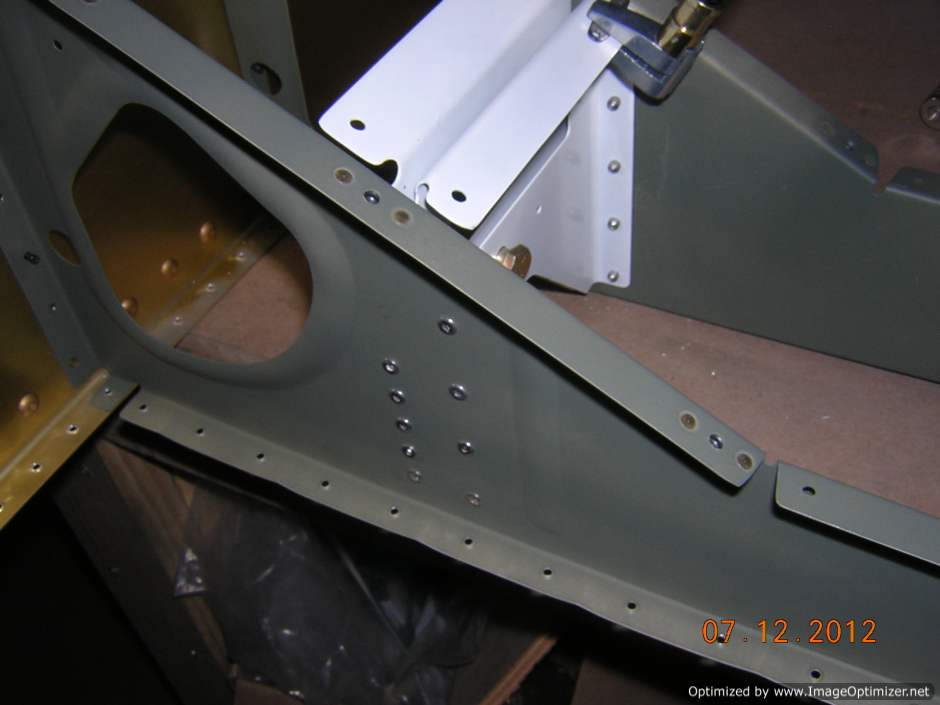

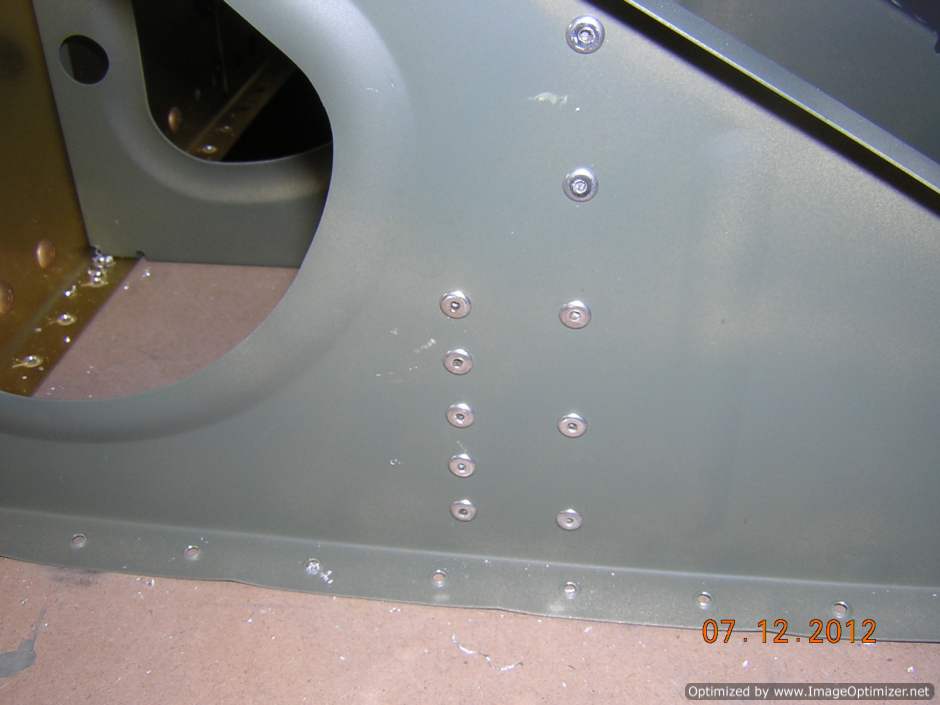

Even I can use solid rivets for the brackets, I still used the provided pop rivets.

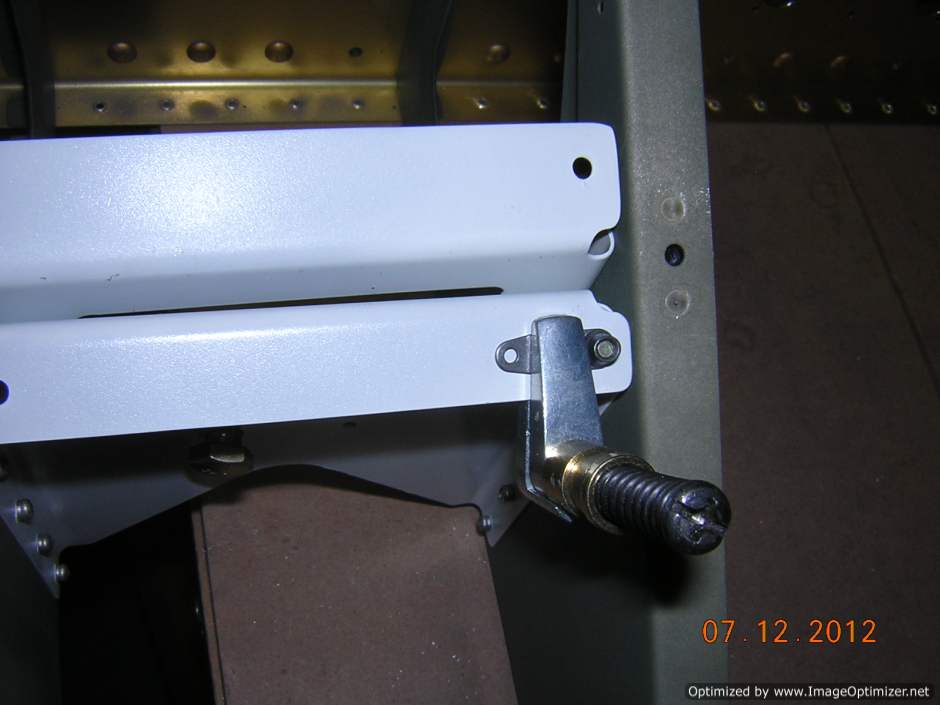

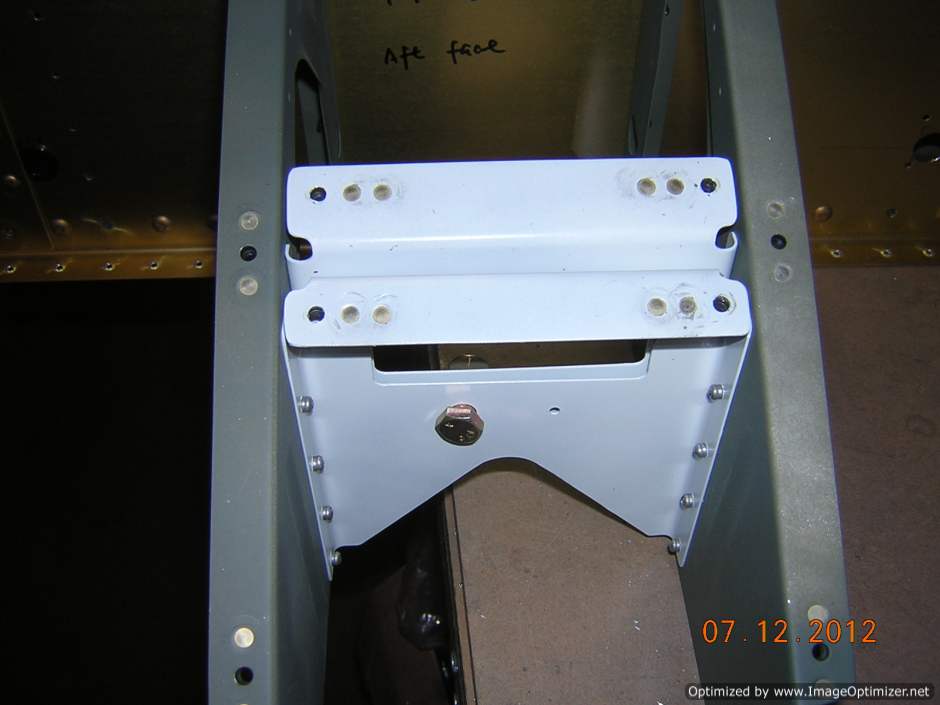

Brackets are done

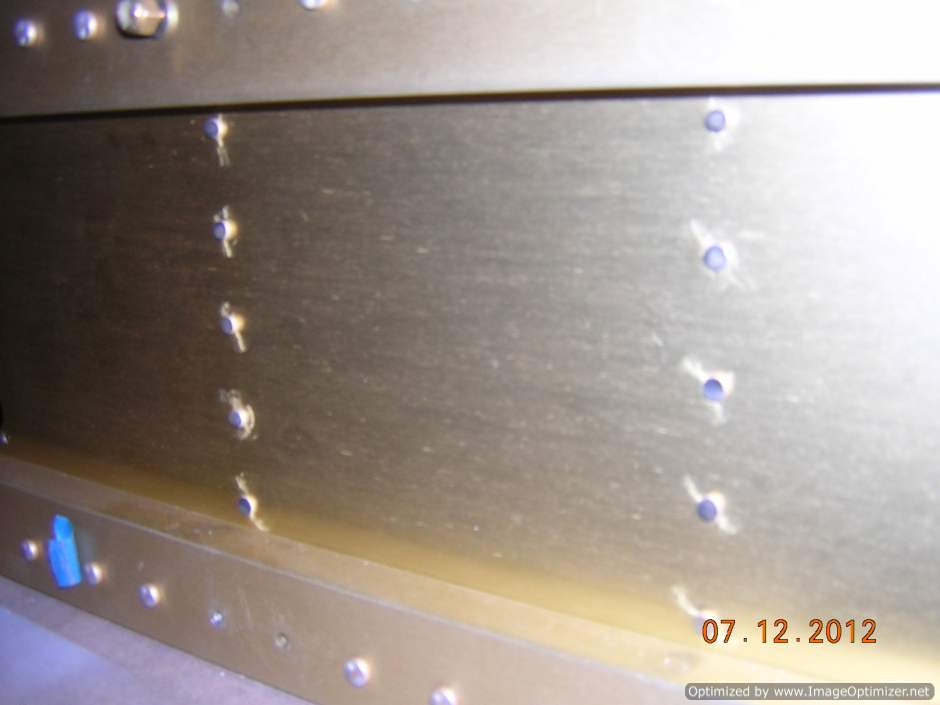

Started riveting the seat ribs to F704 bulkhead
