07-27-2012: 3 hrs

Arm rests are supposed to be a straightforeward job, but I messed one hole to the the F705 bulkhead when using angled drill. But this is not a big deal since the load there is not big, an ovalized hole would be ok here. I will do some finish when it is time to rivet the arm rest.

The conical bend part went smoothly. I didn't have cracks on the tight bend at the forward end. The fit is good.

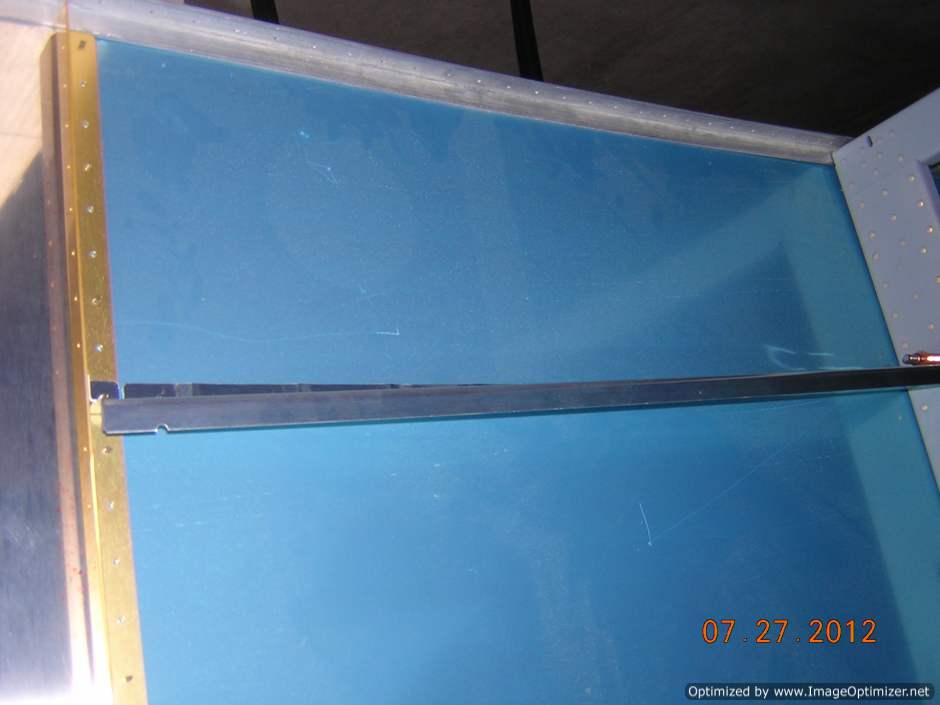

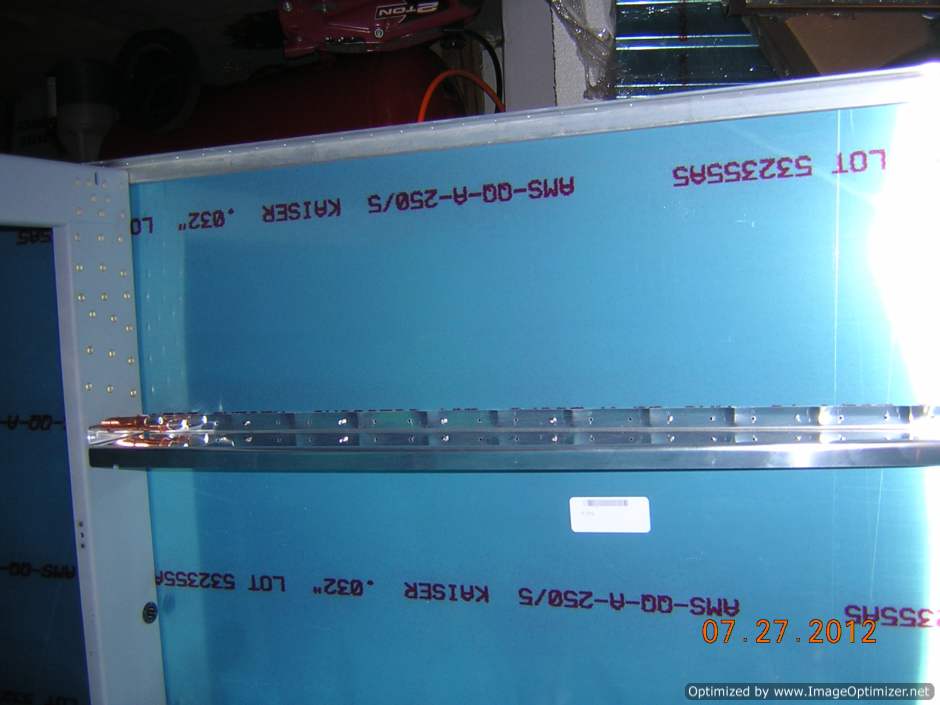

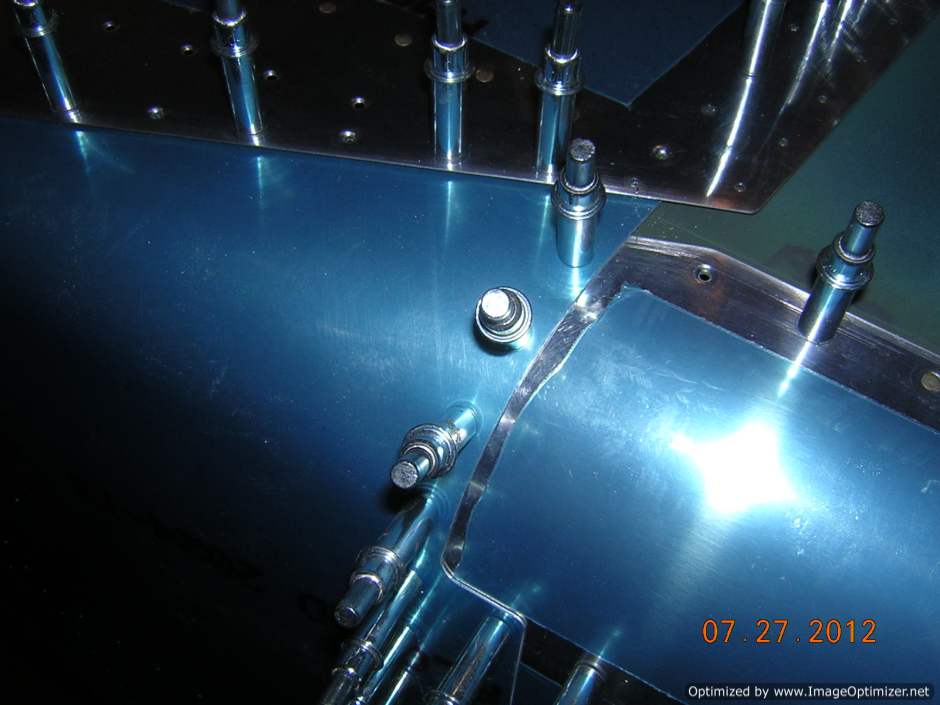

Arm rest is drilled

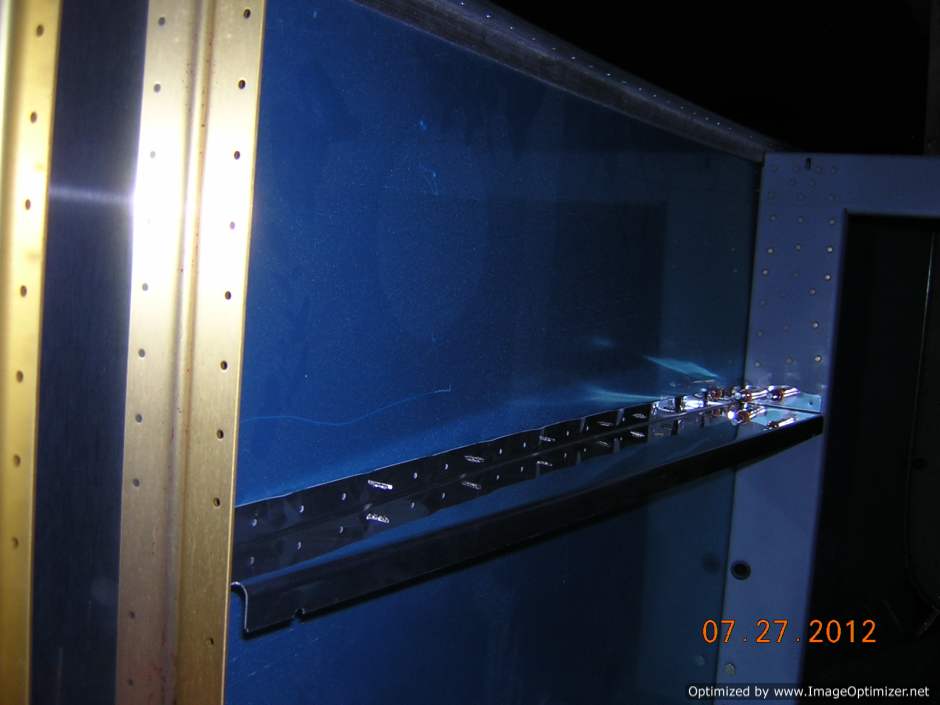

The other side

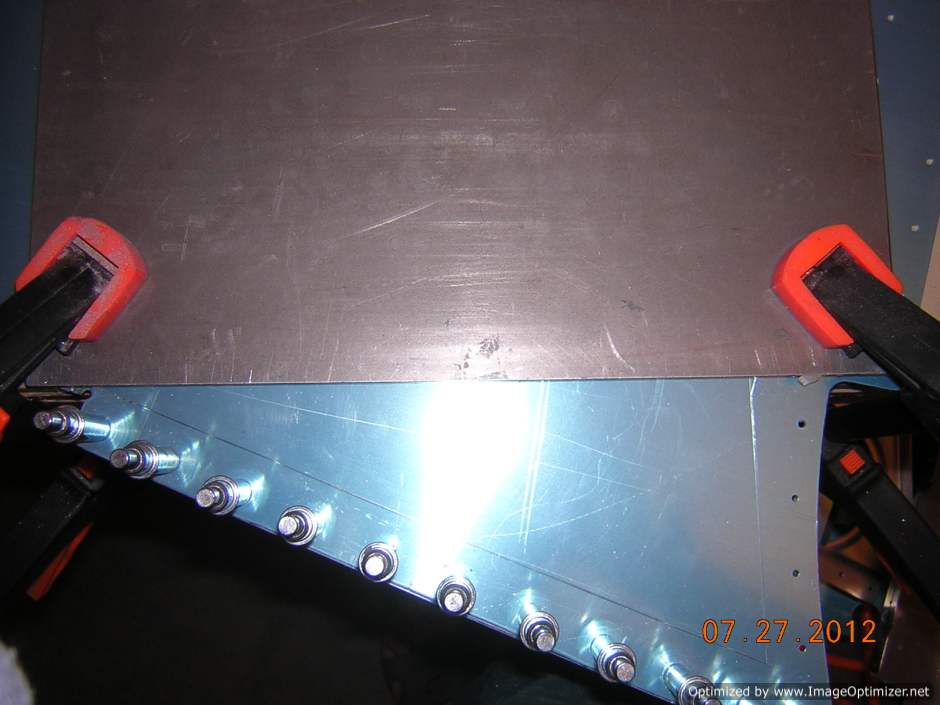

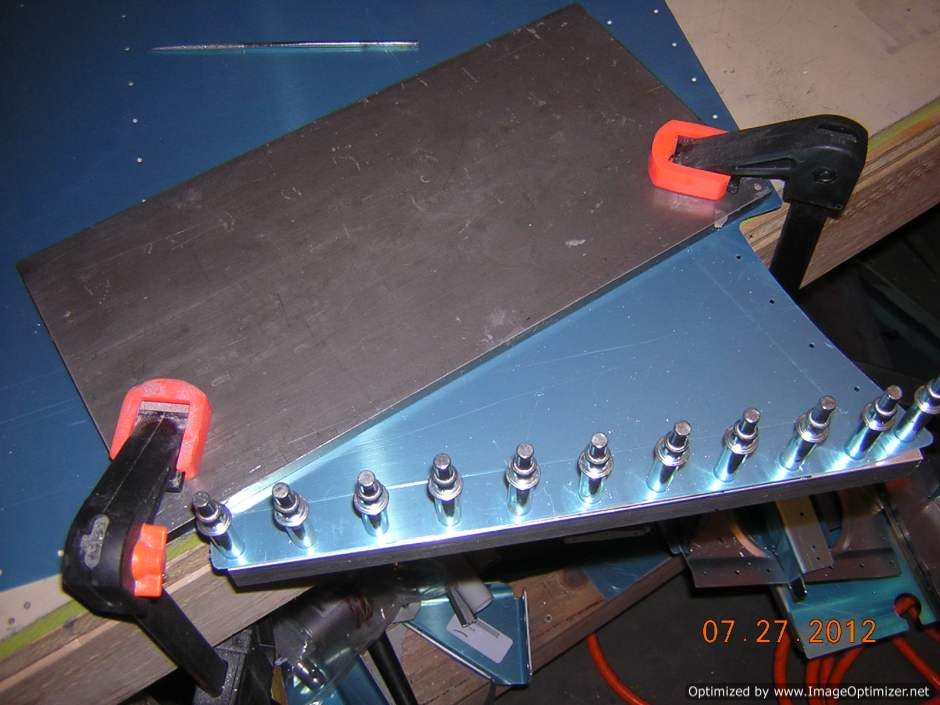

Ready to work on the conical bend

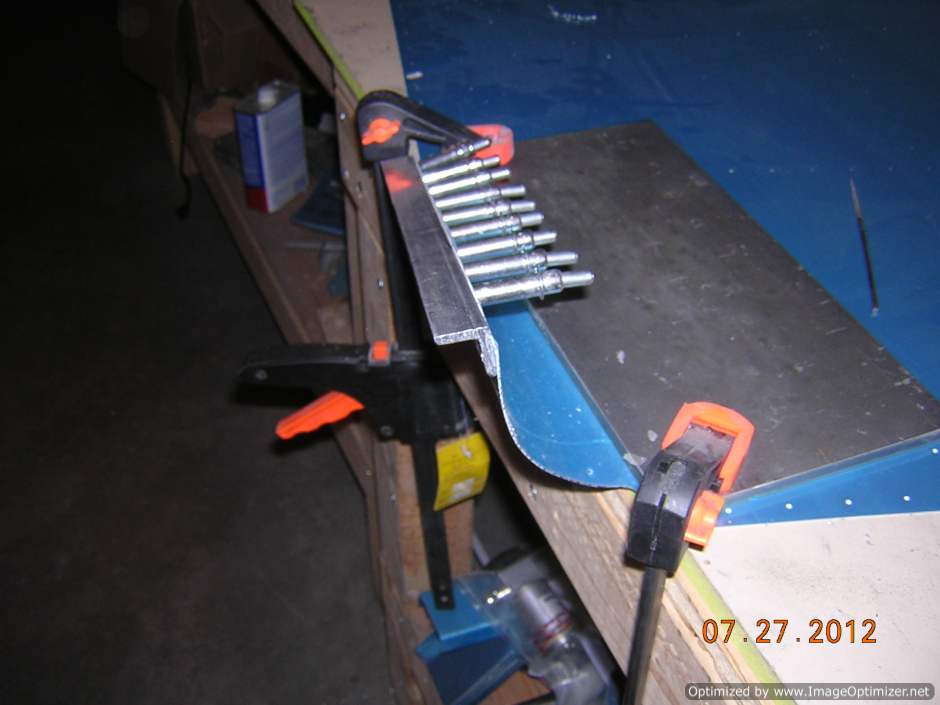

After bending

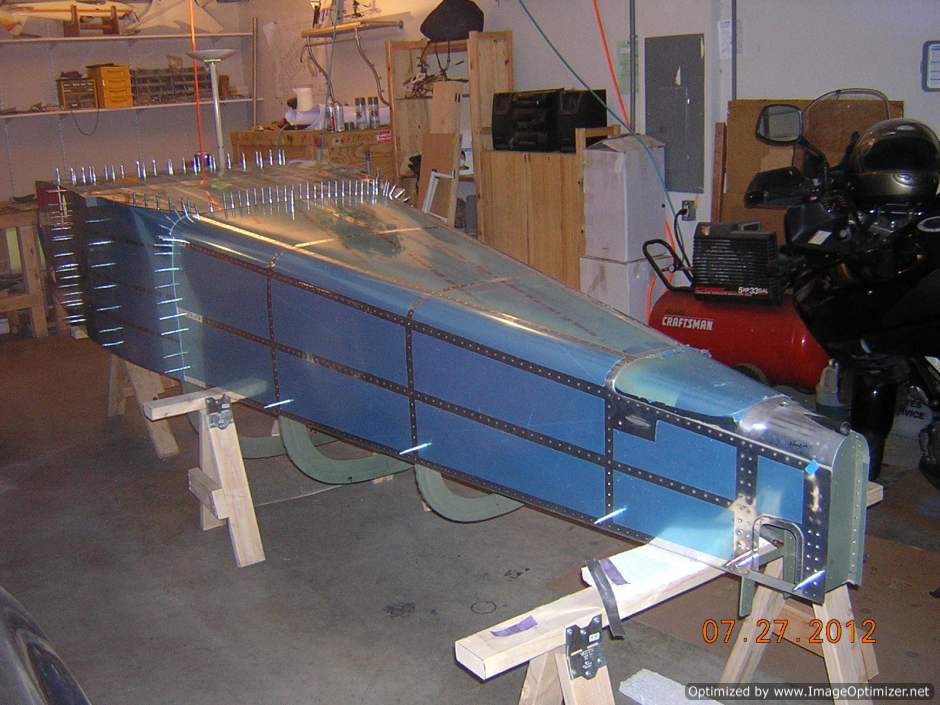

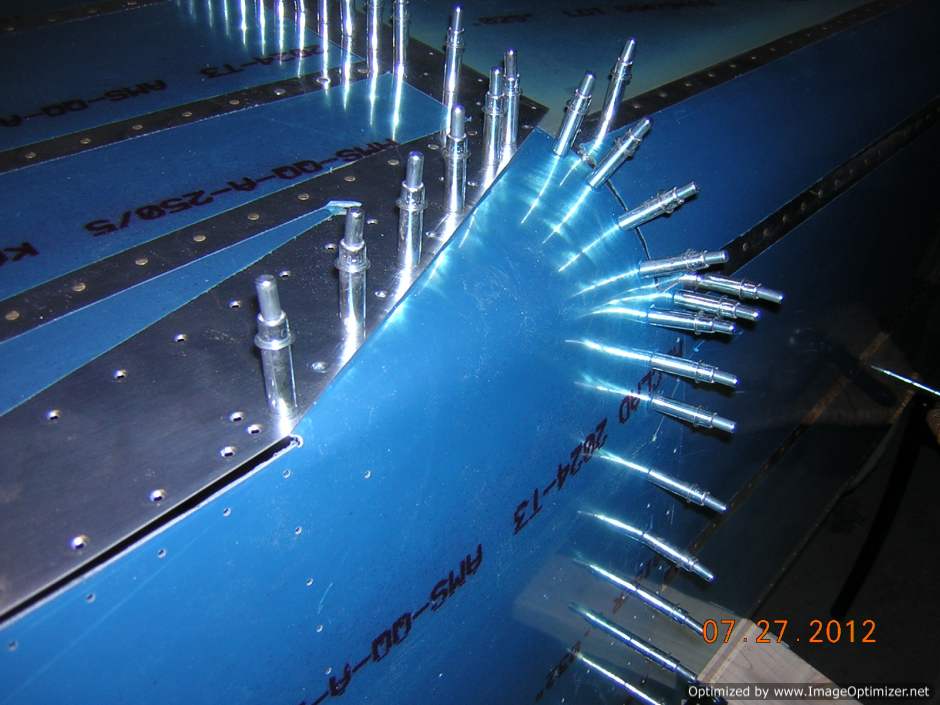

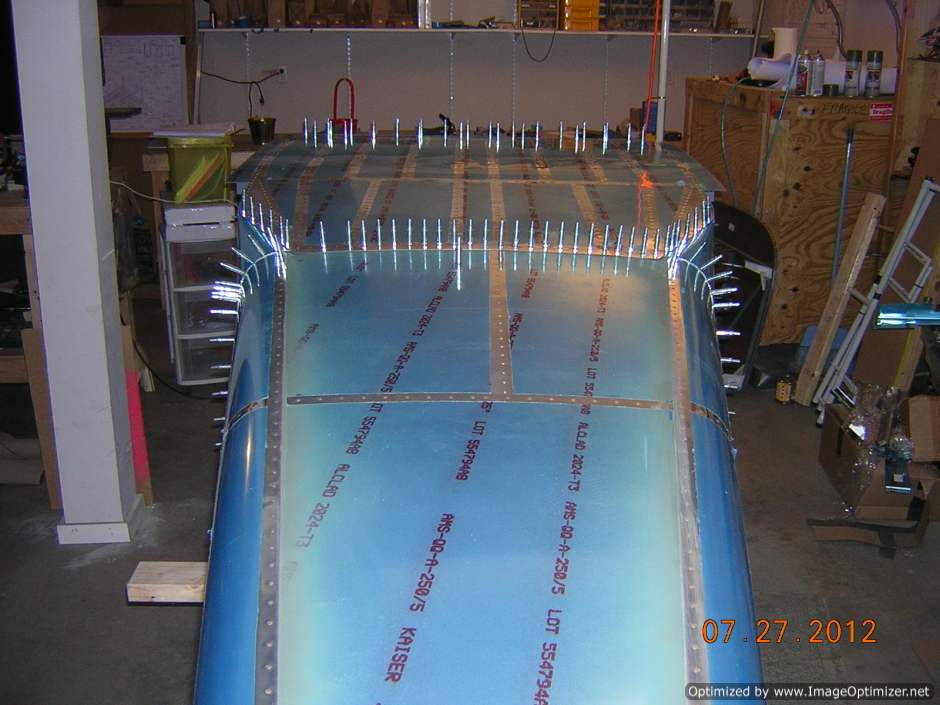

Side skin after conical bend is clecoed back to fuselage, the fit is good. Not cracks

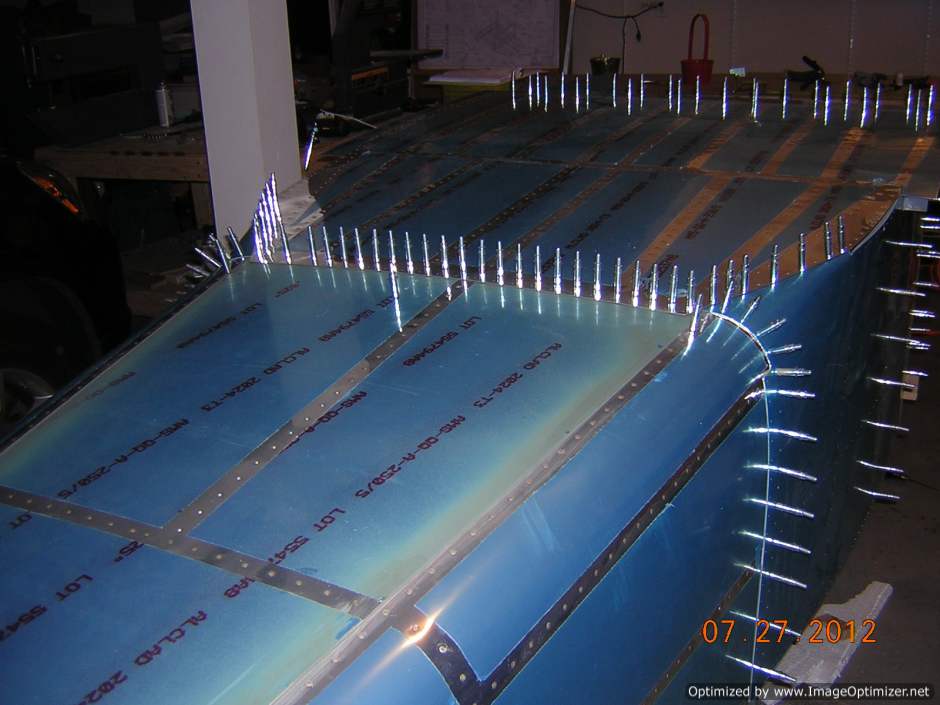

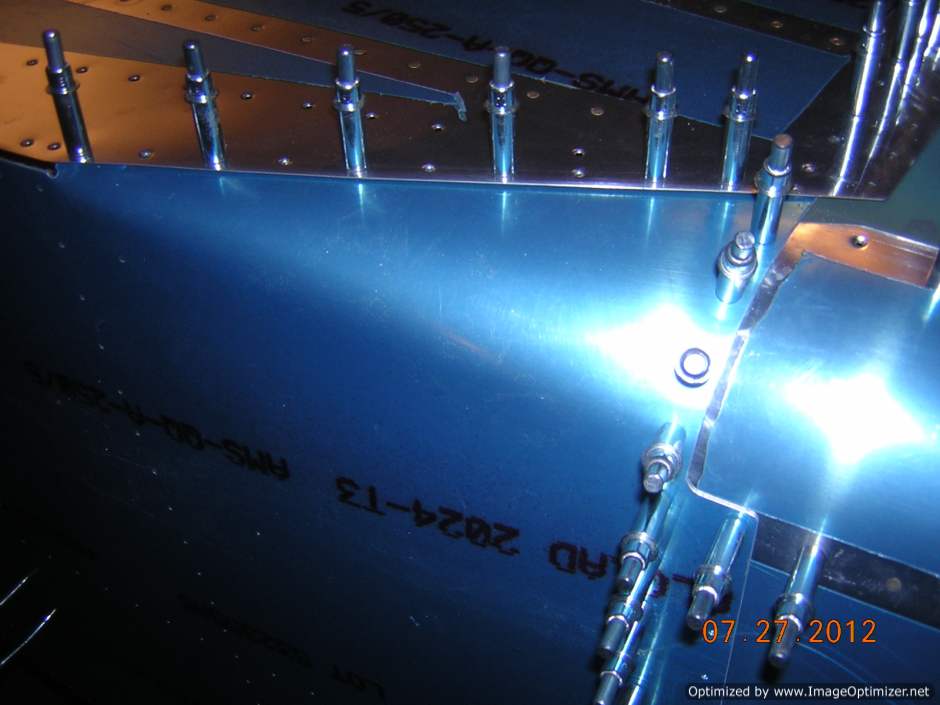

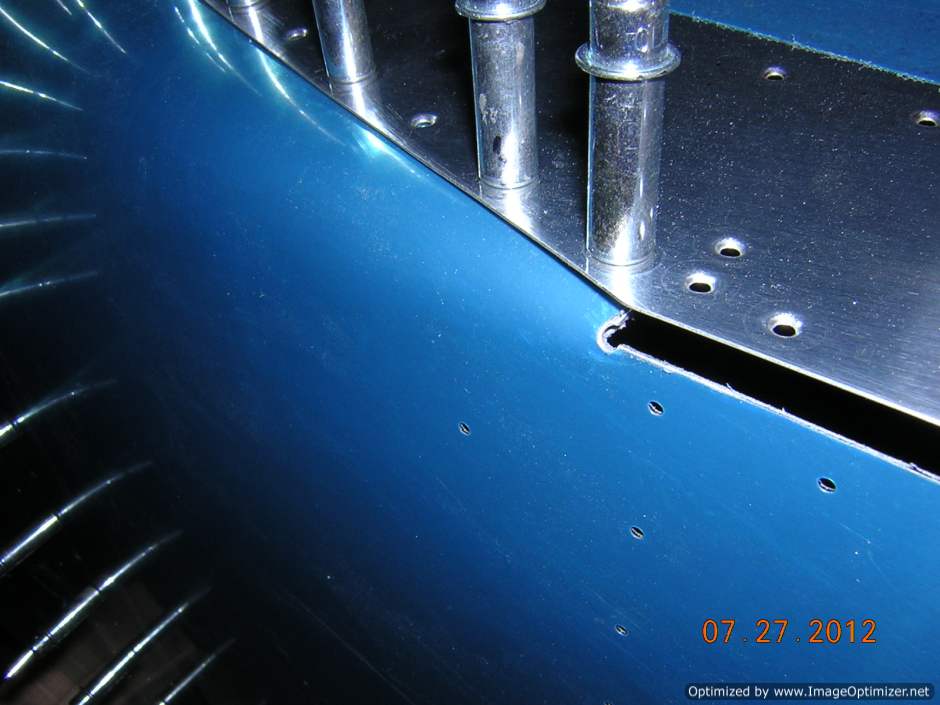

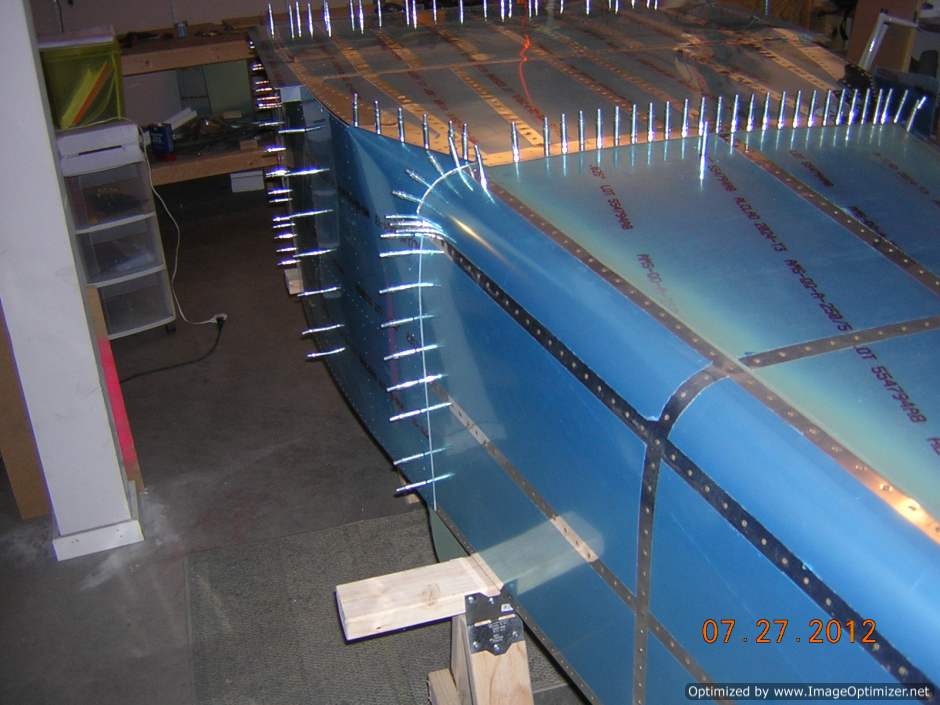

Another view of the fit, no cracks
