08-30-2012: 0.5 hr
Short night in the garage. I decided to buy a table press drill to drill the rudder block to make sure I have a straight drill. So I will not work on the rudder today. Instead, I clecoed on the baggage side ribs to the fuselage assembly. Also, I drilled the gear attach web to the side skin and stiffener. I will leave drilling the gear attachment web to lower longerons to a later time, when bottom skin is clecoed. on

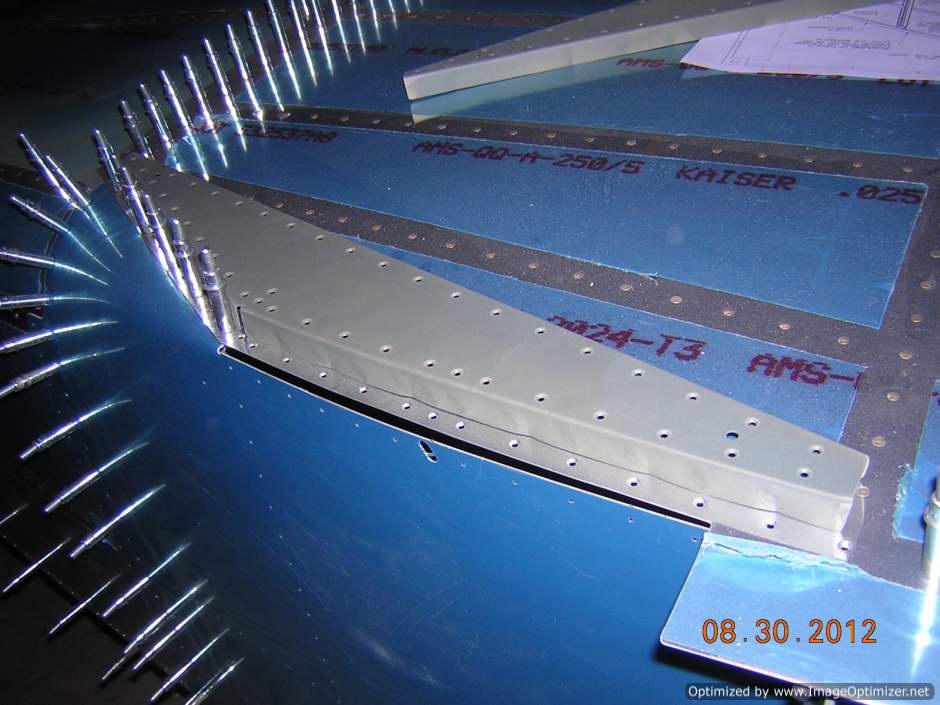

I need to clecoe the F623 outboard baggage rib to the fuselage

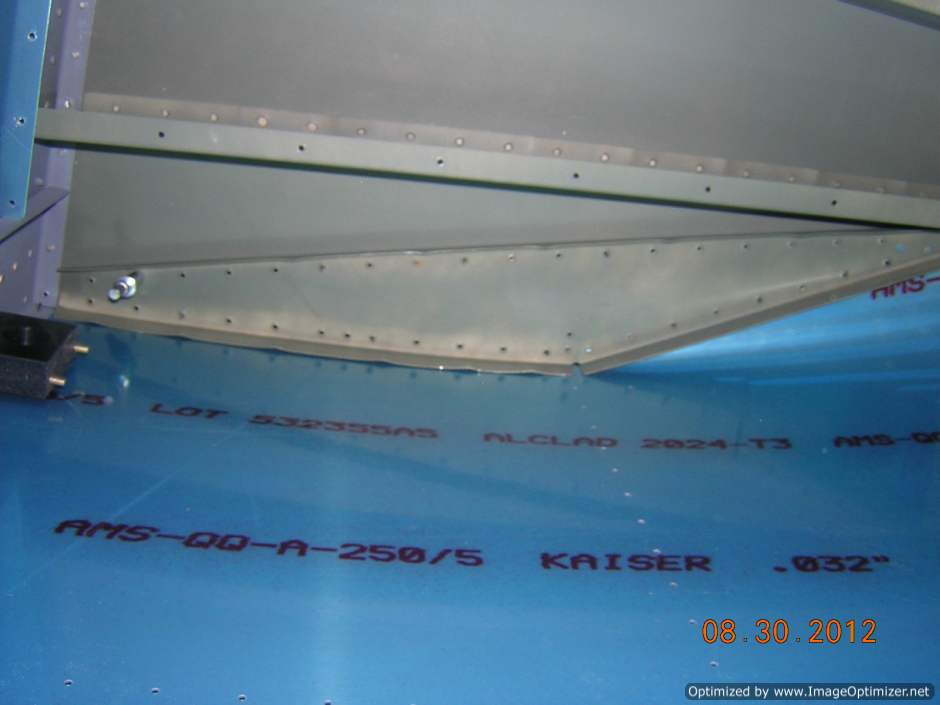

Rib clecoed

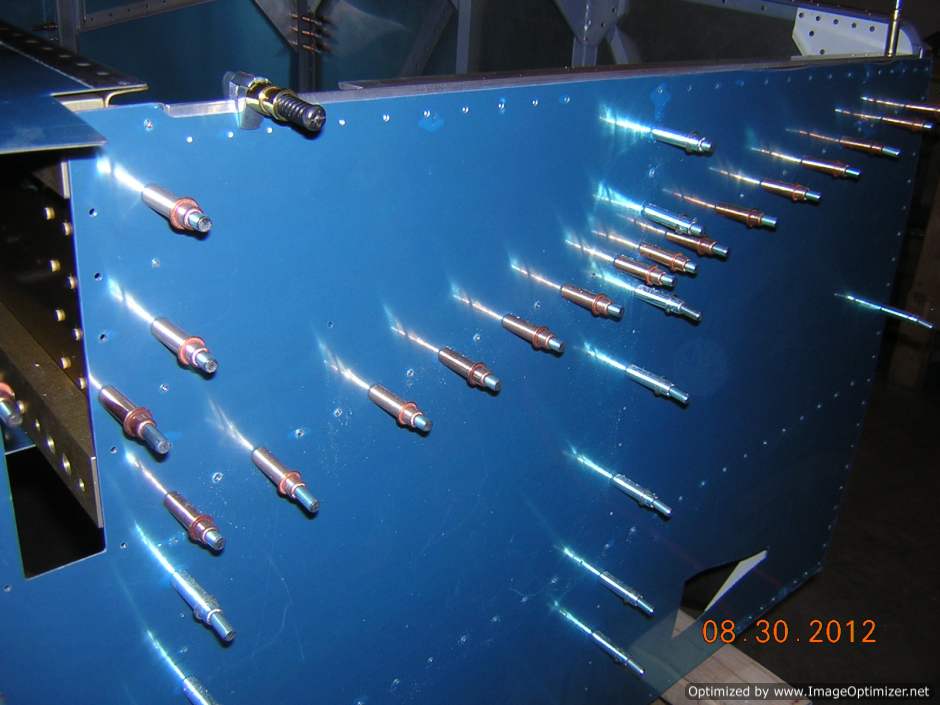

Gear attach web drilled

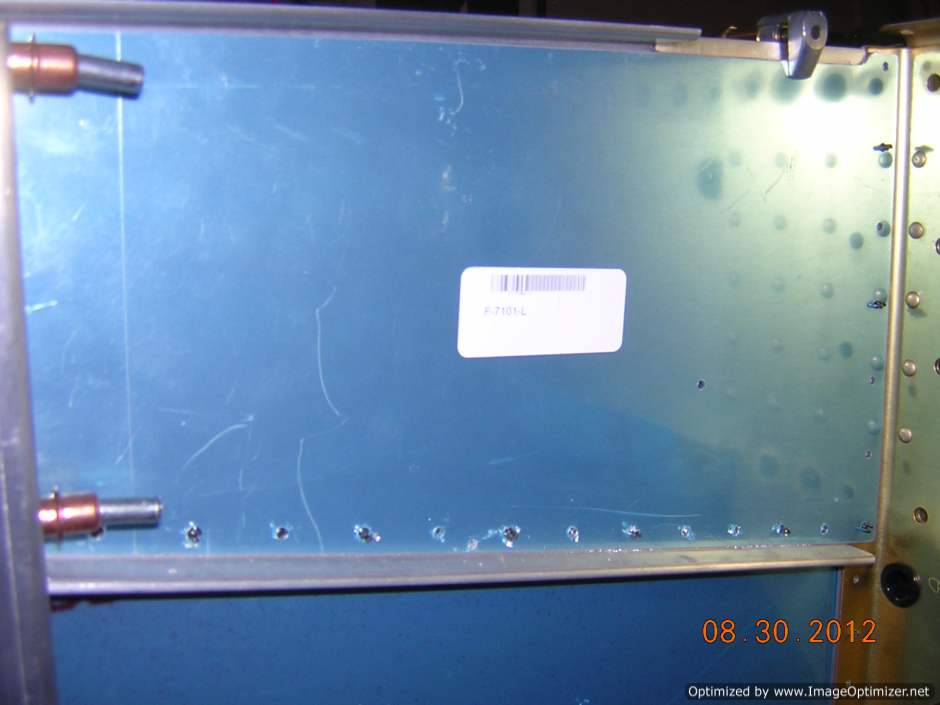

Top row rivet (bottom in the picture) holes of gear attach web are drilled

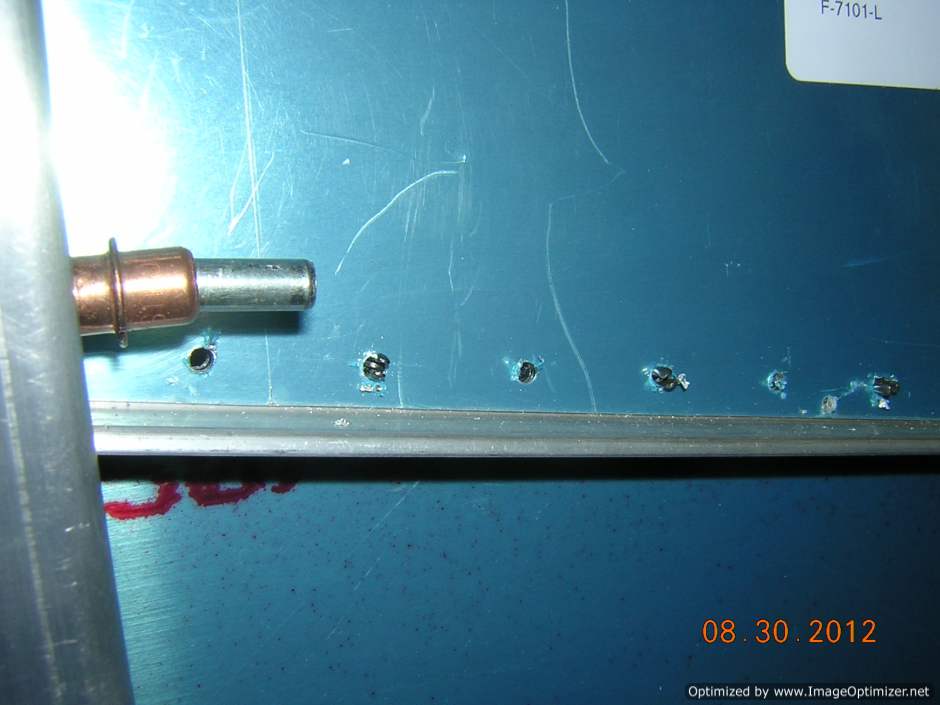

Close up view of the drilled holes, edge margin is good
