09-30-2013: 1.5 hrs
Did some wiring work tonight. I wired the wires from the two skyview D37 female connectors together and terminated it using a 5-pin Molex connect to (only 4 pin is used for Skyview audio out left and right, audio ground, and dim out). Per Dynon instruction, the intercom should be only connected to one Skyview, while the audio signals should be connected to both Skyview. Then I played around a bit to see how I can make the wire bundle look neater.

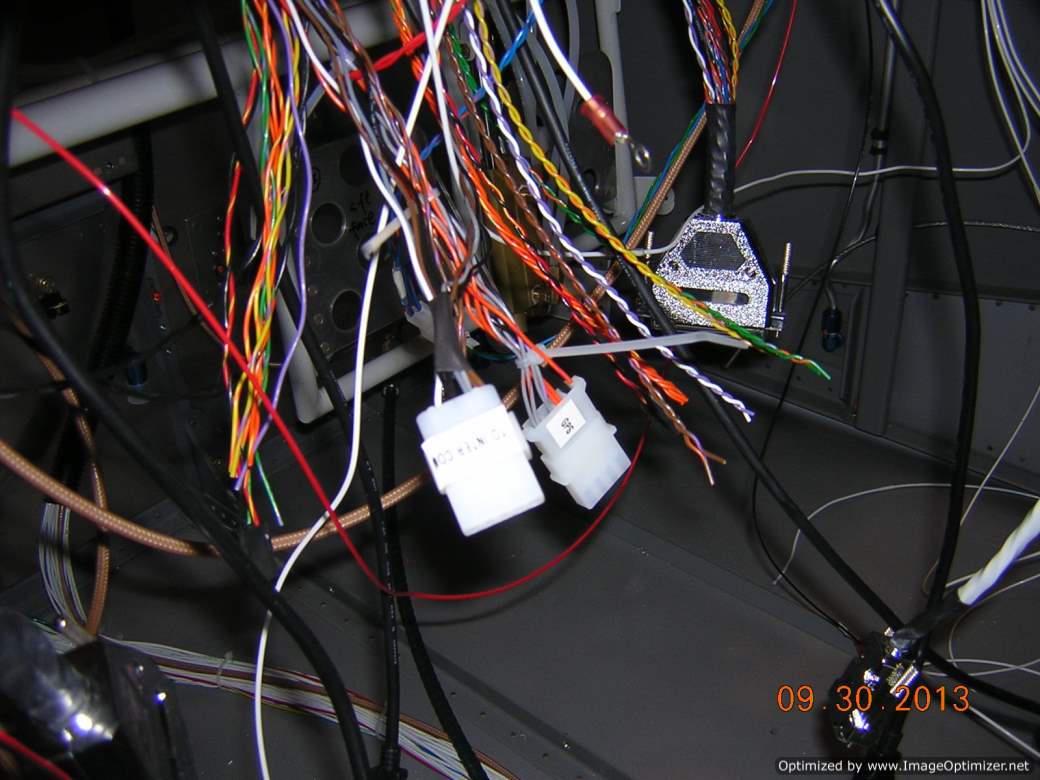

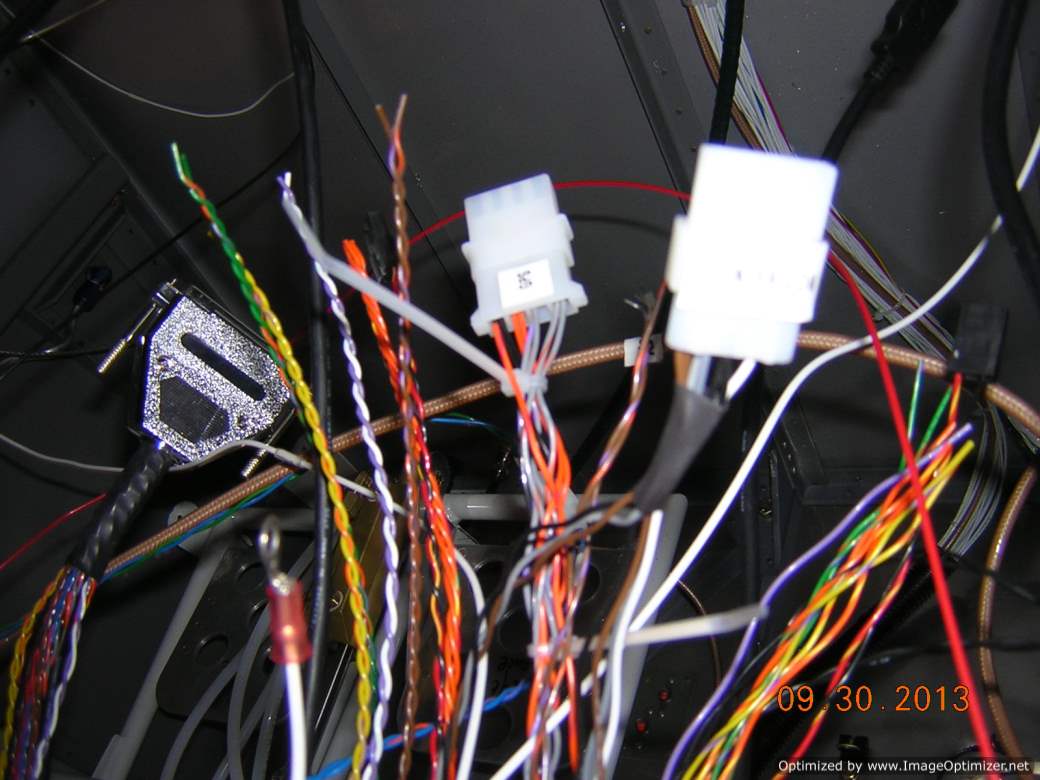

Skyview D37 connector is wired to Molex connectors to Intercom
