10-04-2011:

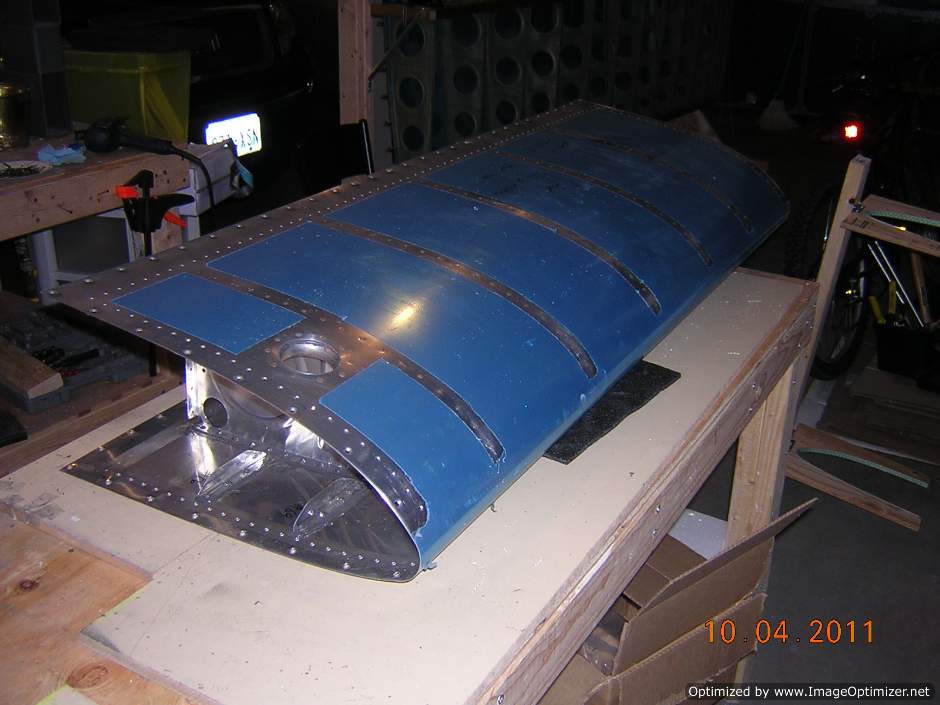

Bottom surface of the skin is riveted to interior ribs, looks like a fuel tank now

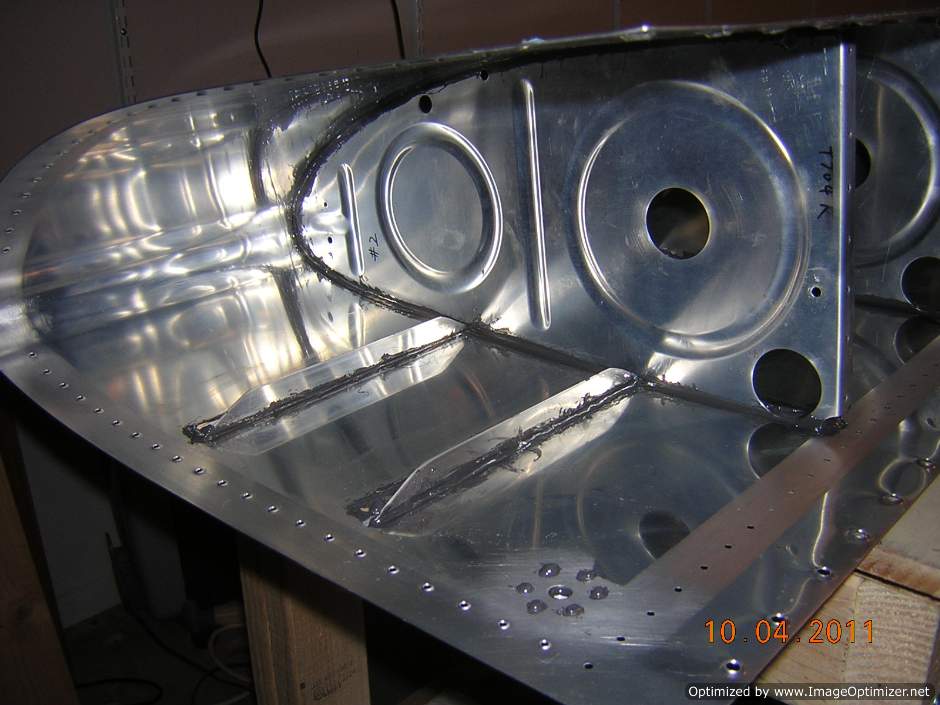

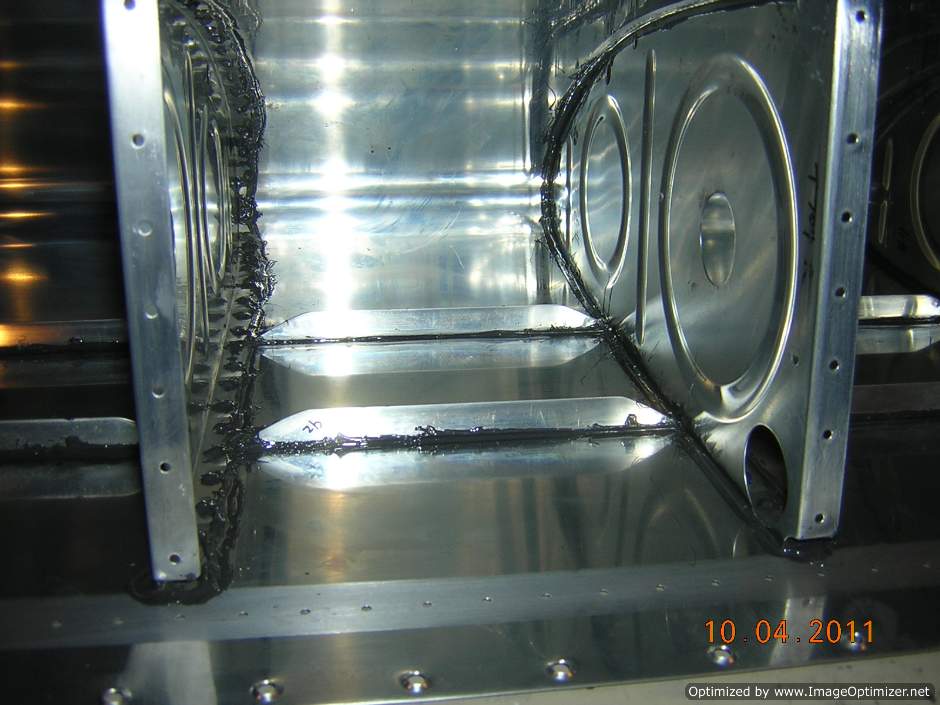

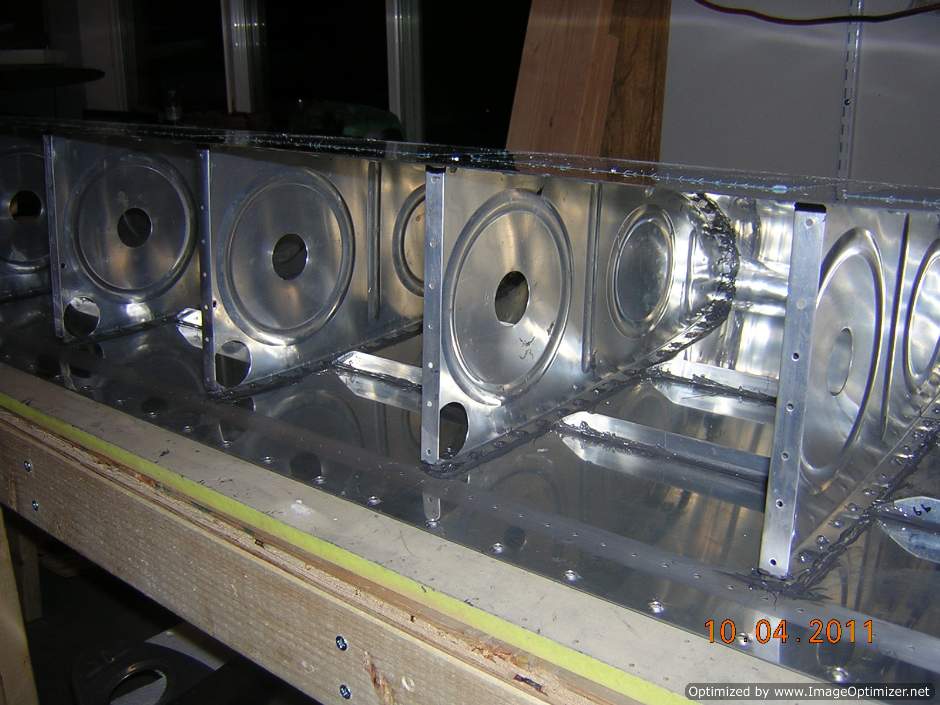

The sealant beads around interior ribs, again, they don't look great, but I made sure all gaps are filled. I found using a plastic knife can do a better job of making nice looking fillet, but it was a little too late, I will use it for left tank construction. The fillets so far were made mostly by a chopstick you will find in Chinese take-out

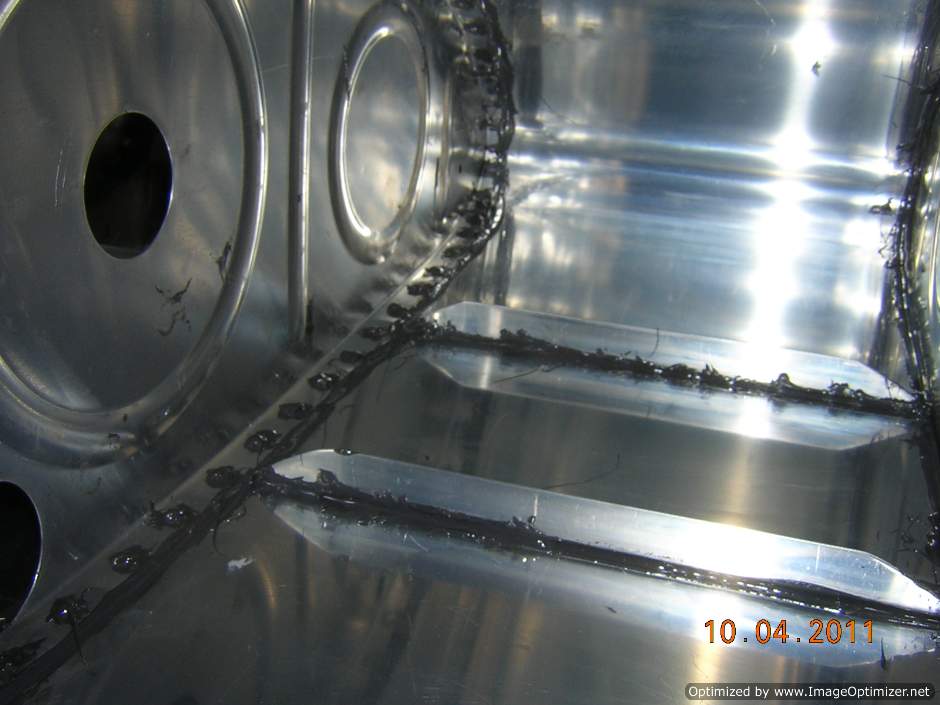

Shop heads are all sealed with a dab of sealant
