10-09-2011:

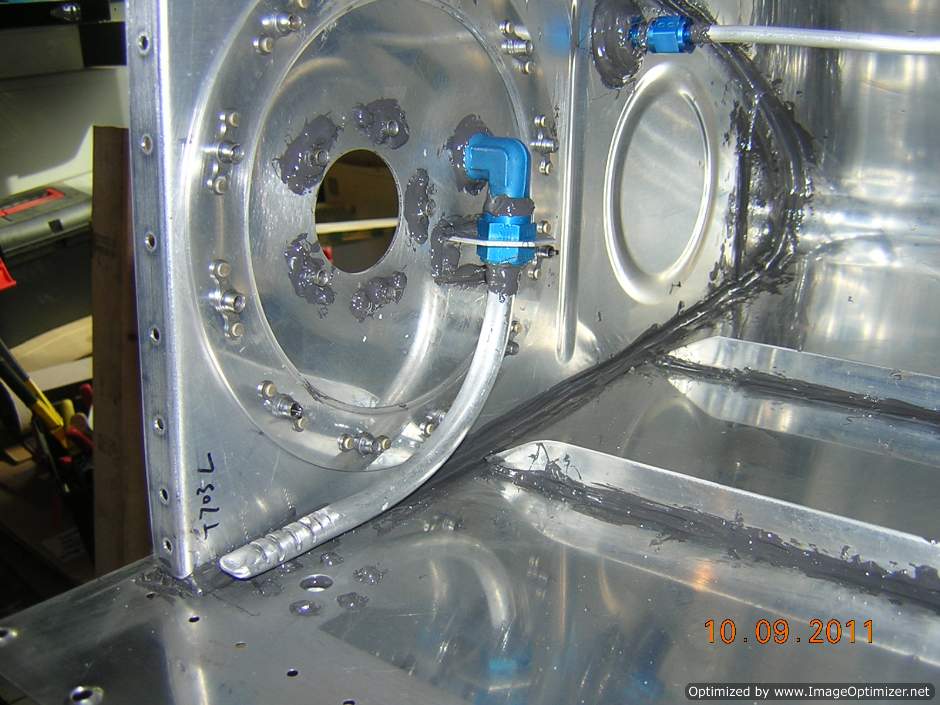

The fuel pick up tube fitting is tightened and pro-sealed

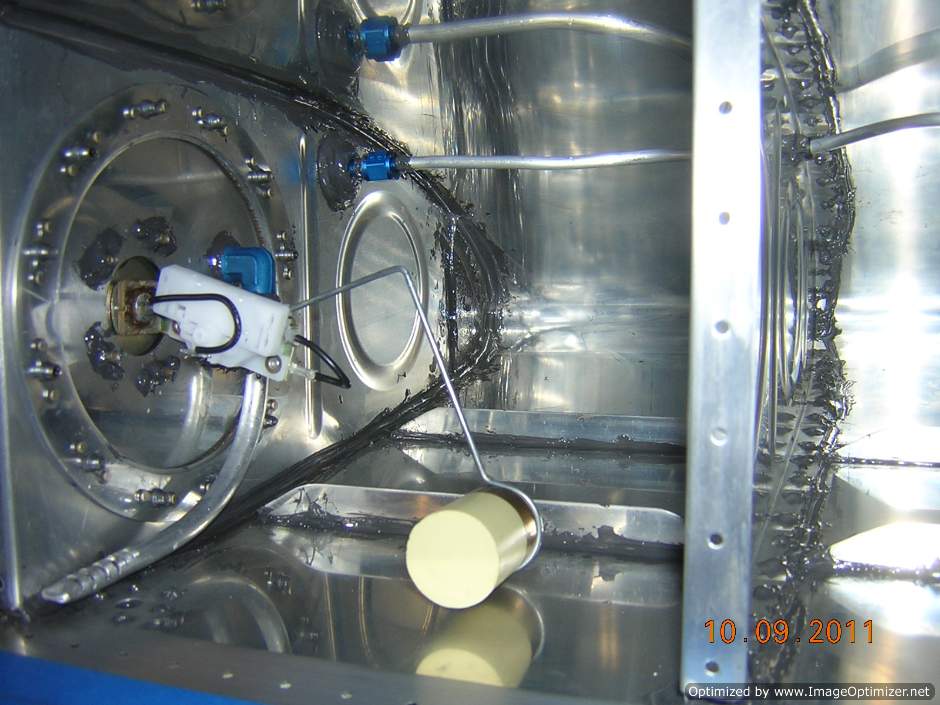

Fuel sender is installed

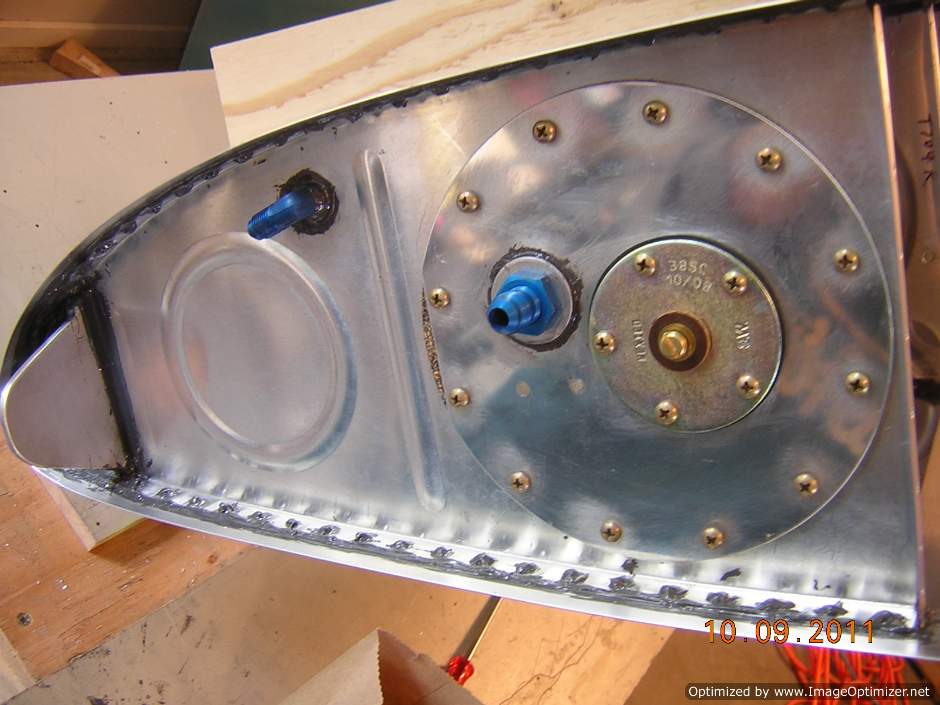

Outside view of installed fuel quantity sender

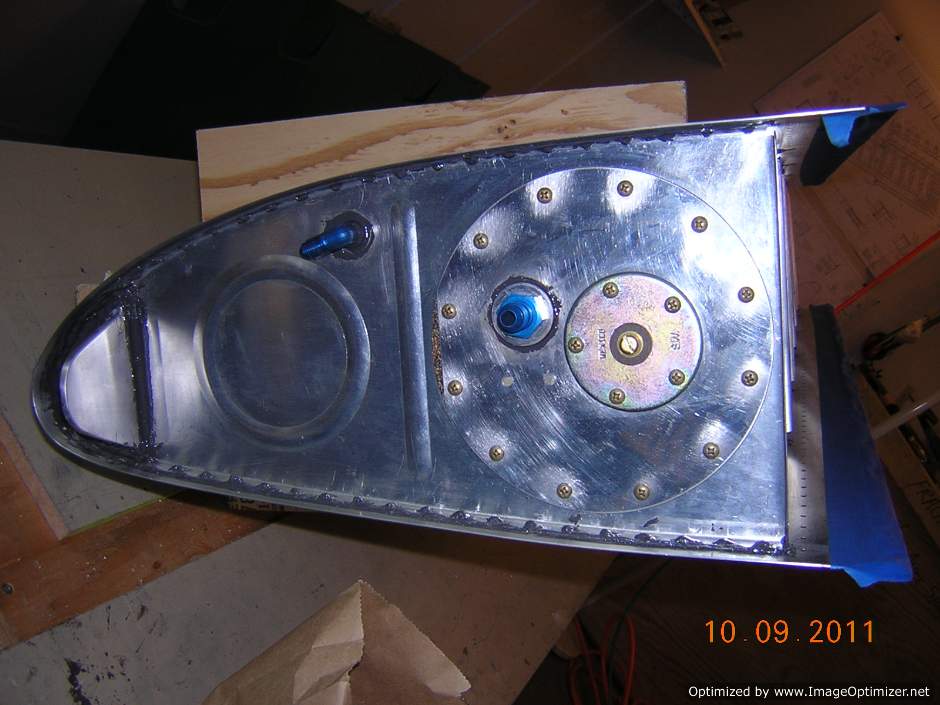

Outside view of installed fuel quantity sender

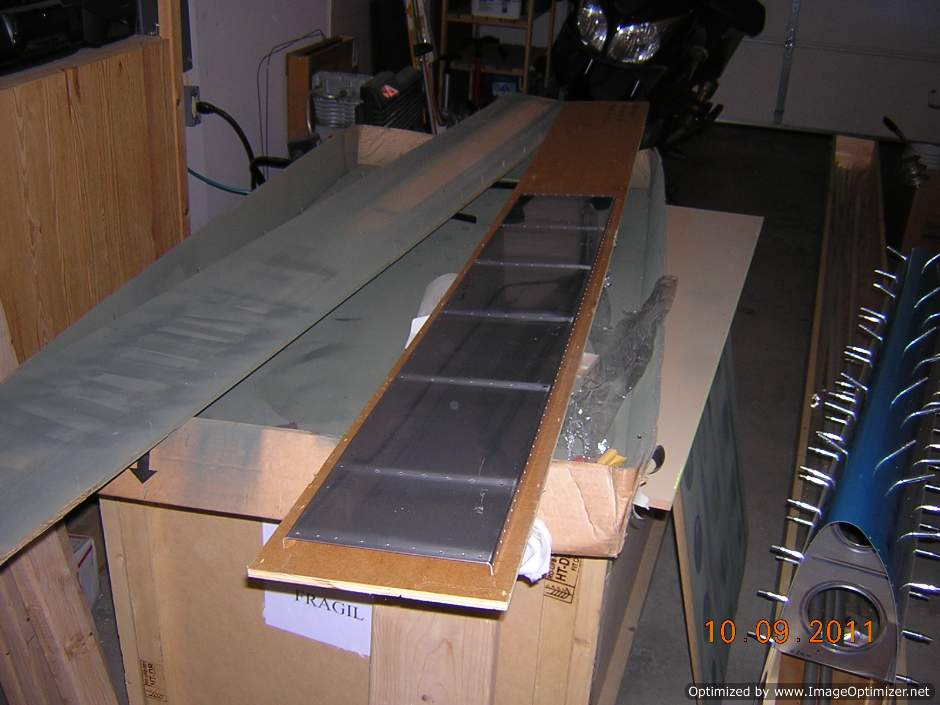

Baffle is roughened for assembly

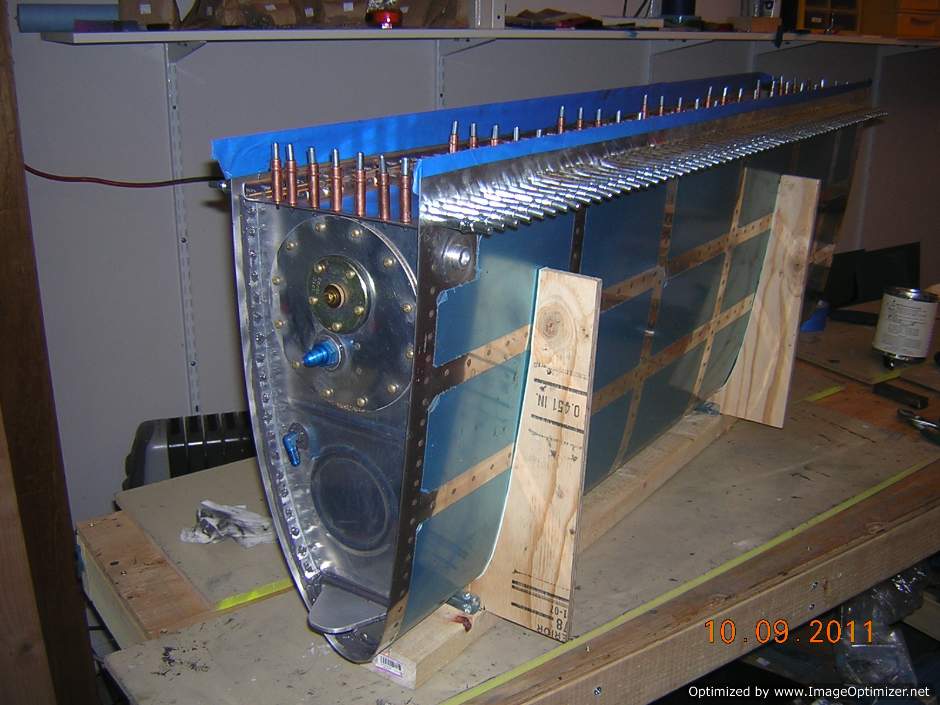

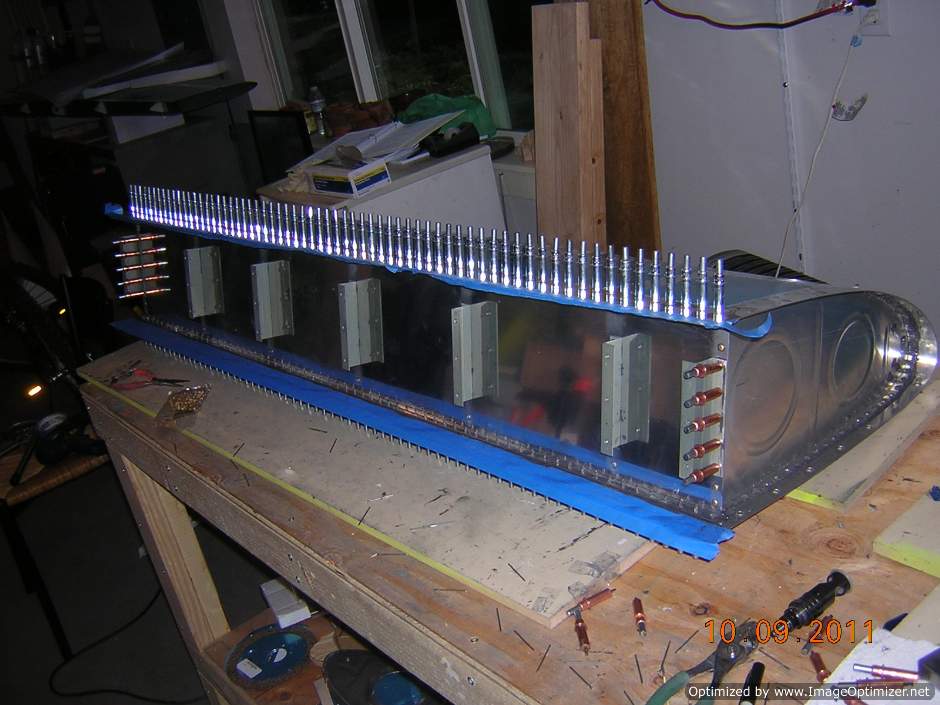

Rear baffle is clecoed to fuel tank assembly

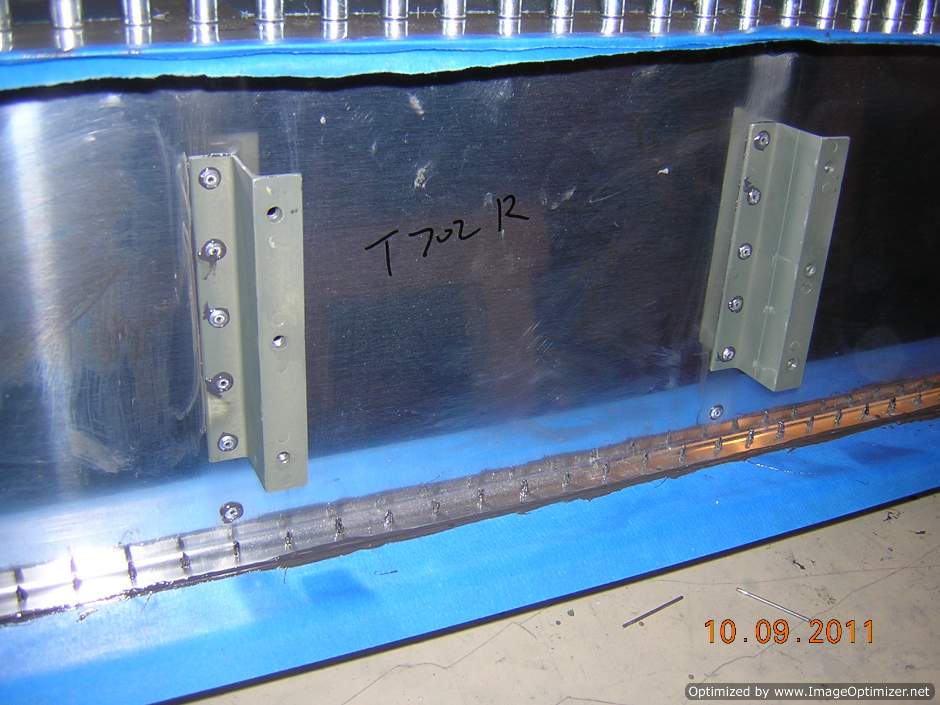

Z bracketd are riveted to the battle, except the end ones where solid rivets will be used

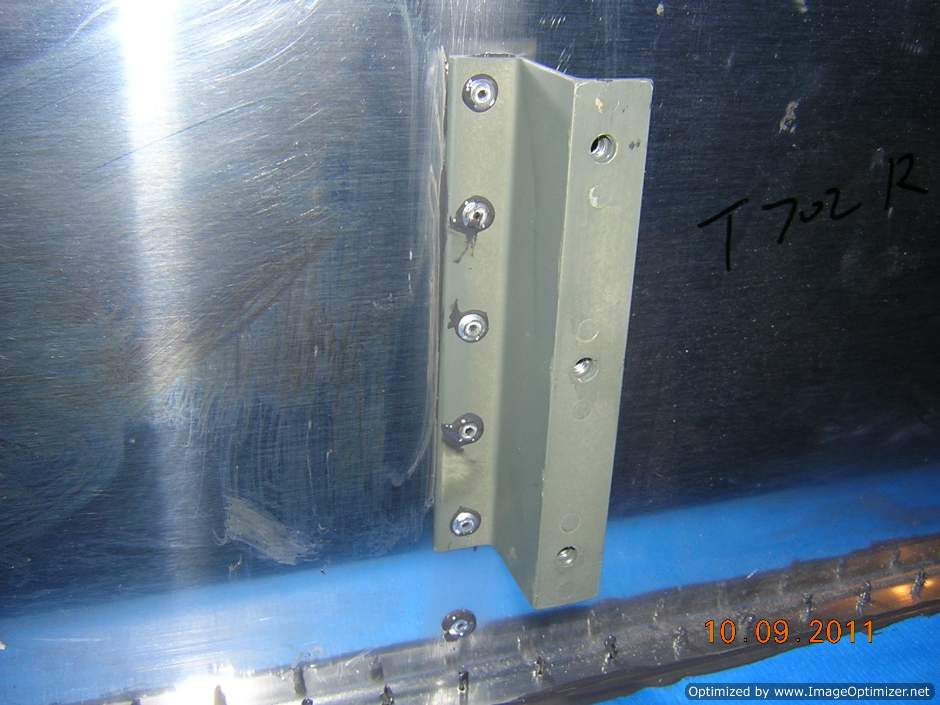

Close up view of pop rivets for Z brackets

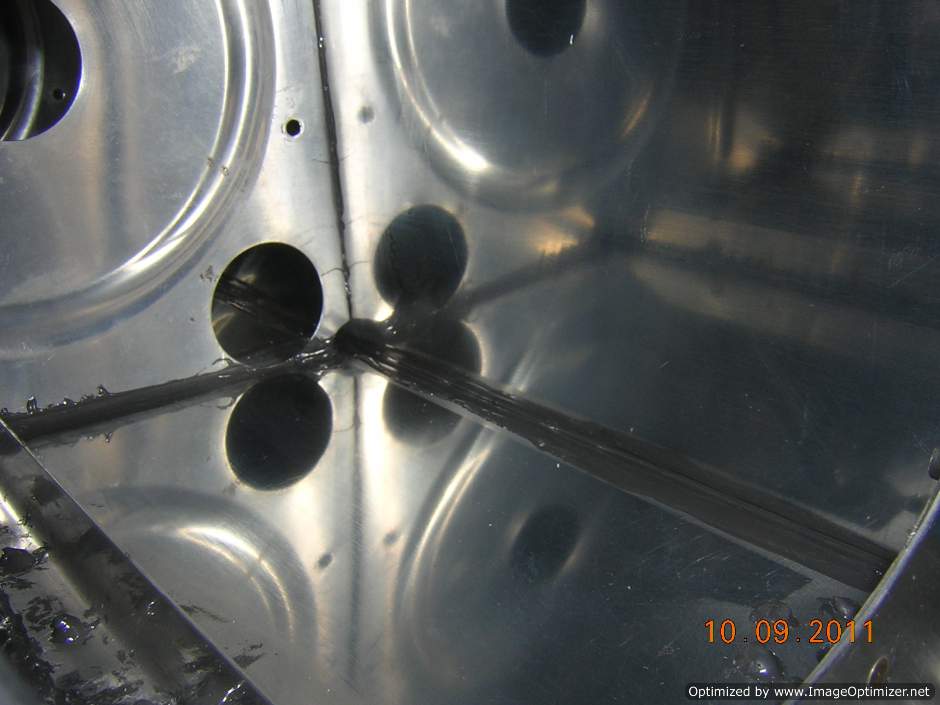

The sealant bead at bottom of the baffle, not bad

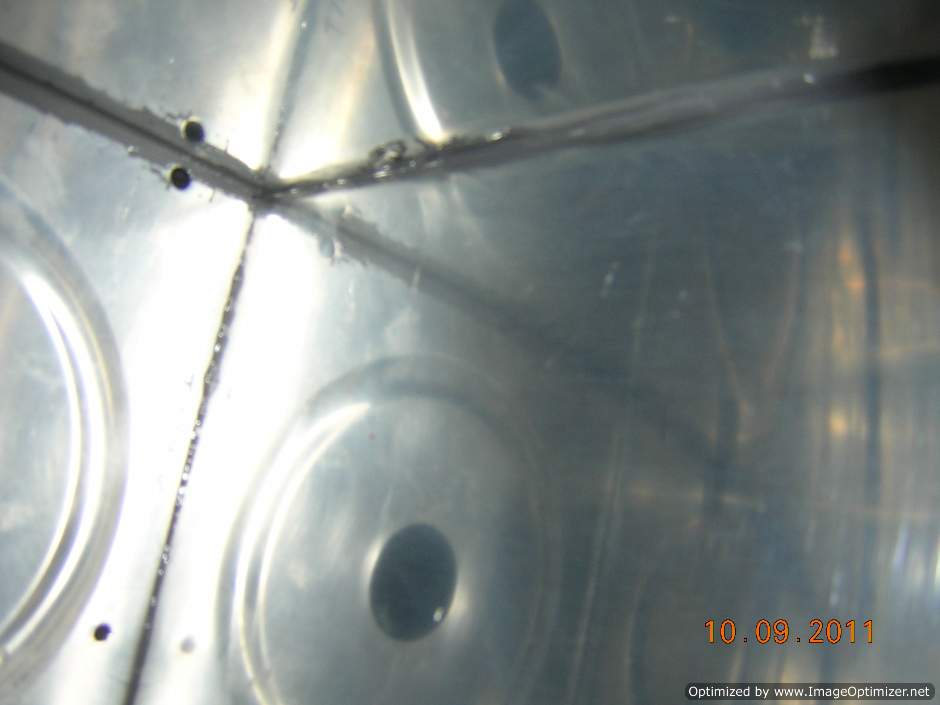

Sealant bead at top of the baffle, looks ok

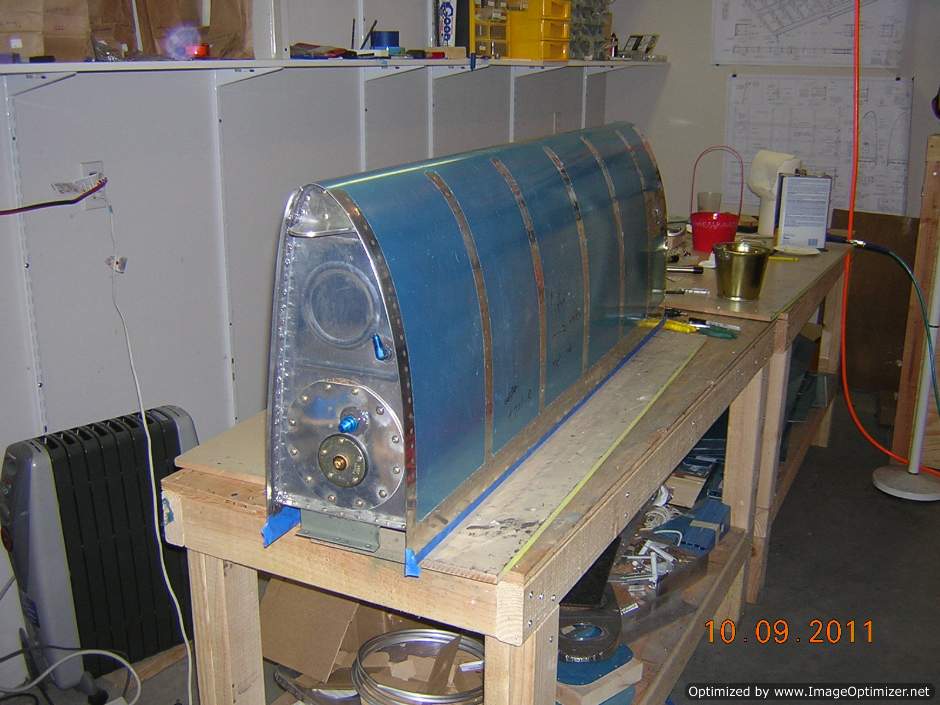

Right fuel tank is done
