11-14-2012: 3 hrs

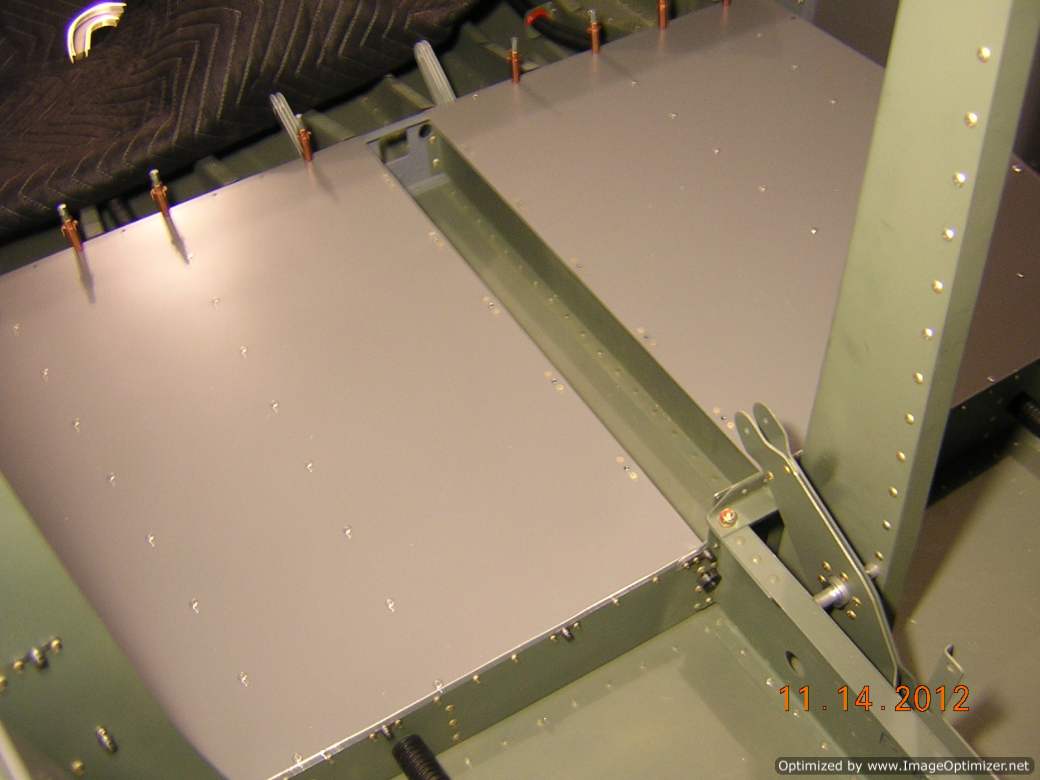

Installed bellcrank, and riveted baggage floors. The floors are painted as well.

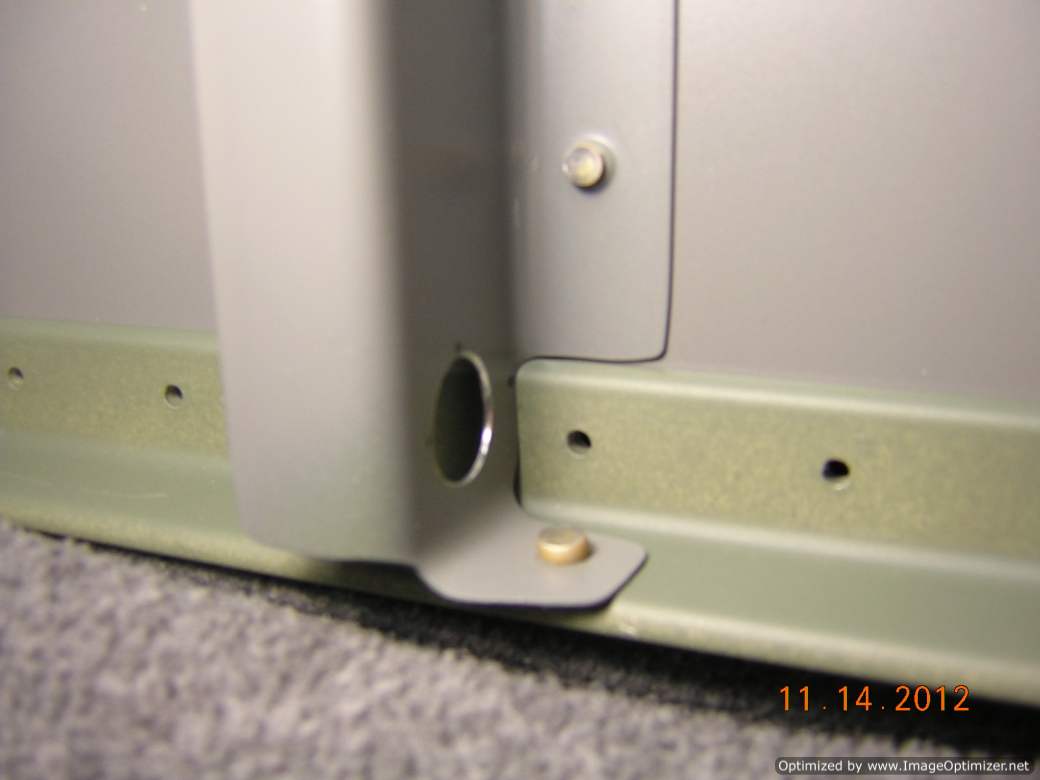

I riveted the cargo area vertical bulkhead to longeron. Look at the scratched primer. I will do some touch up later

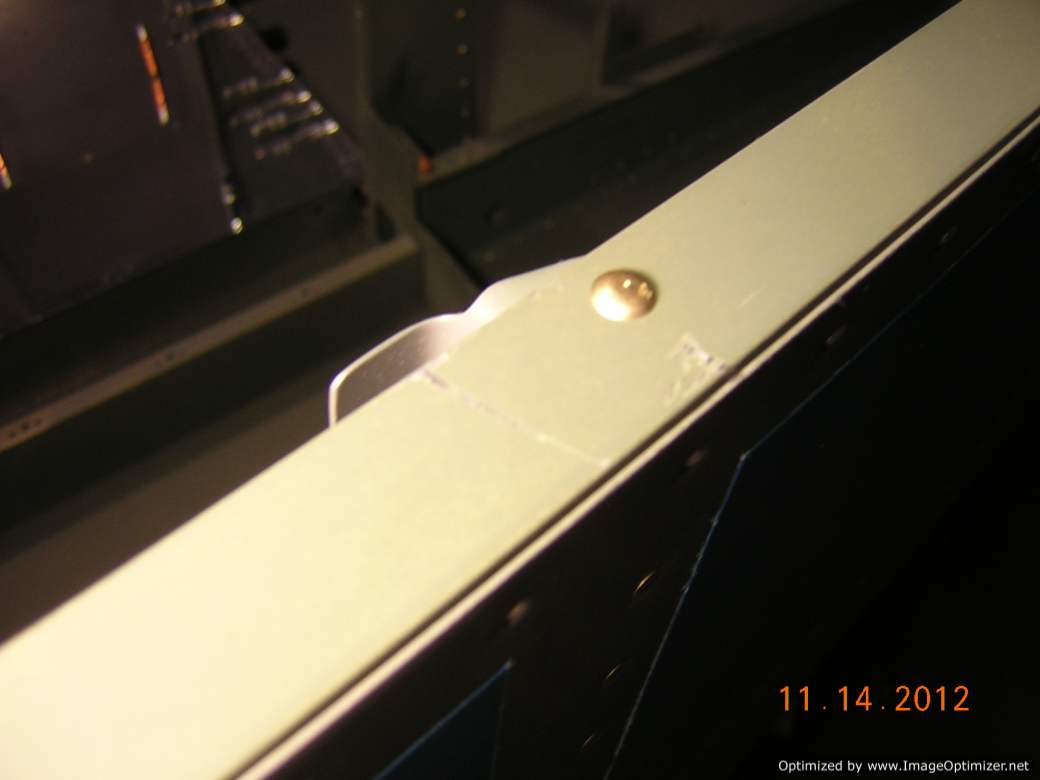

The shop head of the rivet shown above

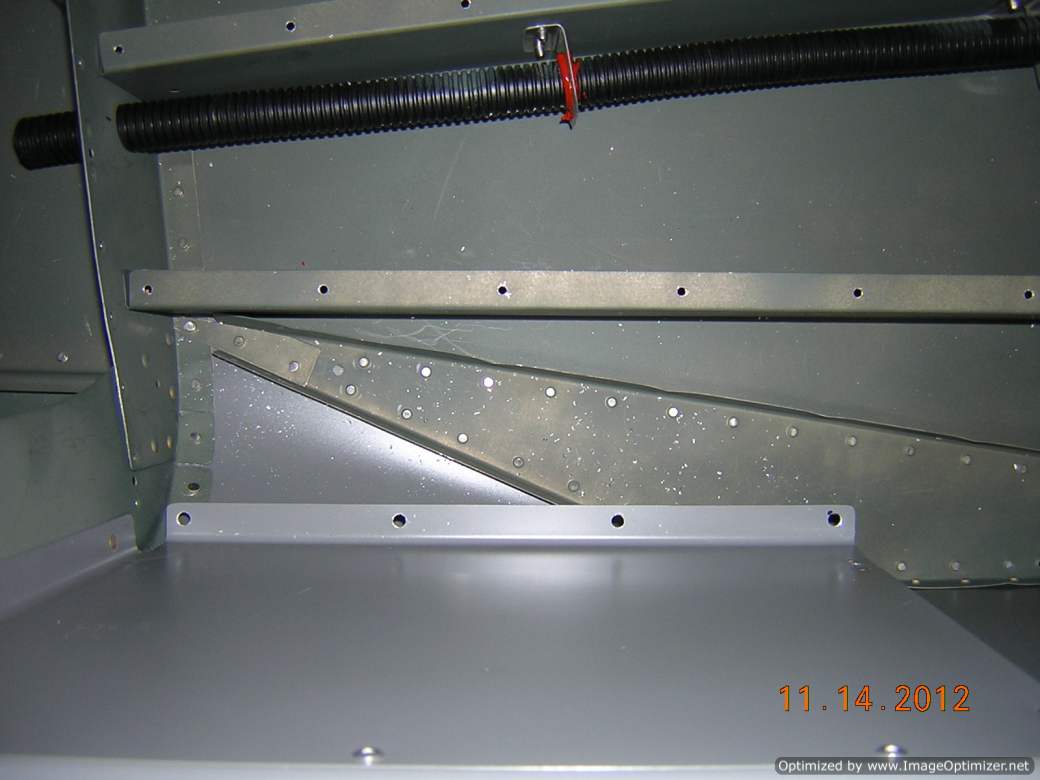

Due to severe misalignment between the floor and right side cover, I had to make the holes bigger. I will use a very fat aluminum pop rivet here.

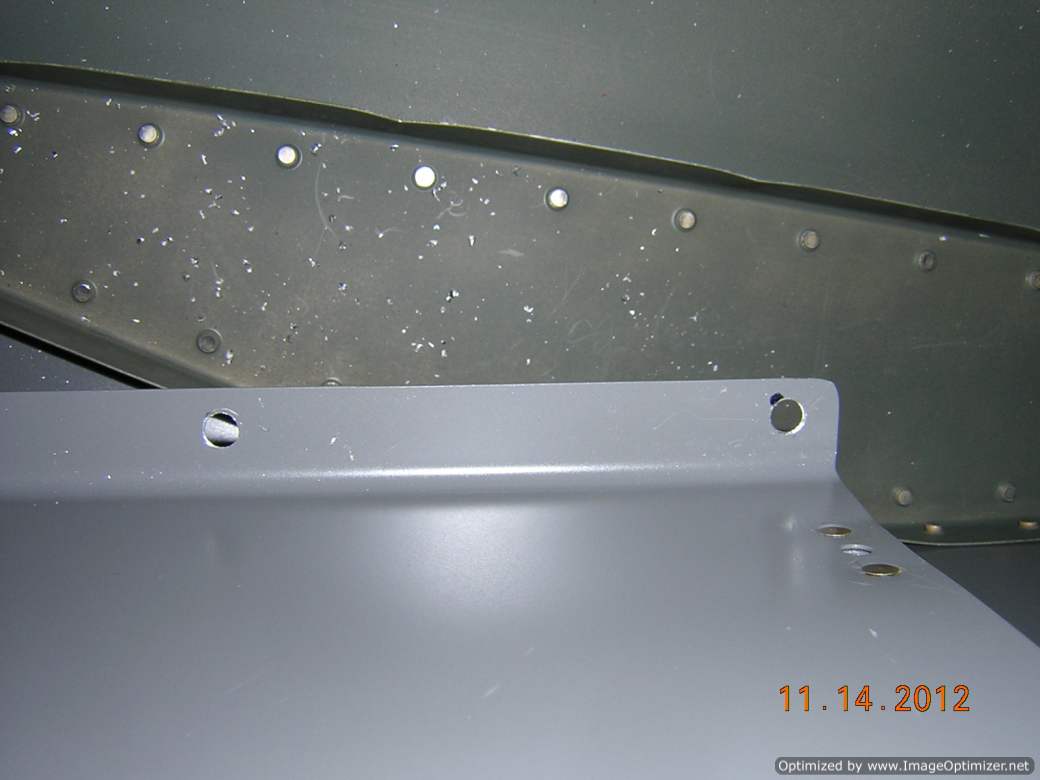

Close up view of the big fat rivet hole, they look good though

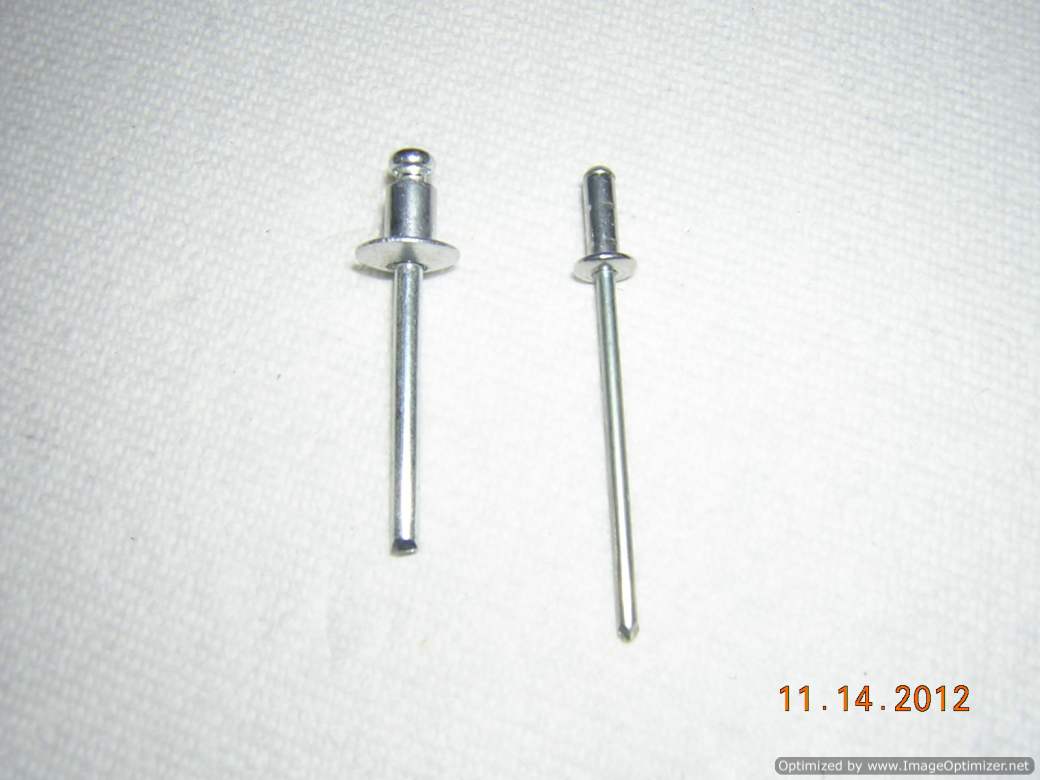

The fat rivet I will use is on the left. On the right is the LP4-3 rivet called out in plan

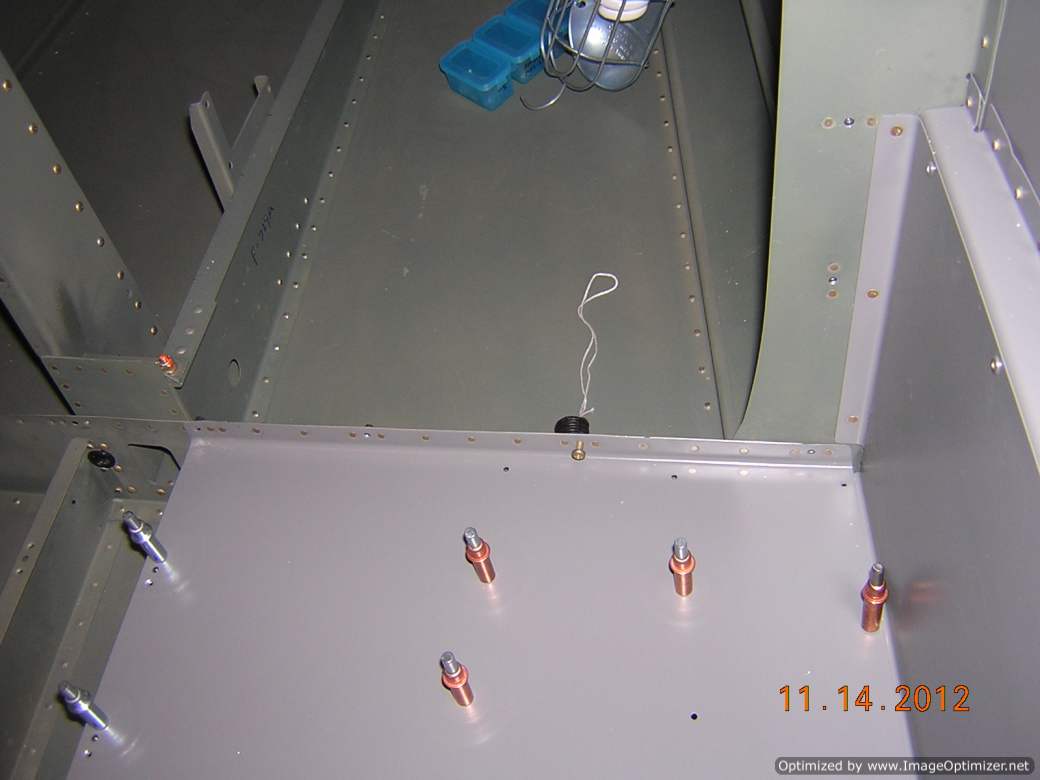

Floors are painted and clocoed to ribs
Left cargo floor is riveted using pop rivets

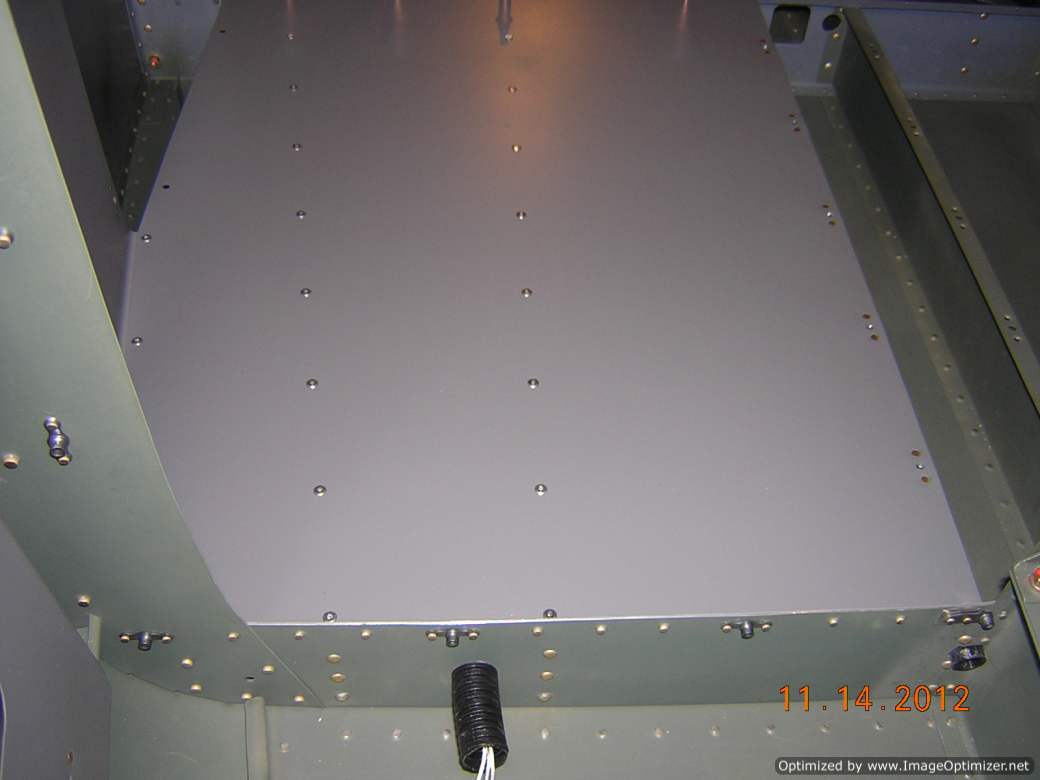

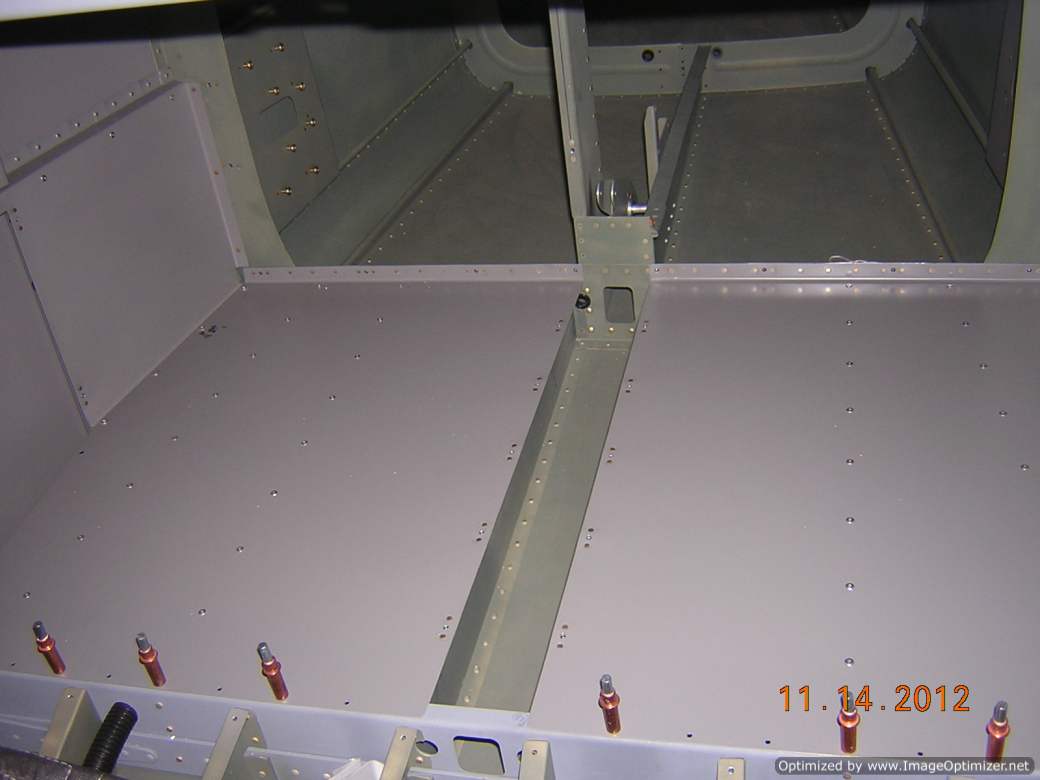

Both floors are riveted
