12-03-2012: 3 hrs
Trimmed, cut, drilled flap bearing block F680, then cut to half. Drilled the floor and rib using the bearing as a template. I don't have #10 drill, so I drilled the block to #12, the bolt got tight fit, but I still can push it through. I installed nutplate per instruction, but it looks like nut will also be ok since the access is pretty open for the nut.

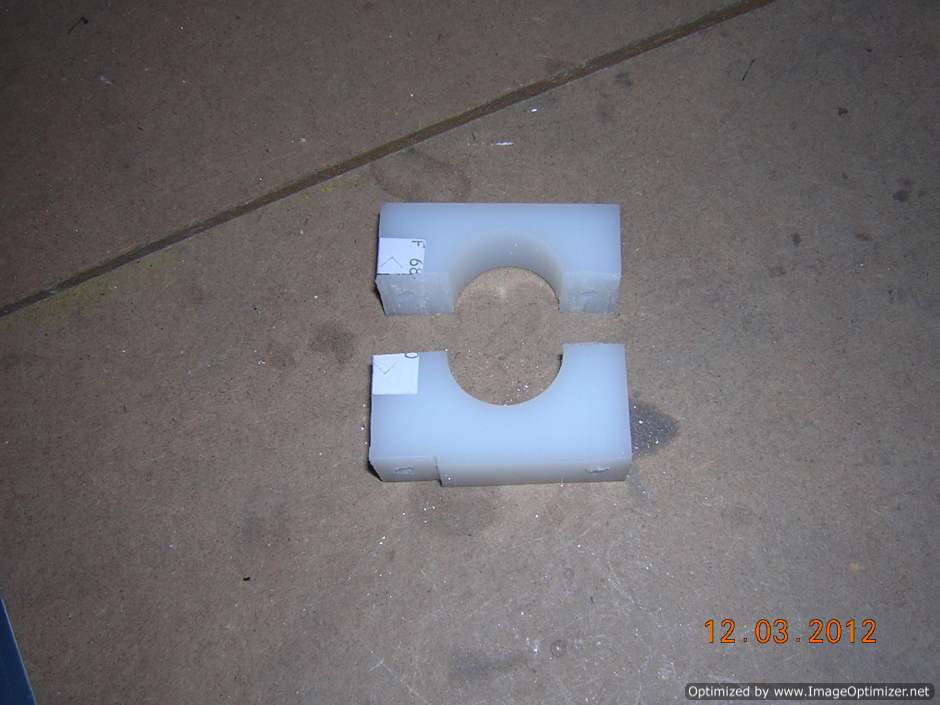

Bearing block F680 is cut and drilled

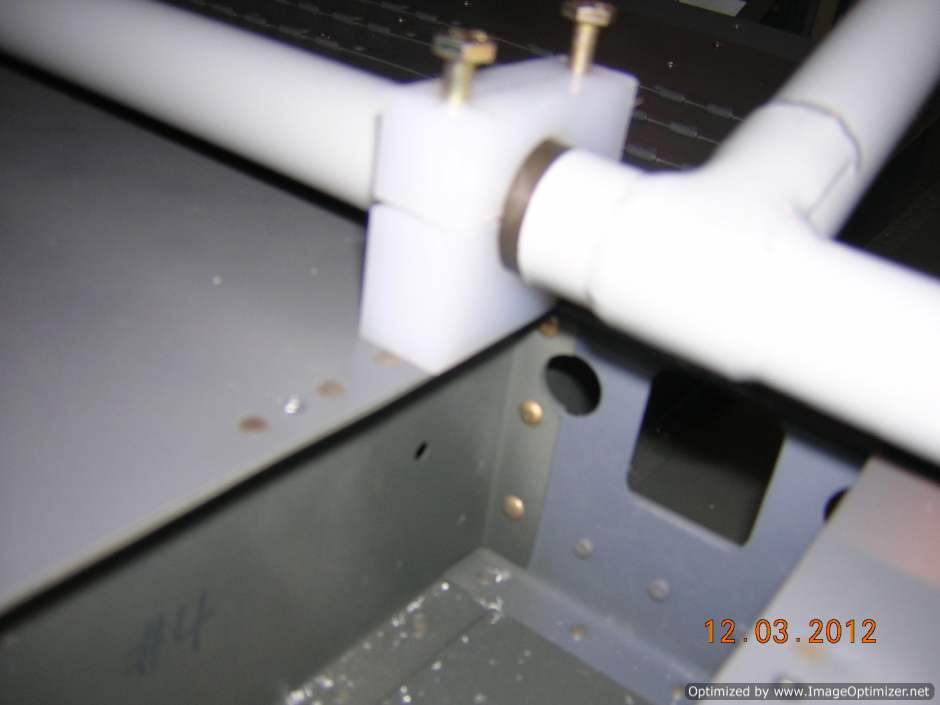

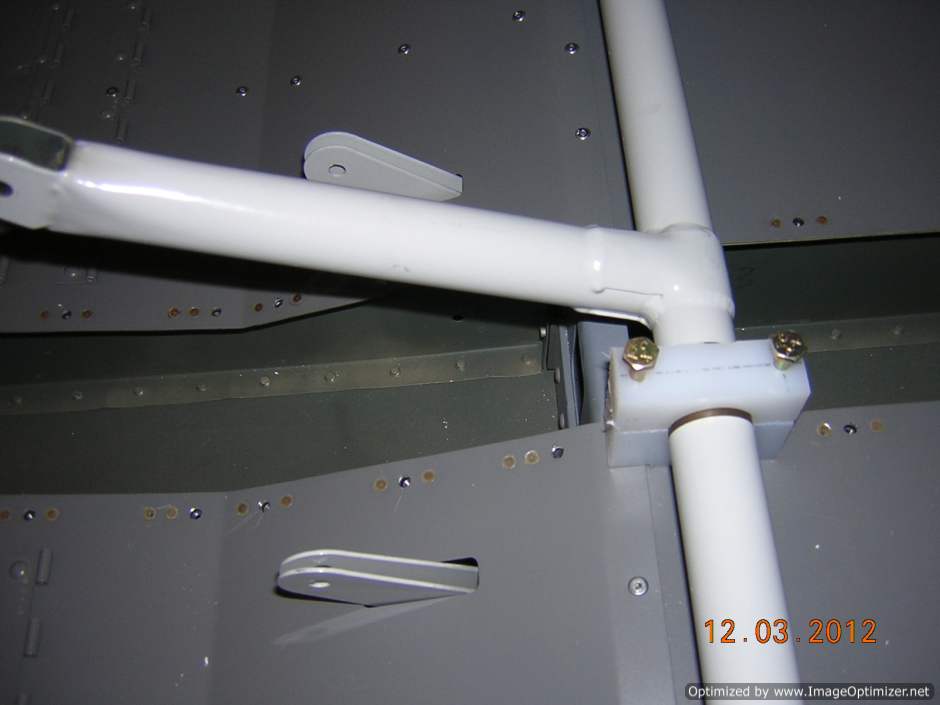

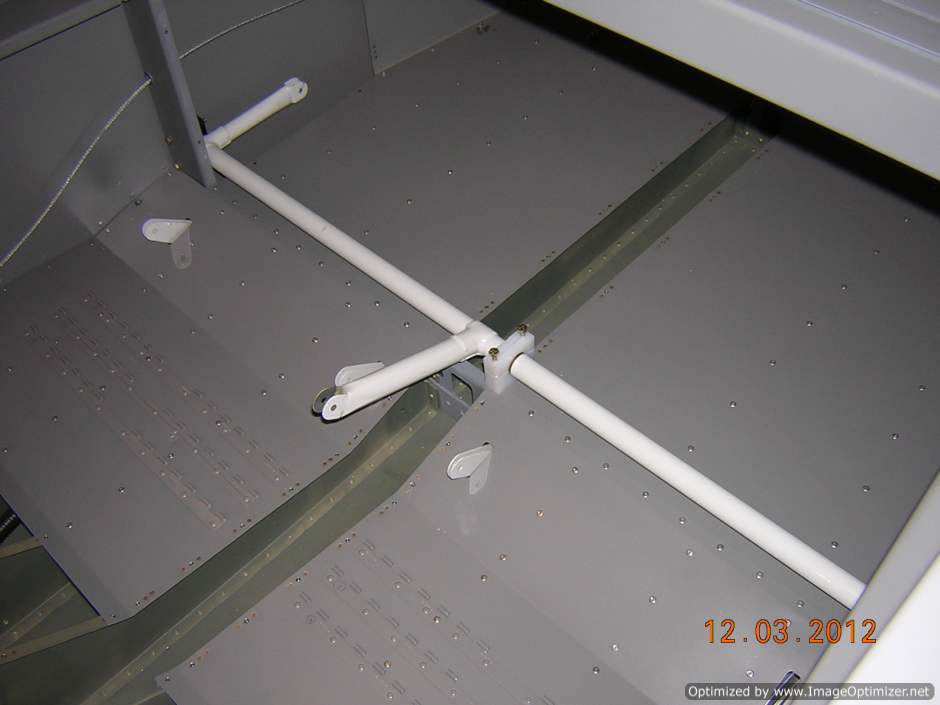

Bearing block and flap weldment are installed. I didn't tighten the bolts yet, not sure if they need to come out again later
