12-07-2011:

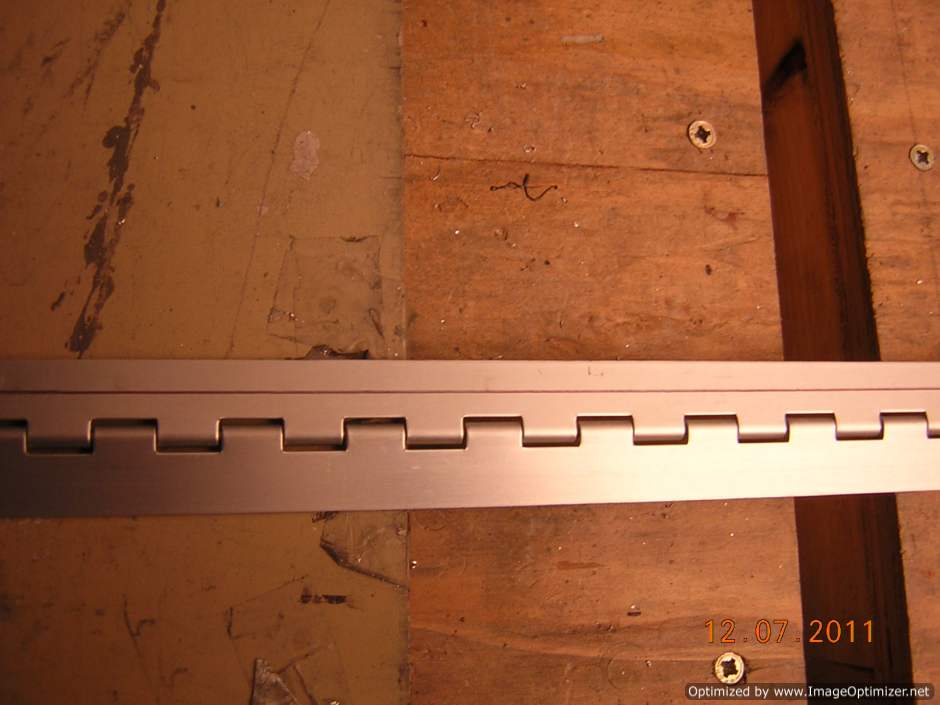

A line 1/4" away from edge is drawn on the hinge half

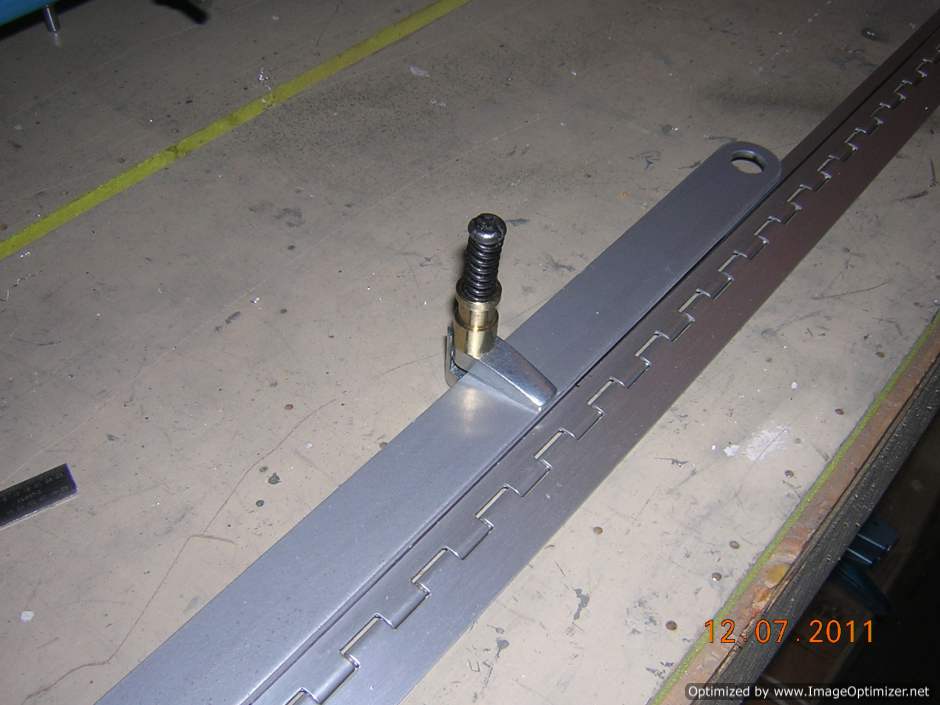

A line 1/4" away from edge is drawn on the hinge half

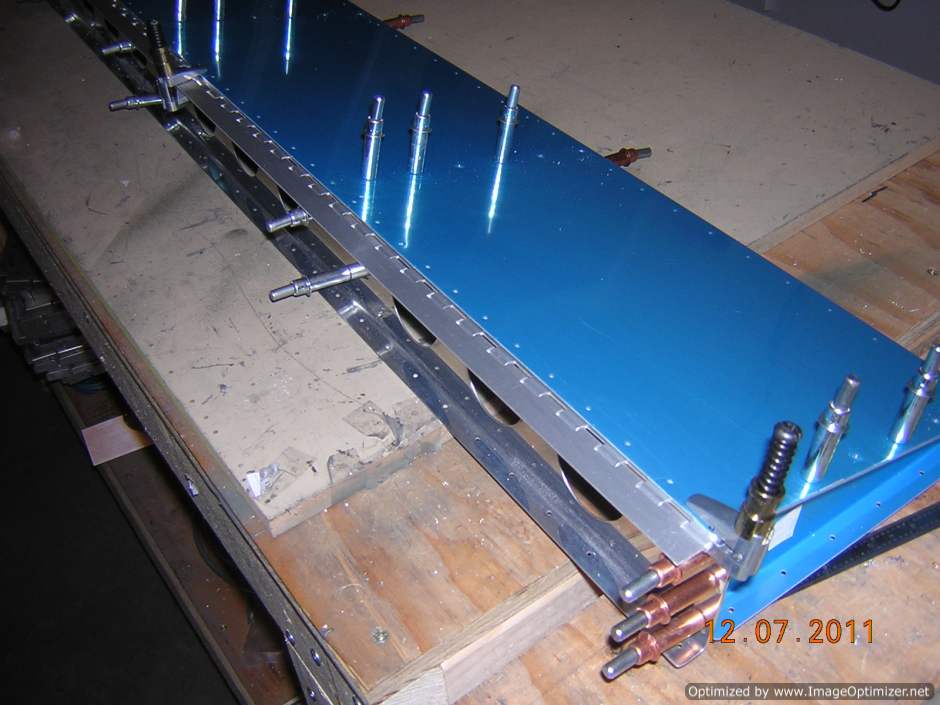

Hinge is clamped to the flap assembly
Hinge is clamped to the flap assembly

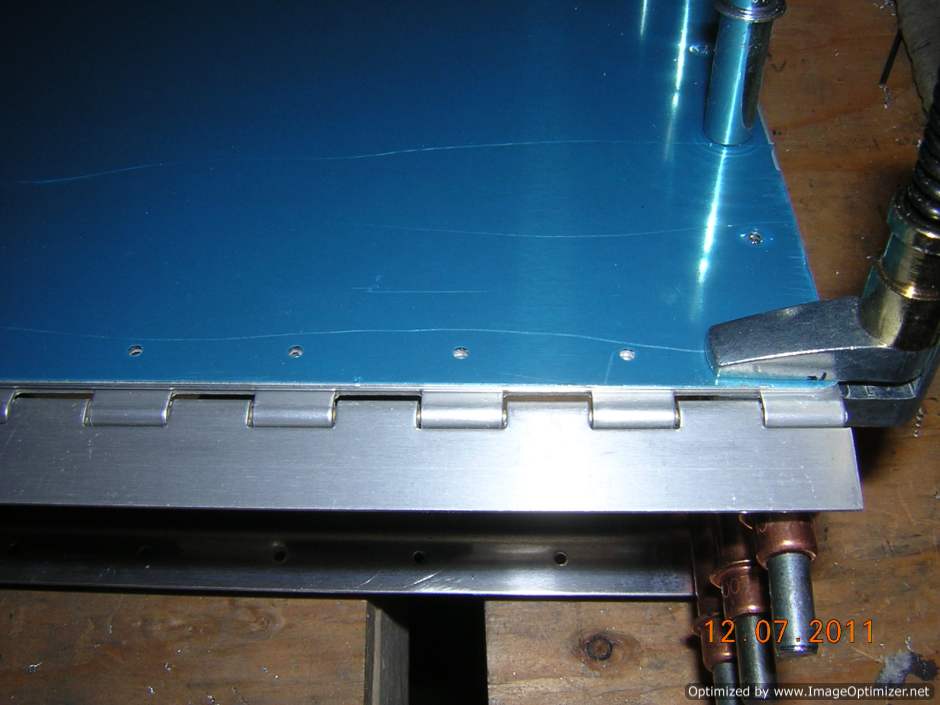

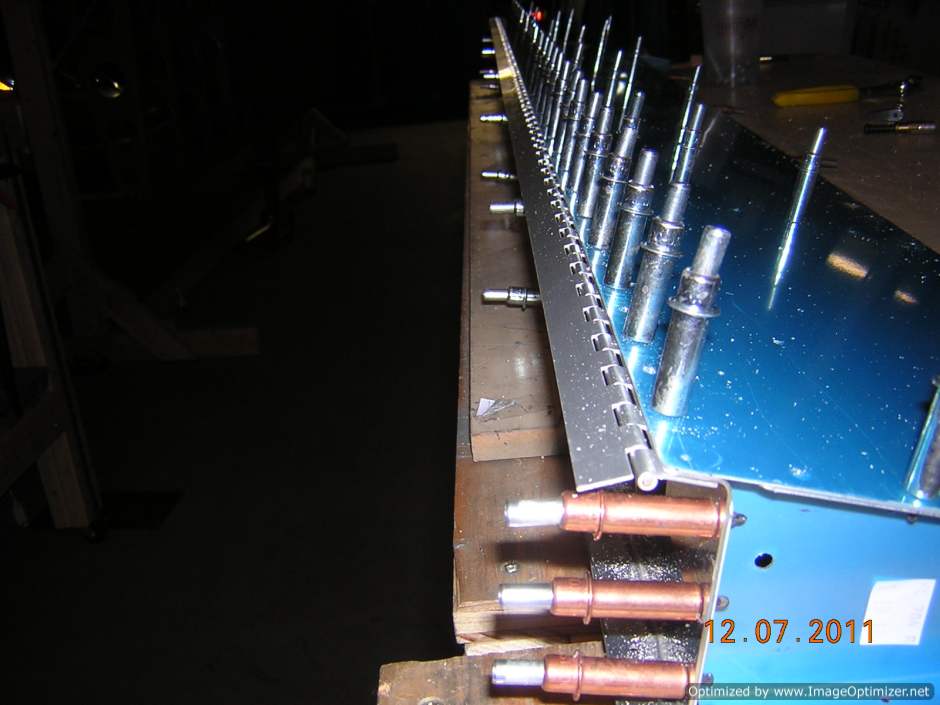

Holes are drilled on the hinge

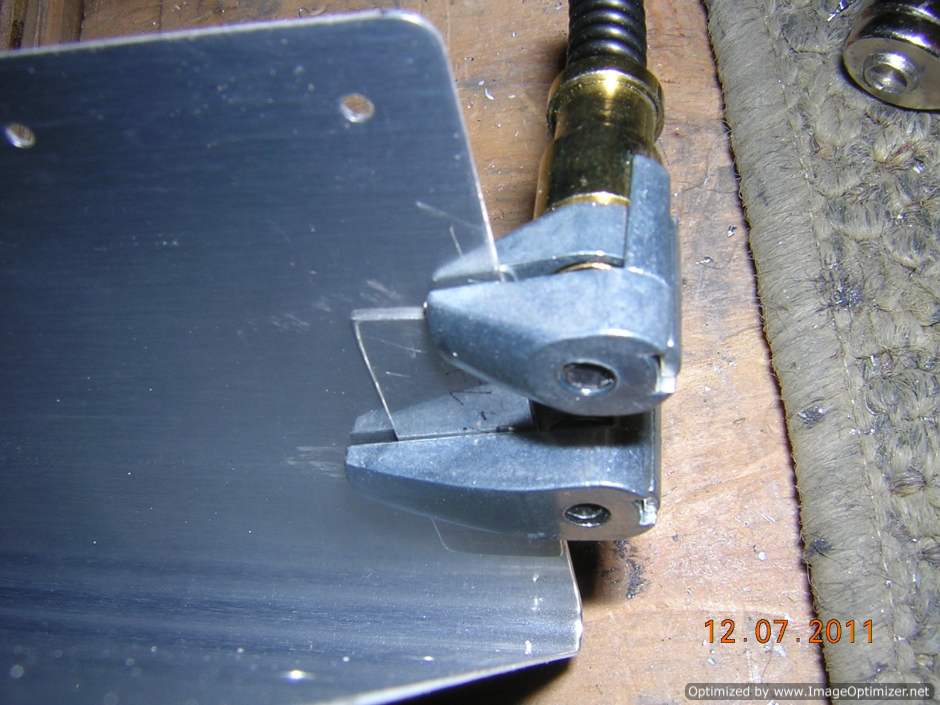

Spacer is clamped for drilling

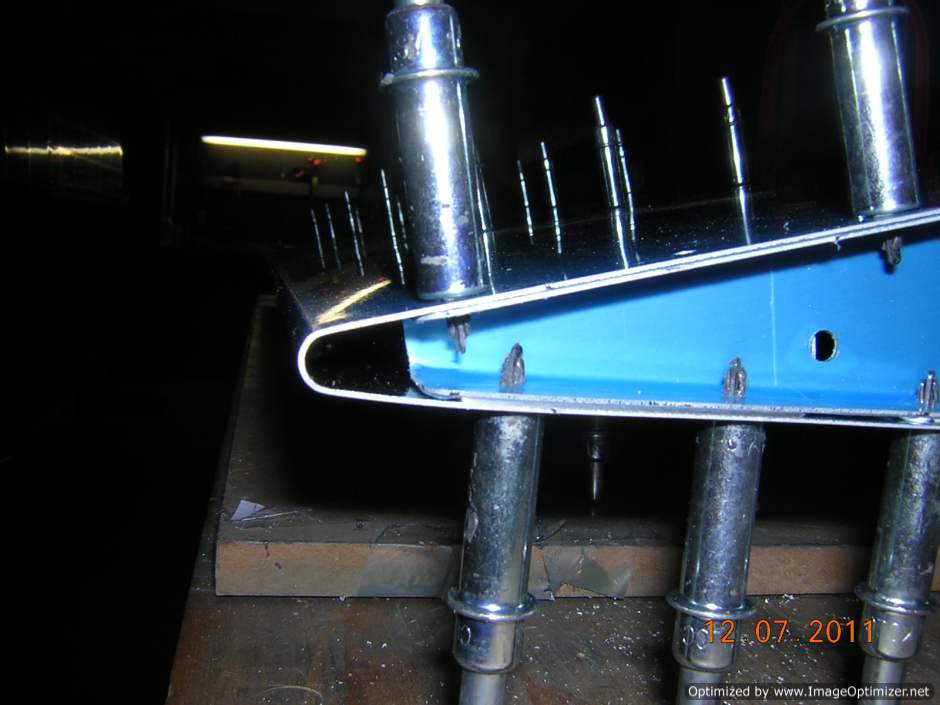

Spacer is drilled

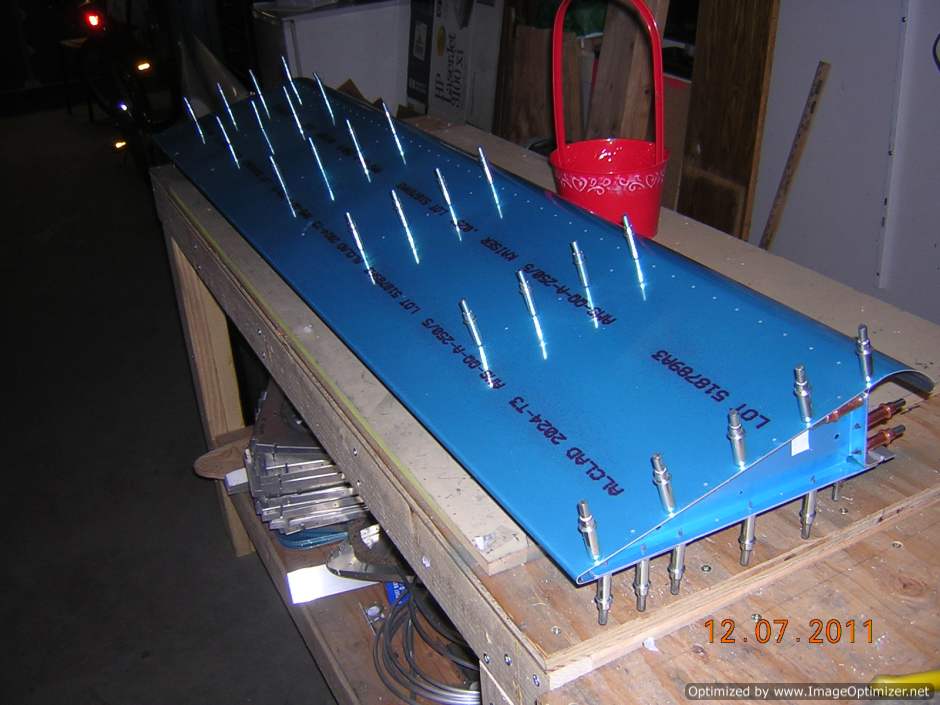

Flap assy is all drilled, need to deburr, dimple and rivet
