12-08-2011:

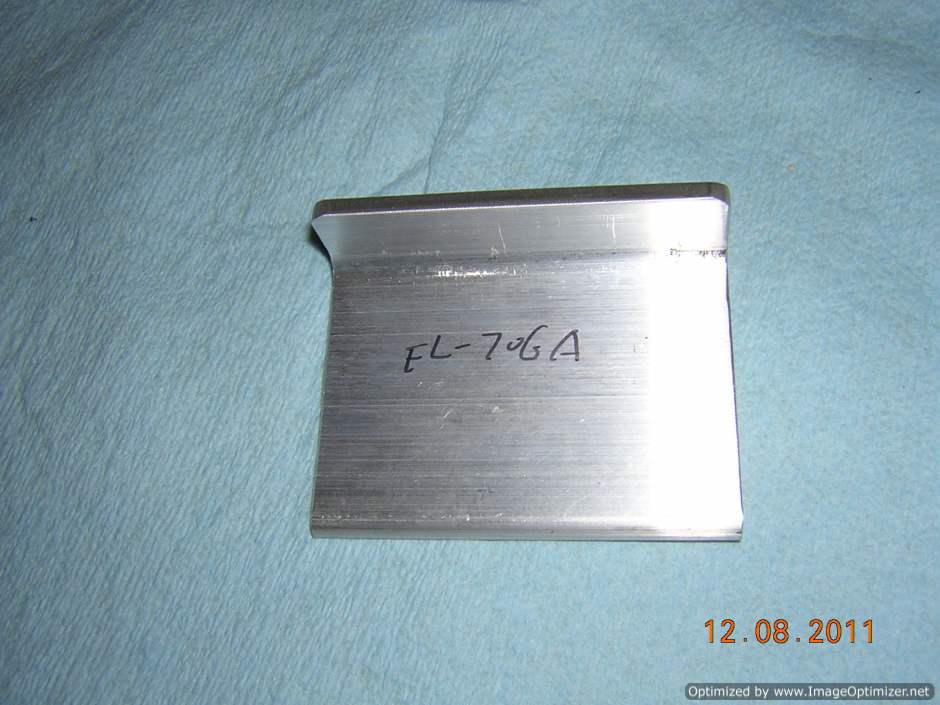

FL-706A angle is fabricated

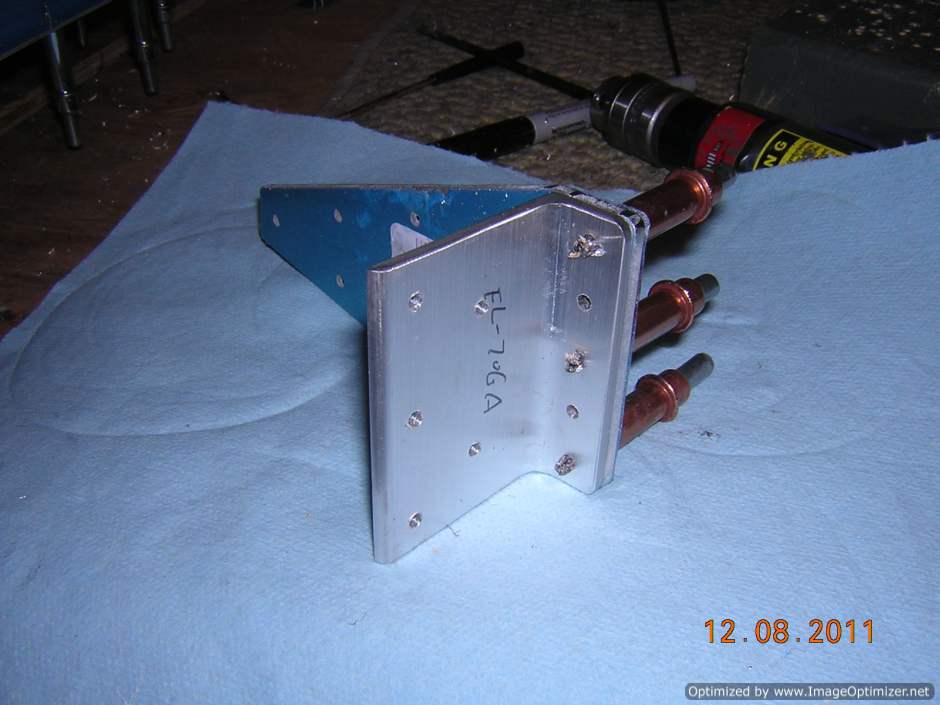

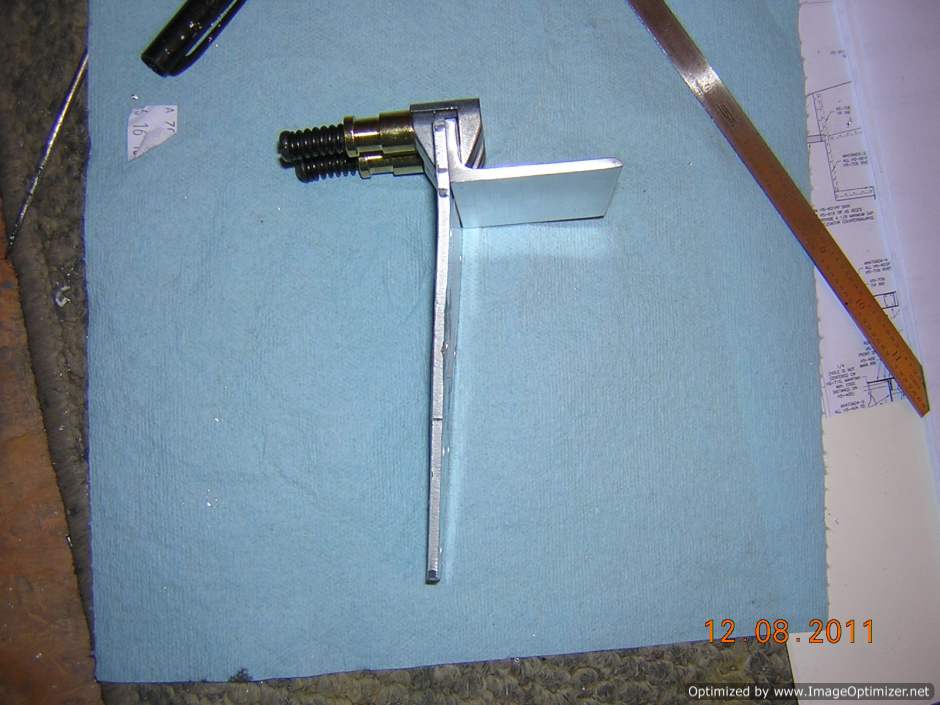

Fitting FL-706A and FL-706B
Fitting FL-706A and FL-706B

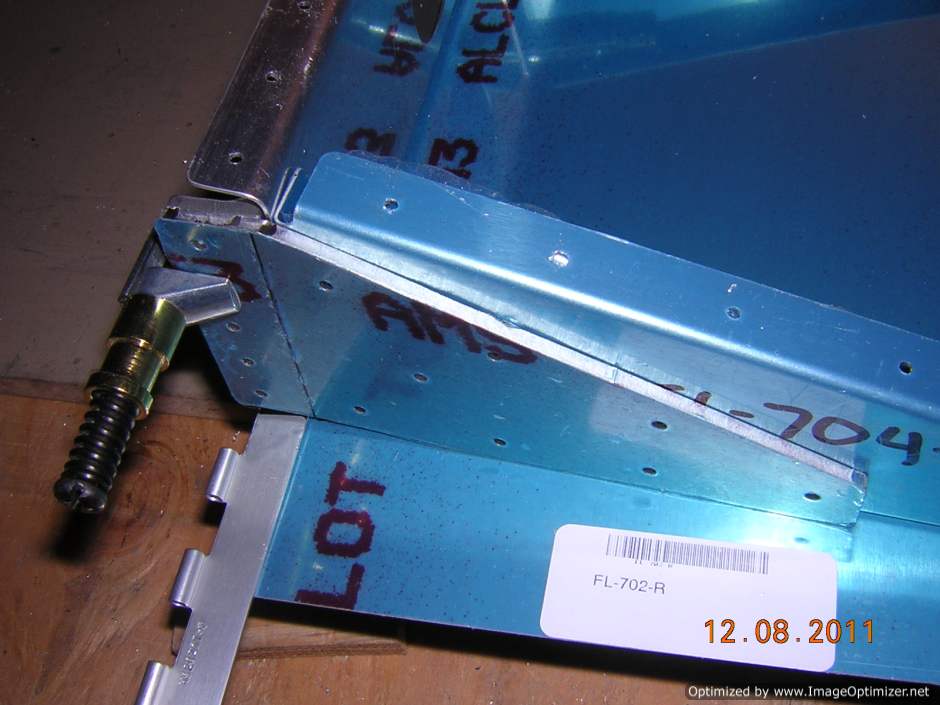

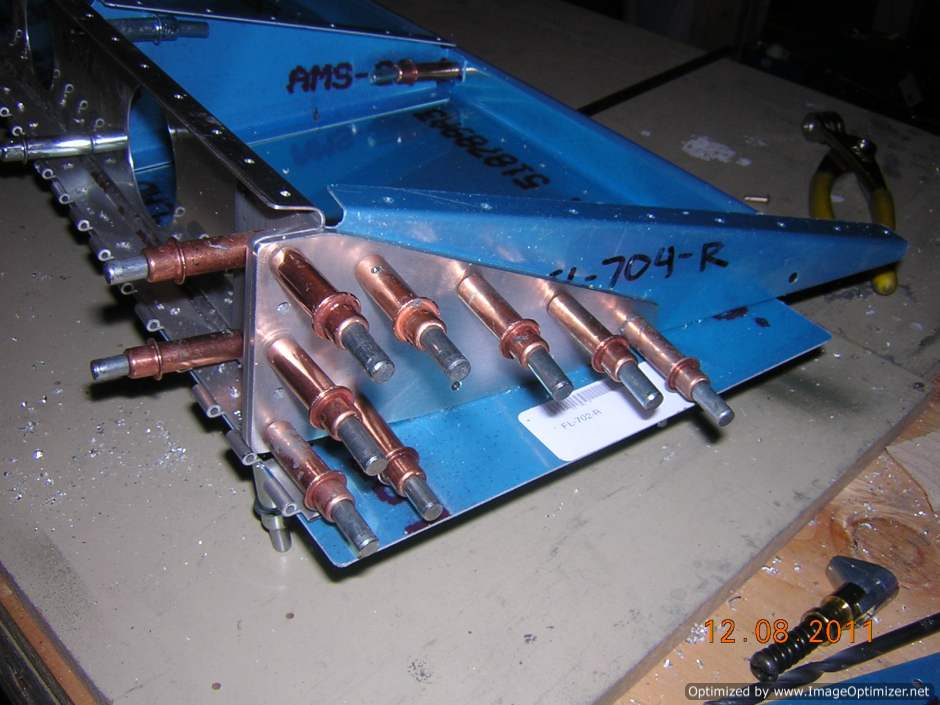

Fitting FL-706 Assy to flap spar

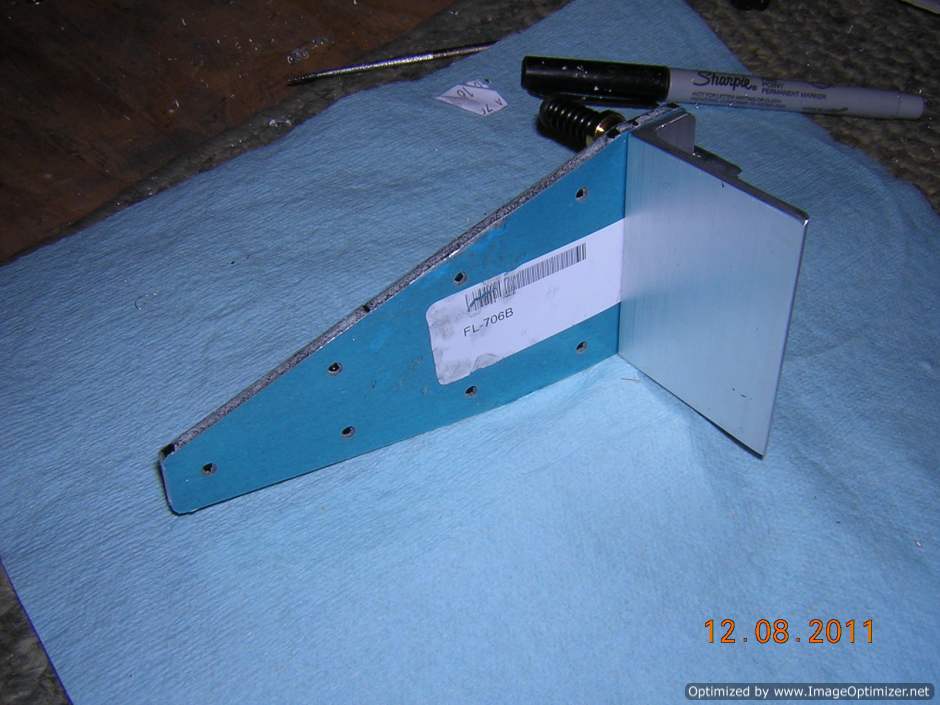

FL-706B is bent and fitted to the inboard rib, fitting is good

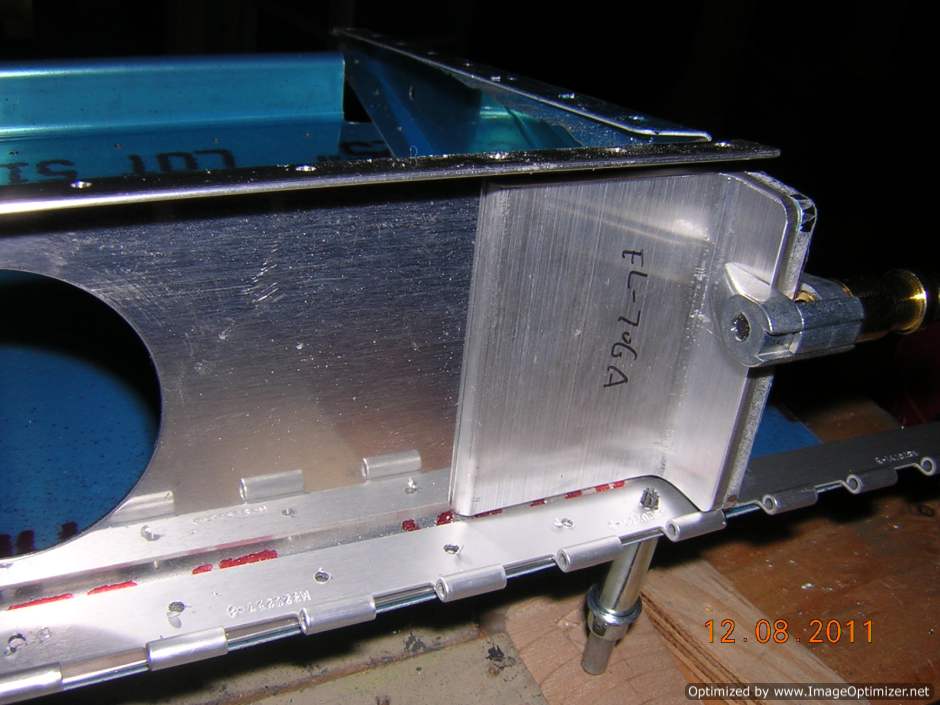

FL-706A and -706B are match drilled

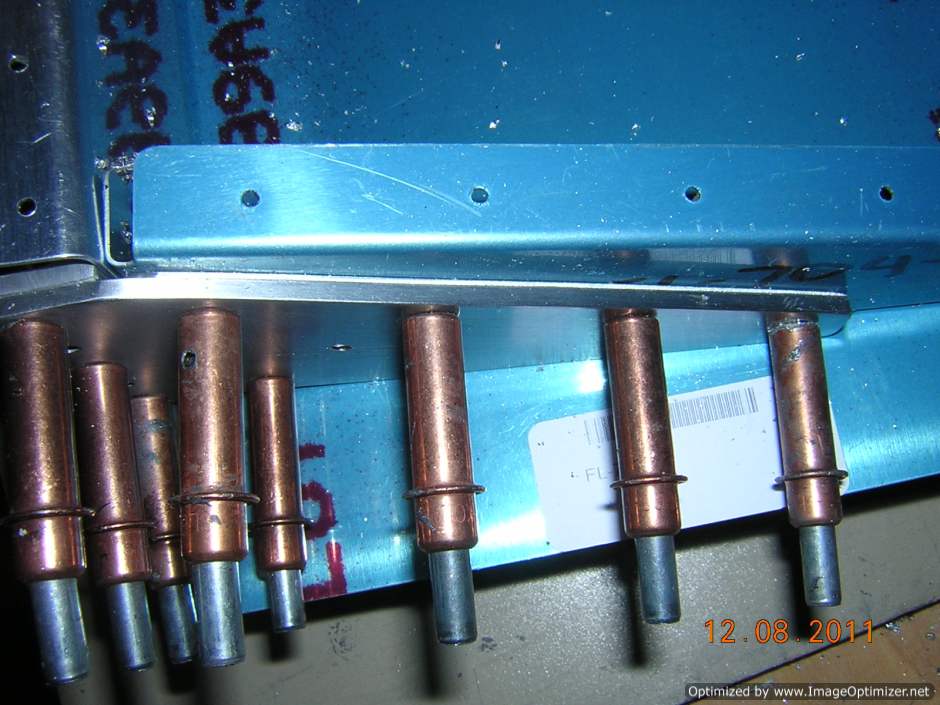

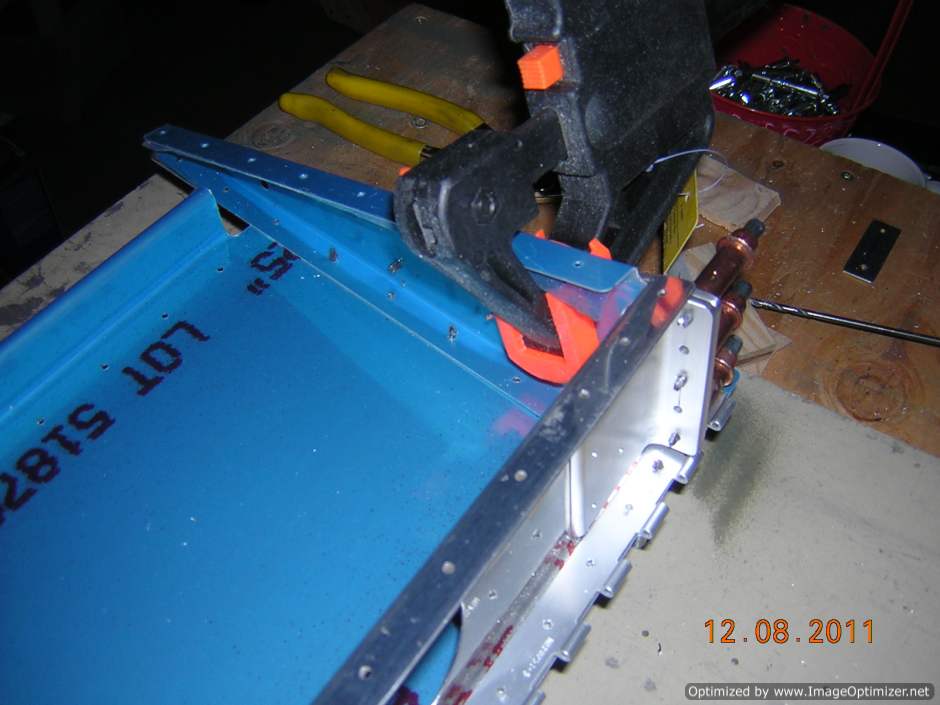

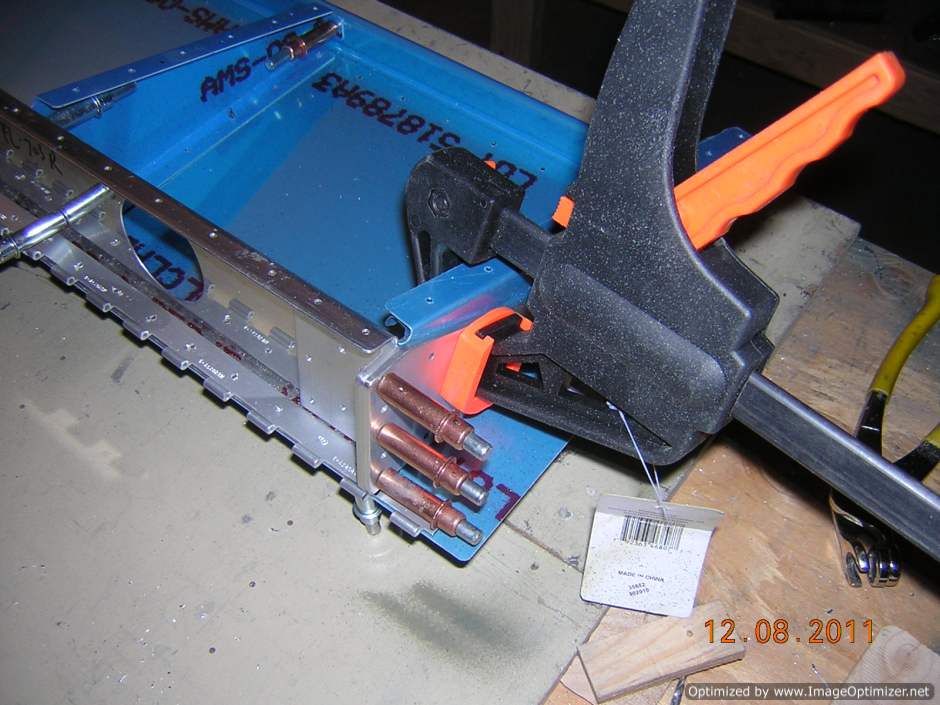

FL-706 Assy clamped to rib for matching drill
FL-706 Assy clamped to rib for matching drill

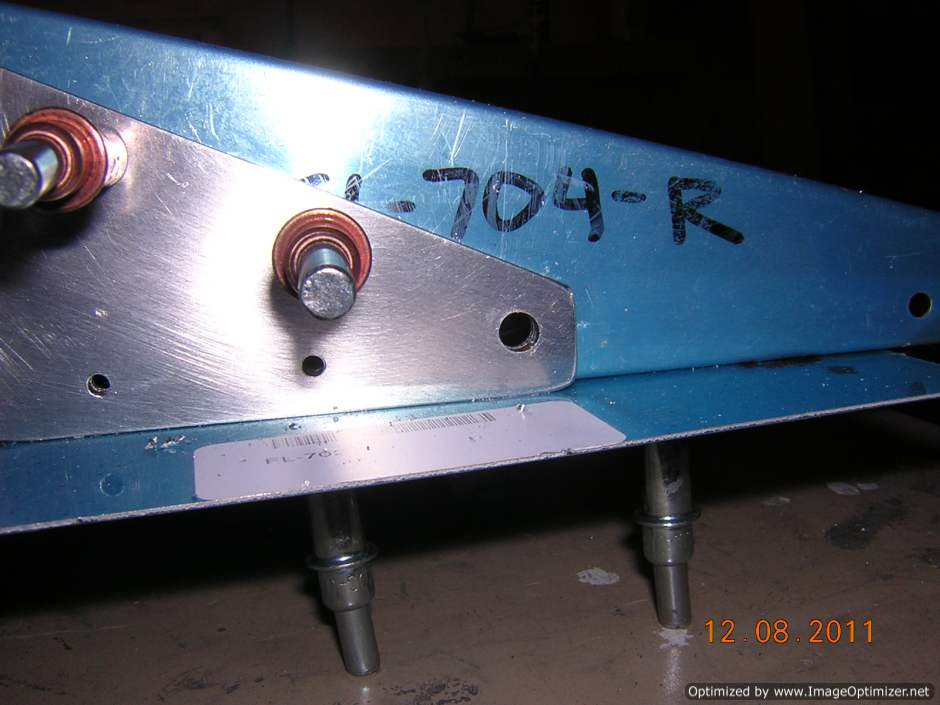

After matching drilling the FL-706B to the rib, I found a gap between -706A and the spar. The assy moved when I final drilled it. I have to fabricate a shim.

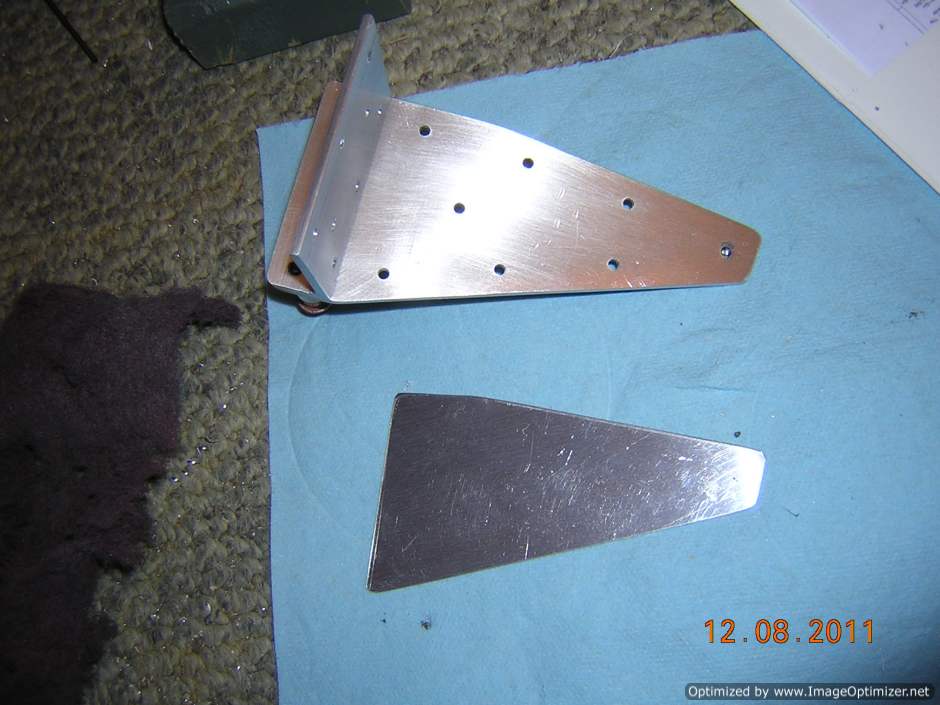

The shim fits pretty well
The shim fits pretty well
The nutplate hole is enlarged to 1/4"
