01-05-2014: 5 hrs

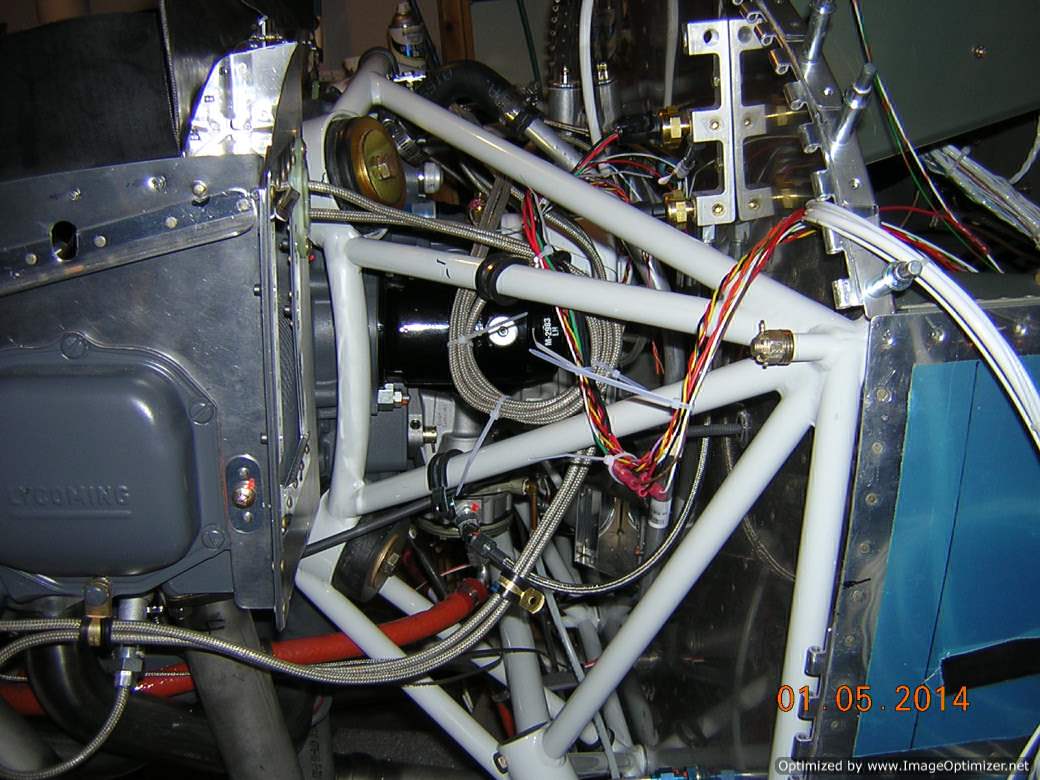

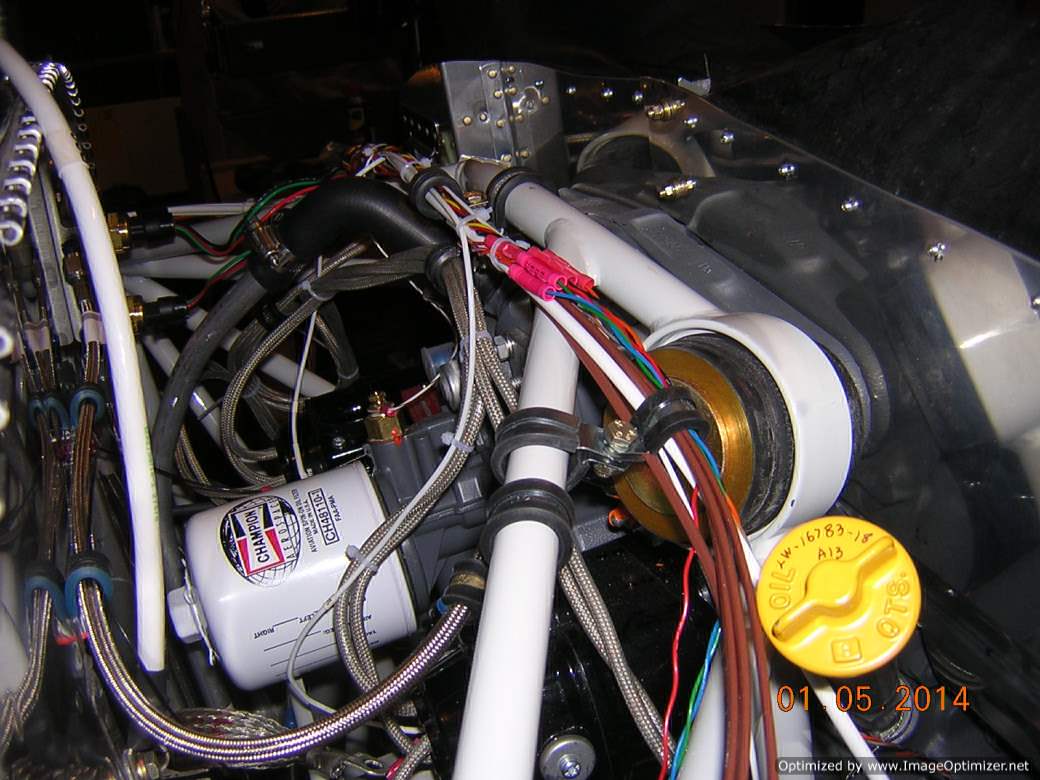

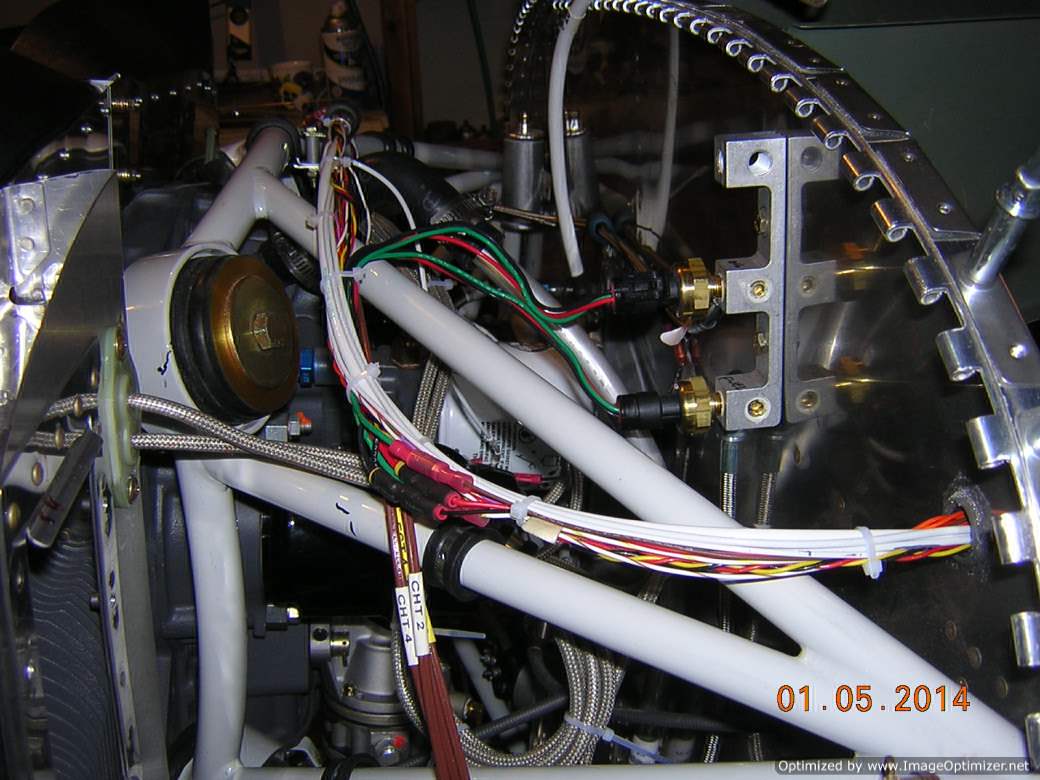

A day for misc. wiring task. One thing about wiring is after spending so much time, it doesn't have much to show, because most of the time was spent on figuring out how to route and bundle the wires.
Since I don't have dedicated tachometer transducer, I will use magneto pickoff point for RMP sensing. Per Skyview installation guide, I will have to put 30K Ohm resistor between the Skyview and mag switch. That is what I did.

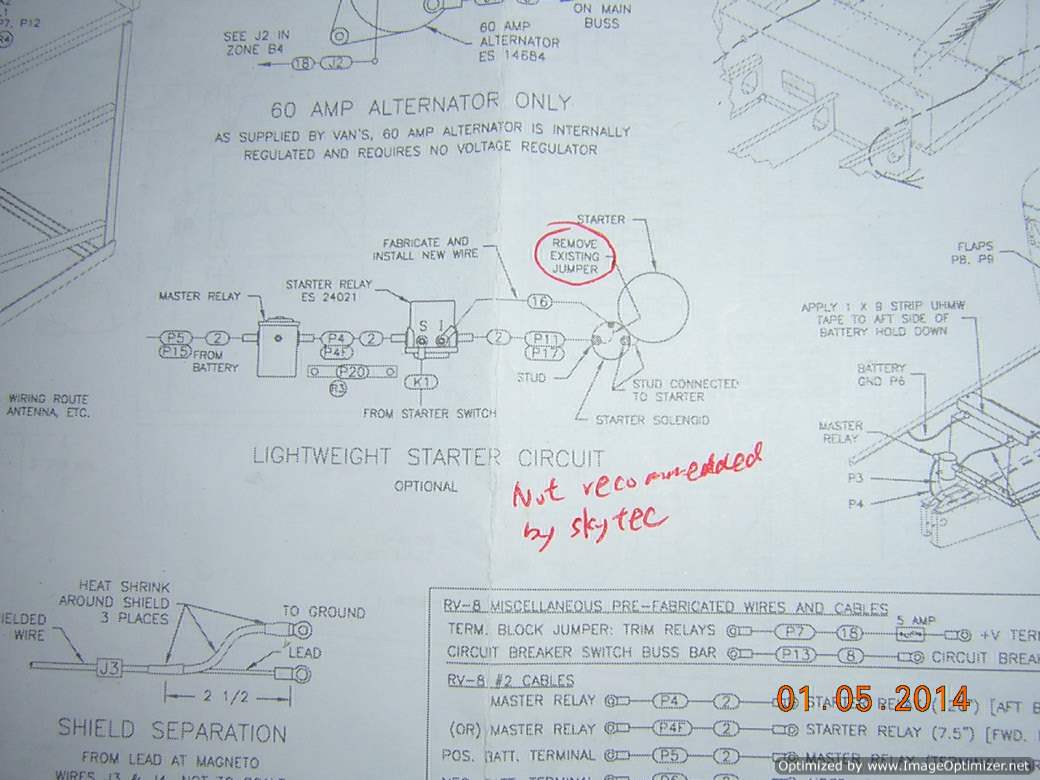

I was thinking about changing the wiring on starter per Van's drawing, but SkyTec (starter manufacturer) doesn't recommend Van's wiring
