01-07-2014: 2 hrs

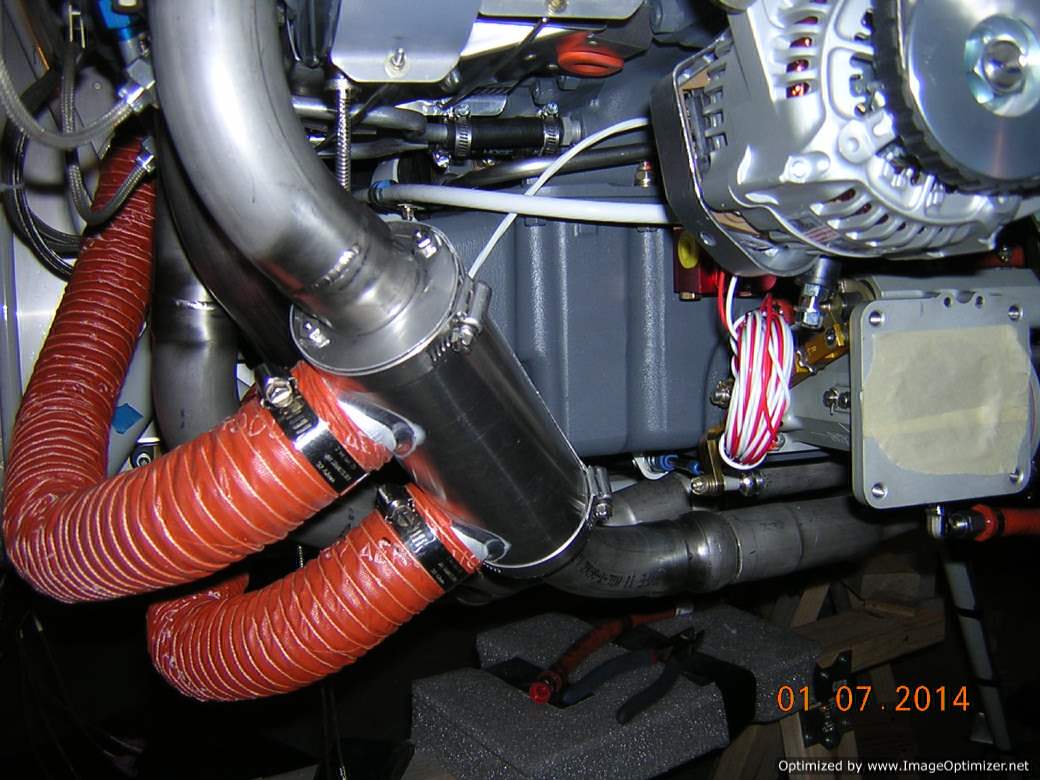

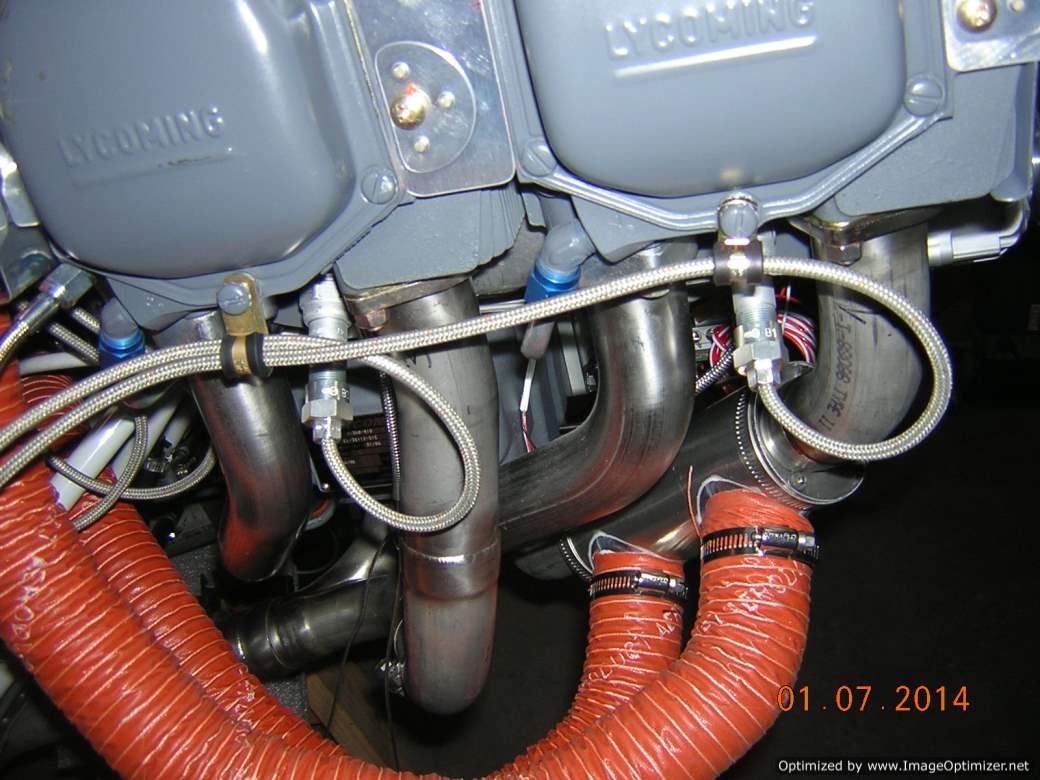

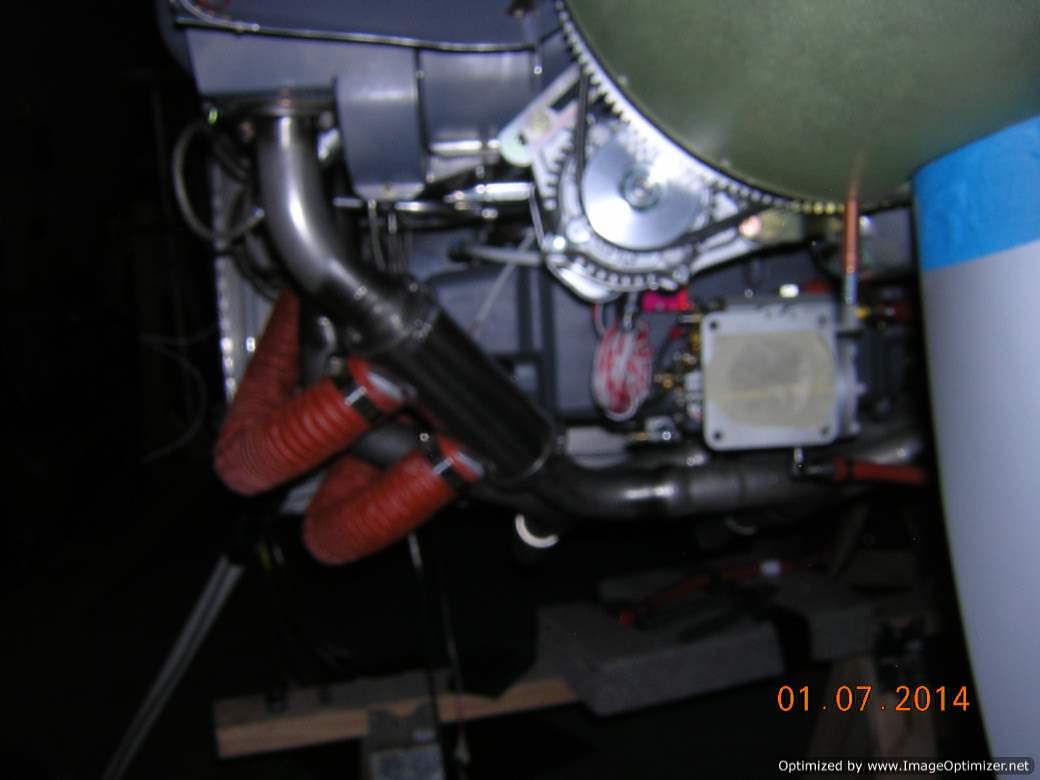

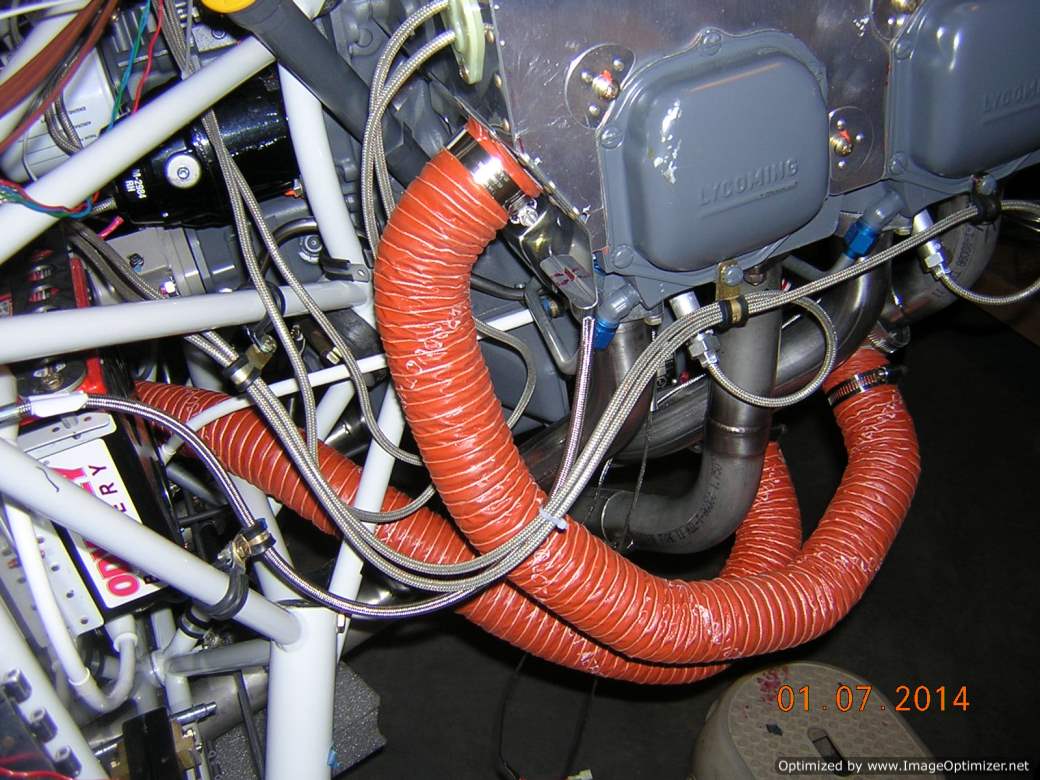

I thought the heat muff installation would be a quick session, but I was wrong. I had to take the end plates off 3 times to enlarge the through holes for the rods because the installed muff will rotate around the exhaust pipe after tightening the clamps. I had drill the holes to #21 for the muff to be tight enough.
