02-06-2014: 3 hrs

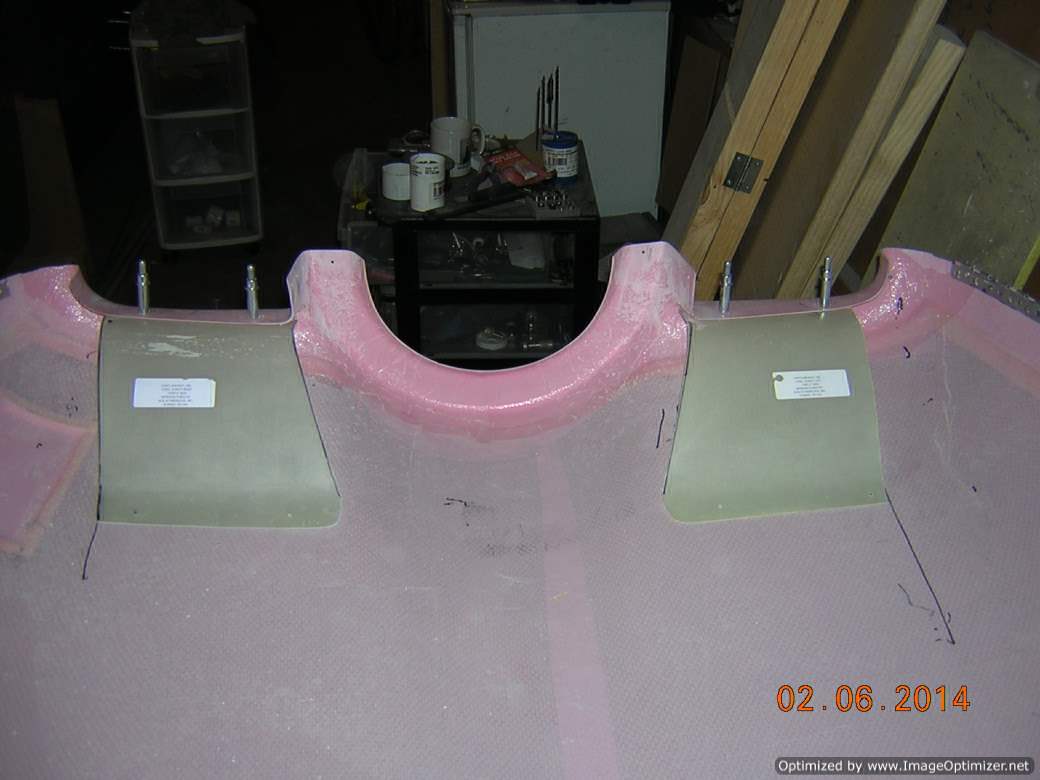

Inlet air ducts are trimmed to final shape. The black line is where the baffle seal will touch the cowl. The ducts are trimmed to clear the seal. I know some builders trimmed the baffle to fit the air ducts, but since I already have seals on, that will be too much work to do. Since the seal will prevent air going to lower cowl, I don't see any problems here.

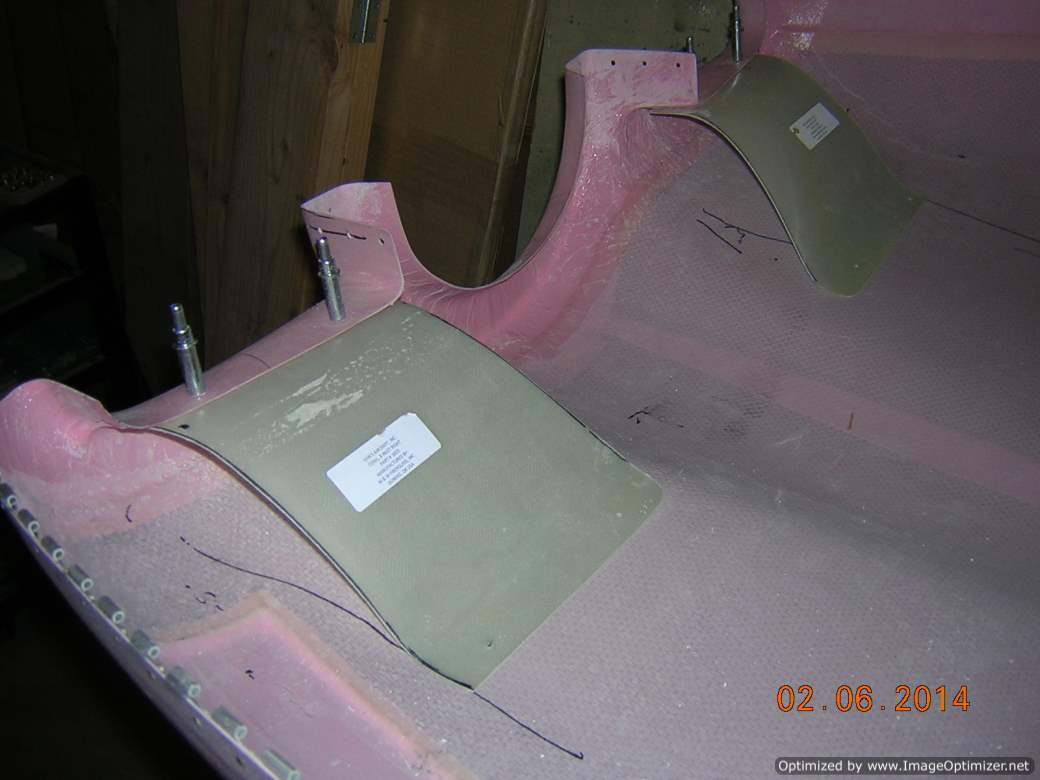

Another view of the trimmed air inlet ducts

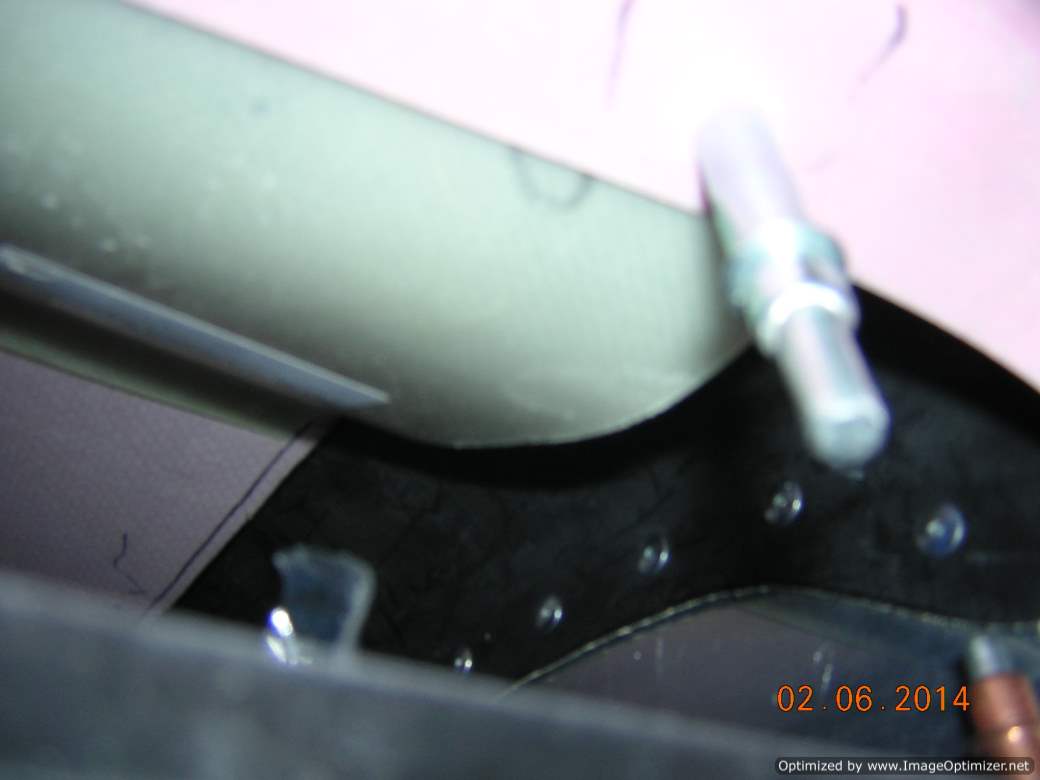

It's hard to see, but the baffle seal indeed clears off the duct on the outboard side

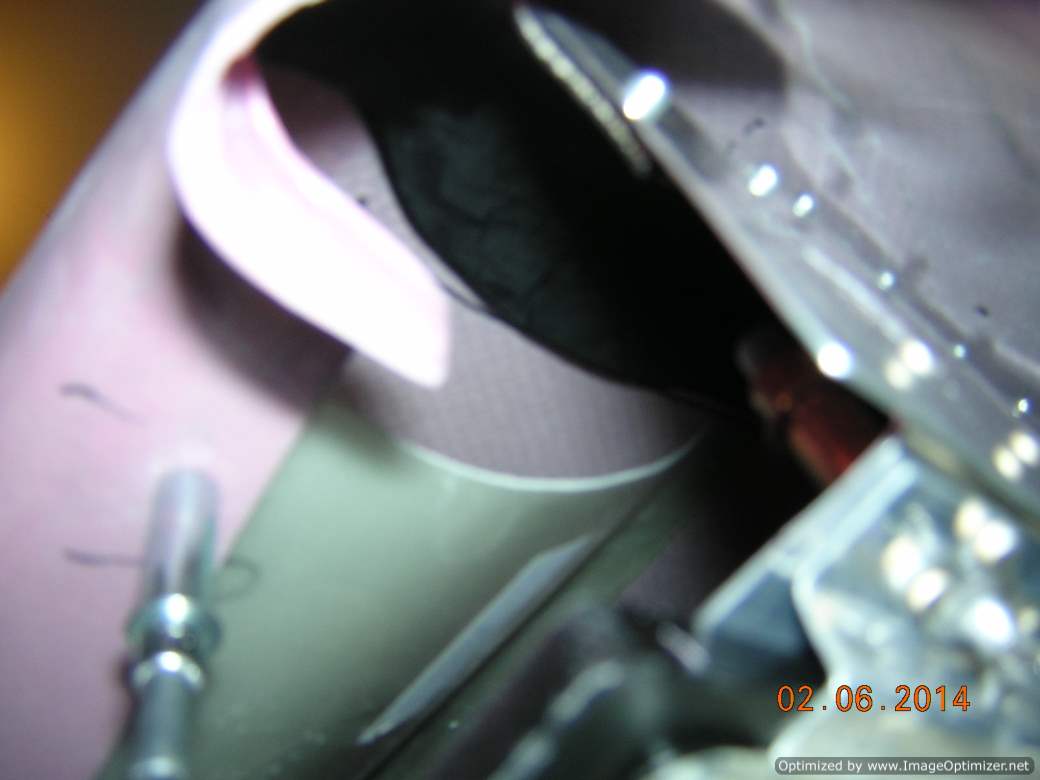

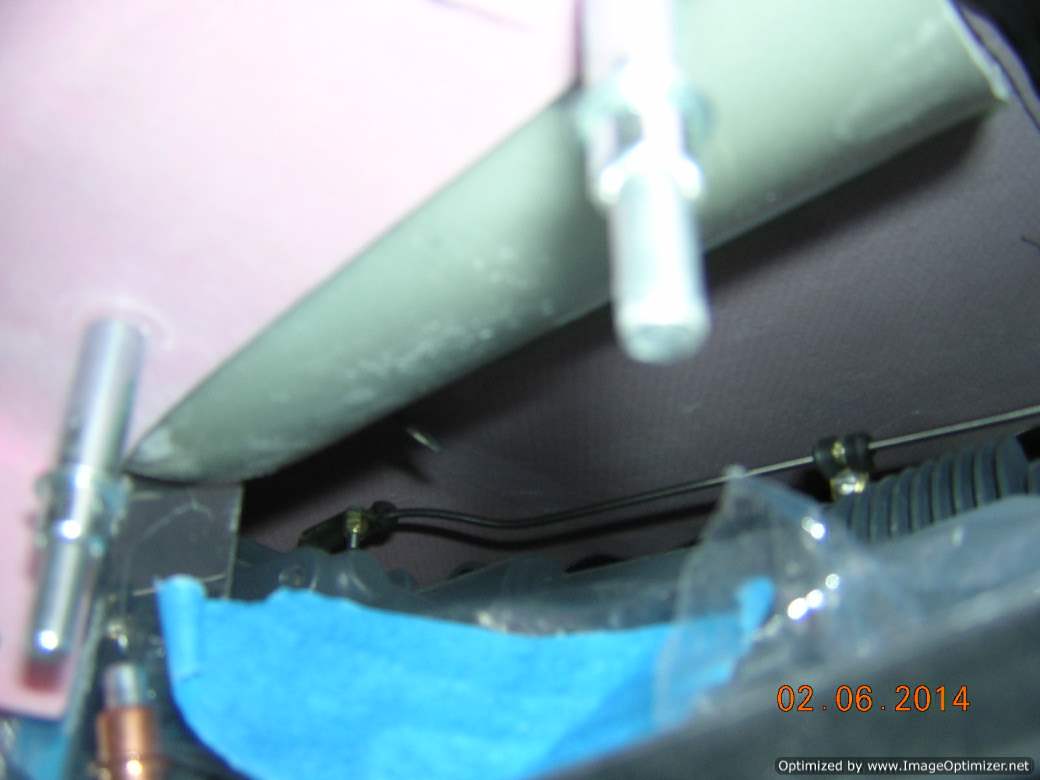

And the inboard side

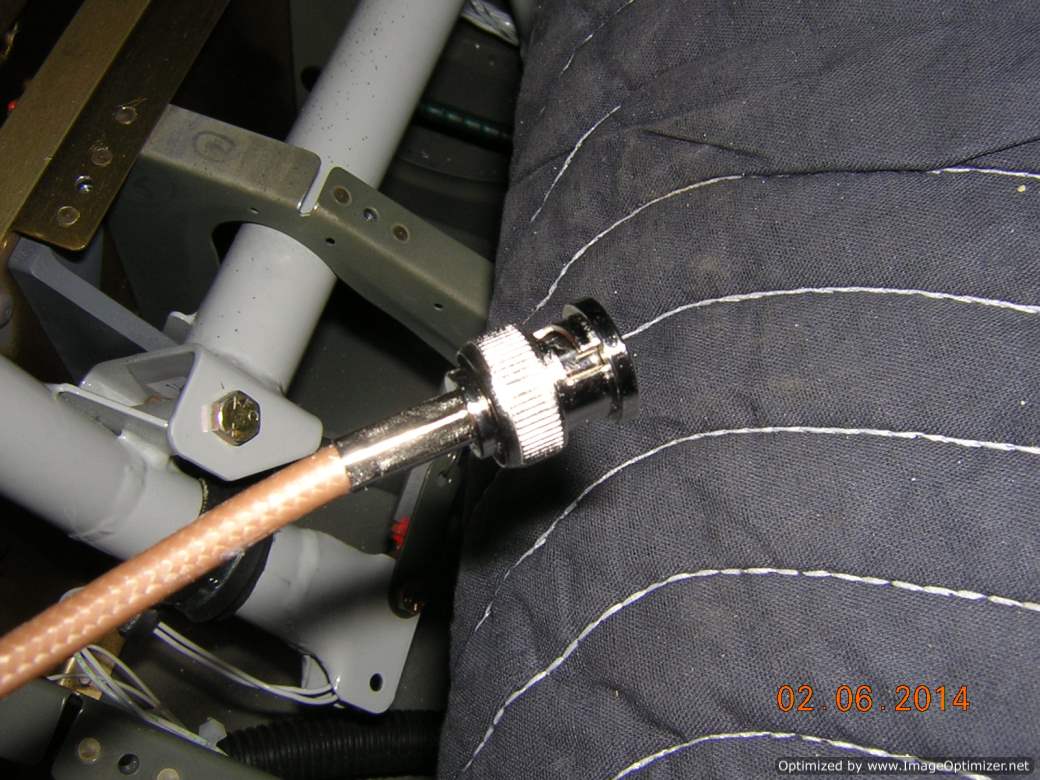

I then terminated the Comm Radio antenna cable with the male BNC connector I got from Aircraft Spruce
I also bought the fitting cap from Aircraft Spruce, can capped the fitting
