04-15-2013: 3 hrs
I started to work on the brake lines today. Took me a while to figure out how the plastic line goes into the plasti fitting. For sealing, I used Permatex high temperature thread sealant for metal fittings, but not sure what to use for the plastic fitting. I will seal the plastic fitting later.

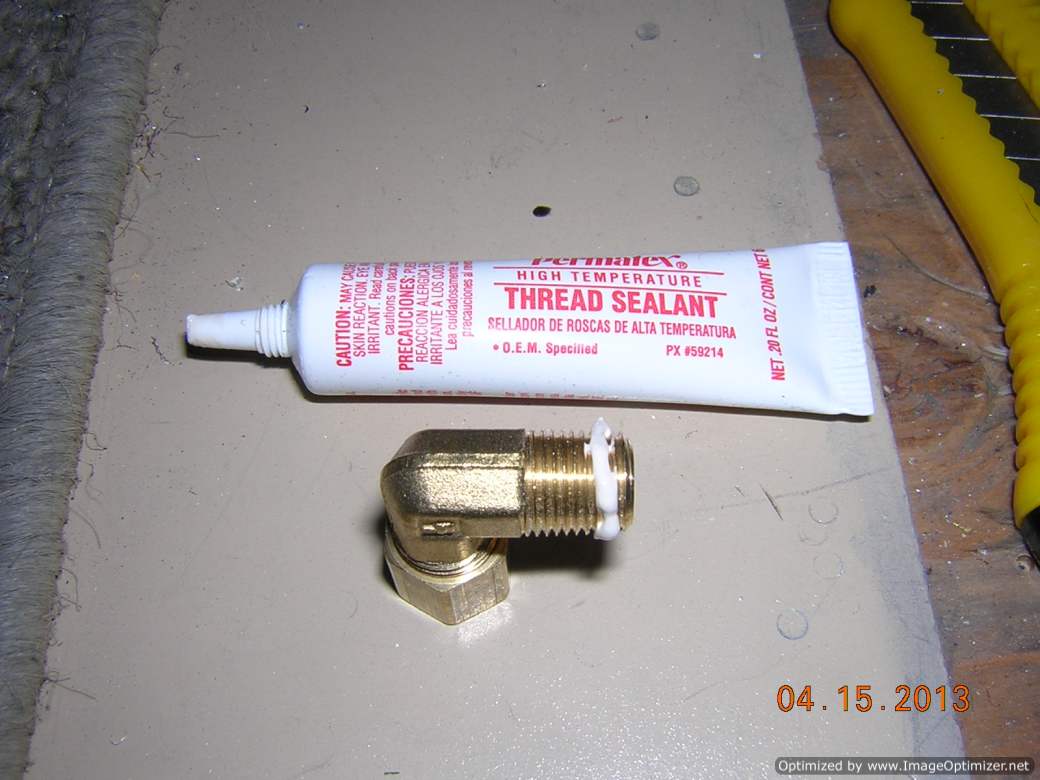

Sealant is applied to metal fitting like this

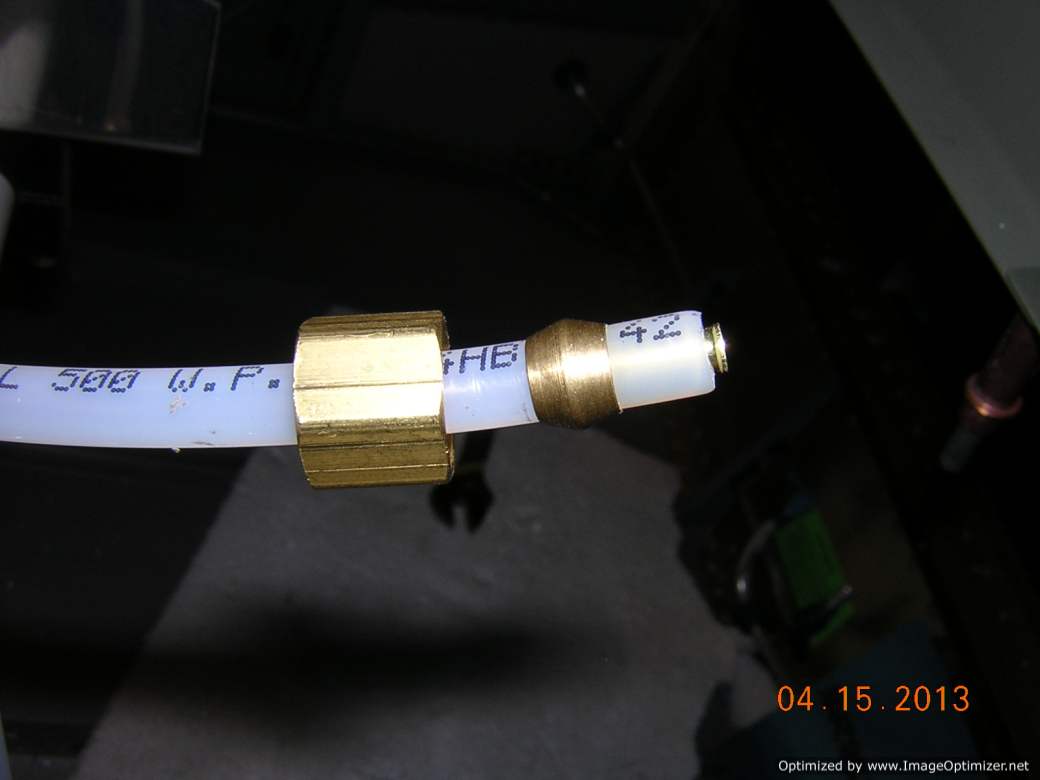

This is how the plastic brake line goes to the fitting

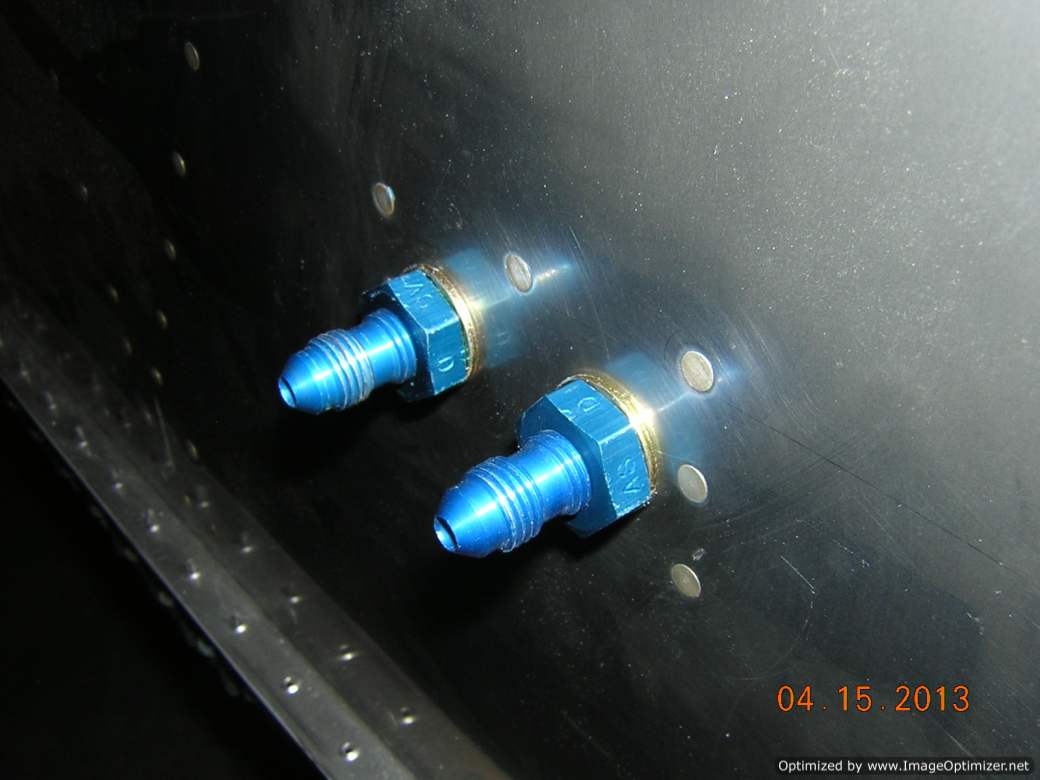

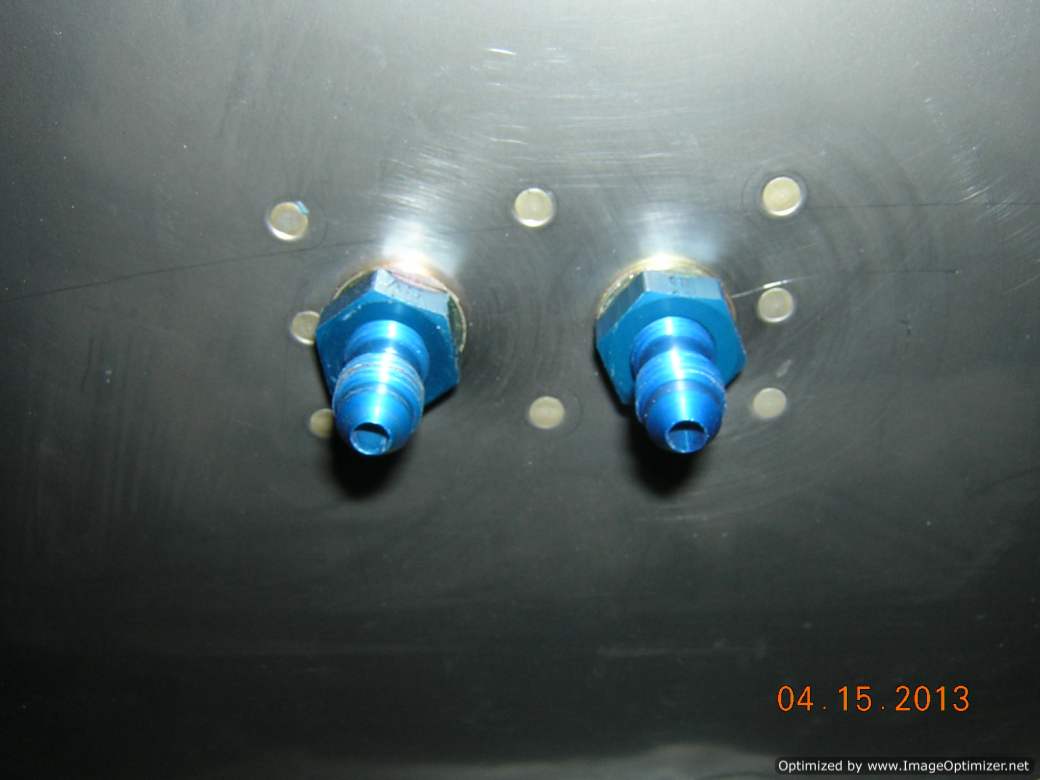

Fittings for brake line firewall pentration
Another angle of view

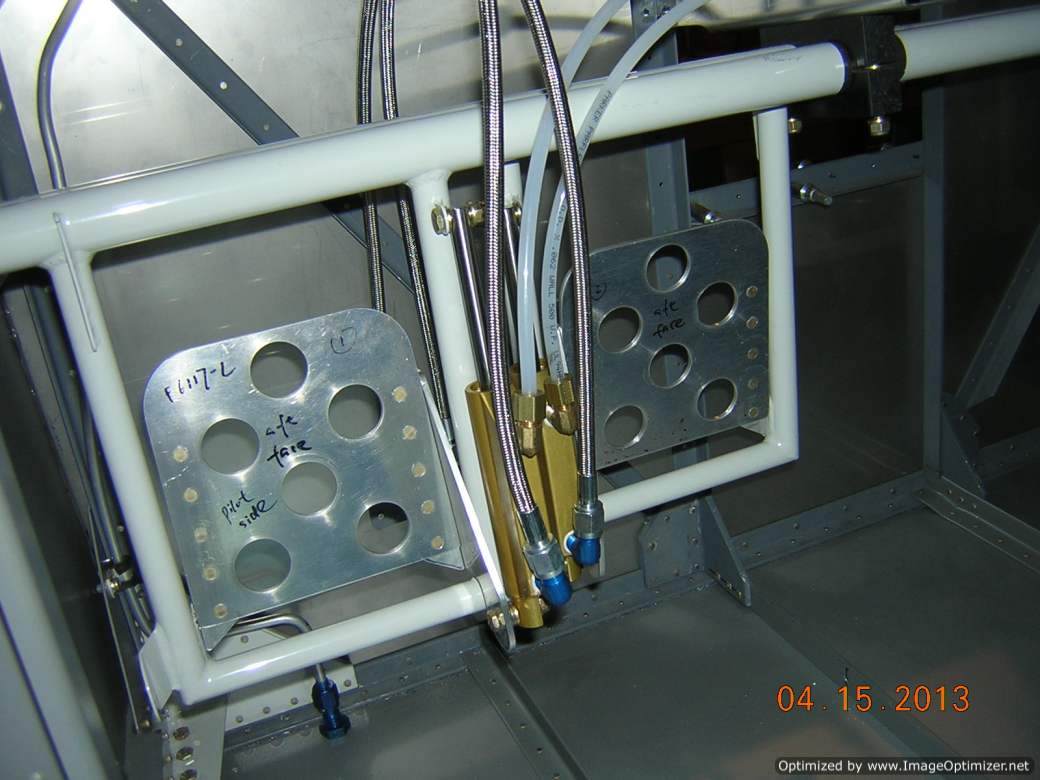

Brake lines on the pilot side
Brake lines on passenger side

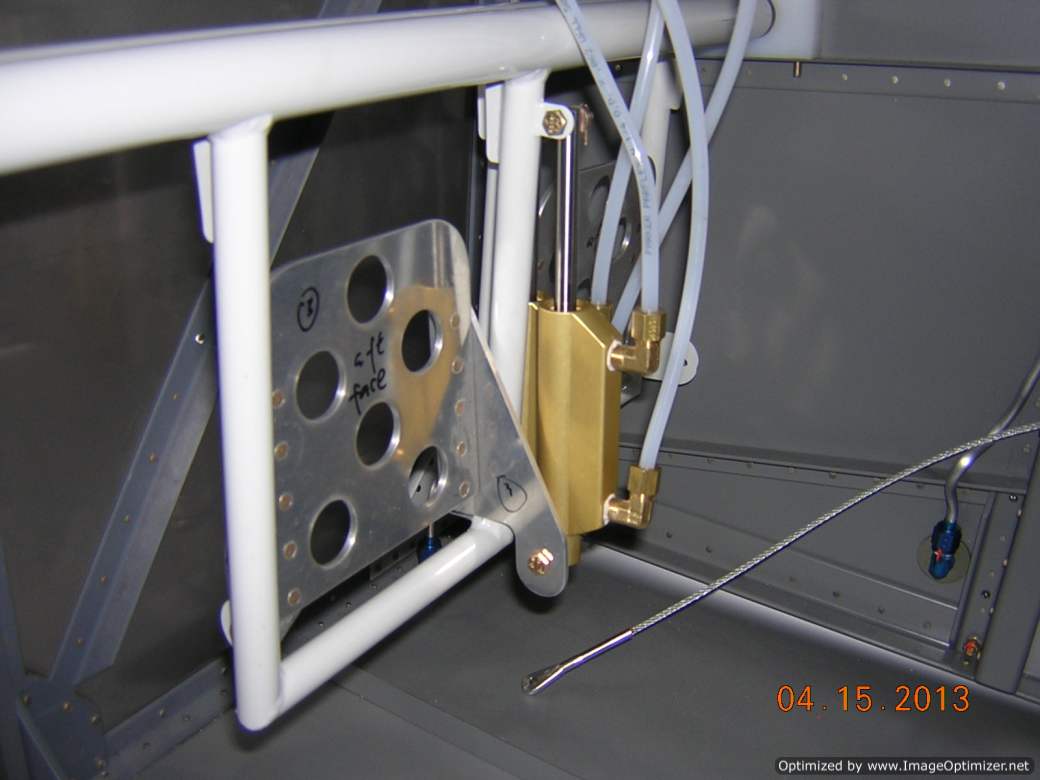

Close up view of the fittings on rudder pedal

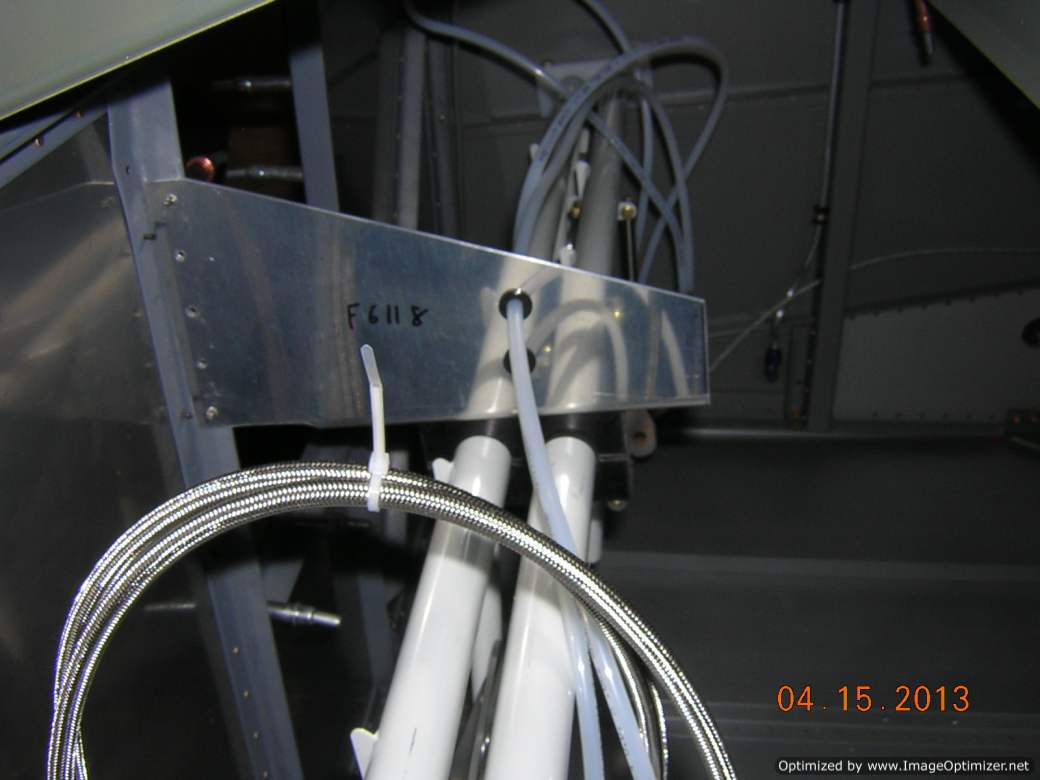

Snap bushings are intalled on center rudder brace

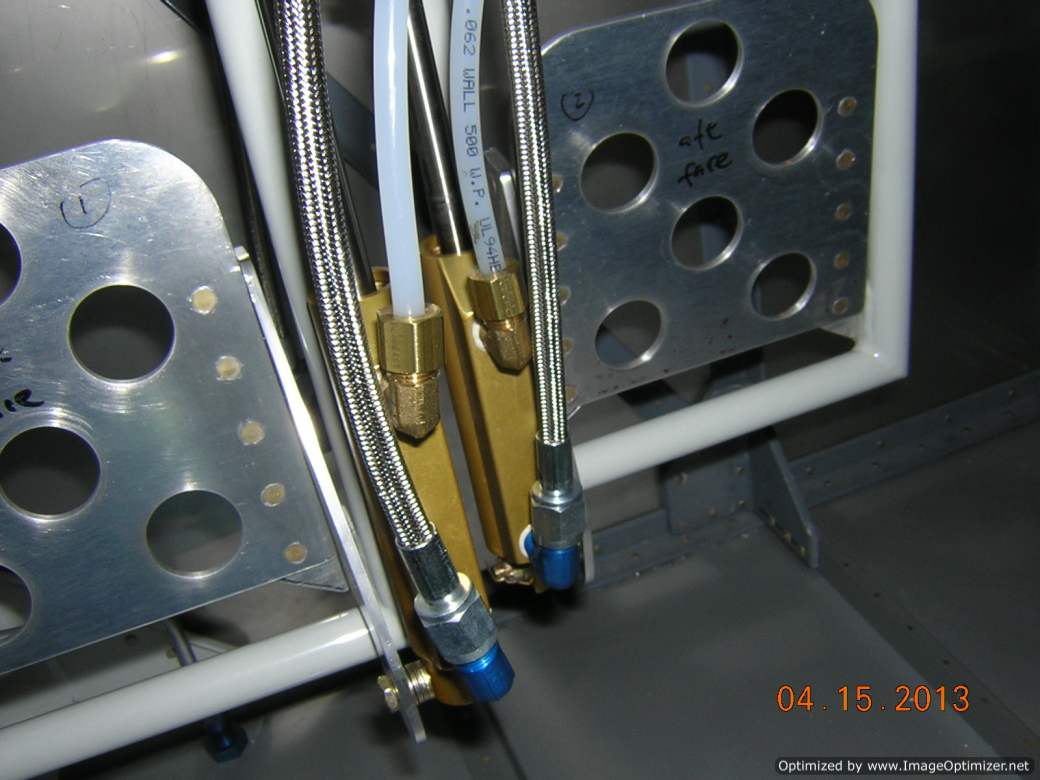

Close up view of the fittings on rudder pedal on passenger side

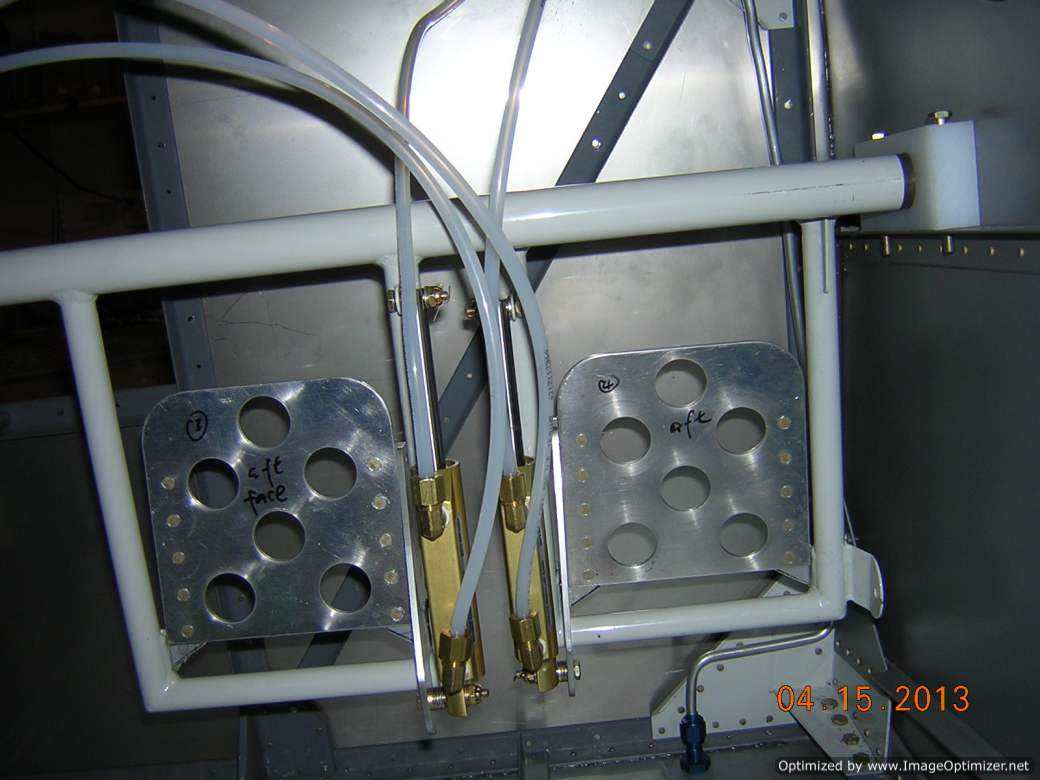

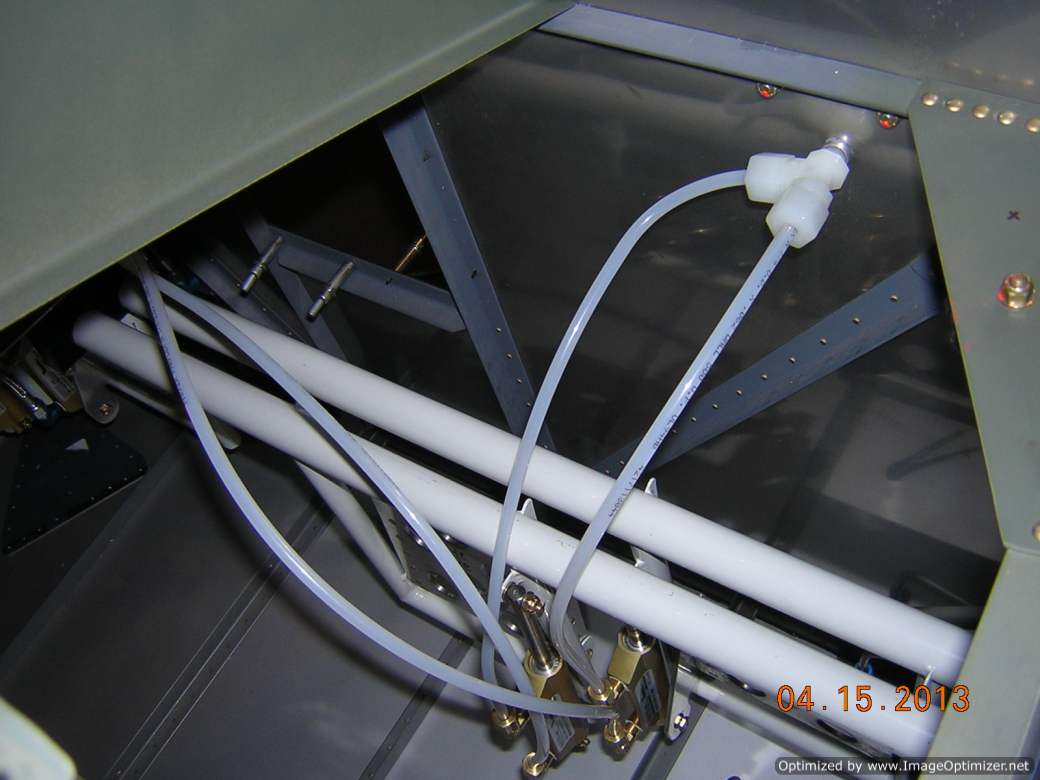

Brake lines go to brake reservoir from the passenger side
