11-17-2013: 4 hrs
Then I installed the throttle cable bracket, it's a relatively easy job, no problem, just a little difficult to safety wire the two bolts due limited space. Moving on to the mixture control cable bracket, I found the cable is about two inch short, that I can't attach the cable to the bracket using the two nuts on the cable. After tweaking around a bit, I found I can strech the cable a bit longer if I adjust the routing a bit. I drilled a hole on the rudder pedal brace so the mixture cable can cross right through it. That extra length made the cable attachment to the bracket possible, even just barely.

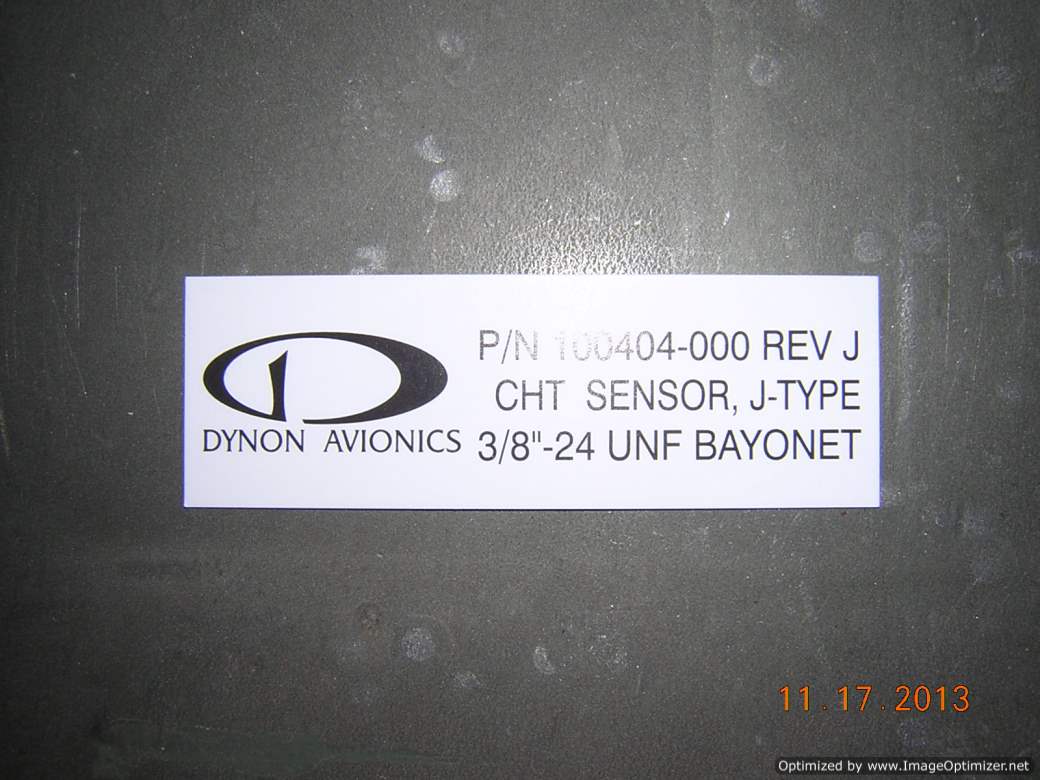

Label for CHT sensor, just a shot for reference

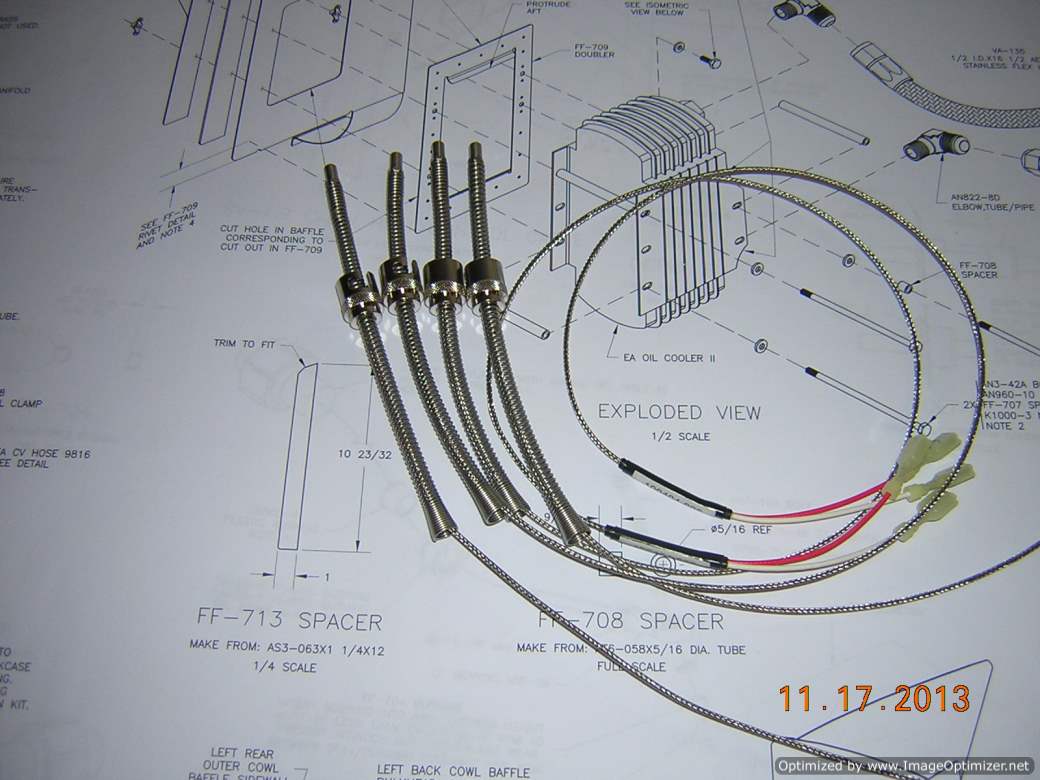

Just a picture showing the CHT sensors

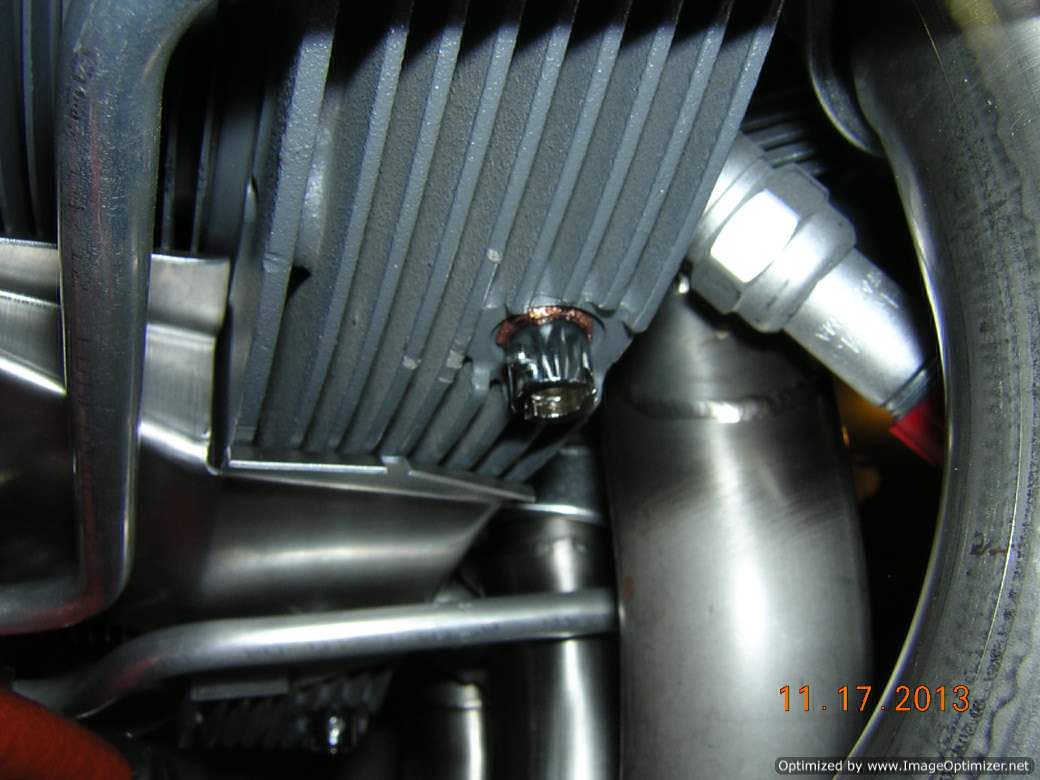

The CHT sensor adaptor is installed to cylinder head

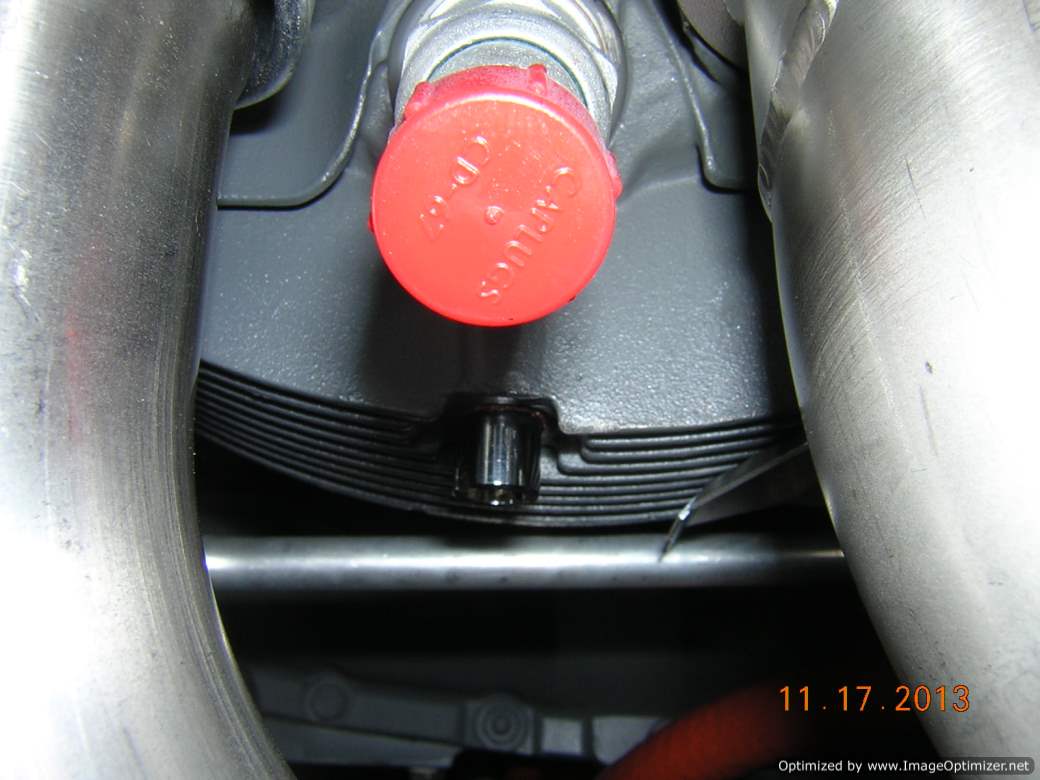

Another shot

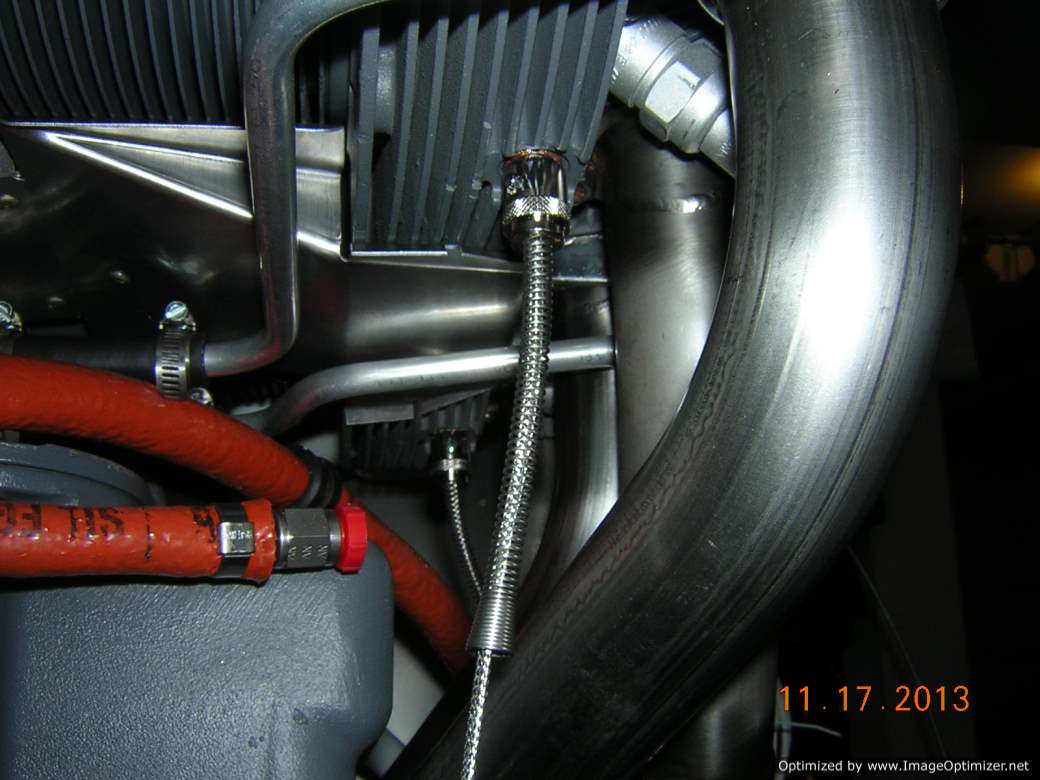

Sensor is then installed to the adaptor. The length of the sensor needs to be adjusted for appropriate spring load

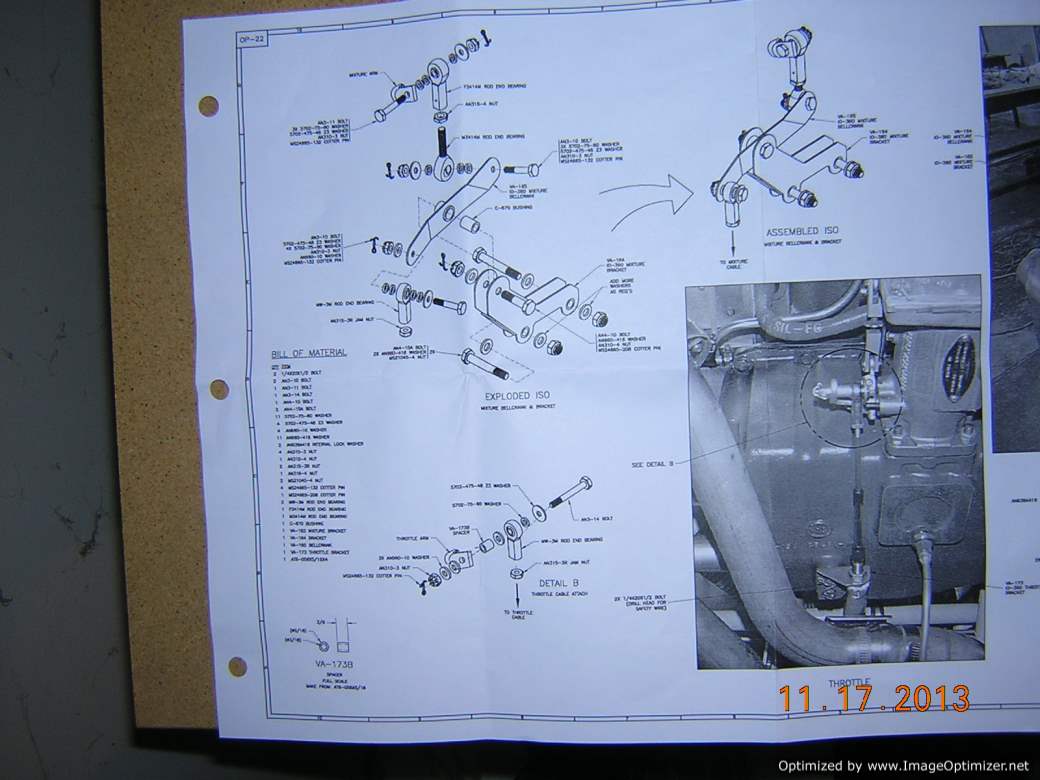

Pictures showing throttle control cable bracket installation

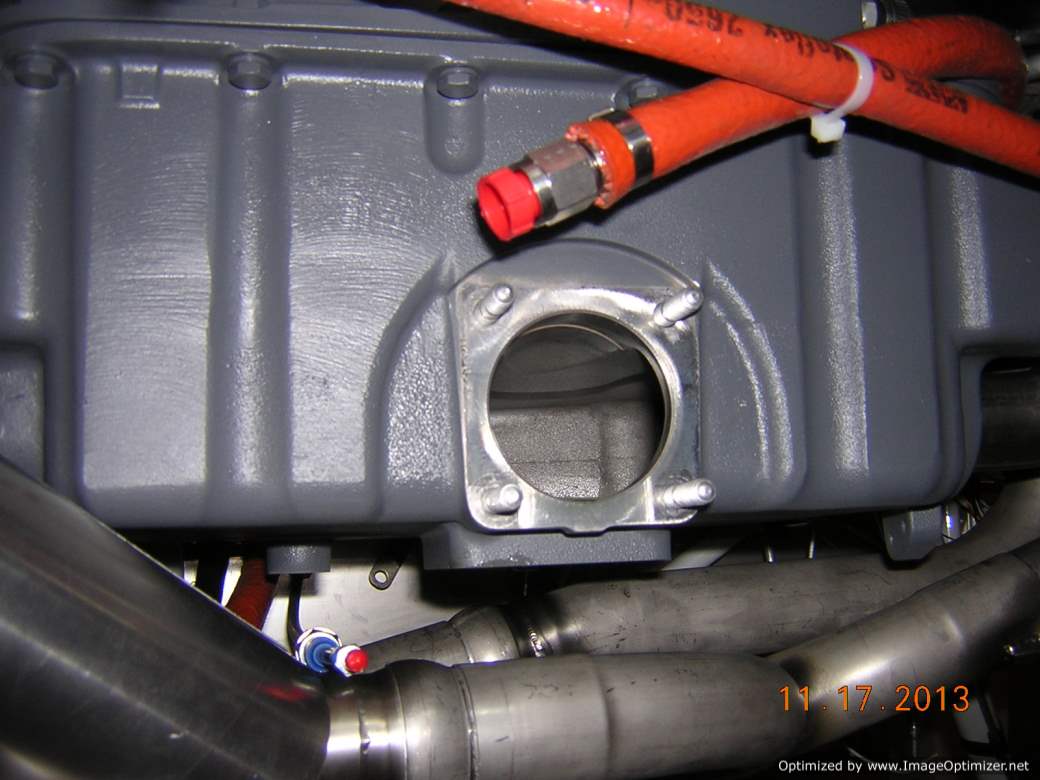

The plate screwed to the inlet air plenum is removed. Throttle body will be installed here

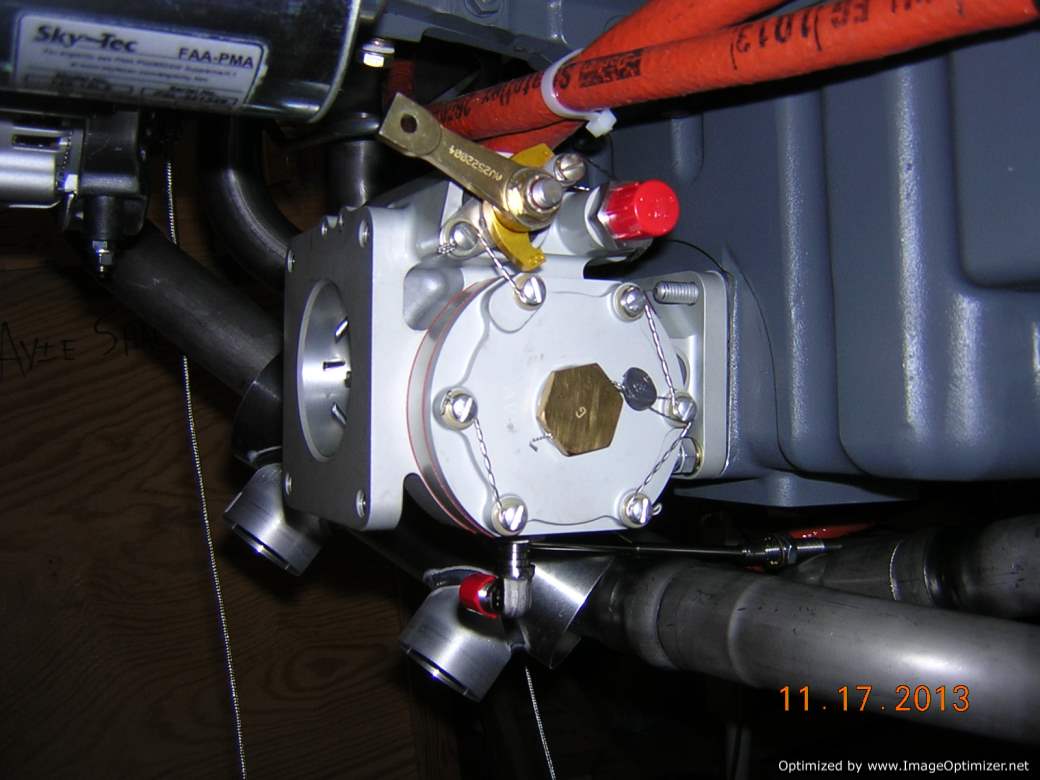

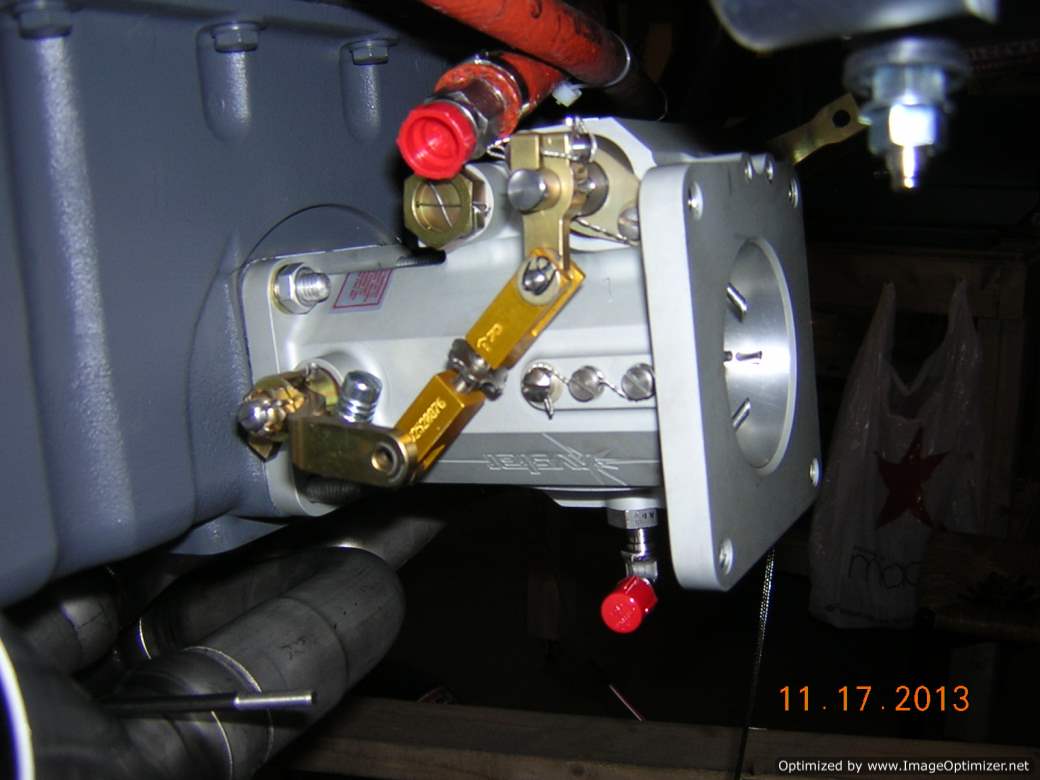

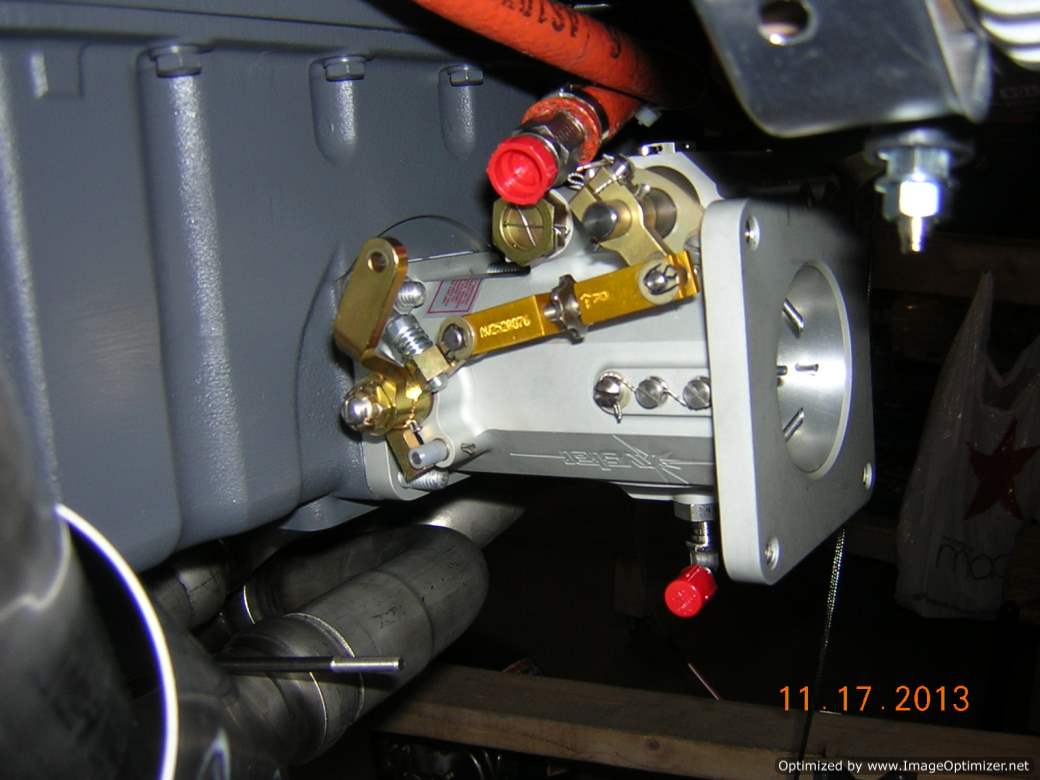

Throttle body is on
Mixture control arm at ICO (idle cut off) position
Throttle control arm in idle position

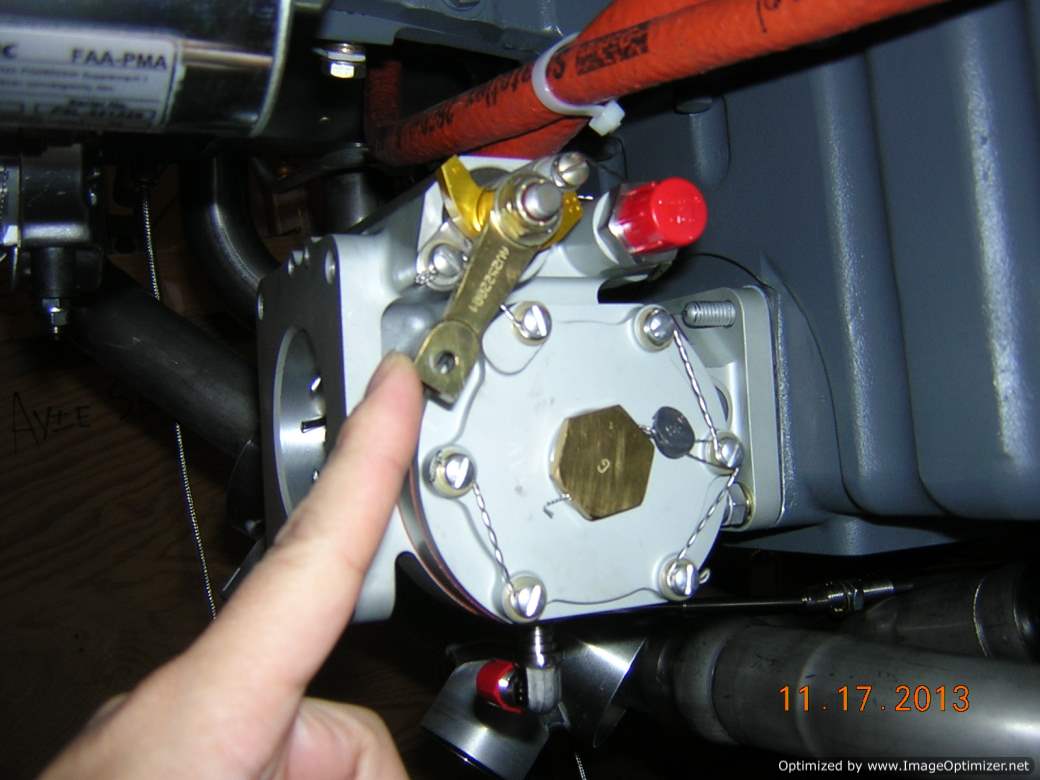

Throttle control arm in full open position

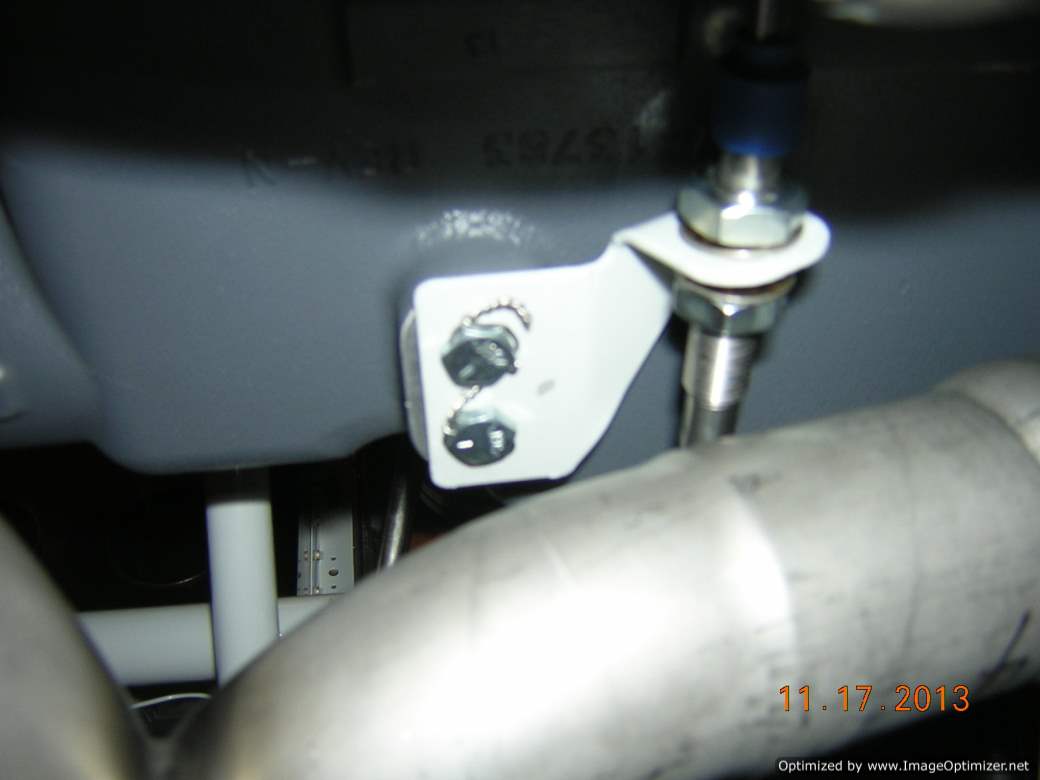

Throttle cable bracket is mounted to engine, and safety wired

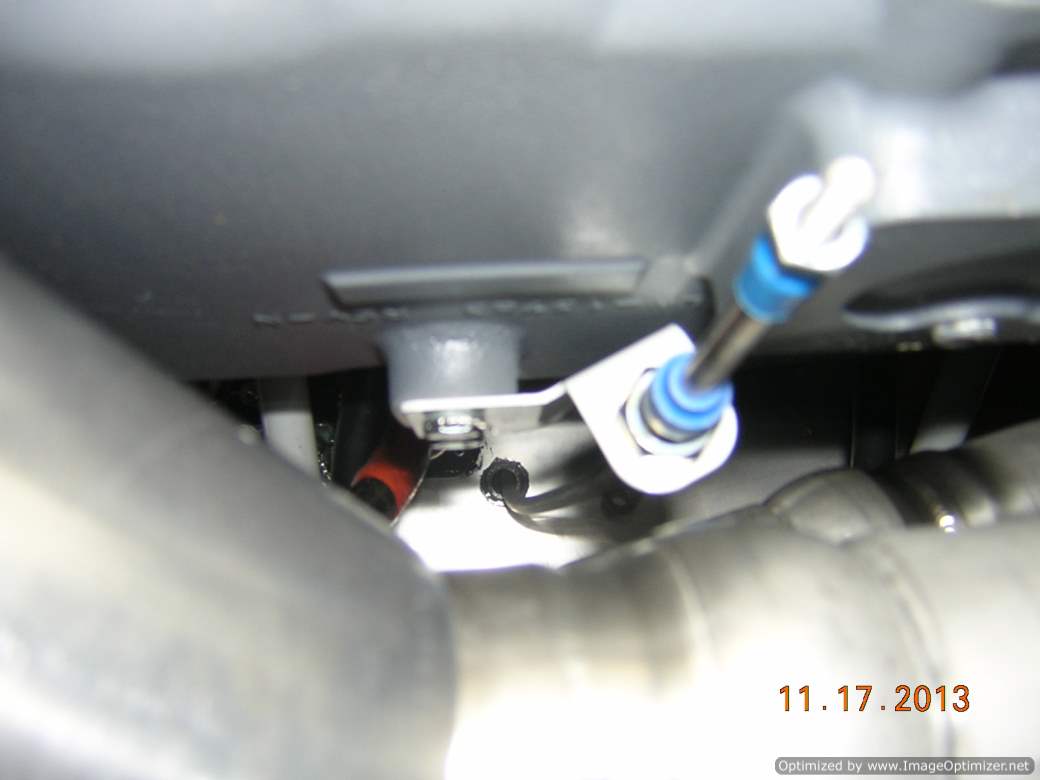

The clearance between throttle cable and exhaust pipe looked good
Another picture showing the clearance

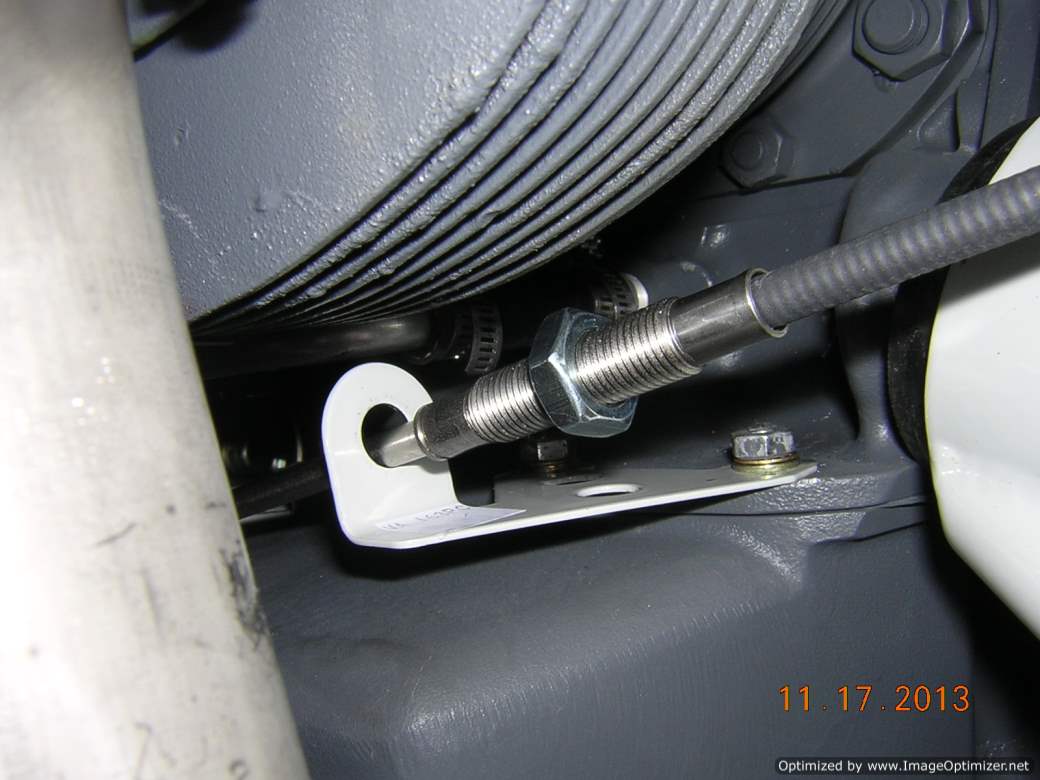

Mixture control cable bracket is mounted to engine as well

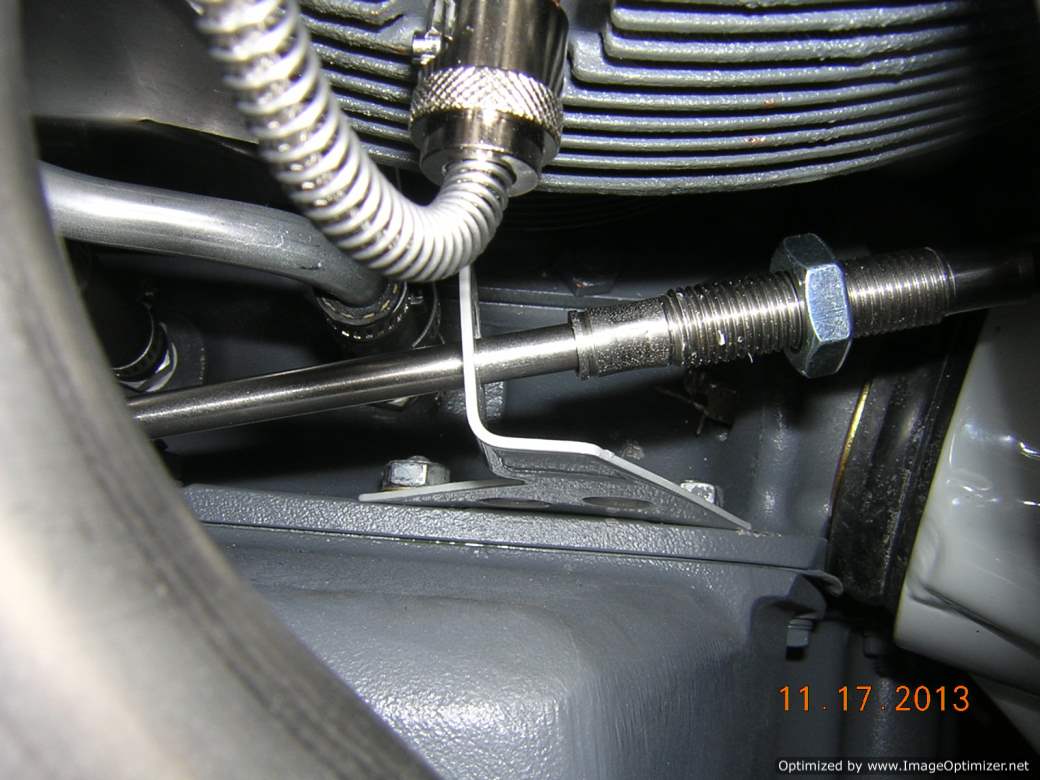

Mixture control cable bracket

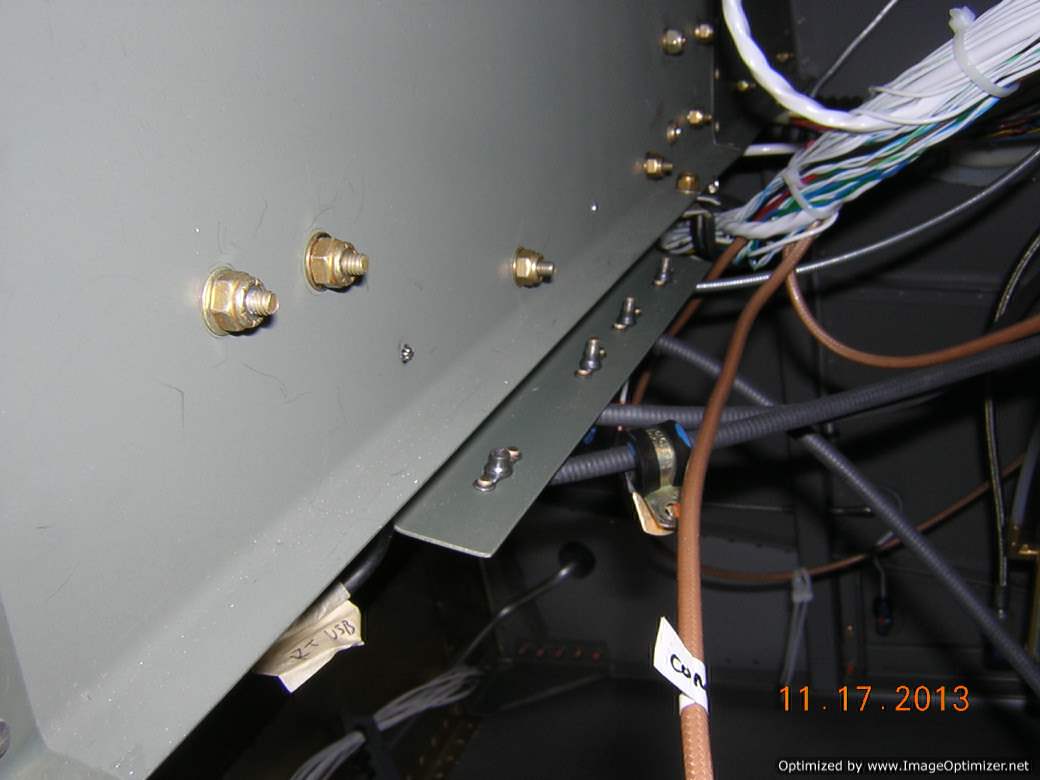

The cables has to be re-adjusted at the fwd mounting bracket so the mixture cable can be mounted to the bracket on the engine

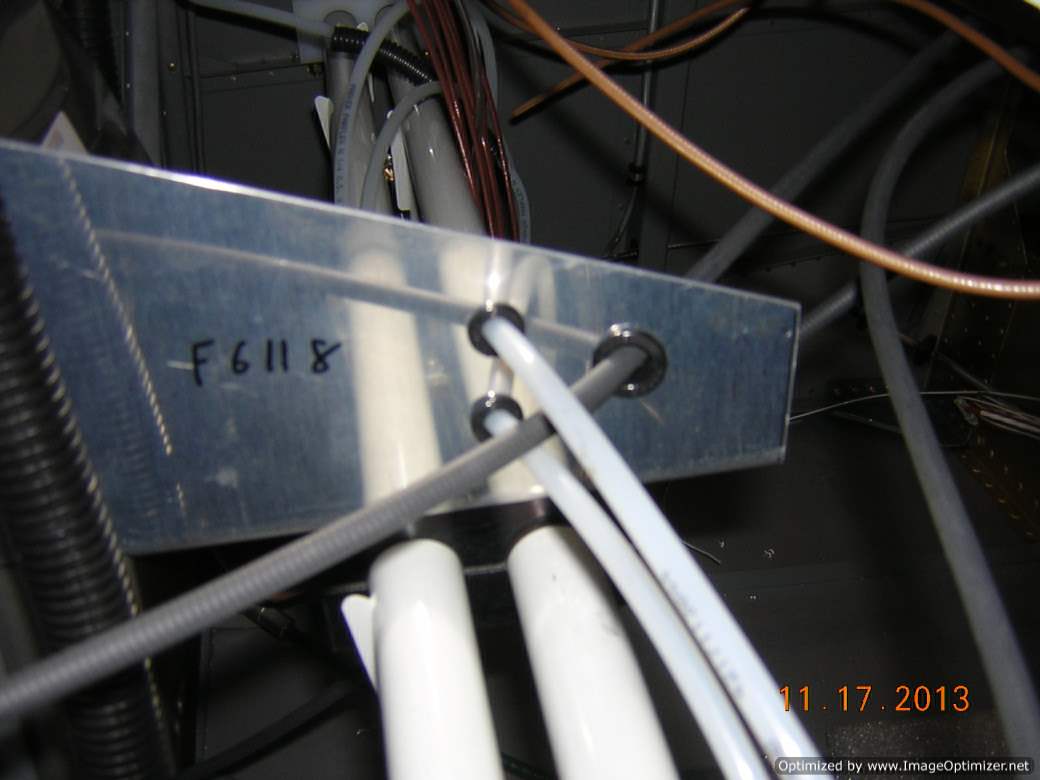

To adjust the length, the mixture cable passes through rudder pedal brace like this

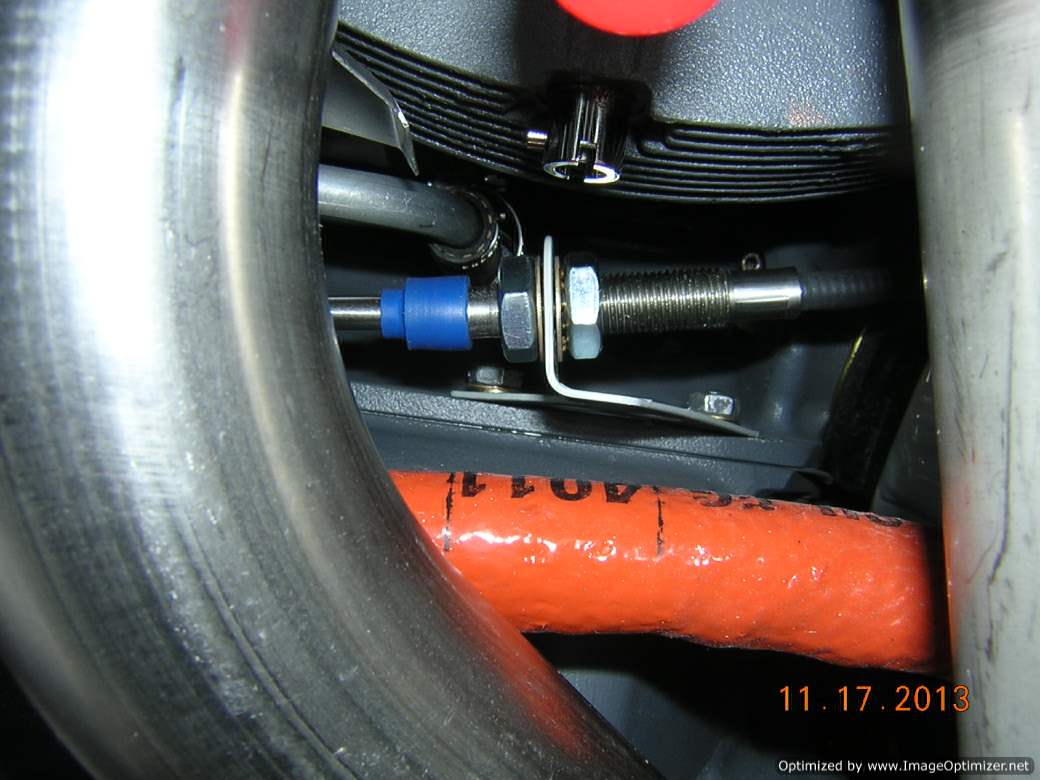

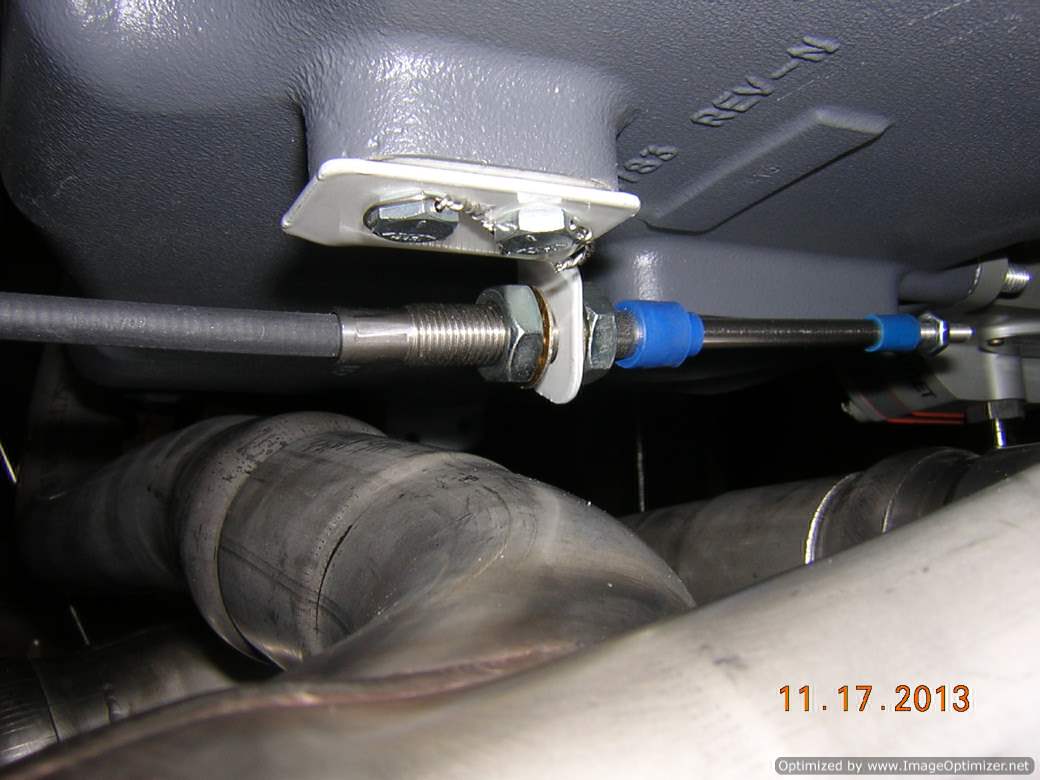

Now the mixture cable can be secured to the bracket that is mounted on the oil sump flange

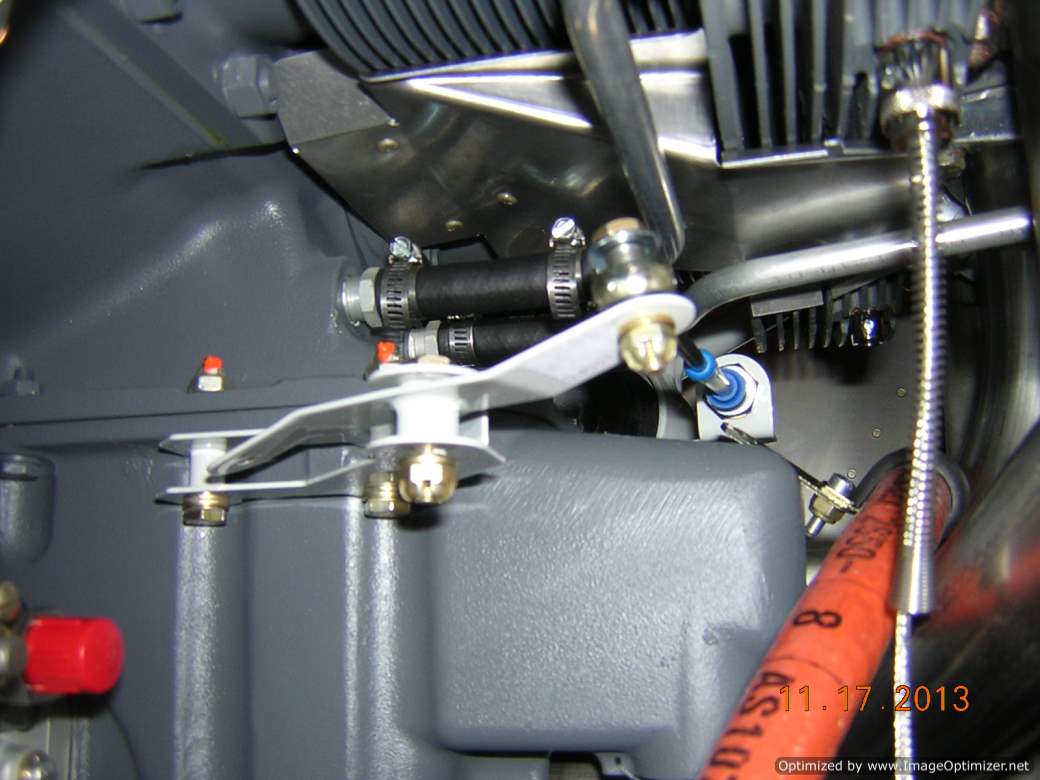

Bell crank for mixture control is installed
